Features. Custom Electronics Box Designs and Panel Mounting. Master Remote Control Function. 4K Daisy-chain & video wall processing

(1)

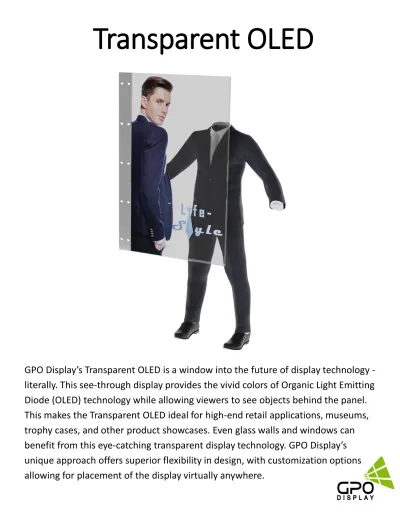

GPO Display’s Transparent OLED is a window into the future of display technology

-literally. This see-through display provides the vivid colors of Organic Light Emitting

Diode (OLED) technology while allowing viewers to see objects behind the panel.

This makes the Transparent OLED ideal for high-end retail applications, museums,

trophy cases, and other product showcases. Even glass walls and windows can

benefit from this eye-catching transparent display technology. GPO Display’s

unique approach offers superior flexibility in design, with customization options

allowing for placement of the display virtually anywhere.

(2)

For some applications, there is limited room for additional equipment. To help with this, the Electronics Box

(e-Box) which drives the Transparent OLED panel can be customized to ensure a proper fit in even the tightest

spots. Custom mounting for T-OLED panels in any orientation can also be accommodated.

Custom

Electronics Box Designs and Panel Mounting

3.5mm combined (ON55NLU)

Features

Transparent OLEDs feature three HDMI inputs, two DisplayPort inputs, and one DisplayPort output which

supports the daisy-chaining of a 4K/60Hz signal through up to 20 units and 4K/30Hz signal through up to 25

units. The advanced tiling and scaling features of the e-box make the creation of T-OLED video walls simple

and easy. No additional video wall processing or advanced graphics cards are required to flip the top row of a

two-row video wall, reducing the overall cost of transparent video wall/multi-panel systems.

4K Daisy-chain

& video wall processing

Multiple daisy-chained Transparent OLEDs can be controlled using a single IR remote controller. This eliminates

the need for costly third-party control systems in many applications and makes it easy for users to quickly power

displays on/off and change settings on the fly.

Master

Remote Control Function

Design

Flexibility

T-OLEDs come with 40cm FFPC cable standard with the option of 1m or 3m MCX cables, allowing installers to

place the electronics/input box far from the OLED panel, unlike most transparent displays. This makes it possible

to fit the display in areas where other transparent OLEDs with integrated electronics cannot. Electronics boxes can

also be redesigned to fit in tight spots when needed.

GPO Display’s T-OLEDs can be rotated into portrait orientation or even inverted in landscape when hung from a

ceiling or placed in a video wall configuration. The onboard processing allows for image rotation so that no

additional equipment is needed. This reduces costs, saves space, and simplifies design.

(3)

Panel

Attributes

Dimensions

,Power & Other

Electrical Ratings AC 100 - 240V (50/60Hz)

Power Consumption 320W (Max.)

Operating Temperature 32°F -104°F

Operating Humidity Range 10~80%

Possible Display Type Landscape and Portrait-Compatible Operation Time 18hrs/day *Moving video only

Bezel Width(mm) 3.47/3.47/4.32/55.8 (L/R/T/B) *B (without Cover Bracket) Dimensions 750.12 x 122.94 x 9.10 mm, 17Kg / 29.53 x 4.84 x 0.35 in, 37.5lbs Warranty One Year (Limited Parts & Labor)

Connectivity

HDMI (input) x3 (3840x2160 @60Hz) DisplayPort (Input) x2 (3840x2160 @60Hz) DisplayPort (Output) x1 (3840x2160 @60Hz) RS232C (Input) x1 RS232C (Output) x1

USB x1 For Service

IP Control Port (RJ45) x1

Model TEB550BTS

Screen Size (Diag.) 55”

Aspect Ratio 16:9

Display Technology Active Matrix Organic Light-Emitting Diode (AMOLED) Display Active Area 47.6" (W) x 26.8" (H) (1209.6 mm x 680.4mm)

Resolution 1920 x 1080

Surface Treatment Studiglass (2mm Tempered glass Optical bonded)- Using Gorilla glass or equvalant

Transparency (Typ.) 38% (Panel)

Viewing Angle (H x V) 178 x 178

Brightness (Typ.) Full white: 150nit, Window 10% white: 400nit without Glass

Contrast Ratio (Typ.) >100k:1

Displayable Colors 10bit(D), 1.07 billion colors Response Time (Typ. GTG) <1 ms

Orientation Landscape, Portrait, Inverted (Ceiling Mount), Tabletop, Tiled Tiled Bezel Width 10mm tiled seam with air gap (L/R/T: 3.5mm B: 102.6mm)

Response Time 1ms (G to G)

Transparent-OLED

Commercial-grade OLED panel with Tempered Glass

Built-in Video Wall Processor: Tiling/Video Wall configurations possible Support for daisy-chaining of 4K video signal

Slim bezel for seamless video wall effect

Includes Video Wall Control Software

Includes necessary cables for daisy-chain of both control and video signals

(4)

Mechanical Drawing

[email protected] Tel.(510)-659-9855 Toll free 1-855-GPO-CORP (855-476-2677) www.gpodisplay.com Note: GPO Display may

change specifications and designs without notice

Accessories with product: RS-232 cable, DP cable,, AC Power Cord, Remote Control with Batteries, MCX Cables or FFC Cables for connection between panel and E-Box, LC Cable, User manual & Software on USB Flash Drive

Installation Flexibility

Transparent OLEDs can be configured in a wide variety of ways. From video walls to kiosks to standalone

displays, the possibilities are virtually endless. Below are a few examples showing the possible configurations of

T-OLED panels. GPO Display’s onboard processing capabilities allow for the expansion of a source over multiple

displays as well as the rotation of images. In the portrait video wall example below, additional processing

functions are used. Sections of the image are broken up and then rotated either 90 or 270 degrees, depending

on the panel position.

Panels can also be inverted for ceiling mounting/hanging purposes. GPO Display can also add small, clear

connectors to join corners of panels in either video wall configurations or corner-adjacent multi-screen setups

as shown below

.

(5)

Mechanical Drawing

Components:

Note: GPO Display may change specifications and designs without notice

T-OLED Openframe (panel)

Data Cable (FFPC or MCX - joins E-Box and T-OLED)

E-Box (Electronics Box)

Data Cable x 4

EVDD Cable x 2

E-BOX

T-OLED Openframe

There are three types of data cable connectors available to join the E-Box

and the T-OLED panel:

1. 40cm FFPC Cable (standard/default)

2. 1m MCX Cable (optional)

3. 3m MCX Cable (optional)

Designers should select the cable which best matches the run distance

from the E-Box to the T-OLED in their setup to ensure the cleanest cable

management.

E-Boxes may also be customized according to available space. Pages 8-11

show several possible E-Box designs.

(6)

Mechanical Drawing

[email protected] Tel.(510)-659-9855 Toll free 1-855-GPO-CORP (855-476-2677) www.gpodisplay.com Note: GPO Display may

change specifications and designs without notice

TEB55BTS

55inch T-OLED – Optically-bonded 4T Glass Front, 2T Glass Rear, bonded Bracket for ceiling

hanging, Bracket for post-cabling cosmetic cover:

(7)

Mechanical Drawing

WB-55BTS

Wall Bracket for TEB55BTS

(8)

Mechanical Drawing

[email protected] Tel.(510)-659-9855 Toll free 1-855-GPO-CORP (855-476-2677) www.gpodisplay.com

3 E-Box Designs are available:

1) Basic

2) Slim

3) Deconstructed: Power Box (P-Box) and main Electronics Box (E-Box) separated

EB55BTS-BS : Basic Design

(9)

Mechanical Drawing

EB55BTS-SL : Slim Design

(same as Basic but slimmed-down box design)
