Direct Antenna Modulation using Frequency Selective Surfaces

(1)

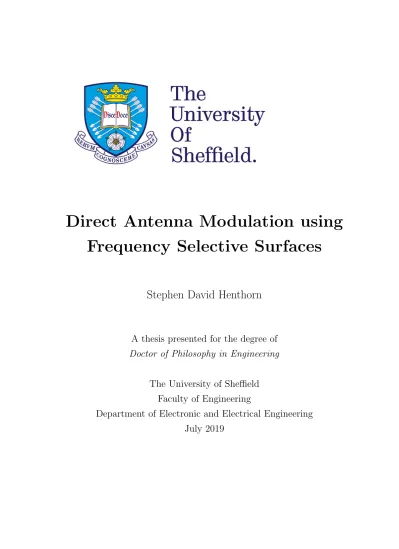

Direct Antenna Modulation using

Frequency Selective Surfaces

Stephen David Henthorn

A thesis presented for the degree of

Doctor of Philosophy in Engineering

The University of Sheffield

Faculty of Engineering

Department of Electronic and Electrical Engineering

July 2019

(2)

Acknowledgements

I am indebted to my supervisors Dr. Lee Ford and Professor Tim O’Farrell for the oppor-tunity to carry out this research, as well as their continued support both academically and professionally. Thank you for all the opportunities you have pointed in my direction, I hope I made the best of them.

This work was funded by an EPSRC iCASE award, with industrial sponsors NEC Telecom Modus and BT Adastral. Many thanks to my industrial supervisors, Dr. Patricia Wells at NEC Telecom Modus and Mike Fitch at BT Adastral, for their input and guidance on this project. Further thanks go to all the people at NEC Telecom Modus who gave their insight and helped direct the project. Thanks also go to Simon Fletcher, now of Real Wireless, who was instrumental in the creation of this iCASE award.

This project is also affiliated with the EPSRC funded FARAD project, with academic partners at the University of Bristol, and industrial partners NEC Telecom Modus, Thales Ltd, uBlox UK Ltd, Mobile VCE, Orange Corporate Services Ltd, Cascoda Limited, Chem-ring Technology Solutions, Fujitsu and Harada Industries (Europe) Ltd. Many thanks to the organisers of the industrial-academic seminars for allowing me time to share my research at these events, and all of the delegates from all institutions for their helpful comments and guidance.

I also thank my family, who have always been a support when I need it. I apologise for continuing to fulfil their prediction that I would go to University and never leave. My greatest thanks go to my fianc´ee Emily, who has been a tireless support day in and day out through all the changing scenes of the past few years, in trouble and in joy.

(3)

Abstract

In the coming years, the number of connected wireless devices will increase dramatically, expanding the Internet of Things (IoT). It is likely that much of this capacity will come from network densification. However, base stations are inefficient and expensive, particularly the downlink transmitters. The main cause of this is the power amplifier (PA), which must amplify complex signals, so are expensive and often only 30% efficient. As such, the cost of densifying cellular networks is high.

This thesis aims to overcome this problem through codesign of a low complexity, energy efficient transmitter through electromagnetic design; and a waveform which leverages the advantages and mitigates the disadvantages of the new technology, while being suitable for supporting IoT devices. Direct antenna modulation (DAM) is a low complexity transmitter architecture, where modulation occurs at the antenna at transmit power. This means a non-linear PA can efficiently amplify the carrier wave without added distortion.

Frequency selective surface (FSS) are presented here as potential phase modulators for DAM transmitters. The theory of operation is discussed, and a prototype DAM for QPSK modulation is simulated, designed and tested. Next, the design process for a continuous phase modulating antenna is explored. Simulations and measurement are used to fully characterise a prototype, and it is implemented in a line-of-sight end-to-end communications system, demonstrating BPSK, QPSK and 8-PSK.

Due to the favourable effects of spread spectrum signalling on FSS DAM performance, cyclic prefix direct sequence spread spectrum (CPDSSS) is developed. Conventional spread-ing techniques are extended usspread-ing a cyclic prefix, makspread-ing multipath interference entirely defined by the periodic autocorrelation of the sequence used. This is demonstrated analyti-cally, through simulation and with experiments. Finally, CPDSSS is implemented using FSS DAM, demonstrating the potential of this new low cost, low complexity transmitter with CPDSSS as a scalable solution to IoT connectivity.
