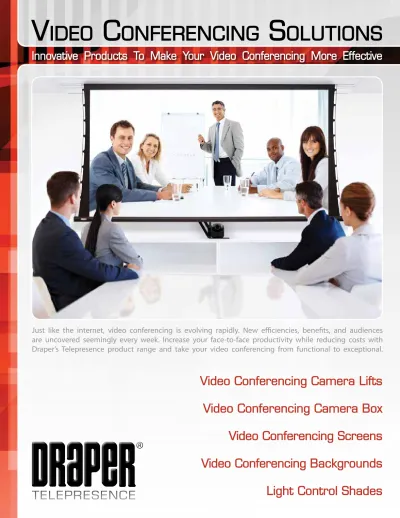

Video Conferencing Solutions

(1)

V

ideo

C

onferenCing

S

olutionS

Innovative Products To Make Your Video Conferencing More Effective

Video Conferencing Camera Lifts

Video Conferencing Camera Box

Video Conferencing Screens

Video Conferencing Backgrounds

Just like the internet, video conferencing is evolving rapidly. New efficiencies, benefits, and audiences

are uncovered seemingly every week. Increase your face-to-face productivity while reducing costs with

Draper’s Telepresence product range and take your video conferencing from functional to exceptional.

(2)

Draper’s Video

Conferenc-ing Camera Lift is designed

to make video conferencing

more effective. It lowers your

camera precisely to where

you need it, when you need

it there. When not in use the

camera is retracted into the

ceiling, out of the way, and

better protected from

damage or theft.

V

ideo

C

onferenCing

C

amera

l

iftS

Draper offers six different options to conceal your video conferencing camera when not in use.

V

ideo

C

onferenCing

C

amera

L

ift

– C

eiLing

Draper’s Video Conferencing Camera Lift - Ceiling is a unique product designed expressly for video conferencing cameras. It conceals the camera just above the ceiling and out of the way when not in use, and lowers it into position immediately below the bottom edge of a ceiling mounted projection screen surface in “down” position. Sleek, ceiling-recessed case features motorized door clo-sures and installs directly behind screen case.

Fast, quiet, and unobtrusive, the Video Conferencing Camera Lift - Ceiling is offered in models to accommodate virtually any camera. Case dimensions are 107/16”h. x 91/2”d. x length. Accommodates cameras up to 9” w. x 7” h. x 7” d. Several sizes are available with a travel range anywhere from 72” to 1037/8” and +/- 2” of adjustability. Includes single station wall switch, other

control options available.

Shown installed behind Draper Access/Series V tab-tensioned screen

on front cover.

Draper’s knows that effective video conferencing starts with having the required technology precisely where you need it, when you need it there. Our Video Conferencing Camera Lift - Ceiling allows the placement of a video conferencing camera directly behind a motorized projection screen, synchronously raising and lowering it with the screen. The Video Conferencing Camera Lift - Credenza can be installed in virtually any conference room furnishing for simple remote operation. Tuck your camera securely away in a wall space with our Video Conferencing Camera Box. Draper’s Video Conferencing Camera Adapter Bracket allows mounting of a video conferencing camera into one of three popular Draper ceiling recessed projector lifts, depending on your needed travel range.

(3)

V

ideo

C

onferenCing

C

amera

L

ift

– C

redenza

V

ideo

C

onferenCing

C

amera

B

ox

Telepresence

The Video Conferencing Camera Lift - Credenza con-ceals your camera in a credenza, cabinet, or table and raises it quickly and quietly into position when it’s time for a conference to begin. When concealed your video conferencing camera is protected and out of the way. The product features 12” vertical travel and a tiny foot-print. It is easy to install in virtually any conference room furnishings. Comes in two interior sizes (9” w. x 71/2” h. x 71/2” d. or 12” w. x 9” h. x 9” d. ) to accommodate almost any video conferencing camera (weight limit 150 lbs.). This is a custom product that can be manu-factured to meet your specific needs. Includes single station wall switch, other control options available.

Draper’s newly redesigned Video Conferencing Camera Box recesses a camera in the wall, behind a hinged tempered glass door. Makes installing a video-conferencing camera quick and easy. Size is 1011/16” h. x 145/16” w. x 11” d. Includes lock and keys to protect sensi-tive equipment.

The Video Conferencing Camera Box enclosure fea-tures five “knock out” wire management locations for numerous cabling options. Unit is finished inside and out with durable black powder coat and front of enclo-sure features a finishing frame bezel that is

(4)

V

ideo

C

onferenCing

C

amera

l

iftS

V

ideo

C

onferenCing

C

amera

– a

dapter

B

raCket

The Video Conferencing Camera Adapter Bracket enables the simple installation of the video conferencing camera of your choice into three of Draper’s most popular video projector lifts (shown below). All are designed to safely conceal your camera above the ceiling line when not in use and lower it quickly and quietly into position for video conferencing. It’s the perfect solution when a ceiling recessed camera is needed. Video Conferencing Camera Adapter Brackets are available in 2 standard sizes (custom sizes by quotation).

AeroLift 25

Draper offers six different options to conceal your videoconferencing camera when not in use.

Two sizes to accommodate the camera of your choice: 9” w. x 71/2” h. x 71/2” d. or 12” w. x 9” h. x 9” d. Special brackets available for oversize or dual camera installation.

Maximum Travel 20”

AeroLift 50

Micro Projector Lift

(5)

V

ideo

C

onferenCing

S

CreenS

Motorized Screens

Draper offers numerous ceiling recessed and wall mounted motorized screens operable by remote, wall switch, or automation system. Visit our website for more information at www.draperinc.com/go/MotorizedScreens.htm

Manual Screens

Our ceiling recessed and wall mounted manual screens feature trouble-free spring roller operation. Visit our website at www.draperinc.com/go/ManualScreens.htm

Permanently Tensioned Screens

Draper’s permanently tensioned screens are wall mounted and offer a

truly flat theatrelike appearance. Visit our website for more information at

www.draperinc.com/go/FixedScreens.htm

Rigid Rear Screens

Room lighting should be fairly bright in order for video conferencing cameras to perform best. Draper offers a wide range of rear screen options that offer superior picture quality even in brightly lit spaces. For more information visit:

www.draperinc.com/go/RearScreens.htm

Portable Screens

Draper portable screens let you take the video conference with you. Available in a range of sizes and viewing surfaces. Visit www.draperinc.com/go/Portable.htm

for more information.

Draper offers a wide range of projection screens perfectly suited for video conferencing.

Telepresence

m

ake

Y

our

t

eLepresenCe

m

ore

d

YnamiC

DiamondScreen (Rigid Rear Screen)

Draper has been manufacturing quality projection screens for decades. Through extensive research in screen surface technol-ogy we have developed a number of surfaces well suited for video conferencing that feature controlled viewing cones, excep-tional contrast, and ambient light rejection properties. Pair one of our dynamic viewing surfaces with the perfect Draper screen model for a truly superior video conferencing experience. Visit www.draperinc.com/go/ScreenSurfaces.htm for more viewing surface information. Cineperm (Permanently Tensioned) Luma 2 (Manual) Access/Series V (Motorized) Traveller (Portable)

(6)

V

ideo

C

onferenCing

B

aCkgroundS

m

ake

Y

our

t

eLepresenCe

m

ore

i

mmersiVe

Draper offers three unique types of backgrounds to bring your video conferencing to life. If video conferencing is important to your business, why not choose a background that sets your content apart? Video Conferencing Backgrounds are offered in a range of standard sizes (custom sizes by quotation).

Neutral Backgrounds

Eliminate distractions for your camera and your viewers with soothing neutral backgrounds in six muted earth tones (Reef, Glacier, Beach, Savannah, Desert and Tundra) shown below. Prevent unwanted interference, control room lighting, and ensure a consistent corporate image worldwide with a Draper Neutral Background. They are the perfect way to add the atmosphere of a dedicated video conferencing space to existing meeting rooms, offices, or anywhere video conferences could occur.

Without Background Neutral Background

Reef Glacier Beach Savannah Desert Tundra

(7)

Telepresence

Without Background Printed Background

Printed Backgrounds

Need to convey a brand message, give your telepresence an air of professionalism, or even communicate more clearly between dif-ferent branch offices (London, New York, Beijing, etc.) within your company? No matter the message or the artwork Draper Printed Backgrounds offer unlimited potential to enhance your telepresence and make it more effective.

Chroma Key Backgrounds

Would your video conferencing benefit from including changing background im-ages or even live action video footage? Draper’s Chroma Key Backgrounds, typi-cally referred to as “blue screen” or “green screen” technology, make it easy. With Draper’s Chroma Key Backgrounds your video conferencing will never be static or

(8)

V

ideo

C

onferenCing

B

aCkgroundS

An array of video conferencing backgrounds for a more immersive communication experience.

Ceiling Recessed

VCB ACCess/series e

Sleek white extruded aluminum case in-stalls above ceiling. Trim flange finishes the ceiling opening. Background sizes from 96” h. x 70” w. to 144” h. x 144” w.

VCB UltimAte ACCess/series e

Ceiling-recessed background with an in-dependently motorized ceiling closure. When the background is retracted, the motorized closure forms a solid bottom

panel giving the ceiling a clean appearance. Background sizes from 96” h. x 70” w. to 144” h. x 144” w.

Wall or Ceiling Mounted

VCB tArgA

Pentagonal steel case is scratch-resis-tant white polyester finish with match-ing endcaps. Background sizes from 96” h. x 70” w. to 144” h. x 144” w.

Wall Mounted

VCB silhoUette/series e

Sleek, curved aluminum case and end-caps are finished in white. Slender dimen-sions and contemporary design.

Background sizes from 70” h. x 70” w. to 96” h. x 96” w.

VCB ArtisAn/series e

Artisan Series wall mounted back-grounds, available in a variety of beautiful hardwood finishes and styles, complement the fine furniture in your conference room. Background sizes from 70” h. x 70” w. to 96” h. x 96” w.

*Other models (not shown) available by quotation.

f

iVe

m

odeLs

of

m

otorized

B

aCkgrounds

to

C

hoose

f

rom

*

Need an effective background that is there for your video conferencing and out of the way when not in use? Motorized Backgrounds offer the ultimate in convenience. No matter your installation preference, Draper makes it easy to raise or lower a neutral, printed or chroma key background with the touch of a remote or wall switch. Includes single station wall switch, other control options available.

(9)

Telepresence

d

uaL

p

aneL

m

otorized

B

aCkgrounds

Take the convenience of a quality motorized background to the next level with a Dual Roller Background featuring two motorized panels in a single housing. Includes two single station wall switches, other control options available. Choose from two of three background materials (see page 6) or even two printed surfaces for different audiences. Display your location in “multiple site” video conferences.

Dual Roller Background (Wall Mounted, Printed)

VCB ACCess DUAl roller/Ceiling reCesseD

The perfect solution for concealing two panels where recessed ceiling installation is preferred, positioning the case bottom flush with the ceiling line. Enjoy simple remote control op-eration for both panels, changing quickly and easily between them to suit your audience and your message. Background sizes from 96” h. x 70” w. to 144” h. x 144” w.

VCB DUAl roller With FAsCiA/WAll moUnteD

Would you rather wall mount your Dual Roller Motorized Back-ground? Use the same simple remote control operation for both panels and is available with five attractive powder coated fascia colors (white, ivory, black, charcoal bronze, and dove grey). Background sizes from 70” h. x 70” w. to 96” h. x 96” w.

Access Dual Roller Background (Ceiling Recessed, Printed)

(10)

V

ideo

C

onferenCing

B

aCkgroundS

s

pring

r

oLLer

o

perated

B

aCkgrounds

Add a dynamic background to your video conferences for more compelling communications with this cost effective, low profile and simple to operate solution. Draper Spring Roller Operated Backgrounds can be mounted almost anywhere (wall, ceiling and ceiling re-cessed), pulled down at a moment’s notice and take the professional impact of your message to the next level. Background sizes from 96” h. x 70” w. to 144” h. x 144” w., dependent on case style.

Spring Roller Operated Background (Printed)

Choose the model best suited for

your installation and style

prefer-ences including VCB Luma 2,

VCB Silhouette/Series M or

VCB Artisan/Series M Spring

Roller Operated Backgrounds.

p

ermanentLY

t

ensioned

C

hroma

k

eY

B

aCkground

Planning a dedicated video conferencing space employing frequent use of inserted background graphics and video? Draper Perma-nently Tensioned Chroma Key Background can ensure the ultimate in flatness, tonal integrity and invisible framing for your dynamic background content. Sizes from 54” h. x 72” w. to 78” h. x 104” w.

Permanently Tensioned Chroma Key Background

Combine our popular Draper

Wraparound Clarion frame

with your choice of blue or

green Chroma Key surface

for the most dynamic

telepresence possible.

Post Production

(11)

VCB t

raVeLLer

p

ortaBLe

B

aCkground

L

ight

C

ontroL

s

hades

Telepresence

Setup and video conference anywhere while maintaining the strength of your message with the Traveller Portable Background! The increasingly mobile nature of video conferencing dictates that your background be mobile as well. It’s the perfect neutral, printed or chroma key background solution in a durable streamlined case that’s perfectly portable. Don’t compromise the impact of your message just because you video conference in your office, on the road or even at a tradeshow. Sizes from 77” h. x 411/2” w. to 107” h. x 811/2” w.

Traveller Portable Background (Printed)

Just because you’re mobile

doesn’t mean you can’t

main-tain control of your

telepres-ence. The Traveller Portable

Background sets up quickly

and easily wherever

you video conference!

With over 110 years of experience Draper is uniquely qualified to provide solar control solutions for the widest range of customers’ needs. Our extensive library of shade fabric colors and characteristics not only ensures effective solar control but also that the light qual-ity and light color in video conferencing spaces is not compromised. Don’t let glare and improper light color detract from your message or conference participants. Choose Draper motorized or manual window shades and take control of your telepresence.

Draper Light Control Shades

feature the fabric colors and

characteristics best suited

for controlling sunlight

(12)

411 s. pearl st., spiceland, In 47385 UsA www.draperinc.com 765-987-7999 fax 765-987-7142 Form: VcB2012
