1 2
3 4
2 1
3 4
B
A
B
A
PanelView Plus 600 PanelView Plus 600
9300-RADES Remote Access
Dial-In Paging Modem
Phone
Ultra 3000

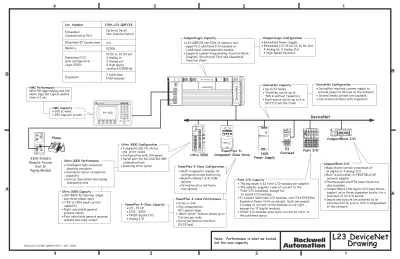

L23 DeviceNet Drawing
Note: Performance is what we tested, not the max capacity
PV+ 600
PowerFlex 4-Class Performance
• V/Hz or SVC
• Slip compensation 40:1 speed range
• "Multi-Drive" feature allows up to 5 drives per node
• Serial peripheral interface (19.2K bps)
Ultra 3000 Performance
• Intelligent high resolution absolute encoders
• Automatic motor recognition capability
• Sercos, DeviceNet and analog communications
PowerFlex 4-Class Configuration
• Built-in operator display for configuration and monitoring
• Remote (Nema 1 & 4) HIM options
• DriveExecutive software tool options
PowerFlex 4-Class Capacity
• 0.5 - 15 HP
• 120V - 600V
• 24vDC digital I/O
• Analog I/O Ultra 3000 Capacity
• 100-480V AC Options, single and three-phase input
• 7.5A to 150A peak current capability
• Eight selectable general purpose inputs
• Four selectable general purpose outputs and relay output
• Embedded Power Supply
• Embedded I/O 16 DC In, 16 DC Out, 4 Analog In, 2 Analog Out
4 High Speed Counters
HMI Capacity
• 200 screens
• 250 tags per screen
CompactLogix Capacity CompactLogix Configuration
• L23-QBFC1B has 512K of memory and supports 2 additional I/O modules or 1 additional comm/specialty module
• Supports Ladder Programming, Function Block Diagram, Structured Text and Sequential Function Chart
Point I/O Capacity
• The maximum is 63 Point I/O modules per adapter
• The adapter supplies 1 amp of current to the Point I/O backplane, enough for
13 digital I/O modules.
•To connect additional I/O modules, add 1734-EP24VDC Expansion Power Units as needed. Each one passes 1.3 amps of current to the modules on its right -- enough for 17 digital modules.
• Other I/O modules draw more current so refer to the published specs.
CompactBlock I/O
• Base blocks contain a maximum of 16 digital or 4 analog I/O.
• Built-in DeviceNet or PROFIBUS DP network adapter.
•Thermocouple and RTD base blocks are also available.
• CompactBlock LDX digital I/O base blocks support up to three expansion blocks, for a maximum of 64 I/O points
• Inputs and outputs are powered by an external 24V dc source that is independent of the network.
HMI Performance
With 50 tags/display and 100 alarm tags the typical update time is 2 sec
Embedded
Communication Port EtherNet/IP Connections Memory
Embedded I/O (pre-configured in Logix 5000)
Expansion
Isolated Serial Non-Isolated Serial
n/a 512KB
16 DC in, 16 DC out 4 Analog in, 2 Analog out.
4 High speed counters (250KHz) 2 Additional 1769 modules 1769-L23-QBFC1B Cat. Number
DeviceNet
DeviceNet Configuration
• DeviceNet requires a power supply to provide power to devices on the network.
• Several media options are available
• Can extend distance with repeaters DeviceNet Capacity
• Up to 63 nodes
• Trunkline can be up to 500 m without repeaters
• Each device can be up to 6 m (20 ft) from the trunk
PowerFlex 4- Component Class Drive Ultra 3000 Configuration
• 7 segment LED for status and error codes
• Configuration with Ultraware
• Serial port for RS-232/RS-485 communications
• Indexing drive option
DeviceNet
CompactLogix L23
QBFC-1B
Point I/O
CompactBlock I/O
E3 Overload 1606
Power Supply Ultra 3000
Publication IASIMP-QR011A-EN-P – April, 2008
About this Configuration: L23 DeviceNet System
This CompactLogix based system with two integrated serial ports and an add-on DeviceNet communication module offer an economical solution to serve a variety of applications. It matches the basic layout of a classic control system, but provides the functionality of the Integrated Architecture.
About the Products
Logix Controllers
• A common set of controls, networks, and programming software available in multiple hardware platforms
• Multiple control disciplines in a single controller - sequential / drives / process
• Multiple Program Languages available in all controllers - Ladder Diagram, Function Block, Structured Text, and Sequential Function Chart
• Embedded RS-232 port provides remote access as well as ASCII, DH-485, DF-1,
Modbus Master/Slave and bridging to other networks enabling remote device configuration
• Tag-based architecture instead of addresses System: Controller Hardware
1 1769-L23 COMPACTLOGIX L23-QBFC1B PROCESSOR HMI Hardware
1 2711P-T6C5D PANELVIEW PLUS 600 COLOR TOUCH TERMINAL
Distributed I/O Hardware - Point I/O 1 1734-ADN 1734 DEVICENET ADAPTER 1 1734-FPD FIELD POTENTIAL DISTRIBUTOR 1 1734-IA2 120 VAC 2 CHANNEL INPUT MODULE 1 1734-OA2 120/230 VAC 2 CHANNEL OUTPUT
MODULE
2 1734-TB MODULE BASE W/ REMOVABLE IEC SCREW TERMINALS
Distributed I/O Hardware - CompactBlock
1 1790D-T4T0 DNET LDX 4 INPUT THERMOCOUPLE BASE TERMINAL BLOCK
1 1790-T16BVOVX 24 LDX, VDC 16 UNIVERSAL IN EXPANSION TERMINAL BLOCK 1 1790-TOW8X 8 LDX, RELAY OUTPUT EXPANSION
TERMINAL BLOCK
1 2098-DSD-XXX 25A 460V, Three-phase with DeviceNet
Drive Hardware 1 22A-A1P5N114 POWERFLEX 4 DRIVE
1 22-COMM-D POWERFLEX 4DEVICENET INTERFACE 1 22-XCOMM-DC EXTERNAL DSI COMM BASE KIT Note: PowerFlex drives come in many variations - before ordering, you will need to identify voltage rating, horsepower, enclosure type. In addition, you may wish to add on optional equip- ment, such as HIM module or Brake Resister. Please refer to the PowerFlex Selection Guide for additional details on
selecting the right drive for you application.
1 2098-DSD-XXX 25A 460V, Ultra 3000 Drive Three-phase with DeviceNet Qty Catalog # Description
Distributed Devicenet Devices
1 193-EC1AB E3 ELECTRONIC OVERLOAD RELAY, 100-C09...C23, 1-5A CONFIGURATION TOOL REQUIRED 1 9324-RLS200ENE* RSLOGIX 5000 MINI
LADDER ONLY
Note: CompactLogix Controllers can be programmed using RSLogix 5000 Mini, Lite, Standard, or Pro. If you plan to use the four programming languages purchase the Lite edition.
1 9701-VWM015AENE FACTORY TALK VIEW MACHINE EDITION 1 9357-DNETL3 RSNETWORX FOR DEVICENET
• Touchscreen, keypad or combination
• Integrated EtherNet/IP and RS-232 communications (most models), add-on communications for many other networks
• Advanced Operator Interface features such as trending, expressions, data logging, animation.
CompactBlock LDX I/O
• CompactBlock LDX I/O is ideally suited for light industrial and commercial applications.
• Compact design of hardware lets it fit into shallow enclosures and confined areas.
• DeviceNet and PROFIBUS DP are supported.
• Up to 64 points can be addressed on a single network node.
• I/O types include AC/DC, analog, RTD, and thermocouple.
• Choice of D-shell connector for convenient disconnection or fixed screw terminals for I/O connections.
PowerFlex Drives
• Serves applications ranging from 0.2 kW (0.25 hp) to 6,770 kW (9,000 hp).
• Common set of networks, operator interface and programming for all PowerFlex drives
• Communication Options – Ethernet/IP, ControlNet, Devicenet, DH Plus, RIO, 3rd party networks
• Hundreds of pieces of status and diagnostic information are shared with Logix controllers directly
Point I/O
• Available in IP-20 or IP-67 styles
• Densities from 2-8 points per module
• Removable screw or spring terminals without rewiring
• Mounts horizontally or vertically with no derating required
• Supports EtherNet/IP, ControlNet, DeviceNet and 3rd party networks
Ultra 3000
• 230V serves applications from 0.5 to 15kW, continuous output current 2.5 to 65 Amps with peak output current from 7.5 to 150 Amps.
• 460V serves applications from 3 to 22 kW, continuous output current from 7 to 47 Amps with peak output current from 14 to 94 Amps.
• Built-in support for multi-turn absolute encoders with option to supply external logic power to maintain position during power loss.
• Ultra 3000i's built-in indexing capability can eliminate the need for a motion controller or PLC Card for point to point positioning moves.
• RSLogix 5000 is only software required for both sequential and motion control.
For More Information and Help
For more information contact your local distributor or Rockwell Automation sales representative.
• www.ab.com
• Publication Library
• My Support
• A – Z Product Directory
1 2
3 4
2 1
3 4
B
A
B
A
PanelView Plus 600 PanelView Plus 600
Phone
L23E Drawing
Note: Performance is what we tested, not the max capacity
PV+ 600
9300-RADES Remote Access
Dial-In Ethernet Modem
PowerFlex 4-Class Performance
• V/Hz or SVC
• Slip compensation
• 40:1 speed range
• EtherNet/IP allows complete access to data in drive
• "Multi-Drive" feature allows up to 5 drives per node
• Serial peripheral interface (19.2K bps)
PowerFlex 4-Class Configuration
• Built-in operator display for configuration and monitoring
• Remote (Nema 1 & 4) HIM options
• DriveExplorer and DriveExecutive software tool options
PowerFlex 4-Class Capacity
• 0.5 - 15 HP
• 120V - 600V
• 24vDC digital I/O
• Analog I/O
• Internal EtherNet/IP adapter on PowerFlex 40
HMI Capacity 200 screens 250 tags per screen
Point I/O Capacity
• The maximum is 63 Point I/O modules per adapter
• The adapter supplies 1 amp of current to the 13 digital I/O modules.
• To connect additional I/O modules, add 1734-EP24VDC Expansion Power Units as needed. Each one passes 1.3 amps of current to the modules on its right -- enough for 17 digital modules.
• Other I/O modules draw more current so refer to the published specs.
HMI Performance
With 50 tags/display and 100 alarm tags the typical update time on is 2 sec
Ethernet Performance EtherNet/IP provides excellent drive and I/O control performance along with HMI, information processing and many commercial technologies.
PowerFlex 4- Component Class
Drive Embedded
Communication Port EtherNet/IP Connections Memory
Embedded I/O (pre-configured in Logix 5000)
Expansion
Insolated Serial EtherNet/IP with (MSG + I/O) 8 TCP/IP-32 CIP 512KB
16 DC in.
16 DC out.
2 Additional 1769 modules 1769-L23E-QB1B
Insolated Serial EtherNet/IP with (MSG + I/O) 8 TCP/IP-32 CIP 512KB
16 DC in, 16 DC out 4 Analog in, 2 Analog out.
4 High speed counters (250KHz) 2 Additional 1769 modules 1769-L23E-QBFC1B Cat. Number
CompactLogix L2 Comparison
CompactLogix Capacity
• Ethernet/IP connections:
8 TCP/IP - 32 CIP
CompactLogix Performance
• L23E-QBFC1B has 512K of memory and supports 2 additional I/O modules or 1 additional comm/specialty module
• Supports Ladder Programming, Function Block Diagram, Structured Text and Sequential Function Chart
I/O I/O
CompactLogix L23E
QBFC-1B
• Embedded Power Supply
• Embedded I/O 16 DC In, 16 DC Out, 4 Analog In, 2 Analog Out
4 High Speed Counters CompactLogix Configuration
Point I/O
Publication IASIMP-QR011A-EN-P – April, 2008
System: Controller Hardware
1 1769-L23E COMPACTLOGIX L23E PROCESSOR 1 1769-IQ16 16 POINT 24 VD SINKING/
SOURCING INPUT MODULE 1 1769-OB16 16 POINT 24 VDC SOURCING
OUTPUT MODULE HMI Hardware
1 2711P-T6C20D PANELVIEW PLUS 600 COLOR TOUCH TERMINAL
Distributed I/O Hardware - Point I/O 1 1734-AENT 1734 ETHERNET/IP ADAPTER 1 1734-FPD FIELD POTENTIAL DISTRIBUTOR 1 1734-IA2 120 VAC 2 CHANNEL INPUT MODULE 1 1734-OA2 120/230 VAC 2 CHANNEL OUTPUT
MODULE
2 1734-TB MODULE BASE W/ REMOVABLE IEC SCREW TERMINALS
1 1794-PS13 85-264 VAC TO 24 VDC 1.3A POWER SUPPLY
Drive Hardware 1 22A-A1P5N114 POWERFLEX 4 DRIVE 1 22-COMM-E POWERFLEX 4 ETHERNET
INTERFACE
Note: PowerFlex drives come in many variations - before ordering, you will need to identify voltage rating, horsepower, enclosure type. In addition, you may wish to add on optional equip- ment, such as HIM module or Brake Resister. Please
refer to the PowerFlex Selection Guide for additional details on selecting the right drive for you application.
CONFIGURATION TOOL REQUIRED 1 9324-RLS200ENE* RSLOGIX 5000 MINI
LADDER ONLY
Note: CompactLogix Controllers can be programmed using RSLogix 5000 Mini, Lite, Standard, or Pro. If you plan to use the four programming languages purchase the Lite edition.
1 9701-VWM015AENE FACTORYTALK VIEW MACHINE EDITION 1 9357-DNETL3 RSNETWORX FOR DEVICENET
I/O control, drive control and controller-to-controller interlocking as well as easy integration with the busi- ness system, the Internet and commercial Ethernet technologies. Devices connected to Ethernet/IP feature embedded web pages that provide diagnostics information for troubleshooting from any standard web brows- er.
About the Products
Logix Controllers
• A common set of controls, networks, and programming software available in multiple hardware platforms
• Multiple control disciplines in a single controller - sequential / motion / drives / process
• Multiple Program Languages available in all controllers - Ladder Diagram, Function Block, Structured Text, and Sequential Function Chart
• Embedded RS-232 port provides remote access as well as ASCII, DH-485, DF-1, Modbus Master/Slave and bridging to other networks enabling remote device configuration
• Tag-based architecture instead of addresses
PanelView Plus
• Reuse tags from Logix controllers by choosing them from a list
• 4” – 15” screen sizes available
• Touchscreen, keypad or combination
• Integrated EtherNet/IP and RS-232 communications (most models), add-on communications for many other networks
• Advanced Operator Interface features such as trending, expressions, data logging, animation.
PowerFlex Drives
• Serves applications ranging from 0.2 kW (0.25 hp) to 6,770 kW (9,000 hp).
• Common set of networks, operator interface and programming for all PowerFlex drives
• Communication Options – Ethernet/IP, ControlNet, Devicenet, DH Plus, RIO, 3rd party networks
• Hundreds of pieces of status and diagnostic information are shared with Logix controllers directly
Point I/O
• Available in IP-20 or IP-67 styles
• Densities from 2-8 points per module
• Removable screw or spring terminals without rewiring
• Mounts horizontally or vertically with no derating required
• Supports EtherNet/IP, ControlNet, DeviceNet and 3rd party networks
For More Information and Help
For more information contact your local distributor or Rockwell Automation sales representative.
• www.ab.com
• Publication Library
• My Support
• A – Z Product Directory
1 2
3 4
2 1
3 4
B
A
B
A
9300-RADES Remote Access
Dial-In Paging Modem
Phone Embedded
Communication Port EtherNet/IP Connections Memory
Embedded I/O (pre-configured in Logix 5000)
Expansion
Insolated Serial EtherNet/IP with (MSG + I/O) 8 TCP/IP-32 CIP 512KB
16 DC in.
16 DC out.
2 Additional 1769 modules 1769-L23E-QB1B
Insolated Serial EtherNet/IP with (MSG + I/O) 8 TCP/IP-32 CIP 512KB
16 DC in, 16 DC out 4 Analog in, 2 Analog out.
4 High speed counters (250KHz) 2 Additional 1769 modules 1769-L23E-QBFC1B Cat. Number
CompactLogix L2 Comparison
PanelView Plus 600 PanelView Plus 600
L23E withDeviceNet Drawing
Note: Performance is what we tested, not the max capacity
PV+ 600
PowerFlex 4-Class Performance
• V/Hz or SVC
• Slip compensation 40:1 speed range
• "Multi-Drive" feature allows up to 5 drives per node
• Serial peripheral interface (19.2K bps)
PowerFlex 4-Class Configuration
• Built-in operator display for configuration and monitoring
• Remote (Nema 1 & 4) HIM options
• DriveExecutive software tool options
PowerFlex 4-Class Capacity
• 0.5 - 15 HP
• 120V - 600V
• 24vDC digital I/O
• Analog I/O
• Embedded Power Supply
• Embedded I/O 16 DC In, 16 DC Out, 4 Analog In, 2 Analog Out
4 High Speed Counters
HMI Capacity
• 200 screens
• 250 tags per screen
CompactLogix Capacity CompactLogix Configuration
• L23E-QB1B has 512K of memory and supports 2 additional I/O modules or 1 additional comm/specialty module
• Supports Ladder Programming, Function Block Diagram, Structured Text and Sequential Function Chart
Point I/O Capacity
• The maximum is 63 Point I/O modules per adapter
• The adapter supplies 1 amp of current to the Point I/O backplane, enough for
13 digital I/O modules.
•To connect additional I/O modules, add 1734-EP24VDC Expansion Power Units as needed. Each one passes 1.3 amps of current to the modules on its right -- enough for 17 digital modules.
• Other I/O modules draw more current so refer to the published specs.
CompactBlock I/O
• Base blocks contain a maximum of 16 digital or 4 analog I/O.
• Built-in DeviceNet adapter.
•Thermocouple and RTD base blocks are also available.
• CompactBlock LDX digital I/O base blocks support up to three expansion blocks, for a maximum of 64 I/O points
• Inputs and outputs are powered by an external 24V dc source that is independent of the network.
HMI Performance
With 50 tags/display and 100 alarm tags the typical update time is 2 sec
DeviceNet
DeviceNet Configuration
• DeviceNet requires a power supply to provide power to devices on the network.
• Several media options are available
• Can extend distance with repeaters DeviceNet Capacity
• Up to 63 nodes
• Trunkline can be up to 500 m without repeaters
• Each device can be up to 6 m (20 ft) from the trunk
PowerFlex 4- Component Class Drive
DeviceNet
CompactLogix L23E
Point I/O
CompactBlock I/O
E3 Overload 1606
Power Supply
Ultra 3000
