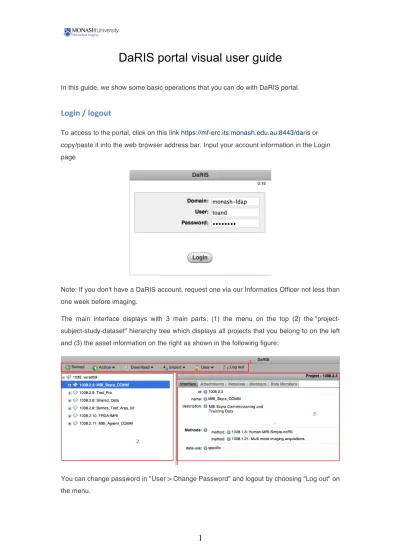

DaRIS portal visual user guide

In this guide, we show some basic operations that you can do with DaRIS portal.

Login / logout

To access to the portal, click on this link https://mf-erc.its.monash.edu.au:8443/daris or copy/paste it into the web browser address bar. Input your account information in the Login page

Note: If you don't have a DaRIS account, request one via our Informatics Officer not less than one week before imaging.

(2)

Navigate assets

You can navigate assets using the tree on the left panel. This tree is organised using a "project-subject-study-dataset" data model.

Click on plus (+) icon to expand the tree to navigate to your assets.

Create and modify subjects

Before imaging, project CI or delegate has to create subjects. To create a new subject, select the project on the left panel and choose "Action > Create subject" on the menu or right click on the project and select "Create subject" from the context menu. You need to input necessary information for the subject and, then, click "Create" button.

(3)

(4)

To modify a subject, select the subject in the tree and choose "Action > Modify subject..." or right click on the subject and select "Modify subject...". You now can change metadata for the subject in the "Modify subject" dialog.

Download data

(5)

To process downloading, click "Order" button in the "Active shopping cart" dialog or select the active shopping cart and choose "Action > Order shopping cart..." in "Shopping cart manager" dialog.

(6)

Once the active shopping cart is ordered, its status is changed to "data ready" which indicates that you cannot edit it anymore and a new active shopping cart is added. To clear a finished shopping cart, select it and choose "Action > Destroy shopping cart ..." You can also choose "Action > Remove finished shopping carts" to clear all finished shopping carts.

Send DICOM

To push data from DaRIS to a DICOM node, navigate the asset that you want to send and choose "Action > DICOM Send" on the menu or right click and select "DICOM Send".

(7)

View DICOM images and metadata

With DaRIS portal, you can preview DICOM images and metadata. When you select a dataset from the tree on the left panel, the detailed information of the dataset is displayed on the right panel. To view DICOM images and metadata, click on the DICOM tab. You can click on the "Previous" and "Next" buttons to view DICOM images. The DICOM metadata are displayed below the DICOM images.

Import data from local machine

(8)

First, choose "Import > Show local files..." on the top menu. Browse to your DICOM folder and drag/drop it to a subject:

Then, choose "Create/Import DICOM data sets" in the pop-up menu. Finally, click "Proceed" button in "Create/Import DICOM data sets (subject ...)" dialog.

You should see a new study with DICOM data.

Import non-DICOM data

(9)

In the pop-up menu, you can choose "Create/Import primary data set" or "Create/Import derived data set" to upload non-DICOM file or folder. You can provide data set information (e.g. name, description) in pop-up dialog and finally click "Create" button.
