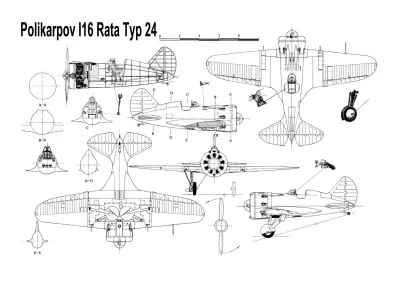

I16 Type 24 Rata

(1)

(2)

Polikarpov I-16 "Rata"

Fighter Factory

The Polikarpov I-16 prototype flew for the first time on New Years Eve day, 1933. There were only a small number of the original I-16's built, five of which participated in the 1935 May Day fly-past over Red Square in Moscow. These were the first low-wing, single seat fighters with retractable landing gear, to enter into service anywhere in the world. Originally, the aircraft were built with American Wright Cyclone engines, but they were soon substituted with Russian engines built under license. Because of the new style of this plane, many pilots initially found it difficult to fly.

Therefore, several two seat advanced trainers were built. A few planes were built with enclosed canopies, different gun configurations, skis for landing on the ice and snow, and many other variations. Most countries' air forces underestimated the abilities of the I-16, because of it's stubby appearance. It quickly gained respect and the name Rata (rat) as it fired 1,800 rounds per minute and flew 70 mph faster than most fighters of that time.

The Spanish Republicans received 475 I-16's from Russia, and even locally built some of their own. Polikarpov I-16's fought against the Japanese over China and Manchuria while armed with airborne rockets The I-16 fought for Spain, China, was instrumental to the Soviets success during the 'Winter War' against Finland, and fought bravely in Operation Barbarossa launched by the Germans in 1941. During this war with Germany, the Polikarpov I-16 began to be outclassed. Therefore, the Soviet fighters would sometimes deliberately ram their planes into the opposing German fighters and bombers, risking their planes and their own lives for the defense of their Motherland.

The Fighter Factory's airworthy Polikarpov I-16, White #28, was found in Karelia in 1991. The data plates recovered at the wrecksite reveal that this I-16 was produced at the Gorky Aircraft Plant #21 in late 1939. The fabric found among the wreckage showed the paint scheme of the Red Army Air Force of 1941, which were black spots over dark green. This airplane flew with the 155th Fighter Squadron and likely crashed in 1941- 42.

Polikarpov I-16 Photos Polikarpov I-16 parts

(3)

Polikarpov I 16 "Rata" Photos

Close up while flying

(4)

Taxiing for takeoff

(5)

(6)

Awaiting re-assembly

Polykarpov I-16 Rata Design Specifications << Back

Polikarpov I-16 Rata

Aircraft Parts

(7)

Polikarpov I-16 crash site in Murmansk (second airplane)

(8)

Original Russian M-62 engine

(9)

Skis being prepared for rebuild

(10)

Rocket rails for under the wings

Fuselage in transportation jig for shipping

(11)

Web Site Index

Virginia Beach Airport

1341 Princess Anne Road

Virginia Beach, Virginia 23457

Military Aviation Museum

The Fighter Factory ® is a division of the

Aviation Institute of Maintenance -

dedicated to entertaining, improving and educating people’s lives.

Centura College

Centura Institute

Centura College Online

Tidewater Tech Trades

Aviation Institute of Maintenance

Protemps Temporary Services

WWI Student Project

Fighter Factory & it's logo are a trademark

& service mark of Fighter Factory.

©

Copyright Fighter Factory,

All Rights Reserved.

(12)

TDM Models

Electric Power R/C Aircraft Plans

Polikarpov I-16 Type 24 "Rata"

Original Design and Plans

Model Specifications Wingspan 31" Length 24.0" Weight rtf 20-22 oz wing area 172 sq in wing loading 16.7 oz

recommended motor AXI 2212/20 or Mega 16/15/6 brushless recommended battery8 cell 1100 niMH or 3s2p lipo

Weight of completed model in photos is 22.0 ounces with a fiberglass cloth and acrylic paints finish. The aircraft shown

and successfully flown is equipped with an AXI 2212/20 brushless motor, a CC-Phoenix 25 brushless ESC, 2 Hitec

HS60 servos, Hitec 555 receiver and an 8-1100 nimh battery pack. The model can also be configured with a 3s2p Lipo pack for longer duration and more performance- See Detail.

Flying Qualities

07.01.2005 flight report:

Since the maiden flight on April 4, 2005 the I-16 has made almost 40 flights. This aircraft has proven to be a solid flyer with great flight characteristics. No equipment changes have been made since the first flight other than switching to a 3s2p 2100 Lipo battery pack. Typcial flight times are 12-14 minutes with ample reserve. The aircraft cruises nicely at 40% throttle and will do big smooth loops at only 50% throttle. Landings are easy and are generally done by chopping power at 20-30 feet altitude and gliding onto a grass field. This design is the best and easiest to fly model between the

(13)

BF109F2 and the Mig-3. 05.23.2005 flight report:

At this point the I-16 has 20 flights on it and continues to demonstrate excellent flying characteristics. The model is actually very docile in it's handling characteristics and is NOT difficult to fly. Any pilot experienced in 1/12 scale warbird type aircraft should have not trouble flying this model.

Three more flights on the Rata this date. Winds were 5-12 mph. No adjustments were made to control setups since the maiden flight. During these fights averaging 7 minutes each, the Rata flight envelope was further explored with some loops, horizontal rolls, stall turns, high speed passes and slow fight. No bad habits were discovered. The AXI 2212/20 with a 9x4.5 prop seems to have adequate power for all of these manuevers. Even at 60% throttle the aircraft cruises around nicely. The airplane slows down quickly when the power is reduced below 40% due to the blunt nose (drag). A bit of power is required to maintain a nice final approach for landing.

This model was first successfully flown on this date, finished and equipped as shown and in the top two photos. The model flew straight and level from the initial launch and demonstrated excellent flying characteristics! Only a small amount of right aileron trim was required for level flight. (The torgue of the outrunner motor probably contributed to the need for right trim) Two flight were made gently testing the control response and initial stall tendancies. Although the original full-scale aircraft was know for being very sensitive and having a high landing speed, this model does not duplicate those bad habits. Wind for maiden flights was 12-18 mph

You have the following options for the Polikarpov I-16 Type 24 "rata" aircraft!

Laser cut parts and set of PDF plans Dropped shipped from laser cutter direct INCLUDES SHIPPING!

$57.00

Vacuum-formed windscreen $4.00

PDF plan pack is available for immediate download $14.95

Click Here for drawing of laser cut parts included in "short kit".

(14)

(15)

The fuselage is built-up balsa, assembled over an internal removable jig. Formers are 1/16" plywood and 1/16" balsa. The fuselage is sheeted with 1/16" balsa. Templates for fuselage sheeting are included on the plans as well as an instrument panel drawing and scale M-63 radial engine. 1/16" Sheeting for the fuselage and top of the wing is not included in the laser cut parts set.

(16)

(17)

(18)

Polikarpov I 16 Type 24 Rata

Par Angus Ecrire au Webmaster Doc de référence http://www.warbirdalley.com/images/polikarpov.jpg http://www.kiwiaircraftimages.com/i16.html http://www.aircraftresourcecenter.com/AWA1/501-600/walk545_I-16_Abbott/walk545.htm http://www.xs4all.nl/~fbonne/warbirds/ww2htmls/polii16.html#polii160 http://vvs.hobbyvista.com/ModelArticles/I-16/index.php http://www.samolet.co.uk/i-16.html La boîte

Voilà un joli kit Hobbycraft pas cher, acheté d'occase sur notre sitre préféré avec la planche Eduard associée

La maquette est simple, la gravure fine, et il n'y en a pas beaucoup. Il y a des renforts en relief sur et sous les ailes, faudra veiller à ne pas les supprimer, donc amincissement du bord de fuite par l'intérieur impératif. Les puits de train sont quand même un peu vide

(19)

(20)

(21)

(22)

(23)

(24)

(25)

(26)

(27)

(28)

(29)

(30)

(31)

(32)

(33)

(34)

(35)

(36)

(37)

(38)

(39)

(40)

(41)

(42)

(43)

(44)

(45)

(46)

(47)

(48)

(49)

(50)

(51)

(52)

(53)

(54)

(55)

(56)

(57)

(58)

(59)

(60)

(61)

(62)

(63)

(64)

(65)

(66)

(67)

LA pièce en plastique transparent est propre, mais je bien épaisse, un petit thermoformage tout facile va aider à corriger cela.le reste du kit est correct, c'est pas la maquette du 3eme millénaire, mais c'est très honnête, et puis cet avion est très simple.

Pour rigoler, le cockpit Hobbicraft et la version Eduard sur laquelle j'ai juste changé les coussins refaits en gomme qui me plait plus réaliste qu'en photodécoupe

Montage

(68)

Voici l'intérieur du cockpit détaillé, le kit Eduard aide bien, j'ai juste rajouté quelques fils (couleur cuivre) et mis une goutte de colle blanche sur les manettes. Par comme montré sur l'image coloriée, j'ai déplacé les renforts Eduard pour les remettre en bonne position

Pour ce qui est de la couleur intérieure, je sais c'est sujet à discusion, mais ce bleu m'a paru correct.

La doc du kit dit intérieur light grey, les photos à ma disposition vont de bleu ciel franc à bleu ciel très pale, bref dans le doute, j'avais un très vieux pot de Humbrol 47 qui traînait. Voici le cockpit peind, et je suis pas content de moi

j'ai voulu faire une finition "à l'espagnol" et je suis très loin du compte, je verrai plus tard pour corriger cela. Bon d'abord la partie siège, en fait la miniature est à peu près à l'échelle 1 quand vous regardez la vraie pièce posée à 30 cms de votre oeil (écran en 1280, donc miniature de 32mm de large)

tableau de bord, rien de spécial à dire, file d'acétate sur plaque en photodécoupe, peind en blanc derrière, classique Eduard

(69)

Alors une fois tout refermé, quelle frustration

J'ai inséré par dessous ensuite le tableau de bord et la partie siège, vu comment c'est fait, cela me parait la seule solution pour avoir un centrage correct

La miniature correspond à ce que vous voyez maquette à 15 cms de votre visage, pour le tableau de bord faut vraiment le vouloir pour le voir, mais finalement maquette en main ça rend pas mal.

l'arrière du baquet Eduard n'a pas la même forme que le fuselage, donc mastic.

Montage Fuselage

Montage à blanc, j'ai découpé les gouvernes. Oui c'est surprenant mais les photos montrent ça braqué vers le haut. En fait le manche était maintenu en arrière par un tendeur. Coté droit il faut mastiquer (pour un type 17) la trappe rectangulaire qui est sur le kit

par contre les puits de train sont complètement faux, les 3 "rainures" devraient être de section ronde et non carrées, le puit de la roue plus profond que ces rainures, en plus là où sont collées les jambes de train, on devrait avoir un trou et voir la structure de l'aile supérieure, bref je fais l'impasse

(70)

Anneau moteur

l'anneau du kit et les pièces Eduard

Donc après un moment d'hésitation, on coupe, et voilà le résultat.

La méthode:

 découper juste à la bonne taille pour que _ça s'insère en force.  boucher l'anneau avec du scotch de carrossier

 retourner sur une plaque de verre

 insérer en force la pièce Eduard en poussant bien pour que ça affleure  y aller gaiement sur la colle cyano

Juste derrière le capot il y avait un anneau, un peu trop épais à mon goût et comme le capot et le fuselage n'étaient pas bien concentrique, j'ai viré ça, poncé pour que ce soit pile en ligne, et une bandelette d'alu autocollant viendra remplacer ça. Les échappements d'origine sont en nombre correct, mais c'est pas beau .Donc on perce, on ponce, et on remplace par du tube

vala un passage de ski creusé, à peu près, je n'ai aucune photo de l'avion

(71)

Toutes les trappes de train sont collées. J'ai beau regarder, aucune idée de comment ce truc se repliait

Voici la maquette montée avec des canons refaits en fil électrique (fil téléphonique)

Le pare brise est refait, ça le mérite vu l'épaisseur de la pièce d'origine

L'avant du cockpit, avec un renfort (gaine électrique) et 4 trous. Le viseur est le modèle bléreaumétrique, j'ai hésité à mettre la variante pifométrique, mais bon....

Peinture

La décoration choisie est celle de la boîte, et est sujet à débat, que ce soit pour les couleurs ou pour les motifs. Ce sera mon premier essai de la technique patafix.

Donc d'abord j'ai peint la couleur de séparation, puis mis sur ces mêmes séparation un boudin de patafix. Pour obtenir un boudin correct et fin, faire rouler une boule de patafix entre 2 plaques de verre. Bien sur le plan de camouflage Hobbycraft est impossible, les lignes du camouflage en vue de dessus et en vue de coté ne peuvent pas se raccorder, quand même, c'est pas compliqué de faire un plan 3 vues .

(72)

La couleur choisie est le vert pomme Français, un gris ou ocre est fortement possible.

Peinture phase 2: de l'olive drab.

Phase3: on masque l'olive drab et on peint en dark green (mélange perso de german gray et german dark green)

et là, alea ejacula est comme disait les romains, yapuka démasquer pour voir si cette fameuse méthode patafix marche: YAHOOO, je sais pas si historiquement c'est ça, mais j'adore l'effet produit méthode patafix angus aproved

(73)

Patine

Première méthode: la sauvage qui va pas bien

Je badigeonne un jus de gris foncé puis avec un chiffon très légèrement imbibé de white spirit, j'essuie. Là une moitié du dessous essuyé.

Ensuite je passe du pastel (une première pour moi). uhmmm, pas si évident que ça la technique du pastel j'ai un peu trop forcé le sombre sur la dérive et sur le bout des ailes.

En regardant un matin à tête reposé, j'ai pris ma décision, je vais virer toute cette patine, refaire les étoiles au pochoir, et recommencer ça mieux, vu de près ça me plait pas

Patine Phase 2: Nettoyage et correction à corriger

Faire un masque pour peindre les étoiles est facile, par contre aïe aïe aïe, j'ai merdu, pas habitué à faire de l'humbrol à l'aéro, j'ai bien trop insisté.

Et voici la récupération des dégâts, à coup de grattage méticuleux et de re-peinture par touches du camouflage. C'est pas parfait mais ça ira . Les étoiles sont un peu épaisses mais avec les X couches de vernis passées ça va

Patine au pastel: ZE bonne méthode

Voici la méthode qui va bien:

 Vernis brillant klear  décals

(74)

 jus dans la gravure  vernis satin Pébéo

 "saupoudrage" au pinceau de poudre de pastel. Ici j'ai choisi marron dessus, gris clair dessous

 ensuite essuyage au chiffon sec dans le sens du vent (la photo surcontraste).

 enfin re vernis satin pédéo. La photo ici est celle donnant la meilleure représentation du résultat, j'en suis assez content , et c'est l'essentiel (merdeuh, je vois un poil collé à l'avant du stabilisateur )

Et voici ce charmant petit oiseau terminé. J'ai merdé sur la dernière couche de pébéo dessous en en ayant trop mis, faut encore que je rattrape ça. Le résultat n'est pas parfait suite à mon premier ratage de la patine, mais en final je suis content, j'ai beaucoup appris et c'est un Rata bien sympa dans la vitrine.

(75)

(76)

Polikarpov I-16 'Ishak' ('Rata')

Background

The I-16 was designed by Nikolai Polikarpov in 1932, and the prototype first flew at the end of December of the following year. The type was the world's first high-performance cantilever monoplane with a retractable undercarriage. Originally powered by the 480hp M-22 engine, the aircraft was steadily developed through a number of variants. Changes included new armament, adding armour and flaps, and increasing gross weights and engine power up to 1000hp. The aircraft was tricky to fly - with the engine extremely close to the centre of gravity and the pilot well behind, the longitudinal stability was such the pilot had to control the aircraft at all times. A notable feature was the hand-cranked undercarriage retraction, requiring the pilot to operate the crank while still controlling the aircraft. Take-offs and landings were particularly tricky, and as a result of this and the other characteristics a two-seat transition trainer (I-16UTI or UTI-4) was designed by A.A. Borovkov in 1935. The UTI-4 was also used for liason and reconnaissance work. Production of the I-16 amounted to 7,005 single seat and 1,639 two-seat aircraft.

The aircraft served with the Republicans in Spain, fought the Japanese in Manchuria, and was the most numerous fighter in Russian service when the Soviet Union entered the war in 1941. Although the type provided stalwart service, it was rapidly became obsolete after 1939. The type is known by a variety of names. As well as I-16 the aircraft is also designated Central Design Bureau TsKB-12, and the two-seat version as UTI-4. In addition, the

Republican's called it 'Mosca' (small fly) and the Nationalist's 'Rata' (rat), the Japanese called it 'Abu' (gadfly), and the Germans called it 'Dientsjager' (duty fighter). In Russia it was known as 'Yastrebok' (hawk) and more commonly as 'Ishak' or 'Little Donkey', reflecting its hardworking role.

Despite the large numbers produced, very few have survived - primarily as museum static displays. Until recently the complete I-16 examples have been limited to an aircraft in each of St. Petersburg, Moscow, and Changpang (in China), with a solitary UTI-4 in Finland. New Zealand has played a part in an I-16 revival through the work of Sir Tim Wallis and his Alpine Fighter Collection team. Sir Tim visited the Soviet Union in the early 1990's in relation to his business interests and initiated a wreck recovery programme. In October 1992 a contract was signed on a project to rebuild six I-16 wrecks to airworthiness in one of the original factories at Novisibirsk. The operation was

overseen by Chief project manager Vladimir Berns (Senior Engineer at the Siberian Aeronautical Research Institute). The restorations proved to be long and difficult, but in the end rewarding. In a television interview Sir Tim noted the difficulties of working in Russia as it moved away from communism, and estimated a cost escalation in the order of 2-300%. He also noted the satisfaction of returning the aircraft to the air.

The aircraft are described as being incredibly strong. The construction is not overly complex, and many of the elements were designed for non-specialist construction. This aided the restoration. The metal remnants from the recovered wrecks were reworked, and the plywood (3 layer birch strips) monocoque structure rebuilt. The first aircraft was test flown in September 1995, with the remainder following by 1997. After testing. the aircraft were then exported to New Zealand. In October 1997 four of the Polikarpovs underwent air testing - and three of these were displayed during the Fighter Pilots reunion hosted by the NZFPM, with one more being flown a week later. By April 1998 five of the I-16s (all except '39') were ready for a grand debut.

On Saturday April 11th, 1998 the five aircraft were displayed together for the first time at the 'Warbirds over Wanaka' airshow - and the display repeated the next day. I had the pleasure of being present, and the display can only be described as stunning. The stubby fighters with their 1000hp powerplants cannot be compared to any other warbird flying today. The distinctive shape is matched by a distinctive sound - created by the nine separate exhausts on the 9-cylinder radial. At one point I had my back to the approaching formation, and it sounded like a train bearing down on me. It was a true pleasure to be present at such a historic moment. History was achieved again at Wanaka in 2000 when the airshow was presented with the sight of eight Polikarpovs flying together when the five strong flight of I-16s was joined by three I-153s. Sir Tim and his team have achieved a truely great legacy.

The AFC project I-16's are listed below. All the aircraft are type 24, the most common model dating from 1939, and were built at State Factory 21 in Gorky. The aircraft use the ASh-62 development of the M-62 (as used in the An-2).

 ZK-JIN '9' (c/n 2421319) Was operated by the 155 Fighter Squadron before being lost near Lake Kokkayaro in Karelia. The aircraft was located in 1991. This was the first aircraft restored and flown in 1995. It was registered in New Zealand on October 9th, 1997.

 ZK-JIO '34' (c/n 2421234) Believed to be part of 197 Squadron, the aircraft was lost in 1941. The wreck of '34' was recovered near Orzega in 1988. It was registered in New Zealand on October 9th, 1997.

 ZK-JIP '45' (c/n 2421645) Built in 1939, the aircraft is believed to have served with the Leningrad Front Fighter Squadron (part of the Baltic Fleet Air Forces). The aircraft was found near Osinovets (near Leningrad) in 1991. It was registered in New Zealand on October 9th, 1997. Registration passed to American Airpower Heritage Museum, still at Wanaka on October 25, 2001.

 ZK-JIQ '4' (c/n 2421014) The aircraft was located near Lake Yaglyayrvi in Karelia in 1991. It was registered in New Zealand on October 9th, 1997. The registration was cancelled on November 25, 1998 after the aircraft was exported to the USA.  ZK-JIR '28' (c/n 2421028) Was operated by the 155 Fighter Squadron before being lost near Nigizero in Karelia in 1941-42. The aircraft was located in 1991. It was registered in New Zealand on October 9th, 1997.

 ZK-JJC '39' (c/n 2421039) This is the last of the six to be restored, being registered on March 25th, 1998.

Some of the aircraft are currently up for sale, with an asking price around US$350,000 each. In August 2000 an I-16 and an I-153 were sent to Midland, Texas where they participated in a CAF airshow. I understand one I-16 has been purchased and donated to the CAF. I'd appreciate knowing the details of which aircraft. More on the I-16 can be found here.

Last Update:- 6 March, 2002

Technical Data

(77)

 Accommodation : 1  Dimensions o Span : 9.0m (29'6ft) o Length : 6.04m (19'8ft) o Height : 2.4m (7'10ft)  Weight o empty : 1,475kg (3,245lb) o max : 1,878kg (4130lb)

 Power Plant : Shetsov 920hp M-62R

 Performance :

o max speed : 489km/h (306mph)

o max climb : 16,400ft/5.8min (5,000m/5.8min)

o ceiling : 36,000ft (11,000m)

o range : 740km (460miles)

Images

Close Up

(78)

Polikarpov I-16 'Ishak'

ZK-JIR '28'

(79)

Polikarpov I-16 'Ishak'

ZK-JJC '39'

(80)

Polikarpov I-16 'Ishak'

ZK-JIN '9'

(81)

Polikarpov I-16 'Ishak'

ZK-JIN '9'

(82)

Polikarpov I-16 'Ishak'

ZK-JIN '9'

(83)

Polikarpov I-16 'Ishak'

ZK-JIN '9'

(84)

Polikarpov I-16 'Ishak'

ZK-JIN '9'

(85)

Polikarpov I-16 'Ishak'

ZK-JIN '9'

Taken at the AFC hangar, Wanaka, April 20th,1998. Port main undercarriage, looking to the rear.

 Go to:

o Alpine Fighter Collection Hangar

o I-16 Page

(86)

Polikarpov I-16 Rata

These photos were taken by

Robert N. Abbott Jr.

(click on the image below to load the full size photo)

(use your back button to return to this page after viewing full size photo)

Photos directly below were taken at the Fighter Factory, which is a Restoration Facility in Suffolk, Virginia about 130 miles out of

Richmond.

Blue 21

1 2 3 4 5

White 28

6 7 8 9 10 11 12 13 14 15

(87)

(88)

(89)

(90)

(91)

(92)

(93)

(94)

(95)

(96)

(97)

(98)

(99)

(100)

(101)

(102)

[Top of page] [ID pictures] [Design introduction] [Version List] [Further pictures] [Technical Details] [Different Versions] [Operational Remarks] [Strengths] [Weaknesses]

The Polikarpov I-16 Rata, Mosca

U.S.S.R.

In the beginning of the 1930's the Soviets were reassessing their air fleet. The threat of monowing bombers was much greater than that of biplane bombers, because of their payload and performance numbers. Already a number of monowing bombers entered service with the Soviet Airforce, the VVS (Voenno-vozdushniye Sily). To have a weapon available that was able to intercept these bombers a monowing fighter had to be designed.

However, it was realised that the monowing fighter would offer greater performance, but lacked agility compared to it's

biplane counterparts. Therefor it was suggested to create a fighter force of mixed combination: biplanes as well as monowing fighters. This was the reason why design progressed simultaneously on the I-15 and I-16, the first a biplane fighter, the second a cantilever monowing fighter.

Already another design team was working on a fighter like the I-16, Sukhoi's I-14, but Polikarpov asked and received

permission to build a rivalling desing. The design team started work in March 1933 and worked with enormous dedication to complete the design of the TsKB-12 as an extremely dumpy type with close-coupled flying surfaces and a fuselage tailored to the diameter of the selected engine, namely the M-25 radial piston engine that was the Soviet license-built version of an American engine, the Wright R-1820 Cyclone. Despite its appearance of great modernity, the TsKB-12 was of mixed rather than all-metal construction, mainly because of the absence of readily available light-alloy industry, and the abundant

availability of good quality wood.

The TsKB-12 had a semi-monocoque fuselage with a skin of shpon (birch veneers molded into shape before being bonded into a multi-layer veneer) over pine longerons and half-frames. Flying surfaces were basically of metal. The cantilever tail unit was a Dural construction covered with fabric. The wing, which was tapered in thickness and chord, was based on two steel spars with Dural ribs. Skinning of the wing was Dural as far back as the front spar and with fabric to the rear of this line. Long-span slotted ailerons were made of Dural, and covered with fabric, and were designed to droop through 15° as semi-flaps during landing. The airframe was completed by the tailskid landing gear, which included wide-track main units that could be retracted inward by a hand-cranked system requiring 44 turns for full retraction or extension. The enclosed cockpit had an aluminum-framed canopy (complete with integral Vee-type windscreen) that could be slid forward for access to the cockpit, and bungee chords assisted opening of the canopy in flight to counter the pressure of the slipstream.

The intended engine was the M-25, a license built version of the Wright R-1820 Cyclone, but negotiations were slow and painstaking, and were delayed considerably, so the TsKB-12 prototype that made its first flight on December 31 1933 was powered by the same engine as used for the I-5 and I-15 fighters, namely the M-22 radial, rated at 480 hp (358 kW) at optimum altitude. This engine drove a two-blade Dural propeller with ground-adjustable blades, although in this application the engine was enclosed in a long-chord cowling with an optimized cooling-air slot at its rear.
