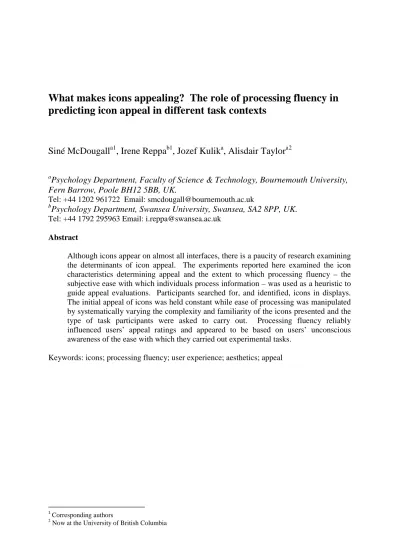

What makes icons appealing? The role of processing fluency in
predicting icon appeal in different task contexts
Siné McDougall
a1, Irene Reppa
b1, Jozef Kulik
a, Alisdair Taylor
a2aPsychology Department, Faculty of Science & Technology, Bournemouth University,
Fern Barrow, Poole BH12 5BB, UK.
Tel: +44 1202 961722 Email: [email protected]
bPsychology Department, Swansea University, Swansea, SA2 8PP, UK.
Tel: +44 1792 295963 Email: [email protected] Abstract
Although icons appear on almost all interfaces, there is a paucity of research examining the determinants of icon appeal. The experiments reported here examined the icon characteristics determining appeal and the extent to which processing fluency – the subjective ease with which individuals process information – was used as a heuristic to guide appeal evaluations. Participants searched for, and identified, icons in displays. The initial appeal of icons was held constant while ease of processing was manipulated by systematically varying the complexity and familiarity of the icons presented and the type of task participants were asked to carry out. Processing fluency reliably influenced users’ appeal ratings and appeared to be based on users’ unconscious awareness of the ease with which they carried out experimental tasks.
Keywords: icons; processing fluency; user experience; aesthetics; appeal
1Corresponding authors
What makes icons appealing? 2
1 Introduction
Over the last 15-20 years there has been a shift in focus in human-computer interaction research, away from the sole emphasis on usability and performance towards a recognition that users’ affective experience of interfaces can be at least as, and sometimes more, important than usability (e.g. Hartmann et al., 2008; Hassenzahl & Tractinsky, 2006; Mack & Sharples, 2009; Schmidt et al., 2009; Tractinsky et al., 2000). This has been particularly true of research examining website design where attracting consumers to appealing websites is paramount (Golander et al., 2012). A great deal of research has focused on getting to grips with the dizzying array of website characteristics that may contribute to user perceptions of website appeal (e.g. Cyr et al., 2010; De Wulf et al., 2006; Lavie & Tractinsky, 2004; Moshagen & Theilsch, 2010; Thuring & Mahlke, 2007; van Schaik & Ling, 2005). In contrast, there has been little research which has investigated determinants of icon appeal3 despite the fact that they are an integral part of virtually every interface. The aim of the experiments reported here was to examine the extent to which processing fluency might provide an explanation of users’ perceptions of appeal.
1.1 Rapid appeal evaluations
It is now well established that users can make very rapid - almost instantaneous - evaluations of the appeal of interfaces (Handy et al., 2008; Lindgaard et al., 2006; Lindgaard et al., 2011). Lindgaard et al. (2006) interpreted participants’ ability to make these rapid judgements as being the result of the ‘mere exposure effect’. Zajonc (1968) first showed that merely seeing something, even for the briefest of moments, is sufficient for stimulus preferences to develop. These instantaneous affective responses are therefore not thought to be the result of deliberate thought or reflection but occur automatically without conscious awareness.
In an event-related potential (ERP) study, Handy et al. (2008) examined whether processing of appeal occurred automatically with icons and logos. Participants in Handy et al.’s study were shown logos and asked to press a key when a given target logo appeared among a series of non-target logos appeared. During this task ERP responses were noted and it was only after the EEG recording equipment was removed that participants were asked to indicate their liking of the non-target logos using a 1-7 Likert scale. The key finding in this study was that ERP responses to logos within the first 200ms of stimulus onset varied as a function of the appeal ratings which were obtained later. Handy et al. argued that we ‘rapidly and implicitly evaluate … images at a hedonic level’ (p. 124).
1.2 Processing fluency and appeal evaluations
As users move beyond these first impressions, one theoretical approach which might explain changes in appeal over time is processing fluency theory (Alter & Oppenheimer, 2009; Labroo Dhar & Schwarz, 2008; Oppenheimer, 2008; Reber et al., 2004). Processing fluency refers to our experience of ease or difficulty when carrying out mental tasks. If an object is very small and distant or simply out of focus, we are aware it is hard to see; if an event is
3 Throughout this paper the term appeal refers to mild aesthetic experiences made on the basis of simple
judgements of liking by participants (see Reber et al., 2004 for a review). Liking and appeal refer to the power to attract whereas preference refers to selecting one thing over another. While similar mechanisms are thought to underpin both liking judgements and preferences, our focus in this paper is on judgements of liking/appeal.
What makes icons appealing? 3 easy to retrieve from memory, we have an implicit awareness of how easy it was to access. Because this feeling of relative ease or difficulty in processing is generated by almost any cognitive process and is almost effortless to access, it can act as a cue in making judgements in a wide variety of situations (Alter & Oppenheimer, 2009; Oppenheimer, 2008).
There is compelling evidence that processing fluency when dealing with visual stimuli can act as a cue in determining judgements of appeal and preferences across a wide range of tasks (e.g. Labroo et al., 2007; Reber et al., 2004). For example, when individuals were shown stimuli against a highly contrastive background they found them more appealing than identical stimuli against a less contrastive background and pictures presented for 400ms were preferred in comparison to those shown for 100ms (Reber et al., 1998). When Constable et al., (2013) examined preferences for hand-painted mugs, they found that the speed with which individuals were able to find a particular mug within a search array determined their later judgements of appeal and therefore concluded that processing fluency plays a role in forming preference judgments.
As we learn stimuli, and find them easier to process and access from memory, our liking for them increases. Zizek and Reber (2004) asked participants to evaluate the appeal of letter strings after an implicit grammatical learning task. In the evaluation phase, when participants were asked to rate their liking of the letter strings, those which followed the same grammatical rules – even if not shown previously – were evaluated more positively than those which did not follow the grammatical rules participants had learned. This could not easily be attributed to mere exposure since the strings following similar grammatical rules had not been seen before. Zizek and Reber therefore attributed these findings to the greater processing fluency resulting from their understanding of the grammatical rules that participants had learned. Similar findings have been reported in other studies of learned ‘grammars’ (Gordon & Holyoak, 1983; Manza & Bornstein, 1995; Manza et al., 1998).
Figure 1: The ease, or fluency, with which visual stimuli are processed cognitively is determined by the characteristics of the stimuli and the tasks users are carrying out. Ease of processing determines task performance and appeal evaluations, hence evaluations of appeal reflect task performance and vice versa.
What makes icons appealing? 4
1.3 Experimental rationale
Taken together previous findings suggest that, if we find icons on an interface easy or difficult to process, then this will be reflected in the judgements we make about how appealing they are, i.e. processing fluency acts as an implicit heuristic to determine appeal judgements (i.e. preferences, subjective ratings of appeal or liking). Since patterns of performance measured using response times and accuracy also depend on ease of processing (see Figure 1), it follows that appeal judgements should reflect patterns of performance made to those stimuli. More specifically, ratings of liking for icons on interfaces should reflect the speed and accuracy with which we can search for and identify icons because they both derive from ease of processing. The experiments reported here were designed to examine whether or not this was the case and the extent to which processing fluency can explain judgements of icon appeal. In the experiments which follow participants were asked to provide subjective ratings of ‘liking’ for icons rather than aesthetic appeal. ‘Liking’ was thought to be more appropriate since this is a more everyday term for appeal evaluations and more commonly used (see Constable et al., 2013, for a similar approach).
The first step in our investigation was to examine whether or not there was any kind of relationship between appeal and performance for icons. To that end, Experiment 1 sought to identify the icon characteristics predicting appeal and whether or not they are the same as known to those predict user performance. Experiments 2-4 examined whether or not judgements of appeal would reflect the changes in performance resulting from the nature of the icon stimuli presented and the tasks being carried out. Two tasks were designed to mimic searching for icons on an interface. Experiment 2 used a search task in which participants were presented with an icon and required to find the matching icon in an array, mimicking the search for icons with particular functions on displays. Experiments 3 and 4 used an identification task in which participants were given the function, or name, of the icon and then asked to find the matching icon in an array. The identification task therefore involved learning the meaning of the icons over a series of experimental trials by associating the function with the appropriate icon, reflecting the learning process that users go through as they gain experience with icon sets on interfaces. Given that the icon stimuli were the same for the search and identification tasks, it was expected that changes in evaluations of appeal between Experiment 2 versus Experiments 3 and 4 would be the product of differences in ease of processing resulting from the change in task. In Experiment 4 the icon stimuli and experimental task were the same as for Experiment 3, however, subjective ratings of liking were obtained twice from each participant, early and later in experimental trials. The aim of this manipulation was to give greater emphasis to participants’ growing experience with the icons and the task over experimental trials.
1.4 Icon characteristics and task performance
Icon characteristics that have previously been shown to affect user performance include the visual complexity, concreteness, and familiarity of the icons.
1.4.1 Visual complexity
Research has shown that simple icons are found faster on an interface array than complex ones (e.g. Byrne, 1989; McDougall et al., 2000; McDougall & Isherwood, 2009; McDougall et al., 2006, Scott, 2003). Explanations of differences in search time between
What makes icons appealing? 5 simple and complex icons often rely on Treisman’s feature integration theory (Treisman & Gelade, 1980; Treisman & Gormican, 1988). In this view, there are two stages in visual search; the first involves fast parallel processing of primitive visual features in a scene, whereas the second stage involves slower serial processing that binds primitive features together into an object. From this, it follows that the more visually complex an icon is (and therefore the more features it has), the more time will be involved in binding features together, producing slower response times for more complex signs. However, Forsythe et al. (2008) have shown that there is a correlation between icon familiarity and visual complexity and that this is the result of familiar icons being perceived as simpler (see also Bates et al., 2003; Chi & Dewi, 2014). This suggests that searching for icons in arrays may have a top-down, as well as a bottom-up, processing component and aligns with later theoretical approaches to search which have emphasised the importance of prior knowledge of shapes, objects, or complex scenes (Bundesen, 1998; Green & Oliva, 2009; Joubert et al., 2007; Logan, 1996; Malcolm & Henderson, 2009; Rousselet et al., 2004; Wolfe et al., 2011). Despite this correlation, both icon familiarity and complexity independently predict performance when participants are asked to find icons in an array (Isherwood & McDougall, 2007; McDougall & Isherwood, 2009). Thus, visual complexity appears to be important in determining search time for icons on interfaces and is related to familiarity because search is driven, in part at least, by our prior knowledge of stimuli.
1.4.2 Concreteness
Both the accuracy and speed with which users can identify icons is affected by the concreteness, or pictorialness, of the icons on an interface (e.g. Chan & Ng, 2010; Green & Barnard, 1990; Leung et al., 2011; Rogers & Oborne, 1987; Schroder & Zeifle, 2008; Stotts, 1998). This is thought to be because concrete icons depict real world objects, allowing people to use their prior knowledge to discern their meaning (c.f. Figure 2a and b with c and d).
While research suggests that concreteness is the most important determinant of performance, other work has shown that the effects of concreteness on user performance are less than previously thought (Isherwood & McDougall, 2007; McDougall & Isherwood, 2009). This appears to be because only a limited number of functions can be represented concretely - getting a close fit between pictures and functions is not always easy. For example, naming the rabbit in Figure 2b does not make it possible to arrive at its intended meaning, the association between the icon and its intended meaning needs to be learned.
(a) men’s restroom (b) fast processing (c) zoom (d) female
Figure 2: Examples of different types of icons
1.4.3 Familiarity
Research has consistently shown that icon familiarity determines the speed and accuracy with which icons and objects can be identified (Ben-Bassat & Shinar, 2006; Chan & Ng, 2010; Lesch et al., 2011; Lui, 2005; Shinar et al., 2003; Wang, Cavanagh & Green, 1994; Wolfe & Alvarez, 2011). When compared to other icon characteristics, it appears to be the
What makes icons appealing? 6 most important determinant of ease of identification (Isherwood & McDougall, 2007; McDougall & Isherwood, 2009). For example, our familiarity with the abstract icon representing ‘female’ in Figure 2d allows us to identify it more quickly and effectively compared with the pictorial rabbit icon representing ‘fast processing’ (Figure 2b). In the picture naming literature, rated familiarity of the pictures is also a strong and consistent predictor of naming times and is thought to reflect the ease with which semantic representations can be accessed from long-term memory (Alario et al., 2004; Bates et al, 2003; Ellis & Morrison, 1998; Lambon-Ralph et al., 1998; Snodgrass & Yuditsky, 1996). Thus, when icons are presented, ease of processing is likely to be determined by the extent to which interface users are able to access an appropriate function, or meaning, reflecting our familiarity with the icon-function relationship.
Figure 3 summarises the findings of research to date examining the effects of visual complexity, concreteness and familiarity on user performance. Familiarity with the icon is the most important determinant of user performance and research suggests that it encompasses the effects previously attributed to concreteness. This is because the function of an icon cannot always be inferred on the basis of a concrete pictorial and there are many functions represented by icons where there is no easy fit between pictures and functions. In such circumstances, familiarity is the key determinant of ease of processing. Visual complexity is also important in determining the ease with which we are able to search for icons on an interface. Visual complexity and familiarity are correlated to some extent reflecting the degree to which search is driven by our prior knowledge of stimuli.
Figure 3: Relationships between icon characteristics and performance
1.5 Stimulus characteristics that might affect icon appeal evaluations
Although very little is known about the stimulus characteristics affecting icon appeal, concreteness, complexity and familiarity are known to be important determinants of our aesthetic and appeal responses to other types of stimuli, such as works of art or websites. Concrete, or representational, pictures are preferred to abstract ones (e.g. Kawabata & Zeki, 2004; Vartanian & Goel, 2004); the visual complexity of pictures, websites and graphic patterns has a significant influence on aesthetic appeal judgements (e.g. Berlyne, 1974; Bauerly & Liu, 2008; Jacobsen & Hofel, 2002; Lai et al., 2010; Moshagen & Theilsch, 2010, 2012; Orth & Wirtz, 2014); and, of course, familiarity enhances appeal for a wide range of
Familiarity
Complexity Concreteness User
What makes icons appealing? 7 stimuli although this depends to some extent on whether or not the items were liked initially (Bornstein, 1989; Fang et al., 2007; McCoy et al., 2009; Monahan et al., 2001; Zajonc, 1968, 2001).
2 Experiment 1: Icon characteristics determining appeal
The aim of this experiment was to examine the extent to which icon characteristics known to predict user performance would also predict evaluations of appeal. If appeal judgements derive from processing fluency heuristics then predictors of appeal should be similar to those observed for user performance in Figure 3. On this basis we would expect that (a) icon familiarity would be the strongest predictor of appeal (b) icon concreteness would be a less important predictor of appeal than familiarity (c) icon complexity would also predict appeal judgements and (d) there would be an overlap in the variance predicted by visual complexity and familiarity. This pattern of findings follows from our current understanding of icon characteristics determining user performance.
2.1 Method
2.1.1 Participants
Forty Swansea University undergraduate and postgraduate volunteers took part in this study. Six participants’ data was excluded because they did not follow instructions to use the full range of the 1-5 rating scale and provided the same rating for over 80% of the icons. The mean age of the remaining participants was 23.4 years (SD=3.5 years; 28 females and 6 males).
2.1.2 Materials
A set of 239 icons and symbols used by McDougall, Curry & de Bruijn (1999) were used because subjective ratings had already been obtained for a number of characteristics including the perceived (i) visual complexity (ii) concreteness and (iii) familiarity of the icons. The original corpus of icons was chosen from a wide variety of sources to ensure that they were representative of the broad spectrum of applications in which icons and symbols are used. These included public information signs, symbols for use on electrical equipment, websites, computer interfaces, vehicle and aircraft controls and displays, and military symbols. Icons in the corpus were also selected to ensure a wide distribution across each of the icon characteristics under consideration (i.e. complex vs simple icons, concrete vs abstract icons, familiar vs unfamiliar icons). Ratings of each characteristic were obtained using 5-point Likert scales: for visual complexity 1=very simple, 5=very complex; for concreteness 1=definitely abstract, 5=definitely concrete; and for familiarity 1=very unfamiliar, 5=very familiar).
2.1.3 Procedure
In this experiment, participants were asked to rate the icons on a 1-5 scale in accordance with how much they liked them (1=really dislike, 5=really like). Unless their response was neutral (3=neither like nor dislike), participants were also asked to indicate what it was about the icon that made it either appealing or unappealing. As noted earlier,
What makes icons appealing? 8 participants were instructed to use the full range of ratings from 1-5. Because of the large number of icons involved, participants were divided into two equal groups and asked to rate half of the corpus. Two booklets were created, one for each half of the corpus, and the order in which participants were assigned booklets was counterbalanced. Icons were presented in 25-page booklets with icons presented in random order on each page and pages were assembled into booklets in accordance with a Latin square design to ensure that each participant was presented with the icons in a different order.
2.2 Results and Discussion
The data was analyzed using by-items, rather than by-subjects, analyses because this type of analysis allowed us to examine icon ratings across the full corpus of icons and it was appeal for icons in the corpus which formed the focus of this study. Ratings of liking were distributed normally and the mean rating for all 239 icons was 3.01 (SD=0.47, Min=1.88, Max=4.53).
2.2.1 Correlations between icon characteristics and appeal
The extent to which participants reported liking icons was correlated with ratings previously obtained of icon complexity, concreteness and familiarity. All correlations were significant: r(visual complexity)=-.29, p<.01; r(concreteness)=.32, p<.001; r(familiarity)=.46, p<.001.
2.2.2 Regression analyses
Table 1: Summary of Fixed-Order Stepwise Regression Analyses
Steps Variable % Variance
1 Concreteness 10.3** 2 Visual complexity 7.6** 3 Familiarity 5.3** 1 Familiarity 21.0** 2 Concreteness 0.2 3 Visual complexity 2.0* 1 Visual complexity 8.7** 2 Familiarity 14.5* 3 Concreteness 0 **p<.01; *p<.05
In order to investigate the inter-relationships between these variables further, a series of regression analyses were carried out. The aim of these analyses was to examine the extent to which each characteristic had an independent, or unique, role in determining aesthetic appeal. A series of regression analyses with ratings of liking as the dependent variable, in which each characteristic was entered in turn as the final variable in the regressions (see Table 1). Those variables which remained significant predictors of appeal, even after the effects of other variables had been taken into account could be taken as having a unique role in determining appeal.
What makes icons appealing? 9 In the first regression, when icon concreteness was entered first into the regression, it was a significant predictor of appeal. However, in the second analysis where familiarity was entered first into the regression, concreteness explained little of the variance in appeal once familiarity with the icon was taken into account. Visual complexity appeared to have a smaller, but statistically reliable role, in determining appeal which was independent, to some extent at least, of icon familiarity. Taken together these findings suggest that familiarity is of primary importance in determining appeal but that keeping icons simple (since complexity is inversely related to appeal) is also important. The nature of the overlapping inter-relationships between icon characteristics in determining appeal is therefore very similar to that depicted in Figure 2 except that in this instance it is appeal, rather than performance, which is being predicted. This pattern of results was also reflected in the reasons participants gave for either liking or disliking icons.
Experiment 1 examined the characteristics that are associated with the appeal of icons. Given the remarkable correspondences between what is known about the stimulus characteristics that correlate with both performance and appeal, it was hypothesized that icon characteristics which affected user performance would have similar effects on appeal, i.e. that correlations between icon characteristics and appeal would be similar to those observed between icon characteristics and performance. This was indeed the case. First, icon familiarity accounted for the largest proportion of the variance in appeal. Second, icon concreteness was a less effective predictor of appeal than familiarity. Third, icon concreteness did not predict appeal once the effects of icon familiarity were accounted for. Fourth, visual complexity accounted for a significant amount of the variance although this overlapped to some degree with icon familiarity.
3 Experiment 2: Processing fluency effects in an icon search task
If the processing fluency hypothesis is correct, then icons that are likely to be easier to process (i.e., familiar and simple icons) should attract more positive evaluations. In Experiment 2 participants carried out a search task designed to be analogous to everyday search for icons on an interface. The effect of icon familiarity and visual complexity on search performance was examined by varying the familiarity and complexity of the icons presented in the task orthogonally to create 4 types of icon; familiar and simple, familiar and complex, unfamiliar and simple, unfamiliar and complex (see Figure 4). The appeal of all 4 types of icons was held constant (see Materials and Table 2 for details). This meant that any differences in appeal emerging during the study could be attributed to differences in performance arising during the search task, rather than merely being the result of prior appeal differences between experimental materials. In order to ensure that appeal judgements were not simply the result of initial impressions, icons were presented to participants over a series of 9 blocks of experimental trials and ratings of liking were obtained after the first and the ninth blocks of trials. In this way Experiment 2 was designed to provide a strong test of the processing fluency hypothesis, examining the possibility that icon appeal “is a function of the perceiver’s processing dynamic: The more fluently the perceiver can process an object, the more positive [their] aesthetic response.” (Reber et al., 2004, p. 366).
On the basis of previous research (McDougall et al., 2000; Scott, 2003) we expected that visual search for simple icons would be easier than for complex icons (i.e. a main effect
What makes icons appealing? 10 of complexity). We also expected that familiar icons would be located in the array more easily than unfamiliar icons since search is partially driven by our prior knowledge of stimuli (i.e. a main effect of familiarity; Liu, 2005; Wang et al., 1994, Wolfe & Alvarez, 2011). Finally, as participants gained experience with the search task and the icon set, we expected that processing would become easier (i.e., a main effect of experience). It was expected this ease of processing would be reflected in measures of performance (search times) and appeal evaluations (subjective ratings of liking).
3.1 Method
3.1.1 Participants
Forty-two undergraduate and postgraduate students from Bournemouth University took part in this experiment. Twenty-one participants provided ratings of liking after completing 1 block of experimental trials. Their mean age was 20.83 years (12 females, 9 males). Twenty-one participants provided ratings of liking after completing 9 blocks of experimental trials. Their mean age was 22.33 years (13 females, 8 males). Each participant received £12 or course credits for taking part in the study.
Visual Complexity Familiarity Simple Complex
Familiar
Picnic Area Risk of explosion
Unfamiliar
Balance Rinse
Figure 4: Types of icons presented in the search and identification tasks in Experiments 2-4. The visual complexity and familiarity of icons was varied orthogonally while appeal was held constant.
3.1.2 Materials
Icons were selected from a corpus of 239 icons rated for familiarity, complexity and appeal (McDougall et al., 1999 and Experiment 1). As shown in Figure 4, the 40 icons presented in the search trials varied orthogonally in their rated familiarity and visual complexity. There were (a) 10 familiar and complex icons, (b) 10 familiar and simple icons, (c) 10 unfamiliar and complex, and (d) 10 unfamiliar and simple icons. Using ratings from the corpus, icons were selected which had previously been rated independently as either relatively visually complex or simple and either familiar or unfamiliar. Based on appeal ratings obtained in Experiment 1, the icons selected did not differ in their perceived appeal. A series of one-way analyses of variance followed by Newman-Keuls comparisons was
Table 2: Mean ratings (and standard deviations) of visual complexity, familiarity, and appeal for each icon type and the results of one-way analyses and Newman-Keuls comparisons examining differences between stimulus types used in Experiments 2 and 3. All ratings were on a 1-5 scale, with 5 representing a high value of the characteristic concerned.
Icon characteristics Complex Familiar (CF) Complex Unfamiliar (CUF) Simple Familiar (SF) Simple Unfamiliar (SUF) F-value Newman-Keuls comparisons
Visual complexity 3.44 (0.38) 3.47 (0.34) 2.00 (0.35) 2.02 (0.21) F(3.36)=63.88, p<.001 CF=CUF > SF=SUF Familiarity 3.47 (0.38) 2.02 (0.34) 3.44 (0.35) 2.00 (0.21) F(3,36)=131.68, p<.001 CF=SF > CUF=SUF Appeal 2.96 (0.37) 2.68 (0.48) 3.29(0.43) 2.90 (0.35) F(3,36)=2.69, p>.05 CF=CUF=SF=SUF
conducted to ensure that icons differed in accordance with the requirements of each experimental condition (see Table 2):-
(i) Ratings of complexity differed significantly; simple familiar and unfamiliar icons had significantly lower complexity ratings than complex familiar and unfamiliar icons (ii) Familiar simple and complex icons had higher familiarity ratings than unfamiliar
simple and complex icons.
(iii) Ratings of icon appeal did not differ significantly across experimental conditions.
3.1.3 Procedure
3.1.3.1 Search task. Participants searched for a pre-determined target icon in an array of nine icons (see Figure 5). The procedure for each experimental trial was as follows:-
(a) Participants were initially shown the target for 2 seconds.
(b) An OK button appeared following target offset. Participants then pressed the OK button to display the array. This ensured participants started each trial with the mouse pointer at the same point on the display.
(c) An array of 9 icons appeared after the OK button was depressed. Participants used the mouse to click as quickly as possible on the target icon. Once participants had clicked on an icon in the array, the array disappeared.
(d) There was an inter-stimulus interval of 1s after icon array offset and then the next experimental trial began.
There were 9 blocks of trials, with 40 trials per block. In each block, 40 icons were targets, 10 icons of each icon type (shown in Figure 4). Icons in the set appeared equally often as targets and distractors. Performance was measured by the time participants took to search for an icon in an array (a task similar to searching for icons on an interface) and by search accuracy. Accuracy scores were therefore the number of each type of icon correctly matched with an icon in the array during search (i.e. a score out of 10 for each icon type).
Figure 5: The search task used in Experiment 2 (see Procedure for details)
3.1.3.2 Appeal rating task. Participants were asked to rate icons on a 1-5 scale (from really dislike to really like) either after completing 1 block of experimental trials or after completing 9 blocks of experimental trials. Icons were randomized prior to rating and presented in booklets to participants.
What makes icons appealing? 13 3.1.4 Design
Participants completed two tasks, a search task and a liking rating task. The search task employed a 2 (Visual Complexity: simple vs. complex) x 2 (Familiarity: familiar vs. unfamiliar) x 9 (Block: 1-9) mixed design. The Complexity by Familiarity manipulation yielded 4 icon types and there were 10 icons of each type. There were 40 trials in each the 9 blocks of trials. The dependent measure for the search task was the time taken to find the target icon in an array of icons.
The rating task employed a 2 (Visual Complexity: simple vs. complex) x 2 (Familiarity: familiar vs. unfamiliar) x 2 (Experience: block 1 vs. block 9) design where Visual Complexity and Familiarity were repeated measures but Experience was manipulated between-participants. The dependent measure for this task was participants’ subjective ratings of liking using a 1-5 scale.
3.2 Results and Discussion
3.2.1 Accuracy
Participants’ accuracy was very high throughout, M=94.33%, SD=4.86%. For this reason accuracy data has not been analysed further.
3.2.2 Response Times
A repeated-measures analysis of variance (ANOVA) examined the effects of experience (block 1 vs. block 9), icon familiarity (familiar vs. unfamiliar) and icon complexity (simple vs. complex) on participants’ response times. A summary of main effects and interactions on response times is shown in Table 3. Response times reduced as participants gained experience with icons in the search task, F(8,328) = 13.17, p < .001, η2 = .243, M(block 1)=1239 ms, SD = 194ms; M(block9)=1101 ms, SD = 133ms. Response times were faster for familiar in comparison to unfamiliar icons, F(1,41) = 80.76, p < .001, η2= .663; M(familiar) = 1112ms, SD = 129ms; M(unfamiliar) = 1174ms, SD = 136ms. Response times were faster for simple in comparison to complex icons, F(1,41) = 90.34, p < .001, η2 = .696; M(simple) = 1105, SD = 135ms; M(complex) = 1181ms, SD = 132ms. There was a significant interaction between familiarity and complexity, F(1,41) = 10.69, p = .002, η2 = .207. This interaction is shown in Figure 6a. Further analyses revealed that the difference in response times between familiar and unfamiliar icons was greater for simple icons than for complex icons, t(41) = 3.27, p = .002. No other interactions were significant.
3.2.3 Ratings of appeal
A repeated-measures ANOVA examined the effects of experience (block 1 vs. block 9), icon familiarity (familiar vs. unfamiliar) and icon visual complexity (simple vs. complex) on participants’ ratings of liking. A summary of main effects and interactions on liking ratings is shown in Table 3. There was a significant main effect of experience, F(1,40) = 5.46, p =.025, η2 = .120. Participants who had gained more experience with the icons gave them higher ratings of liking, M(block 9)=3.06, than those with less experience of the icons, M(block 1)=2.81. Ratings were higher for familiar than for unfamiliar icons, F(1,40) = 17.55, p < .001, η2 = .305 and for simple as opposed to complex icons, F(1,40) = 8.87, p < .001, η2
What makes icons appealing? 14 = .180. Furthermore, there was a significant interaction between familiarity and complexity, F(1,40) = 4.77, p = .035, η2 = .107 (see Figure 6b). A paired t-test was carried out to examine the interaction further and showed that the difference in ratings between familiar and unfamiliar icons was greater for simple icons than for complex icons, t(41) = 2.17, p = .035. No other interactions were significant.
(a) Response Times (b) Ratings of liking
Figure 6: Experiment 2. Interactions between icon familiarity and complexity. Means and standard errors for (a) response times and (b) ratings of liking in the search task
In this experiment icons which were processed more efficiently were expected to produce an implicit experience of fluency which would be attributed to greater liking leading to more positive evaluations of appeal for these icons. The findings for ratings of liking reflect those found for response times; simple and familiar icons attracted higher ratings of liking. When combined, these properties appeared to have particular benefits, with familiar simple icons resulting in the lowest response times and attracting the highest ratings of liking. Ratings of liking also differed based on experience; when ratings of liking were obtained earlier in learning trials at block 1 ratings were lower than at block 9 reflecting the reduction in response time over blocks of trials.
The results of Experiment 2 showed that ratings of liking mirrored the pattern of response times (see Figure 6 and Table 3). Although, the significant main effects of familiarity or visual complexity of icons in the appeal ratings could be attributed to the effects those characteristics are already known to have on appeal judgements (e.g. Experiment 1; Bauerly & Liu, 2008; Moshagen & Theilsch, 2010; Monahan et al., 2001; Zajonc, 2001), the interaction between icon familiarity and visual complexity can only be attributed to the relative ease or difficulty of processing emerging during the visual search task. These results suggest a dynamic relationship between performance and appeal that is mediated by processing fluency.
950 1000 1050 1100 1150 1200 1250 Familiar Unfamiliar Response times (ms) Icon Familiarity 1.5 2 2.5 3 3.5 4 4.5 Familiar Unfamiliar Rating of Liking Icon Familiarity Simple Complex
What makes icons appealing? 15
Table 3: Summary of experimental findings. Shaded cells indicate predicted main effects and interactions in performance measures (RT and accuracy) and appeal ratings. Predicted effects and interactions were different between Experiment 2 (search task) and Experiments 3 & 4 (search-and-identification task). Ticks and crosses denote the effects observed: ticks () denote significant effects; crosses () denote non-significant effects; dashes (-) indicate insufficient data to conduct analyses.
Experimental effects RT Accuracy Appeal
Experiment 2
Icon characteristics
Visual complexity: simple vs complex icons - Familiarity: familiar vs unfamiliar icons -
Familiarity x Visual complexity -
Experience (learning during blocks of experimental trials)
Experience (block 1 vs block 9) -
Experience x Visual complexity -
Experience x Familiarity -
Experience x Visual complexity x Familiarity - Experiment 3
Icon characteristics
Visual complexity: simple vs complex icons Familiarity: familiar vs unfamiliar icons
Familiarity x Visual complexity
Experience (learning during blocks of experimental trials)
Experience (block 1 vs block 9)
Experience x Visual complexity
Experience x Familiarity
Experience x Visual complexity x Familiarity Experiment 4
Icon characteristics
Visual complexity: simple vs complex icons Familiarity: familiar vs unfamiliar icons
Familiarity x Visual complexity
Experience (learning during blocks of experimental trials)
Experience (block 1 vs block 9)
Experience x Visual complexity
Experience x Familiarity
What makes icons appealing? 16
4 Experiment 3: Processing fluency effects in an icon identification task
In Experiment 2 the pattern of liking ratings closely mirrored the pattern of performance, and specifically response times. It was suggested that the similarity between the pattern of liking and the pattern of performance may be mediated by processing fluency rather than icon characteristics alone. An even stronger test of the processing fluency hypothesis as a dynamic mediator of liking ratings would be to change the task (so changing ease of processing) while keeping the icons used the same. This is exactly what was done in Experiment 3. Participants were asked to carry out an icon identification task but the icon set was the same as used in the search task in Experiment 2. Participants were shown the function of the icon and then asked to identify the matching icon. This meant that participants had to search for a semantic rather than a visual match in the array. Critically, patterns of performance in the identification task are different from the search task employed in Experiment 2 (McDougall et al., 2000). Specifically, in this kind of task the expected pattern of results is as follows (see also Table 3):-
(i) When icons are unfamiliar, the icon-function associations need to be learned, so in early learning trials unfamiliar icons will be identified less accurately than in later trials. When unfamiliar icon-function associations have been learned (by Block 9) there should be no differences in accuracy between icon types (i.e. for accuracy scores there should be an interaction between icon familiarity and experience over blocks of trials).
(ii) Familiar icons will also be identified faster in comparison to unfamiliar icons. This will be particularly apparent in earlier trials although the difference in response times between familiar and unfamiliar icons should diminish as icon-function associations are learned in later trials (i.e. there should be an interaction between icon familiarity and experience in response times).
(iii)Visual complexity may also have an effect on identification times since prior knowledge of shapes and objects is known to affect search times (i.e. a main effect of visual complexity on response times).
(iv) Visual complexity has no effect on identification accuracy because it is likely to be less important compared to our familiarity with icons and the icon-function associations.
If appeal evaluations are determined by ease of processing in the identification task, despite the icons used in Experiment 3 being identical to those used in Experiment 2, this would provide the strongest evidence so far for processing fluency as a dynamic mediator of appeal. It would show not only evaluations of icon appeal mirror performance (as we showed in Experiment 2), but also that the pattern of liking ratings for the same icons changes when performance changes as a result of using a different task which yields a different pattern of performance (see Table 3 for the predicted pattern of findings, which are shaded in grey). If, on the other hand, appeal is determined primarily by the nature of the stimuli, rather than processing fluency per se, then we would not expect to see any change in appeal evaluations from those observed in Experiment 2.
What makes icons appealing? 17
4.1 Method
4.1.1 Participants
Thirty-eight undergraduate and postgraduate students from Bournemouth University took part in this experiment. Twenty-one participants provided ratings of liking after completing 1 block of experimental trials. Their mean age was 21.44 years, SD=1.39 (11 females, 10 males). Seventeen participants provided ratings of liking after completing 9 blocks of experimental trials. Their mean age was 22.85 years, SD=6.65 (9 females, 7 males). Each participant received course credits or £8 for taking part in the study.
4.1.2 Materials
The materials were identical to those employed in Experiment 2. Familiarity and visual complexity were varied orthogonally while the appeal of the icons prior to the study was held constant (see Table 2).
4.1.3 Procedure
4.1.3.1 Identification task. In Experiment 3, participants were shown the written function of the icons and asked to identify the matching icon in the 9-icon array. Corrective feedback was given following errors, to facilitate learning of the correct icon-function associations. The procedure for each experimental trial was as follows:
(a) Participants were shown the icon function for 2 seconds (e.g., the word “biohazard”). (b) An OK button appeared after the function offset. Participants then pressed the OK
button to display the array.
(c) Participants used the mouse to select the icon which they thought matched the function. If the correct icon was chosen, the array disappeared and the next experimental trial began. When an error was made, participants were shown the array twice more, if required, so that they could make another attempt to match the function to its icon. If, on their third attempt, participants were still unable to choose the correct icon match, the array disappeared leaving the correct icon. This provided participants with feedback so that they could gradually learn the icon-function associations.
As in Experiment 2 there were 9 blocks of trials with 40 trials per block. The function name for each of the 40 icons was presented once in each block of trials. Accuracy was measured as the number of icons correctly identified at the first attempt in each trial. For each block of 40 trials, a maximum accuracy score of 10 could be obtained for each of the 4 types of icons presented.
4.1.3.2 Liking rating task. Participants were asked to rate icons on a 1-5 scale after completing either 1 or 9 blocks of experimental trials in exactly the same manner as Experiment 2.
4.1.4 Design
The experimental design was identical to Experiment 2, except that participants were asked to identify icons in an array given the function of the icon, rather than being shown the target icon itself.
What makes icons appealing? 18
4.2 Results and Discussion
4.2.1 Accuracy and Response Times
Two repeated-measures ANOVAs examined the effects of (blocks of trials 1-9), icon familiarity (familiar vs. unfamiliar) and icon visual complexity (simple vs. complex) on participants’ accuracy and response times. A summary of main effects and interactions on icon identification accuracy, response times, and liking ratings for Experimetn 3 is shown in Table 3 and Figure 7.
4.2.2.1 Accuracy. Accuracy increased as participants gained experience with icons in the identification task, F(8,288) = 101.93, p < .001, partial η2 = .739, M (Block1) = 7.48, SD = 0.70; M (Block 9) = 9.63, SD = 0.26. Responses were more accurate for familiar icons, M=9.54, SD = 0.30, than for unfamiliar icons, M=8.92, SD = 0.47, F(1,36) = 74.18, p < .001, partial η2 = .673. The effects of familiarity reduced over time and this was apparent in a significant interaction between experience and familiarity, F(8, 288) = 49.68, p < .001, partial η2
= .580. Paired-samples t-tests were carried out to examine differences between familiar and unfamiliar icons in Block 1 and Block 9. The criterion p-value was adjusted to .025 using the Bonferroni correction to adjust for family-wise error rate. These comparisons revealed a significant difference in accuracy between familiar and unfamiliar icons at Block 1, t(36) = 13.21, p < .001 but not at Block 9, t(36) = -.61, p = .544.
Visual complexity, in contrast, did not affect accuracy, F(1,36) = 1.39, p = .246, partial η2
= .037, M(simple) = 9.20, SD = 0.34; M(complex) = 9.25, SD = 0.36, and, overall, its effects did not change as a result of experience, F(8, 288) = 1.79, p = .078, partial η2 = .047. As in Experiment 2, there was a significant interaction between the effects of familiarity and complexity, F(1,36) = 6.96, p = .012, partial η2 = .162. Although the interaction between these effects appeared to reduce somewhat as participants gained experience with the task the 3-way interaction between experience, icon familiarity and icon complexity was not significant, F(8,288) = 1.97, p = .05, partial η2 = .052. However, for the purpose of comparison with Experiment 2, the effects of familiarity and complexity on response times initially (at Block 1) and at the end of the identification task (at Block 9) are illustrated in Figure 5(a) and (b). T-tests were carried out to examine differences between simple and complex familiar and unfamiliar icons in Block 1 and Block 9. The criterion p-value was adjusted to .0125 using the Bonferroni correction to adjust for family-wise error rate. These comparisons revealed a significant difference in accuracy for simple and complex unfamiliar icons at Block 1, t(36) = 2.61, p = .006, but no other differences between simple and complex icons were apparent.
4.2.2.2 Response Times. Response times reduced over blocks of trials as participants gained experience with the identification task, F(8,288) = 100.87, p < .001, partial η2 = .737, M(Block 1) = 2708ms, SD=677ms, M(Block 9) = 1403ms, SD = 292ms. Familiarity also affected response times, F(1,36) = 141.40, p < .001, partial η2= .797; M(familiar) = 1429ms, SD = 291ms; M(unfamiliar) = 1894ms, SD =381ms. The effects of familiarity reduced with experience, F(8, 288) = 24.44, p < .001, partial η2 = .404. T-test comparisons using the Bonferroni correction revealed that while response time differences between familiar and unfamiliar icons reduced with experience, they remained significant throughout (Block 1: t(36) = -7.68, p < .001; Block 9: t(36) = -5.45, p< .001).
What makes icons appealing? 19 Figure 7: Experiment 3. Interactions between icon familiarity and complexity. Means and standard errors for accuracy after (a) 1 block and (b) 9 blocks of trials; response times after (c) 1 block and (d) 9 blocks of trials; and ratings of liking after (e) 1 block and (f) 9 blocks of trials.
(a) Accuracy Block 1 (b) Accuracy Block 9
(c) Response Times Block 1 (d) Response Times Block 9
(e) Liking Ratings Block 1 (f) Liking Ratings Block 9
4 5 6 7 8 9 10 Familiar Unfamiliar Accuracy Icon Familiarity 4 5 6 7 8 9 10 Familiar Unfamiliar Icon Familiarity Simple Complex 0 1000 2000 3000 4000 Familiar Unfamiliar Response times (ms) Icon Familiarity 750 1000 1250 1500 1750 2000 Familiar Unfamiliar Icon Familiarity 1.5 2 2.5 3 3.5 4 4.5 Familiar Unfamiliar Rating of Liking Icon Familiarity 1.5 2 2.5 3 3.5 4 4.5 Familiar Unfamiliar Icon Familiarity
What makes icons appealing? 20 Complex icons took longer to identify than simple icons, M(simple) = 1628ms, SD = 307ms, M(complex) = 1694ms, SD = 293ms, F(1,36) = 5.54, p = .04, partial η2 = .133, however, this difference did not reduce as a result of experience, F(8, 288) = 1.62, p = .118, partial η2
= .043. There was a significant interaction between the effects of familiarity and complexity, F(1,36) = 10.01, p = .003, partial η2 = .218 (see Figure 5). The interaction between these effects reduced as participants gained experience across blocks of trials and resulted in a significant 3-way interaction, F(8,288) = 4.82, p < .001, partial η2 = .118. Two 2-way repeated-measures ANOVAs were carried out to examine the 3-way interaction. For Block 1, the visual complexity x familiarity interaction was also significant, F(1,36) = 15.94, p <.001; partial η2 = .307. Paired-samples t-tests with the p-value adjusted to .0125 to correct for the family-wise error rate using the Bonferroni correction showed significantly lower response times for simple unfamiliar icons compared to complex unfamiliar icons, t(36) = -3.28, p = .002, but no difference between simple and complex familiar icons, t(36) = 1.42, p = .163. For Block 9, there was no significant interaction, F(1,36) = 1.11, p = .299. The effects of familiarity and complexity initially (at Block 1) and at the end of the identification task (at Block 9) are illustrated in Figure 7(c) and (d).
4.2.2.3 Ratings of liking. A mixed 3-way ANOVA was used to examine differences in appeal ratings as a result of experience (block 1 vs. block 9) as the between-participants factor and icon familiarity (familiar vs. unfamiliar) and icon visual complexity (simple vs. complex) as the within-participants factors.
Appeal ratings did not differ as a result of experience, F(1,36) = 0.710, p = .4.09, partial η2= .034, M(block 1) = 3.48, SD = 0.29, M(block 9) = 3.46, SD = 0.48. However, appeal ratings differed as a result of icon familiarity, F(1,35) = 117.73, p < .001, partial η2 = .771, M(familiar) = 4.03, SD = 0.58; M(unfamiliar) = 2.91, SD = 0.40, and icon complexity, F(1,35) = 16.65, p < .001, partial η2 = .332, M(simple) = 3.58, SD = 0.40; M(complex) = 3.36, SD = 0.44. There was also an interaction between familiarity and complexity, F(1,35) = 9.73, p < .001, partial η2 = .217. Paired-samples t-tests revealed that ratings for unfamiliar simple and complex icons differed significantly, t(36) = -4.85, p = .000, while familiar simple and complex icon ratings did not, t(36) = .90, p = .371. The effects of familiarity and complexity initially (at Block 1) and at the end of the identification task (at Block 9) are illustrated in Figure 5(e) and (f). Bonferroni corrected paired-samples t-tests revealed significant differences in ratings of liking between unfamiliar complex and simple icons at Block 1, t(19) = -4.15, p = .001, but not in Block 9, t(16) = -2.19, p = .022. There were no significant differences between familiar complex and simple icons at either Block 1 or 9. None of the interactions with experience were significant.
Findings from Experiment 3 are illustrated in Figure 7 (see also Table 3). They can be summarized as follows:-
(i) Accuracy
Identification accuracy was much poorer for unfamiliar icons in Block 1. However, by Block 9 icon-function associations had been learned, reducing any differences in accuracy between icon types. As expected, visual complexity had little overall effect on identification accuracy but, as Figure 7 shows, the extra detail provided in complex icons may have helped participants make inferences initially about icon-function relationships.
What makes icons appealing? 21 (ii) Response Times
Visual search times, however, were generally faster for simple icons. In addition, familiar icons were identified more quickly than unfamiliar icons; this was particularly apparent in earlier trials, though differences remained even in later trials.
(iii)Evaluations of Appeal
Ratings of liking appeared to mirror response times more than accuracy (see Figure 7). Liking ratings differed significantly as a result of both icon complexity and familiarity. Differences in ratings between familiar icons and unfamiliar icons remained, even in later trials at Block 9. In this instance attributions therefore appeared to mirror speed, rather than accuracy, of responses.
So, does changing the task – and the nature of the cognitive processing required – change ratings of liking as indicated in Figure 1? By and large, this appears to have been the case with respect to search times. However, if appeal ratings were to fully reflect changes in performance, then the effects of familiarity would reduce as participants learned the icon-function relationships across blocks of trials (i.e. there would be an Experience x Familiarity interaction, see areas shaded in grey in Table 3). This was not the case for appeal evaluations. One possible reason for this might be that ratings of liking at Blocks 1 and 9 were obtained from different groups of participants, reducing the likelihood of using learning of the icon-function relationship as a heuristic cue. In order to explore this possibility, a further experiment was conducted replicating Experiment 3 but ratings of liking were obtained twice from each participant, once after completion of 1 block and then again after 9 blocks of trials. The aim of this manipulation was to give greater emphasis, albiet implicitly, to participants’ growing experience with the icons and the task over experimental trials.
5 Experiment 4: Does learning icon-function relationships act as a cue in evaluations of
appeal?
If ease, or dis-ease, of processing acts as a heuristic cue in determining appeal evaluations then it should be possible to map the pattern of performance in a given task to the pattern of appeal evaluations. In Experiment 3 this was largely, but not wholly, the case. In contrast to accuracy and response times, differences between appeal evaluations for familiar and unfamiliar icons did not diminish as icon-function relationships were learned over 9 blocks of trials. One possible explanation is that, because ratings of liking were obtained from different groups of participants after completion of either 1 or 9 blocks of trials participants were more aware of stimulus cues such as icon familiarity and complexity when rating liking rather than relative changes in ease of processing resulting from greater knowledge of the task and icon-function associations. Thus, when asked to rate liking, participants were less aware of, or discounted, their learning between blocks of trials given the greater salience of icon familiarity and complexity. Discounting of possible heuristic cues appears to occur in situations where multiple cues are available because individuals attribute fluency to those which are most obvious and available (see Alter & Oppenheimer, 2009; Alter, Oppenheimer, Epley & Eyre, 2007; Belke, Leder, & Carbon, 2015; Oppenheimer, 2004, for discussions of heuristic discounting). Experiment 4 explored this possibility by replicating Experiment 3 but with ratings of liking obtained twice from the same participants, once after completion of
What makes icons appealing? 22 Block 1 and a second time after completion of Block 9. The aim of this manipulation was to implicitly highlight gaining experience with the icons over blocks of trials.
5.1 Method
5.1.1 Participants
Twenty-one undergraduate and postgraduate students from Bournemouth University took part in this experiment. Their mean age was 20 years 4 months, SD=5 months (20 females, 1 male). Each participant received course credits for taking part in the study.
5.1.2 Procedure & Materials
The procedure and materials were identical to Experiment 3, with the exception that in Experiment 4 participants rated the appeal of the icons which had appeared in the array after completing 1 and after completing 9 blocks of experimental trials.
5.1.3 Design
The design for the identification task was identical to Experiment 3. The appeal evaluation task employed a 2 (Familiarity: familiar vs. unfamiliar) x 2 (Visual complexity: simple vs. complex), x 2 (Experience: Block 1 vs. 9) repeated-measures design. Thus, unlike Experiment 3, in Experiment 4 Experience was a within-participant factor. Accuracy and response time were the dependent measures for the identification task, and appeal ratings were the dependent measure for the appeal evaluation task.
5.2 Results and Discussion
The pattern of findings in this experiment was very similar to Experiment 3 (c.f. Figures 7 and 8).
5.2.1 Accuracy and Response times
Repeated measures ANOVAs were conducted to examine the effects of experience (blocks of trials 1-9), icon familiarity (familiar vs. unfamiliar) and icon visual complexity (simple vs. complex) on participants’ accuracy, response times and liking ratings. A summary of main effects and interactions for each dependent measure appears in Table 3.
5.2.1.1 Accuracy. Accuracy increased across blocks of trials as participants gained experience with the identification task, F(8,160) = 114.76, p < .001, partial η2=.852; M (Block1) = 7.05, SD = 0.66; M (Block 9) = 9.62, SD = 0.36. Familiar icons were identified more accurately than unfamiliar icons, F(1,20) = 71.50, p < .001, partial η2=.781; M (familiar) = 9.53, SD = 0.30; M (unfamiliar) = 8.91, SD = 0.17. The effects of familiarity reduced across blocks of trials as users learned icon-function associations, F(8,160) = 29.23, p < .001, partial η2=.594. As can be seen from Figure 8, there was a large difference in accuracy scores between familiar and unfamiliar icons in the first block of trials, t(21)=8.77, p<.001, but not at block 9, t < 1. Visual complexity did not affect accuracy, F(1,20) =0.24, p = .625, partial η2
=.012; M (simple) = 9.20, SD = 0.22; M (complex) = 9.24, SD = 0.27. No other interactions with complexity were significant. For the purpose of comparison with Experiments 2 and 3, the effects of familiarity and complexity on accuracy initially at Block 1 and later at Block 9 are illustrated in Figure 8(a) and (b).
What makes icons appealing? 23 5.2.1.2 Response Times. Response times reduced over blocks of trials as participants gained experience with the task, F(8,160) = 58.52, p < .001, partial η2=.745; M(Block 1) = 2512ms, SD = 592ms; M(Block 9) = 1368ms, SD = 155ms. Familiar icons were identified more quickly, F(1,20) = 84.26, p < .001, partial η2= .808; M(familiar) = 1397ms, SD = 179ms; M(unfamiliar) = 1742ms, SD = 265ms. The effects of familiarity reduced over time as participants learned icon-function associations, F(8,160) = 16.02, p < .001, partial η2= .455. T-tests using the Bonferroni correction revealed that while response time differences between familiar and unfamiliar icons reduced with experience, they remained significant throughout (Block 1: t(21)=-6.16, p<.001; Block 9, t(21)=3.74, p<.001).
Complex icons took longer to identify than simple icons, F(1,20) = 8.09, p = .010, partial η2 = .288, M(simple) = 1540ms, SD = 219ms; M(complex) = 1599ms, SD = 209ms. Familiarity and complexity interacted significantly, F(1,20) = 10.76, p = .004, partial η2= .350 (see Figure 6c and d). There was a significant 3-way interaction between experience, icon familiarity and icon complexity, F(8,160) = 4.62, p < .001, partial η2= .188. Two 2-way repeated-measures ANOVAs were carried out to examine the 3-way interaction. At Block 1, the visual complexity x familiarity interaction was significant, F(1,20) = 10.20, p = .005; partial η2 = .338. At Block 9, the interaction was not significant, F(1,20) = 1.11, p = .299. Paired-samples t-tests were carried out to examine these effects further with the criterion p-value adjusted to .0125 using the Bonferroni correction to correct for the family-wise error rate. A significant difference in response time was observed between simple and complex icons for unfamiliar icons at Block 9, t(20) = 3.95, p = .001, but not for other pairwise comparisons of simple and complex icons. The effects of familiarity and complexity initially (at Block 1) and at the end of the identification task (at Block 9) are illustrated in Figure 6(c) and (d).
5.3.1 Ratings of liking
Appeal ratings did not differ between blocks 1 and 9, F(1,20) = 0.71, p = .409, partial η2
= .034, M(Block 1) = 3.23, SD = 0.65; M(Block 9) = 3.42, SD = 0.79. Familiar icons were rated more highly than unfamiliar icons, F(1,20) = 150.97, p < .001, partial η2= .883, M(familiar) = 3.98, SD = 0.64; M(unfamiliar) = 2.76, SD = 0.65. The effects of familiarity on ratings of liking reduced between Block 1 and Block 9 producing a significant interaction between familiarity and experience, F(1,20)=17.99, p <.001, partial η2= .474.
Simple icons were rated more highly than complex icons F(1,20) = 34.96, p < .001, partial η2= .636, M(simple) = 3.56, SD = 0.64; M(complex) = 3.18, SD = 0.60, and there was a significant 3-way interaction between experience, icon familiarity and icon complexity, F(1,20) = 34.94, p < .001, partial η2= .636. Two 2-way repeated-measures ANOVAs were carried out to examine the 3-way interaction. The visual complexity x familiarity interaction was significant at both Block 1, F(1,20) = 32.80, p < .001; partial η2 = .621, and Block 9, F(1,20) = 12.45, p = .002, partial η2 = .384. Paired-samples t-tests were carried out to examine these effects further using the Bonferroni correction with the criterion p-value adjusted to .0125. Ratings at Block 1 differed between simple and complex icons for unfamiliar icons, t(20) = 7.95, p < .001, but not for familiar icons, t(20) = .192, p =.850.
What makes icons appealing? 24 Figure 8: Experiment 4. Interactions between icon familiarity and complexity. Means and standard errors for accuracy after (a) 1 block and (b) 9 blocks of trials; response times after (c) 1 block and (d) 9 blocks of trials; and ratings of liking after (e) 1 block and (f) 9 blocks of trials.
(a) Accuracy Block 1 (b) Accuracy Block 9
(c) Response Times Block 1 (d) Response Times Block 9
(e) Liking Ratings Block 1 (f) Liking Ratings Block 9
4 5 6 7 8 9 10 Familiar Unfamiliar Accuracy Icon Familiarity 4 5 6 7 8 9 10 Familiar Unfamiliar Icon Familiarity Simple Complex 0 1000 2000 3000 4000 Familiar Unfamiliar Response times (ms) Icon Familiarity 750 1000 1250 1500 1750 2000 Familiar Unfamiliar Icon Familiarity 1.5 2 2.5 3 3.5 4 4.5 Familiar Unfamiliar Rating of Liking Icon Familiarity 1.5 2 2.5 3 3.5 4 4.5 Familiar Unfamiliar Icon Familiarity
What makes icons appealing? 25 Similarly at Block 9 appeal ratings differed significantly only for unfamiliar icons, t(20) = 5.87, p < .001, but not familiar icons, t(20) = 2.22, p < .038. The effects of familiarity and complexity initially (at Block 1) and at the end of the identification task (at Block 9) are illustrated in Figure 6(e) and (f).
As in Experiment 3, the effects of icon familiarity and complexity on performance were reflected in participants’ appeal ratings. Importantly, in Experiment 4, where participants were asked to rate appeal at both Block 1 and Block 9, the effects of participants’ growing experience with the icon set on performance was also apparent in their ratings. Findings from Experiment 4 are illustrated in Figure 8 (see also Table 3) and can be summarized as follows:-
(i) Accuracy
Participants were less accurate and slower at identifying unfamiliar icons at Block 1. By Block 9, participants had learned the icon-function associations and differences in accuracy between familiar and unfamiliar icons were minimal (c.f. Figure 8a and b). Visual complexity had no effect on participants’ identification accuracy.
(ii) Response times
As in Experiment 3, response times were generally faster for simple icons. Once icon-function associations had been learned, differences in response times remained between simple and complex unfamiliar icons but not for familiar icons (c.f. Figure 8c and d). (iii) Appeal
Mirroring response times, differences in appeal ratings between familiar and unfamiliar icons reduced over time but remained statistically significant even at Block 9. Appeal ratings were lower for unfamiliar complex compared to unfamiliar simple icons.
The aim of Experiment 4 was to examine whether or not learning icon-function relationships could act as a heuristic cue in evaluations of appeal. In Experiment 3 differences between ratings of liking for familiar and unfamiliar icons did not diminish over trials despite the fact that performance measures showed that icon-function relationships were learned. In Experiment 4 appeal ratings were obtained from participants both during initial learning and at the end of the identification task. The assumption was that participants’ ratings would reflect the learning that had taken place in between their first and second ratings of the icons (i.e. enhance ease, or fluency, of processing) resulting in an interaction between icon familiarity and blocks of trials, with the effects of familiarity reducing with learning. This was indeed the case. Again, these findings are hard to explain in terms of explicit awareness or instruction since participants were not told that they would gradually learn icon-function relationships as the task progressed or that they should perceive them subjectively to be more appealing as a result.
6 General Discussion
The shift in focus to a more holistic approach in user experience, encompassing users’ affective experience as well as usability, has resulted in the visual appeal of interfaces becoming a core construct when considering our affective responses to an interface (Bargas-Avila & Hornbaek, 2011; Brave & Nass, 2008; Thielsch, Blotenberg & Jaron, 2013). Despite
