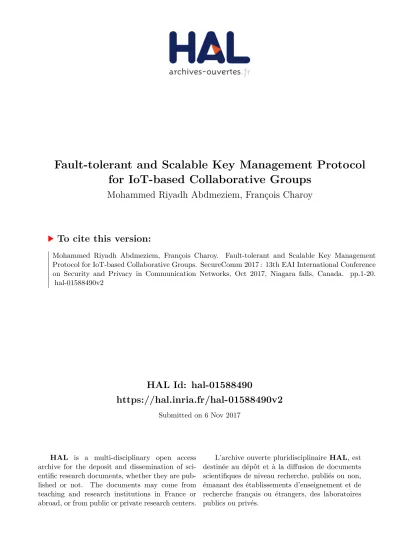

Fault-tolerant and Scalable Key Management Protocol for IoT-based Collaborative Groups

HAL Id: hal-01588490

https://hal.inria.fr/hal-01588490v2

Submitted on 6 Nov 2017

HAL is a multi-disciplinary open access

archive for the deposit and dissemination of

sci-entific research documents, whether they are

pub-lished or not. The documents may come from

teaching and research institutions in France or

abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est

destinée au dépôt et à la diffusion de documents

scientifiques de niveau recherche, publiés ou non,

émanant des établissements d’enseignement et de

recherche français ou étrangers, des laboratoires

publics ou privés.

for IoT-based Collaborative Groups

Mohammed Riyadh Abdmeziem, François Charoy

To cite this version:

Mohammed Riyadh Abdmeziem, François Charoy. Fault-tolerant and Scalable Key Management

Protocol for IoT-based Collaborative Groups. SecureComm 2017 : 13th EAI International Conference

on Security and Privacy in Communication Networks, Oct 2017, Niagara falls, Canada. pp.1-20.

�hal-01588490v2�

Protocol for IoT-based Collaborative Groups

Mohammed Riyadh Abdmeziem? _{and François Charoy}

Université de Lorraine Inria-CNRS-LORIA, Nancy, France

{mohammed-riyadh.abdmeziem,francois.charoy}@loria.fr

Abstract. Securing collaborative applications relies heavily on the un-derlying group key management protocols. Designing these protocols is challenging, especially in the context of the Internet of Things (IoT). Indeed, the presence of heterogeneous and dynamic members within the collaborative groups usually involves resource constrained entities, which require energy-aware protocols to manage frequent arrivals and departures of members. Moreover, both fault tolerance and scalabil-ity are sought for sensitive and large collaborative groups. To address these challenges, we propose to enhance our previously proposed proto-col (i.e. DBGK) with polynomial computations. In fact, our contribution in this paper, allows additional controllers to be included with no impact on storage cost regarding constrained members. To assess our protocol called DsBGK, we conducted extensive simulations. Results conrmed that DsBGK achieves a better scalability and fault tolerance compared to DBGK. In addition, energy consumption induced by group key rekey-ing has been reduced.

Key words: Collaborative applications, Internet of Things (IoT), Se-curity, Group key management, Polynomial computation, Contiki.

1 Introduction

With the rise of the Internet of Things (IoT) and its integration in informa-tion systems, collaborative applicainforma-tions have taken a new dimension. Pervasive devices and objects are able to perceive our direct environment and act au-tonomously upon it to help users to reach their goals. Applications ourished in healthcare, transportation and military environments [4] that combine input from users and objects to reach goals in a collaborative way. In these domains, stakeholders would only accept these systems in their environment if they have strong guarantees on the security, privacy and integrity of the data they pro-duce and share. The distributed nature of such systems and the requirement for encryption of data shared among participants lead to one of the most impor-tant challenges in such evolving environments: the management of cryptographic group keys [32] [6] [2].

Group key management is challenging in this context. In fact, collaborative groups involve heterogeneous members with dierent requirements and resources capabilities [17]. This gap can hinder end-to-end communications. Indeed, con-strained members with limited processing power and storage space can not run heavy cryptographic primitives [5]. Moreover, collaborative applications may present a high rate of leaving and joining members within tight time lapses, which makes the issue more dicult to handle. The scalability of these systems needs to be addressed bearing in mind the increasing number of entities taking part in the collaborative groups. Last, fault tolerance is at utmost importance especially for critical and sensitive applications (e.g. health related and military applications) [31].

We address this problematic of designing a secure and ecient protocol to establish shared group credentials for Peer-to Peer collaborative groups. These credentials will be used to ensure the required security properties such as data condentiality, data integrity, and data authentication. The proposed protocol has to be energy aware allowing an implementation on constrained devices, which take part in the collaborative process. In addition, the protocol must be scalable, as well as tolerant to possible failures of the entity in charge of managing the group key.

To achieve this goal, we rely on our previously proposed group key manage-ment protocol called DBGK (Decentralized Batch-based Group Key) [3]. This protocol considers a network topology composed of several sub groups. Each sub group is managed by an area key management server, while the whole group is managed by a general group key management server. The established group key is composed of a long term key and short terms keys (called tickets), which are dierent for each time interval. Constrained members in terms of resources (e.g. connected objects) are only involved in the re-keying process if these latter have recently been active. In addition, keying materials are distributed to joining members based on their resources capabilities. Experiments showed that DBGK [3] is energy ecient and outperforms similar existing protocols in the literature. Although ecient and secure, DBGK relies on key management servers to maintain the group key. Including additional servers to improve fault tolerance would impose a high storage overhead on constrained members. This makes DBGK inappropriate to be directly implemented in sensitive collaborative ap-plications. In this paper, we propose a distributed extension for DBGK called DsBGK (Distributed Batch-based Group Key). In this extension, we keep the core functioning of DBGK, while signicantly distributing the operations which were based on a central entity. We achieve this by integrating a polynomial based scheme inspired from [25] and [24]. In addition, we improve the eciency of the original scheme to suit the constrained IoT environment. We conducted extensive experiments to assess the performances of DsBGK and compared the results with DBGK performances. The results showed that DsBGK provides an enhanced scalability and fault tolerance, as additional key management servers (controllers) can be included without impacting the storage overhead on con-strained members. Furthermore, energy cost due to rekeying operations is

re-duced compared to DBGK, which extends the life cycle of battery powered entities.

The remaining of the paper is organized as follows. In section 2, we present a use case scenario to motivate our contribution. In section 3, we discuss, in detail, existing solutions in the literature. For the sake of clarity, we summarize in section 4, the required background. In section 5, we present our network model, along with our assumptions and the used notations. In section 6, we thoroughly present our approach before introducing and analyzing the experimental results in section 7. Section 8 concludes the paper and sets our future direction.

2 Use case scenario: Personal Health Record (PHR)

Internet Internet shared medical record

Medical team edit the medical record using smart phone/PC

Patient’s physiological data is captured through sensors

Fig. 1. Use case scenario

A personal heath record [33] (Fig. 1) is a typical example of a document that can be accessed and edited by multiple participants, including medical sensors attached to patients. This is also an example of a document that contains highly private and sensitive information. To edit a medical record, some participants (e.g. medical sta) collaborate using unconstrained devices, such as Personal Computers (PC) and smartphones. However, sensors planted in or around the human body are considered as constrained since they have limited computing power and may operate on battery. These sensors can either communicate their sensed data to medical sta through the unconstrained entities (e.g. PC, smart-phones) or directly edit patient's medical record. Medical sta can also control

the sensors (trigger or stop the sensing of a particular physiological data), and add more sensors to the collaboration. New members can join or leave the col-laboration around the medical record as the situation of the patient evolves. The dierent entities collaborate in a distributed way to maintain the medical record. This latter can be replicated among dierent entities and the modica-tions can be executed on the dierent replicas, which need to be synchronized. This is important in order to avoid a single point of failure on the record man-agement architecture. It is also important to control the entities that have access and can modify the record over time. This clearly highlights the importance of securing communications in such a hybrid and heterogeneous group of entities by eciently managing the security credentials used to provide data authenti-cation and data condentiality. Personal Health Record (PHR) is a typical case of collaboration among health-care personal, insurers, caregivers, patients and sensors to maintain a document that reects the patient status, health history and treatment. There is an obvious need to provide a decentralized, secure, safe, privacy preserving and scalable solution to share these documents among people and sensors (objects).

3 Related work

In this section, we review the main categories under which group key manage-ment protocols are usually categorized [11] [28], namely, the centralized, the decentralized, and the distributed categories.

Centralized protocols are based on an unconstrained central entity (i.e. Key Management Server (KMS)), which is responsible for generating, distributing, and updating the group key for the whole group. Authors in [15] introduced the Group Key Management Protocol (GKMP), which is based on a Group Key Packet (GKP). This latter encompasses a Group Trac Encryption Key (GTEK) to secure data trac, and a Group Key Encryption Key (GKEK) to secure transmissions related to rekeying operations. Following a leave event, the central entity broadcasts the new GKP to all remaining members creating a complexity of O(n). This complexity makes GKMP not scalable with regards to dynamic and large groups. To reduce the impact of leave events, authors in [34] proposed an interval-based protocol, which generates the keying materials corresponding to the predicted period of time during which the members are expected to remain in the group. Doing so, following a leave event, no rekeying is required. However, this solution is not suited to dynamic groups with unexpected join and leave events, as predicting the leaving moment of members is neither realistic nor practical. In addition, constrained members which are part of the group for a long period of time might suer from storage issues, as a large number of keying materials needs to be stored.

To further improve eciency, several hierarchical based protocols have been proposed. Among them, the Logical Key Hierarchy (LKH) protocol [37], later improved by the One-way Function Tree protocol [7] are typical examples. The

basic idea of these protocols is that the KMS shares pre-established credentials with subsets of the group. Following an event, the KMS relies on these credentials to target specic subgroups during the rekeying, thus, reducing the number of required rekeying messages (i.e. OLog(n)).

Thanks to their eciency, polynomial based approaches are used to man-age group keys in collaborative applications. In fact, polynomial based schemes allow overcoming the storage cost related to multicast inter-group communica-tions. Moreover, polynomial evaluation can be, under certain conditions, more ecient than encryption/decryption primitives. Polynomials have originally been included in threshold secret sharing schemes [30]. More recently, authors in [35] [36] used polynomials to enable group members decrypting received messages. Doing so, the members are no longer required to store a secret key shared with each sender. Nevertheless, polynomials are usually generated and broadcasted by the KMS. To reduce this overhead on the KMS, authors in [25] propose a self-generation technique to generate the polynomials by the members of the group. In a nutshell, centralized protocols are characterized by their eciency due to the use of symmetric primitives. Furthermore, these protocols do not require peer-to-peer communications during rekeying operations. However, the single point of failure and scalability issues constitute their main weaknesses.

Decentralized protocols consider the group divided into various areas, with an Area Key Management Server (AKMS) in charge of managing local events. This class of protocols is generally categorized into two sub categories [11]: com-mon Trac Encryption Key (TEK) per area [9] [27], and independent TEK per area [25] [22]. In the former category, a unique TEK is implemented for the various areas of the group. As a result, if an event happens, the whole group is aected by the rekeying. In the latter category, a dierent TEK is implemented for each area. As a result, the 1-aects-n issue is attenuated, as rekeyings only aect specic areas. However, data transmitted across areas has to be translated at the border of each area. This classication of decentralized protocols can fur-ther be rened [10] by including time-driven rekeying subcategory [9] [29] and membership-driven rekeying subcategory [27] [8]. In membership-driven proto-cols, the group key is updated following each membership event, whereas, in time-driven protocols, the update of the group key is carried out at the end of a dened period of time without taking into consideration membership events. Consequently, the impact of frequent and consecutive events is limited. Never-theless, ejected members are still able to access exchanged data up to the end of the interval. Likewise, a new member would have to temporize until the start of a new interval prior of being able to access exchanged data in the group.

Distributed protocols do not rely on any central entity. Instead, all members contribute in the management of the group key in a peer-to-peer way. Distributed protocols are usually based on the n-party version of the well known Die-Hellman protocol [18] [19]. Hence, these protocols are highly reliable, as the group is free from any single point of failure. Nevertheless, distributed protocols

involve a high number of exchanged messages during rekeying operations, in addition to an important computation cost due to the use of heavy asymmetric primitives.

To alleviate this cost, authors in [13] propose a probabilistic based protocol. Members of the group establish communication channels composed of sequences of adjacent members between which a key is shared. Indeed, members propagate the key, which is shared between the rst adjacent members to the remaining members. This propagation is achieved using local keys. However, if no local key is found between two specic members, these members proceed with a pairing attempt by exchanging a set of global keys generated from a pool of keys. In spite of its improved performances compared to deterministic protocols, this protocol suers from a lack of connectivity. In fact, members could be disconnected from the group if several pairing attempts fail. To further mitigate the complexity of distributed protocols, authors in [12] introduce a protocol which proceeds within two phases. In the rst phase, members of the group autonomously generate the group key using pre-dened seeds and hash functions. In the second phase, members synchronize their generated keys taking into account delays due to the loose synchronization of members clocks. Compared to other solutions based on DH primitives, one of the drawbacks of this protocol lies in the pre-sharing assumption of the seeds, which aects both its scalability and feasibility.

In this context, we address the issue of group key management for dynamic and heterogeneous collaborative groups. The originality and features of our ap-proach are detailed through the remaining sections. But rst, to ease the under-standing of our contribution, we provide the reader with a broad overview of the protocols upon which our approach is built.

4 Background

DBGK considers the group divided into sub groups. Each sub-group is managed by an Area Key Management Server (AKMS). The time axis is split into sev-eral time slots. For each time slot, a dierent ticket (piece of data) is issued. The group Trac Encryption Key (T EK) for slot i is computed using a one way function F as follows:

T EKi= F (SK, Ti)

where SK is a long term key, and Ti is the ticket issued for slot i.

Once an object (or member, both terms are used indistinguishably) Oiwants

to join the group, it initiates DBGK which goes through successive phases. The object sends a join request through an anycast message. Based on the object lo-cation, the nearest AKMS handles the join. Let us assume that the AKMS of

area j is the nearest one. In case of a successful authentication, the object is ini-tialized (through a secure channel) with a long term key (i.e. SK), and a shared key with its AKMS. Despite being a valid member of the group, the new mem-ber Oi is not yet able to derive the current T EK. Backward secrecy is therefore

inherently ensured while no rekeying operation is required for the group. If Oi is

involved in a message exchange (sending/receiving), it has to be able to encrypt and decrypt the messages. To do so, Oi has to compute the current T EK. Thus,

Oi sends a request to AKMSj asking for a ticket corresponding to the current

time slot. In order to reduce the amount of exchanges in case Oiis highly active,

the object can request several tickets corresponding to multiple future intervals. The request contains information about the objects specications, in particular, data regarding its storage capabilities and resources. Based on this data, and on the trust level of Oi (if the object has previously been a member of the group),

AKMS decides on the number of tickets to be granted to Oi .

When Oi leaves the network, forward secrecy has to be guaranteed to

pre-vent the object from accessing future communications in the area. Two possible scenarios arise. In the rst case, Oi leaves the network or is ejected with one or

several valid tickets stored in its internal memory. In this case, AKMS checks its AOL (Active Object List, which keeps track of the issued tickets) and sends a multicast notication to all the objects that have received the same tickets owned by the leaving member. The semantics of the notication is as follows. The tickets ranging from Ttto Tt+k (k corresponds to the number of tickets that

Oi has received) are no longer valid. The recipients of the notication that are

not active anymore (i.e. not in the process of exchanging messages) just ignore the notication. However, the active objects send a request to AKMS in order to receive new tickets. Based on experimental results (see section IV.B in [3]), DBGK outperforms its peers within a proportion of around 50% of the mem-bers in possession of the same tickets as the leaving (ejected) member. If the proportion exceeds 50%, a state of the art approach (i.e. LKH [37]) is considered to rekey the whole group. In the second case, the leaving Oi does not own any

valid ticket. In this situation, forward secrecy is ensured without any rekeying operation.

4.2 Piao et al [25] and Patsakis et al [24] schemes

Piao et al proposed a scalable and ecient polynomial based centralized group key management protocol to secure both inter-group and intra-group commu-nications. Nevertheless, this scheme contains security breaches. In [16], authors show that Piao et al scheme does not ensure neither backward nor forward se-crecy. In [21] authors show that Piao et al is based on a mathematical problem computable within a reasonable amount of resources (time and computation power). An attacker can easily factorize the polynomial over a nite eld and retrieve the private keys of the members, as well as the exchanged secrets.

To address these issues, Patsakis et al [24] proposed a modied version of Piao et al [25] scheme to take advantage of its eciency while strengthening its security properties. They base their scheme on a NP-hard mathematical problem

which is nding the roots of univariate polynomials modulo large composite numbers for which the factorization is not known [26] . This is in contrast with the weak mathematical problem upon which Piao et al [25] scheme is based. Moreover, they introduce an additional virtual term in the generation of the polynomial (called salting parameter) upon every rekeying to prevent backward and forward secrecy breaches.

In DsBGK, we build upon Patsakis et al [24] scheme to secure the transmis-sion of secrets using polynomial computation instead of using encryption. Hence, eciency and scalability are both increased. Furthermore, we enhance Patsakis et al scheme to ensure forward and backward secrecy more eciently and to increase the collusion freeness of the protocol.

5 Network model

Our network architecture models a group of entities collaborating to achieve a dened and common goal. This group is heterogeneous, and composed of both unconstrained and constrained entities. The unconstrained entities are power-ful enough to perform asymmetric primitives (e.g. desktop computers, servers, smart phones, etc). The constrained entities are limited in terms of energy, com-putational, communication and storage capabilities (e.g. sensors, RFID, NFC, etc), hence, unable to perform asymmetric primitives. Unlike in DBGK, no Gen-eral Key Management Server (GKMS) is considered. Furthermore, the group is not partitioned into subgroups with Area Key Management Servers (AKMS) controlling each sub group. In fact, we consider a single logical group where the unconstrained entities play the role of controllers. These controllers maintain a consistent, distributed and open AOL (Active Object List). This list can be maintained using one of the existing solutions in the literature, such as [23]. Fig. 2 illustrates our network architecture.

5.1 Assumptions and denitions

- we consider a heterogeneous group. More precisely, we assume the existence of both unconstrained members, powerful enough to perform periodic n-party Die-Hellman (DH) rekeyings [10], and constrained members unable to run the resource consuming n-party DH.

- the powerful entities are considered as controllers. Controllers are in charge of initiating a key update following specic events (e.g. join and leave).

- during the initialization phase, each new member is set (oine) with a private binding ID.

- during the initialization phase, at least one controller is pre-loaded (oine) with the binding ID of each new member (the ID can then be securely prop-agated to all controllers).

- a distributed AOL (i.e D-AOL) is maintained consistent between all controllers through the dierent updates.

Constrained member Joining member Leaving member N-party DH Member-controllers exchanges Unconstrained member (controller)

Fig. 2. Network architecture

- members are IP-enabled (6Lowpan for constrained members, and IPV6 for unconstrained members).

- we consider at a particular moment, only one active controller.

The dierent notations used throughout the remaining of this paper are sum-marized in Table 1.

6 Protocol functioning

The goal of DsBGK is to establish and maintain a group key to secure communi-cations in collaborative environments. This has to be achieved while remaining ecient and secure, ensuring both forward and backward secrecy. DsBGK is based on DBGK, we recommend the reader to refer to [3] for a comprehensive presentation of the protocol.

Notation Description

Group a set of entities (members and controllers) collaborating by exchanging data in a Peer to Peer way to reach a common goal

Member (node) an object of the group with limited resources capabilities (e.g. RFID, IP-enabled sensors, etc)

Controller an object of the group without hard resource constraints (e.g. personal com-puters, smartphones, servers, etc)

TEK (Trac Encryption

Key) the group key used to secure communications within the group. T EK =F (SK, Ti)

F a one way function (easy to compute but hard to reverse)

SK a long term key transmitted to each new member during its rst exchange Ticket (Ti) piece of data used in the generation of the T EK. Tirefers to the ticket issued

for time slot i

Time slot a dened period of time (e.g. seconds, minutes, days, etc)

ID binding private identity of members. ID is used in the computation of poly-nomials

PublicID identity of the member

P(x) univariate polynomial modulo a composed large number n (product of two large primes p ∗ q)

D-AOL Distributed Active Object List: records all active members including the tickets they have received

SpecData data related to storage, processing capabilities, and trust level of members Nslot number of requested time slots (tickets)

Table 1. Terminology table

DsBGK proceeds within several phases. The rst phase is related to the initialization of the entities. In fact, a set of unconstrained entities are designated o-line to play the role of controllers based on their capabilities. n-party DH is run within this sub-group of controllers to establish shared credentials. These latter are used to secure the communications required to update the distributed AOL (D-AOL). In addition, at least one controller is set with the secret binding ID of each new member. To become active, the new member sends a request to the active controller. The member requests one or more tickets according to its level of trust and resources capabilities. Upon successfully passing the authentication and authorization phase, the member receives the tickets along with SK (SK is only sent during the rst exchange). The member will then be able to derive the group key using both the current ticket and the long term key SK. To secure the transmission of these tickets to the requesting members, the active controller builds a univariate polynomial of degree m. Upon its reception, the member computes the polynomial using its private binding ID to retrieve the transmitted secret (i.e. tickets). The security of this scheme relies on the strength of the underlying mathematical problem. In this case, the problem comes down to nding the roots of univariate polynomials modulo large composite numbers. Upon a leave event, two situations arise. If the leaving member has not recently been active, then, no rekeying is required. However, if the leaving member is

active, its tickets are no longer valid. As a result, the information stating that these tickets are no longer valid has to be propagated to the concerned members by the active controller. In the following, we present the details of DsBGK phases. 6.2 Initialization (Joining)

During this phase, the private binding ID of the member is communicated to at least one controller (typically the active controller). Upon successful authentica-tion and authorizaauthentica-tion, the controller propagates the ID to the rest of controllers. We assume that the ID of a new members is set oine. This ID will be used to compute the received polynomials from controllers to retrieve exchanged secrets. Once the ID is set, the member is valid and can become active at any moment. 6.3 Activation

Algorithm. 1 depicts the behaviour of DsBGK following a join event. After suc-cessfully joining the group, a member becomes active by requesting one (or sev-eral) tickets from the active controller. Indeed, any controller is able to deliver tickets to members, as D-AOL is distributed and maintained between all con-trollers. This provides a better fault tolerance compared to DBGK where only the controller, in charge of a specic area, can deliver the tickets. Upon receiving a request, a controller grants or deny the request based on several parameters related to the requesting member such as, resources capabilities and the level of trust. To secure the transmission of tickets, the active controller generates a univariate polynomial P (x) modulo the product of two large prime numbers. (see Algorithm. 2)

P (x) = (x − r1)(x − ID)(x − r2)...(x − rm) + Ti mod n

This polynomial represents the product of m terms plus the transmitted secret (i.e. Ti). One of the terms (i.e. x − ID) allows the receiving member to

compute P (ID) = 0 to retrieve the secret. The remaining terms are set randomly. In both Patsakis et al [24] and Piao et al [25] schemes, the terms are composed of the private credentials of the members (i.e. ID). As a result, to mitigate collusion attacks and to provide backward and forward secrecy, Patsakis et al in [24] introduce the use of additional terms upon each rekeying (called salting parameters). In DsBGK, we propose to avoid using additional parameters, which can quickly increase the ratio between the polynomial degree and the actual number of users (members) within the group.

In the original Piao et al scheme, if a new member l joins the group, this latter could breach backward secrecy (i.e. accessing data exchanged prior to the joining).

Indeed, let us consider Pold(x)the polynomial generated before the joining,

Pnew(x) the polynomial generated after the joining, n the number of users, and

Pold(x) = (x − ID1)...(x − IDn) + s mod n

Pnew(x) = (x − ID1)...(x − IDl)...(x − IDn+1) + s0 mod n

The new member m would derive the old secret s by computing: s = Pold(x) −Pnew(x)−s

0

x−IDl

In DsBGK, this attack would not possible, as computing Pnew(x)−s0

x−IDl would

give no extra knowledge considering that the terms are dened randomly (except the term that contains the ID of the recipient member) and thus vary across the dierent polynomials.

Furthermore, DsBGK ensures collusion freeness as the disclosure of the pri-vate ID of colluding users brings no additional knowledge to retrieve pripri-vate IDs of non-colluding members. Indeed, in each polynomial, apart from the term con-taining the recipient ID, the remaining terms are random and dierent across the polynomials. Besides, we set the degree m of the polynomial in a way to keep the factorization not easily feasible while maintaining eciency. In [20], experimentations on MICA2 sensor showed that the computation of a polyno-mial of a degree up to 40 is more ecient than symmetric encryption (i.e. RC5). In DsBGK, we set m accordingly and regardless of the number of users in the group. Thus, the size of the polynomial does not grow with the growth of the number of users (members), which has a positive impact on scalability.

6.4 Leaving

To ensure forward secrecy upon a leaving event, the T EK is changed. In DsBGK, two scenarios are considered. If the leaving (ejected) member at time slot i is not in possession of valid tickets Ti+k(with k >= 0) , no rekeying is required. In

fact, the leaving member will not be able to derive future T EK given the fact that group keys are partly composed of dynamic tickets. As a result, the leaving member will not have access to future communications. However, if the leaving member is in possession of tickets, the members in possession of the same tickets need to be notied. In case they are still active, they will ask for new tickets. The exchange of these secret credentials is secured using univariate polynomials generated by the active controller (see Algorithm. 3).

7 Analysis

7.1 Security properties

Backward secrecy violation occurs when a legitimate member tries to access com-munications, which took place before its joining. In DsBGK, backward secrecy is ensured inherently, as joining members are not able to derive group keys which have been established prior to their joining. In fact, the group key is composed

Algorithm 1 Activation algorithm

1: procedure Activation (member, controller)

2: request ← T icket_request{P ublicID, SpecData, Nslot} 3: M ember.send(request, controller)

4: if member is authenticated then 5: if member is authorized then

6: while i < number of granted tickets do 7: P1← GenerateP oly(Ti)

8: i ← i + 1

9: if first activation then 10: P 2 ← GenerateP oly(SK) 11: Controller.Send(P 1, member) 12: Controller.Send(P 2, member) 13: else

14: Controller.Send(P 1, member) 15: U pdate D_AOL(controller, P ublicID)

Algorithm 2 Polynomial generation algorithm

1: procedure GeneratePoly (secret)

2: p ← randomly generated large prime number 3: q ← randomly generated large prime number 4: n ← p × q 5: m ← f ixed threshold 6: P ← (x − ID) 7: while i < m − 1 do 8: r ← random_value() 9: P ← P × (x − r) mod n 10: P ← P + secret 11: return(P )

Algorithm 3 Leaving algorithm

1: procedure Leaving (member, controller)

.retrieving tickets of the leaving member 2: tickets ← controller.lookup(D_AOL, member)

3: if tickets 6= null then

4: .retrieving members holding the same tickets 5: list ← controller.lookup(D_AOL, tickets);

6: threshold ← 50% of total number of members 7: if list.length < threshold then

8: while list 6= null do

9: .concerns only active members 10: controller.notif y(member)

11: activation(member, controller)

12: else .rekey the whole group using LKH 13: LKH(SK)

of a xed long term key and varying tickets following each time slot. As a result, new members are unable to derive previous keys.

Forward secrecy violation occurs when a former member of the group tries to access communications, which take place after its departure from the group. In DsBGK, this property is ensured based on whether the leaving member is in possession of tickets or not. If the member is not in possession of tickets, no rekeying is required. In fact, the leaving member will not be able to derive any future group keys. However, if the member is in possession of valid tickets, using D − AOL, the active controller noties only the active members which are in possession of the same tickets about their non-validity. In case the number of active members reaches a certain threshold (set experimentally to 40 − 50% of the total number of members in the group), the active controller relies on the state of the art LKH protocol to rekey the long term key SK. As a result, the leaving member will not be able to use its tickets to derive future group keys, either because they are not valid anymore (and thus not used in the generation of the group key) or because the long term key has been modied.

Collusion attacks occur when two or more legitimate members collude to re-trieve the security credentials of other members. In DsBGK, secret credentials are securely exchanged using univariate polynomials modulo a composite num-ber of large primes. We ensure collusion freeness by considering variable terms, which are not based on the credentials of the users (members). Indeed, the col-lusion of a subset of members will not help in any form to compose polynomials with the goal of retrieving the security credentials of the remaining members. Nevertheless, this solution requires from the controller to compose a dierent polynomial for each member. It is worth noting, however, that the controllers are not considered as constrained members, and DsBGK main goal is to reduce the overhead with respect to the constrained members of the group.

7.2 Performance evaluation

To analyze the performances of DsBGK and compare the results with DBGK [3], we relied on Cooja, which is the built-in network simulator of Contiki 2.7 [1]. Con-tiki is an open source Operating System (OS) for IP-enabled constrained devices (objects). This OS is used by the research community in several domains, such as, networked electrical systems, industrial monitoring, e-health sensors, and in Internet of Things (IoT) related applications in general. With the purpose of assessing our protocol's performances compared to DBGK's performances, we considered the same experimental setups as those used in the evaluation of DBGK. In fact, we use Tmote Sky nodes, which are equipped with the CC2420 radio chip and the MSP430 microcontroller (10k RAM, 48k Flash). Furthermore, energy consumption is computed using Powertrace tool [14]. This tool measures the time (number of ticks) during which each element (e.g. CPU, transmission, reception, etc.) of the sensor is active. This duration is combined with other data (specic to the sensor, such as the current draw, and voltage) to evaluate the energy consumption. We evaluated DsBGK performances with respect to the

following metrics: storage overhead, polynomial degree, and members leave cost. 1 10 20 30 40 0 5 10 15 20 25 30 35 40 45 dbgk dsbgk number of KMS n u m b e r o f s to re d k e ys

Fig. 3. Storage overhead

Storage overhead: in this experiment, we considered an event where a new constrained member (denoted merely by 'member' in the remaining of this anal-ysis) joins a group. We varied the number of controllers (KMS) in order to assess the impact of additional controllers on the overhead resulting from the storage of security materials by members. The results, depicted in Fig. 3, show that for DBGK, storage overhead increases linearly with the inclusion of ad-ditional controllers. However, for DsBGK, storage overhead is steady and not related to the number of controllers. In fact, in DBGK, a pre-shared key is es-tablished between each member and each controller. This leads to a proportional dependency between the number of controllers and the number of stored keys. Indeed, in DsBGK, thanks to the use of polynomials, a pre-shared material (i.e. ID) is only set in the controller side for each additional member. Nevertheless, no material is stored in the member side. Consequently, unlike DBGK, DsBGK allows adding controllers with no impact on storage overhead.

The next step in our evaluation was to evaluate the impact of this gain in storage on the energy consumption induced by rekeying operations. In particular, when members leave or are ejected from the group. But rst, we ran extensive

5 10 15 20 25 30 35 40 0 2 4 6 8 10 12 14 16 dsbgk dbgk Polynomial degree E n e rg y co n su m p tio n ( m j)

Fig. 4. Polynomial degree

simulations to set the optimal degree of the polynomial to achieve the best trade-o between security and eciency.

Polynomial degree: we considered a group of 1000 members. We simu-lated a member leaving the group (or being ejected) with a proportion of 40 % of remaining members holding the same tickets as the leaving member. Based on DBGK evaluation (see section IV.B in [3]), around 40-50 % represents the maximum proportion above which DBGK eciency drops and a state of the art protocol (i.e. LKH[37]) is preferred to update the group key. Furthermore, N Slot has been set to 20, which we consider being a realistic value. We varied the degree of the polynomial and compared energy cost with DBGK. The results presented through Fig. 4 highlight a steady raise in energy consumption with the increase of the polynomial degree. It is worth mentioning that DBGK energy cost is not impacted by polynomial degree variation, hence the constant energy consumption. Eventually, DsBGK energy cost exceeds DBGK energy cost when the degree reaches a value around 25.

Our results were slightly dierent compared to the experimental results pre-sented in [20] (previously mentioned in section 6.3), where performances using polynomial computation were better, up to a degree of 40. We explain this dier-ence by the fact that we used a dierent sensor in our experiment (Sky mote) in addition to a dierent encryption primitive for DBGK (i.e. AES). Nonetheless,

10.00% 40.00% 70.00% 100.00% 8 8.5 9 9.5 10 10.5 11 dsbgk dbgk

percentage of nodes with a ticket

E n e rg y co n su m p tio n ( m j)

Fig. 5. Member leaving cost

this variation does not alter the security foundations of DsBGK, as the NP-hard mathematical problem upon which DsBGK is based is not altered [26]. Following this experiment, we compared the energy consumptions of DBGK and DsBGK in case of a leave event to make sure that the gain in storage cost has not been achieved at the expense of other metrics.

Member leave cost: we estimated the energy cost related to the departure (or ejection) of a member in possession of a valid ticket. Similarly to DBGK's evaluation, we consider a group of users composed of 1000 members. We record several measures, while varying the proportion of members with tickets similar to those in possession of the leaving member. Moreover, we dene the number of tickets requested by notied members as equal to 20 time slots (i.e. NSlot = 20). We depict the results in Fig. 5. It is clear that DsBGK energy consumption in-creases with the increase of the percentage of members in possession of the same tickets as leaving members. However, this raise in energy cost is slightly lower compared to the raise noticed in DBGK energy consumption. This is mainly due to the superior eciency of polynomial computation compared to cryptographic symmetric primitives.

Based on the obtained results, we can arm that compared to DBGK, Ds-BGK provides a considerable improvement in fault tolerance and scalability. Not only this result does not incur additional overhead with respect to rekeying

op-erations, but an improvement in energy consumption is also achieved. Back to our e-health use case scenario, presented in section 2, DsBGK can be applied to eciently secure data exchanges in such sensitive environment where the un-constrained entities (e.g. PC, smartphones, etc) can play the role of controllers. These controllers will be in charge of eciently managing the group key for the constrained members of the group (i.e. health related sensors). Additional controllers can be included without incurring any additional storage cost on con-strained members. Thus, the failure of one or several controllers does not hinder the protocol functioning, as other controllers can take over. Furthermore, the im-proved eciency is highly sought for battery powered e-health sensors. Indeed, these sensors can be planted inside human bodies. Increasing the life time of their battery would reduce the cycle of surgical interventions required for their replacement.

8 Conclusions and perspectives

Securing distributed collaborative applications in the era of the Internet of Things relies heavily on strong and ecient group key management protocols. In this paper, we combined a polynomial based approach with our previously pro-posed protocol (DBGK) to propose a new protocol called DsBGK. Experimental analysis showed that DsBGK improves both fault tolerance and scalability which are highly sought in sensitive applications, such as e-health systems. Energy gains are also achieved, which makes DsBGK suitable for heterogeneous, and dynamic collaborative groups. We plan to further investigate DsBGK security strength by thoroughly assessing properties such as data integrity, data authentication, and data condentiality through an implementation using automated formal val-idation tools (e.g. Avispa, Scyther). In addition, we are currently investigating a lightweight blockchain based scheme to allow sensors authenticating genuine controllers.

References

1. The contiki operating system. http://www.contiki-os.org.

2. M. R. Abdmeziem and D. Tandjaoui. An end-to-end secure key management protocol for e-health applications. Computers & Electrical Engineering, 44:184 197, 2015.

3. M. R. Abdmeziem, D. Tandjaoui, and I. Romdhani. A decentralized batch-based group key management protocol for mobile internet of things (dbgk). In Computer and Information Technology; Ubiquitous Computing and Communications; De-pendable, Autonomic and Secure Computing; Pervasive Intelligence and Comput-ing (CIT/IUCC/DASC/PICOM), 2015 IEEE International Conference on, pages 11091117. IEEE, 2015.

4. M. R. Abdmeziem, D. Tandjaoui, and I. Romdhani. Architecting the internet of things: state of the art. In Robots and Sensor Clouds, pages 5575. Springer, 2016.

5. M. R. Abdmeziem, D. Tandjaoui, and I. Romdhani. A new distributed mikey mode to secure e-health applications. In Proceedings of the International Conference on Internet of Things and Big Data - Volume 1: IoTBD,, pages 8895. SciTePress, 2016.

6. M. R. Abdmeziem, D. Tandjaoui, and I. Romdhani. Lightweighted and energy-aware mikey-ticket for e-health applications in the context of internet of things. International Journal of Sensor Networks, In press, 2017.

7. D. Balenson, D. McGrew, and A. Sherman. Key management for large dynamic groups: One-way function trees and amortized initialization. Internet-Draft, Febru-ary 1999.

8. A. Ballardie. Scalable multicast key distribution. RFC 1949, May 1996.

9. B. Briscoe. Marks: Zero side eect multicast key management using arbitrarily revealed key sequences. Networked Group Communication, pages 301320, 1999. 10. Y. Challal and H. Seba. Group key management protocols: A novel taxonomy.

International Journal of Information Technology, 2(1):105118, 2005.

11. B. Daghighi, M. Kiah, S. Shamshirband, and M. Rehman. Toward secure group communication in wireless mobile environments: Issues, solutions, and challenges. Journal of Network and Computer Applications, 50:114, 2015.

12. R. Di Pietro, L. V. Mancini, and S. Jajodia. Providing secrecy in key management protocols for large wireless sensors networks. Ad Hoc Networks, 1(4):455468, 2003. 13. G. Dini and L. Lopriore. Key propagation in wireless sensor networks. Computers

& Electrical Engineering, 41:426433, 2015.

14. A. Dunkels, J. Eriksson, N. Finne, and N. Tsiftes. Powertrace: Network-level power proling for low-power wireless networks. 2011.

15. H. Harney and C. Muckenhirn. Group key management protocol (gkmp) architec-ture. RFC 2093, July 1997.

16. A. A. Kamal. Cryptanalysis of a polynomial-based key management scheme for secure group communication. IJ Network Security, 15(1):6870, 2013.

17. S. L. Keoh, S. S. Kumar, and H. Tschofenig. Securing the internet of things: A standardization perspective. IEEE Internet of Things Journal, 1(3):265275, 2014. 18. Y. Kim, A. Perrig, and G. Tsudik. Tree-based group key agreement. ACM

Trans-actions on Information and System Security (TISSEC), 7(1):6096, 2004. 19. P. Lee, J. Lui, and D. Yau. Distributed collaborative key agreement and

authenti-cation protocols for dynamic peer groups. Networking, IEEE/ACM Transactions on, 14(2):263276, 2006.

20. D. Liu and P. Ning. Security for wireless sensor networks, volume 28. Springer Science & Business Media, 2007.

21. N. Liu, S. Tang, and L. Xu. Attacks and comments on several recently proposed key management schemes. IACR Cryptology ePrint Archive, 2013:100, 2013. 22. S. Mittra. Iolus: A framework for scalable secure multicasting. ACM SIGCOMM

Computer Communication Review, 27(4):277288, 1997.

23. G. Oster, P. Urso, P. Molli, and A. Imine. Data consistency for p2p collabora-tive editing. In Proceedings of the 2006 20th anniversary conference on Computer supported cooperative work, pages 259268. ACM, 2006.

24. C. Patsakis and A. Solanas. An ecient scheme for centralized group key manage-ment in collaborative environmanage-ments. IACR Cryptology ePrint Archive, 2013:489, 2013.

25. Y. Piao, J. Kim, U. Tariq, and M. Hong. Polynomial-based key management for secure intra-group and inter-group communication. Computers & Mathematics with Applications, 65(9):13001309, 2013.

26. D. A. Plaisted. New np-hard and np-complete polynomial and integer divisibility problems. Theoretical Computer Science, 31(1-2):125138, 1984.

27. S. Rafaeli and D. Hutchison. Hydra: a decentralized group key management. 11th IEEE International WETICE: Enterprise Security Workshop, June 2002.

28. S. Rafaeli and D. Hutchison. A survey of key management for secure group com-munication. ACM Computing Surveys (CSUR), 35(3):309329, 2003.

29. S. Setia, S. Koussih, S. Jajodia, and E. Harder. Kronos: A scalable group re-keying approach for secure multicast. Proceedings IEEE Symposium on Security and Privacy, pages 215228, 2000.

30. A. Shamir. How to share a secret. Communications of the ACM, 22(11):612613, 1979.

31. S. Sicari, A. Rizzardi, L. A. Grieco, and A. Coen-Porisini. Security, privacy and trust in internet of things: The road ahead. Computer Networks, 76:146164, 2015. 32. S. Sicari, A. Rizzardi, D. Miorandi, and A. Coen-Porisini. Internet of things: Security in the keys. In Proceedings of the 12th ACM Symposium on QoS and Security for Wireless and Mobile Networks, pages 129133. ACM, 2016.

33. P. C. Tang, J. S. Ash, D. W. Bates, J. M. Overhage, and D. Z. Sands. Personal health records: denitions, benets, and strategies for overcoming barriers to adop-tion. Journal of the American Medical Informatics Association, 13(2):121126, 2006.

34. L. Veltri, S. Cirani, S. Busanelli, and G. Ferrari. A novel batch-based group key management protocol applied to the internet of things. Ad Hoc Networks, 11(8):27242737, 2013.

35. W. Wang and B. Bhargava. Key distribution and update for secure inter-group multicast communication. In Proceedings of the 3rd ACM workshop on Security of ad hoc and sensor networks, pages 4352. ACM, 2005.

36. W. Wang and Y. Wang. Secure group-based information sharing in mobile ad hoc networks. In Communications, 2008. ICC'08. IEEE International Conference on, pages 16951699. IEEE, 2008.

37. C. Wong, M. Gouda, and S. Lam. Secure group communications using key graphs. Networking, IEEE/ACM Transactions, 8(1):1630, 2000.
