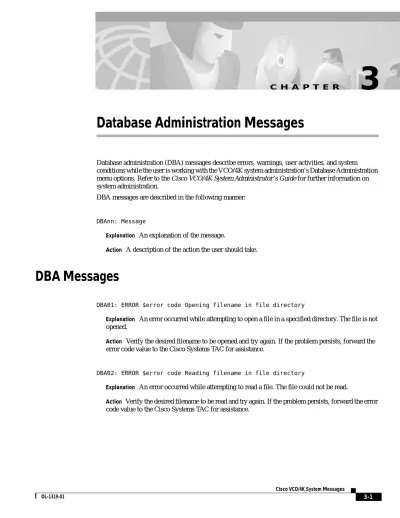

Database Administration Messages
Database administration (DBA) messages describe errors, warnings, user activities, and system conditions while the user is working with the VCO/4K system administration’s Database Administration menu options. Refer to the Cisco VCO/4K System Administrator’s Guide for further information on system administration.
DBA messages are described in the following manner:
DBAnn: Message
Explanation An explanation of the message.
Action A description of the action the user should take.
DBA Messages
DBA01: ERROR $error code Opening filename in file directory
Explanation An error occurred while attempting to open a file in a specified directory. The file is not opened.
Action Verify the desired filename to be opened and try again. If the problem persists, forward the error code value to the Cisco Systems TAC for assistance.
DBA02: ERROR $error code Reading filename in file directory
Explanation An error occurred while attempting to read a file. The file could not be read.
Action Verify the desired filename to be read and try again. If the problem persists, forward the error code value to the Cisco Systems TAC for assistance.
DBA03: ERROR $error code Writing filename in file directory
Explanation An error occurred while attempting to write a file to a specified directory. The file was not saved.
Action Verify the desired location and try again. If the problem persists, forward the error code to the Cisco Systems TAC for assistance.
DBA04: ERROR $error code Closing filename in file directory
Explanation An error occurred while attempting to close a file.
Action Try to close the file again. If the problem persists, forward the error code to the Cisco Systems TAC for assistance.
DBA05: ERROR $error code Creating filename in file directory
Explanation An error occurred while attempting to create a file in a specified directory. The file was not created.
Action Try to create the file again. If the error persists, forward the error code to the Cisco Systems TAC for assistance.
DBA06: ERROR $error code Removing File filename
Explanation An error occurred while attempting to remove a file.
Action Verify the file name and try to remove the file again. If the problem persists, forward the error code to the Cisco Systems TAC for assistance.
DBA07: ERROR $error code Updating filename in file directory
Explanation An error occurred while attempting to update a file.
Action Verify the name of the file and try to update again. If the problem persists, forward the error code to the Cisco Systems TAC for assistance.
DBA08: x Records Copied to filename
Explanation A number of records (x) were successfully copied to your specified filename.
Action None required.
DBA09: Operation Aborted
DBA10: Warning: Hard Disk Only Has x Free Sectors Left
Explanation You have limited hard disk space remaining.
Action Delete unnecessary files to free up additional disk space.
DBA11: SERVICE CIRCUITS NOT IN RESOURCE GROUP - RLS x,x,xx
Explanation The service circuit card in the designated R-L-S has not been assigned to a resource group. The specified card is not usable unless entered into a resource group.
Action Add the specified card to the appropriate resource group.
DBA12: SERVICE CIRCUIT RESOURCE GROUP MISMATCH - RLS x,x,xx
Explanation The service circuit card in the designated R-L-S has been assigned to a resource group other than the group dedicated for that specific circuit type. The specified card is not usable while in the wrong resource group.
Action Add the specified card to the correct resource group.
DBA14: Card Removed From Service By Administrator RLS x,x,xx
Explanation An attempt was made to access a card that has been removed from service. The card is out-of-service.
Action If the card is desired to be operational, change the status to active.
DBA15: System Time Set By Host
Explanation The system time was set by the host computer system.
Action None required.
DBA16: Supervision Template File Updated By Administrator
Explanation The system administrator updated the supervision template file.
Action None required.
DBA17: Dynamic Supervision Template Download Initiated
Explanation The supervision template files are being downloaded.
DBA18: Dynamic Supervision Template Download Complete
Explanation The supervision template files were successfully downloaded.
Action None required.
DBA19: Dynamic Supervision Template Download Aborted On RLS x,x,xx
Explanation The supervision template download on R-L-S x,x,xx was aborted. The CPA card/SPC-CPA resource is not configured with the current supervision template configurations.
Action Retry the operation.
DBA20: Dynamic Supervision Template Download Timed Out On RLS x,x,xx
Explanation The supervision template download on R-L-S x,x,xx timed out. The CPA card/SPC-CPA resource is not configured with the current supervision template configurations.
Action Retry the operation.
DBA21: Supervision Templates Downloaded To x CPA Card(s)
Explanation Supervision templates were successfully downloaded to a number of CPA cards (x).
Action None required.
DBA22: Wait For Dynamic Supervision Template Download Aborted
Explanation The supervision template download is aborting. The CPA card/SPC-CPA resource is not configured with the current supervision template configurations.
Action Retry the operation.
DBA23: Supervision Template Download Started RLS x,x,xx Count x
Explanation The supervision template download has begun on R-L-S x,x,xx. (“Count x” equals the number of supervision events to download.)
Action None required.
DBA24: Supervision Template File Updated On Disk Only By Administrator
Explanation The supervision template was modified by the system administrator. New supervision template information will be downloaded to the CPA/SPC-CPA resources.
DBA25: ISDN - PRI Card Removed From Service By Administrator RLS x,x,xx
Explanation The ISDN - PRI card was removed from R-L-S x,x,xx. The card is not in service.
Action Restore the card to active service to make it operational.
DBA26: WARNING: Within 64 of Time-Slot Capacity
Explanation Your system is approaching the maximum number of time slots available. The time slot license limit may be exceeded if you attempt to add another card. Further additions to the switch configuration database may not be possible.
Action Request an increase in licensed time slots from the Cisco Systems TAC.
DBA27: ERROR: Exceeded Time-Slot Capacity
Explanation Your system has exceeded the maximum number of time slots available. No cards can be added until you upgrade your time slot license. Further additions to the switch configuration database may not be possible.
Action Request an increase in licensed time slots from the Cisco Systems TAC.
DBA28: Licensed Time-Slot Capacity To xxxx
Explanation Identifies the maximum number (xxxx) of time slots available on the active side of your system. This message appears after a successful entry of a new license number into the License Configuration screen.
Action None required.
DBA29: Licensed STBY Time-Slot Capacity To x
Explanation Identifies the maximum number (x) of time slots available on the standby side of your redundant system. This message appears after a successful entry of a new license number into the License Configuration screen.
Action None required.
DBA30: ERROR: Invalid License Number
Explanation A typing error occurred while entering the number, or a valid number was not obtained from the Cisco Systems TAC. The license number is not updated.
Action Verify the license number with the Cisco Systems TAC and reenter the correct license number.
