Effect of metallic walls on dynamos generated by laminar
boundary-driven flow in a spherical domain
C´eline Guervilly1,2, Toby S. Wood1,2 & Nicholas H. Brummell2 1Department of Applied Mathematics,
University of Leeds, Leeds LS2 9JT, UK 2Department of Applied Mathematics and Statistics,
University of California, Santa Cruz, CA95064, USA
November 11, 2013
Abstract
We present a numerical study of dynamo action in a conducting fluid encased in a metallic spherical shell. Motions in the fluid are driven by differential rotation of the outer metallic shell, which we refer to as “the wall”. The two hemispheres of the wall are held in counter-rotation, producing a steady, axisymmetric interior flow consisting of differential rotation and a two-cell meridional circulation with radial inflow in the equatorial plane. From previous studies, this type of flow is known to maintain a stationary equatorial dipole by dynamo action if the magnetic Reynolds number is larger than about 300 and if the outer boundary is electrically insulating. We vary independently the thickness, electrical conductivity, and mag-netic permeability of the wall to determine their effect on the dynamo action. The main results are: (a) Increasing the conductivity of the wall hinders the dynamo by allowing eddy currents within the wall, which are induced by the relative motion of the equatorial dipole field and the wall. This processes can be viewed as a skin effect or, equivalently, as the tearing apart of the dipole by the differential rotation of the wall, to which the field lines are anchored by high conductivity. (b) Increas-ing the magnetic permeability of the wall favors dynamo action by constrainIncreas-ing the magnetic field lines in the fluid to be normal to the wall, thereby decoupling the fluid from any induction in the wall. (c) Decreasing the wall thickness limits the amplitude of the eddy currents, and is therefore favorable for dynamo action, provided that the wall is thinner than the skin depth. We explicitly demonstrate these effects of the wall properties on the dynamo field by deriving an effective boundary condition in the limit of vanishing wall thickness.
1
Introduction
Many planets and stars have observable surface magnetic fields that are generated by hydromagnetic dynamo action in their deep interior, where the motions of a conduct-ing fluid, either ionized plasma or liquid metal, maintain the magnetic field against ohmic diffusion. In such systems, the conducting fluid is typically surrounded by an electrically insulating medium that plays no role in the dynamo process. In the last
decade, a number of laboratory experiments have been constructed to study dynamo action in either turbulent or laminar flow regimes. Most of these experiments use liquid sodium and drive flows by mechanical forcing at the boundaries. So far, three experi-ments have successfully generated magnetic field by fluid motions (Gailitiset al.,2001; Stieglitz & M¨uller,2001;Monchaux et al.,2007). Of these successful experiments, the von K´arm´an Sodium (VKS) experiment offers the closest approximation to a natu-ral dynamo, in the sense that a large scale magnetic field is generated by a relatively unconstrained, highly turbulent flow driven by the counter-rotation of two impellers. However, at the experimental parameters attainable, dynamo action is only observed when the impellers are made of soft iron, and not when they are made of stainless steel. Iron has a higher magnetic permeability than steel, and so these results imply that magnetic boundary conditions play a crucial role in the VKS experiment, and possibly in other problems involving magnetohydrodynamics (MHD). Understanding the effect of magnetic boundary conditions is therefore essential to interpreting the results of upcoming dynamo experiments, such as the plasma experiment in Madison, Wisconsin (Spence et al., 2009), and the spherical-Couette liquid sodium experiment in College Park, Maryland (Zimmerman et al.,2011).
Motivated by the above, in this paper we use numerical simulations to investigate the effect of magnetic boundary conditions on dynamo action produced by an axisym-metric laminar flow driven by an azimuthal boundary forcing in spherical geometry. This geometry is particularly relevant to the Madison plasma experiment. Here, we consider only the case where the azimuthal boundary forcing is anti-symmetric with respect to the equatorial plane, in which case an axisymmetric poloidal circulation is also established with a single meridional cell in each hemisphere. The ability of a flow with these symmetry properties to maintain a magnetic field was first established by Gubbins(1973), who found that the critical magnetic Reynolds number (the minimum ratio of the magnetic diffusion and induction timescales required for dynamo action) was about 50. Subsequent studies (e.g.Dudley & James,1989;Nakajima & Kono,1991; Holme, 2003;Mari´eet al., 2003) confirmed that the most readily generated magnetic field for this type of flow is an equatorial dipole. These studies were all kinematic, in the sense that the velocity field was prescribed, rather than determined dynamically and self-consistently. This allowed the structure of the flow, including the ratio of its poloidal and toroidal components, to be varied arbitrarily. In a more realistic model for which the flow is driven by viscous drag at a rotating outer boundary, the ratio of poloidal to toroidal flow is not an adjustable parameter, but rather is determined by the dynamics of the system, and is a function of the Reynolds number (the ratio of the viscous diffusion timescale to the boundary forcing timescale). Self-consistent numerical simulations are therefore required to determine the dynamo properties of these laminar shear flows.
Using fully dynamical (i.e. non-kinematic) spherical simulations and an azimuthal boundary forcing thought to be achievable in the Madison plasma experiment,Spence
electrically conducting boundary conditions were used (Forest, private communication). This result was somewhat unexpected, because in numerical simulations run with dif-ferent types of shear flows, notably in turbulent regimes, increasing the conductivity of the outer wall is usually favorable to dynamo action (e.g. Kaiser & Tilgner, 1999; Avalos-Zuniga et al., 2003; Laguerre et al., 2008; Roberts et al., 2010; Guervilly & Brummell, 2012). In an attempt to bridge the gap between the two idealized limits of true physical boundaries used in Spence et al., Khalzovet al. (2012) used the same flow, but applied boundary conditions derived in the “thin-wall limit” in which the outer wall thickness h tends to zero, but either the integrated conductivity hσ or the integrated permeability hµ remains finite (see Roberts et al. (2010) and detailed dis-cussion later in this paper). They found that varying hσ has no effect on the value of the critical magnetic Reynolds number for dynamo action, contrary to what might have been expected from the results of Spence et al.. However, ashσ is increased the growth rate of the magnetic field tends to zero. Increasing hµ has a positive effect on the dynamo action as the critical magnetic Reynolds decreases by about 35% for
hµ→ ∞ compared to its value for hµ→0.
The purpose of the present paper is to unify and interpret these previous results, and to reach a full understanding of the role of the wall in fully dynamical dynamo sim-ulations using the same laminar flow as inSpenceet al.(2009). Rather than employing an approximation for the effect of the metallic wall on the magnetic field, we here in-clude a wall of finite thickness in the computational domain, which allows us to vary independently the wall thickness, electrical conductivity, and magnetic permeability.
After outlining our numerical model in Section 2, we present the results of simu-lations performed for various values of the wall thickness, electrical conductivity, and magnetic permeability. We provide a physical interpretation for the effect of the wall properties on the dynamo mechanism. In Section4, we describe a new magnetic bound-ary condition derived in the thin-wall limit, which generalizes those of Roberts et al.
(2010) andKhalzov et al. (2012), and which further elucidates the effects of the wall on the dynamo.
2
Numerical model
We use the same three-dimensional, fully non-linear numerical code that was described in detail by Guervilly & Brummell (2012). Here, we describe only the mathematical details of the model, and refer the reader to Guervilly & Brummell for more details on the numerical algorithm. Figure 1(a) presents a 3D schematic view of the model. The domain is spherical and consequently we express all fields in spherical coordinates (r, θ, φ), with r the radius, θ the colatitude, and φ the azimuthal angle or longitude. An electrically conducting, incompressible fluid fills the spherical shell between an inner radius ri and an outer radius ro. The fluid has viscosity ν, densityρ, electrical conductivityσf, and magnetic permeability equal to that of the vacuum,µ0. The fluid properties are assumed to be uniform and are kept fixed throughout this study. The fluid is surrounded by an outer spherical shell or “wall” of finite thickness h, and has uniform electrical conductivity σw and uniform magnetic permeabilityµw.
Fluid
P mf=µ0σfν
Wall
µw, σw
@ I
h
H H
Yri
:
ro
Vacuum
µ0, σ= 0
Inner core
µ0, σf
3
(a)
0 1 2 3
−1 −0.5 0 0.5 1
colatitude uφ
(
r
=
ro
)
(b)

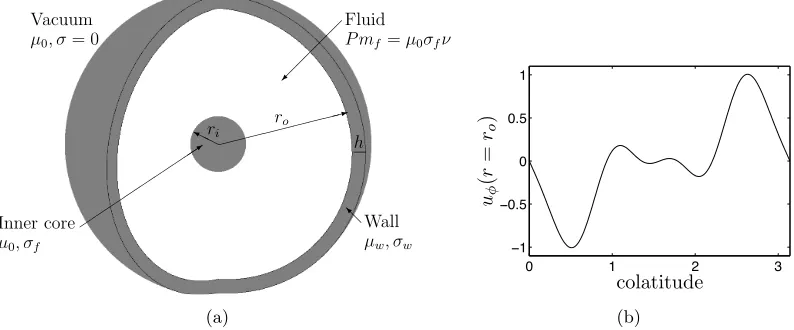

Figure 1: (a) 3D view of the model. The gray areas represent the inner core and the outer wall. (b) Azimuthal velocity imposed at r =ro withUw = 1.
We impose impenetrable and no-slip boundary conditions at the inner edge of the wall,
r = ro, so the viscous stress exerted by the wall drives an axisymmetric azimuthal flow in the fluid. The radial and latitudinal components of the velocity are set to zero in the wall. Since the wall has a fixed shape, and is impenetrable to the fluid, it is convenient to think of it as solid even though it is not in solid body rotation. Our differentially rotating wall allows us to approximate the boundary driving in various laboratory experiments, such as in the upcoming Madison plasma experiment. We note that our numerical model differs somewhat from that of Khalzovet al.(2012). In particular, in their model, the boundary condition for the magnetic field assumes that the outer wall is at rest in the laboratory frame. For reasons discussed in Section 4, the additional complexity of the wall properties in the model of Khalzov et al. (2012) leads to some differences between their results and ours.
For the azimuthal velocity of the wall, we choose the same latitudinal profile as Spence et al. (2009),
uφ(r, θ) =Uw r
ro X
k
Cksin(kθ) for ro< r < ro+h, (1)
where the constant Uw is a characteristic forcing velocity and
C2 =−0.4853, C4=−0.5235, C6 =−0.0467, and C8 = 0.1516. (2)
[image:5.612.106.503.63.228.2]Within the fluid, we solve the incompressible MHD equations:
∂u
∂t +u· ∇u=−
1
ρ∇p+ν∇
2u+ 1
ρJ×B, (3)
∇ ·u= 0, (4)
∂B
∂t =∇ ×(u×B)− ∇ ×
1
σ∇ × B
µ, (5)
∇ ·B= 0, (6)
whereuis the velocity,pis the pressure,B is the magnetic field,J=∇ ×(B/µ) is the electric current density, and with σ =σf and µ=µ0 in the fluid.
Within the wall, we solve only the magnetic induction equation (Eq. (5)) using the prescribed velocity in the wall (Eq. (1)) and with σ=σw and µ=µw.
The region outside the wall, r > ro +h, is assumed to be a perfect vacuum, for which σ = 0 andµ=µ0. In this region, the field is determined analytically by solving
∇ ×B/µ0 = 0, so that, numerically, the vacuum is treated as a boundary condition at
r =ro+h.
For numerical convenience, we impose a solid inner core at the center forr≤riwith
ri= 0.05ro. The inner core is held at rest and has the same electrical conductivity and magnetic permeability as the fluid. We solve the magnetic induction equation within the inner core with zero velocity. The boundary conditions for the velocity at r=ri are no-slip and impenetrable.
The equations are solved in non-dimensional form. The length is scaled by the outer radius of the fluid ro, the velocity by the forcing velocity amplitudeUw, the time byro/Uw, and the magnetic field byUw(ρµ0)1/2. The dimensionless parameters for the fluid are the magnetic Prandtl number:
Pmf =µ0σfν, (7)
and the Reynolds number, which is the ratio of the viscous timescaler2o/ν to the forcing timescale ro/Uw:
Re = Uwro
ν . (8)
All of the simulations presented here have Pmf = 1 and Re = 300. The dimensionless parameters for the wall are the relative wall thickness ˆh=h/ro, the relative conduc-tivityσr=σw/σf, and the relative magnetic permeability µr=µw/µ0.
At the fluid–wall interface, and at the wall–vacuum interface, the electrical conduc-tivity and magnetic permeability are discontinuous, leading to the following matching conditions for the normal and tangential components ofB and J:
B+·er =B−·er, (9)
(B/µ)+×er = (B/µ)−×er, (10)
J+·er=J−·er, (11)
where the superscripts − and + indicate, respectively, values immediately inside and outside the interface.
We use a poloidal–toroidal representation for the velocity and magnetic fields in order to enforce the divergence-free conditions (Eqs. (4) and (6)). For the magnetic field, we define poloidal and toroidal scalar potentialsBP and BT such that
B=∇ × ∇ ×(BPr) +∇ ×(BTr). (13)
The spherical components of the magnetic field are then
Br = 1
rL2BP, (14)
Bθ =
∂ ∂θ
1
r ∂
∂rrBP+
1 sinθ
∂BT
∂φ , (15)
Bφ = 1 sinθ ∂ ∂φ 1 r ∂
∂rrBP− ∂BT
∂θ , (16)
where the angular laplacian operator L2 is defined as
L2=− 1 sinθ
∂ ∂θ
sinθ ∂
∂θ
− 1
sin2θ
∂2
∂φ2. (17)
Note that the toroidal magnetic field has no radial component. The boundary conditions (Eqs. (9) and (10)) atr=ro imply that
BP(r+o) = BP(r−o), (18)
BT(r+o) = µrBT(r−o), (19)
∂rBP ∂r r+ o
= µr ∂rBP
∂r r− o . (20)
It is sometimes convenient to also represent the electric current density Jin terms of poloidal and toroidal scalar potentials JP and JT, which are related to BT and BP by
JP =
BT
µ , (21)
JT = 1
r2L2
BP µ − 1 r ∂ ∂r 1 µ ∂rBP
∂r . (22)
The boundary conditions (11) and (12) then become
JP(ro+) = JP(r−o), (23)
JT(ro+) = σrJT(ro−), (24)
∂rJP ∂r r+ o
= σr
∂rJP ∂r r− o . (25)
We expand the poloidal and toroidal scalars in spherical harmonics Ym
l in the angular coordinates, where l represents the latitudinal degree and m the azimuthal order:
BP(r, θ, φ, t) = lmax
X
l=0 mmax
X
m=0
bpml (r, t)Ylm(θ, φ), (26)
BT(r, θ, φ, t) = lmax
X
l=0 mmax
X
m=0
btml (r, t)Ylm(θ, φ), (27)
and similarly for the poloidal and toroidal scalars of the velocity.
Our numerical code evolves the quantities bpml (r, t), etc. using a second-order fi-nite difference scheme on an irregular radial grid. For further details see Guervilly & Brummell (2012). For the laminar flow simulations presented here, the numerical resolution has been taken as 300 radial points in the fluid, between 20 and 50 radial points in the wall depending on the wall parameters, and 10 radial points in the inner core. The spherical harmonic expansion is truncated at lmax= 64 andmmax= 12. For the laminar flow considered here, the kinetic and magnetic energy spectra in land m
are well resolved at this resolution, and a finer radial resolution does not change the numerical solution significantly. Each simulation is integrated in time until the kinetic and magnetic energies reach stationary values (see Fig. 7(a)).
3
Results
3.1 General characteristics
The differential rotation Ω(θ) of the wall drives an axisymmetric azimuthal velocity in the fluid through viscous drag at r =ro. The differential rotation also establishes an axisymmetric poloidal circulation consisting of one meridional cell in each hemisphere with inward radial flow in the equatorial plane. In the absence of a magnetic field, this flow is hydrodynamically stable for Re . 500 (Spence et al., 2009). All of the simulations presented in this paper have Re = 300, so we expect the flow to be pre-dominantely steady and axisymmetric (although the Lorentz force from the magnetic field can drive some nonaxisymmetric flow). The flow from a typical simulation is il-lustrated in Fig. 2, which displays contours of the azimuthal velocity and streamlines of the poloidal circulations in the meridional plane.
An axisymmetric flow cannot maintain an axisymmetric magnetic field (Cowling, 1933), but can potentially maintain a nonaxisymmetric magnetic field. In fact, with Re = 300 and Pmf = 1, and for certain choices of magnetic boundary conditions, the flow maintains a steady magnetic field for which BP and BT are both dominated by the spherical harmonics of degree l = 1 and order m = 1. The (l, m) = (1,1) poloidal field corresponds to an equatorial dipole. This field configuration is common to all the dynamo cases presented here. Figure 3 shows a three-dimensional view of the magnetic field lines for the dynamo case (ˆh, σr, µr) = (0.1,10−3,1), which we refer to as “Case D” hereafter. Similar magnetic field configurations have been obtained in previous numerical simulations using this type of axisymmetric shear flow (e.g. Mari´e
Figure 2: Axisymmetric flow in a meridional plane for Re = 300. Left half: azimuthal velocity, where black indicates a positive value, and gray a negative value. Right half: poloidal streamlines, with direction of circulation indicated.
[image:9.612.230.387.404.561.2]bpc
o bp
s e
btco btse
upe
ute
(a)
bpc o
bts e
Loop A
bpc o
btc
o bt
s e
Loop B
bpc
o bp
s e
bts e
Loop C
bpc
o bp
s e
btc o
Loop D
[image:10.612.143.481.66.287.2](b)
Figure 4: Bullard & Gellman diagram (Bullard & Gellman, 1954) for the flow con-sidered here. (a) Action of the toroidal flow (dashed arrows) and the poloidal flow (solid arrows) on the different components of an m = 1 magnetic field, decomposed into poloidal and toroidal parts (bp and bt respectively) and odd and even degrees l (subscripts o and e respectively). Straight arrows indicate transfers between different magnetic components, and closed arrows indicate rearrangement of a magnetic com-ponent. (b) Possible loops for the dynamo mechanism.
Before considering the effect of changing the wall properties in the next sections, we first discuss the dynamo mechanism.
Using the selection rules described by Bullard & Gellman (1954), the action of a laminar flow on the different components of the magnetic field, as expressed by Eq. (5), can be deduced from its symmetry properties. We represent the velocity field in terms of poloidal and toroidal scalars, upml and utml . The north–south symmetry proper-ties of our predominantly axisymmetric (m = 0) flow imply that only the spherical components of the velocity with even degree l are non-zero. Moreover, we find in all our simulations that the magnetic field is dominated by its m = 1 components. For simplicity, we therefore consider only the action of the components of the velocity with even degree l and m = 0 on the m= 1 poloidal and toroidal magnetic fields. To sim-plify the notation in the rest of the paper, we omit the superscript m for the spectral coefficients.
The selection rules partition the magnetic field into two orthogonal families: (bpco, bpse, btco, btse) and (bpso, bpce, btso, btce), where the subscripts o and e denote odd and even degrees in l
respectively, and the superscripts c and s denote the real and imaginary parts of the spectral coefficients (i.e., cos(φ) and sin(φ)) respectively. Which family dominates the solution depends only on the initial conditions for the magnetic field.
velocity,upeanduterespectively, act on one of the orthogonalm= 1 magnetic families according to the selection rules. A similar diagram can be drawn for the orthogo-nal family. All potential dynamo mechanisms can be represented by closed paths, or “loops”, in this diagram. Moreover, any dynamo loop must involve both poloidal and toroidal magnetic field. It is then immediately clear from Fig. 4(a) that the toroidal flow (dashed arrows) alone cannot act as a dynamo, since then there would be no mech-anism for the generation of poloidal magnetic field from toroidal magnetic field. The simplest possible dynamo loops, i.e., those involving just two or three steps, are drawn in Fig. 4(b). We consider only the loops that contain the equatorial dipole (in the set
bpco) because the dynamo field is dominated by this component in all our simulations. To determine which of the dynamo loops in Fig. 4(b) most likely represents the essential part of the dynamo mechanism, we have performed a series of numerical ex-periments in which all magnetic components in one of the quadrants shown in Fig.4(a) is artificially suppressed throughout the simulation. That is, one of the sets bpo, bpe,
bto, orbte is held at zero for all time (where the subscripts o and e imply all of the odd and evenl coefficients respectively but for them= 1 mode only). Figure5shows time series of the magnetic energy from Case D alongside corresponding time series from the experiments where the coefficientsbpe and btowere suppressed. When the spectral coefficients bpe are suppressed, the flow still maintains a dynamo, and the magnetic energy in the kinematic dynamo phase actually grows more rapidly than for the full MHD simulation (see further discussion in Section 3.2.2). On the other hand, when the spectral coefficients bto are suppressed, the dynamo fails. These results, though not conclusive, suggest that bto is necessary for the dynamo mechanism, whereas bpe
is not. Of the four loops shown in Fig. 4(b), only Loop B is consistent with these observations. This loop has three steps: (1) the shearing of the equatorial dipole into toroidal field of odd degree by the differential rotation, ute, (2) the twisting of toroidal field of odd degree into toroidal field of even degree by ute, and (3) the regeneration of the equatorial dipole from the toroidal field of even degree by upe. We emphasize that this loop description is an idealization of the dynamo mechanism, because the components not contained in Loop B are nevertheless present in the full simulation, and must influence the dynamo process to some extent. Moreover the poloidal flow and magnetic diffusion both act to rearrange the field within each quadrant, without changing the symmetry properties. However, the loop we identify is consistent with the schematic of the dynamo mechanism proposed by Nornberget al.(2006) (see their Fig. 4) for similar flows.
0 500 1000 1500 10−10
10−8 10−6 10−4 10−2
time
ma
g
n
e
ti
c
e
n
e
rg
y
case D nobpe
[image:12.612.166.445.56.249.2]nobto
Figure 5: Times series of the magnetic energy in the cases where either the coefficients
bpe or the coefficientsbto of the m = 1 magnetic field are suppressed, compared with that for the full MHD simulation in Case D. All the cases have similar wall parameters. A global magnetic diffusion time is τη = Rm = 300.
3.2 Effect of the wall conductivity and thickness
3.2.1 Dynamo threshold
First fixing the relative magnetic permeability at µr = 1, we have run simulations for different values of σr and ˆh, varying both over several orders of magnitude. Each simulation has been run for several global magnetic diffusion times, which means several times the magnetic Reynolds number Rm = 300 in non-dimensional units. Figure 6 summarises where dynamo and non-dynamo states are found in the parameter space (σr,ˆh). By “dynamo state” we mean that the magnetic energy in the corresponding simulation grows exponentially from the seed magnetic field used as initial condition, and then saturates at a significant steady value for the rest of the simulated time. For non-dynamo cases, any initial field ultimately decays diffusively. Figure7(a)shows the time series of the magnetic energy for two cases representative of these behaviours: the dynamo case (ˆh, σr) = (0.1,10−3) (Case D) and a non-dynamo (failed) case (ˆh, σr) = (0.1,1) (hereafter called Case F).
10−3 10−2 10−1 100 101 102 10−2
10−1 100
ˆh
σr
no dynamo dynamo
ˆ
h= ˆδ
ˆ
[image:13.612.167.440.77.242.2]hσr= 0.035
Figure 6: Results of dynamo simulations in the (σr,ˆh) space for µr = 1. The black line is ˆhσr = 0.035, and the dashed line indicates where ˆh is equal to the skin depth, ˆ
δ ∝σ−1/2
r (Eq. (28)).
0 500 1000 1500
10−10 10−8 10−6 10−4 10−2
ma
gn
et
ic
en
er
gy
time
case D case F
(a)
10−3 10−2 10−1 100
0 0.005 0.01 0.015 0.02 0.025
10−3 10−2 10−1 100
0 0.2 0.4 0.6 0.8
1x 10
−3
total tor pol
ki
n
et
ic
en
er
gy
ma
gn
et
ic
en
er
gy
σr
(b)
[image:13.612.120.495.360.578.2](a)σr= 10−3, ˆh= 0.1 (D) (b) σr= 1, ˆh= 0.1 (F) (c)σr= 1, ˆh= 0.5
Figure 8: Radial magnetic field Br in a conical section (r, φ) at colatitude θ = π/6. The dashed line indicates the fluid–wall interface, and the solid bold line is the contour
Br= 0 (not a magnetic field line).
the non-dynamo cases, we find the flow structure to be almost identical in all cases. When the wall is sufficiently thin (ˆh.0.1 in Fig. 6) the dynamo threshold closely follows the line ˆhσr = 0.035. For a thicker wall, the threshold in Fig. 6 becomes significantly steeper, indicating that the dynamo mechanism is less sensitive to the wall thickness. For ˆh&1 the dynamo threshold seems to asymptote to a limiting value of σr ≃0.1.
These results are consistent with those ofSpence et al. (2009), who used the same values of Re and Pmfbut more idealized boundary conditions. They obtained a dynamo when the outer boundary was electrically insulating (σr→0), but not when the outer boundary was perfectly conducting (σr→ ∞). However, our results differ from those of Khalzovet al.(2012), who considered the asymptotic thin-wall limit of ˆh→0 with ˆhσr finite. An explanation for the discrepancy between their results and ours is presented in Section 4.
3.2.2 Negative effect of the conducting wall
The negative effect of a thick, highly conducting wall on dynamo action is explained by the induction of poloidal magnetic field in the wall. For illustration, Figure 8 shows the radial component of the field, Br, in a conical section (r, φ) at colatitude
θ = π/6 for the dynamo case, Case D, and for the failed dynamo case, Case F. In Case F (Fig. 8(b)) the contours of Br in the wall spiral in the direction of the wall rotation, as exhibited by the contour Br = 0, which is plotted as a solid black line. In Case D (Fig. 8(a)), by contrast, this contour is almost exactly radial within the wall. Note that the radial field Br is directly related to the poloidal scalar potential
0 0.5 1 0
0.2 0.4 0.6 0.8 1
Case F Case D
bp
c 1
r
(a)
0 0.5 1
−0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1
jt
c 1
r
[image:15.612.133.482.59.251.2](b)
Figure 9: Radial profiles of the spectral coefficients bpc1 andjtc1 in Cases D and F. The profiles have been rescaled to have a maximum value of 1. The shading indicates the wall region.
poloidal field by the wall’s differential rotation becomes more significant, producing the spiral pattern seen in Fig. 8(b). To show this pattern more clearly, we also plot in Fig. 8(c) a case with the same wall conductivity as Case F, but with a thicker wall, ˆ
h= 0.5. In this simulation, the contourBr= 0 wraps several times around the sphere (Fig. 8(c)). Because µr = 1, both Br and its radial derivative are continuous at the fluid–wall interface (Eqs. (18) and (20)) and so the spiralling of the poloidal field in the conducting wall is communicated directly to the fluid.
In terms of the Bullard–Gellman diagram in Fig.4(a), the advection of the poloidal field by the toroidal flow of the wall converts the equatorial dipolebpointo an equatorial quadrupole bpe, and subsequently into an equatorial dipole of the opposite sign. We note that advection of poloidal field by toroidal flow is not part of the dynamo loop (Loop B in Fig. 4(b)) responsible for maintaining the magnetic field. In fact, this advection seems to be responsible for the failure of the dynamo in Case F. The effect of the wall on the equatorial dipole can be interpreted physically by noting that, as the wall conductivity is increased, the poloidal field lines become increasingly “anchored” to the wall. As a result, the counter rotation of the two hemispheres “tears apart” the magnetic field produced in the fluid, hindering the dynamo process.
This argument also provides a plausible explanation for the behaviour seen in Fig.5: for simulations with the same wall parameters as Case D, the magnetic energy grows faster during the kinematic phase if the spectral coefficients bpe are suppressed. Sup-pressing these coefficients prevents the advection of the poloidal field by the toroidal flow (in the fluid and in the wall).
of the skin depth,
δ = (mΩ(θ)σwµw)−1/2, (28)
where Ω(θ) is the angular velocity of the wall and m is the azimuthal order of the dominant magnetic mode (here m = 1). In dimensionless units, the minimum skin depth is
ˆ
δ= (Rmσrµr)−1/2. (29)
This is approximately the radial separation between the two “spiral arms” of the con-tour Br = 0. The toroidal eddy currents, in turn, induce opposing poloidal magnetic field within the fluid, and the overall effect is to weaken the equatorial dipole. This is shown clearly in Fig. 9, which plots radial profiles of the spectral coefficients bpc1 (corresponding to the equatorial dipole) and jtc1 (corresponding to the toroidal electric current responsible for the induction of the equatorial dipole (Eq. (22))) for Cases D and F. In Case F, the field decays exponentially with time, and so the profiles have been rescaled to allow a direct comparison with Case D. We find that the conducting wall in Case F allows the circulation of toroidal electric currents that are reversed relative to the currents in the fluid, thereby reducing the amplitude of the equatorial dipole plotted in Fig. 9(a).
In Fig. 6, the line ˆh= ˆδ is plotted as the dashed line. For ˆh <δˆ, the dynamo threshold is determined by the product ˆhσr and not by the ratio ˆh/δˆ. This means that the skin effect can be significant even if the wall thickness ˆhis significantly smaller than the skin depth ˆδ. Physically, for ˆh <δˆ, the threshold depends on the amplitude of the opposing toroidal currents, which is proportional to σr (Eq. (24)) integrated over the wall thickness. The line ˆh= ˆδ represents the boundary between the “thin wall” regime just described, and the “thick wall” regime wherein the threshold becomes independent of ˆh.
Varyingσr and ˆhalso has consequences for the poloidal currents, and hence for the toroidal magnetic field. For an insulating wall (σr = 0), electric currents cannot flow out of the fluid, and so we must have JP = 0 at r = ro. This implies, by Eq. (21), that the toroidal magnetic field must also vanish atr =ro, and so is forced to a rapid decrease in the fluid region close to the wall. Conversely, for a conducting wall, currents can leave the fluid and recirculate within the wall, so the decrease of the toroidal field towards zero does not have to occur atr=robut rather at the outer boundary with the vacuum. In this way, the presence of a thick conducting wall promotes the generation of toroidal field in the fluid, by allowing it to match to the vacuum boundary condition over a larger radial domain and so by shielding the fluid from the vacuum boundary condition. To illustrate this, Figure10compares plots of the spectral coefficients of the toroidal field btc1 andbts2 from Cases D and F. The decrease ofbtc1 and bts2 towards zero is indeed more rapid in the outer part of the fluid for Case D. However the generation of toroidal field occurs mainly in the inner part of the domain, and so the influence of the wall on the toroidal field is rather minor here.
0 0.5 1 0
0.2 0.4 0.6 0.8 1
Case F Case D
bt
c 1
r
(a)
0 0.5 1
−1 −0.8 −0.6 −0.4 −0.2 0 0.2
bt
s 2
r
[image:17.612.132.482.57.249.2](b)
Figure 10: Radial profiles of the spectral coefficientsbtc1andbts2of the toroidal magnetic field for Cases D and F. The profiles have been rescaled to have a maximum absolute value of 1.
non-axisymmetric poloidal magnetic field in the fluid. In our simulations, the negative effect of these eddy currents on the poloidal field outweighs the positive effect on the toroidal field, and so a conducting wall inhibits dynamo action.
3.3 Effect of the wall permeability and thickness
3.3.1 Dynamo threshold
In this section, we fix the relative conductivity of the wall at σr = 1, and present re-sults from simulations with different values of µr and ˆh. Figure 11 shows the location of the dynamo and non-dynamo simulations in this parameter space. In general, either increasing µror decreasing ˆh is favorable for dynamo action. For ˆh&0.1, the dynamo threshold approaches a line with µr ≃ 5, indicating that the dynamo mechanism be-comes insensitive to the wall thickness. For ˆh < 0.1, the dynamo threshold does not follow an obvious power law.
3.3.2 Positive effect of high magnetic permeability
10−2 10−1 100 101 102 103 10−2
10−1 100
ˆh
µr
no dynamo dynamo
ˆ
[image:18.612.168.444.119.292.2]h= ˆδ
Figure 11: Dynamo simulations in the (µr,ˆh) parameter space forσr= 1. The dashed line indicates where ˆh is equal to the skin depth, ˆδ ∝µ−1/2
r .
0 0.5 1 0
0.2 0.4 0.6 0.8 1
bp
c 1
r
(σr, µr) = (10−3,1)
(σr, µr) = (1,10)
(a)
0 0.5 1
0 0.2 0.4 0.6 0.8 1 1.2 1.4
bt
c 1
r
[image:19.612.139.477.58.250.2](b)
Figure 13: Radial profiles of the spectral coefficientsbpc1 andbtc1for the cases (σr, µr) = (10−3,1) and (σ
r, µr) = (1,10). Both cases have ˆh= 0.1. The profiles are normalized against their maximum values in the fluid.
the field in the fluid becomes perpendicular to the fluid–wall interface, independently of any advection within the wall. By decoupling the poloidal field in the fluid from that in the wall, a dynamo field can be maintained in the fluid in spite of strong eddy currents in the wall. Figure 13(a) compares the radial profiles of bpc1 (corresponding to the equatorial dipole) in the dynamo simulations with (ˆh, σr, µr) = (0.1,1,10) and (ˆh, σr, µr) = (0.1,10−3,1) (Case D). Althoughbpc1 decays rapidly within the wall in the case with µr= 10, the profiles in the fluid are very similar in both cases, showing that the increase in µr compensates for the increase inσr.
The situation for the toroidal magnetic field is somewhat similar, as shown in Fig. 13(b). Even though the high permeability of the wall allows for a much larger toroidal field in the wall, the field in the fluid is not much affected. In fact, the toroidal field in the fluid very closely matches that seen in Case F (Fig. 10(a)) after rescaling appropriately.
In summary, a high magnetic permeability in the wall effectively decouples the field in the fluid from that in the wall. In our simulations, this decoupling promotes dynamo action, by preventing the equatorial dipole from being torn apart by the differential rotation of the wall. High wall permeability also allows a strong toroidal field to develop in the wall, but the toroidal field in the fluid is not significantly affected.
4
Analytical solution in a thin wall
the thin-wall boundary conditions is derived in Appendix A, and compared with the special cases of Roberts et al. andKhalzov et al..
The derivation assumes that the wall thicknessh is much smaller than the charac-teristic scale of radial variations in the wall. For the steady dynamo magnetic fields considered here, and with a prescribed velocity in the wall of the form
u=rsinθΩ(θ)eφ, (30)
this assumption requires thathis much smaller than the skin depthδgiven by Eq. (28). The boundary condition for each spherical harmonic coefficient of the poloidal magnetic scalar potential,bpml , atr =ro− is then
− d ln(rbp
m l ) d lnr
r−
o
= l+ imRmσrˆhA m l 1 +lµrˆh
, (31)
where Aml =
h ˆ ΩBP
im l
bpml
. (32)
Here, ˆΩ(θ) = Ω(θ)ro/Uw is the dimensionless rotation rate, and the notation [·]ml represents a particular spherical harmonic component of degree land order m.
The first term in the numerator on the right-hand side of Eq. (31) arises from the vacuum boundary condition at r = ro +h. The second term in the numerator represents the contribution from the advection of the poloidal magnetic field in the wall (or, equivalently, the induction of poloidal field by toroidal eddy currents in the wall). Because ˆΩ is antisymmetric about the equator, ˆΩBPhas the opposite equatorial symmetry toBP. The advection term therefore couples different degrees of the poloidal field, and, in particular, transforms the odd l degrees into even l degrees, which we showed was detrimental to dynamo action. Since in all our simulations the poloidal magnetic field is dominated by the equatorial dipole component (l, m) = (1,1), we anticipate that the advection term will be significant in cases for whichσrhˆ&1/Rm≃ 0.003. In fact, in Fig. 6 we find that the dynamo threshold roughly follows the line
σrhˆ = 0.035, that isσrhˆ ≃10/Rm, in the parameter space ˆh <δˆfor which Eq. (31) is valid.
Equation (31) also demonstrates how a large value of µr can offset the negative effect of a large value of σr. Indeed, in the limit µrˆh → ∞ the right-hand side of Eq. (31) vanishes, implying that the poloidal field lines become perpendicular to the fluid–wall interface, even if the advection term dominates the numerator. Figure 11 shows that, forσr= 1, a permeability ofµr= 5 is enough to maintain a dynamo when ˆ
h≥0.1. However, note that Eq. (31) is not strictly valid in this regime, since the wall thickness is larger than the skin depth.
model, and so the conductivity of the wall has little effect on the dynamo process in their model.
The boundary condition for the spherical harmonic coefficients of the toroidal mag-netic scalar potential, btml , atr=ro− is
− ∂ln(rbt
m l )
∂lnr
r−
o
= 1
σrˆh
, (33)
which is identical to that of Roberts et al. (2010). This explains the insensitivity of the toroidal field to the permeability of the wall in our results. For small values ofσrˆh we recover the insulating boundary condition BT = 0, implying no radial currents at the fluid–wall interface. For finite values of σrhˆ, a finite radial current is permitted to the extent that the current can recirculate within the wall. Equation (33) imposes that the radial component of the current is proportional to the divergence of the an-gular components, with a constant of proportionality given by the radially integrated conductivity.
5
Conclusions and discussion
We have performed a series of numerical simulations to study dynamo action generated by a steady, hydrodynamically-stable, laminar axisymmetric shear flow driven by the counter-rotating hemispheres of a spherical shell. We have studied the effects of varying independently the thickness, ˆh, electrical conductivity,σr, and magnetic permeability,
µr, of the outer wall on the dynamo action. For certain favorable magnetic bound-ary conditions, the flow maintains a magnetic field consisting mainly of a stationbound-ary equatorial dipole and a toroidal component, both of which have azimuthal symmetry
m= 1.
The effects on the dynamo action of changing independently the parameters of the outer wall are summarized in Table1. The table emphasizes the effect that each change has on the main poloidal and toroidal components.
In general, we find that decreasing the wall thickness, decreasing the wall conduc-tivity and increasing the wall permeability all promote dynamo action in this system. For high wall conductivity or permeability, the advection of the poloidal field by the rotation of the wall can be described as the induction of toroidal “eddy” currents in the wall by the poloidal field. For large σr, the eddy currents oppose the poloidal field in the fluid, in a manner analogous to a skin effect, and are detrimental to dynamo ac-tion. The skin depth, ˆδ, which is proportional to (σrµr)−1/2, determines the transition between the thick wall regime, ˆh >ˆδ, and the thin wall regime, ˆh <δˆ. In the thick wall regime, the dynamo threshold becomes independent of ˆh. In the thin wall regime with homogeneous permeability, the dynamo threshold depends on the radially-integrated conductivity ˆhσr. Increasing the wall magnetic permeability is favorable to dynamo action because high wall permeability constrains the magnetic field in the fluid to be normal to the interface with the wall. This effectively disconnects the fluid from any eddy currents in the wall.
Laminar flow (Re = 300) Turbulent flow (Re = 50000) poloidal field toroidal field poloidal field toroidal field
m= 1 m= 1 m= 0 m= 0
σrր − + +
eddy currents buffer from vacuum buffer from vacuum
µrր + +
field normal at r=r−
o enhance ω-effect
ˆ
hր −if ˆh <ˆδ + +
[image:22.612.102.540.55.187.2]eddy currents buffer from vacuum buffer from vacuum
Table 1: Summary of the effect of the parameters of the outer wall on the generation of the poloidal and toroidal magnetic fields in the case of the laminar flow considered in this paper, and compared to the results obtained with a similar boundary-driven flow at larger Reynolds number in Guervilly & Brummell (2012). The + and − symbols indicate whether the effect is favorable or detrimental to the generation of the field.
and toroidal field at the fluid-wall interface. A highly conducting (or thick) wall thus creates a buffer region between the fluid and the vacuum outside. However, allowing stronger values of the toroidal field at the fluid–wall interface is favorable to dynamo action only if the velocity shear layer, where toroidal field is produced, is located close to the wall. For the laminar flows studied here, the shear layer extends across most of the bulk of the fluid interior, and the positive effect of a thick conducting wall on the toroidal field generation is outweighed by the negative effect on the poloidal field generation.
It is interesting to compare our results with those ofKaiser & Tilgner (1999), who studied the dynamo action of a helical flow surrounded by a (stationary) conducting wall. They observed the existence of an optimal thickness that minimizes the critical magnetic Reynolds number. This is because, in their case, the positive effect of the penetration of radial currents into the wall (that is, of the buffer region for the toroidal field) outweighs the negative effect of the eddy currents as long as the wall is thinner than this optimal thickness. This is an important difference from our study, where we find that for walls significantly thinner than the skin depth, the skin effect still hinders the dynamo action. This difference likely arises because, in theKaiser & Tilgnermodel, there is a shear discontinuity between the fluid and the wall, and so a conducting wall significantly enhances the generation of toroidal field.
case is to support the generation of a strong axisymmetric toroidal field, which then feeds the other components of the dynamo cycle. For large Reynolds numbers, the velocity shear layer created by the boundary forcing is narrow and confined close to the wall, and the buffering effect of a highly conductive or thick wall allows this boundary layer to create toroidal field very efficiently by the ω-effect. A high wall permeability also enhances the ω-effect in the turbulent case, by promoting a radial field at the fluid–wall interface adjacent to the shear layer through the same paramagnetic suction seen in the laminar case.
Ultimately then, the effect of magnetic boundary conditions in a dynamo model de-pends on the geometry of the magnetic field as much as on the physical configuration of the model. In particular, a highly conducting, differentially rotating boundary tends to promote axisymmetric steady field configurations, and inhibit non-axisymmetric con-figurations. Although this study was motivated by upcoming dynamo experiments, the understanding established is relevant also to astrophysical dynamos. For example, the presence of a differentially rotating conducting layer in Saturn has previously been invoked as an explanation for its highly axisymmetric magnetic field (Stevenson,1982; Stanley,2010). In this scenario, the conducting “wall” is a stably stratified layer of fluid surrounding the deeper convective region in which the dynamo operates. The differ-ential rotation in this layer is produced by thermal winds arising from the latitudinal temperature gradient at the planet’s surface. Stanley(2010) found that the role of the stable layer on the axisymmetry of the magnetic field depends on the equatorial sym-metry of the thermal winds. This result can be explained using our thin-wall boundary condition for the poloidal magnetic field (Eq. (31)).
Acknowledgments
The authors would like to thank P. H. Diamond, C. Forest, G. A. Glatzmaier, G. R. Ty-nan for useful discussions and two anonymous referees for improving the manuscript. Financial support was provided by the Center for Momentum Transport and Flow Or-ganization (CMTFO), a Plasma Science Center sponsored by the US Department of Energy (DoE) Office of Fusion Energy Sciences and the American Recovery and Rein-vestment Act (ARRA) 2009. This research was further supported by an allocation of advanced computing resources provided by the National Science Foundation (NSF). The computations were performed on the NSF Teragrid/XSEDE machine Kraken at the National Institute for Computational Sciences (NICS).
A
The magnetic boundary conditions in the thin-wall limit
We consider a spherical wall of thickness h, electrical conductivity σw, and magnetic permeability µw, separating a fluid with σ =σf and µ=µf from an external vacuum with σ = 0 and µ = µ0. In the limit h → 0 we anticipate that the effect of the wall depends only on the radially integrated conductivity hσw and permeability hµw (Robertset al.,2010).
Within the wall, the magnetic induction equation (5) then takes the form
∂B
∂t =∇×(Ωrsinθeφ×B−ηw∇ ×B) (34)
where ηw= 1/(σwµw).
A.1 Poloidal magnetic field
The radial component of Eq. (34) can be written as an advection–diffusion equation forBr:
∂
∂t+ Ω
∂ ∂φ
(r2Br) =ηw
∂2
∂r2 −
1
r2L2
(r2Br), (35)
where L2 is the angular Laplacian operator defined by Eq. (17). For convenience we introduce a new variable P =r2Br; the matching conditions (18) and (20) then imply
that P and µ−1∂P/∂rare continuous.
Since Equation (35) has no explicit dependence on eithertorφ, it is convenient to decompose P spectrally in those coordinates and then solve for each mode separately. We therefore assume that P ∝ eiωt+imφ, for some constants ω and m. If we also assume that the thickness of the wall is much smaller than the scale of any latitudinal or azimuthal variations within the wall, then Eq. (35) can be approximated as
iP
δ2 ≃
∂2P
∂r2, (36)
where δ(θ) is a generalized skin depth
δ(θ) =
ηw
ω+mΩ(θ)
1/2
. (37)
We emphasize thatδdepends on colatitude, as well as on the frequencyωand azimuthal wavenumber m. We are interested here in the regime with h ≪ δ, in which case we can approximate the radial dependence of P within the wall via Taylor expansion. In particular, we have
P|r=(ro+h)− = P|r=r+o +
∂P ∂r
r=r+
o
h + O(h2/δ2), (38)
∂P ∂r
r=(ro+h)−
= ∂P ∂r
r=r+
o + ∂ 2P ∂r2
r=r+
o
h + O(h2/δ2), (39)
where the superscripts−and + indicate points immediately inside and outside a given radius respectively. The second derivative ofP in Eq. (39) can be inferred from Eq. (36). We can then use the fact that P and µ−1∂P/∂r are continuous at r = r−
o and r = (ro+h)+(Eqs. (18) and (20)) to relate values just outside the wall in the vacuum and in the fluid:
P|r=(ro+h)+ ≃ P|r=r−o +
µw µf ∂P ∂r
r=r−o
h, (40) µw µ0 ∂P ∂r
r=(ro+h)+
≃ µw
µf ∂P ∂r
r=r−
o
+ i
δ2P
r=r−
o
Finally, we use the fact that, within the vacuum, we have ∂P ∂r m l =−l
r[P]
m
l , (42)
where the notation [·]ml represents a particular spherical harmonic component. From Eqs. (40)–(42) and the definition ofδ we deduce the following boundary condition for the fluid at r=r−
o: − l ro µw µ0
[P]ml +µw
µf ∂P ∂r m l h
≃ µw
µf ∂P ∂r m l +
iω+ imΩ
ηw P m l h. (43)
If the wall is at rest (Ω(θ) = 0) then we recover the thin-wall boundary condition of Khalzov et al. (2012). In general, it is easiest to implement Eq. (43) as a dynamic boundary condition, by replacing iωP by∂P/∂t. We then have
∂
∂t[P]
m
l + im[ΩP]
m
l ≃ −
l
ro
1
µ0σwh
[P]ml − 1
µfσwh
1 + l
ro
µwh
µ0
∂
∂r[P]
m
l . (44)
Since the coefficients on the right-hand side of (44) are both negative, this boundary condition is well posed.
If the rotation rate of the wall matches that of the fluid next to the wall, then Eq. (35) also applies at the surfacer =r−
o, except with ηw replaced by ηf = 1/(σfµf). In that case, we can rewrite the left-hand side of (44) as follows:
ηf
∂2P
∂r2 −
l(l+ 1)
r2
0
P
m
l
≃ − l
ro
1
µ0σwh
[P]ml − 1
µfσwh
1 + l
ro
µwh
µ0 ∂P ∂r m l . (45)
This almost exactly matches the thin-wall boundary condition derived byRobertset al.
(2010). However, their boundary condition includes spurious terms proportional toh2, which arise because they include O(h2/δ2) terms in the Taylor series (38), but not in (39). Including such higher order terms in both (38) and (39) increases the complexity of the derivation, but the results presented here are still obtained in the thin-wall limit
h→0 with σwhand µwh both finite.
For the steady-state dynamos considered in this paper, with µf = µw/µr = µ0, boundary condition (44) becomes
− ∂ln [P]
m l
∂lnr
r=r−o
≃
l+ imRmσrˆh
[ ˆΩP]m l [P]ml 1 +lµrˆh
, (46)
where ˆh and ˆΩ are the thickness and angular velocity of the wall in non-dimensional units and Rm =Uwroµ0σf.
A.2 Toroidal magnetic field
• we replace P →T and µ→σ, except in the vacuum, where σ = 0;
• the toroidal equivalent of Eq. (35) has additional terms involving the shearing of field lines, which introduces additional terms into Eq. (41).
However, because the vacuum has σ = 0, T must vanish at r = ro+h, and so the toroidal equivalent of Eq. (40) is simply
0≃ T|r=r−
o +
σw
σf
∂T ∂r
r=r−
o
h. (47)
From this we deduce immediately that the boundary condition for the toroidal field is
∂ln [T]ml
∂lnr ≃ −
1
σrˆh
. (48)
This exactly matches the thin-wall boundary condition of Roberts et al.(2010).
References
Avalos-Zuniga, R., Plunian, F. & Gailitis, A. 2003 Influence of electromagnetic
boundary conditions onto the onset of dynamo action in laboratory experiments.
Phys. Rev. E 68(6), 066307.
Bayliss, R. A., Forest, C. B., Nornberg, M. D., Spence, E. J. & Terry,
P. W. 2007 Numerical simulations of current generation and dynamo excitation in
a mechanically forced turbulent flow.Phys. Rev. E 75 (2), 026303.
Bullard, E. & Gellman, H. 1954 Homogeneous Dynamos and Terrestrial
Mag-netism.Phil. Trans. R. Soc. Lond. A 247, 213–278.
Cowling, T. G. 1933 The magnetic field of sunspots.MNRAS 94, 39–48.
Dudley, M. L. & James, R. W. 1989 Time-dependent kinematic dynamos with
stationary flows. Proc. R. Soc. Lond. A425, 407–429.
Gailitis, A., Lielausis, O., Platacis, E., Dement’ev, S., Cifersons, A.,
Ger-beth, G., Gundrum, T., Stefani, F., Christen, M. & Will, G.2001 Magnetic
field saturation in the Riga dynamo experiment. Phys. Rev. Lett.86, 3024–3027.
Giesecke, A., Nore, C., Stefani, F., Gerbeth, G., L´eorat, J., Herreman,
W., Luddens, F. & Guermond, J.-L.2012 Influence of high-permeability discs in
an axisymmetric model of the Cadarache dynamo experiment.New J. Phys. 14(5), 053005.
Gissinger, C., Dormy, E. & Fauve, S. 2008 Bypassing Cowling’s Theorem in
Axisymmetric Fluid Dynamos.Phys. Rev. Lett.101 (14), 144502.
Gubbins, D. 1973 Numerical Solutions of the Kinematic Dynamo Problem. Phil.
Guervilly, C. & Brummell, N. H.2012 Self-consistent simulations of a von K´arm´an type dynamo in a spherical domain with metallic walls.Phys. Rev. E 186(4), 046317.
Holme, R.2003 Optimised axially-symmetric kinematic dynamos.Phys. Earth Planet.
Inter. 140, 3–11.
Kaiser, R. & Tilgner, A. 1999 Kinematic dynamos surrounded by a stationary
conductor. Phys. Rev. E 60, 2949–2952.
Khalzov, I. V., Brown, B. P., Kaplan, E. J., Katz, N., Paz-Soldan, C.,
Rahbarnia, K., Spence, E. J. & Forest, C. B.2012 Resistive and ferritic-wall
plasma dynamos in a sphere.Phys. Plasmas 19(10), 104501.
Laguerre, R., Nore, C., Ribeiro, A., L´eorat, J., Guermond, J.-L. &
Plu-nian, F.2008 Impact of impellers on the axisymmetric magnetic mode in the VKS2
dynamo experiment.Phys. Rev. Lett. 101(10), 104501.
Mari´e, L., Burguete, J., Daviaud, F. & L´eorat, J. 2003 Numerical study of
homogeneous dynamo based on experimental von K´arm´an type flows.Eur. Phys. J. B 33, 469–485.
Monchaux, R., Berhanu, M., Bourgoin, M., Moulin, M., Odier, P., Pinton,
J.-F., Volk, R., Fauve, S., Mordant, N., P´etr´elis, F., Chiffaudel, A.,
Daviaud, F., Dubrulle, B., Gasquet, C., Mari´e, L. & Ravelet, F. 2007
Generation of a magnetic field by dynamo action in a turbulent flow of liquid sodium.
Phys. Rev. Lett.98(4), 044502.
Nakajima, T. & Kono, M.1991 Kinematic dynamos associated with large scale fluid
motions.Geophys. Astrophys. Fluid Dyn. 60, 177–209.
Nornberg, M. D., Spence, E. J., Kendrick, R. D., Jacobson, C. M. & Forest,
C. B.2006 Measurements of the magnetic field induced by a turbulent flow of liquid
metal. Phys. Plasmas 13(5), 055901.
Roberts, P. H., Glatzmaier, G. A. & Clune, T. L. 2010 Numerical simulation
of a spherical dynamo excited by a flow of von K´arm´an type. Geophys. Astrophys. Fluid Dyn. 104, 207–220.
Spence, E. J., Reuter, K. & Forest, C. B. 2009 A Spherical Plasma Dynamo
Experiment.Astrophys. J. 700, 470–478.
Stanley, S. 2010 A dynamo model for axisymmetrizing Saturn’s magnetic field.
Geo-phys. Res. Lett.37, 5201.
Stevenson, D. J. 1982 Reducing the non-axisymmetry of a planetary dynamo and
an application to Saturn.Geophys. Astrophys. Fluid Dyn. 21, 113–127.
Stieglitz, R. & M¨uller, U. 2001 Experimental demonstration of a homogeneous
two-scale dynamo. Phys. Fluids 13(3), 561–564.
Zimmerman, D. S., Triana, S. A. & Lathrop, D. P.2011 Bi-stability in turbulent,
