THE EFFECTS OF CHANGES IN FOREST COVER
ON
INFILTRATION RATES
A Comparative Study in Forested Water Supply Catchments
by
U.SEIN WIN
A thesis submitted for the degree of Master of Science (Forestry) in the Australian National University.
Except where specific acknowledgement is given, this thesis
is my original work.
ACKNOWLEDGEMENTS
I am very grateful to the Colombo Plan Authorities in Burma and
Australia for enabling me to undertake this study. I would also like
to acknowledge and thank Professor J.D. Ovington (now Director,
Australian National Parks and Wildlife Service) and my supervisor
Mr D.M. Stodart, for their advice and sincere encouragement to change
my study programme from an ad hoc training course to academic post
graduate studies.
I am also indebted to and would like to thank the following:
. The Ministry of Agriculture and Forests, Government of the
Socialist Republic of the Union of Burma for extending my study
period to two years.
. U. Maung Gale, Director-General, Forest Department, for giving
me valuable advice.and patient encouragement throughout this
research and for providing me with facilities without which this X research could not have been concluded.
The Colombo Plan Authorities in Australia for providing me with
instruments used in the section of the research carried out in
tropical forests of Burma.
The Department of Forestry, Australian National University, for
providing me with field and laboratory facilities throughout the
part of the research carried out in Australia.
. The Forest Department, Burma, for giving me permission to continue
my research in the Tropical Catchment area at Mount Poppa.
. Dr T. Talsma and Mr K.M. Perroux, CSIRO-Pye Laboratory, for giving
me helpful advice and field demonstrations of equipment used
Mr T.S. Johnson (Australian National University), U. Aung Kyaw Myint (Forest Department, Burma) and Daw Thant Thant Tint
(Computer Centre, Rangoon) for their assistance in the comput ation of part of the results from the series of experiments conducted throughout this research.
. Mr Wissopakan for his assistance in some of the experiments carried out in Cotter Catchment, temperate forest, A.C.T., Australia.
Division of Forest Research, CSIRO, for permission to use their records.
. Mr R.T. Moreland and Mr J. B u m s for their helpful advice in the processing of rainfall data.
Mr Pierrehumbert for advice on the analysis of the rainfall records. Mrs P. Reid for assisting me in acquiring relevant literature and
for sending some of the urgently needed ones to Burma during the latter part of this research.
Department of Meteorology and Hydrology, Burma, for permission to use their records.
. Mr R. Whitty and family as an Australian host family, for hospital ity offered and received throughout my stay in Australia.
I am also grateful to the staff and colleagues of the Department of Forestry, Australian National University, for their sincere cooperation in all matters, both private and academic, during my stay in Australia.
Finally, I am deeply indebted to my wife, Hla May Win, for her courage in permitting me a long period of study away from home, and for having to cope with a family of seven during my absence.
iv
ABSTRACT
The results of field measurements to assess the effects of changes in forest cover on infiltration rates are reported.
In the Pierce's Creek forest in the Australian Capital Territory measurements were made using infiltration rings in eucalypt forest and
Pinus radiata plantation on both granite and shale soils. The results
indicate no substantial change in the infiltration characteristics as a consequence of conversion from eucalypt to Pinus radiata plantation.
In the Kyetmauk-taung catchment in central Burma measurements were made in a mixed deciduous forest, a plantation and semi-indaing forest. The plantation was established on land resumed as a catchment protection measure following deterioration by erosion under cultivation for bananas. There were significant differences between the infiltration characteristics of the three forest types. The results indicate that the infiltration characteristics of the plantation area have after seven years recovered to values comparable with the adjacent relatively undisturbed forest.
At both study areas estimates of cumulative infiltration derived from the field measurements are compared with rainfall totals for corres ponding time intervals.
The measurements of sorptivity in the Kyetmauk-taung catchment, using procedures after Talsma (1969), are related to gravimetric moisture

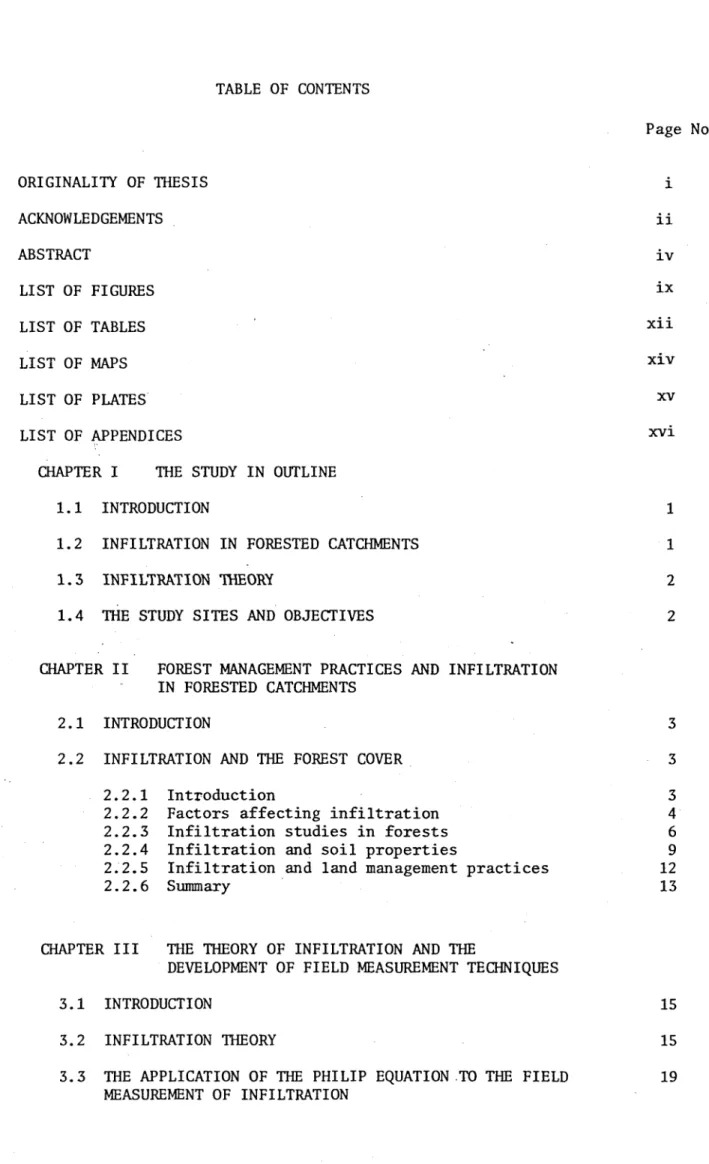

TABLE OF CONTENTS
Page No.
ORIGINALITY OF THESIS i
ACKNOWLEDGEMENTS ii
ABSTRACT iv
LIST OF FIGURES i*
LIST OF TABLES xii
LIST OF MAPS xiv
LIST OF PLATES xv
LIST OF APPENDICES xvi
CHAPTER I THE STUDY IN OUTLINE
1.1 INTRODUCTION 1
1.2 INFILTRATION IN FORESTED CATCHMENTS 1
1.3 INFILTRATION THEORY 2
1.4 THE STUDY SITES AND OBJECTIVES 2
CHAPTER II FOREST MANAGEMENT PRACTICES AND INFILTRATION
IN FORESTED CATCHMENTS
2.1 INTRODUCTION 3
2.2 INFILTRATION AND THE FOREST COVER 3
2.2.1 Introduction 3
2.2.2 Factors affecting infiltration 4
2.2.3 Infiltration studies in forests 6
2.2.4 Infiltration and soil properties 9
2.2.5 Infiltration and land management practices 12
2.2.6 Summary 13
CHAPTER III THE THEORY OF INFILTRATION AND THE
DEVELOPMENT OF FIELD MEASUREMENT TECHNIQUES
3.1 INTRODUCTION 15
3.2 INFILTRATION THEORY 15
3.3 THE APPLICATION OF THE PHILIP EQUATION TO THE FIELD 19
vi
Page No.
CHAPTER IV THE STUDY AREAS
4.1 INTRODUCTION 23
4.2 THE STUDY SITES 27
4.2.1 The Cotter catchment sites 27
4.2.1.1 Location 32
4.2.1.2 Climate 32
4.2.1.3 Soils 34
4.2.1.4 Vegetation 35
4.2.2 The Kyetmauk-taung catchment sites 35
4.2.2.1 Location 35
4.2.2.2 Climate 38
4.2.2.3 Topography 39
4.2.2.4 Soils 39
4.2.2.5 Vegetation 40
CHAPTER V FIELD MEASUREMENTS OF INFILTRATION
5.1 INTRODUCTION 42
5.2 FIELD MEASUREMENTS 42
5.2.1 Equipment 42
5.2.2 Field procedures 44
5.2.3 Calculation of sorptivity and hydraulic 48 conductivity
5.3 SAMPLING PROCEDURES AND RESULTS FOR INFILTRATION 52 MEASUREMENTS AT THE COTTER CATCHMENT STUDY SITES
5.3.1 Introduction 52
5.3.1.1 Sites in the Uriarra Forest 55
5.3.2 Sampling methods 56
5.3.3 Results 59
5.3.3.1 Pierce's Creek 59
5.3.3.2 Uriarra 59
5.3.4 Analysis and Statement of Results 66
5.3.4.1 Pierce’s Creek 66
5.3.4.2 Uriarra Forest 68
Page No.
5.4 SAMPLING PROCEDURES AND RESULTS FOR INFILTRATION 75 MEASUREMENTS AT THE KYETMAUK-TAUNG STUDY SITES
5.4.1 Sampling procedures 75
5.4.2 Results 79
5.4.3 Analysis and Statement of Results 79
5.4.3.1 Statistical analysis of dry season results 84 5.4.3.2 Statistical analysis of wet season results 86 5.4.3.3 Comparison of dry season and wet season 86
results
5.4.4 Discussion 87
CHAPTER VI THE DERIVATION OF RAINFALL INTENSITY-DURATION- 88 FREQUENCY DIAGRAMS FOR STATIONS IN THE LOWER
COTTER CATCHMENT AND RAINFALL INTENSITIES FOR KYETMAUK-TAUNG CATCHMENT
6.1 INTRODUCTION 88
6.2 THE ANALYSIS OF RAINFALL RECORDS IN THE COTTER 92 CATCHMENT
6.2.1 Methods of analysis 96
6.2.2 Pluviograph records in the Lower Cotter catchment 99
6.2.2.1 Introduction 99
6.2.2.2 Processing of analogue charts 102 6.2.2.3 Calculated rainfall intensities 103
6.2.2.4 Review 104
CHAPTER VII REVIEW AND SUMMARY 108
7.1 INTRODUCTION 108
7.2 THE RESULTS OF STUDIES ON THE EFFECTS OF CHANGES 108 IN FOREST COVER ON INFILTRATION
7.2.1 Change from eucalypt forest to Pinus radiata 108 plantation in the Cotter catchment, Australian
Capital Territory
7.2.2 Changes in forest cover as a consequence of 109 reafforestation in the Kyetmauk-taung catchment
in central Burma
7.3 COMPARISONS OF MEASURED INFILTRATION WITH RAINFALL 110 7.3.1 Studies in the Cotter catchment of the Australian 110
Capital Territory
viii
P a g e N o
7.4 T H E M E A S U R E M E N T O F S O R P T I V I T Y A S A C A T C H M E N T P A R A M E T E R
115
7 . 4 . 1
7 . 4 . 2 7 . 4 . 3
M e a s u r e m e n t s at P i e r c e ’s C r e e k in t h e C o t t e r c a t c h m e n t
M e a s u r e m e n t s in t h e K y e t m a u k - t a u n g c a t c h m e n t R e l a t i o n s b e t w e e n s o r p t i v i t i e s a n d g r a v i m e t r i c m o i s t u r e c o n t e n t s i n t h e C o t t e r a n d K y e t m a u k -t a u n g c a -t c h m e n -t s
115
1 1 7 1 2 3
7.5 S U M M A R Y 1 2 3

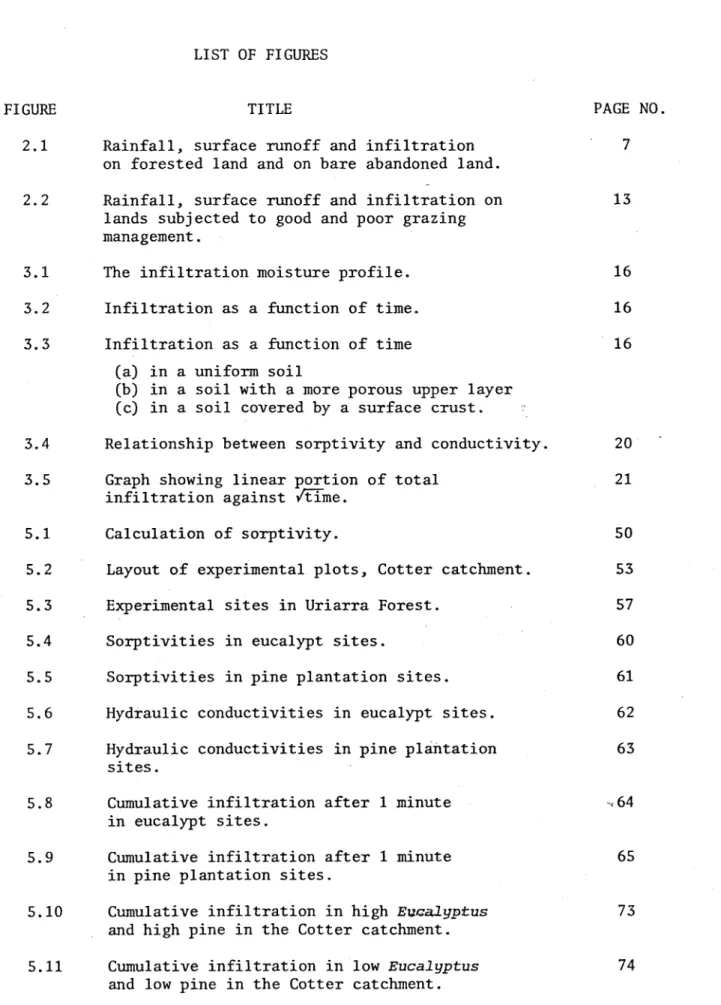

LIST OF FIGURES
FIGURE TITLE PAGE NO.
2.1 Rainfall, surface runoff and infiltration 7 on forested land and on bare abandoned land.
2.2 Rainfall, surface runoff and infiltration on 13 lands subjected to good and poor grazing
management.
3.1 The infiltration moisture profile. 16
3.2 Infiltration as a function of time. 16
3.3 Infiltration as a function of time 16
(a) in a uniform soil
(b) in a soil with a more porous upper layer (c) in a soil covered by a surface crust.
3.4 Relationship between sorptivity and conductivity. 20 3.5 Graph showing linear portion of total 21
infiltration against /time.
5.1 Calculation of sorptivity. 50
5.2 Layout of experimental plots, Cotter catchment. 53 5.3 Experimental sites in Uriarra Forest. 57
5.4 Sorptivities in eucalypt sites. 60
5.5 Sorptivities in pine plantation sites. 61 5.6 Hydraulic conductivities in eucalypt sites. 62 5.7 Hydraulic conductivities in pine plantation 63
sites.
5.8 Cumulative infiltration after 1 minute 64 in eucalypt sites.
5.9 Cumulative infiltration after 1 minute 65 in pine plantation sites.
5.10 Cumulative infiltration in high EucaJyptus 73 and high pine in the Cotter catchment.
X
F I G U R E T I T L E P A G E N O
5 . 1 2 K y e t m a u k - t a u n g c a t c h m e n t : r a n d o m p l o t l a y o u t d i a g r a m .
78
5 . 1 3 C u m u l a t i v e i n f i l t r a t i o n in m i x e d d e c i d u o u s , m a n - m a d e p l a n t a t i o n s a n d s e m i - i n d a i n g f o r e s t i n t h e K y e t m a u k - t a u n g c a t c h m e n t in t h e d r y s e a s o n .
82
5. 14 C u m u l a t i v e i n f i l t r a t i o n i n m i x e d d e c i d u o u s , m a n - m a d e p l a n t a t i o n s a n d s e m i - i n d a i n g f o r e s t
i n t h e K y e t m a u k - t a u n g c a t c h m e n t in t h e w e t s e a s o n .
83
6.1 I n f i l t r a t i o n r a t e v e r s u s t i m e - a s t e a d y r a i n f a l l r a t e .
89
6.2 T h e R e p r e s e n t a t i v e B a s i n M o d e l . 91
6. 3 V a r i a b i l i t y o f r a i n f a l l at U r i a r r a B l u e R a n g e -B u l l ' s H e a d .
9 3
6.4 V a r i a b i l i t y o f r a i n f a l l at M e i k t i l a , P o p p a , N y a u n g - o o , M y i n g y a n .
94
6.5 R a i n f a l l I n t e n s i t y - F r e q u e n c y - D u r a t i o n D i a g r a m f o r C a n b e r r a .
95
6.6 R a i n f a l l I n t e n s i t y - D u r a t i o n - F r e q u e n c i e s at B u l l ' s H e a d a n d B l u e R a n g e .
1 0 5
7.1 C o m p a r i s o n o f c a l c u l a t e d i n f i l t r a t i o n w i t h d e r i v e d r a i n f a l l d e p t h s , i n t h e C o t t e r c a t c h m e n t .
111
7.2 C o m p a r i s o n o f m e a s u r e d i n f i l t r a t i o n ( d r y s e a s o n ) w i t h e s t i m a t e d r a i n f a l l in t h e K y e t m a u k - t a u n g c a t c h m e n t .
1 1 3
7.3 C o m p a r i s o n o f m e a s u r e d i n f i l t r a t i o n (wet s e a s o n ) w i t h e s t i m a t e d r a i n f a l l i n t h e K y e t m a u k - t a u n g c a t c h m e n t .
114
7.4 S o r p t i v i t i e s a n d g r a v i m e t r i c m o i s t u r e c o n t e n t s a t P i e r c e ' s C r e e k in t h e C o t t e r c a t c h m e n t .
1 1 6
7.5 S o r p t i v i t i e s a n d g r a v i m e t r i c m o i s t u r e c o n t e n t s i n t h e K y e t m a u k - t a u n g c a t c h m e n t i n t h e d r y s e a s o n .
118
7.6 S o r p t i v i t i e s a n d g r a v i m e t r i c m o i s t u r e c o n t e n t s in t h e K y e t m a u k - t a u n g c a t c h m e n t i n t h e w e t s e a s o n .
c a t c h m e n t i n t h e d r y s e a s o n .
7 . 8 R e l a t i o n s b e t w e e n s o r p t i v i t y a n d g r a v i m e t r i c 1 2 1 m o i s t u r e c o n t e n t s i n t h e K y e t m a u k - t a u n g
c a t c h m e n t i n t h e w e t s e a s o n .
7 . 9 R e l a t i o n s b e t w e e n s o r p t i v i t y a n d g r a v i m e t r i c 1 2 2 m o i s t u r e c o n t e n t s i n t h e K y e t m a u k - t a u n g
c a t c h m e n t r e s u l t s .
xii
LIST OF TABLES
TABLE TITLE PAGE NO.
2.1 Soil characteristics influencing infiltration 11 and their effects.
3.1 Average sorptivities cm.min 2 for different 20 surface conditions of an experimental catchment.
4.1 Average rainfall in lower Cotter catchment at 32 Bull's Head, Blue Range, Uriarra 1966-1974.
4.2 Average rainfalls at stations in central Burma. 38 5.1 Field readings for sorptivity and conductivity. 49

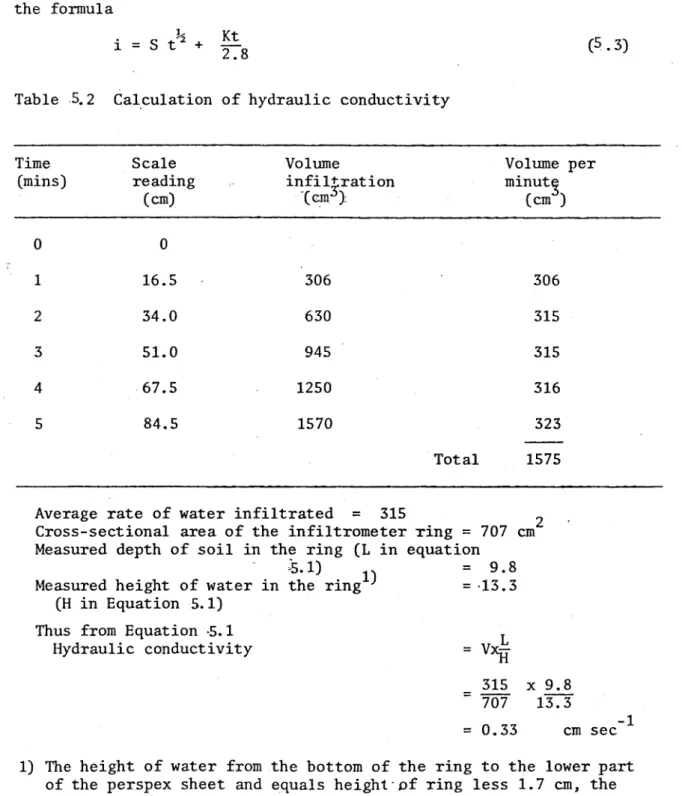

5.2 Calculation of hydraulic conductivity. 51
5.3 Plot notations and characteristics - Pierce's Creek. 54 5.4 Classification of sample plots - Pierce's Creek. 55

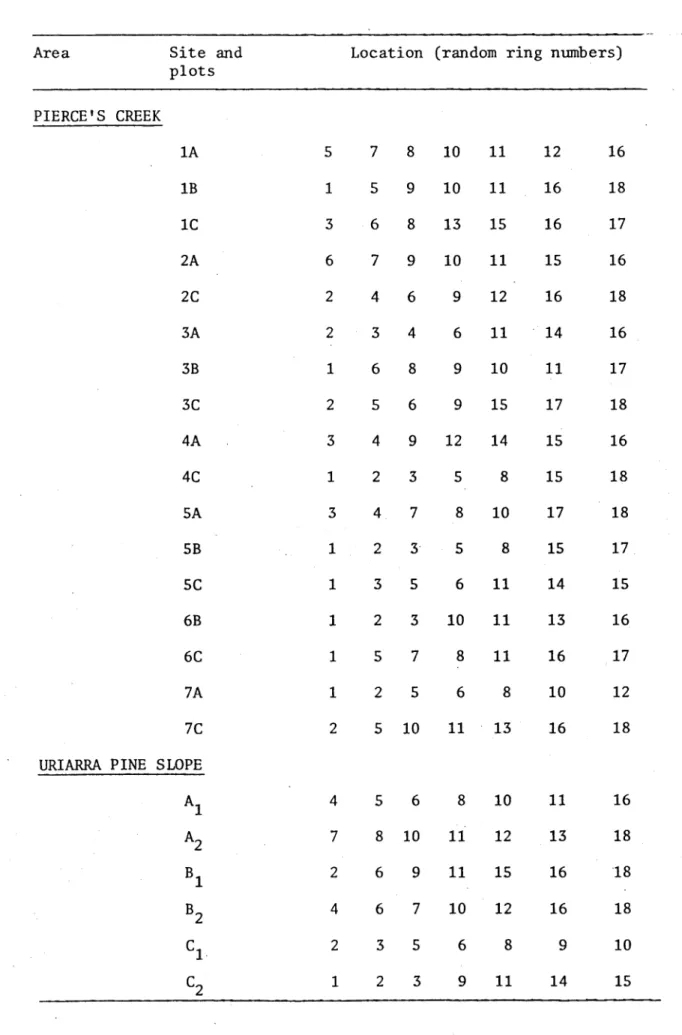

5.5 Plot notations in Uriarra area. 56
