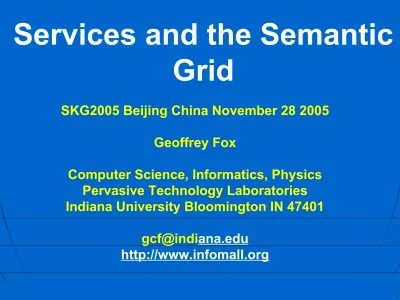

Services and the Semantic Grid

(1)

Services and the Semantic

Grid

SKG2005 Beijing China November 28 2005

Geoffrey Fox

Computer Science, Informatics, Physics Pervasive Technology Laboratories Indiana University Bloomington IN 47401

[email protected]

(2)

Data Deluged Science

n In the past, we worried about data in the form of parallel I/O or

MPI-IO, but we didn’t consider it as an enabler of new science and new ways of computing

n Data assimilation was not central to HPCC

n DoE ASCI set up because didn’t want test data!

n Now particle physics will get 100 petabytes from CERN

• Nuclear physics (Jefferson Lab) in same situation • Use around 30,000 CPU’s simultaneously 24X7

n Weather, climate, solid earth (EarthScope)

n Bioinformatics curated databases (Biocomplexity only 1000’s of data points at present)

n Virtual Observatory and SkyServer in Astronomy n Environmental Sensor nets

(3)

Information/Knowledge Grids

n

Distributed

(10’s to 1000’s) of

data sources

(instruments,

file systems, curated databases …)

n

Data Deluge

: 1 (now) to 100’s

petabyte

s/year (2012)

• Moore’s law for Sensors

n

Possible

filters

assigned dynamically (

on-demand

)

•

Run image processing algorithm on telescope image

•

Run Gene sequencing algorithm on compiled data

n

Needs

decision support

front end with “what-if”

simulations

n

Metadata

(

provenance

)

critical to annotate data

n

Integrate

across experiment

as in multi-wavelength

astronomy

(4)

Semantically Rich Services with a Semantically

Rich Distributed Operating Environment

Database S S S S S S S S S S S S S S S S S S _S

S SS SS SS SS SS SS SS SS

F S F S F S F S F S F S F S F S F

S SF

F S F S F S F S F S F S F S F S F S F S F

S Por_tal

F S O S O S O S O S O S O S O S O S O S O S O S O S MD MD MD MD MD MD MD MD MD

MetaData Filter Service

Sensor Service

Other

Service

(5)

Semantic Grid and Services

n Implications of SOA (Service Oriented Architectures) for SG (Semantic Grid)

• Build services to implement SG n Implications of SG for SOA

• Build metadata rich systems of services using SG

n Services receive data in SOAP messages, manipulate it and produce transformed data as further messages

n Meta-data is carried in SOAP messages

n Meta-data controls processing and transport of SOAP Messages n Knowledge is created from data by services

n The Grid enhances Web services with semantically rich system and application specific management

n One must exploit and work around

the

different

approaches to

meta-data and their manipulation in Web Services

(6)

Structure of SOAP Messages

n SOAP Messages have System information in the header including WS-Policy based meta-data defining processing options

• Processed by Handlers

n Application data and meta-data is the body (controversies here!) • Processed by the Service itself

n Some meta-data like WS-RF is logically “only in messages” n Other like that in WS-Context or the SRB are stored in logical

equivalent of XML databases

n We only need to preserve semantic structure (XML/SOAP

Infoset) so transport in fast XML and store in efficient relational databases

H1 H2 H3 H4 Body F₁ F₂ F₃ F₄ Servic_e Container Handlers

Container Workflow

(7)

What Type of Services are there?

n There are a horde of support services supplying security, collaboration, database access, user interfaces

n The support services are either associated with system or

application

• We will study the WS-* and GS-* which implicitly or explicitly define many support services

n There are generalized filter services which are applications that accept messages and produce new messages with some data

derived from that in input

• Simulations (including PDE’s and reactive systems) • Data-mining

• Transformations

• Agents

• Reasoning are all termed filters here

n There are services like “author ontology”, “parse RDF” or “attach provenance” that directly support Semantic Grid

n But all services and their interactions are bathed in sea of

meta-data and so implicitly need and support the Semantic Grid

(8)

It’s a Composite Hierarchical World

n Filters can be a workflow which means they are “just collections

of other simpler services”

• One needs meta-data to control the workflow

n Services are programs that accept messages and produce

messages

n Grids are a distributed collection of services supporting managed shared resources

• Management requires meta-data

n Grids are distributed systems that accept distributed messages

and produce distributed result messages

• Can always talk about Grids and view a service or a

workflow as a special case of a Grid

n It just requires meta-data to send a message to a Grid and it

routed to “correct computer” holding “requested service” • Meta-data allows mapping of virtual to real addresses

(9)

Semantically Rich Services with a Semantically

Rich Distributed Operating Environment

S SF

S Por_tal

MetaData Filter Service Sensor Service Other Service SOAP Message Streams SOAP Message Streams

Raw Data Raw Data Raw Data Raw Data Data Data _Data Data Information Information Knowledge Knowledge Wisdom Decisions Information Anothe Servic e Anothe Servic e Anothe

Grid Grids of Grids Architecture AnotheGrid

is same as outward facing applicatio

(10)

The Grid and Web Service Institutional Hierarchy

1: Container an

Run Time (Hosting) Environment 2: System Services and Features

Handlers like WS-RM, Security, Programming Models like BPE or Registries like UDDI

3: Generally Useful Services and Features Such as “Access a Database” or “Submit a Job” or “Semantic

Grid” or “Support a Portal” or “Collaborative Visualization” 4: Application or Community of Interes

Specific Services

such as “Run BLAST” or “Look at Houses for sale”

OGS

and othe GGF/W3C/ ………

WS-* fro OASIS/W3C Industry

Apache Axi .NET etc.

(11)

**The WS-* Infrastructure**

n

Core Grid Services build on and/or extend the 60 or so

**WS-* Infrastructure specifications which define**

• 1. Container Model, XML, WSDL …

• 2. Service Internet ( (Reliable) Messaging, Addressing) including extensions for high performance transport and representation. This is natural basis for streaming

applications • 3. Notification

• 4. Workflow and Transactions • 5. Security

• 6. Service Discovery

• 7. Metadata and State including lifetime • 8. Management (service interactions) • 9. Policy, Agreements

• 10. Portals and User Interfaces

These categories

are directly connected to metadata

(12)

A List of Web Services 6

• 6) Service Discovery

• UDDI

(Broadly Supported OASIS Standard) V3

August

2003

• WS-Discovery

Web services Dynamic Discovery

(Microsoft, BEA, Intel …)

February 2004

• WS-IL

Web Services Inspection Language, (IBM,

Microsoft)

November 2001

• Note

WS-Context

as a metadata catalog and

WS-Management Catalog

are examples of related services

• There are many

UDDI extensions

such as

Grimoires

from

UK OMII which often are essentially providing semantic

enrichment

Discovery is just accessing part of meta-data

_{defining a Grid}

(13)

A List of Web Services 7

• 7) Metadata and State

• RDF Resource Description Framework (W3C) Set of

recommendations expanded from original February 1999 standard

• DAML+OIL combining DAML (Darpa Agent Markup Language) and OIL (Ontology Inference Layer) (W3C) Note December 2001

• OWL Web Ontology Language (W3C) Recommendation February 2004

• WS-MetadataExchange Web Services Metadata Exchange (BEA, IBM, Microsoft, SAP, Sun …) September 2004

• ASAP Asynchronous Service Access Protocol (OASIS) with V1.0 working draft 2B December 11 2004

• WS-GAF Web Service Grid Application Framework (Arjuna, Newcastle University) August 2003

• WBEM Web-Based Enterprise Management including CIM (Common Information Model) from DMTF (Distributed

Management Task Force) 2004-2005

(14)

A List of Web Services 7

• 7) Metadata and State: Resource Framework

• WS-RF

Web Services Resource Framework (OASIS)

including

• WS-Resource Framework

Web Services Resource 1.2

(OASIS) Public Review Draft 01,

10 June 2005

• WS-ResourceProperties

Web Services Resource

Properties V1.2 Public Review Draft 01,

10 June 2005

• WS-ResourceLifetime

Web Services Resource Lifetime

V1.2 Public Review Draft 01,

13 June 2005

• WS-ServiceGroup

Web Services Service Group V1.2

Public Review Draft 01,

10 June 2005

• WS-BaseFaults

Web Services Base Faults V1.2 Public

Review Draft 01,

June 13, 2005

**These WS-* define syntax of Meta-data (RDF**

OWL CIM) and how to use it in system

(15)

Metadata and Service Context

n Consider a collection of services working together

• Workflow tells you how to specify service interaction but

more basically there is shared information or context specifying/controlling collection

n WS-RF and WS-GAF have different approaches to

contextualization – supplying a common “context” which at its

simplest is a token to represent state

n More generally core shared information includes dynamic

service metadata and the equivalent of configuration information.

n Two services linked by a stream are perhaps simplest

example of a collection of services needing context

n Note that there is a tension between storing metadata in

messages and services.

• This is shared versus distributed memory debate in

parallel computing

(16)

Stateful Interactions

n

There are (at least) four approaches to

specifying state

•

OGSI

use factories to generate separate services for

each session in standard distributed object fashion

•

Globus GT-4

and

WSRF

use metadata of a resource

to identify state associated with particular session

•

WS-GAF

uses

WS-Context

to provide abstract

context defining state. Has strength and weakness

that reveals less about nature of session

•

WS-I+

“Pure Web Service” leaves state specification

the application – e.g. put a context in the SOAP body

n

I think we should smile and write a

great metadata

(semantic) service

hiding all these different models for

state and metadata

(17)

Role of WS-Context

n There are many WS-* specifications addressing meta-data

and both many approaches and many trade-offs

n We hear about Distributed Hash Tables (Chord) to achieve

scalability in large scale networks

n Managed dynamic workflows as in sensor integration and

collaboration require

• Fault-tolerance and ability to support dynamic changes

with few millisecond delay

• But only a modest number of involved services (up to

1000’s in a session)

• Need Session NOT Service/Resource meta-data so don’t

use WS-RF

n We are building a WS-Context compliant metadata catalog

supporting distributed or central paradigms – see later talk by Mehmet Aktas

n Use for OGC Web catalog service with UDDI for slowly

varying meta-data

(18)

A List of Web Services 8

• 8) Management

• WS-DistributedManagement

Web Services

Distributed Management Framework with MUWS

and MOWS below (OASIS)

• WSDM-MUWS

Web Services Distributed

Management: Management Using Web Services

(OASIS) OASIS Standard

March 9 2005

• WSDM-MOWS

Web Services Distributed

Management: Management of Web Services

(OASIS) OASIS Standard

March 9 2005

(19)

A List of Web Services 8- Contd

• 8) Management: Microsoft Stack

• WS-Management

Web Services for Management

(Microsoft, Intel, Sun …)

August 2005

• WS-Management Catalog

The WS-Management

Catalog (Microsoft, Intel, Sun …)

August 2005

• WS-Transfer

Web Service Transfer (Microsoft,

BEA, Sonic Software etc.)

September 2004

• WS-Enumeration

Web Service Enumeration

(Microsoft, BEA, Sonic Software etc.)

September

2004

**These WS-* define exchange of data and meta-data**

between services

(20)

A List of Web Services 9

• 9) General Service Characteristics

• WS-PolicyFramework

Web Services Policy

Framework (BEA, IBM, Microsoft, SAP …)

September 2004

• WS-PolicyAttachment

Web Services Policy

Attachment (BEA, IBM, Microsoft, SAP …)

September 2004

• WS-PolicyAssertions

Web Services Policy Assertions

Language (BEA, IBM, Microsoft, SAP)

18 December

2002

(Superseded by WS-PolicyFramework)

• WS-Agreement

Web Services Agreement

Specification (GGF under development)

9 August 2004

**These WS-* define syntax of Meta-data defining**

structure of distributed System

Grids are managed (meta-data enhanced)

(21)

Activities in Global Grid Forum Working Groups

Authorization, P2P and Firewall Issues, Trusted Computing

7: Security

Resource/Service configuration, deployment and lifetime, Usage records and access, Grid economy model

6: Management

Network measurements, Role of IPv6 and high performance networking, Data transport

5: Infrastructure

Database and File Grid access, Grid FTP, Storage Management, Data replication, Binary data specification and interface, High-level publish/subscribe, Transaction management

4: Data

Job Submission, Basic Execution Services, Service Level Agreements for Resource use and reservation, Distributed Scheduling

3: Compute

Software Interfaces to Grid, Grid Remote Procedure Call, Checkpointing and Recovery, Interoperability to Job Submittal services, Information Retrieval,

2: Applications

High Level Resource/Service Naming (level 2 of fig. 1), Integrated Grid Architecture

1: Architecture

Standards Activities GGF Area

(22)

Two-level Programming I

• The Web Service (Grid) paradigm implicitly assumes a

two-level Programming Model

• We make a

Service

(same as a “distributed object” or

“computer program” running on a remote computer) using

conventional technologies

– C++ Java or Fortran Monte Carlo module – Data streaming from a sensor or Satellite – Specialized (JDBC) database access

• Such

services

accept and produce data from users files and

database

• The Grid is built by coordinating such services assuming

we have solved problem of programming the service

Servic

e Data

(23)

Two-level Programming II

n

The Grid is discussing the composition of distributed

services

with the runtime

interfaces to Grid in

analogy to UNIX

pipes/data streams

n

Familiar from use of

UNIX Shell, PERL or Python

scripts

to produce real applications from core programs

n

Such interpretative environments are the single

processor analog of

Grid Programming

n

Some projects like GrADS from Rice University are

looking at

integration

between

service and composition

levels

but dominant effort looks at each level

separately

Service

1 Service2

Service

3 Service4

(24)

WS 2 WS N-1

Web Service 1 Web Service N

3 Layer Programming Model

Level 2 Programming choosing services by virtualization

Application Semantics (Metadata, Ontology) Semantic Grid Level 1 Programming inside services

Application expressed in in Java Fortran C++ MPI etc.

Level 3 Grid Programming composing multiple services

Service Workflow, Transactions, Mediation WS-* Infrastructure

Substantial work in UK e-Science program, international semantic web community

(25)

Information Architecture and Semantic Grid

n

WS-*

provides key low level capability but deliberately

does not define an information (data) architecture

and

leaves this to domain specific specification activities such

as

CellML/SBML for biology

,

WFS/GML

for

GIS

and

XGSP for Collaboration

n

WS-*

does define a primitive

service discovery

(UDDI)

and

meta-data

capabilities including

Context,

WS-RF, RDF and WS-MetadataExchange

already discussed.

n

GGF

defines Grid data capabilities including

info-D

(publish/subscribe) and

OGSA-DAI

for data repositories

n

Semantic Grid

uses

WS-* and GS-*

extending meta-data

and service discovery with data-mining and reasoning

(26)

3 XML Databases of Importance

n WS-Context controlling a workflow

n (Extended) UDDI supporting semantic service discovery n WFS or ASFS (see later) provides application specific

data/meta-data repository)

n These have different performance, scalability and data unit size requirement

n In our implementation, each is currently “just an

Oracle/MySQL” database front ended by filters that convert between XML (GML for WFS) and object-relational Schema • Example of Semantics (XML) versus representation (SQL)

difference

n OGSA-DAI offers Grid interface to databases – we could use but don’t as we only need to expose WFS and not MySQL to Grid

(27)

Information Management/Processing

n SOAP messages transport information expressed in a

semantically rich fashion between sources and services that enhance and transform information so that complete system provides

• Semantic Web technologies like RDF and OWL help us have rich expressivity

n Data  Information  Knowledge transformation n We build application specific information

management/transformation systems ASIS for each application domain

n One special domain is the system itself where the metadata

associated with services, sessions, Grids, messages, streams and workflow is itself managed and supported by an SIIS

(28)

Generalizing a GIS

n

Geographical Information Systems

GIS have been

hugely successful in all fields that study the earth and

related worlds

• They define Geography Syntax (GML) and ways to store, access, query, manipulate and display geographical features • In SOA, GIS corresponds to a domain specific XML language

and a suite of services for different functions above

n

However such a universal information model has

not

been developed in other areas

even though there are

many fields in which it appears possible

• BIS Biological Information System • MIS Military Information System

• IRIS Information Retrieval Information System • PAIS Physics Analysis Information System

• SIIS Service Infrastructure Information System

(29)

ASIS Application Specific Information System I

n a) Discovery capabilities that are best done using WS-* standards

n b) Domain specific metadata and data including

search/store/access interface. (cf WFS). Lets call generalization

ASFS (Application Specific Feature Service)

• Language to express domain specific features (cf GML). Lets call

this ASL (Application Specific language)

• Tools to manipulate information expressed in language and key data of application (cf coordinate transformations). Lets call this

ASTT (Application specific Tools and Transformations)

• ASL must support Data sources such as sensors (cf OGC metadata

and data sensor standards) and repositories. Sensors need

(common across applications) support of streams of data

• Queries need to support archived (find all relevant data in past) and streaming (find all data in future with given properties)

• Note all AS Services behave like Sensors and all sensors are

wrapped as services

• Any domain will have “raw data” (binary) and that which has been

filtered to ASL. Lets call ASBD (Application Specific Binary Data)

(30)

ASIS Application Specific Information System II

n Lets call this ASVS (Application Specific Visualization Services)

generalizing WMS for GIS

n The ASVS should both visualize information and provide a way of

navigating (cf GetFeatureInfo) database (the ASFS)

n The ASVS can itself be federated and presents an ASFS output

interface

n d) There should be application service interface for ASIS from which all

ASIS service inherit

n e) There will be other user services interfacing to ASIS

n All user and system services will input and output data in ASL using

filters to cope with ASBD

AS Tool (generic

) A

“Sensor ” A Repository

AS Service (user defined)

ASVS Displa

y AS Tool

(generic )

Messages using ASL

Filter, Transformation, Reasoning, Data-mining, Analysis

(31)

Everything Is a Service

or a message/ Information

Nugget Militar Informatio Management

System

Directly GS-* WS-*

ASVS

Filters/ASTT

(32)

MI

or Military Information

Object

Unit of Managed Information expressed in

ASL

OGSA-DAI and Sensor Standards

Info-WS-Notification WS-Eventing ASF

S

(33)

Information Resource Receive Request/Selec t Get Statu s ASL Data Get I S = Information Servic (Sensor Service o Repository) BF S = Basic Filte Service

(34)

F

S =

BF S

BF

S BFS

BF

S BFS

BF S

A Filter Service is a general workflow (the microscopic workflow) of Basic Filter Services

A transport link supports asynchronous publish/subscribe semantics and Web Service Reliable messaging fault tolerance

Transport links can be multicast to support collaboration (typically for last link before or after Presentation Service) or replication for fault tolerance.

The output of a Filter Service is

indistinguishable from that of an IS

(35)

F S

I S

F S I

S

F S I

S

F S IS

Gridlet =

Top IS could be produced by a Filter Service

The basic unit (Gridlet) transforms and aggregates application specific information

Gridlets are composed using Grid of Grids concept

(36)

IS Gridlet IS

Gridlet

IS Gridlet IS

Gridlet IS

Gridlet GridletIS GridletIS

IS Gridlet

Search Planning Construction

Management

Portal

Presentation Federation

Macrosopic Workflow General System_Services ---Messaging/Data transport

Notification Security

Fault Tolerance Metadata

Directory

Collaboration Replica

Management Session

Management

ASVS

(37)

Semantically Rich Services with a Semantically

Rich Distributed Operating Environment

S SF

S Por_tal

MetaData Filter Service Sensor Service Other Service SOAP Message Streams SOAP Message Streams

Raw Data Raw Data Raw Data Raw Data Data Data _Data Data Information Information Knowledge Knowledge Wisdom Decisions Information Anothe Servic e Anothe Servic e Anothe
