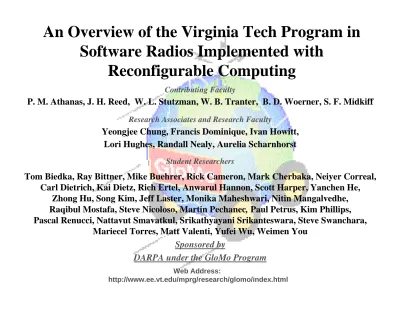

An Overview of the Virginia Tech Program in
Software Radios Implemented with
Reconfigurable Computing
Contributing Faculty
P. M. Athanas, J. H. Reed, W. L. Stutzman, W. B. Tranter, B. D. Woerner, S. F. Midkiff
Research Associates and Research Faculty
Yeongjee Chung, Francis Dominique, Ivan Howitt, Lori Hughes, Randall Nealy, Aurelia Scharnhorst
Student Researchers
Tom Biedka, Ray Bittner, Mike Buehrer, Rick Cameron, Mark Cherbaka, Neiyer Correal, Carl Dietrich, Kai Dietz, Rich Ertel, Anwarul Hannon, Scott Harper, Yanchen He,
Zhong Hu, Song Kim, Jeff Laster, Monika Maheshwari, Nitin Mangalvedhe, Raqibul Mostafa, Steve Nicoloso, Martin Pechanec, Paul Petrus, Kim Phillips, Pascal Renucci, Nattavut Smavatkul, Srikathyayani Srikanteswara, Steve Swanchara,
Mariecel Torres, Matt Valenti, Yufei Wu, Weimen You
Sponsored by
DARPA under the GloMo Program
2
Objective of the Project
• Design and build a high speed radio testbed
using
configurable computing modules andadvanced receiver architectures
→Improved capacity
→Flexibility of platform
→Increases in processing power of platform
• Demonstrate smart antennas at the handset • Create a hardware/software testbed to prove
3
Overview of the Presentation
• Software Radio Using Reconfigurable Computing
→Introduction to Reconfigurable Computing
→Example Application: Multiuser Detection
→Architecture for a General Purpose Configurable
Radio
→Evolution of the Configurable Computing Platform
and Configurable Radio
• Smart Antennas at the Handset
→Project goals
→Measurements
4
Introduction to
Reconfigurable Computing
Introduction to
Reconfigurable Computing
• Configurable Computing (CC) Attempts To Increase Performance And Silicon Utilization Efficiency Through Logic Recycling using FPGA and FPGA-like Devices
• Hardware Algorithms Can Be “Paged” Into/Out Of CC Modules Much As Operating Systems Perform Software Paging
• Factors Impacting the Performance
→Logic Speed
→Speed Of Reconfiguration
FPGAs vs. DSPs
• FPGAs can support multiple memory ports • FPGAs outperform DSPs:
→Parallelism in the algorithm
→Simple operations in a fixed sequence
→FPGAs provide greater computational density using less power
→Large data sets, low resolution (8 - 12 bits)
→Simple control
• DSPs outperform FPGAs
→MAC operations
6
Configuration information
→Routing information →Variable size
→Possibly removed as stream
routs
Application data stream
→ → Possibly chained → Variable size Program/Flow Header Program/Flow Header Stream Format Data
Wormhole RTR Stream Format
Multiuser Receiver Data Flow
FROM DDC ACTUAL RECV’D SIGNAL ESTIMATED RECV’D SIGNAL BUFFER RECV’D SIGNAL & INITIALIZE STREAMS MATCHED FILTER CORRELATOR MATCHED FILTER CORRELATOR REGENERATE & COMBINE GENERATE REVISED RECV’D SIGNAL & BUFFER MATCHED FILTER CORRELATOR DEMODULATE MATCHED FILTER CORRELATOR I Q I Q REVISED RECV’D SIGNAL OUTPUT STAGE 2 STAGE 1 RECV’D DATA ACQUISTION AND TRACKING REGENERATE & COMBINE8
Multiuser Receiver Hardware
Multiuser Receiver RF Front End Transmitter Host PC Reconfigurable Computing Platform Digital Downconverter
Reconfigurable Computing
Modules Under Development
• Turbo Coder/Decoder
• Equalizer/ Single User CDMA Receiver • Symbol/Carrier/Code Synchronizers
• Next Modules
→Generic sample rate converter
→Coder/Decoder library
10
Phase 1 - Proposed Reconfigurable Receiver Architecture
Phase 1 Implementation of the
Configurable Radio
To Be Determined Filtering/ Adaptive Equalization Complex FIR Filter Despread Binary Correlator Sampling Tracking Acquisition Noncoherent Demod FSK PSK FEC Decoder Block Convolutional Turbo De-interleave Antenna Diversity Combiner Digital Down-converter Digital Down-converter RF Front End RF Front End Receiver Control Host/ Network API Sigtek ST114Direction for replacement of DSP µP functions with reconfigurable computing
11 Phase 3 - Proposed Reconfigurable Receiver Architecture (PCI-based)
Graychip DDC Graychip DDC ANALOG SUPPLY PCI-BASED HOST INTERFACE Q FIFO I FIFO RF Input Circuitry Channel 2 Combiner FPGA RF Input Circuitry Channel 1 A D C DSP A D C DIGITAL SUPPLY SRAM SRAM OUTPUT MODULE FPGA PROCESSING MODULE #1 INPUT MODULE FPGA SRAM SRAM PROCESSING MODULE #2 PROCESSING MODULE #4 PROCESSING MODULE #3 PROCESSING MODULE #6 PROCESSING MODULE #5 SRAM SRAM D P R A M I/Q MOD RF OUTPUT FREQ SYNTH XMIT FPGA CODEC ANALOG INPUT ANALOG SUPPLY RAM D A C D A C R A M R A M S R A M DPLL FEC
Phase 3 Final Architecture
Features
● Wider bandwidth front end
● Stallion processor
● Run-time reconfiguration ● Library of communication
12
Hardware Based Simulator
• Fast simulation engine by taking advantage of reconfigurable processor
• Supports radio development effort
PC
(Preprocessor for system configuration and for setting system parameters) reset mod_sel θ Ac External input PN sequence generator (Data) Enable init_stat reg length reset σ2 seed Modulator Receiver (Demod and data decisions) Noise generator 2x1 MUX × × PC (Post-processor for data collection and analysis) I Q I Q
Adaptive Antenna and
Direction Finding Algorithms
and Hardware
14 Code Timing Spatial Filters Despreaders Applications Demonstrate interference rejection through spatial filtering Study algorithm performance
Perform AoA estimation for position location applications
Developing spatial channel models
Third Generation Array
Demodulator and Beamforming
Algorithm
Front End for Antenna 1
ADC / DDC (SigTek ST-114) BPF IF AMP Local Oscillator X IF LPF ~ f=1982 MHZ f=2050 MHZ
Front End for Antenna 8
ADC / DDC (SigTek ST-114) BPF IF AMP Local Oscillator X IF LPF ~ f=1982 MHZ f=2050 MHZ DSP TI C549/C541
MPRG Vector Measurement System
MPRG Vector Measurement System
● Fully functional 8 elements, 1.25 MHz
Bandwidth, 2.050 GHz center frequency
● Flexible for adapting various
antenna/polarization inputs, carrier frequencies, bandwidths, real-time algorithms, or data collection
scenarios
● Eight Harris 40214 Programmable
Direct Digital Downconverters, eight C54x DSPs, one Analog Devices 21010
● New features being added
→ CDMA capability
→ Improved system executive processing
16
Research Issues
• Adaptive array algorithm performance
in real situations
• Vector channel measurements
• Practical AOA algorithm and
hardware development
• Adaptive array algorithm convergence
issues
Measurement Result
Channel A signal strength Channel B signal strength
Signal strength using LSCMA
time
•Indoor environment •2.050 GHz carrier •stationary rx and tx •10 second collect
18
Circular Model (Macrocell)*
Circular Model (Macrocell)*
• Models macrocell environments
• Scatterers are uniformly distributed in a
circular region about the mobile
• Approximate radius, 30 m < R < 200 m
Circular
Scatterer
Region
R
Base Station
Joint TOA-
AOA
(Circular BS View)
Joint TOA-
AOA
(Circular BS View)
f D c D c c c D R D c D cD c c D R else b b b m b b b m τ θ τ θ τ τ τ θ π θ τ τ θ τ τ θ , ( , ) ( )( cos( )) ( cos( ) ) : cos( ) cos( ) : . = − + − − − + − ≤ 2 2 2 2 2 3 2 2 3 2 2 2 2 4 2 2 0 3.4 3.5 3.6 3.7 3.8 3.9 4 -5 0 5 -1 -0.5 0 0.5 1 1.5 2
Angle of Arrival (degrees)
Time of Arrival (usec)
P ro b ab il it y D en si ty [ lo g 1 0 (f )] D = 1km Rm= 100m
20
