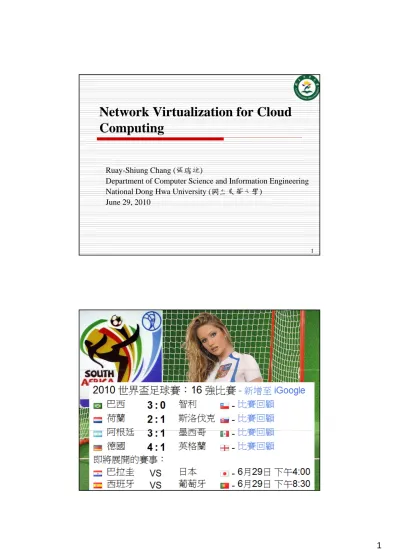

Network Virtualization for Cloud Computing

(1)

Network Virtualization for Cloud

Computing

p

g

Ruay-Shiung Chang (張瑞雄)

Department of Computer Science and Information Engineering National Dong Hwa University (國立東華大學)

1

g y ( )

June 29, 2010

 Virtualization is hot!

 Cloud computing is hotter!  Cloud computing is hotter!  But right now, the hottest is…

(2)

Outlines

 Introduction

 What is network virtualization?  What is network virtualization?

 Current systems in network virtualization  Research directions in network virtualization  Conclusions

3

(3)

Introduction

 Two key concepts in the title

5

2010/6/29 at NTHU

Virtualization(1/2)

 Virtualization: Make abstractions of the resources esou ces

 Hide the physical hardware from the users  Combine/Divide resources

 M-to-N mapping (M “real” resources, N “virtual” resources)

 F l titi i th l i l di i i f

 For example, a partition is the logical division of a hard disk to create multiple separate hard drives

(4)

Virtualization(2/2)

 “Time Sharing in Large Fast Computers”, IFIP Congress 1959 (by Christopher Strachey, 1916– Co g ess 959 (by C s op e S ac ey, 9 6 1975, a British computer scientist)

 Virtual memory (Tom Kilburn, 1921-2001, a British Engineer, developed Altas (paging) in1962)

 Vi t l hi t ( 1980)

7

2010/6/29 at NTHU

 Virtual machine concept (~1980)  Virtual circuits in networks

 X25, ATM, Frame Relay, MPLS, GMPLS….

 Key technology to build a cloud computing environment

Process of Virtualization

Traditional Computer Architecture Virtualized Computer Architecture

(5)

Hypervisor

 Virtual machine manager (monitor)

 Allow multiple operating systems to share a  Allow multiple operating systems to share a

single hardware host

 Each guest operating system appears to have the host's processor, memory, and other resources



9

2010/6/29 at NTHU

 Make sure that the guest operating systems (called virtual machines) cannot disrupt each other

Hypervisor

 Two types of hypervisor

 Type 1 (or yp ( native, ,bare metal) hypervisors run directly ) yp y on the host's hardware to control the hardware and to monitor guest operating systems. A guest operating system thus runs on another level above the hypervisor. This model represents the classic implementation of virtual machine architectures; the original hypervisor was CP/CMS, developed at IBM in the 1960s

 Type 2 (or hosted) hypervisors run within a

conventional operating system environment. With the hypervisor layer as a distinct second software level, guest operating systems run at the third level above the hardware.

(6)

Types of Virtualization(1/2)

 Server virtualization

 One physical machine is divided many virtual

 One physical machine is divided many virtual servers

 VMware ESX, Citrix XenSever, MicroSoft Hyper-V

 Storage virtualization

 The pooling of physical storage from multiple

11

2010/6/29 at NTHU

 The pooling of physical storage from multiple network storage devices

 Storage area networks (SANs)

Types of Virtualization(2/2)

 Network virtualization

 Presents a customized network to each user by

 Presents a customized network to each user by splitting up the available resources in a network

 Virtual Local Area Network (VLAN)

(7)

What is cloud computing (1/2)

 A specialized distributed computing paradigm  A pool of computing power storage platforms  A pool of computing power, storage, platforms,

and services to be used remotely

 Abstracted  Virtualized  Dynamically-scalable  M d 13 2010/6/29 at NTHU  Managed

What is cloud computing(2/2)

 Users use web service interfaces to demand resources esou ces

 Pay only for the resources that one actually consumes (May even be free for personal use!)

(8)

Cost Shift

15

2010/6/29 at NTHU

Services of Cloud Computing (1/4)

 Software as a Service (SaaS)

 Who is offering on demand software  Who is offering on demand software

 Salesforce.com

 Google

 NetSuite

 Taleo

 Concur TechnologiesConcur Technologies

(9)

Services of Cloud Computing (2/4)

 Platform as a Service (PaaS)

 Active platform  Active platform

 Google - Apps Engine

 Amazon.com - EC2

 Microsoft - Windows Azure

 Terremark Worldwide - The Enterprise Cloud

 Salesforce.com - Force.com

17

2010/6/29 at NTHU

Salesforce.com Force.com

 Rackspace Cloud - cloudservers, cloudsites, cloudfiles

 Surge

Services of Cloud Computing (3/4)

 Infrastructure as a Service (IaaS)

 Infrastructure Vendors  Infrastructure Vendors

 Google - Managed hosting, development environment

 International Business Machines - Managed hosting

 SAVVIS - Managed hosting

 Terremark Worldwide - Managed hosting

 Amazon.com - Cloud storageAmazon.com Cloud storage

 Rackspace Hosting - Managed hosting & cloud computing

(10)

Services of Cloud Computing (4/4)

 Cloud Computing Consulting

 ServiceMesh – Agile IT operating model

 ServiceMesh Agile IT operating model

 Cloud computing consultants – I.T. simplified

 Booz Allen Hamilton

 Thomond Technology  ENKI  CloudTP 19 2010/6/29 at NTHU  CloudTP  Appirio

(11)

Why Network Virtualization?

 Ideally, all resources (compute, storage, and networking) would be pooled, with services g) p , dynamically drawing from the pools to meet demand.

 Virtualization techniques have succeeded in

enabling processes to be moved between machines.

 Constraints in the data center network continue to

21

2010/6/29 at NTHU

create barriers that prevent agility, for example, VLANs, ACLs, broadcast domains, Load

Balancers, Firewall/IPS Security settings and service-specific network engineering.

Forces Driving Network Virtualization

 Computing has always driven network design

 Mainframes drove SNA and analog multi-point

 Mainframes drove SNA and analog multi point wide area networks (WANs) during the ’70s.

 Mini-computers drove peer-to-peer networking protocols like DecNet, OSI and TCP/IP in the ’80s.

 Client-Server computing drove LANs and TCP into the mainstream in the early ’90s.

 The Web drove the Internet in the 2000s

 And now server virtualization and cloud computing is once again changing fundamental networking requirements to make them more flexible.

(12)

Status Quo (1/4)

 Early virtualization is all about the servers.

 Innovation driven virtualization is holistic:

 Servers

 Storages

 Networks

 Network infrastructure must enable:

 Agility/elasticity 23 2010/6/29 at NTHU Agility/elasticity  Portability  Replication

 Inflexible and costly network infrastructure is the greatest barrier

Status Quo (2/4)

 In virtualized and cloud environments, it’s not an issue of where the network is, it’s where it

a ssue o w e e e e wo s, s w e e

isn’t.

 The network must be workload aware (vs. dumb plumbing)

 Workloads/VM’s must express their policy

i t d “th t k” t id

requirements and “the network” must provide transit and enforcement regardless of physical or logical location.

(13)

Status Quo (3/4)

 The growing automation gap between network and application infrastructure

a d app ca o as uc u e

25

2010/6/29 at NTHU

Status Quo (4/4)

 The situation today: islands of management

Fully virtualized with integrated management management

(14)

Is Network Ready for Cloud Computing?

27

2010/6/29 at NTHU

Role of NV for Cloud Computing

 If you take a computing device or server and run a virtualized server on it, u a v ua ed se ve o , without a properly w ou a p ope y virtualized network, the network just sees that it is connected to a physical computer or a server. It doesn't have the ability to see the virtual machines that are on that computer or server.  Today with various applications we need a  Today with various applications we need a

network that is intelligent and can also

virtualize itself so that we can apply the right resources to the right types of applications.

(15)

Role of NV for Cloud Computing

 Challenges in managing virtual networks

 When you virtualize, you don't have full visibility.

 When you virtualize, you don t have full visibility. If you're a company and you've bought storage, they give you a box and it's got your name on it. You go to that data center and it's yours.

 When you virtualize, you're essentially being given a service contract that says you have the same

f if h d l

29

2010/6/29 at NTHU

amount of storage as if you had your own personal box, but now it could potentially be sitting on many different machines.

Role of NV for Cloud Computing

 Challenges in managing virtual networks

 With that it becomes much more complex to have

 With that it becomes much more complex to have visibility. The tools should be developed to enable better management.

 As you evolve and get into things like virtual

machine mobility, it becomes even more about how you keep track of where things are.

(16)

Role of NV for Cloud Computing

 For good performance and efficiency, it is critical that

cloud services are delivered from locations that are the bestfor the current (dynamically changing) set of users.

 To achieve this, we expect that services will be hosted on virtual machines in interconnected data centers and that these virtual machines will migrate dynamically to locations best suited for the current user population

31

2010/6/29 at NTHU

locations best suited for the current user population.

 A basic network infrastructure need then is the ability to migrate virtual machines across multiple networks without losing service continuity.

Role of NV for Cloud Computing

Cl d S i P id

Cloud Service Provider Network Virtualization

1.Connectivity Services

2.Network Infrastructure Services 2.Network Infrastructure Services

(17)

Connectivity Services

 Provide connectivity services to virtual hosts in Cloud computing

C oud co pu g

 Burst up and turn down bandwidth on demand

 Provide low latency throughput among storage networks, the data center and the LAN

 Allow for non-blocked connections between servers to enable automated movement of virtual machines (VMs)

33

2010/6/29 at NTHU

 Function within a management plane that stretches across enterprise and service provider networks

 Provide visibility despite this constantly changing environment

Network Infrastructure Services

 Provide network infrastructures to users

 Customized topology

 Network components

 Router ---routing algorithm, routing algorithm

(18)

VMware Example

35

2010/6/29 at NTHU

(19)

HP Network Automation

37

2010/6/29 at NTHU

(20)

Blade Network Technologies

39

2010/6/29 at NTHU

(21)

However…

 But the problem gets bigger and more complex when distance and cloud provider entities w e d s a ce a d c oud p ov de e es become engaged.

 None of the solutions above address moving a VM from one physical server to another over large distance, be it around town, across state lines across the country or the globe

41

2010/6/29 at NTHU

lines, across the country or the globe.

 Also the problem of moving from one cloud to a different cloud!

What is needed?

 So how can data center networks become more flexible? e b e?

 A key element of the solution is the ability to dynamically grow and shrink resources to meet demand and to draw those resources from the most optimal location.

 T d th t k t d b i t ilit

 Today, the network stands as a barrier to agility and increases the fragmentation of resources which leads to low server utilization and prevents portable or mobile workloads.

(22)

43

VIOLIN

 Virtual Internetworking on OverLay Infrastructure - Purdue Universityas uc u e u due U ve s y

 VIOLIN: A VN (Virtual Network) for VMs

 Independent IP address space

 Invisible from Internet and vice versa

 Un-tamperable topology and traffic control

 V l dd d t k i ( IP lti t)

 Value-added network services (e.g., IP multicast)

(23)

Architecture of VIOLIN

Two mutually Isolated VIOLINs VM N M I N M N M I N M I N M I N M I N M I NMI-based Grid infrastructure

NMI:NSF Middleware Initiative

45 2010/6/29 at NTHU Internet I Physical infrastructure

PlanetLab

Today’s Network Applications Networks

Ask networks for a “bit pipe” from point A to point B; application logic runs at the edges

(24)

PlanetLab

Future’s Network

Applications Networks

Ask networks for a “logical subnet”; application logic runs on them

47

2010/6/29 at NTHU

PlanetLab

 PlanetLab: an open, global network test-bed for pioneering novel planetary-scale services

p o ee g ove p a e a y sca e se v ces  A model for introducing innovations into the

Internet through the use of overlay networks  A common software architecture

 Distributed virtualization

 Sli  k f i l hi

 Slice a network of virtual machines

 Isolation

 isolate services from each other  protect the Internet from PlanetLab

(25)

Slices

49

2010/6/29 at NTHU

(26)

Slices

51

2010/6/29 at NTHU

(27)

VINI

53

2010/6/29 at NTHU

(28)

CoreLab

55

2010/6/29 at NTHU

(29)

Comparisons

57

2010/6/29 at NTHU

(30)

Global Environment for Network Innovations

 GENI, a virtual laboratory for exploring future Internetse e s

 Experiments in end-to-end virtualized slices

59

2010/6/29 at NTHU

(31)

FEDERICA

61

2010/6/29 at NTHU

http://www.fp7-federica.eu/

(32)

FEDERICA

63

2010/6/29 at NTHU

Cabo

 Cabo: Concurrent Architectures are Better than

(33)

65

(34)

Virtual Network Components

 Virtual Server  Virtual link  Virtual link  Virtual switch/bridge  Virtual router  Resource monitor

 Virtual network controller

67 2010/6/29 at NTHU V ua e wo co o e  User interface

Server Virtualization

 Full virtualization  KVM  KVM  VMware

 Paravirtualization (guest host OS may need to be modified)  XEN  D li  Denali  Performance issues  Hardware utilization

(35)

Link Virtualization

 Time-division multiplexing (TDM)  Multi-Protocol Label Switching (MPLS)  Multi-Protocol Label Switching (MPLS)  Tunneling

 Generic Routing Encapsulation (GRE)  Performance issues  Simple 69 2010/6/29 at NTHU p  Fast  Flexible  Isolated

Switch/Bridge Virtualization

 OpenFlow switch

 Ethernet switch with flow-table

 Ethernet switch with flow table

 Run experimental protocols in real networks

 Decrease the work load of the router

(36)

Router Virtualization

 Logical routers (Cisco/Juniper)

 Run several logical routers in parallel

 Application Specific Routing

 Advantages  Reconfigurability  Mobility  N t k C t i ti 71 2010/6/29 at NTHU  Network Customization

Routing Issues

 Addressing  Non IP routing  Non IP routing

 Virtualized object addressing

 Routing policy

 Multiple routing paths

 Energy aware routing

 F lt t l

 Fault tolerance

 Multicast

 Routing protocol

(37)

Virtual Network Controller

 Virtual resource management  Virtual resource allocation  Virtual resource allocation  Virtual network provision  Issues

 Security (Authentication, Authorization, Accounting)

 QoS

73

2010/6/29 at NTHU

 Non-blocked connections (Fault tolerance)

 Visibility

 Resource utility rate (Load balance)

Virtual Network Provision Issues

 Isolated

 Resource utility rate (load balance)  Resource utility rate (load balance)

 Non-block

connections (Fault tolerance)



Extendibility

(38)

75

Conclusions

 Virtualization is a key-technology to build cloud computing

c oud co pu g

 Network Virtualization can support “on demand, customizable networks” for cloud computing

 Design Issues

 C l i Vi l M hi Vi l N k

 Complexity:Virtual Machines xVirtual Networks

 Performance, security, privacy, policies, stability, scalability, mobility, interface, heterogeneity, resource discovery, OAM

(39)

Conclusions

 Networks are an essential part of business,

education, government, and home communications. , g , Many residential, business, and mobile IP

networking trends are being driven largely by a combination of video, social networkingand

advanced collaboration applications, termed “visual networking.”

77

2010/6/29 at NTHU

 The Cisco Visual Networking Index (VNI) is the

company's ongoing effort to forecast and analyze the growth and use of IP networks worldwide.

(40)

Conclusions

 By 2014, annual global IP traffic will reach almost three-fourths of a zettabyte (767

a os ee ou s o a e aby e (767

exabytes). A zettabyte is a trillion gigabytes.  By 2014, the various forms of video (TV, VoD,

Internet Video, and P2P) will exceed 91 percent of global consumer traffic.

79

2010/6/29 at NTHU

Conclusions

 By 2014, global online video will approach 57 percent of consumer Internet traffic (up from 40

pe ce o co su e e e a c (up o 0

percent in 2010).

 Globally, mobile data traffic will double every yearthrough 2014, increasing 39 times between 2009 and 2014.

(41)

Conclusions

 What can we say about the Internet?

81
