Preserving Healthcare Data In The Cloud Using C-Lion And Whale Optimization Algorithm

Preserving Healthcare Data In The Cloud Using

C-Lion And Whale Optimization Algorithm

I. Sudha, Dr. R. Nedunchelian

Abstract:—Cloud computing grows into a recent and innovation and technology that is inevitably used for secure communication among users. Although Cloud systems handle varied data sets, privacy and security may be challenging issue in those systems. Hence, Major issue in the cloud systems is handling of large datasets. Consequently, this paper suggests a method, particularly C-lion and whale optimization algorithm. Here, the Data Protection (DP) coefficient is generated to preserve the source data. The DP coefficient vector is chosen based on the recommended C-Lion (Crow search established Lion) and whale optimization algorithm, which is the combination of c-lion algorithm and whale optimization algorithm. The performance is evaluated through fitness based on privacy and utility for the feasible selection of DP coefficient vector. The experimental analysis shows the proposed method gives better performance with the maximum accuracy and fitness parameters.

Index Terms: Cloud Computing, Privacy, Utility, CLWO algorithm.

——————————  ——————————

1 I

Cloud computing is one of things to come age figuring system

which uses a system of remote servers facilitated on the Internet to store, oversee, and process information, instead of a neighborhood server or a PC. Because of the enormous innovative work here it is being utilized broadly in Information Technology enterprises that offer different administrations, in view of client prerequisites [1]. So that the client can utilize these administrations as and when they need it. The data put away in the cloud is brought together to the distributed storage, which is a model of putting away information online through a system. In the scattered amassing, the cutoff of the information is in virtualized pools, which is given by the Third-Party Auditor [2].The medicinal delegates and numerous product sellers are prepared to move their Electronic Medical Record (EMR) frameworks in mists instead of shaping and overseeing committed server farms. The cloud computing not just centers around amplifying the effectiveness of overseeing medical information and sharing the procedure, yet additionally allows to gain social insurance benefits all inclusive as patient's data with respect to human services must be promptly open at any place and whenever. The Electronic Health Record (EHR) applications and cloud administrations are progressively better for the two specialists and patients. Be that as it may, receiving distributed computing causes various difficulties, such as overseeing character, incorporating approaches, overseeing consistence, get to control, etc., against security [3], [4], [5], [6], [7].TO ACCOMPLISH THE RECORDS ACCIDENTALLY FROM THEIR PROPRIETORS

SAFEGUARDING THEIR CHARACTER, A FEW

CRYPTOGRAPHIC STRATEGIES

[9]

statistical strategies [10] and anonymous correspondences [11], [12] were created. Developmental calculations [13], [14], [15], [16] assume a significant job in information security,

which offer stochastic procedures enlivened by normal organic advancement and attempt to find surmised or exact answers for pursuit issues or streamlining. The data publishers can be built, untrusted and trusted models [8]. The data publishers in the untrusted model are not trusted, and they may find delicate nuances from the record owners. The essential favorable position of the formative estimations is that they can be modified to various fitness function [17]. The formative estimation doesn't require prior information to explore the chase space of progress cross sections. In like manner, it gives basic moves up to guaranteeing the data while shielding the data utility. The point of this work is to develop a strategy for security assurance in the cloud computing condition using the whale optimization and C-Lion algorithm. For the change of the cloud information into the security ensured information utilizing a framework called as Data Matrix, which is gotten by computing the result of the DP (Data Protection) coefficient vector. The DP coefficient is a vector which is working to deal with the delicate data in the information and enabling utility for the security. To create the DP coefficients, C-Lion calculation is proposed by fusing Lion Algorithm (LA) into another meta-heuristic enhancer, Crow Search Algorithm (CSA). In the C-Lion calculation, the DP coefficient vector is picked in a perfect world utilizing a target capacity structured depends on two parameters, security and utility. In this manner, with the as of late made DP coefficient, the information whose delicate data is covered up can be acquired.

The nitty gritty depiction of the usage of this proposed model of cloud information security, its calculation with square outline, the relative investigation performed against other existing algorithm are talked about in the accompanying segments.

2

L

R

This segment introduces the writing, study, completed for verifying the transmission by improving the cloud framework. In addition, the difficulties in the cloud framework are clarified in this segment. M. Masud et al. [18] planned a convention, in particular on-the-fly, verified information trade convention for a cloud-based information sharing stage that uses matching based cryptography, Public Key Infrastructure. Thus, it was not embraced in the genuine world, and cloud human services information sharing framework. L. Zhang et al. [19] built up a method, called Hierarchical Anonymous Attribute-Based Encryption. HAABE forces Personal Health Record (PHR) ————————————————

 I. Sudha, Research Scholar, Saveetha School of Engineering, Saveetha Institute of Medical and Technical Sciences [SIMATS], Chennai,,India. E-mail: [email protected]

3360 security for the proprietors and furthermore, ensures the

protection of the beneficiaries. Ming Li et al. [20] exhibited approach of the protected sharing just as Revocable Attribute Based Encryption and adaptability of the clients and clarifies how open key cryptography utilized with the ABE. D. Sangeetha et al. [21] planned Attribute-Based Encryption (ABE) strategy for taking care of the security of PHR clients in the foundation of various proprietors. The time intricacy of ABE plans is low. The real restriction in ABE plan is that the proprietor of information requires open keys of each confirmed client to scramble the information. D. Thilakanathan et al. [22] structured a model depends on sharing information safely and permits private information partaking in the cloud. In any case, the disadvantage of this model is that it doesn't permit the ease of use test. Another protection safeguarding procedure to support information distribute buy in the cloud was created by Yang et al. [25]. Notwithstanding, the method neglects think about the coordinating examples, similar to disparity coordinating, conjunctive coordinating, run coordinating, etc. Zhang et al. [26] had contemplated the privacy preserving problems for a set-valued information distributing about half and hybrid cloud and displayed a plan for information dividing, called Extended quasi-identifier-partitioning. A methodology, called cutting, was introduced by Li et al. [27] that split the database on a level plane and vertically for better information utility and participation exposure assurance. Karlekar et al. [28] planned a privacy preservation strategy for cloud information in two stages. The proposed method was dependent on Kronecker product and coefficient generation that used privacy and utility in the BAT algorithm (PUBAT). Ashok George et al. [33] proposed for sensitive utility coefficient and cumulative data key product vectors acquired from a dyadic square lattice using the protection of the main database is guaranteed by the advancement of secure spared database.

3

M

3.1 Proposed CLWO Algorithm based Coefficient Generation

The method proposed for the security insurance of cloud information is clarified during this area utilizing the whale enhancement and the C-Lion calculation. The info cloud information, experiences a security insurance strategy that uses the DP coefficient to get the protection safeguarded information for the information distributing. For picking the best decision of the DP coefficient, an algorithmic program joining Crow Search Algorithm (CSA) with Lion Algorithm (LA) and whale improvement Algorithm, named CLWO, is created. The DP coefficient is made with the ultimate objective that the health of the plans made to support the assurance and moreover the utility parts should be the most. Embracing the DP coefficient produced utilizing the proposed CLWO calculation gives the security ensured information without damaging the utility of the information for business.

Figure 1 shows Block graph of a proposed security insurance

method dependent on CLWO Algorithm. The essential presentation of the current CSA and Lion calculation and Whale optimization algorithm for the age of CLWO Algorithm is portrayed underneath.

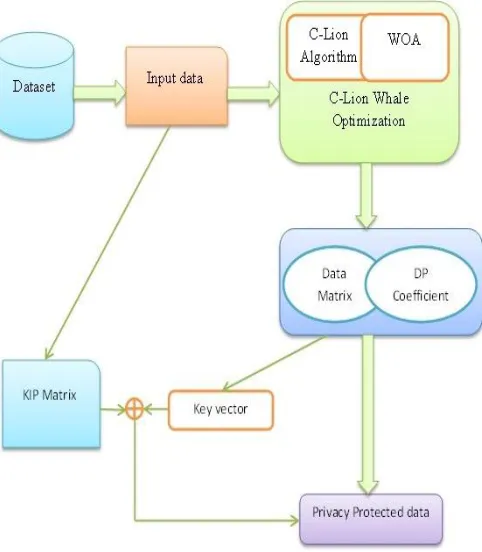

Fig. 1. Block diagram of proposed privacy protection

technique based on CLWO Algorithm

Lion's calculation was presented bolstered the crude motivation from lion's unmistakable social conduct. The lion's algorithmic program look through ideal arrangements upheld two unmistakable lion's trainings, especially the regional guard and regional takeover. The regional resistance is performed between the inhabitant guys and roaming guys though the regional procurement is finished between the old regional male and new regional male. The lion's one of a kind social conduct can be translated in algorithmic point of view as pursues. The powerless arrangements are either disappearing from the arrangement pool or driven out from the arrangement pool. An arrangement, which is gotten from the effective arrangement is more grounded than an answer, which is acquired from bombed arrangement. Crows are pondering the most savvy winged animals. They contain the best critical cerebrum in respect to their body size. In view of the cerebrum to-body proportion, their mind is marginally lower than a human mind. The proof for the shrewdness of crows are bounty. They have exhibited mindfulness in mirror tests and had apparatus making capacity. Crows can recollect faces and caution each other when an unpleasant one approaches. Also, they can utilize devices, impart in complex ways and review their nourishment's concealing spot as long as a while later. Crows are recognized to watch different flying creatures, where they shroud their sustenance and take it once the proprietor leaves. If a crow has submitted robbery, it will avoid any risk, for instance, moving, covering spots to refuse being a future awful setback. Truth be told, they utilize their very own understanding of having been a criminal to foresee the conduct of a pilferer and can decide the most secure course to shield their stores from being taken.

Coefficient Vector

The square outline of producing the DP coefficient lattice utilizing C-Lion Algorithm appears in Figure 1. The C-Lion calculation intended for choosing the best DP coefficient vector to protect the delicate cloud data is delineated during this area. A DP coefficient vector is a vector acquired with the point of moderating the touchy data inside the distributed storage to such an extent that the utility is kept up. C-Lion algorithmic program, which is created by including the highlights of CSA and LA and WO, finds the best coefficient bolstered the wellness capacity structured utilizing protection and utility parameters. CSA [29] is an enhanced system created following the conduct of crows in putting away and getting their nourishment. Despite the fact that the CSA is thought for its straightforwardness and keen assembly conduct, the joining of LA [30] will improve the exhibition of the calculation due to the dependability and furthermore the unwavering quality LA over union issues. So this improved C-Lion calculation is utilized to discover the DP coefficient by similarly thinking about the security and utility. The proposed protection, conservation strategy is executed utilizing two significant advances. In the initial step, DP coefficient is ideally discovered utilizing the proposed C-Lion calculation with new target work. In the subsequent advance, the information and DP coefficient is then used utilizing Data assurance of finding the security ensured information for further information distributing in cloud condition. The proposed security assurance strategy is performed utilizing following subsections clarify the algorithmic methodology in detail.

3.2.1 Solution Representation

The ideal strategy to chart the game plan of any count is to make the course of action diagram. During this assessment, in light of the way that the objective is to thought of the DP coefficient vector for the security confirmation of the data, the game plan is every now and again encoded as a vector having a variety of courses of action. Every course of action inside the vector addresses the DP coefficient vector of estimation, and is the combination of records inside the data. With the starting late arranged wellbeing work, the perfect game plan can be created by the proposed C-Lion figuring from the courses of action.

3.2.2 Privacy-Utility based fitness formulation for the securing data

The DP coefficient network is the significant part in the security insurance with the goal that the best component of the DP coefficient determination ought to fulfill the protection requirements and utility limitations. So the wellness work for the proposed system should decide the DP coefficient vector and subsequently, it's important to consolidate the parameters in regards to security assurance inside the wellness work. The two fundamental parameters that produce the best DP coefficients are protected and utilized. The harmony between these two parameters are taken care of utilizing this proposed target works with the goal that the outsider, who demands the information, ought to get the information having most security and utility, which is joined to diagram the wellness work, as

Fitness  





2 1

Where, P

denotes privacy parameter and U is the utility parameter.

Privacy: The security requirement suggests that the first information ought to be changed to maintain a strategic distance from the induction of speculating unique information values. The protective capacity is given by the cosine closeness measure that estimates the similitude between the information and the security ensured information dependent on the edge cosine between the information. It's a promising measure that offers the similitude between two vectors and is to be at least, which shows that the protection of the information is empowering. Consequently, the parameter is subtracted from solidarity. The parameter estimates as, W  [R(K,D)]

Where, R denotes BD, K denotes input data, and D denotes Sanitized data.

Utility: Utility infers that the use of the information in the wake of distributing ought to be more. This is the subsequent parameter used in the wellness work. To guarantee most utility, 3 essential measures, similar to affectability, explicitness, and precision, are considered in the estimation. The maximum utility is measured using the accuracy metric,

Z _{, which gives the measure of trueness as either true}

negative or true positive.

p E q E q T p T

p T q T Z

  

 

3.2.3 Proposed CLWO Algorithm

This subdivision clarifies the proposed CLWO algorithm.

1 Initialization

The essential advance is that the introduction of the herd of crows inside the pursuit territory. The situation of the crows inside the region is spoken to as

, C {C₁,C₂,,C_x,,C_o} Where, is that the assortment of arrangements inside the herd and is the measurement. In addition, certain customizable parameters, similar to flight length and mindfulness likelihood, and memory, are additionally instated. At first, the memory is instated in irregular the same the situation, as they have no clue where the sustenance source is covered up.

2 Fitness evaluation

By then, the well being of every objective inside the people is evaluated using Equation to see the best position. The plan that the health is most extraordinary is perceived as the perfect course of action. As every objective endeavor to achieve the position, the perfect objectives are settled particularly toward the piece of the deal.

3 Updating solution with the integration of CSA-LA-WO

3362 the position update depends on CSA [29], for and , the update

pursues that in LA [30], and picks an arbitrary position in the other case. LA is an improved calculation displayed depends on the motivation got from the lion's one of a kind conduct, similar to regional guard and takeover, laggardness misuse, and pride. The position update condition of LA, given in Equation, is embraced in C-Lion calculation to locate the most proper position of the inquiry specialist.

4

Finding the New Solutions and Termination

For the new arrangements acquired, the wellness are once again evaluated to check the plausibility of the arrangement. When a replacement is possible, the situation of the crow gets refreshed or it continues as before in the other case. Which the C-Lion calculation decides the best memory position.

3.3 Proposed CLWO based Technique for confidential data in the Cloud

The proposed dyadic item based protection, conservation subject is referenced during this area and the square outline is determined in the Figure 1. The execution of renovating unique database into security ensured one with the help of created DP coefficient, which is referenced in the above segment. The first database which contains shrouded delicate information that should be security ensured and meanwhile its utility ought to likewise be kept up. Accept an information document that incorporates number of information records and number of qualities. A recovery system is additionally furnished in this proposed technique alongside the age of the security ensured information, with the goal that the proprietor of the information can recover the precise information that is connected to securing insurance. Since the components of both the vectors are, so the ordinary increase is incomprehensible.

4 R

The comparative methods are analyzed based on the performance of the proposed JWO with that of the existing techniques, Bat Algorithm i) [31] ii) PUBAT [28] iii) CSA [29]. In [28] a security conservation strategy is created utilizing PUBAT calculation for the cloud information as talked about in the area. The after effects of these current methodologies are contrasted and that of the C-Lion based security insurance procedure.

4.1 Experimental Setup

The proposed algorithm is actualized utilizing Java 1.8 with netbeans IDE. The experimentation is directed on Windows 10 machines with Intel Core i3 processors and 4 GB of primary memory. The cloud computing stage is simulated utilizing cloudsim device and the proposed data security algorithm is executed utilizing JAVA and it is consolidated utilizing cloudsim device. The exhibition of the proposed algorithm will be contrasted and elective privacy models like BAT, PUBAT and CSA calculation. The outcomes are taken with shifting the size of the populace, for example herd, as 10 and 20. Figure 2, Figure 3, Figure 4 and Figure 5 demonstrates the execution screen capture for the proposed CLWO algorithm.

Fig. 2. Analysis for dataset based on a Fitness for k=10

Fig. 3. Analysis for dataset based on an Accuracy for k=10

Fig. 5. Analysis for dataset based on an Accuracy for k=20

The analysis of the comparative methods in terms of accuracy and fitness for the dataset is shown. The percentage of training data vary from 50 to 90 to calculate BD, accuracy and fitness values. Figure 2 depicts the analysis of using dataset for PUBAT, BAT, CSA, and proposed CLWO by varying the percentages of training data. The analysis using dataset based on utility in the approaches for K=10. When the percentage of training data is 60, the accuracy values measured by PUBAT, BAT, CSA, and CLWO are 0.083, 0.45, 0.534, 0.832. Similarly, at 90% training data, the corresponding values measured using PUBAT, BAT, CSA, and proposed CLWO are 0.083, 0.45, 0.50, 0.92.

TABLE 1 PERFORMANCE COMPARISON

Approache

s % of data

K=10 K=20

Fitness Accuracy Fitness Accuracy

Bat

50 0.0321 0.533 0.0322 0.093 60 0.0322 0.083 0.0322 0.083 70 0.0324 0.093 0.0325 0.093 80 0.0326 0.104 0.0326 0.104 90 0.0327 0.083 0.0327 0.083

PUBAT

50 0.45 0.508 0.45 0.5

60 0.45 0.45 0.45 0.46

70 0.45 0.46 0.45 0.47

80 0.5 0.48 0.45 0.48

90 0.5 0.45 0.5 0.47

CSA

50 0.45 0.568 0.5 0.59

60 0.504 0.534 0.51 0.568

70 0.504 0.520 0.51 0.53

80 0.504 0.5 0.51 0.5

90 0.504 0.5 0.52 0.54

CLWO

50 0.508 0.827 0.518 0.865 60 0.5091 0.832 0.5291 0.875 70 0.5093 0.837 0.5293 0.880 80 0.5099 0.9 0.5299 0.889 90 0.5098 0.92 0.5398 0.913

5

C

This paper illustrates a technique to obtain the privacy preservation technique developed using by proposing an CLWO algorithm to protect the data in the cloud environment. The DP coefficient vector by incorporating WOA in the update rule of CSA with LA. The fitness designed using the parameters; privacy, and utility, DP coefficients that can adequately deal the sensitive information in the data that is generated. The original data are converted into privacy protected data by adopting a set of operations for encrypting the data and to show only the essential details required for the third party user without revealing the private data. The EXOR operation of KIP and key vector is performed for obtaining the sanitized data. Likewise, the data owner generates a key for retrieving the original data from the sanitized data in the cloud. The proposed CLWO is compared with the PUBAT, BAT, CSA, accuracy and fitness parameter. The proposed CLWO shows superior performance regarding accuracy and fitness parameters.

R

[1] Wang, C, Cao, N, Li, J, Ren, K & Lou, W, ―Secure ranked keyword search over encrypted cloud data,‖ In Proceedings of ICDCS. 2010, pp. 253-262.

[2] Salve Bhagyashri & Gurav, YB, ―Privacy-Preserving Public Auditing For Secure Cloud Storage,‖ IOSR Journal of Computer Engineering, vol. 16, no. 4, 2014, pp. 33-38. [3] G.-J. Ahn, H. Hu, J. Lee, and Y. Meng, ―Representing and

Reasoning about Web Access Control Policies,‖ In Proceedings of IEEE 34th Annual Computer Software and Applications Conference (COMPSAC), pp. 137–146, 2010.

[4] H. Takabi, J. B. D. Joshi, and G.-J. Ahn, ―Security and Privacy Challenges in Cloud Computing Environments,‖ IEEE Security and Privacy, vol. 8, no. 6, 2010, pp. 24–31. [5] R. Wu, G.-J. Ahn, H. Hu, and M. Singhal, ―Information flow

control in cloud computing,‖ In Proceedings of the 6th International Conference on Collaborative Computing: Networking, Applications and Worksharing, 2010, pp. 1–7. [6] R. Wu, G.-J. Ahn, and H. Hu, ―Towards HIPAA-compliant

healthcare systems,‖ In Proceedings of 2nd ACM SIGHIT International Health informatics Symposium, 2012, pp. 593.

[7] R. Wu, G.-J. Ahn, and H. Hu, ―Secure Sharing of Electronic Health Records in Clouds,‖ In Proceedings of 8th IEEE International Conference on Collaborative Computing: Networking, Applications and Worksharing, 2012, pp. 711– 718.

[8] Gehrke, J, ―Models and methods for privacy-preserving data publishing and analysis,‖ In Proceedings of the twenty-fourth ACM SIGMOD-SIGACT-SIGART symposium on Principles of database systems, 2006, pp. 316-316. [9] Yang, Z, Zhong, S & Wright, RN, ―Anonymity-preserving

data collection,‖ In Proceedings of the 11th ACM SIGKDD Conference on Knowledge discovery in data mining, 2005, pp.334–343.

3364 and digital pseudonyms,‖ Communications of the ACM

CACM, vol. 24, no. 2, 1981, pp. 84-90.

[12]Jakobsson, M, Juels, A &Rivest, RL, ―Making mix nets robust for electronic voting by randomized partial checking,‖ In Proceedings of the 11th USENIX Security Symposium, 2002, pp.339–353.

[13]Zhenyu Meng and Jeng-Shyang Pan, "QUasi-Affine TRansformation Evolution with External ARchive (QUATRE-EAR): an enhanced structure for differential evolution," Knowledge-Based Systems, vol. 155, 2018, pp. 35-53.

[14]Zhenyu Meng, Jeng-Shyang Pan, and Lingping Kong, "Parameters with adaptive learning mechanism (PALM) for the enhancement of differential evolution," Knowledge-Based Systems, vol. 141, 2018, pp. 92-112.

[15]Zhenyu Meng, Jeng-Shyang Pan, and Huarong Xu, "QUasi-Affine TRansformation Evolutionary (QUATRE) algorithm: a cooperative swarm based algorithm for global optimization," Knowledge-Based Systems, vol. 109, 2016, pp.104-121.

[16]Zhenyu Meng and Jeng-Shyang Pan, "Monkey king evolution: a new memetic evolutionary algorithm and its application in vehicle fuel consumption optimization," Knowledge-Based Systems, vol. 97, 2016, pp. 144-157. [17]Javier Jiménez, Jordi Marés, and Vicenç Torra, "An

evolutionary approach to enhance data privacy," Soft Computing, vol. 15, no. 7, 2011, pp. 1301-1311.

[18]M. Masud and M. S. Hossain, ―Secure data-exchange protocol in a cloud-based collaborative health care environment,‖ Multimedia Tools and Applications, vol. 77, no.9, pp. 11121–11135, 2018.

[19]L. Zhang, Q. Wu, Y. Mu, and J. Zhang, ―Privacy-Preserving and Secure Sharing of PHR in the Cloud,‖ Journal of Medical Systems, vol. 40, no. 12, 2016, pp. 1–13.

[20]M. Li, S. Yu, Y. Zheng, K. Ren, and W. Lou, ―Scalable and secure sharing of personal health records in cloud computing using attribute-based encryption,‖ IEEE Transactions on Parallel and Distributed Systems, January 2013, pp. 131-143.

[21]D. Sangeetha and V. Vaidehi, ―A secure cloud based Personal Health Record framework for a multi owner environment,‖ Annals of Telecommunications, vol. 72, no. 1–2, 2017, pp. 95–104.

[22]D. Thilakanathan, S. Chen, S. Nepal, R. Calvo, and L. Alem, ―A platform for secure monitoring and sharing of generic health data in the Cloud,‖ Future Generation Computer Systems, vol. 35, 2014, pp. 102–113.

[23]Yang, K., Jia, X., Zhang, K., Shen, X.S., ―Privacy-preserving data publish-subscribe service on cloud-based platforms,‖ In IACR Cryptology ePrint Archive, 2014, pp. 1–10.

[24]Zhang, H., Zhou, Z., Ye, L., Xiaojiang, D.U., ― Towards privacy preserving publishing of set-valued data on hybrid cloud,‖ IEEE Trans. Cloud Comput. 99,2015, pp. 1–14. [25]Li, T., Li, N., Zhang, J., Molloy, I., ― Slicing: a new approach

for privacy preserving data publishing,‖ IEEE Trans. Knowl. Data Eng. 24(3), 2012, pp. 561–574.

[26]Nandkishor, P, Karlekar&Gomathi, N, ―Kronecker product and bat algorithm-based coefficient generation for privacy protection on cloud,‖ International Journal of Modeling, Simulation, and Scientific Computing, vol. 8, no. 3, 2017,

pp. 1-17.

[27]AlirezaAskarzadeh, ―A novel metaheuristic method for solving constrained engineering optimization problems: Crow search algorithm,‖ Computers and Structures, vol. 169, 2016, pp. 1-12.

[28]Rajakumar, BR, ―Lion Algorithm for Standard and Large Scale Bilinear System Identification: A Global Optimization based on Lion’s Social Behavior,‖ IEEE Congress on Evolutionary Computation (CEC) July 6-11, 2014, Beijing, China.

[29]Yang, XS, ―A new metaheuristic bat-inspired algorithm, in Gonzalez et al. J. R. (eds.), Nature Inspired Cooperative Strategies for Optimization (NISCO),‖ Studies in Computational Intelligence, Springer, Berlin, vol. 284, 2010, pp. 65–74.
