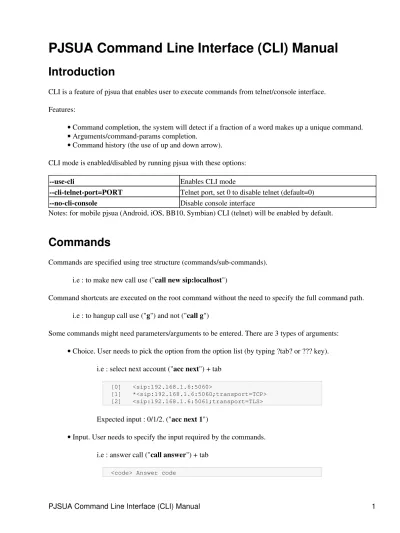

PJSUA Command Line Interface (CLI) Manual
Introduction
CLI is a feature of pjsua that enables user to execute commands from telnet/console interface. Features:
Command completion, the system will detect if a fraction of a word makes up a unique command.
•
Arguments/command-params completion.
•
Command history (the use of up and down arrow).
•
CLI mode is enabled/disabled by running pjsua with these options:
--use-cli Enables CLI mode
--cli-telnet-port=PORT Telnet port, set 0 to disable telnet (default=0)
--no-cli-console Disable console interface
Notes: for mobile pjsua (Android, iOS, BB10, Symbian) CLI (telnet) will be enabled by default.
Commands
Commands are specified using tree structure (commands/sub-commands). i.e : to make new call use ("call new sip:localhost")
Command shortcuts are executed on the root command without the need to specify the full command path. i.e : to hangup call use ("g") and not ("call g")
Some commands might need parameters/arguments to be entered. There are 3 types of arguments: Choice. User needs to pick the option from the option list (by typing ?tab? or ??? key).
•
i.e : select next account ("acc next") + tab
[0] <sip:192.168.1.6:5060>
[1] *<sip:192.168.1.6:5060;transport=TCP> [2] <sip:192.168.1.6:5061;transport=TLS>
Expected input : 0/1/2. ("acc next 1")
Input. User needs to specify the input required by the commands.
•
i.e : answer call ("call answer") + tab
<code> Answer code
Expected input : answer code ("call answer 200") Mixed. User is presented by Choice type and input type.
•
i.e : make new call ("call new") + tab
[-1] All buddies [0] Current dialog [URL] An URL
Expected input : -1/0/destination ("call new 0" or "call new sip:localhost")
The following commands can be specified when invoking pjsua in CLI mode.
Root commands
Commands Shortcut Description
log Change log level
exit Exit session
call Call and related commands
im IM and presence commands
acc Account commands
audio Conference and media commands
stat Status and config commands
sleep Suspend keyboard input
network Detect network type
shutdown Shutdown application
restart Restart application
Call and related commands [call]
Commands Shortcut Description
new Make a new call/INVITE
multi Make multiple calls
answer Answer call
hangup g Hangup call
hangup_all hA Hangup all call
hold H Hold call
reinvite v Re-invite (release hold)
update U Send update request
next ] Select next call
previous [ Select previous call
transfer x Transfer call
transfer_replaces X Transfer replace call
redirect R Redirect call
d_2833 # Send DTMF (RFC 2833)
d_info * Send DTMF with SIP INFO
dump_q dq Dump (call) quality
send_arb S Send arbitrary request
list Show current call
IM and Presence commands [im]
Commands Shortcut Description
add_b +b Add buddy
del_b -b Delete buddy
send_im i Send IM
sub_pre Subscribe presence
unsub_pre Unsubscribe presence
tog_state Toggle online state
reinvite v Hold call
pre_text T Specify custom presence text
bud_list b Show buddy list
Account commands [acc]
Commands Shortcut Description
add +a Add new account
del -a Delete account
mod !a Modify account
reg rr Send (Refresh) register request to register
unreg ru Send Register request to unregister
next < Select the next account for sending outgoing requests
previous > Select the previous account for sending outgoing requests
show l Show account list
Conference and Media commands [audio]
Commands Shortcut Description
list cl Show conference list
conf_con cc Conference connect
conf_dis cd Conference disconnect
adjust_vol V Adjust volume
codec_prio Cp Arrange codec priorities
Status and config commands[stat]
Commands Shortcut Description
dump_stat ds Dump status
dump_detail dd Dump detail status
dump_conf dc Dump configuration to screen
write_setting f Write current configuration file
Video commands [video]
Commands Shortcut Description
enable Enable video
disable Disable video
acc Video setting for current account
call vcl Video call commands/settings
device vv Video device commands
codec Video codec commands
win Video windows settings/commands
Video setting for current account [video acc]
Commands Shortcut Description
rx Enable/disable video RX for stream in curr call
tx Enable/disable video TX for stream in curr call
add Add video stream for current call
enable Enable stream #N in current call
disable Disable stream #N in current call
cap Set capture dev ID for stream #N in current call
Video call commands/settings [video call]
Commands Shortcut Description
rx Enable/disable video RX for stream in curr call
tx Enable/disable video TX for stream in curr call
add Add video stream for current call
enable Enable stream #N in current call
disable Disable stream #N in current call
cap Set capture dev ID for stream #N in current call
Video device commands [video device]
Commands Shortcut Description
list Show all video devices
refresh Refresh video device list
prev Enable/disable preview for specified device ID
Video codec commands [video codec]
Commands Shortcut Description
list Show video codec list
prio Set video codec priority
fps Set video codec framerate
bitrate Set video codec bitrate
size Set codec ID size/resolution
Video windows settings/commands [video win]
Commands Shortcut Description
list List all active video windows
arrange Auto arrange windows
show Show specific windows
hide Hide specific windows
move Move window position
resize Resize window to specific width/height
