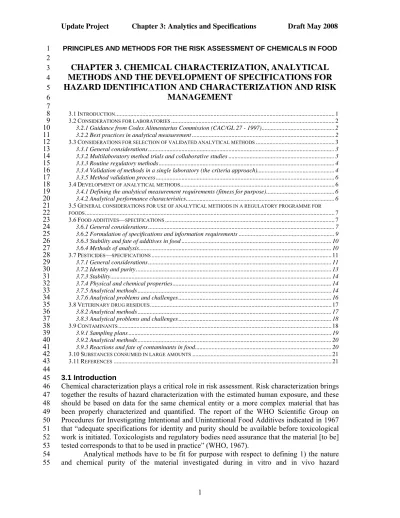

PRINCIPLES AND METHODS FOR THE RISK ASSESSMENT OF CHEMICALS IN FOOD 1
2
CHAPTER 3. CHEMICAL CHARACTERIZATION, ANALYTICAL
3METHODS AND THE DEVELOPMENT OF SPECIFICATIONS FOR
4HAZARD IDENTIFICATION AND CHARACTERIZATION AND RISK
5MANAGEMENT
6 7 3.1INTRODUCTION... 1 83.2CONSIDERATIONS FOR LABORATORIES... 2 9
3.2.1 Guidance from Codex Alimentarius Commission (CAC/GL 27 - 1997)... 2
10
3.2.2 Best practices in analytical measurement ... 2
11
3.3CONSIDERATIONS FOR SELECTION OF VALIDATED ANALYTICAL METHODS... 3
12
3.3.1 General considerations ... 3
13
3.3.2 Multilaboratory method trials and collaborative studies ... 3
14
3.3.3 Routine regulatory methods ... 4
15
3.3.4 Validation of methods in a single laboratory (the criteria approach)... 4
16
3.3.5 Method validation process ... 6
17
3.4DEVELOPMENT OF ANALYTICAL METHODS... 6
18
3.4.1 Defining the analytical measurement requirements (fitness for purpose)... 6
19
3.4.2 Analytical performance characteristics... 6
20
3.5GENERAL CONSIDERATIONS FOR USE OF ANALYTICAL METHODS IN A REGULATORY PROGRAMME FOR 21
FOODS... 7
22
3.6FOOD ADDITIVES—SPECIFICATIONS... 7 23
3.6.1 General considerations ... 7
24
3.6.2 Formulation of specifications and information requirements ... 9
25
3.6.3 Stability and fate of additives in food ... 10
26 3.6.4 Methods of analysis... 10 27 3.7PESTICIDES—SPECIFICATIONS... 11 28 3.7.1 General considerations ... 11 29
3.7.2 Identity and purity ... 13
30
3.7.3 Stability... 14
31
3.7.4 Physical and chemical properties... 14
32
3.7.5 Analytical methods ... 14
33
3.7.6 Analytical problems and challenges ... 16
34
3.8VETERINARY DRUG RESIDUES... 17
35
3.8.2 Analytical methods ... 17
36
3.8.3 Analytical problems and challenges ... 18
37 3.9CONTAMINANTS... 18 38 3.9.1 Sampling plans ... 19 39 3.9.2 Analytical methods ... 20 40
3.9.3 Reactions and fate of contaminants in food... 20
41
3.10SUBSTANCES CONSUMED IN LARGE AMOUNTS... 21 42 3.11REFERENCES... 21 43 44 3.1 Introduction 45
Chemical characterization plays a critical role in risk assessment. Risk characterization brings 46
together the results of hazard characterization with the estimated human exposure, and these 47
should be based on data for the same chemical entity or a more complex material that has 48
been properly characterized and quantified. The report of the WHO Scientific Group on 49
Procedures for Investigating Intentional and Unintentional Food Additives indicated in 1967 50
that “adequate specifications for identity and purity should be available before toxicological 51
work is initiated. Toxicologists and regulatory bodies need assurance that the material [to be] 52
tested corresponds to that to be used in practice” (WHO, 1967). 53
Analytical methods have to be fit for purpose with respect to defining 1) the nature 54
and chemical purity of the material investigated during in vitro and in vivo hazard 55
identification and characterization studies and 2) the concentrations of the chemical in foods 1
in relation to regulatory limits or exposure surveys. 2
The dietary exposure (intake) of any chemical depends on the concentrations present 3
in foods and the amounts of the relevant foods consumed. For residues of pesticides and 4
veterinary drugs, the concentrations used for exposure estimates are the MRLs and maximum 5
limits (MLs) established by the JMPR and JECFA, respectively. The derivation of MRLs is 6
discussed in chapter 8. For food additives, the exposure assessment and risk characterization 7
are based on the proposed use levels for an additive in different foods. Risk characterization 8
of contaminants differs from that for other types of chemical, because there is not an 9
approved, accepted or proposed concentration in food and the exposure estimate has to use 10
actual analytical data rather than a recommended maximum limit. Methods of exposure 11
assessment are described in chapter 6. 12
Analytical requirements of the JECFA and the JMPR for food additives, pesticides, 13
veterinary drug residues, contaminants and substances consumed in large amounts are given 14
in sections 3.6, 3.7, 3.8, 3.9 and 3.10, respectively. 15
16
3.2 Considerations for laboratories 17
3.2.1 Guidance from Codex Alimentarius Commission (CAC/GL 27 - 1997) 18
The CAC has provided guidance for laboratories involved in the import/export testing of 19
foods (FAO/WHO, 1997a). This includes the recommendations that such laboratories should: 20
21
• use internal quality control procedures that comply with the Harmonized Guidelines for 22
Internal Quality Control in Analytical Chemistry Laboratories (Thompson and Wood, 23
1995); 24
• participate in proficiency testing schemes designed and conducted in accordance with the 25
International Harmonized Protocol for Proficiency Testing of (Chemical) Analytical 26
Laboratories (Thompson and Wood, 1993); 27
• become accredited according to International Organization for Standardization 28
(ISO)/International Electrotechnical Commission (IEC) Guide 25 on general requirements 29
for the competence of calibration and testing laboratories and its subsequent replacement 30
(ISO/IEC-17025, 2005); and 31
• whenever available, use methods that have been validated according to the principles laid 32
down by the CAC. 33
34
3.2.2 Best practices in analytical measurement 35
The OECD established Principles of Good Laboratory Practice (GLP) in 1978 under the 36
Special Programme on the Control of Chemicals. The Principles were formally recommended 37
for use in Member countries by the OECD Council in 1981. They were developed primarily 38
in relation to the performance of toxicology (safety) studies, but the principles related to 39
facilities, personnel, methods, data recording and quality assurance are equally applicable to 40
analytical methods. The Principles were updated in 1997 and are freely available in electronic 41
form on the OECD website 42
(http://www.oecd.org/document/63/0,3343,en_2649_201185_2346175_1_1_1_1,00.html). 43
Six general principles have been elaborated for the best practice of analytical 44
measurements (EURACHEM, 1998) and should be considered in the evaluation of data for 45
use in risk characterization and assessment (adapted as regards the feasibility of principle no. 46
6): 47 48
1. Analytical measurements should be made to satisfy a defined objective, and the method 49
used should be fit for that purpose. 50
2. Organizations making analytical measurements should have well defined quality control 1
and quality assurance procedures. Where possible, these should be based on 2
internationally recognized standards. 3
3. Analytical measurements should be made in appropriate facilities with methods and 4
equipment that have been tested to ensure they are fit for the analyses performed. 5
4. Staff making analytical measurements should have appropriately demonstrated 6
qualifications and competence to undertake the task. 7
5. There should be a regular independent assessment of the technical performance of the 8
analysing laboratory. 9
6. Analytical measurements made in one location should to the extent possible be consistent 10
with those made elsewhere, through multilaboratory testing or other means of validation 11
and quality assurance. 12
13
The safety assessment and evaluation of food additives and residues of veterinary 14
drugs and pesticides in foods requires adequate analytical data. Codex has elaborated 15
guidelines for analytical methods that are primarily intended for the verification of provisions 16
in Codex standards (FAO/WHO, 2005). These guidelines address the general principles for 17
the best practices of analytical measurements listed above. 18
19
3.3 Considerations for selection of validated analytical methods 20
3.3.1 General considerations 21
Various types of methods are available to food safety agencies and testing programmes to 22
conduct analyses that may be consistent with their requirements. Decisions on the use of a 23
specific analytical method should be based on the intended objectives of the regulatory 24
programme and the analytical performance requirements. Methods that are suitable for 25
determining compliance with MRLs and MLs are those that have been validated for the 26
analysis of specific analytes, such as pesticide or veterinary drug residues or other 27
contaminants, in specific types of samples (matrices). These methods provide analytical 28
results for either quantification or confirmation that are appropriate to support regulatory 29
action without the need for additional analyses. In some cases, these methods may be 30
considered reference methods, but reference methods frequently are not those selected for 31
routine use. 32
33
3.3.2 Multilaboratory method trials and collaborative studies 34
Relatively few of the analytical methods used in regulatory control programmes have 35
successfully completed a multilaboratory study, which provides information on method 36
performance in the hands of different analysts in different laboratories. Collaboratively 37
studied methods are subjected to a properly designed interlaboratory study with analysts in 38
independent laboratories, so that different sources of reagents, chromatographic media and 39
equipment are used by the participants. Collaborative studies of qualitative methods currently 40
require a minimum of 10 participating laboratories. Quantitative methods studied 41
collaboratively according to the revised harmonized protocol adopted in 1995 have been 42
evaluated in a minimum of eight laboratories, unless highly complex equipment or other 43
unusual requirements were identified (in such cases, a minimum of five participating 44
laboratories is required). For methods that have been subject to multilaboratory trials, the 45
performance characteristics, such as recovery and precision, are defined through the results 46
obtained during the study. Multilaboratory trials that do not meet the criteria for collaborative 47
studies may still provide useful information on the expected performance of the method 48
tested, and such information can be important in assessing the validity of concentration data 49
used in exposure assessments. 50
Multilaboratory and collaborative studies of methods usually do not encompass all 1
possible combinations of the analyte and the sample material to which the method may 2
subsequently be applied. These methods may be extended to related analytes and sample 3
materials not included in the original multilaboratory study by completing additional properly 4
designed within-laboratory studies. Whenever possible, analytical results obtained using 5
methods that have not been validated by interlaboratory study should be correlated and 6
compared with results obtained using a method that has been validated through a 7
collaborative or multilaboratory study. The comparison should be based on a statistically 8
acceptable study design using portions of the same (homogeneous) samples. The data from 9
such studies should be independently reviewed by a qualified third party (such as a quality 10
assurance unit, a peer group of regulatory scientists or auditors of national accreditation body) 11
to determine the comparability of method performance. 12
13
3.3.3 Routine regulatory methods 14
Most laboratories conducting analyses for regulatory purposes rely on analytical methods that 15
have not been subjected to an interlaboratory study. Factors that have contributed to this 16
situation include a requirement for specialized expertise or equipment, cost of such studies, 17
lack of suitable collaborating laboratories, analyte and/or sample instability and rapidly 18
changing technologies. Historically, the equivalency of analytical results was assured by the 19
use of standardized methods with performance characteristics based on collaborative studies. 20
At the present, it is the responsibility of the individual accredited laboratory to demonstrate 21
that the methods used and the analytical results produced meet performance criteria 22
established in consultation with a client. 23
Typical requirements would include that the methods are capable of detecting the 24
compounds included in the regulatory programme in the target samples with analytical 25
recovery and precision that meets the customer needs. In addition, the methods should be 26
used within an established laboratory quality assurance system that is consistent with the 27
principles on internal quality control (Thompson and Wood, 1995). When methods that have 28
not been subjected to a multilaboratory performance trial are used in a regulatory programme, 29
the quality control and quality assurance procedures applied with these methods require 30
careful definition, implementation and monitoring. Unlike methods established through 31
multilaboratory trials, the performance characteristics of a method validated within a single 32
laboratory are defined by the data generated by analysts within that laboratory. The ongoing 33
performance of the method and analysts must then be monitored through the quality system 34
in place in the laboratory. 35
36
3.3.4 Validation of methods in a single laboratory (the criteria approach) 37
The “criteria approach” to method validation is now defined in general terms in the Codex 38
Procedural Manual (FAO/WHO, 2005). It describes a process by which data may be 39
generated to establish the performance characteristics of an analytical method within a single 40
laboratory, with a recognized quality control system, and to demonstrate the “fitness for 41
purpose” of the method for routine analysis of samples. This approach was developed for use 42
in laboratories operating within the guidelines of CAC/GL 27-1997 and recognizes that 43
reliance solely on multilaboratory trials for method validation may no longer be practical. 44
Single laboratory validation has become increasingly important in recent years, 45
especially in the analysis of pesticide residues, for a number of reasons: 46
47
• Technological advancement is much faster, so that a method becomes out of date almost 48
as soon as it has been tested collaboratively. 49
• Laboratories have different equipment; although they may all have sophisticated 1
equipment such as gas chromatography (GC)–mass spectrometry (MS) and liquid 2
chromatography (LC)–tandem mass spectrometry (MS/MS), they may be fitted with 3
different types of injectors and the detectors may exhibit differences in sensitivity and 4
selectivity. 5
• In practice, only a small range of commodity/pesticide/residue level combinations can be 6
subject to multilaboratory method trials. 7
• The cost of multilaboratory method trials has increased because most contract 8
laboratories now require payment to participate. 9
10
On advice from the 10th Meeting of the CCRVDF (FAO/WHO, 1997c), the FAO 11
convened an expert consultation on “methods validation for food control purposes” in 1997 12
(FAO/IAEA, 1998), which recommended that “all methods used for determining compliance 13
with international or other standards which have not been subjected to a full collaborative 14
study should be subject to a form of independent review, which may include any of the 15
following options: a) a multi-laboratory validation study involving a smaller number of 16
laboratories, b) second laboratory verification, in a laboratory operating under Good 17
Laboratory Practices (GLP) or c) validation in a laboratory which has been recognized under 18
ISO/IEC Guide 17025 (2005) or equivalent.” The Consultation recommended the following 19
principles that should be applied in cases “where collaborative or other inter-laboratory 20
studies are impractical or impossible to carry out”: 21
22
• Laboratories carrying out the validation studies operate under a suitable quality system 23
based upon internationally recognized principles (Thompson and Wood, 1995). 24
• Laboratories have in operation a third-party review of the whole validation process (e.g. 25
GLP registration, accreditation according to ISO/IEC 17025 or equivalent, or peer 26
review). 27
• Analytical methods are assessed in respect to the Codex general criteria for selection of 28
methods of analysis (FAO/WHO, 2003), with emphasis on the assessment of the limit of 29
quantification rather than the limit of detection. 30
• The validation work should be carefully documented in an expert validation report that 31
states unambiguously the purposes (matrices and analyte concentrations) for which the 32
method has been found to perform in a satisfactory manner. 33
• Evidence of transferability should be provided for all methods intended for Codex use for 34
food control purposes. 35
36
Subsequently, requirements for “single laboratory method validation” were 37
considered by a working party of the International Union of Pure and Applied Chemistry 38
(IUPAC), resulting in the publication of a general guidance document (Thompson et al., 39
2002). An expert consultation jointly organized by IUPAC, AOAC International, the 40
International Atomic Energy Agency (IAEA) and FAO has provided specific guidance for the 41
validation of methods intended for the determination of trace residues of pesticides and 42
veterinary drugs in foods (Alder et al., 2000; Fajgelj and Ambrus, 2000). The contents of the 43
IUPAC guidance document have been applied generally by the Codex Committee on 44
Methods of Analysis and Sampling (CCMAS) for inclusion in the Codex framework for 45
method requirements, while the consultation report has been used by experts from both the 46
CCPR and the CCRVDF in revising requirements for the validation of recommended 47
analytical methods for pesticide residues and veterinary drug residues. 48
Based on recommendations from the CCMAS, the following conditions have been 1
included in the Codex Procedural Manual (FAO/WHO, 2005), to define where single-2
laboratory validated methods can be used: 3
4
a) No interlaboratory validated method is appropriate. 5
b) The single-laboratory validated methods must fulfil the following criteria: 6
i) the method is validated according to an internationally recognized protocol (for 7
example, the IUPAC protocol referenced above); 8
ii) the use of the method is subject to a quality assurance system under accreditation; 9
iii) when available, external support is given by systematic participation in 10
proficiency schemes, by calibration using reference materials and by comparison 11
of results with those obtained using other methods. 12
13
3.3.5 Method validation process 14
Method validation is a process using a defined set of experiments to establish the 15
performance criteria that should be achieved by an analyst using the method and that provides 16
both users of the method and their customers a means to assess the reliability of results 17
obtained. The necessary experiments must be conducted to establish the various performance 18
criteria defined in the Procedural Manual and in other relevant Codex documents, including 19
analytical recovery, precision at various concentrations within the defined analytical range of 20
the method and detection capabilities related to selectivity and limits of detection and 21
quantification. 22
23
3.4 Development of analytical methods 24
3.4.1 Defining the analytical measurement requirements (fitness for purpose) 25
Developing an analytical method requires suitably experienced analysts, laboratory space, 26
equipment and financial support. Analytical methods used to determine compliance with 27
MRLs or other regulatory standards or specifications should be effective and practical. The 28
results should provide the qualitative and quantitative information required to demonstrate 29
compliance with the regulatory standard. Applications may include: 30
31
• analysis of randomly selected survey samples in a national programme to determine 32
compliance with established standards; 33
• analysis of targeted samples where there is reason to suspect non-compliance with these 34
standards; 35
• analysis of samples to meet a commercial requirement; or 36
• analyses used to estimate consumer exposure to residues or contaminants through food. 37
38
3.4.2 Analytical performance characteristics 39
Methods that provide quantitative results must perform with good precision and accuracy 40
within an analytical range that covers the MRL or other regulatory limit. Methods applied in 41
studies to assess daily intake of a selected residue or contaminant may be required to 42
accurately measure concentrations orders of magnitude below the MRL. For such 43
applications, the limit of quantification (LOQ) and linearity of response over an extended 44
analytical range become primary considerations. A key element of the work undertaken 45
during development of a regulatory method is ruggedness testing (Youden and Steiner, 1975) 46
in order to establish critical points in the method where a minor variation in procedure or a 47
change in source of material or reagent could profoundly affect the test result. 48
Analytical methods may be required in regulatory control programmes for the 49
detection of residues of substances for which the toxicological data available do not allow an 50
ADI or MRL to be established; the presence in food of the drug chloramphenicol would be an 1
example in this category. For such substances, determination of the lowest detectable 2
concentrations and confirmation of identity are the primary focuses for method validation. 3
Performance characteristics related to quantification may be less critical for such substances, 4
unless the results are to be used for exposure assessment. 5
Analytical performance characteristics are defined in the Procedural Manual, and 6
additional guidance is provided in other Codex texts from CCMAS, CCPR and CCRVDF. 7
8
3.5 General considerations for use of analytical methods in a regulatory 9
programme for foods 10
Analytical data are collected for a variety of purposes, including: 11
12
• national legal requirements to ensure the quality and safety of foods that are produced 13
domestically or imported or exported; 14
• monitoring to determine compliance with existing standards; 15
• surveillance, particularly for exposure assessment or to gather data for proposed standards; 16
and 17
• research for product development, including the development of specifications. 18
19
These purposes can have different analytical requirements, particularly in respect of 20
performance characteristics. 21
Uncertainties in analytical measurements, particularly for exposure assessment, can 22
contribute to the uncertainties in the safety and risk assessments. The fitness for purpose of 23
the analytical data for use in the safety and risk assessments should be determined on a case-24
by-case basis, and any analytical or sampling uncertainties should be communicated as part 25
of the evaluation. 26
Quality control and quality assurance principles are essential components of chemical 27
analysis. They provide the basis for ensuring optimum method performance for all methods, 28
regardless of method attributes. Quality control monitors those factors associated with the 29
analysis of a sample by an analyst, whereas quality assurance provides the oversight by 30
independent reviewers to ensure that the analytical programme is performing in an acceptable 31
manner. Quality control and quality assurance programmes are invaluable in supporting 32
decision-making for risk assessment managers and enforcement agencies, improving the 33
reliability of analytical results and providing quality data for residue control programmes. 34
The establishment of quality measures consistent with the principles published by IUPAC is 35
important for regulatory control laboratories (Thompson and Wood, 1995). 36 37 3.6 Food additives—specifications 38 3.6.1 General considerations 39
Specifications of identity and purity are necessary products of JECFA safety evaluations for 40
food additives. Evaluations of food additives by JECFA depend on studies performed with a 41
chemical substance or product of defined identity, purity and physical form. The ADI is valid 42
only for products that do not differ significantly in identity and quality profile from the 43
material used to generate the data used in the evaluation. [For an overview of the purpose, 44
function and format of JECFA food additive specifications, and the interaction of JECFA and 45
Codex, see the Introduction, Combined Compendium of Food Additive Specifications, 46
JECFA Monographs 1 (FAO, 2005/2006).] 47
The specifications of identity and purity established by JECFA are intended to ensure 48
that the Committee’s safety evaluations apply, with a high degree of confidence, to all 49
products manufactured to comply with those specifications. The first Joint FAO/WHO 50
Conference on Food Additives (FAO/WHO, 1956) was asked to formulate general principles 1
governing the use of food additives and to recommend suitable methods for the chemical, 2
physical, pharmacological, toxicological and other properties of individual food additives. 3
The first two meetings of the Joint Expert Committee prepared reports on “General 4
Principles Governing the Use of Food Additives” (FAO/WHO, 1957) and “Procedures for the 5
Testing of Intentional Food Additives to Establish Their Safety for Use” (FAO/WHO, 1958), 6
and recommended the need for specifications; since then, specifications have been an 7
important part of JECFA evaluations for food additives. JECFA specifications have three 8
purposes: 9
10
1) to identify the substance that has been tested biologically; 11
2) to ensure that the substance is of the quality required for safe use in food; and 12
3) to require good manufacturing practice and maintain the quality of additives on the 13
market. 14
15
Since 1956, the meetings of JECFA have designated specifications as either full or 16
tentative. Until the twenty-third meeting of JECFA, specifications were designated as 17
tentative either because the chemistry data were inadequate or because a temporary ADI was 18
assigned to the additive. At and since the twenty-third meeting of the JECFA, a tentative 19
specification has been assigned only when the data were inadequate for preparing full 20
specifications. 21
A food additive may be a single chemical substance, a manufactured chemical 22
mixture or a natural product. Complete information on chemical composition—including 23
description, methods of manufacture and raw materials, and analyses for impurities—is 24
equally important for each type of additive. However, implementation of the requirement for 25
chemical composition data may vary depending on the type of substance. 26
For additives that are single-chemical substances, it is virtually impossible to remove 27
all impurities arising from their commercial production; therefore, analyses are generally 28
performed on the major component and predicted impurities, especially those with potential 29
toxicity. 30
For commercially manufactured complex mixtures, such as mono- and diglycerides, 31
information is needed on the range of substances produced, with emphasis on descriptions of 32
manufacturing processes, supported by analytical data on the components of the different 33
commercial products. 34
Natural products present particularly difficult problems due to their biological 35
variability and because the chemical constituents are too numerous for regular analytical 36
determinations. For additives derived from natural products, it is vital that the sources and 37
methods of manufacture are defined precisely. Chemical composition data should include 38
analyses for general chemical characteristics, such as proximate analyses for protein, fat, 39
moisture, carbohydrate and mineral content. Analyses should be undertaken for specific toxic 40
impurities carried over from raw materials or chemicals used in the manufacture of the 41
product. Further information necessary for the evaluation of “novel foods”, which are usually 42
substances derived from natural products, is provided in section 3.10. 43
JECFA policy has been to prepare specifications whenever constituents of the 44
substance added to food had the potential to be present in the finished food. Initially, 45
specifications were prepared only for intentional food additives—that is, those that are added 46
directly to a food to accomplish a technical effect (e.g. a preservative or colour). The 47
fourteenth JECFA (FAO/WHO, 1971) prepared specifications for extraction solvents because 48
although these “processing aids” are largely removed from food, evaluation of their safety in 49
use depends on their identity and purity. Since then, specifications have been prepared for all 50
processing aids (e.g. antifoaming or clarifying agents, enzyme preparations, filtering aids, 1
packing gases, release agents, and others) used in conjunction with food manufacture. 2
The twenty-seventh JECFA (FAO/WHO, 1983a) decided that chemical reagents used 3
in the preparation of food additives or processing aids (e.g. glutaraldehyde in the preparation 4
of immobilized enzyme preparations or acetic anhydride in the manufacture of modified 5
starches) do not usually need specifications. Carryover of these reagents or their 6
contaminants into food may be controlled by the specifications for purity of the specific 7
additive or processing aid. 8
Many food additive specifications have identical analytical methods and/or test 9
procedures. To avoid repetition in each individual specification, these methods and test 10
procedures were assembled in a volume entitled “Guide to Specifications” (FAO, 1978), and 11
subsequent specifications referred to that volume when appropriate. The volume was revised 12
and updated in 1983 (FAO, 1983) and 1991 (FAO, 1991a). In 2006, the information 13
contained in the volume was completely revised and rewritten and has been published as 14
Volume 4 of the Combined Compendium of Food Additive Specifications, FAO JECFA 15
Monographs 1 (FAO, 2005/2006). 16
Food additives may be marketed as formulated preparations, such as a mixture of a 17
main ingredient with a solvent vehicle and emulsifier. Specifications refer to each ingredient 18
in the formulated preparation as individual commercially manufactured food additive 19
substances. Mixtures should not be formulated in such a way that the absorption or 20
metabolism of any ingredient is altered so that the biological data, derived using the 21
individual component, are invalidated (FAO/WHO, 1966, 1972). Added substances such as 22
anticaking agents, antioxidants and stabilizers may influence the results of analytical tests 23
given in specifications. Therefore, in its nineteenth report, JECFA recommended that 24
manufacturers of food additives should indicate the presence of such added substances 25
(FAO/WHO, 1975a). 26
27
3.6.2 Formulation of specifications and information requirements 28
The formulation of satisfactory specifications requires detailed information to be made 29
available to JECFA on the method of manufacture of the additive, including information on 30
raw materials and on its chemical characterization. The Committee requires such information 31
to be provided as part of the total data package whenever an additive is submitted for risk 32
assessment; all such information is regarded as suitable for being made available publicly 33
unless requested otherwise and agreed by the JECFA Secretariat. Those submitting data for a 34
JECFA evaluation are advised to consult existing specifications for further guidance, which is 35
available in the Combined Compendium of Food Additive Specifications (FAO, 2005/2006), 36
where the individual criteria used in the elaboration of JECFA specifications are described. 37
The same criteria are used for most additives, but because of their particular characteristics, 38
separate criteria have been developed for enzyme preparations and also for flavouring 39
substances. 40
Specifications may be revised where there is new information available on methods of 41
manufacture or on the characteristics of the product, or where changes or revisions in 42
analytical methods are needed. Such specification changes may trigger a review of the safety 43
evaluation; conversely, a review of the specifications may be needed if the safety is re-44
evaluated. 45
Although all the individual criteria in specifications monographs must be met, 46
additives are mainly defined by a combination of 1) a description of their manufacture, 2) a 47
minimum requirement for the content of the principal functional component(s) of the additive 48
and 3) maximum limits for undesirable impurities. The relative importance of these criteria 49
depends on the nature of the additive; for example, additives composed largely of single 50
components are mainly defined in terms of their chemical purity, whereas the definition of 1
more complex materials relies more on a description of the raw materials and the method of 2
manufacture. 3
4
3.6.3 Stability and fate of additives in food 5
Specifications are intended to apply to the additive as marketed and supplied for food use. In 6
considering whether specifications apply to food additive quality as manufactured or as added 7
to food, JECFA has decided to prepare specifications to cover the normal shelf-life of the 8
additive. Limits are set for decomposition products that may form during normal storage. 9
Manufacturers and users of food additives should ensure good packaging and storage 10
conditions and use good handling practices to minimize deleterious changes in quality and 11
purity (FAO/WHO, 1975a). Information on changes in the composition of food additives 12
during storage should be submitted for evaluation by the Committee. 13
Processing aids are substances that come into contact with food during processing and 14
may unintentionally become part of food because of their incomplete removal. Committees 15
have evaluated a number of processing aids, such as extraction solvents and enzyme 16
preparations, for their safety in use. When evaluating a processing aid, information should be 17
provided on its use and either analytical data on or a computed estimate of the amount of the 18
processing aid carried over into food. Particular attention should focus on any component of 19
the processing aid that may have the potential for biological effects, such as ethylenimine 20
leaching from polyethylenimine, an immobilizing agent used in the preparation of 21
immobilized enzyme preparations. 22
Certain food additives perform their functional effect by reaction with undesirable 23
food constituents (e.g. antioxidants react with oxygen in food, and ethylenediaminetetraacetic 24
acid [EDTA] reacts with trace metals) or by reactions that modify food constituents (e.g. 25
flour improvers). Food additives may also degrade under certain conditions of food 26
processing, even though such degradation is detrimental to their functional effect. For 27
example, the sweetener aspartame is transformed to a diketo-piperazine derivative at rates 28
that vary with the acidity and the temperature of the food. For such additives, the Committee 29
has evaluated analyses for additive reaction products in food as consumed and biological 30
testing data on either specific reaction products or samples of food containing the reaction 31
products as consumers would ingest them. 32
In order to ensure that test data are relevant to the way the additive is used in food, the 33
Committee requires information on potential reactivity to be provided as part of submissions 34
for the safety evaluation of all intentional food additives (FAO/WHO, 1981a). Four types of 35
data related to reactivity are required: 36
37
1) the general chemical reactivity of the additive; 38
2) stability of the additive during storage and reactions in model systems; 39
3) reactions of the additive in actual food systems; and 40
4) the metabolism of the additive in living organisms. 41
42
These data are important for relating toxicological data to the actual use of the additive in 43 food. 44 45 3.6.4 Methods of analysis 46
Information submitted to JECFA on the identity and purity of food additives should always 47
include details of the analytical methods that can be used to verify the information. 48
Information on the potential compositional variability of the substance should also be given, 49
together with details of any sampling protocols used to assess this. Insufficient information 50
on analytical methodology is one reason why JECFA may be unable to elaborate suitable 1
specifications, or why it may decide that it is only be able to assign a “tentative specification” 2
pending receipt of the further information required. 3
JECFA specifications incorporate guidance on the analytical techniques that should be 4
used to verify the information. Wherever possible, this should be done by reference to 5
Volume 4 of the Combined Compendium of Food Additive Specifications, FAO JECFA 6
Monographs 1 (FAO, 2005/2006). If this is not possible, details of the test procedures are set 7
out in the individual specifications monographs. 8
Because JECFA specifications are elaborated for worldwide use, the Committee 9
prefers to quote methods that require the use of apparatus and equipment that are available in 10
most laboratories, provided that such methods give results appropriate to the specified criteria. 11
Methods involving more recently developed techniques or equipment will therefore not 12
normally be quoted until such techniques are accepted internationally and are generally 13
available at reasonable cost. However, reference to specific methods of analysis should not be 14
taken as precluding the use of other methods, provided that these are validated as giving 15
results of at least equivalent accuracy and specificity to those quoted. 16
Changes to analytical methods are reviewed from time to time as part of JECFA’s 17
ongoing work. Changes may also be considered when substances are evaluated for the first 18
time or when new information becomes available on substances that have been previously 19
considered. Changes in analytical methodology may also trigger further consideration of 20
specifications—for example, where these changes reveal the possible presence of hitherto 21 unsuspected contaminants. 22 23 3.7 Pesticides—specifications 24 3.7.1 General considerations 25
When an active ingredient is evaluated by JMPR for the first time or during a periodic review, 26
it is characterized by its systematic and common names, its empirical and structural formulae 27
and its Chemical Abstracts Service (CAS) and CIPAC (Collaborative International Pesticides 28
Analytical Council) numbers. Details of the chemical and physical characteristics of the 29
active chemical are required, together with information on the proportions of different 30
components when the compound is a mixture (e.g. of stereoisomers). The need for accurate 31
specifications for pesticides was stressed by the 1968 JMPR (FAO/WHO, 1969) during its 32
deliberations on toxaphene and on technical grades of benzene hexachloride. Because of the 33
unknown or variable composition of these compounds, JMPR was unable to relate the 34
existing toxicological data to the products in agricultural use, and ADIs could not be 35
allocated. Attention was also drawn to the possibility of variability between nominally similar 36
chemicals produced by different manufacturers. 37
An additional issue for pesticides is the need for chemical characterization of, and 38
analytical methods for, active metabolites or breakdown products that may be present in or on 39
the food after treatment according to GAP. 40
In addition to characterization of the active substance(s) (see section 3.1), the “levels 41
of impurities that, according to current knowledge, are considered to be toxicologically 42
significant … must appear in the specifications” (WHO, 1967). Additional considerations 43
regarding the significance of impurities in pesticide preparations are given in Ambrus et al. 44
(2003). 45
The technical-grade pesticide is characterized by its minimum purity, isomer 46
composition and the limits for content of impurities that might impact on the hazard 47
assessment. The possible influence of known or unknown impurities on the toxicity of 48
technical-grade chemicals and of residues resulting from their use was discussed by the 1974 49
JMPR (FAO/WHO, 1975b). This JMPR noted that toxicity studies are generally performed 50
on technical-grade materials produced by commercial-scale processes and that the resulting 1
toxicological data normally, therefore, take into account the presence of impurities (provided 2
that the manufacturing process remains the same). However, it noted the problems 3
encountered with trace amounts of biologically active materials (e.g. 2,3,7,8-tetrachloro-4
dibenzo-p-dioxin in 2,4,5-trichlorophenoxyacetic acid). It further noted that “specifications 5
such as those issued by FAO/WHO are seldom designed to take note of trace-level impurities, 6
unless the importance of such impurities has already been revealed by biological studies”. 7
The 1977 JMPR (FAO/WHO, 1978) noted that data on the nature and level of 8
impurities, intermediates and by-products in technical pesticides were often available, but, 9
because such data could provide valuable information to competitors, they were normally 10
considered to be a “trade secret”. The Joint Meeting therefore agreed that such data would not 11
normally be published in the JMPR reports or monographs. 12
In considering the applicability of recommendations to pesticides from different 13
manufacturers, the 1978 JMPR (FAO/WHO, 1979) indicated that evaluations and 14
recommendations are valid only for the specific technical grade of pesticide examined. 15
Considerable care and knowledge of the detailed specifications are required to extrapolate 16
evaluations and recommendations to products of different quality or composition. 17
Subsequent Joint Meetings (FAO/WHO, 1980, 1981b, 1985) stressed the importance 18
of information on the presence of impurities in technical pesticide products (e.g. the presence 19
of hexachlorobenzene in various pesticides, impurities in phenthoate, and dimethylhydrazine 20
in maleic hydrazide). The need for technical-grade pesticides to meet FAO specifications has 21
also been stressed. It was noted by the 1984 JMPR that occasionally data have been rejected 22
because the test material failed to comply with these specifications (FAO/WHO, 1985). 23
The 1987 JMPR (FAO/WHO, 1987) noted that ADIs based on studies using 24
compounds of specific purity can be relevant to products of different origin or purity, but that 25
there are examples where changes in the amount or type of impurity in the technical material 26
can markedly influence the toxicity of a compound. 27
Toxicity tests should normally be performed on the technical grade of the pesticide. 28
An exception to this is acute toxicity, for which both formulations and technical materials 29
must be tested in order to assess the risk to the applicator. However, the percentage of active 30
ingredient and impurities in the technical-grade material may vary among production batches 31
and may differ at various stages of product development. Furthermore, some toxicity testing 32
is likely to be performed with the product in the early stages of development. Preliminary 33
studies may be performed on batches of material produced within the laboratory in order to 34
assess the potential acute risks to individuals who will be involved in the development of the 35
material. Subsequent studies may be performed on material produced in a pilot plant, while 36
other toxicity studies may be performed on the marketed product, which will be produced in a 37
full-scale manufacturing plant. At each step in this sequence, there is a potential for change in 38
the percentage of the active ingredient in the “technical-grade” material and a potential for 39
change in the quantity and identity of the impurities that constitute the remainder of the 40
“technical-grade” product. It is therefore essential that detailed specifications should be 41
provided for the test material utilized in each study. 42
The active ingredient of the pesticide may exist in two or more forms (e.g. as a 43
diastereoisomeric mixture); this is normally the case for synthetic pyrethroids. Under such 44
conditions, the ratio of isomers in the test material must be clearly specified, because it has 45
been documented that different isomers frequently have different toxicological activities 46
(Green, 1978; FAO/WHO, 1980). For example, an ADI for permethrin (40% cis : 60% trans) 47
was allocated in 1982 (FAO/WHO, 1983b), whereas an ADI for permethrin (25% cis : 75% 48
trans) was not allocated until 1987 (FAO/WHO, 1987). 49
Data on the stability of the test material are also of importance. The percentage of the 1
active material will decrease and that of breakdown products will increase with time if a test 2
compound is unstable under the conditions of storage. This will be of major importance in the 3
evaluation of the results of studies where a single batch of technical material is utilized for a 4
long-term study or a multigeneration study. Variation in the amount of degradation occurring 5
in different batches (i.e. batches of different post-manufacturing age) may complicate the 6
interpretation of a study. Finally, reaction of the active compound with components of the test 7
diet will result in a decreased concentration of active compound and may result in the 8
production of toxic reaction products in the diet. In cases where the percentage of active 9
parent compound decreases and/or the breakdown products are more toxic than the parent 10
compound, NOAELs derived from the toxicity tests may not be representative of the product 11
as used. 12
To date, JMPR has evaluated only the active ingredients of pesticide formulations. 13
The toxicity of essentially inert ingredients—such as solvents, emulsifiers and 14
preservatives—that may occur as residues in food has not been considered. 15
In 1999, FAO, in cooperation with WHO, introduced a revised procedure for 16
evaluating data to establish specifications for pesticides (FAO, 1999). Specifications would 17
include all relevant impurities, defined as “those by-products of the manufacture or storage of 18
a pesticide which, when compared with the active ingredient, are toxicologically significant 19
to health or the environment, are phytotoxic to treated plants, cause taint in food crops, affect 20
the stability of the pesticide, or cause any other adverse effect.” The long-term aim was for 21
FAO/WHO specifications for technical material to be developed before the establishment of 22
an ADI or an ARfD. 23
Under the revised procedure of 1999, FAO/WHO specifications apply only to the 24
products of manufacturers whose technical materials (defined as active ingredients isolated— 25
as far as is practicable—from starting materials, solvents, etc.) have been evaluated as 26
satisfactory by the Joint FAO/WHO Meeting on Pesticide Specifications (JMPS) (FAO/WHO, 27
2006). 28
Data required to support the development of pesticide specifications by JMPS include 29
identity of active ingredient, physicochemical properties, route of manufacture, minimum 30
active ingredient content, maximum limits for impurities present above 1 g/kg, maximum 31
limits for impurities proposed as relevant at <1 g/kg, identity and nominal content of 32
compounds intentionally added to the technical material, toxicological and ecotoxicological 33
summaries, properties of formulations, and methods for the analysis and testing of technical 34
material and formulations (includes methods for relevant impurities). 35
In 2005, JMPR reiterated the previous conclusions that specifications for the technical 36
material should be developed for a pesticide before it is evaluated within the periodic review 37
programme of the CCPR and for new pesticides, but that this should not delay evaluation of 38
pesticides by JMPR (FAO, 2005a). 39
40
3.7.2 Identity and purity 41
Guidance on the development and use of specifications for pesticides evaluated by JMPR was 42
elaborated in 2002 by the first meeting of JMPS (FAO/WHO, 2002). 43
For the purposes of the characterization: 44
45
• A detailed specification of the test material used in each individual study must be 46
provided. 47
• Where isomeric mixtures exist, the ratio of isomers in the test material must be clearly 48
specified. 49
For purity considerations: 1
2
• The percentage of the active ingredient in any technical material used in a toxicity test or 3
proposed for marketing must be specified. 4
• Percentages of all identifiable impurities should be specified. 5
• Data on manufacturing processes may be required to permit determination of potential 6
impurities; however, because of confidentiality, such data will not be published in JMPR 7 monographs. 8 9 3.7.3 Stability 10
• Stability of the test material during storage and in the diet must be adequately investigated 11
and reported. 12
• Where instability in diets is observed, possible reaction products and the nutritional 13
quality of the diet should be investigated. 14
15
3.7.4 Physical and chemical properties 16
Data submitted on physical and chemical properties of the pure active ingredient are 17
evaluated in order to recognize the influence of these properties on the behaviour of the 18
pesticide during and after its application on crops or animals. JMPR receives data on 19
pesticide physical appearance, solubility in water (including pH effects) and in organic 20
solvents, vapour pressure, dissociation constant, n-octanol–water partition coefficient, 21
hydrolysis and photolysis. 22
The volatility of the compound, its stability in water and sensitivity to irradiation with 23
ultraviolet light may considerably affect its disappearance after application. 24
Epimerization may sometimes be observed during hydrolysis studies. For example, 25
esfenvalerate (2S,αS) was epimerized to the 2S,αR isomer more quickly than it was 26
hydrolysed under experimental conditions (FAO, 2002a). The proportion of epimers may 27
influence the toxicity. 28
The solubility of the pesticide is of great importance, because the ability of the 29
compound to penetrate plant and animal tissues is dependent on its solubility in water and 30
organic materials. 31
JMPR (FAO, 1991b) chose the octanol–water partition coefficient (Pow) of a pesticide 32
as the physical property to represent solubility in fat. In general, the compound would be 33
designated fat soluble when log Pow exceeded 4, but not when log Pow was less than 3. 34
Subsequently, JMPR (FAO, 2005b) examined the available data and concluded that 35
partitioning in meat between fat and muscle is essentially independent of log Pow for 36
compounds with values greater than 3. In consequence, and when no evidence is available to 37
the contrary, the compound is designated fat soluble when log Pow exceeds 3, but not when 38
log Pow is less than 3. Although log Pow of an individual component of a residue is an initial 39
indicator, it is not the only or prime factor used to assess fat solubility. The distribution of the 40
residue (as described in the residue definition) between muscle and fat obtained from 41
livestock metabolism and feeding studies should be the prime indicator of fat solubility. 42
43
3.7.5 Analytical methods 44
Pesticides are very diverse chemical compounds with a wide range of physical and chemical 45
properties. Analytical chemists have devised methods for analysis of pesticide residues, 46
including their transformation products, in a wide range of situations. 47
Methods should be validated to provide the supporting information on accuracy, 48
selectivity and reliability of the data generated by the method. Hill and Reynolds (1999) 49
explained the practicalities and compromises in validating analytical methods for pesticide 1
residues in food and animal feeds. 2
Analytical methods should be suitable for the required purpose, which usually falls 3
into one of three areas of residue analysis: 4
5
• data generation for registration; 6
• MRL enforcement and surveillance; and 7
• total diet studies. 8
9
JMPR evaluates the analytical methods used for generation of residue data to check 10
that the methods are suitable for the relevant analytes and sample types. The methods should 11
be supported by adequate validation data, especially on analytical recoveries, LOQ and 12
selectivity. 13
JMPR also reports information on methods that are suitable for MRL enforcement and 14
whether particular compounds are suitable for analysis by multiresidue methods. 15
Most analytical methods for residues of simple organic compounds in a food 16
commodity matrix consist of three main steps: 1) extraction, 2) cleanup and 3) determination 17
or measurement usually involving GC or LC. However, some analytes require other 18
approaches. For example, a chemical reaction may be needed to release an analyte from the 19
residue, or a derivative of the analyte may have to be prepared for the chromatography step 20
(e.g. the analytical method for residues of dithiocarbamates is non-specific and measures 21
carbon disulfide released by treatment with acid). 22
JMPR evaluates methods used for generating preregistration residue data that are 23
needed for analysis of samples from: 24
25
• supervised residue trials; 26
• food processing studies; 27
• livestock feeding studies and direct animal treatment; and 28
• sample storage stability studies. 29
30
Analytes include compounds to be specified in the residue definitions (i.e. the MRL 31
enforcement residue definition and the dietary intake risk residue definition). This substance 32
would, in the majority of cases, be the parent compound, with inclusion of one or more 33
metabolites or other transformation products when appropriate, based on the metabolism of 34
the pesticide in plants and animals. 35
The LOQ of the analytical method for residue trials would be typically 0.01–0.05 36
mg/kg. Lower LOQs may be needed in some circumstances. For example, dietary intake 37
calculations for a pesticide with a low ADI or ARfD might suggest that residues need to be 38
measured at levels less than 0.01 mg/kg, necessitating a method with a lower LOQ. Total diet 39
studies may need especially low LOQs for some analytes. 40
The FAO Panel of JMPR defines the LOQ of an analytical method for residues in 41
specified commodities as being the lowest level where satisfactory recoveries were achieved. 42
The LOQ is the smallest concentration of the analyte that can be quantified. It is commonly 43
defined as the minimum concentration of analyte in the test sample that can be determined 44
with acceptable precision (repeatability) and accuracy under the stated conditions of the test. 45
(FAO, 2002b). 46
Analytical recovery data support JMPR decisions on the acceptability or non-47
acceptability of the associated residue data. Recoveries in the 70–120% range are considered 48
satisfactory. JMPR does not normally adjust or correct residue data using analytical recovery 49
data. 50
1
3.7.6 Analytical problems and challenges 2
Residue methods should normally be tested and validated on representative commodities 3
(chosen because of expected residue occurrence), such as: 4
5
• high moisture content plant material (e.g. lettuce, tomatoes); 6
• high oil and protein content (e.g. soybeans, peanuts, avocado); 7
• high starch or sugar content (e.g. cereal grains, potatoes); 8
• acidic commodities (e.g. citrus fruits); 9
• low-moisture feed materials (e.g. maize fodder); 10
• animal tissues (e.g. beef muscle, fat, liver, kidney); and 11
• milk and eggs. 12
13
Some matrices may cause particular problems (e.g. poor recoveries or interferences). 14
For example, onions, broccoli and cabbage release carbon disulfide from endogenous 15
precursors when treated with acid, which interferes with the measurement of dithiocarbamate 16
residues (FAO, 1993a). In another example, recoveries of approximately 50% were obtained 17
when racemic glufosinate was spiked into transgenic glufosinate-tolerant soybean plants, 18
because the transgenic plant material very rapidly metabolized the L-enantiomer, leaving 19
only the D-enantiomer for measurement (FAO, 1998b). 20
Analysts should be aware of interferences from the matrix that could apparently add 21
to the measured residue or cause losses during the procedure. For example, the 22
chromatographic response to indoxacarb residues was enhanced by the crop extract, 23
necessitating the preparation of standard solutions in crop extract (FAO, 2005c). 24
The analysis of ethylenethiourea residues in the presence of parent 25
ethylenebisdithiocarbamate (mancozeb) presents special problems that may not be covered by 26
normal validation testing. Mancozeb residues may be converted to ethylenethiourea under 27
some conditions during the analytical procedure (estimated conversion rates 0.22–8.5%). In 28
samples where mancozeb is present at concentrations up to 1 mg/kg, it is possible that 29
ethylenethiourea residues close to but above the LOQ (0.02 mg/kg) may have been produced 30
during the analytical procedure (FAO, 1993b). 31
The extraction efficiency for residues bound within the matrix cannot be tested by 32
spiking samples shortly before analysis, but bound 14C-labelled residues from metabolism 33
studies may be used to check extractability. Samples of plant and animal tissue from the 34
radiolabelled metabolism studies containing bound 14C residue levels may subsequently be 35
analysed by the routine residue method (or, at least, the extraction procedure of the routine 36
method) in order to define the extractability of the bound 14C residues. 37
The 1998 JMPR (FAO, 1998a) recommended that “Comparative extraction efficiency 38
studies including the frequently used extraction solvents, such as acetone/water, ethyl acetate 39
and acetonitrile/water should be carried out on samples from metabolism studies for the 40
compounds which are expected to be included in the residue definition(s)”. A IUPAC report 41
(Skidmore et al., 1998) stated that “The extraction procedures used in residue analytical 42
methods should be validated using samples from radiolabelled studies where the chemical has 43
been applied in a manner consistent with the label and Good Agricultural Practices.” 44
In analytical chemistry, the term “common moiety” means that structural portion of 45
different compounds that is the same and that tends to remain intact during chemical 46
reactions. A common moiety analytical method relies on this feature to measure the 47
concentration of a group of related compounds all together. Such a method may be useful 48
when a number of metabolites with the common moiety need to be included in the estimates 49
of dietary intake or when the composition of the residue is quite variable and the common 50
moiety is easier to measure than a specific component. An example of this is the analysis of 1
dithiocarbamate pesticides using acid-release carbon disulfide as the final analyte. 2
An analytical method used for testing the stability of residues during frozen storage 3
needs to be reproducible for the duration of the test (perhaps 2 years), and it should 4
distinguish the starting compound from degradation products. If analytical recoveries are too 5
variable, the variability will obscure conclusions about stability, and only large losses during 6
storage will be observable. 7
8
3.8 Veterinary drug residues 9
3.8.1 General considerations 10
The basic data requirements were established by the thirty-second meeting of JECFA 11
(FAO/WHO, 1988). The Committee must be assured that any veterinary drug it evaluates is 12
well characterized, with details of the chemical and physical properties of the drug and the 13
identity and concentrations of any major impurities. In addition, the manufacturing process 14
should be described and the consistency and quality of the final products demonstrated. This 15
information must be included in the dossier submitted for review by the Committee and is 16
used to define the substance used in the studies that lead to the establishment of the MRLVDs 17
(MRLs for a veterinary drug) and the ADI. 18
Veterinary drugs cover a broad range of chemical structures and usually undergo 19
metabolism after administration to an animal. Modes of administration include injection, 20
implantation, dermal application by spray or pour-on, and inclusion in feed or water, all of 21
which may have different rates of adsorption, with possible differences in the tissue 22
distribution and nature of the residues. The form and the distribution of the residues that 23
result from each authorized mode of application in each species must be determined, and the 24
depletion of the residues from edible tissues or animal-derived foods must be studied. A 25
marker residue must be identified, which is usually the form of the drug (parent compound or 26
metabolite) that is found at the highest concentration for the longest period in the target food. 27
The relationship of this marker residue to the total residue of the drug must be determined, 28
usually through treatment of experimental animals with an isotope-labelled form of the drug. 29
The tissue in which the highest residues are found is usually designated as a “target tissue” 30
for routine monitoring purposes. 31
Validation requirements for analytical methodology, whether intended for use in 32
pharmacokinetic and metabolism studies, residue depletion studies or in a regulatory control 33
programs for residues of veterinary drugs, are essentially the same. Performance 34
characteristics to be determined include linearity, specificity, accuracy, precision, limit of 35
detection (LOD), LOQ, practicability and applicability under normal laboratory conditions 36
and susceptibility to interference. Validation thus addresses all aspects of performance 37
characteristics of the analytical methods. Target values for method precision and recovery 38
have been established by the CCRVDF for the concentrations typically required to support 39 MRLVDs (FAO, 1993c). 40 41 3.8.2 Analytical methods 42
The first meeting of the Committee devoted exclusively to the evaluation of veterinary drugs 43
identified criteria to be applied in the assessment of analytical methods, which included 44
accuracy, precision, specificity, sensitivity, reproducibility, reliability and cost-effectiveness 45
(FAO/WHO, 1988). The Committee recognized that analytical methods are required to 46
“detect, quantify and positively identify residues of veterinary drugs; support toxicological, 47
drug metabolism, and pharmacokinetic studies; support residues studies of compounds to be 48
evaluated by the Committee; and satisfy the needs of public health agencies”. The initial 49
focus of JECFA was to ensure that methods used in the pharmacokinetic and residue 50
depletion studies evaluated by the Committee had been suitably described and appropriately 1
validated. The ninth meeting of the CCRVDF decided that no MRLVD should advance to 2
Step 8 of the process without a suitable method being identified to support the MRLVD. This 3
decision added emphasis to the role of JECFA in identifying analytical methods suitable for 4
regulatory use as part of their review (FAO/WHO, 1997). The eleventh meeting of the 5
CCRVDF determined that JECFA would have primary responsibility for review of methods 6
for compounds considered by the fiftieth and subsequent meetings of JECFA (FAO/WHO, 7
1999). The fifty-second meeting of JECFA approved a guidance document “JECFA 8
Requirements for Validation of Analytical Methods”, published with the residue monographs 9
from the fifty-eighth meeting of JECFA (FAO, 2002c), which updated the criteria established 10
at the thirty-second meeting of JECFA. 11
During JECFA review, the primary requirement for methods used in pharmacokinetic 12
and residue depletion studies is that the method has been shown to have performed reliably in 13
the hands of the analyst or analysts involved in that specific study. The dossier reviewed by 14
JECFA usually includes a complete validation report for the method, particularly if the 15
method has not been published in the peer-reviewed scientific literature. In the absence of 16
such a method, temporary MRLVDs may be established subject to provision of a validated 17
method to a subsequent meeting of JECFA. 18
For some compounds evaluated by JECFA, no residues are detected in one or more of 19
the four edible target tissues from any of the animals to which the drug has been administered 20
either at any time of sampling or at the time-point on the depletion curve at which MRLVDs 21
are established consistent with the ADI. In such cases, CCRVDF has requested that JECFA 22
establish MRLVDs for these tissues in which no residues have been detected, based on the 23
LOQ of the available residue control method, provided that such MRLVDs are consistent 24
with adequate health protection. 25
26
3.8.3 Analytical problems and challenges 27
JECFA and CCRVDF have not in the past usually recommended analytical methods for 28
residues of substances for which no ADI or MRLVD has been established. There are some 29
apparent exceptions, but these relate to compounds for which an ADI and MRLVDs have 30
been established and later withdrawn, or to compounds for which there has been sufficient 31
information available that a suitable monitoring method could be identified to assist national 32
authorities. 33
Experiments suitable for providing statistically based evidence of performance of 34
screening tests are similar to those described in a performance verification programme that 35
was established to demonstrate the suitability of test kits (AOAC, 1994). For validation of 36
confirmatory methods based on MS, requirements have been elaborated in documents 37
published by the European Communities (EC, 2002), the United States Food and Drug 38
Administration (FDA, 2003) and the American Society for Mass Spectrometry (Bethem et al., 39
2003). These require the presence of a match with the chromatographic retention time of a 40
standard, the presence of a minimum number of characteristic (structurally significant) 41
fragment ions and an agreement within specified limits between the ratios of the ions present 42
in a standard with those present in the sample. 43
44
3.9 Contaminants 45
The data required for the characterization of a contaminant should include its concentrations 46
in foods and the total diet, from as many countries as possible. The sixty-fourth meeting of 47
JECFA recommended that the data should be formatted using the Global Environment 48
Monitoring System – Food Contamination Monitoring and Assessment Programme 49
(GEMS/Food) to facilitate the collation and quality control of the data. The data should be 50
