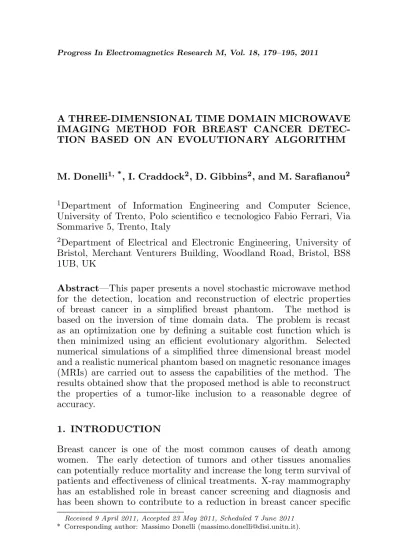

A THREE-DIMENSIONAL TIME DOMAIN MICROWAVE IMAGING METHOD FOR BREAST CANCER DETEC-TION BASED ON AN EVOLUDETEC-TIONARY ALGORITHM
M. Donelli1, *, I. Craddock2, D. Gibbins2, and M. Sarafianou2
1Department of Information Engineering and Computer Science,
University of Trento, Polo scientifico e tecnologico Fabio Ferrari, Via Sommarive 5, Trento, Italy
2Department of Electrical and Electronic Engineering, University of
Bristol, Merchant Venturers Building, Woodland Road, Bristol, BS8 1UB, UK
Abstract—This paper presents a novel stochastic microwave method for the detection, location and reconstruction of electric properties of breast cancer in a simplified breast phantom. The method is based on the inversion of time domain data. The problem is recast as an optimization one by defining a suitable cost function which is then minimized using an efficient evolutionary algorithm. Selected numerical simulations of a simplified three dimensional breast model and a realistic numerical phantom based on magnetic resonance images (MRIs) are carried out to assess the capabilities of the method. The results obtained show that the proposed method is able to reconstruct the properties of a tumor-like inclusion to a reasonable degree of accuracy.
1. INTRODUCTION
Breast cancer is one of the most common causes of death among women. The early detection of tumors and other tissues anomalies can potentially reduce mortality and increase the long term survival of patients and effectiveness of clinical treatments. X-ray mammography has an established role in breast cancer screening and diagnosis and has been shown to contribute to a reduction in breast cancer specific
Received 9 April 2011, Accepted 23 May 2011, Scheduled 7 June 2011
is used. The method is assessed by considering a simple three dimensional breast model and a realistic numerical phantom based on MRIs. The positions of the transmitting /receiving probes are chosen in order to accurately model the experimental prototype developed in [10]. The paper is structured as follows: after a general formulation of the time domain scattering problem reported (Section 2), the procedural schema of the proposed evolutionary algorithm is presented (Section 3). Section 4 reports some selected numerical simulations concerning a simple three-dimensional breast model and the MRIs based model. Finally in Section 5, conclusions are drawn, and areas for future work are examined.
2. MATHEMATICAL FORMULATION
Let us consider the three dimensional model of human breast shown in Figure 1. The breast is represented as a hemisphere of radius Rb, and the chest of the patient with a tissue layer of thicknessTc. The breast is surrounded by 31 probes which can act as transmitters or as receivers. The breast is illuminated with a wide band pulse transmitted by one of the probes, while the measured field is collected by the remaining 30. The topology of the array mimics the experimental system developed by [4]. We assume the breast is immersed in a coupling liquid which completely fills the investigation scenario. The goal of the method
is to reconstruct the characteristics of the malignant tissue namely the position of the center. The diameter and electric characteristics starting from the time domain scattered field are collected at the receiving probes. A transmission line matrix TLM solver [26] is used to produce synthetic measured and trial data. To apply the stochastic optimization method and solve the above inverse scattering problem, a cost function has to be formulated to estimate the errors between the scattering data, obtained from the actual configuration and the trial solution. The following relation represents the simplest expression for the error functional equation:
Φ(x) =
Z T
t=0
G X
g=1
R X
r=1 ¯ ¯
¯Eg,r(z)(x, t)−Eg,r(z),act(t) ¯ ¯ ¯2 ¯
¯
¯Eg,r(z),act(t) ¯ ¯ ¯2
dt (1)
wherex={xt, yt, zt, Dt, εt, σt} is a vector of unknowns which define
the characteristics of the malignant tissue,Eg,r(z)(x, t) andEg,r(z)act(t) are
the time domain electric fields for the reference scenario and for a trial solution, collected at the receiving probe r when transmitting a pulse from probe g. The minimization of (1) is obtained by constructing a sequence of trial solutions with k = 1, . . . , K, being
k the iteration number, which converges toward the optimal solution
xopt = arg{min[Φ(x)]}.
3. THE BEE ALGORITHM
scouts. A bee waiting on the dance area to make a decision about choosing a food source, is called an onlooker, the bee going to the food source it visited previously is called an employed bee, and a bee carrying out a new random search is called a scout. In the following these three main processes, which govern theABC algorithm, will be discussed. In order to describe the ABC algorithm, let us consider a colony Π ofC bees
Π =
½
Bo;o= 1, . . . , O= C 2
¾ ∪
½
Be;e= 1, . . . , E = C 2
¾
(2)
where O and E are the number of onlooker and employed bees respectively. In this implementation we consider the first half of the colony as employed artificial bees and the second half as onlookers. For each employed bee a food source position, which represents a trial solution of the optimization problem, is defined as follows:
xek=
n
xe,jk ;j= 1, . . . , J o
(3)
where J is the number of unknowns, and k the iteration number. In the ABC algorithm, each cycle of the search consists of three steps: sending the employed bees to the food sources; measuring the amount of food; selecting the food sources investigated by the onlookers after sharing the information found by employed bees. The iterative procedure is summarized in the following:
- Initialization. A population ofXk={xke;e= 1, . . . , C2}positions
is randomly generated. As stated above a food position represents a trial solution of the optimization problem, and the amount of food corresponds to the fitness of the associated solution. The food positions are ranked according to their fitness value computed by considering the cost function for the problem at hand, φek = φ{xek}, e = 1, . . . , C2. The employed bees then memorize the position of their specific food source, while the onlooker bees memorize all the food sources. The following steps will be iterated until the requirements are met.
- Onlookers food source selections. Onlookers select a food source
by using a probability based process. For each food source they compute a probability value according the following relation:
pe = φe{xek} Pc
2 e=1φ
© xe
k
ª (4)
- Employed bees food sources improvements. To produce new food position from the old one, the employed bees use the following update equation:
xe,j(k+1) =xe,jk +Re,j(xe,jk −xh,jk ) j= 1, . . . , J e= 1, . . . ,C
2 (5) whereeis the food source index,his the source position chosen by the onlooker bee, andRe,j is a random number generator between
0 and 1.
- Scouts explorations. If a solution representing a food source is not
improved after a predetermined maximum number of iterations (Lmax), then that food source is abandoned by its employed bee. The bee is converted into a scout which, is placed at a randomly generated new food source. Lmaxis known as the food source limit
it is an important control parameter of the algorithm. A schematic which summarizes the algorithm is reported in Figure 2.
Pi
yes Stopping Criteria?
End Save the best food
source Start
Send the employed on the food sources of the food sources
The onlookers and estimate the fitness
choose the fitness sources
The employed bees move looking for new
food sources
Evaluate the fitness of the food sources
The food source improve?
yes
the employed bee memorize the new
food source l = l + 1
yes no
no
l >= L
The employed bee
no become a scout and it is
placed on a new food source Initialize a population
X = X + R (X
ij k (k + 1)
ij ij ij k
k kj
- X )
max
Table 1. Dielectric properties of the homogeneous breast tissue used in the considered three dimensional numerical model.
Tissue ε σ (S/m) Coupling Liquid 9.0 0.200
Chest wall 20.0 0.297 Tumour 50.0 0.794 Normal Breast 20.0 0.297
4. NUMERICAL RESULTS
In this section, the reconstruction methodology described in the previous section is assessed by numerical simulations. Three dimensional numerical breast models are considered. The investigation domain is a rectangular domain of 150×150×100 mm3. The chest of
the patient is simulated with a layer of thicknessTc= 20 mm and the
breast is modeled with a hemisphere of diameter 2∗Rb = 150 mm.
We assume the breast immersed in a coupling liquid (εback = 9, σback = 0.2) which completely fills the investigation scenario. The
dielectric characteristics of the different components of the considered breast model are summarized in Table 1 and it is assumed that the dielectric characteristic of the tissues are constant in the whole frequency range of the considered interrogating pulse [31, 32].
A TLM-based solver [26] is used to produce synthetic measured and trial data. In order to avoid committing the inverse crime the measured field data for the direct problem is synthetically generated using a grid with cell size ∆x = ∆y = ∆z = 0.5 mm, the inverse problem is characterized with a grid size of ∆x= ∆y= ∆z= 0.7 mm. In particular the developed model consider 4.5 and 3.6 millions of cells for the direct and inverse problem respectively. The direct and inverse process considere 2000 time steps with a ∆t = 1.6×10−12s.
To limit the computational burden in all experiments we use only 5 views. For each view one probe is used as transmitter while the remaining 30 probes act as receivers, to collect the scattered data. In order to simulate a realistic environment, noise has been added to the numerical data, in particular an AWGN noise of SNR = 10 dB has been used [15, 16]. We consider the transmitter to be a point source, polarized along the z-axis, a single cycle sinusoid pulse with a 3 dB bandwidth of 3 GHz and a center frequency of 2 GHz has been used for the excitation Figure 3.
way. An optimum population of C = 10 bees have been considered (five onlookers and five employed chosen in a completely random way), and Lmax was set to 5. Due to the high spatial resolution required, the computational burden of the three dimensional geometry being considered is quite high. For each view the time required to estimate the time domain scattering data on a personal computer equipped with an AMD Athlon (TM) 6000+ quad-core processor and 4 GB RAM is about 35 minutes. For the number of views and the
-0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
Amplitude [V]
Time x10-9
[s]
Figure 3. The wideband pulse adopted as source for generate the impinging electromagnetic field.
Depth [mm] 0
-30
-60
-90
-100 -75
-50 -25
0 25
50 75
100
Height [mm] -75
-50 -250
25 50 75
100
Width [mm]
chosen population dimension, each iteration the inversion algorithm will take about 15 hours. In order to reduce the computational time the inversion procedure has been implemented as a parallel process following the guidelines reported in [25]. A cluster of five PC was used, reducing the computational time for a single iteration to about 3.75 hours. In the first example, we consider a breast model with a
Dt = 10 mm diameter malignant inclusion of (εt = 50, σt = 0.794)
placed at xt = yt = 0 mm, zt = −51 mm. The reconstruction
procedure described in the previous sections has been applied in order to localize the coordinates of the tumor center, the dimensions, and to reconstruct the dielectric parameters, which are important in order to identify the nature of the tissue. The iterative procedure reaches a stationary condition after about 20 iterations. The results are reported in Figures 4 and 5. Figure 4 shows the reconstruction of the tumor
0 10 20 30 40 50 60
0 5 10 15 20 25
εr
Malignant
Normal
Reconstructed
0 0.2 0.4 0.6 0.8 1
σr
Malignant
Normal
Reconstructed
0 0.2 0.4 0.6 0.8 1 1.2
Dr
Actual Dimension Reconstructed Iteration Number, k
(a) (b)
(c)
0 5 10 15 20 25
Iteration Number, k
0 5 10 15 20 25
Iteration Number, k
center coordinates. The blue circle represents the actual coordinates of the tumor, and the red line the trajectory of the tumor center derived from the best solution of the colony during the minimization process. In Figure 4 it can be seen that after few iterations the tumor is located with a satisfactory degree of accuracy, although the starting point (completely randomly chosen) is rather distant from the exact position of the tumor. Figures 5(a) and (b) show the reconstructed values of the electric permittivity and conductivity versus the iteration numberk. At the end of the minimization process the relative error is less than 5% for the conductivity and less than 6% for the permittivity. Also the estimation of the tumor dimension versus the iteration number, reported in Figure 5(c), is retrieved with a satisfactory degree of accuracy; at the end of the iterative procedure the relative error in the tumor size is less than 2 mm. In the second experiment, the diameter of the malignant inclusion is varied between 5 mm and 20 mm. While all other parameters are the same as in the previous experiment. Figure 6(a) shows the quantitative error in the reconstructed permittivity valuesχeps and conductivity χs. It can be seen that for inclusions above 10 mm the error is never greater than 10% in χeps and 15% for χs. While for smaller inclusions the error
is no greater than 25%. Figure 6(b) shows the quantitative error in the tumor size and center position. Concerning the estimation of the tumor size we obtain an absolute error of about 3 mm for tumors with diameters from 10 mm up to 20 mm while for a diameter of 0.5 mm the absolute error fall down to 1 mm. The localization capabilities of the method are quite good, the coordinate of the tumor center are retrieved with an error less than 10% for all tumor dimensions. The estimation of the tumor diameter is also satisfactory, the 20% error in the 5 mm
0 5 10 15 20 25 30
5.0 10.0 15.0 20.0
Error
%
Diameter [mm] χeps
χs
0 2 4 6 8 10
5.0 10.0 15.0 20.0
Error
%
Diameter [mm] χx
χy
χz
(a) (b)
Table 2. Breast model with a single malignant inclusions. comparisons of different stochastic optimizers.
GA PSO DE ABC
xb 20.21 5.31 2.21 0.30
yb −25.32 20.21 −1.67 0.42
zb −14.51 −22.12 −20.21 −24.22
Dt 25.32 12.43 12.31 8.12 ε 38.21 41.23 41.30 48.81
σ 0.455 0.531 0.554 0.623
Table 3. Breast model with two inclusions. Localization, dimension estimation, and retrieved electric parameters of the malignant inclusion. The dimensions are in mm.
Tissues xb yb zb Dt ε σ(S/m)
Actual Malignant 40.0 40.0 −30.0 10.0 50.0 0.794
Actual Fibro 20.0 20.0 −30.0 10.0 25.0 0.350
Retrieved Malignant 25.3 21.2 −24.3 23.1 40.1 0.604
reconstruction representing an absolute error of only 1 mm. For the sake of comparisons Table 2 shows the reconstructed parameters obtained by applying inversion procedure based on a standard genetic algorithm (GA), on a particle swarm (PSO) based procedure, and on the differential evolution (DE) based approach.
All the considered stochastic algorithms have been initialized with the same population consisting of 10 individuals, and the maximum number of considered iteration was fixed to K = 25. As far as the GA, PSO and DE parameters the following parameters configuration has been considered: Pc = 0.9 (crossover probability) and Pm = 0.01
(mutation probability) for the GA, Pc = 0.5 (crossover probability)
and Q = 0.8 for the DE, C1 = C2 = 2.0 (acceleration terms) and
It is worth noticed that the proposed method is not able to detect multiple targets, we decide to consider this multi targets geometry for the sake of comparison and in order to show the limitation of the current version of the inversion procedure. The malignant tissue (εt = 50, σt = 0.794) and the fibro glandular inclusion (εf ibro = 25, σf ibro = 0.25) are placed at xt = yt = 40 mm, zt = −30 mm and xf ibro = yf ibro = 20 mm, zf ibro = −30 mm respectively. Table 3
shows the qualitative and quantitative parameters reconstructed after the minimization procedure. It can be seen that as expected the method was not able to correctly identify the malignant tissues, in fact the reconstructed object has an area two times larger than the actual dimension of the malignant tissues and is located in the middle of the two inclusions, despite the not so high accuracy the method localized as malignant inclusion a spatial region very close to the real malignant tissue. To assess the capabilities of the proposed methodology in a realistic scenario, the last experiment deal with a realistic numerical breast phantom based on magnetic resonance images (MRI). In particular a numerical phantom characterized with less than 25% of glandular tissue, a Class 1 model according to the convention of the American College of Radiology, has been used. The phantom comes from the online database of anatomically realistic numerical breast phantoms provided by the University of Wisconsin Madison. In particular the ID = 071904 phantom, fibro-connettive tissues of class 1.2 and 1.3, and a cell size of ∆x= ∆y = ∆z= 0.5 mm have been considered. Figure 7 shows the realistic three dimensional breast model, the blue dots represent the fibro-glandular tissue. To take into account the normal heterogeneous nature of the breast the electric characteristics of each cell representing the fibro-glandular tissue has been randomly chosen in the range 25 < ε < 30 for the dielectric permittivity and 0.350< σ <0.450 for the conductivity. As in the first example a singleDt= 10 mm diameter malignant inclusion of (εt = 50, σt = 0.794) placed at xt = yt = 0, zt = −51 mm has been considered. The same algorithm parameters and the same cluster of machine of the previous experiments have been considered. At the end of the iterative procedure stopped afterK = 30 iterations, the method identify an area of dimension Dr = 20 mm located at xr = −10 mm, yr = −15 mm, zr = −75 mm. As can be noticed the
malignant inclusion has been localized and shaped with a satisfactory degree of accuracy. Also the retrieved electric characteristics (εr= 38, σt = 520) of the malignant inclusion are retrieved with a satisfactory
Fibroglandular
Figure 7. The three dimensional realistic numerical breast model based on real MRI data. The green and blue dots show the asimmetric breast geometry and the fibroglandular/fibroconnective inclusions respectively.
is very close to the actual position of the malignant inclusion. It is hoped that by combining this approach with a clustering methods [33] and a gradient based solver (in order to enhance the convergence ratio) the inversion procedure will be able to resolve and correctly identify the malignant tissue. However it is worth noticed that due to the no free lunch theorem [34] one can customize an algorithm or a given methodology in order to obtain superior results only for a class of problems, a superior method able to works on the class of all possible problems do not exist.
5. CONCLUSION
ACKNOWLEDGMENT
The authors wish to thank E. Zastrow, S. K. Davis, M. Lazebnik, F. Kelcz, B. D. Van Veen, and S. C. Hagness of the University of Wisconsin Madison, for kindly provide the online repository of anatomically realistic numerical breast phantoms.
