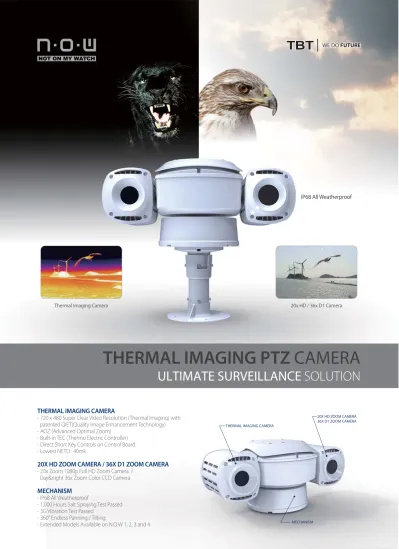

THERMAL IMAGING PTZ CAMERA

(1)

THERMAL IMAGING CAMERA

20X HD ZOOM CAMERA 36X D1 ZOOM CAMERA

Thermal Imaging Camera

20x HD / 36x D1 Camera

THERMAL IMAGING PTZ CAMERA

ULTIMATE SURVEILLANCE SOLUTION

THERMAL IMAGING CAMERA

- 720 x 480 Super Clear Video Resolution (Thermal Imaging) with

patented QIET(Quality Image Enhancement Technology)

- AOZ (Advanced Optimal Zoom)

- Built-in TEC (Thermo Electric Controller)

- Direct Short Key Controls on Control Board

- Lowest NETD : 40mk

20X HD ZOOM CAMERA / 36X D1 ZOOM CAMERA

- 20x Zoom 1080p Full HD Zoom Camera /

Day&night 36x Zoom Color CCD Camera

MECHANISM

- IP68 All Weatherproof

- 1,000 Hours Salt Spraying Test Passed

- 3G Vibration Test Passed

(2)

EXCELLENT RANGE PERFORMANCE

SPECIFICATIONS

DIMENSIONS

ULTIMATE SURVEILLANCE SOLUTION

All TPV Series thermal imaging PTZ cameras are installed on a precision pan/tilt mechanism. It allows the user to rotate & tilt the

camera 360° continuously to increases situational awareness on ultimate weatherproof condition. The Pan/Tilt has 165 preset

positions.

All versions are equipped with a long range daylight/low light camera. The video output of the thermal imaging and daylight/low

light camera are simultaneously available. The daylight camera offers an 20x HD optical zoom or 36x optical zoom.

www.tbtcctv.com

Design and specifications are subject to change without notice.

403dong-703ho, #193, Techno-park 4, Yakdae-dong, Wonmi-gu, Bucheon-city, Gyeonggi-do, Korea Tel: +82 32 621 1941, Fax: +82 32 621 1944

20

mm

27˚

59m 413m 163m 1348m I I D D

60

mm

7.6˚

166m 1376m 488m 4043m I I D D (1.8m x 0.5m) (2.3m x 2.3m)

35

mm

15.6˚

97m 803m 285m 2359m I I D D = IDENTIFICATION = HUMAN = DETECTION = VEHICLE I D 425.5 194.2 112.0 112.0 186.3 127.0 67.8 214.0 124.0 (mm) Model THERMAL MODULE SENSOR Thermal Sensor Pixel Pitch Wave Langth NETD Output Frequency Resolution Lens FUNCTION Calibration Image Flip Invers Mode Freeze Mode AGC Mode Temperature Range Process Image Mode D-Zoom(AOZ)

CAMERA MODULE

Image Sensor Total Image Pixels Lens Min. Illumination Luminance S/N ratio

MECHANISM PAN/TILT

Pan Rotation Angle Pan Speed Tilt Rotation Angle Tilt Speed System Accuracy FUNCTION Preset Group Tour Auto Scan Pattern Password Protection VIdeo Output Alarm Input Alarm Actions Aux Output Auto Flip OSD Menu Communication OTHERS Construction Storage Temperature Operating Temperature Certifications POWER Power Consumption Power Supply

Uncooled Micro Bolometer 25㎛ 8 ~ 14㎛ 40mK / F1.0 NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) 720 x 480 (NTSC) / 720 x 576 (PAL) 20mm (Basic), 35mm / 60mm (Option) FUNCTION

Auto / Manual / Interval(sec) Mode Selectable Vertical, Horizontal ON / OFF

ON / OFF ON / OFF ON ( Five steps) / OFF MIN / MAX Temperature Range Selectable

B/W and Three Color Modes x4 (15 steps)

PAN/TILT

0° ~ 360°Endless

Manual : 0.5° ~ 200°/sec (64step), Preset : MAX 200°/sec 0° ~ 360°Endless

Manual : 0.5° ~ 200°/sec (64step), Preset : MAX 200°/sec 0.0225°

FUNCTION

165 positions with 16-character label available for each position with different speed steps and Freeze Preset available Max. 8 Programmable Group Tours (each one consisting of up to 60 preset steps with different steps)

Programable Auto Scan 8 Programmable Patterns (total 480 seconds)

Available

CVBS : 1.0Vp-p / 75Ω , Analog CVBS Out 2Channel (Thermal, Day Light) 4 Alarms (With various programmable states)

Activate preset, Group Tour, Pattern 2 Relay

Digital Auto Flip (Angle Auto Sensing) Yes

RS-485

OTHERS

Aluminum die casting -40°C ~ +60°C -30°C ~ +55°C CE, FCC, IP68

TPV - BD

1/4" Sony Exview HAD CCD NTSC : 811(H) x 508(V) 410K / PAL : 795(H) x 596(V) 470K 36x F=1.6~4.5, f=3.4~122.4mm (Digital : 12X / Total : 432X) 1.4 Lux(DSS OFF) 0.1Lux(Color : 50IRE) 0.01Lux(B/W : ICR ON)

More than 50dB

AC Type

AC24V 2.2A 52.8W (Peak) AC24V 50/60Hz 2.86A DC Type DC12V 5.0A 60W (Peak) DC24V 2.1A 50.4W (Peak) DC12V 6.5A DC24V 2.73A TPV - HD

1/4" 1/2.8 Type Exmor CMOS Sensor 1920 x 1080p 30fps 20x F1.6 - F3.5 / F=4.7mm - 94mm

0.095Lux(HSM ON/DSS OFF) 0.3Lux(HSM OFF/DSS OFF) 0.005Lux(HSM ON/DSS ON) More than 50dB

AC Type

AC24V 2.2A 52.8W (Peak) AC24V 50/60Hz 2.86A DC Type DC12V 5.0A 60W (Peak) DC24V 2.1A 50.4W (Peak) DC12V 6.5A DC24V 2.73A

(3)

THERMAL IMAGING CAMERA

MECHANISM

Thermal Imaging Camera

THERMAL IMAGING PTZ CAMERA

ULTIMATE SURVEILLANCE SOLUTION

THERMAL IMAGING CAMERA

- 720 x 480 Super Clear Video Resolution (Thermal Imaging) with

patented QIET(Quality Image Enhancement Technology)

- AOZ (Advanced Optimal Zoom)

- Built-in TEC (Thermo Electric Controller)

- Direct Short Key Controls on Control Board

- Lowest NETD : 40mk

MECHANISM

- IP68 All Weatherproof

- 1,000 Hours Salt Spraying Test Passed

- 3G Vibration Test Passed

(4)

20

mm

27˚

59m 413m 163m 1348m I I D D (1.8m x 0.5m) (2.3m x 2.3m)

35

mm

15.6˚

97m 803m 285m 2359m I I D D = IDENTIFICATION = HUMAN = DETECTION = VEHICLE I D

SPECIFICATIONS

• 720 x 480 Super Clear Video Resolution (Thermal Imaging)

with patented QIET(Quality Image Enhancement Technology)

• AOZ (Advanced Optimal Zoom)

• Built-in TEC (Thermo Electric Controller)

• Direct Short Key Controls on Control Board

• Lowest NETD : 40mk

• IP68 All Weatherproof

• 1,000 Hours Salt Spraying Test Passed (Optional)

• 3G Vibration Test Passed

• 360° Endless Panning / Tilting

• Extended Models Available on N.O.W 1, 2, 3 and 4

FEATURES

ULTIMATE SURVEILLANCE SOLUTION

www.tbtcctv.com

DIMENSIONS

300.0 200.0 100.0 200.0 174.3 200.0 114.0 (mm)

TPV-BS thermal security cameras let you see intruders and other threats to your facility’s security clearly in total darkness and

in bad weather. The TPV-BS enclosure provides precision 360° endless pan/tilt control while providing fully programmable

tour and scan. Fully enabled for control and operation over IP and serial networks.

EXCELLENT RANGE PERFORMANCE

B/W

Rainbow

Iron

Glowbow

VARIOUS COLOR SETS

Model THERMAL MODULE SENSOR Thermal Sensor Pixel Pitch Wave Langth NETD Output Frequency Video Output Resolution Lens FUNCTION Calibration Image Flip Invers Mode Freeze Mode AGC Mode Temperature Range Process Image Mode D-Zoom(AOZ)

MECHANISM PAN/TILT

Pan Rotation Angle Pan Speed Tilt Rotation Angle Tilt Speed System Accuracy FUNCTION Preset Group Tour Auto Scan Pattern Password Protection Alarm Input Alarm Actions Aux Output Auto Flip OSD Menu Communication OTHERS Construction Storage Temperature Operating Temperature Certifications POWER Power Consumption Power Supply TPV - BS

Uncooled Micro Bolometer 25㎛ 8 ~ 14㎛ 40mK / F1.0 NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) CVBS : 1.0Vp-p / 75Ω 720 x 480 (NTSC) / 720 x 576 (PAL) 20mm (Basic), 35mm (Option) FUNCTION

Auto / Manual / Interval(sec) Mode Selectable Vertical, Horizontal ON / OFF

ON / OFF ON / OFF ON ( Five steps) / OFF

MIN / MAX Temperature Range Selectable B/W and Three Color Modes x4 (15 steps)

0° ~ 360°Endless

Manual : 0.5° ~ 200°/sec (64step), Preset : MAX 200°/sec 0° ~ 360°Endless

Manual : 0.5° ~ 200°/sec (64step), Preset : MAX 200°/sec 0.0225°

FUNCTION

165 positions with 16-character label available for each position with different speed steps and Freeze Preset available Max. 8 Programmable Group Tours (each one consisting of up to 60 preset steps with different steps) Programable Auto Scan

8 Programmable Patterns (total 480 seconds) Available

4 Alarms (With various programmable states) Activate preset, Group Tour, Pattern 2 Relay

Digital Auto Flip (Angle Auto Sensing) Yes

RS-485

OTHERS

Aluminum die casting -40°C ~ +60°C -30°C ~ +55°C CE, FCC, IP68 AC TypePOWER AC24V 2A 48W (Peak) AC24V 50/60Hz 2.86A DC Type DC12V 4.0A 48W (Peak) DC24V 1.8A 43.2W (Peak) DC12V 5.2A DC24V 2.4A

(5)

THERMAL IMAGING CAMERA

- 720 x 480 Super Clear Video Resolution (Thermal Imaging) with

patented QIET(Quality Image Enhancement Technology)

- AOZ (Advanced Optimal Zoom)

- Built-in TEC (Thermo Electric Controller)

- Direct Short Key Controls on Control Board

- Lowest NETD : 40mk

MECHANISM

- 1,000 Hours Salt Spraying Test Passed

- External OSD Key Control (Open Type Control Panel)

- Concealed Cable Through Type with Junction Box Included

JUNCTION BOX

3 AXIS BRACKET

OPEN TYPE CONTROL PANEL

THERMAL IMAGING WEATHERPROOF CAMERA

(6)

20

mm

27˚

59m 413m 163m 1348m I I D D (1.8m x 0.5m) (2.3m x 2.3m)

35

mm

15.6˚

• 720 x 480 Super Clear Video Resolution (Thermal Imaging)

with patented QIET(Quality Image Enhancement Technology)

• AOZ (Advanced Optimal Zoom)

• Built-in TEC (Thermo Electric Controller)

• Direct Short Key Controls on Control Board

• Lowest NETD : 40mk

• 1,000 Hours Salt Spraying Test Passed

• External OSD Key Control (Open Type Control Panel)

• Concealed Cable Through Type with Junction Box Included

• Easy to Adjust 3-Axis Bracket

SPECIFICATIONS

FEATURES

ULTIMATE SURVEILLANCE SOLUTION

www.tbtcctv.com

DIMENSIONS

EXCELLENT RANGE PERFORMANCE

207.3 285.1 442.9 202.7 61.8 273.6 110.4 (mm)

TPV-SW is a stable static night vision camera equipped with a micro bolometer thermal imaging sensor. Embedded with

QIET(Quality Imaging Enhancement Technology) , AOZ(Advanced Optimal Zoom) and Virtual PTZ it is ideal for short- and

medium-range perimeter surveillance purposes and provides remarkable sharp and detailed images under ultimate harsh

weather conditions.

B/W

Rainbow

Iron

Glowbow

VARIOUS COLOR SETS

Model THERMAL MODULE SENSOR Thermal Sensor Pixel Pitch Wave Langth NETD Output Frequency Video Output Resolution Lens FUNCTION Calibration Image Flip Invers Mode Freeze Mode AGC Mode Temperature Range Process Output Mode Image Mode D-Zoom(AOZ) OSD Menu MECHANISM Dimensions Weight Certifications Outside Control POWER Power Consumption Power Supply ETC. External Interface Operating Temperature TPV - SW

Uncooled Micro Bolometer 25㎛ 8 ~ 14㎛ 40mK / F1.0 NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) CVBS : 1.0Vp-p / 75Ω 720 x 480 (NTSC) / 720 x 576 (PAL) 20mm (Basic), 35mm (Option) FUNCTION

Auto / Manual / Interval (10sec~3,600sec, 10sec step) Mode Selectable Vertical, Horizontal ON / OFF

ON / OFF ON / OFF ON (5 steps) / OFF

MIN / MAX Temperature Range Selectable NTSC / PAL Mode Selectable B/W and Three Color Modes x4 (15 steps) Yes 239mm(W) x 112mm(H) x 145mm(D) 2350g CE, FCC, IP66 Focus, OSD AC Type

AC24V 1.1A 13.2W (Peak) AC24V 1.5A

Rs-232 (9600 ~ 38400bps / N / 8 / 1), KEYPAD (5Key) -35℃ ~ 55℃

DC Type

DC12V 1.1A 13.2W (Normal Status) DC12V 1.4A 16.8W (Peak) DC12V 1.9A

(7)

CONTROL SWITCH / CONNECTER

THERMAL IMAGING MODULE

ULTIMATE SURVEILLANCE SOLUTION

THERMAL IMAGING MODULE

- 720 x 480 Super Clear Video Resolution (Thermal Imaging) with

patented QIET(Quality Image Enhancement Technology)

- AOZ (Advanced Optimal Zoom)

- Built-in TEC (Thermo Electric Controller)

- Direct Short Key Controls on Control Board

- Lowest NETD : 40mk

(8)

20

mm

27˚

59m 413m 163m 1348m I I D D

60

mm

7.6˚

166m 1376m 488m 4043m I I D D (1.8m x 0.5m) (2.3m x 2.3m)

35

mm

15.6˚

SPECIFICATIONS

FEATURES

www.tbtcctv.com

EXCELLENT RANGE PERFORMANCE

DIMENSIONS

ULTIMATE SURVEILLANCE SOLUTION

54.4 58.7 20mm Lens : 61.8 20 / 35mm Lens : 68.8 20mm Lens : 39.5 35mm Lens : 53.0 60mm Lens : 72.5 20mm Lens : 31.9 35mm Lens : 39.7 60mm Lens : 72.6 (mm)

TSM-72, thermal Imaging Module camera, 720 X 480 Video Output with patented QIET(Quality Image Enhancement Technology).

This remarkable uncooled thermal imaging camera is armored with Advanced Thermal Imaging technology, QIET and AOZ

(Advanced Optimal Zoom). QIET is Advanced Digital Image Process handling technology which makes 720 X 480 super clear

video resolution output. AOZ is another advanced Digital Image Process technology, it makes 4 times clear video digital zooming

which is clearly different with current digital zooming.

• 720 x 480 Super Clear Video Resolution

(Thermal Imaging) with patented

QIET(Quality Image Enhancement Technology)

• AOZ (Advanced Optimal Zoom)

• Built-in TEC (Thermo Electric Controller)

• Direct Short Key Controls on Control Board

• Lowest NETD : 40mk

Model THERMAL MODULE SENSOR Thermal Sensor Pixel Pitch Wave Langth NETD Output Frequency Video Output Resolution Lens FUNCTION Calibration Image Flip Invers Mode Freeze Mode AGC Mode Temperature Range Process Output Mode Image Mode D-Zoom(AOZ) OSD Menu MECHANISM Dimensions Weight Certifications Outside Control POWER Power Consumption Power Supply ETC. External Interface Operating Temperature TSM - 72

Uncooled Micro Bolometer 25㎛ 8 ~ 14㎛ 40mK / F1.0 NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) CVBS : 1.0Vp-p / 75Ω 720 x 480 (NTSC) / 720 x 576 (PAL) 20mm (Basic), 35mm / 60mm (Option) FUNCTION

Auto / Manual / Interval (10sec~3,600sec, 10sec step) Mode Selectable Vertical, Horizontal ON / OFF

ON / OFF ON / OFF ON (5 steps) / OFF

MIN / MAX Temperature Range Selectable NTSC / PAL Mode Selectable B/W and Three Color Modes x4 (15 steps)

Yes

20mm Lens : [Body] 54.4mm(W) x 58.7mm(H) x 61.8mm(D), [Lens] 39.5mm(Ø) x 31.9mm(D) 35mm Lens : [Body] 54.4mm(W) x 58.7mm(H) x 68.8mm(D), [Lens] 53.0mm(Ø) x 39.7mm(D) 60mm Lens : [Body] 54.4mm(W) x 58.7mm(H) x 68.8mm(D), [Lens] 72.5mm(Ø) x 72.6mm(D) 350g

CE, FCC Focus, OSD

POWER

DC12V 380mA 4.56W (Normal Status) DC12V 560mA 6.72W (Peak) DC12V 0.74A Rs-232 (9600 ~ 38400bps / N / 8 / 1), KEYPAD (5Key) -15℃ ~ 55℃
