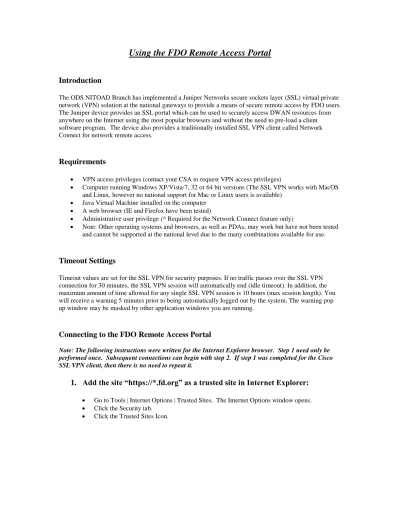

Using the FDO Remote Access Portal
Introduction
The ODS NITOAD Branch has implemented a Juniper Networks secure sockets layer (SSL) virtual private network (VPN) solution at the national gateways to provide a means of secure remote access by FDO users. The Juniper device provides an SSL portal which can be used to securely access DWAN resources from anywhere on the Internet using the most popular browsers and without the need to pre-load a client software program. The device also provides a traditionally installed SSL VPN client called Network Connect for network remote access.
Requirements
VPN access privileges (contact your CSA to request VPN access privileges)
Computer running Windows XP/Vista/7, 32 or 64 bit versions (The SSL VPN works with MacOS and Linux, however no national support for Mac or Linux users is available)
Java Virtual Machine installed on the computer
A web browser (IE and Firefox have been tested)
Administrative user privilege (* Required for the Network Connect feature only)
Note: Other operating systems and browsers, as well as PDAs, may work but have not been tested and cannot be supported at the national level due to the many combinations available for use.
Timeout Settings
Timeout values are set for the SSL VPN for security purposes. If no traffic passes over the SSL VPN connection for 30 minutes, the SSL VPN session will automatically end (idle timeout). In addition, the maximum amount of time allowed for any single SSL VPN session is 10 hours (max session length). You will receive a warning 5 minutes prior to being automatically logged out by the system. The warning pop up window may be masked by other application windows you are running.
Connecting to the FDO Remote Access Portal
Note: The following instructions were written for the Internet Explorer browser. Step 1 need only be performed once. Subsequent connections can begin with step 2. If step 1 was completed for the Cisco SSL VPN client, then there is no need to repeat it.
1. Add the site “https://*.fd.org” as a trusted site in Internet Explorer:
Go to Tools | Internet Options | Trusted Sites. The Internet Options window opens.
Click the Security tab.
Click the Sites button. The Trusted Sites window opens.
Enter the host name “https://*.fd.org”.
Click the Add button.
Click the OK button. The Trusted Sites window closes.
Click the OK button in the Internet Options window.
2. Connect to the FDO Juniper SSL VPN to establish the SSL VPN session.
Note: VPN connections must be made from a computer that is connected to the Internet external to the DWAN (such as a home, hotel, or other public Internet connection).
Open your web browser and go to one of the following addresses: https://vpneast.fd.org
This should bring you to the SSL VPN Service Login Screen. Log in using your Lotus Notes credentials (Firstname <space> Lastname).
Enter your user credentials at the sign in page of the FDO Remote Access Portal.
Notice the browser message bar asking to install the “JuniperSetupClient.cab” add-on.
Click on the bar and choose the option to install the add-on.
3. Signing out of the FDO Remote Access Portal session when you are finished.
The Remote Access Portal toolbar will be displayed in the SSL Portal window while you are logged in. When you are finished using the Remote Access Portal session, it is important to sign out of your session. Sign out of the session by clicking the “Sign Out” icon on the toolbar. Simply closing the browser window will not disconnect the SSL VPN client portal session.
Using to the FDO Remote Access Portal
Seeing the FDO Remote Access Portal Home Screen means you have successfully connected to the DWAN. The Home button in the portal toolbar will always take you back to the home screen. From this screen, you can access most DWAN web servers and web-enabled applications. These can be reached by using the blank address bar under the „Home‟ icon and clicking on the “Browse” button to select the location of your choice.
A detailed user guide can be accessed at any time by clicking on the “Help” icon on the toolbar. A quick reference guide on using the browser bar is provided by clicking on the “tips” link next to the “Browse” button.
Several important sites have already been bookmarked for you including Lotus Notes iNotes webmail and Lotus Notes Sametime. More sites may be automatically bookmarked in the future. Simply click on these bookmarks to access these applications securely through the portal. You can add additional personal bookmarks once you have browsed to those web pages or servers. The Juniper SSL VPN is optimized for web applications and services. Therefore, some applications and programs might not work well from this page. The Network Connect feature can be used for applications requiring more complex resources.
Network Connect
to agree to these. The next time you use the SSL VPN from the same computer, the process will go much quicker since nothing additional will need to be installed.
When the Network Connect service is connected, you should also see a small blinking icon on the system tray in the lower right hand side of your screen. This is the network icon indicating that you are using Network Connect.
Once connected via Network Connect, you will be assigned an IP address. You should be able to access and use most DWAN resources and run client software as you did with the Cisco VPN client. When you are done using the SSL VPN, you should sign out. You can do this by right clicking on the icon in the system tray and choosing “Sign Out” from the pop-up menu. There is also a “Sign Out” tab on the far right side of the browser bar.
Network Connect is installed as an application on the client machine the first time it is started from the FDO Remote Access Portal. There is no need to sign in to the portal again to use Network Connect after the initial use. It can simply be started from the Start menu like any other installed application as needed.
MacOS and Linux Connections
The same basic concepts should work on MacOS X and Linux desktops. Both require a
