Structural Design and Analysis

(1)

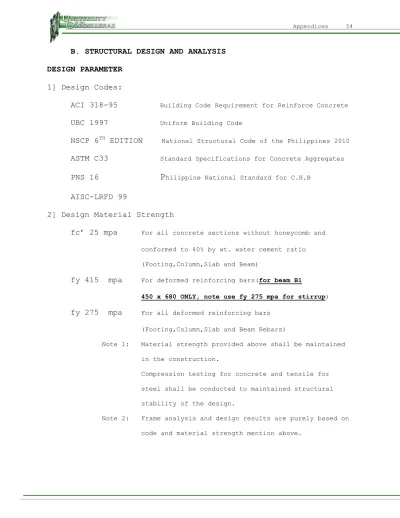

B. STRUCTURAL DESIGN AND ANALYSIS

DESIGN PARAMETER

1] Design Codes:

ACI 318-95 Building Code Requirement for Reinforce Concrete

UBC 1997 Uniform Building Code

NSCP 6

TH

_{EDITION National Structural Code of the Philippines 2010}

ASTM C33 Standard Specifications for Concrete Aggregates

PNS 16

P

hilippine National Standard for C.H.B

AISC-LRFD 99

2] Design Material Strength

fc’ 25 mpa

For all concrete sections without honeycomb and

conformed to 40% by wt. water cement ratio

(Footing,Column,Slab and Beam)

fy 415 mpa For deformed reinforcing bars(for beam B1

450 x 680 ONLY, note use fy 275 mpa for stirrup)

fy 275 mpa

For all deformed reinforcing bars

(Footing,Column,Slab and Beam Rebars)

Note 1: Material strength provided above shall be maintained

in the construction.

Compression testing for concrete and tensile for

steel shall be conducted to maintained structural

stability of the design.

Note 2:

Frame analysis and design results are purely based on

code and material strength mention above.

(2)

3] Design Loads

3.1 Dead Loads

a. concrete 23.56 kN/m

3

b. structural steel 78.60 kN/m

3

c. floor finishing 1.53 kPa

d. ceiling 0.38 kPa

e. construction loads 0.20 kPa

f. CHB 5” 2.75 kPa

g. soil 16.00 kN/m

3

i. water 9.81 kN/m

3

3.2 Live Loads

a. roof 0.75 kPa

b. pedestrian walkways 4.80 kPa

3.3 Wind Loads

Where:

Velocity pressure @ height z for

windward wall at height z above the ground

Velocity pressure @ height z = h

For leeward wall, side walls and roof

at mean roof height

Product of external pressure coefficient and

gust effect factor

Product of internal pressure coefficient and

(3)

Velocity Pressure

Velocity pressure exposure coefficient but

Shall not be less than 1.0

Basic wind speed

Importance factor

3.4 Earthquake Load

Base shear

Where:

Effective weight at a given mode

Gravitational acceleration

Spectral acceleration at a given mode

Where:

Natural period of vibration

Spectral velocity taken from response spectrum

Where:

Seismic deal load at level i

Mode shape at level i

Lateral force at level i

[

]

(4)

SEISMIC ANALYSIS

ETABS v9.6.0 File:OVERPASS Units: KN-m April 20, 2013 20:38

PROJECT INFORMATION PROPOSED OVERPASS

ETABS v9.6.0 File:OVERPASS Units:KN-m April 20, 2013 20:38

S T O R Y D A T A

STORY SIMILAR TO HEIGHT ELEVATION

STORY2 None 3.000 8.100

STORY1 STORY2 5.100 5.100

BASE None 0.000

ETABS v9.6.0 File:OVERPASS Units:KN-m April 20, 2013 20:38

S T A T I C L O A D C A S E S

STATIC CASE AUTO LAT SELF WT NOTIONAL NOTIONAL

CASE TYPE LOAD MULTIPLIER FACTOR DIRECTION

DEAD DEAD N/A 1.0000

LIVE LIVE N/A 0.0000

EQY QUAKE UBC97 0.0000

EQX QUAKE UBC97 0.0000

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

A U T O S E I S M I C U B C 9 7

Case: EQX

(5)

AUTO SEISMIC INPUT DATA

Direction: X

Typical Eccentricity = 5%

Eccentricity Overrides: No

Period Calculation: Program Calculated

Ct = 0.035 (in feet units)

Top Story: STORY2

Bottom Story: BASE

R = 8.5

I = 1

hn = 8.100 (Building Height)

Soil Profile Type = SC

Z = 0.4

Ca = 0.4400

Cv = 0.7467

Seismic Source Type = B

Distance to Source = 4 km

Na = 1.1000

Nv = 1.3333

AUTO SEISMIC CALCULATION FORMULAS

Ta = Ct (hn^(3/4))

If Z >= 0.35 (Zone 4) then: If Tetabs <= 1.30 Ta then T = Tetabs,

else T = 1.30 Ta

If Z < 0.35 (Zone 1, 2 or 3) then: If Tetabs <= 1.40 Ta then T = Tetabs,

else T = 1.40 Ta

V = (Cv I W) / (R T) (Eqn. 1)

V <= 2.5 Ca I W / R (Eqn. 2)

V >= 0.11 Ca I W (Eqn. 3)

V >= 0.8 Z Nv I W / R, if Z = 0.40 and Ca & Cv from code (Eqn. 4)

If T <= 0.7 sec, then Ft = 0

If T > 0.7 sec, then Ft = 0.07 T V <= 0.25 V

AUTO SEISMIC CALCULATION RESULTS

Ta = 0.4097 sec

T Used = 0.5326 sec

W Used = 2617.51

V (Eqn 1) = 0.7337W

V (Eqn 2) = 0.5757W

V (Eqn 3) = 0.2153W

V (Eqn 4) = 0.2233W

V Used = 0.1294W = 338.74

(6)

Ft Used = 0.00

AUTO SEISMIC STORY FORCES STORY FX FY FZ MX MY MZ STORY2 121.07 0.00 0.00 0.000 0.000 -242.131 STORY1 217.67 0.00 0.00 0.000 0.000 -435.341

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

A U T O S E I S M I C U B C 9 7

Case: EQY

AUTO SEISMIC INPUT DATA

Direction: Y

Typical Eccentricity = 5%

Eccentricity Overrides: No

Period Calculation: Program Calculated

Ct = 0.035 (in feet units)

Top Story: STORY2

Bottom Story: BASE

R = 8.5

I = 1

hn = 8.100 (Building Height)

Soil Profile Type = SC

Z = 0.4

Ca = 0.4400

Cv = 0.7467

Seismic Source Type = B

Distance to Source = 4 km

Na = 1.1000

Nv = 1.3333

AUTO SEISMIC CALCULATION FORMULAS

Ta = Ct (hn^(3/4))

If Z >= 0.35 (Zone 4) then: If Tetabs <= 1.30 Ta then T = Tetabs,

else T = 1.30 Ta

If Z < 0.35 (Zone 1, 2 or 3) then: If Tetabs <= 1.40 Ta then T = Tetabs,

else T = 1.40 Ta

V = (Cv I W) / (R T) (Eqn. 1)

V <= 2.5 Ca I W / R (Eqn. 2)

V >= 0.11 Ca I W (Eqn. 3)

V >= 0.8 Z Nv I W / R, if Z = 0.40 and Ca & Cv from code (Eqn. 4)

(7)

If T > 0.7 sec, then Ft = 0.07 T V <= 0.25 V

AUTO SEISMIC CALCULATION RESULTS

Ta = 0.4097 sec

T Used = 0.5326 sec

W Used = 2617.51

V (Eqn 1) = 0.7337W

V (Eqn 2) = 0.5757W

V (Eqn 3) = 0.2153W

V (Eqn 4) = 0.2233W

V Used = 0.1294W = 338.74

Ft Used = 0.00

AUTO SEISMIC STORY FORCES

STORY FX FY FZ MX MY MZ

STORY2 0.00 121.07 0.00 0.000 0.000 2179.182 STORY1 0.00 217.67 0.00 0.000 0.000 3918.069

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

M A S S S O U R C E D A T A

MASS LATERAL LUMP MASS

FROM MASS ONLY AT STORIES

Masses Yes Yes

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

A S S E M B L E D P O I N T M A S S E S

STORY UX UY UZ RX RY RZ

STORY2 6.923E+01 6.923E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 STORY1 1.977E+02 1.977E+02 0.000E+00 0.000E+00 0.000E+00 0.000E+00 BASE 6.634E+00 6.634E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 Totals 2.735E+02 2.735E+02 0.000E+00 0.000E+00 0.000E+00 0.000E+00

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

M O D A L P E R I O D S A N D F R E Q U E N C I E S

MODE PERIOD FREQUENCY CIRCULAR FREQ NUMBER (TIME) (CYCLES/TIME) (RADIANS/TIME) Mode 1 1.15018 0.86943 5.46281 Mode 2 1.13939 0.87766 5.51450 Mode 3 1.01037 0.98973 6.21868 Mode 4 0.24980 4.00326 25.15325 Mode 5 0.24151 4.14061 26.01625 Mode 6 0.21937 4.55843 28.64144 Mode 7 0.10180 9.82277 61.71831 Mode 8 0.08432 11.85996 74.51835 Mode 9 0.04332 23.08486 145.04648

(8)

Mode 10 0.03529 28.33934 178.06135 Mode 11 0.02782 35.94756 225.86518 Mode 12 0.02508 39.87111 250.51760

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

M O D A L P A R T I C I P A T I N G M A S S R A T I O S

MODE X-TRANS Y-TRANS Z-TRANS RX-ROTN RY-ROTN RZ-ROTN NUMBER %MASS <SUM> %MASS <SUM> %MASS <SUM> %MASS <SUM> %MASS <SUM> %MASS <SUM> Mode 1 0.00 < 0> 99.85 <100> 0.00 < 0> 96.74 < 97> 0.00 < 0> 0.00 < 0> Mode 2 99.92 <100> 0.00 <100> 0.00 < 0> 0.00 < 97> 96.33 < 96> 0.00 < 0> Mode 3 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 < 97> 0.00 < 96> 99.73 <100> Mode 4 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 < 97> 0.00 < 96> 0.27 <100> Mode 5 0.00 <100> 0.15 <100> 0.00 < 0> 3.26 <100> 0.00 < 96> 0.00 <100> Mode 6 0.08 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 3.67 <100> 0.00 <100> Mode 7 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 0.00 <100> 0.00 <100> Mode 8 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 0.00 <100> 0.00 <100> Mode 9 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 0.00 <100> 0.00 <100> Mode 10 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 0.00 <100> 0.00 <100> Mode 11 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 0.00 <100> 0.00 <100> Mode 12 0.00 <100> 0.00 <100> 0.00 < 0> 0.00 <100> 0.00 <100> 0.00 <100>

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

M O D A L L O A D P A R T I C I P A T I O N R A T I O S

(STATIC AND DYNAMIC RATIOS ARE IN PERCENT)

TYPE NAME STATIC DYNAMIC

Load DEAD 0.0031 0.0000

Load LIVE 0.0000 0.0000

Load EQY 100.0000 100.0000

Load EQX 100.0000 100.0000

Accel UX 100.0000 100.0000

Accel UY 100.0000 100.0000

Accel UZ 0.0000 0.0000

Accel RX 100.0000 100.0000

Accel RY 100.0000 100.0000

Accel RZ 100.0000 100.0000

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

TOTAL REACTIVE FORCES (RECOVERED LOADS) AT ORIGIN

LOAD FX FY FZ MX MY MZ

DEAD -1.185E-14 1.713E-14 2.725E+03 5.450E+03 -4.905E+04 4.624E-13 LIVE 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 EQY 3.684E-11 -3.387E+02 -6.321E-14 2.091E+03 2.811E-10 -6.097E+03 EQX -3.387E+02 3.471E-11 -1.620E-12 -2.709E-10 -2.091E+03 6.775E+02

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38 PAGE 12

S T O R Y F O R C E S

STORY LOAD P VX VY T MX MY

STORY2 EQY -1.877E-13 2.988E-11 -1.211E+02 -2.179E+03 3.632E+02 9.500E-11 STORY1 EQY -6.321E-14 3.684E-11 -3.387E+02 -6.097E+03 2.091E+03 2.811E-10 STORY2 EQX -8.147E-13 -1.211E+02 3.075E-11 2.421E+02 -9.343E-11 -3.632E+02 STORY1 EQX -1.620E-12 -3.387E+02 3.471E-11 6.775E+02 -2.709E-10 -2.091E+03

(9)

ETABS v9.6.0 File:OVERPASS Units:KN-m May 20, 2013 20:38

STORY DRIFTS

STORY DIRECTION LOAD MAX DRIFT

STORY2 Y EQY 1/616

STORY1 Y EQY 1/122

STORY2 X EQX 1/902

STORY1 X EQX 1/124

Staad.pro analysis-frame analysis

Reactions

Horizontal Vertical Horizontal Moment

Node L/C FX (kN) FY (kN) FZ (kN) MX (kNm) MY (kNm) MZ (kNm) 2 1:DEAD 42.744 533.863 0.000 0.000 0.000 -67.427 2:LIVE 18.929 213.878 0.000 0.000 0.000 -29.889 3:E1 -77.419 -35.205 0.000 0.000 0.000 197.513 4:E2 77.011 33.836 0.000 0.000 0.000 -196.187 5 1:DEAD 0.000 908.443 0.000 0.000 0.000 -0.000 2:LIVE 0.000 388.083 0.000 0.000 0.000 -0.000 3:E1 -89.270 1.369 0.000 0.000 0.000 215.877 4:E2 89.270 1.369 0.000 0.000 0.000 -215.877 8 1:DEAD -42.744 533.863 0.000 0.000 0.000 67.427 2:LIVE -18.929 213.878 0.000 0.000 0.000 29.889 3:E1 -77.011 33.836 0.000 0.000 0.000 196.187 4:E2 77.419 -35.205 0.000 0.000 0.000 -197.513

Beam Maximum Moments

Distances to maxima are given from beam end A.

Beam Node A Length

(m) L/C d (m) Max My (kNm) d (m) Max Mz (kNm)

1 10 3.000 1:DEAD Max -ve 0.000 0.000 3.000 228.863

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 3.000 112.725

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 2.750 0.000

(10)

4:E2 Max -ve 0.000 0.000 3.000 -0.000

Max +ve 0.000 0.000 2.750 -0.000

2 11 5.000 1:DEAD Max -ve 0.000 0.000 0.000 389.779

Max +ve 0.000 0.000 5.000 -628.756

2:LIVE Max -ve 0.000 0.000 0.000 188.109

Max +ve 0.000 0.000 5.000 -275.724

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -201.858

4:E2 Max -ve 0.000 0.000 0.000 197.638

Max +ve 0.000 0.000

3 12 5.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.833 -620.664

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 1.250 -279.480

3:E1 Max -ve 0.000 0.000 5.000 28.227

Max +ve 0.000 0.000 0.000 -105.283

4:E2 Max -ve 0.000 0.000 0.000 100.386

Max +ve 0.000 0.000 5.000 -28.081

4 13 5.000 1:DEAD Max -ve 0.000 0.000 5.000 1.2E 3

Max +ve 0.000 0.000 0.000 -404.145

2:LIVE Max -ve 0.000 0.000 5.000 538.976

Max +ve 0.000 0.000 0.000 -169.189

3:E1 Max -ve 0.000 0.000 5.000 127.005

Max +ve 0.000 0.000 0.000 -13.388

4:E2 Max -ve 0.000 0.000 0.000 11.997

Max +ve 0.000 0.000 5.000 -122.568

5 14 5.000 1:DEAD Max -ve 0.000 0.000 0.000 1.2E 3

Max +ve 0.000 0.000 5.000 -404.145

2:LIVE Max -ve 0.000 0.000 0.000 538.976

Max +ve 0.000 0.000 5.000 -169.189

3:E1 Max -ve 0.000 0.000 5.000 11.997

Max +ve 0.000 0.000 0.000 -122.568

4:E2 Max -ve 0.000 0.000 0.000 127.005

Max +ve 0.000 0.000 5.000 -13.388

6 15 5.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 4.167 -620.664

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 3.750 -279.480

3:E1 Max -ve 0.000 0.000 5.000 100.386

Max +ve 0.000 0.000 0.000 -28.081

4:E2 Max -ve 0.000 0.000 0.000 28.227

Max +ve 0.000 0.000 5.000 -105.283

7 16 5.000 1:DEAD Max -ve 0.000 0.000 5.000 389.779

Max +ve 0.000 0.000 0.000 -628.756

2:LIVE Max -ve 0.000 0.000 5.000 188.109

Max +ve 0.000 0.000 0.000 -275.724

3:E1 Max -ve 0.000 0.000 5.000 197.638

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -201.858

8 17 3.000 1:DEAD Max -ve 0.000 0.000 0.000 228.863

Max +ve 0.000 0.000 3.000 -0.000

2:LIVE Max -ve 0.000 0.000 0.000 112.725

Max +ve 0.000 0.000 3.000 -0.000

3:E1 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000 3.000 -0.000

4:E2 Max -ve 0.000 0.000 2.750 0.000

Max +ve 0.000 0.000 3.000 -0.000

9 19 3.000 1:DEAD Max -ve 0.000 0.000 3.000 97.928

Max +ve 0.000 0.000 0.000 -0.000

2:LIVE Max -ve 0.000 0.000 3.000 9.510

Max +ve 0.000 0.000 0.000 -0.000

3:E1 Max -ve 0.000 0.000 3.000 -0.000

(11)

4:E2 Max -ve 0.000 0.000 3.000 0.000

Max +ve 0.000 0.000 2.750 -0.000

10 20 5.000 1:DEAD Max -ve 0.000 0.000 0.000 104.406

Max +ve 0.000 0.000 4.583 -31.015

2:LIVE Max -ve 0.000 0.000 0.000 20.986

Max +ve 0.000 0.000 5.000 -17.848

3:E1 Max -ve 0.000 0.000 5.000 14.979

Max +ve 0.000 0.000 0.000 -24.854

4:E2 Max -ve 0.000 0.000 0.000 21.881

Max +ve 0.000 0.000 5.000 -13.262

11 21 5.000 1:DEAD Max -ve 0.000 0.000 5.000 22.498

Max +ve 0.000 0.000 2.083 -31.317

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.417 -9.538

3:E1 Max -ve 0.000 0.000 5.000 20.572

Max +ve 0.000 0.000 0.000 -21.943

4:E2 Max -ve 0.000 0.000 0.000 20.960

Max +ve 0.000 0.000 5.000 -19.755

12 22 5.000 1:DEAD Max -ve 0.000 0.000 5.000 72.049

Max +ve 0.000 0.000 1.250 -13.477

2:LIVE Max -ve 0.000 0.000 5.000 23.214

Max +ve 0.000 0.000 0.000 -11.953

3:E1 Max -ve 0.000 0.000 5.000 17.923

Max +ve 0.000 0.000 0.000 -17.710

4:E2 Max -ve 0.000 0.000 0.000 17.120

Max +ve 0.000 0.000 5.000 -17.497

13 23 5.000 1:DEAD Max -ve 0.000 0.000 0.000 72.049

Max +ve 0.000 0.000 3.750 -13.477

2:LIVE Max -ve 0.000 0.000 0.000 23.214

Max +ve 0.000 0.000 5.000 -11.953

3:E1 Max -ve 0.000 0.000 5.000 17.120

Max +ve 0.000 0.000 0.000 -17.497

4:E2 Max -ve 0.000 0.000 0.000 17.923

Max +ve 0.000 0.000 5.000 -17.710

14 24 5.000 1:DEAD Max -ve 0.000 0.000 0.000 22.498

Max +ve 0.000 0.000 2.917 -31.317

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 4.583 -9.538

3:E1 Max -ve 0.000 0.000 5.000 20.960

Max +ve 0.000 0.000 0.000 -19.755

4:E2 Max -ve 0.000 0.000 0.000 20.572

Max +ve 0.000 0.000 5.000 -21.943

15 25 5.000 1:DEAD Max -ve 0.000 0.000 5.000 104.406

Max +ve 0.000 0.000 0.417 -31.015

2:LIVE Max -ve 0.000 0.000 5.000 20.986

Max +ve 0.000 0.000 0.000 -17.848

3:E1 Max -ve 0.000 0.000 5.000 21.881

Max +ve 0.000 0.000 0.000 -13.262

4:E2 Max -ve 0.000 0.000 0.000 14.979

Max +ve 0.000 0.000 5.000 -24.854

16 26 3.000 1:DEAD Max -ve 0.000 0.000 0.000 97.928

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 9.510

Max +ve 0.000 0.000 3.000 -0.000

3:E1 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000 3.000 -0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

18 2 4.800 1:DEAD Max -ve 0.000 0.000 4.800 137.742

Max +ve 0.000 0.000 0.000 -67.427

2:LIVE Max -ve 0.000 0.000 4.800 60.971

Max +ve 0.000 0.000 0.000 -29.889

3:E1 Max -ve 0.000 0.000 0.000 197.513

(12)

4:E2 Max -ve 0.000 0.000 4.800 173.468

Max +ve 0.000 0.000 0.000 -196.187

21 5 4.800 1:DEAD Max -ve 0.000 0.000 4.800 0.000

Max +ve 0.000 0.000 0.000 -0.000

2:LIVE Max -ve 0.000 0.000 4.800 0.000

Max +ve 0.000 0.000 0.000 -0.000

3:E1 Max -ve 0.000 0.000 0.000 215.877

Max +ve 0.000 0.000 4.800 -212.620

4:E2 Max -ve 0.000 0.000 4.800 212.620

Max +ve 0.000 0.000 0.000 -215.877

24 8 4.800 1:DEAD Max -ve 0.000 0.000 0.000 67.427

Max +ve 0.000 0.000 4.800 -137.742

2:LIVE Max -ve 0.000 0.000 0.000 29.889

Max +ve 0.000 0.000 4.800 -60.971

3:E1 Max -ve 0.000 0.000 0.000 196.187

Max +ve 0.000 0.000 4.800 -173.468

4:E2 Max -ve 0.000 0.000 4.800 174.096

Max +ve 0.000 0.000 0.000 -197.513

27 11 3.000 1:DEAD Max -ve 0.000 0.000 3.000 6.479

Max +ve 0.000 0.000 0.000 -23.174

2:LIVE Max -ve 0.000 0.000 3.000 11.476

Max +ve 0.000 0.000 0.000 -14.413

3:E1 Max -ve 0.000 0.000 0.000 27.762

Max +ve 0.000 0.000 3.000 -24.854

4:E2 Max -ve 0.000 0.000 3.000 21.881

Max +ve 0.000 0.000 0.000 -24.170

28 12 3.000 1:DEAD Max -ve 0.000 0.000 3.000 23.020

Max +ve 0.000 0.000 0.000 -22.211

2:LIVE Max -ve 0.000 0.000 3.000 8.385

Max +ve 0.000 0.000 0.000 -8.945

3:E1 Max -ve 0.000 0.000 0.000 39.617

Max +ve 0.000 0.000 3.000 -36.923

4:E2 Max -ve 0.000 0.000 3.000 34.222

Max +ve 0.000 0.000 0.000 -36.788

29 13 3.000 1:DEAD Max -ve 0.000 0.000 0.000 30.161

Max +ve 0.000 0.000 3.000 -27.395

2:LIVE Max -ve 0.000 0.000 0.000 13.325

Max +ve 0.000 0.000 3.000 -11.908

3:E1 Max -ve 0.000 0.000 0.000 41.615

Max +ve 0.000 0.000 3.000 -38.282

4:E2 Max -ve 0.000 0.000 3.000 36.874

Max +ve 0.000 0.000 0.000 -40.078

30 14 3.000 1:DEAD Max -ve 0.000 0.000 3.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

2:LIVE Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000 3.000 -0.000

3:E1 Max -ve 0.000 0.000 0.000 36.954

Max +ve 0.000 0.000 3.000 -35.420

4:E2 Max -ve 0.000 0.000 3.000 35.420

Max +ve 0.000 0.000 0.000 -36.954

31 15 3.000 1:DEAD Max -ve 0.000 0.000 3.000 27.395

Max +ve 0.000 0.000 0.000 -30.161

2:LIVE Max -ve 0.000 0.000 3.000 11.908

Max +ve 0.000 0.000 0.000 -13.325

3:E1 Max -ve 0.000 0.000 0.000 40.078

Max +ve 0.000 0.000 3.000 -36.874

4:E2 Max -ve 0.000 0.000 3.000 38.282

Max +ve 0.000 0.000 0.000 -41.615

32 16 3.000 1:DEAD Max -ve 0.000 0.000 0.000 22.211

Max +ve 0.000 0.000 3.000 -23.020

2:LIVE Max -ve 0.000 0.000 0.000 8.945

Max +ve 0.000 0.000 3.000 -8.385

3:E1 Max -ve 0.000 0.000 0.000 36.788

(13)

4:E2 Max -ve 0.000 0.000 3.000 36.923

Max +ve 0.000 0.000 0.000 -39.617

33 17 3.000 1:DEAD Max -ve 0.000 0.000 0.000 23.174

Max +ve 0.000 0.000 3.000 -6.479

2:LIVE Max -ve 0.000 0.000 0.000 14.413

Max +ve 0.000 0.000 3.000 -11.476

3:E1 Max -ve 0.000 0.000 0.000 24.170

Max +ve 0.000 0.000 3.000 -21.881

4:E2 Max -ve 0.000 0.000 3.000 24.854

Max +ve 0.000 0.000 0.000 -27.762

Beam Maximum Shear Forces

(m) L/C d (m) Max Fz (kN) d (m) Max Fy (kN)

1 10 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 3.000 -121.975

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 3.000 -63.450

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

4:E2 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000

2 11 5.000 1:DEAD Max -ve 0.000 0.000 0.000 279.853

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 135.892

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -27.238

4:E2 Max -ve 0.000 0.000 0.000 26.808

Max +ve 0.000 0.000

3 12 5.000 1:DEAD Max -ve 0.000 0.000 0.000 29.634

Max +ve 0.000 0.000 5.000 -122.658

2:LIVE Max -ve 0.000 0.000 0.000 20.942

Max +ve 0.000 0.000 5.000 -65.308

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -26.702

4:E2 Max -ve 0.000 0.000 0.000 25.693

Max +ve 0.000 0.000

4 13 5.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -396.738

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -184.758

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -28.079

4:E2 Max -ve 0.000 0.000 0.000 26.913

Max +ve 0.000 0.000

5 14 5.000 1:DEAD Max -ve 0.000 0.000 0.000 396.738

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 184.758

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -26.913

4:E2 Max -ve 0.000 0.000 0.000 28.079

Max +ve 0.000 0.000

6 15 5.000 1:DEAD Max -ve 0.000 0.000 0.000 122.658

Max +ve 0.000 0.000 5.000 -29.634

2:LIVE Max -ve 0.000 0.000 0.000 65.308

Max +ve 0.000 0.000 5.000 -20.942

3:E1 Max -ve 0.000 0.000

(14)

4:E2 Max -ve 0.000 0.000 0.000 26.702

Max +ve 0.000 0.000

7 16 5.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -279.853

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -135.892

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -26.808

4:E2 Max -ve 0.000 0.000 0.000 27.238

Max +ve 0.000 0.000

8 17 3.000 1:DEAD Max -ve 0.000 0.000 0.000 121.975

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 63.450

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

9 19 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 3.000 -50.445

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 3.000 -4.520

3:E1 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000 0.000 0.000

4:E2 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000

10 20 5.000 1:DEAD Max -ve 0.000 0.000 0.000 56.745

Max +ve 0.000 0.000 5.000 -2.597

2:LIVE Max -ve 0.000 0.000 0.000 10.017

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -7.967

4:E2 Max -ve 0.000 0.000 0.000 7.028

Max +ve 0.000 0.000

11 21 5.000 1:DEAD Max -ve 0.000 0.000 0.000 23.583

Max +ve 0.000 0.000 5.000 -35.759

2:LIVE Max -ve 0.000 0.000 0.000 0.366

Max +ve 0.000 0.000 5.000 -4.134

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -8.503

4:E2 Max -ve 0.000 0.000 0.000 8.143

Max +ve 0.000 0.000

12 22 5.000 1:DEAD Max -ve 0.000 0.000 0.000 14.282

Max +ve 0.000 0.000 5.000 -45.060

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -9.283

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -7.127

4:E2 Max -ve 0.000 0.000 0.000 6.923

Max +ve 0.000 0.000

13 23 5.000 1:DEAD Max -ve 0.000 0.000 0.000 45.060

Max +ve 0.000 0.000 5.000 -14.282

2:LIVE Max -ve 0.000 0.000 0.000 9.283

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -6.923

4:E2 Max -ve 0.000 0.000 0.000 7.127

Max +ve 0.000 0.000

14 24 5.000 1:DEAD Max -ve 0.000 0.000 0.000 35.759

Max +ve 0.000 0.000 5.000 -23.583

2:LIVE Max -ve 0.000 0.000 0.000 4.134

Max +ve 0.000 0.000 5.000 -0.366

3:E1 Max -ve 0.000 0.000

(15)

4:E2 Max -ve 0.000 0.000 0.000 8.503

Max +ve 0.000 0.000

15 25 5.000 1:DEAD Max -ve 0.000 0.000 0.000 2.597

Max +ve 0.000 0.000 5.000 -56.745

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 5.000 -10.017

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -7.028

4:E2 Max -ve 0.000 0.000 0.000 7.967

Max +ve 0.000 0.000

16 26 3.000 1:DEAD Max -ve 0.000 0.000 0.000 50.445

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 4.520

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

18 2 4.800 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -42.744

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -18.929

3:E1 Max -ve 0.000 0.000 0.000 77.419

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -77.011

21 5 4.800 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

3:E1 Max -ve 0.000 0.000 0.000 89.270

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -89.270

24 8 4.800 1:DEAD Max -ve 0.000 0.000 0.000 42.744

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 18.929

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 77.011

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -77.419

27 11 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -9.884

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -8.630

3:E1 Max -ve 0.000 0.000 0.000 17.539

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -15.350

28 12 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -15.077

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -5.777

3:E1 Max -ve 0.000 0.000 0.000 25.513

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -23.670

29 13 3.000 1:DEAD Max -ve 0.000 0.000 0.000 19.185

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 8.411

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 26.632

(16)

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -25.651

30 14 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -0.000

2:LIVE Max -ve 0.000 0.000 0.000 0.000

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 24.125

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -24.125

31 15 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -19.185

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -8.411

3:E1 Max -ve 0.000 0.000 0.000 25.651

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -26.632

32 16 3.000 1:DEAD Max -ve 0.000 0.000 0.000 15.077

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 5.777

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 23.670

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -25.513

33 17 3.000 1:DEAD Max -ve 0.000 0.000 0.000 9.884

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 8.630

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000 0.000 15.350

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -17.539

Beam Maximum Axial Forces

(m) L/C

d (m)

Max Fx (kN)

1 10 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000

3:E1 Max -ve

Max +ve 0.000 -0.000

4:E2 Max -ve 0.000 0.000

Max +ve

2 11 5.000 1:DEAD Max -ve 0.000 32.859

Max +ve

2:LIVE Max -ve 0.000 10.299

Max +ve

3:E1 Max -ve 0.000 25.340

Max +ve

4:E2 Max -ve 0.000 61.661

Max +ve

3 12 5.000 1:DEAD Max -ve 0.000 17.783

Max +ve

2:LIVE Max -ve 0.000 4.523

Max +ve

3:E1 Max -ve 0.000 50.854

(17)

4:E2 Max -ve 0.000 37.991 Max +ve

4 13 5.000 1:DEAD Max -ve 0.000 36.968

Max +ve

2:LIVE Max -ve 0.000 12.934

Max +ve

3:E1 Max -ve 0.000 77.486

Max +ve

4:E2 Max -ve 0.000 12.341

Max +ve

5 14 5.000 1:DEAD Max -ve 0.000 36.968

Max +ve

2:LIVE Max -ve 0.000 12.934

Max +ve

3:E1 Max -ve 0.000 12.341

Max +ve

4:E2 Max -ve 0.000 77.486

Max +ve

6 15 5.000 1:DEAD Max -ve 0.000 17.783

Max +ve

2:LIVE Max -ve 0.000 4.523

Max +ve

3:E1 Max -ve 0.000 37.991

Max +ve

4:E2 Max -ve 0.000 50.854

Max +ve

7 16 5.000 1:DEAD Max -ve 0.000 32.859

Max +ve

2:LIVE Max -ve 0.000 10.299

Max +ve

3:E1 Max -ve 0.000 61.661

Max +ve

4:E2 Max -ve 0.000 25.340

Max +ve

8 17 3.000 1:DEAD Max -ve

Max +ve 0.000 -0.000

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000

3:E1 Max -ve

Max +ve 0.000 -0.000

4:E2 Max -ve

Max +ve 0.000 -0.000

9 19 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve

2:LIVE Max -ve

Max +ve 0.000 -0.000

3:E1 Max -ve 0.000 0.000

Max +ve

4:E2 Max -ve 0.000 0.000

Max +ve 0.000 0.000

10 20 5.000 1:DEAD Max -ve 0.000 9.884

Max +ve

2:LIVE Max -ve 0.000 8.630

Max +ve

3:E1 Max -ve 0.000 140.941

Max +ve

4:E2 Max -ve 0.000 15.350

Max +ve

11 21 5.000 1:DEAD Max -ve 0.000 24.961

Max +ve

2:LIVE Max -ve 0.000 14.406

Max +ve

3:E1 Max -ve 0.000 115.428

(18)

4:E2 Max -ve 0.000 39.020 Max +ve

12 22 5.000 1:DEAD Max -ve 0.000 5.776

Max +ve

2:LIVE Max -ve 0.000 5.996

Max +ve

3:E1 Max -ve 0.000 88.796

Max +ve

4:E2 Max -ve 0.000 64.671

Max +ve

13 23 5.000 1:DEAD Max -ve 0.000 5.776

Max +ve

2:LIVE Max -ve 0.000 5.996

Max +ve

3:E1 Max -ve 0.000 64.671

Max +ve

4:E2 Max -ve 0.000 88.796

Max +ve

14 24 5.000 1:DEAD Max -ve 0.000 24.961

Max +ve

2:LIVE Max -ve 0.000 14.406

Max +ve

3:E1 Max -ve 0.000 39.020

Max +ve

4:E2 Max -ve 0.000 115.428

Max +ve

15 25 5.000 1:DEAD Max -ve 0.000 9.884

Max +ve

2:LIVE Max -ve 0.000 8.630

Max +ve

3:E1 Max -ve 0.000 15.350

Max +ve

4:E2 Max -ve 0.000 140.941

Max +ve

16 26 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000

3:E1 Max -ve 0.000 0.000

Max +ve 0.000 0.000

4:E2 Max -ve 0.000 0.000

Max +ve

18 2 4.800 1:DEAD Max -ve 0.000 533.863

Max +ve

2:LIVE Max -ve 0.000 213.878

Max +ve

3:E1 Max -ve

Max +ve 0.000 -35.205

4:E2 Max -ve 0.000 33.836

Max +ve

21 5 4.800 1:DEAD Max -ve 0.000 908.443

Max +ve

2:LIVE Max -ve 0.000 388.083

Max +ve

3:E1 Max -ve 0.000 1.369

Max +ve

4:E2 Max -ve 0.000 1.369

Max +ve

24 8 4.800 1:DEAD Max -ve 0.000 533.863

Max +ve

2:LIVE Max -ve 0.000 213.878

Max +ve

3:E1 Max -ve 0.000 33.836

(19)

4:E2 Max -ve

Max +ve 0.000 -35.205

27 11 3.000 1:DEAD Max -ve 0.000 111.608

Max +ve

2:LIVE Max -ve 0.000 14.537

Max +ve

3:E1 Max -ve

Max +ve 0.000 -7.967

4:E2 Max -ve 0.000 7.028

Max +ve

28 12 3.000 1:DEAD Max -ve 0.000 30.598

Max +ve

2:LIVE Max -ve

Max +ve 0.000 -5.151

3:E1 Max -ve

Max +ve 0.000 -0.536

4:E2 Max -ve 0.000 1.114

Max +ve

29 13 3.000 1:DEAD Max -ve 0.000 54.459

Max +ve

2:LIVE Max -ve

Max +ve 0.000 -0.650

3:E1 Max -ve 0.000 1.377

Max +ve

4:E2 Max -ve

Max +ve 0.000 -1.220

30 14 3.000 1:DEAD Max -ve 0.000 94.538

Max +ve

2:LIVE Max -ve 0.000 18.567

Max +ve

3:E1 Max -ve 0.000 0.203

Max +ve

4:E2 Max -ve 0.000 0.203

Max +ve

31 15 3.000 1:DEAD Max -ve 0.000 54.459

Max +ve

2:LIVE Max -ve

Max +ve 0.000 -0.650

3:E1 Max -ve

Max +ve 0.000 -1.220

4:E2 Max -ve 0.000 1.377

Max +ve

32 16 3.000 1:DEAD Max -ve 0.000 30.598

Max +ve

2:LIVE Max -ve

Max +ve 0.000 -5.151

3:E1 Max -ve 0.000 1.114

Max +ve

4:E2 Max -ve

Max +ve 0.000 -0.536

33 17 3.000 1:DEAD Max -ve 0.000 111.608

Max +ve

2:LIVE Max -ve 0.000 14.537

Max +ve

3:E1 Max -ve 0.000 7.028

Max +ve

4:E2 Max -ve

(20)

Staad.pro analysis-frame analysis

Reactions

Horizontal Vertical Horizontal Moment

Node L/C FX (kN) FY (kN) FZ (kN) MX (kNm) MY (kNm) MZ (kNm) 1 1:DEAD 5.524 90.605 0.000 0.000 0.000 -8.744 2:LIVE 3.747 29.600 0.000 0.000 0.000 -5.919 3:EQ1 -46.450 -76.204 0.000 0.000 0.000 161.084 4:EQ2 46.380 76.204 0.000 0.000 0.000 -160.794 2 1:DEAD -5.524 90.605 0.000 0.000 0.000 8.744 2:LIVE -3.747 29.600 0.000 0.000 0.000 5.919 3:EQ1 -46.380 76.204 0.000 0.000 0.000 160.794 4:EQ2 46.450 -76.204 0.000 0.000 0.000 -161.084

Beam Maximum Moments

(m) L/C d (m) Max My (kNm) d (m) Max Mz (kNm)

1 3 4.000 1:DEAD Max -ve 0.000 0.000 0.000 25.222

Max +ve 0.000 0.000 2.000 -17.504

2:LIVE Max -ve 0.000 0.000 0.000 14.844

Max +ve 0.000 0.000 2.000 -10.756

3:EQ1 Max -ve 0.000 0.000 4.000 104.074

Max +ve 0.000 0.000 0.000 -104.163

4:EQ2 Max -ve 0.000 0.000 0.000 104.074

(21)

2 5 4.000 1:DEAD Max -ve 0.000 0.000 0.000 9.919

Max +ve 0.000 0.000 2.000 -13.115

2:LIVE Max -ve 0.000 0.000 0.000 2.064

Max +ve 0.000 0.000 2.000 -1.936

3:EQ1 Max -ve 0.000 0.000 4.000 48.263

Max +ve 0.000 0.000 0.000 -48.316

4:EQ2 Max -ve 0.000 0.000 0.000 48.263

Max +ve 0.000 0.000 4.000 -48.316

3 1 4.800 1:DEAD Max -ve 0.000 0.000 4.800 17.769

Max +ve 0.000 0.000 0.000 -8.744

2:LIVE Max -ve 0.000 0.000 4.800 12.068

Max +ve 0.000 0.000 0.000 -5.919

3:EQ1 Max -ve 0.000 0.000 0.000 161.084

Max +ve 0.000 0.000 4.800 -61.874

4:EQ2 Max -ve 0.000 0.000 4.800 61.832

Max +ve 0.000 0.000 0.000 -160.794

4 2 4.800 1:DEAD Max -ve 0.000 0.000 0.000 8.744

Max +ve 0.000 0.000 4.800 -17.769

2:LIVE Max -ve 0.000 0.000 0.000 5.919

Max +ve 0.000 0.000 4.800 -12.068

3:EQ1 Max -ve 0.000 0.000 0.000 160.794

Max +ve 0.000 0.000 4.800 -61.832

4:EQ2 Max -ve 0.000 0.000 4.800 61.874

Max +ve 0.000 0.000 0.000 -161.084

5 3 3.000 1:DEAD Max -ve 0.000 0.000 3.000 9.919

Max +ve 0.000 0.000 0.000 -7.452

2:LIVE Max -ve 0.000 0.000 3.000 2.064

Max +ve 0.000 0.000 0.000 -2.776

3:EQ1 Max -ve 0.000 0.000 0.000 42.289

Max +ve 0.000 0.000 3.000 -48.316

4:EQ2 Max -ve 0.000 0.000 3.000 48.263

Max +ve 0.000 0.000 0.000 -42.242

6 4 3.000 1:DEAD Max -ve 0.000 0.000 0.000 7.452

Max +ve 0.000 0.000 3.000 -9.919

2:LIVE Max -ve 0.000 0.000 0.000 2.776

Max +ve 0.000 0.000 3.000 -2.064

3:EQ1 Max -ve 0.000 0.000 0.000 42.242

Max +ve 0.000 0.000 3.000 -48.263

4:EQ2 Max -ve 0.000 0.000 3.000 48.316

Max +ve 0.000 0.000 0.000 -42.289

Beam Maximum Shear Forces

(m) L/C d (m) Max Fz (kN) d (m) Max Fy (kN)

1 3 4.000 1:DEAD Max -ve 0.000 0.000 0.000 42.725

Max +ve 0.000 0.000 4.000 -42.725

2:LIVE Max -ve 0.000 0.000 0.000 25.600

Max +ve 0.000 0.000 4.000 -25.600

3:EQ1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -52.059

4:EQ2 Max -ve 0.000 0.000 0.000 52.059

Max +ve 0.000 0.000

2 5 4.000 1:DEAD Max -ve 0.000 0.000 0.000 23.034

Max +ve 0.000 0.000 4.000 -23.034

2:LIVE Max -ve 0.000 0.000 0.000 4.000

Max +ve 0.000 0.000 4.000 -4.000

3:EQ1 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -24.145

(22)

Max +ve 0.000 0.000

3 1 4.800 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -5.524

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -3.747

3:EQ1 Max -ve 0.000 0.000 0.000 46.450

Max +ve 0.000 0.000

4:EQ2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -46.380

4 2 4.800 1:DEAD Max -ve 0.000 0.000 0.000 5.524

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 3.747

Max +ve 0.000 0.000

3:EQ1 Max -ve 0.000 0.000 0.000 46.380

Max +ve 0.000 0.000

4:EQ2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -46.450

5 3 3.000 1:DEAD Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -5.790

2:LIVE Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -1.613

3:EQ1 Max -ve 0.000 0.000 0.000 30.202

Max +ve 0.000 0.000

4:EQ2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -30.168

6 4 3.000 1:DEAD Max -ve 0.000 0.000 0.000 5.790

Max +ve 0.000 0.000

2:LIVE Max -ve 0.000 0.000 0.000 1.613

Max +ve 0.000 0.000

3:EQ1 Max -ve 0.000 0.000 0.000 30.168

Max +ve 0.000 0.000

4:EQ2 Max -ve 0.000 0.000

Max +ve 0.000 0.000 0.000 -30.202

Beam Maximum Axial Forces

(m) L/C

d (m)

Max Fx (kN)

1 3 4.000 1:DEAD Max -ve

Max +ve 0.000 -0.267

2:LIVE Max -ve 0.000 2.134

Max +ve

3:EQ1 Max -ve 0.000 16.212

Max +ve

4:EQ2 Max -ve 0.000 16.212

Max +ve

2 5 4.000 1:DEAD Max -ve 0.000 5.790

Max +ve

2:LIVE Max -ve 0.000 1.613

Max +ve

3:EQ1 Max -ve 0.000 30.168

Max +ve

4:EQ2 Max -ve 0.000 30.168

Max +ve

3 1 4.800 1:DEAD Max -ve 0.000 90.605

Max +ve

2:LIVE Max -ve 0.000 29.600

Max +ve

3:EQ1 Max -ve

Max +ve 0.000 -76.204

4:EQ2 Max -ve 0.000 76.204

Max +ve

(23)

Max +ve

2:LIVE Max -ve 0.000 29.600

Max +ve

3:EQ1 Max -ve 0.000 76.204

Max +ve

4:EQ2 Max -ve

Max +ve 0.000 -76.204

5 3 3.000 1:DEAD Max -ve 0.000 27.452

Max +ve

2:LIVE Max -ve 0.000 4.000

Max +ve

3:EQ1 Max -ve

Max +ve 0.000 -24.145

4:EQ2 Max -ve 0.000 24.145

Max +ve

6 4 3.000 1:DEAD Max -ve 0.000 27.452

Max +ve

2:LIVE Max -ve 0.000 4.000

Max +ve

3:EQ1 Max -ve 0.000 24.145

Max +ve

4:EQ2 Max -ve

(24)

DESIGN OF TWO-WAY SLAB

Thursday, April 11, 2013

6:00:21 PM

Data:

Material

Strength:

fc'

=

25 MPa

fy

=

275 MPa

Slab Loads:

Service Live Load:

Service Dead Load:

SLL

=

4.8 KPa

DLL

=

5.3 KPa

Slab

Details:

Clear Short Span:

Clear Long Span:

La

=

3.50 m

Lb

=

4.75 m

Select Case by pressing the BUTTON at the

right

Solution:

Case :

3 1. Effective Height

h

=

Panel Perimeter

=

23.5+24.75

180

180 =

0.092 m

say

0.100 m

2. Ultimate Load

Consider a meter strip:

Wslab

=

23.56 * b *h

=

23.56 * 1.0 * 0.1

=

2.356 KN / m

Wdl

=

SDL * 1.0 m

=

5.3 * 1.0 m

=

5.3 KN / m

Wll

=

SLL * 1.0 m

=

4.8 * 1.0 m

=

4.8 KN / m

Wudl

=

1.4*(Wslab + Wdl)

=

1.4(2.356+5.3)

=

10.718 KN / m

Wull

=

1.7 * Wll

=

1.7 * 4.8

=

8.16 KN / m

Wu

=

Wull + Wudl

=

4.8 + 10.718

=

18.878 KN / m

3. Calculate Moments Using Coefficients

m

=

La / Lb

=

3.5 / 4.75

=

0.74

53

54 m

Ca.neg

Ca.dl

Ca.ll

Cb.neg

Cb.dl

Cb.ll

0.7400

0.0000

0.0412 0.0522

####

#

0.0176

0.0184

Values are interpolated from the moment coefficient table.

(25)

Short Span:

I. Middle Strip

a. Continuous Edge

Ma.neg

=

Ca * Wu * La^2

=

0 * 18.878 * 3.5 ^2

=

0 KN-m

b.1 Midspan (Due to Dead Load)

Ma.posdl

=

Ca * Wudl * La^2

=

0.0412 * 10.718 * 3.5 ^2

=

5.409 KN-m

b.2 Midspan(Due to Live Load)

Ma.posll

=

Ca * Wull * La^2

=

0.0522 * 8.16 * 3.5 ^2

=

5.218 KN-m

Ma.pos

=

Ma.posdl + Ma.posll

=

5.409 + 5.218

=

10.627 KN-m

II. Column Strip

Long Span:

I. Middle Strip

a. Continuous Edge

Mb.neg

=

Ca * Wu * Lb^2

=

0.0548 * 18.878 * 4.75 ^2

=

23.341 KN-m

b.1 Midspan (Due to Dead Load)

Mb.posdl

=

Ca * Wudl * Lb^2

=

0.0176 * 10.718 * 4.75 ^2

=

4.256 KN-m

b.2 Midspan(Due to Live Load)

Mb.posll

=

Ca * Wull * Lb^2

=

0.0184 * 8.16 * 4.75 ^2

=

3.388 KN-m

Mb.pos

=

Ma.posdl + Ma.posll

=

4.256 + 3.388

=

7.644 KN-m

4. Design of Reinforcements

Diameter of Bars:

db

=

16 mm

Pmax

=

0.750.85fc'B160

0 =

0.750.85250.85600

fy (600 + fy)

275 (600 + 275)

=

0.03378

Asmin

=

0.002*bh

=

0.002 * 1000 * 0.1

=

200.00 sqm

Smax

=

2 * h or 450 mm

=

2 * 100

=

200.00 mm

ds

=

h - cc - db / 2

=

100 - 20 - 16 / 2

=

72 mm

dl

=

h - cc - db - db /

=

100 - 20 - 16 - 16 / 2

(26)

2 =

56 mm

Short Span:

I. Middle Strip

a. Continuous Edge

Ma.neg

=

0.90 * P * b * h ^ 2 * fy (1 - 0.59 * P * fy / fc')

0e6

=

0.90 * P * 1000 * 72 ^ 2 * 275 (1 - 0.59 * P * 275 / 25)

P

=

0 OK

=

0 (use)

P

=

0.002 P < Pmin. Use Pmin

As

=

P b * h*

=

0.002 * 1000 * 72

=

144 sqm

Use Asmin

200 sqm

Sreqd

=

250 * PI * db^2 /

As

=

2503.1415916^2/200

=

1396.26

mm

Sreqd > Smax. Use Smax

S

=

200 mm

(suggested spacing)

b. Midspan

Ma.pos

=

0.90 * P * b * h ^ 2 * fy (1 - 0.59 * P * fy / fc')

10.627e6

=

0.90 * P * 1000 * 72 ^ 2 * 275 (1 - 0.59 * P * 275 / 25)

P

=

0.00878

OK

=

0.00878

(use)

P

=

0.00878

OK! P > Pmin

As

=

P b * h*

=

0.008783 * 1000 * 72

=

632.376 sqm

OK! As > Asmin

632.376 sqm

Sreqd

=

250 * PI * db^2 /

As

=

2503.14159^2/632.376

=

317.947 mm

Sreqd > Smax. Use Smax

S

=

200 mm

(suggested spacing)

II. Column Strip

a. Continuous Edge

Asreqd

=

2 / 3 (Asms)

=

2 / 3 (200)

=

133.333 sqm

=

(use)

200 sqm

Sreqd

=

3 / 2 (Sms)

=

3 / 2 (1396.263)

=

2094.39

mm

Sreqd > Smax. Use Smax

S

=

200 mm

(suggested spacing)

b. Midspan

Asreqd

=

2 / 3 (Asms)

=

2 / 3 (632.376)

=

421.584 sqm

=

(use)

421.584 sqm

(27)

Sreqd

=

3 / 2 (Sms)

=

3 / 2 (317.947)

=

476.921 mm

Sreqd > Smax. Use Smax

S

=

200 mm

(suggested spacing)

Long Span:

I. Middle Strip

a. Continuous Edge

Mb.neg

=

0.90 * P * b * h ^ 2 * fy (1 - 0.59 * P * fy / fc')

23.341e6

=

0.90 * P * 1000 * 56 ^ 2 * 275 (1 - 0.59 * P * 275 / 25)

P

=

0.04096

NOT OK

=

0.03378

(use)

P

=

0.03378

OK! P > Pmin

As

=

P b * h*

=

0.03378 * 1000 * 56

=

1891.68

sqm

OK! As > Asmin

1891.68

sqm

Sreqd

=

250 * PI * db^2 /

As

=

2503.1415916^2/1891.68

=

106.287 mm

Sreqd < Smax. OK!

S

=

100 mm

(suggested spacing)

b. Midspan

Mb.pos

=

0.90 * P * b * h ^ 2 * fy (1 - 0.59 * P * fy / fc')

7.644e6

=

0.90 * P * 1000 * 56 ^ 2 * 275 (1 - 0.59 * P * 275 / 25)
