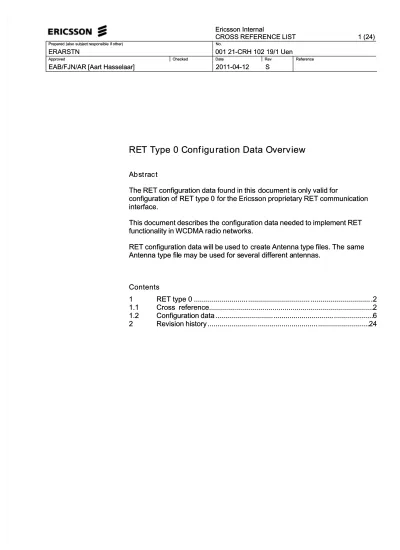

RE
RET T
T Type 0 C
ype 0 Conf
onf igu
igu rati
ration Data O
on Data Overv
verview
iew
Ab
Ab stst racrac tt
The RET configuration data found in this
The RET configuration data found in this document is only valid fordocument is only valid for configuratio
configuration of n of RET type 0 RET type 0 for the Ericsson proprietary RET communicationfor the Ericsson proprietary RET communication interface.
interface.
This document describes the
This document describes the configuration data needed to implement RETconfiguration data needed to implement RET functionality in WCDMA radio networks.
functionality in WCDMA radio networks. RET configuration data will be used to
RET configuration data will be used to create Antenna type files. The create Antenna type files. The samesame Antenna type fil
Antenna type file may be used for se may be used for several different aeveral different antennas.ntennas.
Contents Contents 1
1 RET type RET type 00 ... ... ... ....22 1.1
1.1 Cross reference...Cross reference...22 1.2
1.2 Configuration dataConfiguration data ... ... ...66 2
1
1
RET
RET ty
ty pe
pe 0
0
RET type 0
RET type 0 refers to RET refers to RET units and antennas with built-in RET functionalityunits and antennas with built-in RET functionality made by Kathrein for the
made by Kathrein for the Ericsson proprietary RET communicatioEricsson proprietary RET communication interface.n interface.
1.1
1.1
Cros
Cross
s referenc
referenc e
e
The following tables include phased out
The following tables include phased out antennas.antennas.
Antenna product number
Antenna product number Antenna type numberAntenna type number Ericsson Kathrein Ericsson Kathrein KRE KRE 101 101 1903/1 1903/1 742 742 211 211 11 KRE KRE 101 101 1905/1 1905/1 742 742 212 212 22 KRE KRE 101 101 1906/1 1906/1 742 742 213 213 33 KRE KRE 101 101 1911/1 1911/1 742 742 218 218 22 KRE KRE 101 101 1912/1 1912/1 742 742 219 219 33 KRE 101 1916/1 KRE 101 1916/11)1) 742 742 2642641)1) 44 KRE 101 1916/1 KRE 101 1916/12)2) 742 264742 2642)2) 1313 KRE 101 1916/1 KRE 101 1916/11) 3)1) 3) 742 742 264 264 V02V021) 3)1) 3) 3535 KRE 101 1916/1 KRE 101 1916/12) 3)2) 3) 742 264 V02742 264 V022) 3)2) 3) 3434 KRE 101 1917/1 KRE 101 1917/11)1) 742 742 2662661)1) 55 KRE 101 1917/1 KRE 101 1917/12)2) 742 266742 2662)2) 1515 KRE 101 1917/1 KRE 101 1917/11) 3)1) 3) 742 742 266 266 V02V021) 3)1) 3) 3737 KRE 101 1917/1 KRE 101 1917/12) 3)2) 3) 742 266 V02742 266 V022) 3)2) 3) 3838 KRE KRE 101 101 1918/1 1918/1 742 742 233 233 11 KRE KRE 101 101 1919/1 1919/1 742 742 234 234 22 KRE KRE 101 101 1920/1 1920/1 742 742 235 235 33 KRE 101 1921/1 KRE 101 1921/11)1) 742 742 2702701)1) 22 KRE 101 1921/1 KRE 101 1921/12)2) 742 270742 2702)2) 1616 KRE 101 1921/1 KRE 101 1921/11) 3)1) 3) 742 742 270 270 V03V031) 3)1) 3) 3535 KRE 101 1921/1 KRE 101 1921/12) 3)2) 3) 742 270 V03742 270 V032) 3)2) 3) 3434 KRE 101 1922/1 KRE 101 1922/11)1) 742 742 2712711)1) 33 KRE 101 1922/1 KRE 101 1922/12)2) 742 271742 2712)2) 1414 KRE 101 1922/1 KRE 101 1922/11) 3)1) 3) 742 742 271 271 V03V031) 3)1) 3) 3737 KRE 101 1922/1 KRE 101 1922/12) 3)2) 3) 742 271 V03742 271 V032) 3)2) 3) 3636 KRE 101 1930/1 KRE 101 1930/11)1) 742 742 2652651)1) 55 KRE 101 1930/1 KRE 101 1930/12)2) 742 265742 2652)2) 1414 KRE 101 1930/1 KRE 101 1930/11) 3)1) 3) 742 742 265 265 V02V021) 3)1) 3) 3737 KRE 101 1930/1 KRE 101 1930/12) 3)2) 3) 742 265 V02742 265 V022) 3)2) 3) 3636 KRE 101 1931/1 KRE 101 1931/11)1) 742 742 2722721)1) 33 KRE 101 1931/1 KRE 101 1931/12)2) 742 272742 2722)2) 1515 KRE 101 1931/1 KRE 101 1931/11) 3)1) 3) 742 742 272 272 V03V031) 3)1) 3) 3737 KRE 101 1931/1 KRE 101 1931/12) 3)2) 3) 742 272 V03742 272 V032) 3)2) 3) 3838 KRE KRE 101 101 1932/1 1932/1 741 741 989 989 22 KRE KRE 101 101 1956/1 1956/1 739 739 664 664 1313 KRE KRE 101 101 1957/1 1957/1 739 739 665 665 1414 1) 1)
Antenna type number valid for high band part of dual / triple band antenna. Antenna type number valid for high band part of dual / triple band antenna.
2) 2)
Antenna type number valid for low band part of dual / triple band antenna. Antenna type number valid for low band part of dual / triple band antenna.
3) 3)
Note! Antenna type number only valid for stated Kathrein V0x product v
Note! Antenna type number only valid for stated Kathrein V0x product v ersion number and higher. Useersion number and higher. Use the Kathrein product number to select the correct antenna type number.
KRE 101 1959/1 741 990 3 KRE 101 1960/1 741 988 1 KRE 101 1973/1 739 686 15 KRE 101 1974/1 739 685 14 KRE 101 1975/1 739 684 13 KRE 101 1977/1 742 351 2 KRE 101 1978/11) 742 2411) 4 KRE 101 1978/12) 742 2412) 15 KRE 101 1985/1 742 215 7 KRE 101 1999/1 742 236 7 KRE 101 2003/11) 800 101211) 7 KRE 101 2003/12) 800 101212) 17 KRE 101 2004/11) 800 101221) 3 KRE 101 2004/12) 800 101222) 14 KRE 101 2005/11) 800 101231) 3 KRE 101 2005/12) 800 101232) 15 KRE 101 2006/11) 800 102921) 9 KRE 101 2006/12) 800 102922) 18 KRE 101 2008/1 742 352 7 KRE 101 2010/1 800 10270 7 KRE 101 2011/11) 742 2231) 4 KRE 101 2011/12) 742 2232) 13 KRE 101 2011/11) 3) 742 223 V021) 3) 35 KRE 101 2011/12) 3) 742 223 V022) 3) 34 KRE 101 2012/1 800 10305 19 KRE 101 2013/1 800 10271 3 KRE 101 2016/1 800 10360 7 KRE 101 2020/11) 742 2251) 5 KRE 101 2020/12) 742 2252) 15 KRE 101 2020/11) 3) 742 225 V021) 3) 37 KRE 101 2020/12) 3) 742 225 V022) 3) 38 KRE 101 2021/1 800 10303 13 KRE 101 2022/1 800 10304 14 KRE 101 2025/11) 742 2241) 5 KRE 101 2025/12) 742 2242) 14 KRE 101 2025/11) 3) 742 224 V021) 3) 37 KRE 101 2025/12) 3) 742 224 V022) 3) 36 KRE 101 2026/1 800 10393 7 KRE 101 2051/1 800 10375 8 KRE 101 2057/1 800 10306 6 KRE 101 2059/1 800 10505 11 KRE 101 2060/1 800 10510 10 KRE 101 2061/1 800 10511 11 1)
Antenna type number valid for high band part of dual / triple band antenna.
2)
Antenna type number valid for low band part of dual / triple band antenna.
3)
Note! Antenna type number only valid for stated Kathrein V0x product v ersion number and higher. Use the Kathrein product number to select the correct antenna type number.
Antenna product number Antenna type number Ericsson Kathrein KRE 101 2063/1 800 10307 6 KRE 101 2064/1 800 10517 23 KRE 101 2065/11) 800 102911) 25 KRE 101 2065/12) 800 102912) 26 KRE 101 2066/11) 800 104921) 21 KRE 101 2066/12) 800 104922) 22 KRE 101 2068/11) 800 102901) 29 KRE 101 2068/12) 800 102902) 28 KRE 101 2071/1 800 10310 6 KRE 101 2072/1 800 10541 24 KRE 101 2073/14) 800 105444) 24 KRE 101 2073/15) 800 105445) 10 KRE 101 2074/1 800 10516 14 KRE 101 2075/1 800 10518 23 KRE 101 2076/11) 800 104851) 20 KRE 101 2076/12) 800 104852) 26 KRE 101 2077/11) 800 104861) 20 KRE 101 2077/12) 800 104862) 22 KRE 101 2078/1 800 10456 14 KRE 101 2079/1 800 10300 6 KRE 101 2080/1 800 10614 27 KRE 101 2083/1 742 214 33 KRE 101 2085/1 800 10621 30 KRE 101 2086/1 800 10634 14 KRE 101 2088/1 800 10681 43 KRE 101 2089/1 800 10636 2 KRE 101 2090/14) 800 106444) 42 KRE 101 2090/15) 800 106445) 41 KRE 101 2091/1 800 10682 43 KRE 101 2092/1 800 10622 30 KRE 101 2093/1 800 10647 19 KRE 101 2094/1 742 237 33 KRE 101 2096/11) 800 106751) 53 KRE 101 2096/12) 800 106752) 52 KRE 101 2097/1 800 10667 46 KRE 101 2098/1 800 10668 40 KRE 101 2202/1 800 10651 54 KRE 101 2204/11) 800 106651) 53 KRE 101 2204/12) 800 106652) 52 KRE 101 2205/11) 800 106661) 53 KRE 101 2205/12) 800 106662) 6 1)
Antenna type number valid for high band part of dual / triple band antenna.
2)
Antenna type number valid for low band part of dual / triple band antenna.
4)
Antenna type number valid for 2600 MHz compatible part of dual / triple band antenna.
5)
KRE 101 2207/16) 800 106976) 48 KRE 101 2207/17) 800 106977) 47 KRE 101 2208/1 800 106981) 37 KRE 101 2208/16) 800 106986) 45 KRE 101 2208/17) 800 106987) 44 KRE 101 2209/1 800 106991) 37 KRE 101 2209/16) 800 106996) 51 KRE 101 2209/17) 800 106997) 50 KRE 101 2211/11) 800 106761) 53 KRE 101 2211/12) 800 106762) 6 - 742 445 7 - 800 10247 8 - 800 10251 8 - 800 10308 39 - 800 10309 14 - 800 10378 3 - 800 10474 12 - 800 10475 3 - 800 10480 12 - 800 10481 3 - 800 10543 24 - 800 10551 24 - 800 10553 24 - 800 10606 7 - 800 106701) 2 800 106702) 31 - 800 106711) 3 800 106712) 32 - 800 106721) 3 800 106722) 15 1)
Antenna type number valid for high band part of dual / triple band antenna.
2)
Antenna type number valid for low band part of dual / triple band antenna.
6)
Antenna type number valid for 900 MHz compatible part of dual / triple band antenna.
7)
1.2
Config uratio n data
1.2.1 Ant enna type number 1
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 9507 0x2523 Config data 2 7964 0x1F1C Config data 3 7197 0x1C1D Config data 4 7970 0x1F22 Config data 5 8738 0x2222 Config data 6 8737 0x2221 Config data 7 8486 0x2126 Config data 8 64 0x0040
Config data 9 (checksum) 1135 0x046F
1.2.2 Ant enna type number 2
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 80 0x0050 Config data 1 7196 0x1C1C Config data 2 7193 0x1C19 Config data 3 5397 0x1515 Config data 4 5397 0x1515 Config data 5 6428 0x191C Config data 6 7196 0x1C1C Config data 7 8481 0x2121 Config data 8 64 0x0040
Config data 9 (checksum) 38116 0x94E4
1.2.3 Ant enna type number 3
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 60 0x003C Config data 1 5911 0x1717 Config data 2 5137 0x1411 Config data 3 4367 0x110F Config data 4 4369 0x1111 Config data 5 4628 0x1214 Config data 6 5142 0x1416 Config data 7 5911 0x1717 Config data 8 64 0x0040
Max Tilt 80 0x0050
Config data 1 7452 0x1D1C
Config data 2 5915 0x171B
Config data 3 6941 0x1B1D
Config data 4 7709 0x1E1D
Config data 5 6938 0x1B1A
Config data 6 7196 0x1C1C
Config data 7 6679 0x1A17
Config data 8 64 0x0040
Config data 9 (checksum) 8640 0x21C0
1.2.5 Ant enna type number 5
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 60 0x003C Config data 1 7960 0x1F18 Config data 2 5652 0x1614 Config data 3 5140 0x1414 Config data 4 4883 0x1313 Config data 5 4884 0x1314 Config data 6 5140 0x1414 Config data 7 4112 0x1010 Config data 8 64 0x0040
Config data 9 (checksum) 27597 0x6BCD
1.2.6 Ant enna type number 6
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 5656 0x1618 Config data 2 7197 0x1C1D Config data 3 7975 0x1F27 Config data 4 11568 0x2D30
Config data 5 11812 0x2E24
Config data 6 8990 0x231E
Config data 7 6940 0x1B1C
Config data 8 64 0x0040
1.2.7 Ant enna type number 7
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 100 0x0064
Config data 1 7198 0x1C1E
Config data 2 11055 0x2B2F Config data 3 6167 0x1817 Config data 4 5915 0x171B Config data 5 6939 0x1B1B Config data 6 7457 0x1D21 Config data 7 8496 0x2130 Config data 8 64 0x0040
Config data 9 (checksum) 45336 0xB118
1.2.8 Ant enna type number 8
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 120 0x0078 Config data 1 6950 0x1B26 Config data 2 10278 0x2826 Config data 3 10018 0x2722 Config data 4 8741 0x2225 Config data 5 10274 0x2822
Config data 6 10282 0x282A
Config data 7 14142 0x373E
Config data 8 64 0x0040
Config data 9 (checksum) 15817 0x3DC9
1.2.9 Ant enna type number 9
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 100 0x0064
Config data 1 3600 0x0E10
Config data 2 4379 0x111B
Config data 3 10024 0x2728
Config data 4 10802 0x2A32
Config data 5 11560 0x2D28
Config data 6 10277 0x2825
Config data 7 7967 0x1F1F
Config data 8 64 0x0040
Max Tilt 150 0x0096
Config data 1 7212 0x1C2C
Config data 2 17204 0x4334
Config data 3 10800 0x2A30
Config data 4 12334 0x302E
Config data 5 12336 0x3030
Config data 6 11569 0x2D31
Config data 7 14390 0x3836
Config data 8 64 0x0040
Config data 9 (checksum) 5216 0x1460
1.2.11 Ant enna type number 11
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 4375 0x1117 Config data 2 6946 0x1B22 Config data 3 8481 0x2121 Config data 4 8481 0x2121 Config data 5 8481 0x2121
Config data 6 7713 0x1E21
Config data 7 10022 0x2726
Config data 8 64 0x0040
Config data 9 (checksum) 24259 0x5EC3
1.2.12 Ant enna type number 12
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 4897 0x1321 Config data 2 9506 0x2522 Config data 3 7459 0x1D23 Config data 4 8996 0x2324 Config data 5 9511 0x2527
Config data 6 8478 0x211E
Config data 7 10526 0x291E
Config data 8 64 0x0040
1.2.13 Ant enna type number 13
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 140 0x008C Config data 1 8480 0x2120 Config data 2 8493 0x212D Config data 3 13878 0x3636 Config data 4 16953 0x4239 Config data 5 15158 0x3B36 Config data 6 12850 0x3232 Config data 7 10532 0x2924 Config data 8 64 0x0040
Config data 9 (checksum) 19696 0x4CF0
1.2.14 Ant enna type number 14
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 100 0x0064
Config data 1 7966 0x1F1E
Config data 2 6943 0x1B1F Config data 3 8486 0x2126 Config data 4 10278 0x2826 Config data 5 9761 0x2621 Config data 6 7971 0x1F23 Config data 7 7969 0x1F21 Config data 8 64 0x0040
Config data 9 (checksum) 23941 0x5D85
1.2.15 Ant enna type number 15
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 70 0x0046
Config data 1 5912 0x1718
Config data 2 4883 0x1313
Config data 3 5402 0x151A
Config data 4 7197 0x1C1D
Config data 5 6683 0x1A1B
Config data 6 6679 0x1A17
Config data 7 5396 0x1514
Config data 8 64 0x0040
Max Tilt 120 0x0078
Config data 1 15134 0x3B1E
Config data 2 10535 0x2927
Config data 3 11054 0x2B2E
Config data 4 11056 0x2B30
Config data 5 10542 0x292E
Config data 6 11043 0x2B23
Config data 7 8733 0x221D
Config data 8 64 0x0040
Config data 9 (checksum) 47794 0xBAB2
1.2.17 Ant enna type number 17
Parameter Decimal Hexadecimal
Min Tilt 5 0x0005 Max Tilt 125 0x007D Config data 1 4631 0x1217 Config data 2 7461 0x1D25 Config data 3 10290 0x2832 Config data 4 11573 0x2D35 Config data 5 12336 0x3030
Config data 6 12334 0x302E
Config data 7 10279 0x2827
Config data 8 64 0x0040
Config data 9 (checksum) 21342 0x535E
1.2.18 Ant enna type number 18
Parameter Decimal Hexadecimal
Min Tilt 25 0x0019
Max Tilt 95 0x005f
Config data 1 2572 0x0A0C
Config data 2 5657 0x1619
Config data 3 5916 0x171C
Config data 4 7452 0x1D1C
Config data 5 6426 0x191A
Config data 6 6425 0x1919
Config data 7 6425 0x1919
Config data 8 64 0x0040
1.2.19 Ant enna type number 19
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 80 0x0050
Config data 1 7452 0x1D1C
Config data 2 5915 0x171B
Config data 3 6941 0x1B1D
Config data 4 7709 0x1E1D
Config data 5 6938 0x1B1A
Config data 6 7196 0x1C1C
Config data 7 6679 0x1A17
Config data 8 64 0x0040
Config data 9 (checksum) 8640 0x21C0
1.2.20 Ant enna type number 20
Parameter Decimal Hexadecimal
Min Tilt 40 0x0028 Max Tilt 140 0x008C Config data 1 2833 0x0B11 Config data 2 5912 0x1718 Config data 3 9263 0x242F Config data 4 12083 0x2F33 Config data 5 12836 0x3224 Config data 6 8995 0x2323 Config data 7 8733 0x221D Config data 8 64 0x0040
Config data 9 (checksum) 18779 0x495B
1.2.21 Ant enna type number 21
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 140 0x008C Config data 1 4115 0x1013 Config data 2 9007 0x232F Config data 3 13878 0x3636 Config data 4 16975 0x424F Config data 5 17974 0x4636 Config data 6 13868 0x362C Config data 7 10531 0x2923 Config data 8 64 0x0040
Max Tilt 120 0x0078
Config data 1 773 0x0305
Config data 2 4376 0x1118
Config data 3 7717 0x1E25
Config data 4 10795 0x2A2B
Config data 5 11298 0x2C22
Config data 6 6682 0x1A1A
Config data 7 4886 0x1316
Config data 8 64 0x0040
Config data 9 (checksum) 45103 0xB02F
1.2.23 Ant enna type number 23
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 80 0x0050
Config data 1 5140 0x1414
Config data 2 5658 0x161A
Config data 3 8229 0x2025
Config data 4 10022 0x2726
Config data 5 8223 0x201F
Config data 6 6676 0x1A14
Config data 7 5138 0x1412
Config data 8 64 0x0040
Config data 9 (checksum) 48325 0xBCC5
1.2.24 Ant enna type number 24
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 120 0x0078
Config data 1 2856 0x0B28
Config data 2 11306 0x2C2A
Config data 3 9513 0x2529 Config data 4 10024 0x2728 Config data 5 10028 0x272C Config data 6 10023 0x2727 Config data 7 10037 0x2735 Config data 8 64 0x0040
1.2.25 Ant enna type number 25
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 140 0x008C
Config data 1 4899 0x1323
Config data 2 13107 0x3333
Config data 3 14905 0x3A39
Config data 4 15672 0x3D38
Config data 5 13874 0x3632
Config data 6 11816 0x2E28
Config data 7 9252 0x2424
Config data 8 64 0x0040
Config data 9 (checksum) 8832 0x2280
1.2.26 Ant enna type number 26
Parameter Decimal Hexadecimal
Min Tilt 20 0x0014
Max Tilt 140 0x008C
Config data 1 6682 0x1A1A
Config data 2 7199 0x1C1F
Config data 3 10371 0x2883
Config data 4 14919 0x3A47
Config data 5 13106 0x3332
Config data 6 12066 0x2F22
Config data 7 7710 0x1E1E
Config data 8 64 0x0040
Config data 9 (checksum) 39007 0x985F
1.2.27 Ant enna type number 27
Parameter Decimal Hexadecimal
Min Tilt 20 0x0014
Max Tilt 100 0x0064
Config data 1 4372 0x1114
Config data 2 6171 0x181B
Config data 3 6683 0x1A1B
Config data 4 6683 0x1A1B
Config data 5 6683 0x1A1B
Config data 6 6687 0x1A1F
Config data 7 7194 0x1C1A
Config data 8 64 0x0040
Max Tilt 140 0x008C
Config data 1 3086 0x0C0E
Config data 2 7219 0x1C33
Config data 3 14905 0x3A39
Config data 4 17985 0x4641
Config data 5 17983 0x463F
Config data 6 12081 0x2F31
Config data 7 11297 0x2C21
Config data 8 64 0x0040
Config data 9 (checksum) 21141 0x5295
1.2.29 Ant enna type number 29
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 140 0x008C Config data 1 8230 0x2026 Config data 2 12345 0x3039 Config data 3 13872 0x3630 Config data 4 12595 0x3133 Config data 5 13108 0x3334 Config data 6 12593 0x3131
Config data 7 11310 0x2C2E
Config data 8 64 0x0040
Config data 9 (checksum) 49789 0xC27D
1.2.30 Ant enna type number 30
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 120 0x0078 Config data 1 6438 0x1926 Config data 2 13097 0x3329 Config data 3 10533 0x2925 Config data 4 10280 0x2828 Config data 5 10281 0x2829 Config data 6 9768 0x2628
Config data 7 11050 0x2B2A
Config data 8 64 0x0040
1.2.31 Ant enna type number 31
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 120 0x0078
Config data 1 3616 0x0E20
Config data 2 11054 0x2B2E
Config data 3 12598 0x3136 Config data 4 12082 0x2F32 Config data 5 11051 0x2B2B Config data 6 11043 0x2B23 Config data 7 8988 0x231C Config data 8 64 0x0040
Config data 9 (checksum) 25431 0x6357
1.2.32 Ant enna type number 32
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 4114 0x1012 Config data 2 5144 0x1418 Config data 3 7972 0x1F24 Config data 4 10284 0x282C
Config data 5 11817 0x2E29
Config data 6 11048 0x2B28
Config data 7 8988 0x231C
Config data 8 64 0x0040
Config data 9 (checksum) 64738 0xFCE2
1.2.33 Ant enna type number 33
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 80 0x0050 Config data 1 1820 0x071C Config data 2 6940 0x1B1C Config data 3 7452 0x1D1C Config data 4 6940 0x1B1C
Config data 5 7450 0x1D1A
Config data 6 6940 0x1B1C
Config data 7 6942 0x1B1E
Config data 8 64 0x0040
Max Tilt 140 0x008C
Config data 1 5918 0x171E
Config data 2 10799 0x2A2F
Config data 3 12591 0x312F Config data 4 13109 0x3335 Config data 5 16183 0x3F37 Config data 6 13878 0x3636 Config data 7 11311 0x2C2F Config data 8 64 0x0040
Config data 9 (checksum) 20923 0x51BB
1.2.35 Ant enna type number 35
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 80 0x0050 Config data 1 3855 0x0F0F Config data 2 7202 0x1C22 Config data 3 8225 0x2021 Config data 4 8735 0x221F Config data 5 6937 0x1B19
Config data 6 6426 0x191A
Config data 7 6426 0x191A
Config data 8 64 0x0040
Config data 9 (checksum) 58938 0xE63A
1.2.36 Ant enna type number 36
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 4114 0x1012 Config data 2 5404 0x151C Config data 3 8996 0x2324 Config data 4 10284 0x282C Config data 5 11563 0x2D2B Config data 6 10275 0x2823 Config data 7 8737 0x2221 Config data 8 64 0x0040
1.2.37 Ant enna type number 37
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 60 0x003C
Config data 1 3598 0x0E0E
Config data 2 4115 0x1013 Config data 3 7192 0x1C18 Config data 4 6168 0x1818 Config data 5 6166 0x1816 Config data 6 5140 0x1414 Config data 7 4624 0x1210 Config data 8 64 0x0040
Config data 9 (checksum) 48461 0xBD4D
1.2.38 Ant enna type number 38
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 70 0x0046 Config data 1 3855 0x0F0F Config data 2 4883 0x1313 Config data 3 6168 0x1818 Config data 4 6941 0x1B1D Config data 5 7451 0x1D1B Config data 6 7195 0x1C1B Config data 7 6165 0x1815 Config data 8 64 0x0040
Config data 9 (checksum) 30230 0x7616
1.2.39 Ant enna type number 39
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 140 0x008C
Config data 1 5916 0x171C
Config data 2 11312 0x2C30
Config data 3 12086 0x2F36
Config data 4 14394 0x383A
Config data 5 15672 0x3D38
Config data 6 13873 0x3631
Config data 7 12590 0x312E
Config data 8 64 0x0040
Max Tilt 100 0x0064
Config data 1 5913 0x1719
Config data 2 7718 0x1E26
Config data 3 11568 0x2D30
Config data 4 11563 0x2D2B
Config data 5 11046 0x2B26
Config data 6 9758 0x261E
Config data 7 6425 0x1919
Config data 8 64 0x0040
Config data 9 (checksum) 37268 0x9194
1.2.41 Ant enna type number 41
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 100 0x0064
Config data 1 1815 0x0717
Config data 2 10026 0x272A
Config data 3 9252 0x2424 Config data 4 8991 0x231F Config data 5 7971 0x1F23 Config data 6 8995 0x2323 Config data 7 9255 0x2427 Config data 8 64 0x0040
Config data 9 (checksum) 61627 0xF0BB
1.2.42 Ant enna type number 42
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 100 0x0064 Config data 1 784 0x0310 Config data 2 8484 0x2124 Config data 3 10017 0x2721 Config data 4 8742 0x2226 Config data 5 8744 0x2228 Config data 6 11303 0x2C27 Config data 7 8996 0x2324 Config data 8 64 0x0040
1.2.43 Ant enna type number 43
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 120 0x0078
Config data 1 5921 0x1721
Config data 2 12330 0x302A
Config data 3 9512 0x2528
Config data 4 9512 0x2528
Config data 5 10023 0x2727
Config data 6 10280 0x2828
Config data 7 10791 0x2A27
Config data 8 64 0x0040
Config data 9 (checksum) 28136 0x6DE8
1.2.44 Ant enna type number 44
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 100 0x0064
Config data 1 4627 0x1213
Config data 2 7206 0x1C26
Config data 3 10796 0x2A2C
Config data 4 11309 0x2C2D
Config data 5 10791 0x2A27
Config data 6 9762 0x2622
Config data 7 8218 0x201A
Config data 8 64 0x0040
Config data 9 (checksum) 30064 0x7570
1.2.45 Ant enna type number 45
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 100 0x0064
Config data 1 2570 0x0A0A
Config data 2 3867 0x0F1B
Config data 3 7970 0x1F22
Config data 4 9768 0x2628
Config data 5 11051 0x2B2B
Config data 6 10795 0x2A2B
Config data 7 10281 0x2829
Config data 8 64 0x0040
Max Tilt 120 0x0078
Config data 1 2062 0x080E
Config data 2 6437 0x1925
Config data 3 13364 0x3434
Config data 4 13361 0x3431
Config data 5 12593 0x3131
Config data 6 11820 0x2E2C
Config data 7 10793 0x2A29
Config data 8 64 0x0040
Config data 9 (checksum) 32075 0x7D4B
1.2.47 Ant enna type number 47
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 140 0x008C Config data 1 5916 0x171C Config data 2 10287 0x282F Config data 3 14396 0x383C Config data 4 17217 0x4341 Config data 5 16700 0x413C Config data 6 13621 0x3535 Config data 7 10533 0x2925 Config data 8 64 0x0040
Config data 9 (checksum) 169 0x00A9
1.2.48 Ant enna type number 48
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 140 0x008C Config data 1 6435 0x1923 Config data 2 12087 0x2F37 Config data 3 13621 0x3535 Config data 4 14655 0x393F Config data 5 14390 0x3836
Config data 6 12842 0x322A
Config data 7 10536 0x2928
Config data 8 64 0x0040
1.2.49 Ant enna type number 49
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 80 0x0050
Config data 1 3858 0x0F12
Config data 2 5402 0x151A
Config data 3 7199 0x1C1F
Config data 4 8736 0x2220
Config data 5 8222 0x201E
Config data 6 7707 0x1E1B
Config data 7 7448 0x1D18
Config data 8 64 0x0040
Config data 9 (checksum) 3830 0x0EF6
1.2.50 Ant enna type number 50
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 70 0x0046 Config data 1 4370 0x1112 Config data 2 4888 0x1318 Config data 3 7195 0x1C1B Config data 4 6429 0x191D
Config data 5 7450 0x1D1A
Config data 6 5908 0x1714
Config data 7 5398 0x1516
Config data 8 64 0x0040
Config data 9 (checksum) 5375 0x14FF
1.2.51 Ant enna type number 51
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 70 0x0046
Config data 1 3341 0x0D0D
Config data 2 3603 0x0E13
Config data 3 5913 0x1719 Config data 4 6939 0x1B1B Config data 5 7451 0x1D1B Config data 6 8224 0x2020 Config data 7 6933 0x1B15 Config data 8 64 0x0040
Max Tilt 100 0x0064 Config data 1 7970 0x1F22 Config data 2 8484 0x2124 Config data 3 10283 0x282B Config data 4 11046 0x2B26 Config data 5 8996 0x2324
Config data 6 7706 0x1E1A
Config data 7 6425 0x1919
Config data 8 64 0x0040
Config data 9 (checksum) 51031 0xC757
1.2.53 Ant enna type number 53
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000
Max Tilt 60 0x003C
Config data 1 2572 0x0A0C
Config data 2 4115 0x1013 Config data 3 5144 0x1418 Config data 4 6167 0x1817 Config data 5 6166 0x1816 Config data 6 5396 0x1514 Config data 7 5142 0x1416 Config data 8 64 0x0040
Config data 9 (checksum) 215 0x00D7
1.2.54 Ant enna type number 54
Parameter Decimal Hexadecimal
Min Tilt 0 0x0000 Max Tilt 60 0x003C Config data 1 3855 0x0F0F Config data 2 4371 0x1113 Config data 3 5911 0x1717 Config data 4 5910 0x1716 Config data 5 5655 0x1617 Config data 6 5913 0x1719 Config data 7 6166 0x1816 Config data 8 64 0x0040
2
Revision histor y
Rev. Date Description
M 2009-11-09 KRE 101 2083/1 added to cross reference table.
N 2010-09-02 Antenna type 31-40 added.
800 10308, 800 10309, 800 10378, 800 10647 and 800 10668 added. KRE 101 1916/1, KRE 101 1917/1, KRE 101 1921/1, KRE 101 1922/1, KRE 101 1930/1, KRE 101 1931/1, KRE 101 2011/1, KRE 101 2020/1, KRE 101 2025/1, KRE 101 2083/1, 800 10670 and 800 10671 updated. KRE 101 2085/1 and KRE 101 2086/1 added to previously included antennas. Note 2) updated.
Former note 4) removed. New note 4) added.
Note about phased out antennas moved to beginning of chapter 1.1
S 2011-04-12 Antenna type 41-54 added.
KRE 101 2088/1, KRE 101 2090/1, KRE 101 2091/1, KRE 101 2094/1, KRE 101 2096/1, KRE 101 2097/1, KRE 101 2202/1, KRE 101 2204/1, KRE 101 2205/1, KRE 101 2207/1, KRE 101 2208/1, KRE 101 2209/1 and KRE 101 2211/1 added.
KRE 101 2089/1, 2092/1, 2093/1 and 2098/1 added to previously included antennas.
Note 1) and 2) updated.
Note 3) changed to note 4) and note 4) changed to note 3). Note 5), 6) and 7) added.
