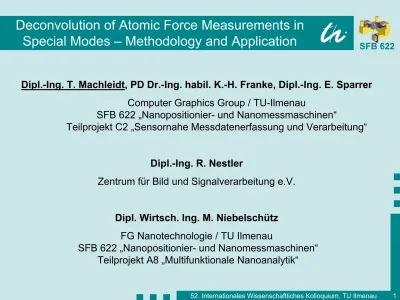

SFB 622
Deconvolution of Atomic Force Measurements in
Special Modes – Methodology and Application
Dipl.-Ing. T. Machleidt, PD Dr.-Ing. habil. K.-H. Franke, Dipl.-Ing. E. Sparrer
Computer Graphics Group / TU-Ilmenau
SFB 622 „Nanopositionier- und Nanomessmaschinen“
Teilprojekt C2 „Sensornahe Messdatenerfassung und Verarbeitung“
Dipl.-Ing. R. Nestler
Zentrum für Bild und Signalverarbeitung e.V.
Dipl. Wirtsch. Ing. M. Niebelschütz
FG Nanotechnologie / TU Ilmenau
SFB 622 „Nanopositionier- und Nanomessmaschinen“ Teilprojekt A8 „Multifunktionale Nanoanalytik“
SFB 622
Contents
¾ SFB 622
¾ Measurement System / Atomic Force Microscope ¾ Imaging Model of Kelvin Force Microscopy (KFM)
• Noise in KFM Data
• Analytical PSF Estimation ¾ Model Limitations
¾ Deconvolution Algorithm ¾ Deconvolution Results ¾ Conclusion & Outlook
SFB 622
SFB 622
Goal: Nanopositioning and Nanomeasuring Machine
Resolution: 0.05 nm Reproducibility: < 1 nm Positioning volume: 350 mm x 350 mm x 5 - 50 mm
Mesurement system: exchangable 2.5D, 3D
Role of supproject C2 Mirror Measure-ment X Measure-ment Z Metrological Frame Probes /
Tools User-PC Server User-PC Server Primary 3D Features Interaction Probe / Object from the View of IP
Digital Signal Processor Data Compression
Measured Data Processing
SFB 622
Measurement System / Atomic Force
Microscope
Lateral Resolution:
AFM topography mode: approx. 2 nm
AFM special mode: approx. 50 – 100 nm
potential measurement (EFM, KFM),
magnetic force measurement (MFM), ...
Cantilever
Stage
Sample
Potential (KFM) measured by AFM
Deconvolution?
SFB 622
Measurement System / Atomic Force
Microscope
Deconvolution of AFM Measurement in Special Mode
Imaging process Deconvolution process
• PSF determination • Noise suppression Object
Disturbed
image Disturbedimage
Object estimation
PSF Inversion
SFB 622
Kelvin Force Microscopy - KFM
Principle: Indirect determination of surface potential by means of an electrostatic force acting on the measuring system
2nd pass
Surface potential measurement
Φ
(
x y)
U t dxdy y x C y x F y x ac t c =∫∫
′ ⋅ Φ −Φ ⋅ ⋅ , ,ω( , ) ( , ) ( , ) sin(ω ) 1st pass Topography determinationSFB 622
Imaging Model of KFM
noise n(x,y)?
actual surface potential measured surface potential + LSI system PSFΦ(x,y) Φt(x,y) Φt,n(x,y)
?
¾ LSI system: linear shift-invariant system
with a point spread function (PSF) as the convolution kernel
SFB 622
Imaging Model of KFM – Noise Analysis
Amplitude distribution:
Histogram counting of noise amplitude
SFB 622
Imaging Model of KFM – Noise Analysis
Frequency distribution:
Fourier-transformed KFM image equally distributed Ö white noise
SFB 622
Imaging Model of KFM
noise n(x,y)9
actual surface potential measured surface potential + LSI system PSFΦ(x,y) Φt(x,y) Φt,n(x,y)
?
SFB 622
Imaging Model of KFM – LSI Analysis
Image interrelation at KFM
(
x y)
U t dxdy y x C y x F y x ac t c =∫∫
′ ⋅ Φ −Φ ⋅ ⋅ , ,ω( , ) ( , ) ( , ) sin(ω ) dj di y x y x C y y x x C y x i j j i j i ij t ( , ) ) , ( ) , ( ) , ( , Φ ⋅ ′ − − ′ = Φ∫∫
control unit ) , ( ) , ( , 0 ) , ( , x y for x y x y Fcω = Φ = Φt convolution kernelSFB 622
Imaging Model of KFM – PSF Calculation
Transform KFM tip geometry to polar coordinates
r α
Fit a hyperbola to each angle α2 2
1
2 C z C z
r = +
Calculate the electric field distribution at η=0 and ξ by means of heights C1 and C2
SFB 622
Imaging Model of KFM
noise n(x,y)9
actual surface potential measured surface potential + LSI system PSFΦ(x,y) Φt(x,y) Φt,n(x,y)
9
¾ Additive white Gaussian noise
SFB 622
Imaging Model of KFM – Model Limitations
Assumptions:
¾
Sample topography must be negligible
¾
Only the electrostatic force is acting on the detection
system
Solution:
¾
Measurement at sufficiently large
tip-to-sample distance
SFB 622
Imaging Model of KFM - Deconvolution
Inversion of the PSF with Wiener noise subpression
Filter adjustment by resolution boundary } { ˆ , 2 * , , n t n F L L L OTF OTF n t n t ⋅ Φ + ⋅ = Φ Φ Φ λ Wiener filter inverted OTF
(Optical Transfer Function = Fourier-transformed PSF)
SFB 622
Imaging Model of KFM - Deconvolution
SFB 622
Conclusion
¾
KFM measurement data have bad lateral resolution
¾
The imaging process can be described as an LSI model
¾
An analytical method was presented to determine the PSF
¾
Deconvolution was demonstrated using inversion of the
SFB 622
Outlook
¾
Using a measured
method to determine the PSF
Sample to determine the PSF (Developed by ZMN Ilmenau, SFB 622 TP A8)
¾Expansion of the deconvolution method (e.g. pixon method)
¾Forder practical analysis
Nanoscale stripe pattern for testing of lateral resolution and calibration of length scale
SFB 622
The End
Thanks for your attention!
Acknowledgement
This work was supported by the German Science Foundation (DFG, SFB 622). The authors wish to thank all those colleagues at the Technische Universität
