Quality and Process Control Plan

(1)

Quality and Process Control Plan

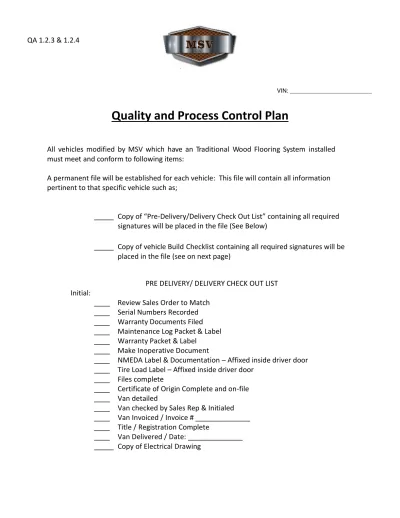

A permanent file will be established for each vehicle: This file will contain all information pertinent to that specific vehicle such as;

_____ Copy of “Pre-Delivery/Delivery Check Out List” containing all required signatures will be placed in the file (See Below)

PRE DELIVERY/ DELIVERY CHECK OUT LIST Initial:

____ Review Sales Order to Match ____ Serial Numbers Recorded ____ Warranty Documents Filed ____ Maintenance Log Packet & Label ____ Warranty Packet & Label

____ Make Inoperative Document

____ NMEDA Label & Documentation – Affixed inside driver door ____ Tire Load Label – Affixed inside driver door

____ Files complete

____ Certificate of Origin Complete and on-file ____ Van detailed

____ Van checked by Sales Rep & Initialed ____ Van Invoiced / Invoice # ______________

____ Title / Registration Complete

____ Van Delivered / Date: ______________

_____ Copy of Electrical Drawing

VIN: _________________________

_____ Copy of vehicle Build Checklist containing all required signatures will be placed in the file (see on next page)

All vehicles modified by MSV which have an Traditional Wood Flooring System installed must meet and conform to following items:

QA 1.2.3 & 1.2.4

(2)

Quality and Process Control Plan Vehicle Build Checklist

Initial:

____ All items removed from vehicle (wall panels, headliner, jack, seats, seat belts/retractors, etc. will be placed in a holding area specific to that VIN

#. All parts which are removed must be protected from damage and re- installed into the same VIN # from which they were removed.

____ Seat belt retractors, whether removed or remaining in vehicle must be completely sealed to prevent debris intrusion

____

____ No drilling can be done thru boron steel components

____ All drilled holes must be treated against rust / corrosion prior to floor installation.

____ All rust proofing must not be applied within 12” of any exhaust component, on the drive shaft, or emergency brake cables

____ All hardware used for floor installation must be Grade 8 or better.

Hardware must also be treated for corrosion resistance (zinc, yellow zinc, zinc chromate, etc.)

____ Special 2” Outside Diameter, thru hardened flat washer must be used on bottom side whenever possible

____ All debris must be removed (swept, air pressure, vacuumed) prior to floor installation.

All drilling thru floor must adhere strictly to the drilling pattern as shown on the floor plan and lift template specific to the vehicle being up-fi8ed.

Fuel Tank must be removed or lowered suﬀiciently to prevent damage.

All fasteners used above fuel tank or other fuel system components must be installed to “point away” from the fuel system. Fasteners in this area will be bu>on head, truss head, modified truss head, or other rounded type head (no sharp edges or corners).

(3)

(VEHICLE BUILD CHECKLIST Continued)

Initial:

____

____ All wiring modifications must be made according to pertinent diagram(s).

All wiring must be completed using “best practices” (soldered

connections, shrink tube, appropriate wire gage, protection of the wires (such as looms and/or grommets) from cuts or abrasions. All wire gage sizes and circuit protection (fuses, circuit breakers etc.) must be properly sized.

____ Finished vehicle must have a pre-delivery service and check performed by a dealer or factory authorized agent. Included items of review will be headlight and front wheel alignment, lug nut torque and any other items specified by the vehicle OEM.

by an employee not involved in installation.

Finished vehicle must be four corner scaled (weighed) and results placed in file when completed.

____

All fasteners must be properly torqued to 10-30 ft./lbs. max and a random audit performed on no fewer than 10% of total fastener count

by an employee not involved in installation.

All Click & Slide Pucks must be properly torqued to 35 ft./lbs. max and a random audit performed on no fewer than 10% of total fastener count

Rev: 10-30-2020

(4)

Master’s Specialty Vehicles

Master's Specialty Vehicles, LLC | 800 Quik Trip Way, Belton, MO 64012 | 800-783-3613 QA 1.2.3 Maintenance of Control

 Supplier control: The Contractor shall require that each Supplier maintains a quality control program for the services and supplies that it provides. The Contractor’s quality assurance organization shall inspect and test materials provided by Suppliers for conformance to

specification requirements. Materials that have been inspected, tested and approved shall be identified as acceptable to the point of use in the manufacturing or assembly processes.

Controls shall be established to prevent inadvertent use of nonconforming materials.

o MSV confirms supplier’s specs for each part ordered prior to ordering o Inspection for damages of parts is done when each part is received

o If there are any damages, the part is red tagged and pulled offline (see non‐conforming materials below)

o See the following pages for process control documents, per Line Item, for RFP 20‐01

 Purchasing data: The Contractor shall verify that all applicable specification requirements are properly included or referenced in purchase orders of articles to be used on transit buses

o See the following pages for the van order form that was created to bid RFP 20‐01 which is also used for placing parts orders

QA 1.2.4 Manufacturing Control of Non‐conforming Materials

 Part is pulled offline, red tagged and shelved

 Part is segregated from online van parts location to ensure it’s not used

 Team to determine what the issue is

o Part missing items to make it complete?

o Incorrect part sent?

 New/correct part ordered

(5)

CUSTOMER NAME

TECHNICIAN FOREMAN QUALITY INSPECTOR QUOTE NUMBER

OK FILL OK FILL

Engine Oil

Operation of horn, interior lights, exterior lamps, turn signals, hazard and brake lamps

Windshield cracks and/or chips not present

Functionality of Constant velocity (CVI drive axle boots if equipped)

Operated and confirmed functionality of Braun interlock Brake Reservoir Windshield Washing

Functionality ofheating, ventilation and air conditioning check

Observed operation of exhaust system free from leaks, damage, looseparts rts)

Confirmed functionality of brake systems (including parking brake)

Braun wheelchair lift operated and functional

Headlamp Washer Power Steering

Visually inspected headlamp alignment

Steering and steering linkages functioning properly

Visually inspected engine cooling system, hoses and clamps

Airbag label present on driver sun visor

Coolant Recovery Reservoir Transmission (if equipped w/ dipstick)

Windshield washer spray, wiper operation and wiper blades

No Oil and/or fluid leaks observed

Visually inspected shocks/struts, air suspension and other

suspension components. Confirmed absence of leaks and/or damage

Operated and confirmed functionality of Q'Straint tie downs

Airbag label present on passenger sun visor Final Road Test Completed By:

Comments

MILEAGE

YEAR / MODEL

VIN DATE

Pass

Check Fluid Levels and Fill

Check Following Systems / Components

Inspection Completed and Verified By :

Check Battery Condition

Visual Inspection: mark any damage noted, describe in comments

Check Tires Fail

RF

GOOD RECHARGE BAD

RR

LF LR

Initials here

Tire Pressure Set to:

Factory Recommendations PSI FRONT REAR

Operators Manuals are Present Ford Owners Manuals present

Customer Take home book present*

Braun wheelchair lift Owners manual/CD present

*Customer take home book includes the following:

- Dealer contact info (sales, service and warranty contact info - Vehicle specs and features sheet

- Electrical Schematics

- service procedures and service intervals - Available cargo and seating information - Ford owners manuals

- Braun lift operating instruction, trouble shooting, manual operations guide, and warranty information

Torque Lug nuts ___________ft lbs Int________

Int_______

Int________

Rev: 10-30-2020

□ □

□ □ □ □

□ □

• •

• • • •

(6)

Qty. Option

*

1 2021 K1C

1 MSV‐118UDL1612 STD‐Wood Floor 130"

1 REAR LIFT

1 GOES‐92623‐1PGEN2RIGSS 1 GOES‐92585‐2PGEN2RIGSS 1 MSV‐SBTAD000

1 MSV‐SBTAP000 1 MSV‐FE752NA100‐04‐3 1 MSV‐SBTAP140‐T 1 MSV‐SBTAD140‐T 1

MSV‐NCL919FIB‐2

1 MSV‐QRT 360‐L

1 SPO

1 MSV‐ATX‐BAG

1 SPO

1 MSV‐ITM129‐T20

1 SPO

1 MSV‐COMPLETE

1 MSV‐R200950 Seat Belt Cutter

1 SPO

1 MSV‐ATGBASDR00GY 4 MSV‐Q5‐7580

Volt Meter

Intermotive Gateway Fast Idle CONFIGURATION

Description

Transit 140 Class Driver Side Shoulder Belt System Assembly Transit 140 Class Passenger Side Shoulder Belt System Assembly

Stepwell Lighting‐Side Sliding Door (2 lights) 1 Light to Illuminate Enter and Exiting the Van L‐Track Surface Mount For Shoulder Belt, Pre‐Drilled 100" (includes driver & pass side) Transit Passenger Shoulder Belt

Transit Drivers Shoulder Belt

Commercial Braun NCL919FIB‐2 Wheelchair Lift., 34" x 51" platform, NHTSA compliant, dual hydraulic lift arms, simplified electrical system with spring‐loaded roll stop to keep the wheelchair securely on the wheelchair lift platform, 800 pound capacity automatic ADA lift, REAR LIFT ONLY

InPower ITM129‐T20 WC Interlock to meet FMVSS 403 / 404 Wheel Chair Lift to be installed at Rear of Vehicle

Ford Transit ‐150 XL K1C 129.9" WB Medium Roof Passenger Van, 3.5 PFDI V6, ReverseCHASSIS OPTIONS

Torso Pad

Tie Down Storage Bag

"L" Track / Side to Side / per Wheelchair position (EACH)

Q'Straint Deluxe 4‐point Retractable Wheelchair Tiedown System/Tension Knobs/W18 Compliant ‐ "L" Track (4 tie downs include lap/shoulder belt)

14" Q'Straint straps to aide in tying down mobility aids (EACH) Complete Safety Kit (5 lb extinguisher, first aid kit, Triangle reflector kit ) B Pillar Grab Bar

Go‐ES 1PL, 3PT Gen 2 RIGID SS RH Belt Go‐ES 2PL, 3PT Gen 2 RIGID SS RH Belt

1‐1/8" Commercial Grade Plywood Floor installed cover with Black Altro Floor Model Figura

Class V Ford Transit 150 4 Passengers + 1 Wheelchair + Driver
