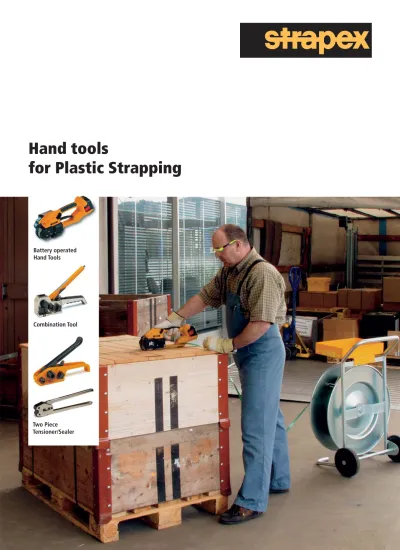

Hand tools for Plastic Strapping

(1)

Hand tools

for Plastic Strapping

Battery operated Hand Tools

Two Piece Tensioner/Sealer Combination Tool

(2)

The right tool

The applications for manual strapping are varied – just like the Strapex range. You can choose one of several systems from a simple hand tensioner/sealer to the very latest battery powered tools.

The right strap from our own

manufacturing plants

A comprehensive range of Polypropylene (PP) or Polyester (PET) plastic straps each with their own characteristics to ensure that strap and tool are always the best possible combination!

Worldwide Sales and Service

You will receive expert advice on choosing the right solution and service package together with the guaranteed availability of spare parts.

The Strapex Advantage

Hand Tools, Strap and After-Sales Service

as a total package

Weiteres Lieferprogramm

Hand tools for steel strapping Machines for plastic strapping Pallet stretch-wrapping machines

(3)

Battery-powered hand tools

Light applications

The new

generation

Light and portable: Weight (including battery) only

4.2 kg, 9.2 lbs (STB 65) 3.9 kg, 8.6 lbs (STB 63) 3.5 kg, 7.8 lbs (STB 61) Easy strap insertion: Both straps inserted together

Single-handed operation: Tensioning, sealing and cutting all with one hand Proven friction-weld seal The battery charge level is displayed

Strap tension and sealing time can be set at the push of a button

Model STB 61

For light goods

When fast strapping with low tension is required Tensioning force up to 700 N

Stationary strapping with suspension bow

(4)

Model STB 63

For general medium-heavy goods Tensioning force 400–2000 N

Strap insertion in one operation Touchpanel Protection of the battery by robust housing

(5)

Heavy applications

Model STB 65

For heavy goods – the “strong alternative“ to steel strapping

Tensioning force 400–3300 N

New battery charger with automatic charging/ discharging and new battery (Heavy Duty) for high performance and longer battery life

Technical data STB 65 STB 63 STB 61

Weight (including battery) 4.2 kg (9.3 lbs) 3.9 kg (8.6 lbs) 3.5 kg (7.8 lbs) Dimensions

– Length 375 mm (14.7“) 375 mm (14.7“) 375 mm (14.7“)

– Width 130 mm (5.1“) 130 mm (5.1“) 130 mm (5.1“)

– Height 140 mm (5.5“) 140 mm (5.5“) 140 mm (5.5“)

Tensioning (press button) Electrically Electrically Electrically Tensioning force, fully

adjustable (depending on strap) 400–3300 N 400–2000 N 0–700 N (88–730 lbf) (88–440 lbf) 0–155 lbf)

Sealing (button) Electrically Electrically Electrically

Battery

No of straps with one battery 120–250 (PP) Up to 200 Up to 300

80–150 (PET)

Voltage

– Battery charger 100–240 V 100–240 V 100–240 V

– Battery 14.4 V, 2,4 Ah 12 V, 2.4 Ah 12 V, 2.4 Ah

No of chargings per battery,

up to 2000 2000 2000

Battery charging time 60 minutes 60 minutes 60 minutes

Plastic strap

Strap with adjustable

– Polypropylene (PP) 19 mm (3_/ 4“) 12–16 mm ( 1_/ 2– 5_/ 8“) 9–13 mm ( 3_/ 8– 1_/ 2“) – Polyester (PET) 15–19 mm (5_/ 8– 3_/ 4“) 12–16 mm ( 1_/ 2– 5_/ 8“) 9–11 mm ( 3_/ 8– 1_/ 2“) Strap thickness – Polypropylene (PP) 0.8–1 mm 0.6–1 mm 0.5–0.8 mm (.032–.040“) (.023–.040“) (.020–.032“) – Polyester (PET) 0.8–1.3 mm 0.5–1 mm 0.5–0.8 mm (.032–.054“) (.020–.040“) (.020–.032“) Article number – Strap width 10 mm (3_/ 8“) 230 V, 50/60 Hz 366.610.001 115 V, 50/60 Hz 366.612.001 100 V, 50/60 Hz 366.614.001 – Strap width 13 mm (1_/ 2“) 230 V, 50/60 Hz 366.630.001 366.611.001 115 V, 50/60 Hz 366.632.001 366.613.001 100 V, 50/60 Hz 366.634.001 366.615.001 – Strap width 16 mm (5_/ 8“) 230 V, 50/60 Hz 366.650.001 366.631.001 115 V, 50/60 Hz 366.652.001 366.633.001 100 V, 50/60 Hz 366.654.001 366.635.001 – Strap width 19 mm (3_/ 4“) 230 V, 50/60 Hz 366.651.001 115 V, 50/60 Hz 366.653.001 100 V, 50/60 Hz 366.655.001 Options – Suspension bow 366.539.001 366.639.001 366.619.001

– Steel plate to protect

(6)

Model STB 60

The low cost alternative to

· Tools with

matic seal feed

· Tensioner/sealer combination with metal seals · Steel strapping applications (convert to PET strap) For general to medium duty applications Easy to set the strap tension and welding time

The battery charge level is displayed

Robust, for applications under aggressive conditions Simple manual tensioning up to 2300 N

Economical universal alternative

Manual tensioning

Battery-powered sealing

Mobile dispenser

For all hand tools With stable steel tube frame, large rubber wheels, coil brake and tray for tools, seals and strap cutters

Inside Ø 200 mm (8“) 280 mm (11“) Outside Ø 500 mm (19.7“) Inside Ø 400 mm (15.75“) Outside Ø 650 mm (25.6“) Technical data STB 60

Weight (including battery) 4 kg (8.8 lbs) Dimensions – Length 400 mm (15.75“) – Width 130 mm (5.1“) – Height 200 mm (7.9“) Tensioning Manually with lever

Tensioning force, fully adjustable

(depending on strap) 2300 N (506 lbf)

Sealing Electrically

Battery

No of straps with one battery

(depending on strap), up to 200 No of chargings per battery, up to 2000 Power supply

– Battery charger 230 (115 (V) – Battery 12 V Battery charging time 60 minutes

Plastic strap

Strap type Polypropylene (PP)

Polyester (PET) Strap width, adjustable 9–19 mm (3_/

8– 3_/ 4“) Strap thickness 0.5–1.0 mm (.020–.040“) Article number – Strap width 10 mm (3_/ 8“) 230 V, 50/60 Hz 366.560.001 115 V, 50/60 Hz 366.565.001 100 V, 50/60 Hz 366.570.001 – Strap width 13 mm (1_/ 2“) 230 V, 50/60 Hz 366.561.001 115 V, 50/60 Hz 366.566.001 100 V, 50/60 Hz 366.571.001 – Strap width 16 mm (5_/ 8“) 230 V, 50/60 Hz 366.562.001 115 V, 50/60 Hz 366.567.001 100 V, 50/60 Hz 366.572.001 – Strap width 19 mm (3_/ 4“) 230 V, 50/60 Hz 366.563.001 115 V, 50/60 Hz 366.568.001 100 V, 50/60 Hz 366.573.001 Options – Suspension bow 366.519.001

NEW

(7)

Low cost

Tensioner/Sealer combination

Combination tool

Combination tools

Tensioner/Sealer

combination

Seals for Polypropylene Strapping

Plain snap- on type

with smooth inner surface

Seals for Polyester Strapping

Toothed inner surface – ﬂ at joint

For occasional and mobile use

Tensioners for polypropylene and polyester strap

Model Article Strap width Weight Seal type

number STT 20 341.219.001 13–16 mm 1.250 kg Seal or buckle (1_/ 2– 5_/ 8“) (2.75 lbs)

Sealers for polyester straps and seals

Model Article Length Strap width Strap thickness Seal type

number of handles Article number

STS 12 369.113.001 465 mm (18.3“) 12–13 mm (1_/

2“) 0.4–0.7 mm (.015–.028“) 383.113.330

STS 13 369.116.001 465 mm (18.3“) 15–16 mm (5_/

8“) 0.4–0.7 mm (.015–.028“) 383.116.530

Sealers for polypropylene straps and seals

Model Article Length Strap width Strap thickness Seal type

number of handles Article number

STS 10 368.113.001 465 mm (18.3“) 12–13 mm (1_/

2“) Up to 0.6 mm (.023“) 380.013.128

STS 11 368.116.001 465 mm (18.3“) 15–16 mm (5_/

8“) Up to 0.6 mm (.023“) 380.016.028

Combination tools and seals

Model Article Strap width Strap thickness Weight Seal type

number Article number

STC 30 362.413.001 12–13 mm (1_/

2“) 0.4–0.7 mm (.015–.028“) 2.3 kg (5.1 lbs) 383.113.330

STC 31 362.416.001 15–16 mm (5_/

(8)
