5087
DEVELOPMENT AND STEM CELLS RESEARCH ARTICLE
INTRODUCTION
Adult tissues are often maintained by a population of tissue-specific stem cells, which have the capacity to self-renew and generate differentiated cells throughout the organism’s lifetime. Many fast turnover tissues, such as blood, skin, intestine and testis, are known to be maintained by stem cells (Li and Xie, 2005; Morrison and Spradling, 2008). Some slow turnover tissues are either maintained by stem cells as in the brain or by self-duplication as for insulin-secreting cells in the pancreas (Dor et al., 2004; Zhao et al., 2008). These adult stem cells are maintained in the niche for long-term self-renewal (Li and Xie, 2005; Morrison and Spradling, 2008). However, it remains unclear whether stem cell lineage differentiation is also controlled by a niche mechanism.
In the Drosophila ovary, two or three germline stem cells (GSCs) are anchored physically to their niche, which is composed of five to seven cap cells, through E-cadherin-mediated cell adhesion at the tip of the germarium (Song et al., 2002). Recently, a population of escort stem cells (ESCs), which directly contacts GSCs and cap cells, has been proposed to generate the differentiated escort cells (ECs) that accompany differentiated germ cells to the middle region of the germarium where ECs undergo apoptosis (Decotto and Spradling, 2005). The germ cells released from ECs are subsequently surrounded by follicle cells, which are
produced by two follicular stem cells (FSCs), to form individual egg chambers (Margolis and Spradling, 1995; Song and Xie, 2002). Therefore, ESCs have been proposed to behave similarly to cyst progenitor cells in the Drosophila testis, which produce differentiated somatic cells that wrap around differentiated germ cells to support their differentiation (Gonczy et al., 1992; Kiger et al., 2000; Tran et al., 2000; Schultz et al., 2002; Decotto and Spradling, 2005). A previous study has shown that stem cell tumor
(stet) encodes a germ cell-specific protein related to Rhomboid, which is required for the formation or maintenance of the long EC cellular processes and germ cell differentiation (Schultz et al., 2002). The Rhomboid family of transmembrane proteases is involved in processing EGF (epidermal growth factor) ligands (Urban et al., 2001). Indeed, another recent study showed that three EGF ligands function in germ cells to activate EGF receptor (EGFR) signaling in ECs, which in turn represses Dally expression (Liu et al., 2010). Dally is a proteoglycan protein that binds bone morphogenetic protein (BMP) and facilitates its signaling (Jackson et al., 1997; Belenkaya et al., 2004; Akiyama et al., 2008). In addition, Dally is also important for restricting BMPs inside the GSC niche in the Drosophilaovary (Guo and Wang, 2009; Hayashi et al., 2009). These findings suggest a model in which differentiated germ cells activate EGFR signaling in ECs, which prevents BMP diffusion from the GSC niche to ECs and thus promotes germ cell differentiation. However, it remains unclear how EC cellular process-mediated interactions between ECs and germ cells are regulated. In this study, we show that ECs are maintained by self-duplication instead of by ESCs. Furthermore, EC cellular processes are dependent on differentiated germ cells, and the physical interactions between ECs and germ cells are essential for germ cell differentiation. Therefore, we propose that self-maintained ECs form a niche that controls germ cell differentiation.
Development 138, 5087-5097 (2011) doi:10.1242/dev.067850 © 2011. Published by The Company of Biologists Ltd
Stowers Institute for Medical Research, 1000 East 50th Street, Kansas City, MO 64110, USA and Department of Cell Biology and Anatomy, University of Kansas Medical Center, 3901 Rainbow Boulevard, Kansas City, KS 66160, USA.
*These authors contributed equally to this work
‡Present address: Temasek Life Sciences Laboratory, 1 Research Link, National University of Singapore, Singapore 117604
§Author for correspondence (tgx@stowers.org)
Accepted 30 September 2011 SUMMARY
Stem cell self-renewal is controlled by concerted actions of niche signals and intrinsic factors in a variety of systems. In the Drosophila ovary, germline stem cells (GSCs) in the niche continuously self-renew and generate differentiated germ cells that interact physically with escort cells (ECs). It has been proposed that escort stem cells (ESCs), which directly contact GSCs, generate differentiated ECs to maintain the EC population. However, it remains unclear whether the differentiation status of germ cells affects EC behavior and how the interaction between ECs and germ cells is regulated. In this study, we have found that ECs can undergo slow cell turnover regardless of their positions, and the lost cells are replenished by their neighboring ECs via self-duplication rather than via stem cells. ECs extend elaborate cellular processes that exhibit extensive interactions with differentiated germ cells. Interestingly, long cellular processes of ECs are absent when GSC progeny fail to differentiate, suggesting that differentiated germ cells are required for the formation or maintenance of EC cellular processes. Disruption of Rho functions leads to the disruption of long EC cellular processes and the accumulation of ill-differentiated single germ cells by increasing BMP signaling activity outside the GSC niche, and also causes gradual EC loss. Therefore, our findings indicate that ECs interact extensively with differentiated germ cells through their elaborate cellular processes and control proper germ cell differentiation. Here, we propose that ECs form a niche that controls GSC lineage differentiation and is maintained by a non-stem cell mechanism.
KEY WORDS: Drosophila, Germline stem cell, Niche, Differentiation, Escort cell
Self-maintained escort cells form a germline stem cell
differentiation niche
Daniel Kirilly*,‡, Su Wang* and Ting Xie§
D
E
V
E
LO
P
M
E
N
MATERIALS AND METHODS
Drosophilastrains and culture
Information about the Drosophila stocks used in this study is either available from Flybase (http://www.flybase.org) or specified here: X-15-29 (Harrison and Perrimon, 1993), X-15-33(Harrison and Perrimon, 1993), UAS-mEGFP(a membrane-tethered GFP generated by a fusion of the Src membrane signal peptide with GFP) (Kirilly et al., 2005), FRT52B(Kirilly
et al., 2005), UAS-EGFP, FRT19A,tubulin-gal80 (Lee et al., 2000),
tubulin-gal4 (Lee et al., 2000), c587(Song et al., 2004), hsFLP, UAS-RhoDN(a
dominant-negative Rho) (Strutt et al., 1997), PZ1444 (Margolis and Spradling, 1995), UAS-dsRed, UAS-dcr2, UAS-dallyRNAi lines (on
chromosome 2 and 3; kindly provided by Dr Xinhua Lin, Cincinnati Children’s Hospital Medical Center, Cincinnati, USA), UAS-dppRNAilines (TR00047A: 47A; TR00047R: 47R; kindly provided by Dr Norbert Perrimon, Harvard Medical School, Boston, USA), UAS-capuRNAi (VDRC#110404), dpphr4and dpphr56. Flies were maintained and crossed at
room temperature on standard cornmeal/molasses/agar media unless specified. For maximizing the effect of RNAi-mediated knockdown or gene overexpression, newly eclosed flies were shifted to 29°C for a week before the analysis of ovarian phenotypes.
Generating positively labeled EC clones
Three different positive marking systems were used for labeling ECs in the Drosophilaovary: the lacZ-based positive labeling system (Harrison and Perrimon, 1993), the UAS-GAL4-based positively marked mosaic lineage (PMML) system (Kirilly et al., 2005) and the GAL80-based mosaic analysis with a repressible cell marker (MARCM) system (Lee et al., 2000). We generated mitotic clones according to our previously published procedures for labeling the FSC lineage (Kirilly et al., 2005). One- to three-day-old females with genotypes hs-FLP; X-15-33/X-15-29and hs-FLP UAS-mEGFP; FRT52B/FRT52B UAS-EGFPand hs-FLP FRT19A gal80/ FRT19A; tub-gal4 UAS-GFPwere subjected to incubation in a water bath at 37°C for 30 or 60 minutes to induce FLP expression and FRT-mediated mitotic recombination. Flies were transferred daily to the fresh yeast-containing food, and the marked EC clones were detected one week, two weeks and three weeks after the heatshock treatment.
BrdU labeling and retention assays
Two different types of BrdU incorporation assays were utilized to investigate the proliferation patterns of ECs: two-hour BrdU labeling and BrdU retention. For the two-hour BrdU labeling, the ovaries were incubated in Grace’s medium containing 75 mM BrdU for 2 hours at 25°C. For the BrdU retention assay, female flies were fed on food with yeast paste containing BrdU (10 mg/ml) for three consecutive days, and then on food with BrdU-free yeast paste for 14 days. The ovaries from these two types of assays were then fixed and processed for BrdU label detection along with other protein markers according to our previously published procedures (Xie and Spradling, 1998).
Immunohistochemistry
Antibody staining was performed according to our previously published procedures (Xie and Spradling, 1998; Song and Xie, 2002). The following antibodies were used in this study: rabbit polyclonal anti--galactosidase antibody (1:100, Cappel), rabbit polyclonal anti-GFP antibody (1:200, Molecular Probes), mouse monoclonal anti-Fasciclin3 antibody [1:3, Developmental Studies Hybridoma Bank (DSHB)], mouse monoclonal anti-Hts antibody (1:3, DSHB), rat monoclonal anti-Vasa antibody (1:3, DSHB) and monoclonal anti-BrdU antibody (1:20, Oncogene). All images were taken with either a Leica TCS SP2 or a Leica TCS SP5 confocal microscope.
RESULTS
ECs in different regions of the germarium undergo slow cell turnover and proliferation The ESC model predicts that only ESCs at the tip of the germarium are mitotically active and that ECs undergo apoptosis at the 2a/2b junction (Decotto and Spradling, 2005). To investigate whether ECs die only at the 2a/2b junction, we used Apoptag labeling to
detect apoptotic ECs. c587is a GAL4 line that drives UAS-GFP
expression in ESCs, ECs and early follicle cell progenitors (Song et al., 2004) (Fig. 1A). PZ1444is a lacZenhancer trap line that is expressed in cap cells and ECs (Margolis and Spradling, 1995; Xie and Spradling, 2000) (Fig. 1B). lacZ-positive ECs can be easily identified in the germarium in which germ cells are labeled with
vasa-GFP(Sano et al., 2002) (Fig. 1B). Here, we used PZ1444,
c587-driven UAS-dsRed and vasa-GFP to assist in the identification of ECs. One or more dying EC is present in the 2a/2b junction area of 14.7% of the 8-day-old germaria (n116), whereas only 4.3% of those harbor one or more dying ECs in region 1 or 2a (Fig. 1C-F). These results indicate that ECs at different positions can undergo slow turnover but with the highest turnover rate for the most posterior ECs.
To investigate whether those lost ECs in regions 1 and 2a are repopulated by their neighboring ECs, we performed two-hour BrdU labeling of PZ1444ovaries in vitro to detect proliferative ECs. Following two hours of BrdU incorporation, 9.6% of the germaria contain at least one BrdU-positive EC at the 2a/2b boundary, and only 0.8% of them contain a BrdU-positive EC in the region 1 or 2a (n125) (Fig. 1G). This result indicates that ECs are slow cycling cells and that the ones at the 2a/2b boundary proliferate faster than those in more anterior regions. To investigate further the slow cycling property, we also performed the BrdU retention assay by feeding PZ1444 or vasa-GFP flies for 3 days with BrdU-containing food and then 15 days with BrdU-free food. In the vasa-GFPgermarium, ECs are reliably identified in the periphery of the anterior half of the germarium by absence of GFP expression, whereas ECs in the PZ1444germarium are readily identified by
lacZ-expression (Fig. 1B). After 3 days of BrdU feeding, 40% the GSCs in the PZ1444germaria (n155 germaria) and 48.9% of the GSCs in the vasa-GFPgermaria become BrdU-positive because of their fast proliferative nature (Fig. 1H,I). For ECs, only a small number of them in either a PZ1444germarium or a vasa-GFP
germarium are BrdU-positive, and most of those BrdU-positive ECs are localized in the 2a/2b junction (Fig. 1H,I). After 15 days of chase, no GSCs in either PZ1444(n212 germaria) or vasa-GFP
(n154 germaria) germaria retain the BrdU label, indicating that fast cycling GSCs and FSCs do not retain BrdU label (Fig. 1J-K). This result is consistent with the notion that not all adult stem cells retain BrdU label as is proposed for some adult stem cell types in mammalian systems (Morrison and Spradling, 2008). For the
PZ1444germaria, 34.3% of them harbor one or more BrdU-labeled ECs in the 2a/2b junction area, and only 13.8% of them have one or more BrdU-positive ECs in region 1 or 2a (n137; Fig. 1J). The
vasa-GFPgermaria exhibit a similar BrdU labeling pattern among the ECs (Fig. 1K,L). The previously defined ESCs are rarely BrdU-positive (Fig. 1L), suggesting that ESCs are unlikely to be responsible for generating ECs. These results show that ECs proliferate infrequently owing to slow cell turnover and most of the proliferative cells are restricted to the 2a/2b junction area, which is consistent with the EC turnover pattern.
ECs are not maintained by ESCs
In the previous study, the lacZ-based positive labeling system was used to show that the most anterior ECs, which directly contact cap cells and GSCs, were proposed to function as ESCs to generate differentiated ECs (Decotto and Spradling, 2005). In this system, the FLP-induced FRT mitotic recombination leads to the fusion between the -galactosidase (lacZ) gene and the tubulin (tub) promoter and, thereby, the reconstitution of tub-lacZin mitotic cells, and tub-lacZexpression further positively and permanently
D
E
V
E
LO
P
M
E
N
marks mitotic cells and their progeny (Harrison and Perrimon, 1993). This system has been used to label GSCs, FSCs, ESCs and their progeny (Margolis and Spradling, 1995; Decotto and Spradling, 2005). In the current study, to ensure that lacZ-labeled somatic cells that surround differentiated germ cells are indeed ECs, we focused on the germaria only carrying lacZ-labeled ESCs or ECs and disregarded other germaria carrying lacZ-positive FSC or GSC clones. To verify whether ESCs are indeed responsible for producing ECs, we used the same system to repeat the lacZ-based EC lineage tracing experiments using half-an-hour and one-hour heatshock treatments. These germaria are also labeled for Fasciclin 3 (Fas3), which is expressed in follicle cell progenitors but not in ECs (Zhang and Kalderon, 2001). As the previous study reported (Decotto and Spradling, 2005), both heatshock regimes can efficiently induce lacZ-labeled ESCs and ECs although the one-hour treatment generates higher lacZ-labeling efficiencies than the half-an-hour treatment (Fig. 2A,A⬘). For example, one week after clone induction (ACI), 34.5% and 56.2% of the germaria carry at least one lacZ-marked ESC after the half-an-hour and one-hour heatshock treatments, respectively (Fig. 2A). These lacZ-labeled ESCs are relatively stable three weeks ACI, which is consistent with the prediction of the ESC model. In addition, 82.4% of the germaria carrying one or more lacZ-marked ESCs also have one or more lacZ-positive ECs for the half-an-hour heatshock treatment, and 99.1% of the germaria carrying one or more lacZ-marked ESCs have one or more lacZ-positive ECs for the one-hour heatshock treatment (Fig. 2B). These observations could explain
why the previous study concludes that ECs are produced by ESCs (Decotto and Spradling, 2005) (Fig. 2A,B). However, careful analyses of the lacZ-marked ECs have revealed the serious inherent problem of the lacZlabeling system. First, the percentages of germaria carrying only marked ECs but not ESCs, which are induced by either of the heatshock treatments, remain constant one week, two weeks and three weeks ACI (Fig. 2A⬘,C). This result indicates that lacZ-labeled ECs can be stably maintained in the absence of lacZ-labeled ESCs. Second, some germaria carrying one
lacZ-labeled ESC do not contain any lacZ-positive ECs (supplementary material Fig. S1A), suggesting that they might not be responsible for EC production. Third, high lacZlabeling rates for ESCs and ECs are not supported by our BrdU labeling results. This system has recently been shown to generate lacZ-positive cells even in mitotically inactive Drosophilapolyploid intestinal cells (Fox and Spradling, 2009). Our results also suggest that this system can reconstitute the tub-lacZ gene in an FLP-dependent but division-independent manner in ECs, and, therefore, is not a suitable system for determining the presence of ESCs.
To investigate further whether ESCs are responsible for producing ECs, we used two other FLP-FRT-mediated positive lineage labeling systems, positively marked mosaic lineage (PMML) and mosaic analysis with a repressible cell marker (MARCM), to generate positive GFP-marked EC clones and study their behavior. In the PMML system, FLP-induced FRT recombination can randomly generate the fusion gene between the tubulinpromoter and the yeast
gal4gene, which can drive UAS-GFP expression in mitotic cells
[image:3.612.53.563.60.326.2]5089 RESEARCH ARTICLE Roles of escort cells
Fig. 1. ECs at different positions can undergo apoptosis and cell proliferation.(A)c587drives UAS-GFP expression in ESCs and ECs in regions 1 and 2a, and also in early follicle cells (FCs) in region 2b. GSCs (dashed lines) and differentiated germ cells, including 16-cell cysts, can be identified by presence of a spectrosome (SS) and branched fusome (FS), respectively. (B)PZ1444can also label ESCs (arrow), ECs (arrowheads) and cap cells (oval) in the germarium in which germ cells are labeled by Vasa-GFP. (C-F)ApopTag-positive ECs are found in region 2a (C,D, arrows) and the 2a/2b boundary (E,F, arrows). (G)An EC at the 2a/2b boundary is positive for BrdU after two hours of BrdU incorporation. (H,I)GSCs (white arrowheads), mitotic cysts and follicle cells in the germarium are positive for BrdU (green) one day after three days of BrdU feeding. Most of the ECs (black arrowheads) are negative for BrdU, but some ECs (arrows) are BrdU-positive. (J-L)After two weeks of chase following three days of BrdU feeding, all the GSCs and mitotic cysts are BrdU-negative, but some ECs (arrows) remain positive for BrdU. ESCs are normally negative for BrdU (black arrowhead, K), but are rarely found to be positive (black arrowhead, L). Scale bars: 10mm in B-L.
D
E
V
E
LO
P
M
E
N
(Kirilly et al., 2005). In the MARCM system, the FLP-induced FRT recombination can generate cells that lose the expression of tub-gal80, a transcriptional repressor for GAL4, and consequently allow
actin-gal4 to drive UAS-GFPexpression in mitotic cells (Lee et al., 2000). In contrast with the lacZ-based labeling system, the two GFP-based labeling systems do not produce GFP-labeled GSCs and mitotic germ cell cysts owing to the inability of the GAL4-UAS system to be expressed in GSCs and early mitotic cysts. To ensure that GFP-labeled somatic cells that surround differentiated germ cells are indeed ECs, we focused on the germaria carrying only ESC and ECs by ignoring the germaria carrying a FSC clone. Interestingly, the MARCM and PMML systems produce much lower percentages of GFP-positive ESCs than the lacZ-based system (Fig. 2D; supplementary material Fig. S1B). For the PMML system, the half-an-hour and one-hour heatshock treatments can label one ESC with GFP in 0.9% (n1482) and 2.5% (n1456) of the germaria, respectively (the data from three time points are pooled together; Fig. 2D). These GFP-labeled ESCs are stably maintained in the germaria with time. There are similar observations using the MARCM system (supplementary material Fig. S1B). These results support the findings from BrdU-labeling experiments that ESCs proliferate rarely. In addition, among the total 76 GFP-positive ESCs examined (produced by either MARCM or PMML), 66 do not have any GFP-positive ECs in the same germaria, indicating that these ESCs are not responsible for producing ECs (Fig. 2E; supplementary material Fig. S1D). All of these observations do not support the previously established ESC model (Decotto and Spradling, 2005).
The MARCM and PMML systems also produce much lower percentages of GFP-positive ECs than the lacZ-based system (Fig. 2D⬘; supplementary material Fig. S1C). Following the half-an-hour and one-hour heatshock treatments, the PMML system can label at least one EC with GFP in the absence of marked ESC labeling in 10.6% and 19.7% of the germaria one week ACI, respectively (Fig. 2D⬘,F,G). Although those germaria do not have any GFP-labeled ESCs, the GFP-labeled ECs are stably maintained three weeks ACI. Similar findings have been made for the MARCM-labeled ECs (supplementary material Fig. S1C). These results indicate that GFP-labeled ECs are not produced by GFP-labeled ESCs. Along with the earlier results from the BrdU and TUNEL labeling experiments, our findings strongly argue against the idea that the previously defined ESCs are responsible for generating ECs, and instead support the new model in which ECs undergo slow turnover and lost ECs can be replenished by their proliferative neighboring ECs. Recently, a live imaging study has also shown that escort cells do not move along with differentiated cells and, thus, are not maintained by stem cells (Morris and Spradling, 2011).
Long cellular processes of escort cells wrap up differentiated germ cells
[image:4.612.59.541.58.324.2]ECs have been shown to wrap around germ cells in the anterior half of the germarium (Schultz et al., 2002; Decotto and Spradling, 2005), and these long cellular processes appear to be involved in passing differentiated germline cysts posteriorly (Morris and Fig. 2. ECs are not maintained by ESCs.(A,A⬘) Quantitative data showing that the percentages of the germaria carrying one or more lacZ -labeled ESCs (A) and the percentages of the germaria carrying only lacZ-labeled ECs, but no lacZ-labeled ESCs (A⬘) remain largely constant one week, two weeks and three weeks ACI. (B)A lacZ-positive ESC (arrow) contacts cap cells (oval) and a GSC (dashed circle), which is accompanied by a few lacZ-positive ECs (arrowheads). (C)A lacZ-positive EC (arrowhead) is a few cells away from cap cells (oval) but without any lacZ-positive ESCs. (D,D⬘) Quantitative data showing that the percentages of the germaria carrying one GFP-labeled ESC (D) and the percentages of the germaria carrying only GFP-labeled ECs (D⬘), remain largely unchanged one week, two weeks and three weeks ACI. These GFP-labeled EC clones are induced by PMML. (E)Only a GFP-positive ESC (arrow) contacts cap cells (oval) and a GSC (dashed circle) but no GFP-positive ECs are detected. (F,G)Only GFP-positive ECs (arrowheads) can be found in region 2a (F) or at the 2a/2b boundary (G). The image in G represents overlaid confocal sections, and the remaining images are single confocal sections. Scale bar: 10mm.
D
E
V
E
LO
P
M
E
N
Spradling, 2011). To investigate further to what extent germ cells interact with ECs, we used c587-driven UAS-GFPexpression to label ECs with GFP, which allows the visualization of EC cellular processes. In the whole-mount germaria immunostained for GFP and Hts, the long cellular processes of ECs wrap around differentiated germ cells, which are identified by the presence of branched fusomes labeled by Hts protein (Fig. 3A). Hts protein is rich in spherical spectrosomes in GSCs and cystoblasts (CBs) and in branched fusomes in differentiated germ cells (Lin et al., 1994). In cryosections of c587-gal4;UAS-GFPgermaria labeled for GFP and Vasa, EC long cellular processes are shown to separate individual germ cells from one another (Fig. 3B). Vasa is a commonly used germ cell-specific marker (Hay et al., 1988; Lasko and Ashburner, 1988). Our results further support the previous finding that individual early differentiated germline cysts interact extensively with long EC cellular processes.
Previous studies were unable to determine the morphology of individual ECs using nuclear lacZ-labeled ECs and c587-driven or
patch-gal4-driven UAS-GFPexpression (Margolis and Spradling, 1995; Schultz et al., 2002; Song et al., 2004; Decotto and Spradling, 2005). To investigate the EC morphology of individual ECs, we used the PMML system described above to label one or a few ECs with tub-gal4-driven expression of UAS-mGFP (a membrane-targeted GFP; the fusion between the Src membrane localization signal and GFP). In the ovariole that lacks a GFP-labeled FSC clone, the GFP-positive ECs in regions 1, 2a and
2a/2b can be readily identified (Fig. 3C-I). The most anterior GFP-labeled ECs, which correspond to the previously identified ESCs, directly contact GSCs and wrap around GSCs with their cellular processes as previously described (Decotto and Spradling, 2005) (Fig. 3C). The ECs in region 1 that interact with CBs and mitotic germ cysts have short cellular processes (Fig. 3D,E; supplementary material Movie 1). In region 2a, where 16-cell cysts occupy half the diameter of the germaria, individual ECs have slightly longer cellular processes to encase individual 16-cell cysts (Fig. 3F,G; supplementary material Movie 2). In the 2a/2b junction areas, where germline cysts start to adopt a lens shape crossing the germarium, the ECs extend their cellular processes across the whole width of the germarium to wrap around individual 16-cell cysts (Fig. 3H,I; supplementary material Movie 3). These results show that ECs at different positions adopt distinct morphologies based on the size and morphology of underlying differentiated germ cell cysts, further suggesting that EC cellular processes are likely to be regulated by the underlying differentiated germ cell cysts.
EC cellular processes might be regulated by underlying differentiated germ cells
Although EC long cellular processes are only associated with differentiated germ cells, it remains unclear whether differentiated germ cells are required for the formation of long cellular processes in ECs. bag of marbles (bam) is required for germ cell
[image:5.612.51.548.59.353.2]5091 RESEARCH ARTICLE Roles of escort cells
Fig. 3. Differentiated germ cells are wrapped by EC cellular processes.(A)Differentiated germ cell cysts (dashed lines) are encased by GFP-positive EC cellular processes. (B)A cryosectioned germarium showing that germ cell cysts (dashed lines) are separated from one another by GFP-positive EC cellular processes. (C-I)Germaria labeled for GFP (green) and -galactosidase (PZ1444, red, C), Hts (red, D) or Fas3 (red, differentiated follicle cells, E-I) containing a GFP-positive EC (arrow) at the ESC position (C), region 1 (D,E), region 2a (F,G) or the 2a/2b boundary (H,I). The ECs in D and E have short cellular processes encasing the cystoblast (CB) and mitotic cyst, respectively, whereas those in F-I have longer cellular processes wrapping around 16-cell cysts. The images in C, E, F and H are one confocal section, whereas images in D, G and I are overlaid confocal sections. Scale bar: 10mm.
D
E
V
E
LO
P
M
E
N
differentiation, and its mutant ovaries only contain undifferentiated cystoblast-like single germ cells (McKearin and Spradling, 1990; McKearin and Ohlstein, 1995). bamD86 (a bamdeletion allele) mutant germaria are filled with undifferentiated germ cells, which are identified by spherical spectrosomes (Fig. 4A). Interestingly, in
bammutant germaria in which ECs are labeled by c587-driven
UAS-GFPexpression, the long cellular processes of most ECs fail to form or to penetrate inside the germ cells (Fig. 4A). To rule out the possibility of poor antibody penetration into tightly packed germ cells, the c857; UAS-GFP; bamD86/ bamD86 germarial cryosections are labeled for GFP and Vasa to detect EC cellular processes and germ cells, respectively. Consistently, long EC cellular processes are not observed, although some ECs have small EC protrusions (Fig. 4B, arrows). These results suggest that differentiated germ cells might be required for the formation or maintenance of long EC cellular processes.
To determine further whether the formation of long EC cellular processes is dependent on differentiated germ cells or Bam function in germ cells, we examined the formation of long EC cellular processes in germaria carrying Dpp overexpression-induced GSC-like cells. c587-driven UAS-dpp results in the formation of ovaries filled with GSC-like cells (Fig. 4C), as previously reported (Song et al., 2004). In the dpp-induced tumorous germaria, EC cellular processes, which are visualized by
c587-driven UAS-GFPexpression, fail to penetrate into individual GSC-like aggregates and to wrap around individual single germ cells (Fig. 4C). As c587-driven dpp overexpression cannot completely inhibit GSC differentiation owing to mosaic expression, some differentiated cysts form but some GFP-positive cellular processes can still be detected to wrap up the differentiated germ cells (Fig. 4D). Along with the bammutant results, these results further support the idea that differentiated germ cells might support the formation of EC cellular processes.
Rho functions in ECs to maintain cellular
processes and promote germ cell differentiation The small GTPase Rho has been extensively studied in different organisms for its role in the regulation of cell protrusion formation and cell-cell adhesion (Jaffe and Hall, 2005). To investigate further whether EC cellular process-mediated interactions with germ cells are important for germ cell differentiation, we overexpressed a dominant negative form of Rho (RhoDN) in ECs using c587-driven UAS-RhoDNexpression. UAS-RhoDNhas previously been used to disrupt specifically Rho function in different Drosophilacell types
(Strutt et al., 1997; Hacker and Perrimon, 1998; Prokopenko et al., 1999; Billuart et al., 2001; Bloor and Kiehart, 2002; Magie et al., 2002). Interestingly, in the germaria in which RhoDNis expressed in ECs, differentiated germ cells are not wrapped up by EC cellular processes, suggesting that Rho might regulate EC cellular process formation or maintenance (Fig. 5A-C). In those germaria, spherical spectrosome-containing single germ cells often accumulate (Fig. 5A,C). In contrast with the wild-type germaria, which contain ~5.5 spectrosome-containing single germ cells including both GSCs and cystoblasts (n91), the RhoDN-expressing germaria contain an average of 8.9 spectrosome-containing germ cells (n69). Also, the disruption severity of EC cellular processes is related to the increase in the number of spectrosome-containing single germ cells, suggesting that long EC cellular processes might regulate germ cell differentiation.
One of the potential mechanisms for regulation by Rho of EC cellular processes is by modulation of physical interactions between ECs and germ cells through regulating actin cytoskeleton because Rho is known to regulate actin dynamics and cell-cell interaction in different Drosophilatissues (Hacker and Perrimon, 1998; Prokopenko et al., 1999; Bloor and Kiehart, 2002; Magie et al., 2002). To determine whether actin regulation is important for EC function and germ cell differentiation, we sought to inactivate the function of the Formin-like actin regulator cappuccino(capu) in ECs using c587-driven UAS-capuRNAi expression. Capu is known to regulate actin nucleation and the formation of actin meshwork (Dahlgaard et al., 2007; Quinlan et al., 2007). Following
capuknockdown in ECs, the ECs located in the anterior half of the germaria generally lack cellular processes, and the anterior part of the germaria accumulate more spectrosome-containing single germ cells, suggesting that actin regulation is crucial for maintaining EC cellular process and, thus, CB differentiation (supplementary material Fig. S2A,B). However, all of the germaria appear to be normal in size, indicating that disruption of actin dynamics does not affect EC survival. These results further support the idea that EC cellular processes regulated by actin dynamics are important for germ cell differentiation.
Because some germaria expressing RhoDNin ECs are small in comparison with wild-type germaria (Fig. 5A,B), we used the
[image:6.612.50.335.60.238.2]PZ1444 EC marker to examine whether the number of ECs following RhoDNexpression is indeed reduced. The control week-old PZ1444germaria contain an average of 42 ECs (n31). Only very few of the week-old RhoDN-expressing germaria have the normal or close to normal number of ECs (Fig. 5D); most of them
Fig. 4. Differentiated germ cells might maintain EC cellular processes. (A)c587;UAS-GFP; bamD86/bamD86 germarium showing that all the ECs (one by arrowhead) fail to form cellular processes penetrating inside tumorous germ cells. (B)c587;UAS-GFP; bamD86/bamD86cryosection showing that ECs can form some protrusions (arrowhead) that fail to encase germ cells. (C)c587;UAS-dpp/UAS-GFP
germarium showing that ECs fail to form long cellular processes wrapping single germ cells (dashed lines). (D)c587;UAS-dpp/UAS-GFPgermarium showing that EC cellular processes wrap round a differentiated cyst (arrow) but fail to penetrate inside the clusters (dashed lines) containing single germ cells. Scale bar: 10mm.
D
E
V
E
LO
P
M
E
N
have fewer ECs (Fig. 5E,F). The week-old RhoDN-expressing germaria have an average of 21 ECs (n50), significantly fewer than those in control germaria (Fig. 5G). Those germaria with fewer ECs tend to have more spectrosome-containing single germ cells than the germaria with more ECs, suggesting that ECs are important for germ cell differentiation. The RhoDN-expressing germarium in Fig. 5D has a close to normal number of ECs, but contains excess spectrosome-containing single germ cells lying more posteriorly to GSCs, suggesting that disruption of EC cellular processes could also contribute to the delay in germ cell differentiation. Taken together, these results suggest that Rho is required for EC-germ cell interactions and EC maintenance, and that ECs are important for normal germ cell differentiation. The exact role of long EC cellular processes in the regulation of germ cell differentiation needs to be investigated further by identifying molecule(s) involved in the EC-cyst interaction.
The reduction of EC number in the RhoDN-expressing germarium could be due to EC proliferation or survival. To determine whether Rho is required for EC proliferation or survival, we used BrdU incorporation and ApopTag-labeling to quantify proliferating and dying ECs in control and RhoDN-expressing PZ1444 germaria, respectively. Following two hours of BrdU incorporation, 0.97% and 1.0% of control (n5145) and RhoDN
-expressing (n2213) ECs are positive for BrdU, respectively, indicating that disruption of Rho function does not change EC proliferation. By contrast, 1.8% and 4.2% of control (n4000) and
RhoDN-expressing (n2795) ECs are positive for ApopTag labeling, respectively, indicating that disruption of Rho function increases EC apoptosis (Fig. 5H,I). These results indicate that Rho is required for EC survival but not for EC proliferation.
Defective Rho in ECs causes the germ cell differentiation defect by upregulating BMP signaling activity
To characterize further the identity of accumulated spectrosome-containing single germ cells in the RhoDN-overexpressing germaria, we examined expression of bam-GFPand Dad-lacZin these extra single germ cells. In the wild-type germarium, bam-GFP is a reporter construct for monitoring bamtranscription and is mainly expressed in differentiated germ cells but is repressed in GSCs by BMP signaling (Chen and McKearin, 2003), whereas Dad-lacZis a BMP signaling activity reporter and is activated in GSCs and repressed in differentiated germ cells (Kai and Spradling, 2003; Casanueva and Ferguson, 2004; Song et al., 2004). As expected, GSCs close to cap cells have low bam-GFPand high Dad-lacZ
expression in control germaria (Fig. 6A,D). Most of the single
[image:7.612.56.532.59.345.2]5093 RESEARCH ARTICLE Roles of escort cells
Fig. 5. Defective Rho signaling in ECs disrupts EC-germ cell interactions and germ cell differentiation. The c587;UAS-RhoDN/UAS-GFP germaria (single confocal section) in A-C are labeled for GFP, Hts and DNA, whereas c587;UAS-RhoDN/PZ1444germaria (overlaid confocal sections) in D-F and H-I are labeled for -galactosidase (PZ1444), Hts and DNA, and ApopTag, -galactosidase (PZ1444) and DNA, respectively. (A)The GFP-positive cellular processes of RhoDN-expressing ECs fail to wrap around a differentiated cyst (dashed lines). (B)RhoDN expression in ECs leads to a reduction of regions 1 and 2a of the germarium and a defect in wrapping a differentiated cyst (dashed lines) by EC cellular processes.
(C)Spectrosome-containing single germ cells and a 16-cell cyst (dashed lines) are clustered together and are not individually wrapped by RhoDN -expressing EC cellular processes. Arrowheads indicate spectrosomes. (D)Germarium contains a normal number of ECs but excess single germ cells (arrowheads) located anteriorly to differentiated cysts (arrows). (E,F)Germaria show a moderate (E) or severe (F) reduction of ECs and excess spectrosome-containing single germ cells (arrowheads). (G)RhoDN-expressing germaria have significantly fewer ECs than do control germaria.
P-value is indicated. (H)A control germarium contains no apoptotic ECs. (I)A RhoDN-expressing germarium contains an apoptotic EC (arrowhead). Scale bar: 10mm.
D
E
V
E
LO
P
M
E
N
germ cells express high levels of bam-GFPand low levels Dad-lacZ, suggesting that those single germ cells resemble CBs instead of GSCs (Fig. 6B,C,E,F). However, some spectrosome-containing single germ cells that are located several cells away from cap cells express Dad-lacZand repress bam-GFPexpression (Fig. 6C,F). This observation indicates that BMP signaling activity has expanded outside the GSC niche and thereby interferes with germ cell differentiation. Therefore, these results demonstrate that Rho function is required in ECs to control CB differentiation possibly by restricting BMP signaling to the GSC niche.
Rho in ECs helps restrict BMP signaling activity to the GSC niche
Activation of EGFR signaling leads to phosphorylation of ERK (pERK) in ECs, and defective EGFR signaling leads to the absence of long EC cellular processes and defective germ cell differentiation (Schultz et al., 2002). EGFR signaling in ECs promotes germ cell differentiation by repressing the expression of dally, encoding a protein important for Dpp diffusion and function, in ECs (Liu et al., 2010). To investigate whether the disruption of Rho function affects EGFR signaling in ECs, we examined the expression of pERK in the ECs of RhoDN-expressing germaria. Our quantitative result indicates that RhoDN-expressing ECs (n160) have significantly, though not dramatically, less pERK expression than control ECs (n160) (Fig.
6G-I). This finding demonstrates that defective Rho function moderately decreases EGFR signaling in ECs.
To determine whether the germ cell differentiation defect in
RhoDN-expressing germaria is caused by upregulation of BMP signaling outside the GSC niche, we tested whether the removal of a copy of the dppgene could suppress the differentiation defect. In contrast with the results that 65% of the RhoDN-expressing germaria accumulate excessive spectrosome-containing single germ cells outside the niche (Fig. 7A,B), only 15% and 20% of the RhoDN -expressing dpphr56and dpphr4heterozygous germaria, respectively, have extra single germ cells (Fig. 7C,D). These results indicate that upregulation of Dpp/BMP signaling in the RhoDN-expressing germarium contributes to the germ cell differentiation defect. To knock down specifically dally function in ECs, two independent
[image:8.612.54.536.59.345.2]dallyRNAi lines were used to be expressed in ECs using c587. Interestingly, EC-specific knockdown of dally in the RhoDN -expressing germaria can also slightly suppress the differentiation defect based on the accumulation of single germ cells, indicating that downregulation of EGFR signaling makes a slight contribution to the germ cell differentiation defect (Fig. 7C,E). Although EC-specific knockdown of dppmRNAs in ECs using two independent RNAi lines produces no discernible phenotype in wild-type germaria, it leads to strong suppression of the germ cell differentiation defect in the RhoDN-expressing germaria, suggesting that RhoDN-expressing Fig. 6. Defective Rho signaling in ECs delays cystoblast differentiation. The germaria in A-C are labeled for GFP, Hts and DNA, those in D-F are labeled for -galactosidase (Dad), Hts and DNA, and those in G and H are labeled for pERK, Hts and DNA. (A)Two control GSCs (solid circles) expressing low bam-GFPand differentiated cysts expressing high bam-GFP. (B,C)c587;UAS-RhoDN/bam-GFPgermarium carrying many of spectrosome-containing single germ cells, most of which express bam-GFP(cystoblast-like; dashed circles) and the remaining ones show low bam-GFPexpression (GSC-like; solid circle). (D)Two control GSCs (solid circles) expressing high levels of Dad-lacZ. (E,F)c587; UAS-RhoDN/Dad-lacZ germaria carrying spectrosome-containing single germ cells, of which those further away from the niche (dashed circle) express lower Dad-lacZthan do endogenous GSCs (solid circles) contacting the niche. Some single cells away from the niche (solid circle, F) express high levels of Dad-lacZ. (G)Wild-type ECs (two indicated by arrowheads) are positive for pERK staining. (H)RhoDN-expressing ECs away from (some indicated by
arrowheads) or close to (dashed circle) single germ cells remain positive for pERK staining. (I)RhoDN-expressing ECs have significantly less pERK than control ECs. Error bars represent s.d. Number above horizontal line represents P-value. Scale bar: 10mm.
D
E
V
E
LO
P
M
E
N
ECs might also upregulate dpp mRNAs via transcription or stabilization (Fig. 7C,F). Taken together, Rho is required in ECs to control CB differentiation by restricting BMP signaling activity to the GSC niche.
DISCUSSION
In the Drosophilaovary, ECs are thought to be produced by a population of ESCs and to move along with differentiated germ cells and commit apoptosis after differentiated germ cell cysts are surrounded by follicle cells (Decotto and Spradling, 2005). In this study, we have used three positive labeling systems and BrdU labeling experiments to demonstrate that ECs are maintained by self-duplication but not by the previously identified ESCs (Fig. 7G). Furthermore, ECs exhibit extensive interactions with differentiated germ cells through their long cellular processes, and differentiated germ cells are likely to be responsible for maintaining long cellular processes. Interestingly, EC cellular process-mediated interactions are required for germ cell differentiation by restricting BMP signaling to the GSC niche. Therefore, we propose that ECs form a germ cell differentiation niche by preventing BMP signaling from interfering with CB differentiation (Fig. 7G).
In this study, we have provided three pieces of experimental evidence demonstrating that ECs are maintained by self-duplication but not by stem cells. First, contrary to one of the predictions by the ESC model that ECs can only undergo apoptosis at the junction between ECs and follicle cell progenitors, we show that ECs in any position can undergo apoptosis although those at the junction die relatively more frequently. Second, contrary to another prediction of the ESC model that only ESCs can proliferate, we show that ECs in any position can proliferate slowly although those at the posterior divide relatively more frequently. Third, we have used three independent lineage-labeling methods to demonstrate that the previously defined ESCs do not produce new ECs (Fig. 7G). Therefore, the ECs in the Drosophilaovary behave similarly to the differentiated cells in the pancreas that are maintained by self-duplication (Dor et al., 2004). Possibly, in other slow turnover mammalian tissues, stem cells are not required for maintaining tissue homeostasis.
Long EC cellular processes might help pass on a differentiated germ cell cluster from one EC to other (Morris and Spradling, 2011). In this study, we propose that long cellular process-mediated intimate interactions between ECs and differentiation are required for proper germ cell differentiation probably by restricting BMP
[image:9.612.49.372.56.482.2]5095 RESEARCH ARTICLE Roles of escort cells
Fig. 7. Rho contributes to the restriction of BMP signaling to the GSC niche. The germaria in A-F are labeled for Hts and DNA. (A,B)RhoDN expression in ECs leads to the accumulation of excessive spectrosome-containing single germ cells. (C)The percentages of excessive single germ cell-containing germaria in ovaries in which RhoDN is specifically expressed in the ECs and which are wild type, heterozygous for dpp(dpphr4and
dpphr56), or co-expressed with RNAi constructs for
dally(one on chromosome 2 and one on chromosome 3) and dpp(47A and 47R). In addition to endogenous GSCs, three more additional single cells outside the GSC niche are considered to be excessive single germ cells because a wild-type germarium contains one to two CB-like single germ cells. (D-F)The germ cell differentiation defect induced by RhoDNexpression can be dramatically suppressed by a heterozygous
dpphr4mutation (D), by co-expression of dally RNAi (E) or by co-expression of dppRNAi (F). (G)Working model for EC maintenance and Rho function in ECs. When an EC dies, its neighbor EC divides to generate a new EC to replace the lost one. Rho works in ECs to restrict BMP signaling within the GSC niche by preventing Dpp diffusion via regulation of EGFR-Dally signaling and repressing dppmRNA accumulation. In addition, Rho signaling is important for EC survival.
D
E
V
E
LO
P
M
E
N
signaling activity to the GSC niche (Fig. 7G). EC cellular processes extensively wrap around differentiated germ cells, and are modeled according to the size, shape and differentiated status of the underlying differentiated germ cells. Forced expression of a dominant-negative Rhoor knocking down expression of the actin regulator capucauses defects in EC cellular extension and germ cell differentiation. This is consistent with the finding in the previous study that defective EGFR signaling causes loss of EC cellular processes and germ cell differentiation defects (Schultz et al., 2002). Our genetic results have revealed two possible ways for Rho in ECs to control germ cell differentiation by restricting BMP signaling within the GSC niche. One of them is to repress dally
expression in ECs via EGFR signaling and thereby prevent BMP diffusion to outside the GSC niche because EGFR signaling-mediated repression of dally expression has been shown to be essential for preventing BMP diffusion and germ cell differentiation (Guo and Wang, 2009; Hayashi et al., 2009; Liu et al., 2010). The other is to prevent BMP expression in ECs by repressing dpptranscription or degrading dppmRNAs through unknown mechanisms. In addition to the regulation of EC-germ cell interaction (Ridley, 2006), this study also shows that Rho is also required for promoting EC survival. Therefore, we propose that ECs form a niche for promoting germ cell differentiation, and that Rho functions in ECs to promote germ cell differentiation at least partly by preventing BMP signaling in the differentiation niche (Fig. 7G).
The differentiation niche is likely to be a conserved feature for different adult stem cell systems. In the Drosophilatestis, somatic cyst cells, which are produced by cyst stem cells, encase differentiated germ cells and move together to accompany the differentiated germ cells (Gonczy and DiNardo, 1996). EGFR signaling is required in somatic cyst cells, as it is in ECs, to control germ cell differentiation because defective EGFR signaling in the
Drosophilatestis causes germ cell differentiation defects (Kiger et al., 2000; Tran et al., 2000). Although, unlike ECs, somatic cyst cells are not stationary, they function like ECs to control germ cell differentiation. Although equivalent cells for ECs in mammalian adult stem cell systems have not been defined, they are likely to exist and to play important roles in the regulation of lineage-specific differentiation because cultured adult stem cells often require a cocktail of growth factors for their proper differentiation. As easily defined stem cell niches in Drosophila contribute to a better understanding of mammalian stem cell regulation (Li and Xie, 2005; Morrison and Spradling, 2008), we anticipate that what we will learn from studies on the DrosophilaGSC differentiation niche will be equally important for defining differentiation niches and studying their functions in lineage differentiation in mammalian systems.
Acknowledgements
We would like to thank L. Cai, X. Lin, N. Perrimon, D. McKearin,
Developmental Studies Hybridoma Bank and Bloomington DrosophilaStock Center for reagents; the Xie laboratory members for stimulating discussions; and S. Chen, M. Lewallen and C. Flournoy for critical comments.
Funding
This work is supported by the National Institutes of Health [R01GM64428 to T.X.]; and the Stowers Institute for Medical Research [T.X.]. Deposited in PMC for release after 12 months.
Competing interests statement
The authors declare no competing financial interests.
Supplementary material
Supplementary material available online at
http://dev.biologists.org/lookup/suppl/doi:10.1242/dev.067850/-/DC1
References
Akiyama, T., Kamimura, K., Firkus, C., Takeo, S., Shimmi, O. and Nakato, H.
(2008). Dally regulates Dpp morphogen gradient formation by stabilizing Dpp on the cell surface. Dev. Biol. 313, 408-419.
Belenkaya, T. Y., Han, C., Yan, D., Opoka, R. J., Khodoun, M., Liu, H. and Lin, X.(2004). DrosophilaDpp morphogen movement is independent of dynamin-mediated endocytosis but regulated by the glypican members of heparan sulfate proteoglycans. Cell119, 231-244.
Billuart, P., Winter, C. G., Maresh, A., Zhao, X. and Luo, L.(2001). Regulating axon branch stability: the role of p190 RhoGAP in repressing a retraction signaling pathway. Cell107, 195-207.
Bloor, J. W. and Kiehart, D. P.(2002). DrosophilaRhoA regulates the cytoskeleton and cell-cell adhesion in the developing epidermis. Development 129, 3173-3183.
Casanueva, M. O. and Ferguson, E. L.(2004). Germline stem cell number in the Drosophilaovary is regulated by redundant mechanisms that control Dpp signaling. Development131, 1881-1890.
Chen, D. and McKearin, D. M.(2003). A discrete transcriptional silencer in the bam gene determines asymmetric division of the Drosophilagermline stem cell. Development130, 1159-1170.
Dahlgaard, K., Raposo, A. A., Niccoli, T. and St Johnston, D.(2007). Capu and Spire assemble a cytoplasmic actin mesh that maintains microtubule
organization in the Drosophilaoocyte. Dev. Cell13, 539-553.
Decotto, E. and Spradling, A. C.(2005). The Drosophilaovarian and testis stem cell niches: similar somatic stem cells and signals. Dev. Cell9, 501-510.
Dor, Y., Brown, J., Martinez, O. I. and Melton, D. A.(2004). Adult pancreatic beta-cells are formed by self-duplication rather than stem-cell differentiation. Nature429, 41-46.
Fox, D. T. and Spradling, A. C.(2009). TheDrosophilahindgut lacks constitutively active adult stem cells but proliferates in response to tissue damage. Cell Stem Cell 5, 290-297.
Gonczy, P. and DiNardo, S.(1996). The germ line regulates somatic cyst cell proliferation and fate during Drosophilaspermatogenesis. Development122, 2437-2447.
Gonczy, P., Viswanathan, S. and DiNardo, S.(1992). Probing spermatogenesis in Drosophilawith P-element enhancer detectors. Development114, 89-98.
Guo, Z. and Wang, Z.(2009). The glypican Dally is required in the niche for the maintenance of germline stem cells and short-range BMP signaling in the Drosophilaovary. Development136, 3627-3635.
Hacker, U. and Perrimon, N.(1998). DRhoGEF2 encodes a member of the Dbl family of oncogenes and controls cell shape changes during gastrulation in Drosophila. Genes Dev. 12, 274-284.
Harrison, D. A. and Perrimon, N.(1993). Simple and efficient generation of marked clones in Drosophila. Curr. Biol. 3, 424-433.
Hay, B., Jan, L. Y. and Jan, Y. N.(1988). A protein component of Drosophila polar granules is encoded by vasa and has extensive sequence similarity to ATP-dependent helicases. Cell55, 577-587.
Hayashi, Y., Kobayashi, S. and Nakato, H.(2009). Drosophilaglypicans regulate the germline stem cell niche. J. Cell Biol. 187, 473-480.
Jackson, S. M., Nakato, H., Sugiura, M., Jannuzi, A., Oakes, R., Kaluza, V., Golden, C. and Selleck, S. B.(1997). dally, a Drosophilaglypican, controls cellular responses to the TGF-beta-related morphogen, Dpp. Development124, 4113-4120.
Jaffe, A. B. and Hall, A.(2005). Rho GTPases: biochemistry and biology. Annu. Rev. Cell Dev. Biol. 21, 247-269.
Kai, T. and Spradling, A.(2003). An empty Drosophilastem cell niche reactivates the proliferation of ectopic cells. Proc. Natl. Acad. Sci. USA100, 4633-4638.
Kiger, A. A., White-Cooper, H. and Fuller, M. T.(2000). Somatic support cells restrict germline stem cell self-renewal and promote differentiation. Nature407, 750-754.
Kirilly, D., Spana, E. P., Perrimon, N., Padgett, R. W. and Xie, T.(2005). BMP signaling is required for controlling somatic stem cell self-renewal in the Drosophilaovary. Dev. Cell9, 651-662.
Lasko, P. F. and Ashburner, M.(1988). The product of the Drosophilagene vasa is very similar to eukaryotic initiation factor-4A. Nature335, 611-617.
Lee, T., Winter, C., Marticke, S. S., Lee, A. and Luo, L.(2000). Essential roles of DrosophilaRhoA in the regulation of neuroblast proliferation and dendritic but not axonal morphogenesis. Neuron25, 307-316.
Li, L. and Xie, T.(2005). Stem cell niche: structure and function. Annu. Rev. Cell Dev. Biol. 21, 605-631.
Lin, H., Yue, L. and Spradling, A. C.(1994). The Drosophilafusome, a germline-specific organelle, contains membrane skeletal proteins and functions in cyst formation. Development120, 947-956.
Liu, M., Lim, T. M. and Cai, Y.(2010). The Drosophilafemale germline stem cell lineage acts to spatially restrict DPP function within the niche. Sci. Signal3, ra57.
D
Magie, C. R., Pinto-Santini, D. and Parkhurst, S. M.(2002). Rho1 interacts with p120ctn and alpha-catenin, and regulates cadherin-based adherens junction components in Drosophila. Development129, 3771-3782.
Margolis, J. and Spradling, A.(1995). Identification and behavior of epithelial stem cells in the Drosophilaovary. Development121, 3797-3807.
McKearin, D. M. and Spradling, A. C.(1990). bag-of-marbles: a Drosophila gene required to initiate both male and female gametogenesis. Genes Dev. 4, 2242-2251.
McKearin, D. and Ohlstein, B.(1995). A role for the Drosophilabag-of-marbles protein in the differentiation of cystoblasts from germline stem cells. Development121, 2937-2947.
Morris, L. X. and Spradling, A. C.(2011). Long-term live imaging provides new insight into stem cell regulation and germline-soma coordination in the Drosophilaovary. Development138, 2207-2215.
Morrison, S. J. and Spradling, A. C.(2008). Stem cells and niches: mechanisms that promote stem cell maintenance throughout life. Cell132, 598-611.
Prokopenko, S. N., Brumby, A., O’Keefe, L., Prior, L., He, Y., Saint, R. and Bellen, H. J.(1999). A putative exchange factor for Rho1 GTPase is required for initiation of cytokinesis in Drosophila. Genes Dev. 13, 2301-2314.
Quinlan, M. E., Hilgert, S., Bedrossian, A., Mullins, R. D. and Kerkhoff, E.
(2007). Regulatory interactions between two actin nucleators, Spire and Cappuccino. J. Cell Biol. 179, 117-128.
Ridley, A. J.(2006). Rho GTPases and actin dynamics in membrane protrusions and vesicle trafficking. Trends Cell Biol. 16, 522-529.
Sano, H., Nakamura, A. and Kobayashi, S.(2002). Identification of a transcriptional regulatory region for germline-specific expression of vasa gene in Drosophila melanogaster. Mech. Dev. 112, 129-139.
Schultz, C., Wood, C. G., Jones, D. L., Tazuke, S. I. and Fuller, M. T.(2002). Signaling from germ cells mediated by the rhomboid homolog stet organizes encapsulation by somatic support cells. Development129, 4523-4534.
Song, X. and Xie, T.(2002). DE-cadherin-mediated cell adhesion is essential for maintaining somatic stem cells in the Drosophilaovary. Proc. Natl. Acad. Sci. USA99, 14813-14818.
Song, X., Zhu, C. H., Doan, C. and Xie, T.(2002). Germline stem cells anchored by adherens junctions in the Drosophilaovary niches. Science296, 1855-1857.
Song, X., Wong, M. D., Kawase, E., Xi, R., Ding, B. C., McCarthy, J. J. and Xie, T.(2004). Bmp signals from niche cells directly repress transcription of a differentiation-promoting gene, bag of marbles, in germline stem cells in the Drosophilaovary. Development131, 1353-1364.
Strutt, D. I., Weber, U. and Mlodzik, M.(1997). The role of RhoA in tissue polarity and Frizzled signalling. Nature387, 292-295.
Tran, J., Brenner, T. J. and DiNardo, S.(2000). Somatic control over the germline stem cell lineage during Drosophilaspermatogenesis. Nature407, 754-757.
Urban, S., Lee, J. R. and Freeman, M.(2001). Drosophilarhomboid-1 defines a family of putative intramembrane serine proteases. Cell107, 173-182.
Xie, T. and Spradling, A. C.(1998). decapentaplegic is essential for the maintenance and division of germline stem cells in the Drosophilaovary. Cell94, 251-260.
Xie, T. and Spradling, A. C.(2000). A niche maintaining germ line stem cells in the Drosophilaovary. Science290, 328-330.
Zhang, Y. and Kalderon, D.(2001). Hedgehog acts as a somatic stem cell factor in the Drosophilaovary. Nature410, 599-604.
Zhao, C., Deng, W. and Gage, F. H.(2008). Mechanisms and functional implications of adult neurogenesis. Cell132, 645-660.

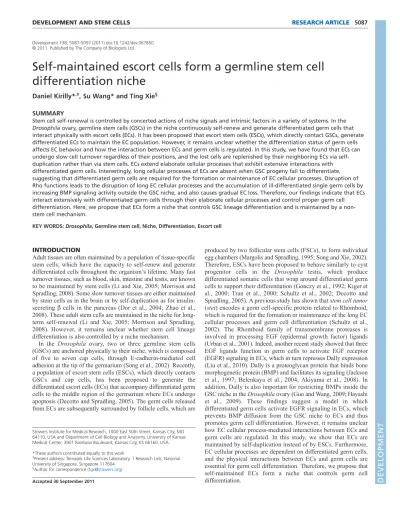

5097 RESEARCH ARTICLE Roles of escort cells
