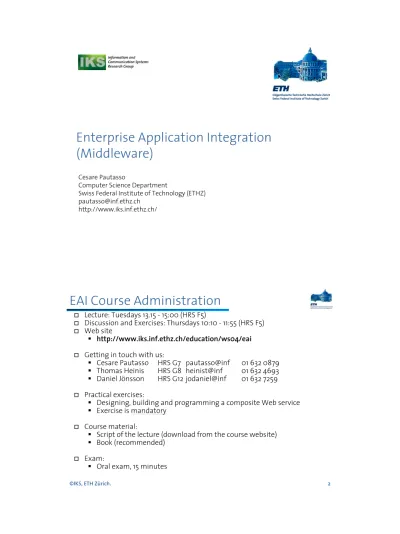

Enterprise Application Integration (Middleware)

(1)

Enterprise Application Integration

(Middleware)

Cesare Pautasso

Computer Science Department

Swiss Federal Institute of Technology (ETHZ) [email protected]

http://www.iks.inf.ethz.ch/

©IKS, ETH Zürich. 2

EAI Course Administration

Lecture: Tuesdays 13.15 - 15:00 (HRS F5)

Discussion and Exercises: Thursdays 10:10 - 11:55 (HRS F5) Web site

 http://www.iks.inf.ethz.ch/education/ws04/eai

Getting in touch with us:

Cesare Pautasso HRS G7 pautasso@inf 01 632 0879 Thomas Heinis HRS G8 heinist@inf 01 632 4693 Daniel Jönsson HRS G12 jodaniel@inf 01 632 7259

Practical exercises:

Designing, building and programming a composite Web service Exercise is mandatory

Course material:

Script of the lecture (download from the course website) Book (recommended)

Exam:

(2)

EAI Text Book

Available from

Frau Schuemperlin, HRS G10 (01 632 4531) 50.- CHF

Goals of the EAI Course

The course aims at introducing and discussing in depth several

important topics related to distributed information systems in general and enterprise application integration in particular. In many ways, the course explores the synergy between

information and communication systems and how this synergy can be best exploited for EAI and B2B integration.

The course is more practical than theoretical. The objective is to give

a clear overview of the problems and their nature, how can they be solved, and how this solutions are implemented in practice. While we will spend some time understanding the theoretical

underpinnings of the ideas discussed, the emphasis will be on how these ideas can be implemented in practice. An important part of the course will be devoted to how technology has evolved and the reason why existing systems are the way they are.

You will have the opportunity to program a relatively complex

integrated information system. Without taking part in the exercises you will not be allowed to take the exam.

The lectures, discussions and presentations form an integral part of

the course. If you take the time to learn from them, you will get much more out of this course. Take advantage of the opportunity!

(3)

Motivation for the EAI Course

The architecture of the information systems we use is becoming

increasingly complex.

The access methods, the capabilities, the goals, and the available

technology is continuously changing. What can we learn that will remain valuable in the years to come?

One example: 70 - 90 % of the software costs are maintenance costs. Using the right abstractions helps! Databases used as services remove about 40 % of the code of commercial applications Another example: software reuse is truly efficient and makes

economic sense at a large granularity. How can we build systems that can be tailored to the user needs and yet are applicable in a wide range of areas and environments?

Communications

Demand

Components

Today’s systems are no longer isolated. Comm-unications play a key role in their use. New access methods also change the nature of the problems

The demands on the existing systems keep growing: centralized solutions are not always feasible; cooperation among systems is a must.

System integration is the most challenging aspect of the IT world.

Programming today is to combine already existing, heterogeneous systems. INTEGRATION TIER ACCESS TIER CLIENT TIER RE SO U RC E TI ER APP TIER wrapper wrapper wrapper db db db business

object businessobject businessobject api api

api web

client clientwap clientjava

WWW servers, J2EE, CGI JAVA Servlets API

databases, multi-tier systems backends, mainframes

system federations, filters object monitors, MOM

TP-Monitors, stored procedures programs, scripts, beans

WWW and WAP browsers specialized clients (Java, .NET)

Eclipse RCP, SMS ...

WWW and WAP browsers specialized clients (Java, .NET)

Eclipse RCP, SMS ... CLI EN T A C C ES S A PP IN TE G RA TI O N RE SO U RC E HTML, SOAP, XML MOM, HTML, IIOP, RMI-IIOP, SOAP, XML MOM, IIOP, RMI-IIOP, XML ODBC, JDBC, RPC, MOM, IIOP, RMI-IIOP

(4)

Understanding the Layers

Client is any user or program that wants to perform an operation over the system. To support a client, the system needs to have a presentation layer through which the user can submit operations and obtain a result.

The application logic establishes what operations can be performed over the system and how they take place. It takes care of enforcing the business rules and establish the business processes. The application logic can be expressed and implemented in many different ways: constraints, business processes, server with encoded logic ...

The resource manager deals with the organization (storage, indexing, and retrieval) of the data necessary to support the application logic. This is typically a database but it can also be a text retrieval system or any other data management system providing querying capabilities and persistence.

Presentation logic Application Logic Resource Manager 2-5 years Application (system’s logic) 1-2 years Clients and external

interface

(presentation, access channels)

~10 years Data management systems (operational and strategic data)

A modern e-commerce platform

ASP

ASP SSLSSL

FARM A

Games/Music

Games/Music VideosVideos

Comp/Soft

Comp/SoftBooksBooks MusicMusic SQL Product Server

SQL Product Server

ASP File Server

Cache Server Cache Server Basket/Ad/Surplus Basket/Ad/Surplus Receipt/Fulfillment Receipt/Fulfillment

Monitor and cache

ASP

ASP SSLSSL FARM B

FARM B

Games/Music

Games/Music VideosVideos

Comp/Soft

Comp/SoftBooksBooks MusicMusic SQL Product Server

SQL Product Server

ASP File Server

Search Servers

Search Servers Search ServersSearch Servers

5

5 2222 55 22

Diagram courtesy of Robert Barnes, Microsoft

(5)

Scale-up versus Scale-out

Scale-up

Scale-out

Diagrams courtesy of Jim Gray,

Microsoft

•Scale up is based on using a bigger

computer as the load increases. This

requires to use parallel computers

(SMP) with more and more

processors.

•Scale out is based on using more

computers as the load increases

instead of using a bigger computer.

•Both are usually combined! Scale

out can be applied at any level of

the scale up.

Challenges of Integration

A lot of the problems to be addressed in Enterprise Application

Integration stem from having to integrate standalone applications which have been developed independently, operate autonomously, and were not originally indented to be integrated with one another.

Heterogeneous – each application implements its own data model.

Concepts may be shared, but representation mismatches are to be expected. Mappings and transformations are required.

Autonomous – applications update their state independently without

coordinating with each other. The systems to be integrated are maintained independently and upgraded at different times.

Distributed – in the worst case, every application runs on a completely

separate environment, e.g., database storage is not shared among applications. Message-based communication is the only possibility to exchange information.

(6)

Semantics

Interaction

Ideal integration

The purpose of integration technology is to provide the

illusion of an ideal integration scenario hiding the shortcomings of the real world.

Secure and Reliable Messaging. Many technologies and

protocols have been developed to achieve secure, exactly-once message delivery over unreliable and insecure networks. In an ideal scenario, there would be a single network connecting all partners and systems and providing such features at the network interface layer.

Uniform Semantic Data Model. Ideally, all applications

would share the same schema, providing a unique and

well-defined model of the data avoiding all misinterpretation problems. Translation, mappings, and transformations between different formats and mismatching representations are no longer necessary.

Homogeneous interface processes. The message-based interaction

between different systems happens in the same way. The external interfaces of all systems follow the same public business processes, so that they can be seamlessly interconnected.

Message

Delivery

Why integration matters

Useful information systems evolve over time by growing in size and by

incorporating functionality of existing standalone systems. Applications originally intended to operate separately, later on are required to interoperate with others.

Technology change affects all layers, legacy does not go away so easily. The architecture of the enterprise information system depends on

constraints related to the technology but also to the organization. In the case of B2B, each company owns its information system and

will not open it up more than strictly necessary as it is part of their competitive advantage. For example, not all business processes are going to be shared, as business processes are mostly kept secret. Within an enterprise, each department may have its own IT

infrastructure, systems and databases which are maintained independently. Integrating them may bring additional value to the company.

Mergers, acquisitions and spin-offs leave a long lasting trace in the information systems of the corresponding companies

(7)

EAI in Context

Databases Networking Software Engineering Programming Languages Enterprise Application Integration Middleware

How to build

applications

from scratch

How to integrate two or more

existing applications

Kinds of Integration

Given two (or more) applications, how can you integrate them? It

depends on the assumptions and on whether you can change the applications. Some examples:

 Manual Integration

 Manual Integration with Copy & Paste  File based integration

 API extraction and publishing  Script different command lines

 Wrap existing software (screen scraping)  Data transformation and conversion  Message based integration

 Point to point, Centralized, Peer to Peer

There are many different ways of doing EAI. Also, Integration can be

(8)

©IKS, ETH Zürich. 15 Build product #3, according to specs. Customer 1 Customer 2 Supplier 1 Supplier 2 Retailer Manufacturer 1 Manufacturer 2 Buy products #23, #45 and part #101 Get products #23 and #45

Get parts #A1, #B42, #H2, #R2

Order parts #R2, #101, #ES-01, #G7, #G11 Order parts #A1,

#H2, #G7, #G11, #B42

Get parts #G7, #G11, #ES-01, #R2

Astronomy

(9)

Our ability to produce data

exceeds our capacity to

explain how the data was

produced.

Scientific Method?

PROCESSING LOGIC (PL) DATA MANAGEMENT (DM) SERVER

MANAGER DIRECTORYSERVICES REFERENCEMANAGER FILTERSDATA

... TMP STORAGE SPACE IDL SERVER TMP STORAGE SPACE TMP STORAGE SPACE IDL SERVER IDL SERVER ... IMAGES AND RAW DATA NETWORK FILE SYSTEM

DB SPACE SPACEDB DBMS 1 (Oracle) DBMS 2(Oracle) LESS RELEVAT DATA TAPE ARCHIVE FRONT

END (HTTP, RMI) MANAGERARCHIVE PRESENTATION LAYER

APPLICATION LAYER

RESOURCE MANAGEMENT LAYER THIN CLIENT

(HTTP)

WEB BROWSER STREAMCORDER

(HTTP) HEDC

web server (Apache)

www.hedc.ethz.ch _{JAVA CLIENT} LOCAL DB

(10)

Planets outside the solar system

(11)

The Grid

Course philosophy

Addressing the increasing need for connectivity, the ever growing

demand, and facing the challenge of component based software design requires to solve a number of data management issues.

By learning to identify the problems and being aware of the state of

the art and possible solutions both theoretical and practical, a system designer will be in a much better position to deal with evolving technology.

Design

Problem

Technical

Solutions

System

Design

(12)

The future of distributed IS

Why distributed information systems?

Computer environments:

Distributed, heterogeneous, autonomous nodes linked by a network (intranet, internet. Emphasis on communication).

Technology advances: On

computing power (powerful clients), on networks (reliability, speed. ATM, ISDN …).

Application demands: Larger and larger applications. Decentralized corporations. Need for autonomy.

New environments and business

models: WWW, distributed service providers, Java, CORBA, Workflow Management.

Basic services: A great deal of work is being invested in producing the type of standards and reusable software needed to make this a reality (SOAP/WSDL/UDDI)

Distributed IS applications: Emphasis on interoperability:

combine your data with that of the rest of the world.

Emphasis on distribution: Intranet, Internet are here to stay. Huge demand for this functionality:

Lotus Notes (applications built on replicated databases). WWW+Java+persistence

(distributed service providers). TP-Monitors (OLTP, OLAP,

transactional processing). Queuing Systems (applications

on top of reliable, asynchronous communications).

CORBA (applications on top of a TP-Monitor like object oriented system)

Workflow

Web Services … and more

The Web services stack

SAML S/MIME WS-Security Security BTP BTP WS-Transactions Transactions ebXML registries UDDI Discovery ebXML CPA Contracts BPML BPML BPEL4WS WSFL/XLANG Business processes WS-Coordination Choreography ebXML BPSS WSCI WSCL Conversations DAML-S WSEL Nonfunctional description ebXML CPP RDF WSDL Description ebXML MSS SOAP Messaging ebXML Semantic Web WSDL-based

(13)

The distributed systems dilemma

Theoretical advantages of distributed systems:

Locality of reference: With the

proper data placement, most accesses should be to local data, which increases response time and throughput.

Scalability/Processing capacity:

With better hardware available, the overall processing power should be a function of the number of nodes in the system (see parallelism). If more power is needed, add more nodes.

Availability/Fault tolerance: A

distributed system should be able to provide services even when part of the system is down (unlike centralized systems). This is important for large installations and mission critical applications (24x7 computing).

In theory, a distributed system is

faster (better response time and throughput), bigger (more capacity), and more reliable (built-in redundancy). But, in practice, this is not true.

Centralized (mainframe based):

the old-fashioned approach. Most of the valuable data is still in mainframes, although it is only 1 % of all existing data (mainframes are still a good business).

Client/Server (a variation of the

centralized version): a first approach to distribution. Made too many promises and now it is suffering from its lack of

success. Servers are not

mainframes and quickly become a bottleneck. Applications move towards distribution, and find there is no support for it.

Course Organization

January December November

EAI in industry (Guest Lecture)

October

TP-Monitors

Message Oriented Middleware Workflow Management Systems The role of the WWW in EAI SOAP

WSDL UDDI

Limitations of SOAP, WSDL, UDDI Distributed Information Systems Middleware

(14)

Concrete goals for the course

Provide a basic understanding of the problems associated with distributed

environments (many of the ideas we will discuss apply in many areas, not just typical commercial applications).

Provide the conceptual tools required to understand commercial products

(basic idea behind a product, what its weaknesses are, how to solve them). Understanding how technology has evolved and why products are the way they are is the key to understanding what might happen in the future

Develop the skills and know how necessary to participate in an enterprise

application integration effort: motivation, vocabulary, systems, some programming experience.

Gain sufficient awareness of the state-of-the-art. Some of the problems

covered in the course are very hard and many people have worked on them for years. It is very useful to know what has been done so far and how it can be used.
