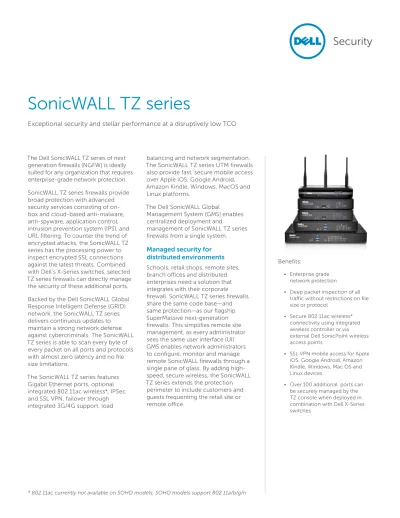

The Dell SonicWALL TZ series of next
generation firewalls (NGFW) is ideally
suited for any organization that requires
enterprise-grade network protection.
SonicWALL TZ series firewalls provide
broad protection with advanced
security services consisting of
on-box and cloud-based anti-malware,
anti-spyware, application control,
intrusion prevention system (IPS), and
URL filtering. To counter the trend of
encrypted attacks, the SonicWALL TZ
series has the processing power to
inspect encrypted SSL connections
against the latest threats. Combined
with Dell's X-Series switches, selected
TZ series firewalls can directly manage
the security of these additional ports.
Backed by the Dell SonicWALL Global
Response Intelligent Defense (GRID)
network, the SonicWALL TZ series
delivers continuous updates to
maintain a strong network defense
against cybercriminals. The SonicWALL
TZ series is able to scan every byte of
every packet on all ports and protocols
with almost zero latency and no file
size limitations.
The SonicWALL TZ series features
Gigabit Ethernet ports, optional
integrated 802.11ac wireless*, IPSec
and SSL VPN, failover through
integrated 3G/4G support, load
balancing and network segmentation.
The SonicWALL TZ series UTM firewalls
also provide fast, secure mobile access
over Apple iOS, Google Android,
Amazon Kindle, Windows, MacOS and
Linux platforms.
The Dell SonicWALL Global
Management System (GMS) enables
centralized deployment and
management of SonicWALL TZ series
firewalls from a single system.
Managed security for
distributed environments
Schools, retail shops, remote sites,
branch offices and distributed
enterprises need a solution that
integrates with their corporate
firewall. SonicWALL TZ series firewalls
share the same code base—and
same protection—as our flagship
SuperMassive next-generation
firewalls. This simplifies remote site
management, as every administrator
sees the same user interface (UI).
GMS enables network administrators
to configure, monitor and manage
remote SonicWALL firewalls through a
single pane of glass. By adding
high-speed, secure wireless, the SonicWALL
TZ series extends the protection
perimeter to include customers and
guests frequenting the retail site or
remote office.
SonicWALL TZ series
Exceptional security and stellar performance at a disruptively low TCO
Benefits:
• Enterprise grade
network protection
• Deep packet inspection of all
traffic without restrictions on file
size or protocol
• Secure 802.11ac wireless*
connectivity using integrated
wireless controller or via
external Dell SonicPoint wireless
access points
• SSL VPN mobile access for Apple
iOS, Google Android, Amazon
Kindle, Windows, Mac OS and
Linux devices
• Over 100 additional ports can
be securely managed by the
TZ console when deployed in
combination with Dell X-Series
switches
SonicWALL TZ600 series
For emerging enterprises, retail and branch offices looking for security performance at a value price, the Dell SonicWALL TZ600
next-generation firewall secures networks with enterprise-class features and uncompromising performance.
Specification TZ600 series
Firewall throughput 1.5 Gbps Full DPI throughput 500 Mbps Anti-malware throughput 500 Mbps IPS throughput 1.1 Gbps IMIX throughput 900 Mbps Max DPI connections 125,000 New connections/sec 12,000
USB port
(3G/4G WAN
Failover)
Link and
activity
Indicator LEDs
Power LED Test LED
X0 LAN Port
X1 WAN Port
Secure
power
8x1GbE
switch
(configurable)
Console
port
Expansion
module
Slot (future)
SonicWALL TZ500 series
For growing branch offices and SMBs, the Dell SonicWALL TZ500 series delivers highly effective, no-compromise protection
with network productivity and optional integrated 802.11ac dual-band wireless.
Specification TZ500 series
Firewall throughput 1.4 Gbps Full DPI throughput 400 Mbps Anti-malware throughput 400 Mbps IPS throughput 1.0 Gbps IMIX throughput 700 Mbps Max DPI connections 100,000 New connections/sec 8,000
USB port
(3G/4G WAN
Failover)
X0 LAN Port
X1 WAN Port
Optional
wireless
Secure
power
Link and
activity
Indicator LEDs
Power LED Test LED
6x1GbE switch
(configurable)
Console
SonicWALL TZ400 series
For small business, retail and branch office locations, the Dell SonicWALL TZ400 series delivers enterprise-grade protection.
Flexible wireless deployment is available with either external SonicPoint Access points or 802.11ac wireless integrated into the unit.
SonicWALL TZ300 series
The Dell SonicWALL TZ300 series offers an all-in-one solution that protects networks from attack. Unlike consumer grade
products, the SonicWALL TZ300 series firewall combines effective intrusion prevention, anti-malware and content/URL filtering
with optional 802.11ac integrated wireless and broadest secure mobile platforms support for laptops, smartphones and tablets.
Specification TZ300 series
Firewall throughput 750 Mbps Full DPI throughput 100 Mbps Anti-malware throughput 100 Mbps IPS throughput 300 Mbps IMIX throughput 200 Mbps Max DPI connections 50,000 New connections/sec 5,000
Specification TZ400 series
Firewall throughput 1.3 Gbps Full DPI throughput 300 Mbps Anti-malware throughput 300 Mbps IPS throughput 900 Mbps IMIX throughput 500 Mbps Max DPI connections 90,000 New connections/sec 6,000
USB port
(3G/4G WAN
Failover)
X0 LAN Port
X1 WAN Port
Optional
wireless
Secure
power
Link and
activity
Indicator LEDs
Power LED Test LED
3x1GbE switch
(configurable)
Console
port
USB port
(3G/4G WAN
Failover)
X0 LAN Port
X1 WAN Port
Optional
wireless
Secure
power
Link and
activity
Indicator LEDs
Power LED Test LED
5x1GbE switch
(configurable)
Console
SonicWALL SOHO series
For wired and wireless small and home office environments, the Dell SonicWALL SOHO series delivers the same business-class
protection large organizations require at a more affordable price point.
Specification SOHO series
Firewall throughput 300 Mbps Full DPI throughput 50 Mbps Anti-malware throughput 50 Mbps IPS throughput 100 Mbps IMIX throughput 60 Mbps Max DPI connections 10,000 New connections/sec 1,800
USB port
(3G/4G WAN
Failover)
X0 LAN Port
X1 WAN Port
Optional
wireless
Secure
power
Link and
activity
Indicator LEDs
Power LED Test LED
3x1GbE switch
(configurable)
Console
port
Extensible architecture for extreme scalability
and performance
The Reassembly-Free Deep Packet Inspection (RFDPI)
engine is designed from the ground up with an emphasis
on providing security scanning at a high performance level,
to match both the inherently parallel and ever-growing
nature of network traffic. When combined with multi-core
processor systems, this parallel-centric software architecture
scales up perfectly to address the demands of deep packet
inspection at high traffic loads. The SonicWALL TZ Series
platform relies on processors that, unlike x86, are optimized
for packet, crypto and network processing while retaining
flexibility and programmability in the field — a weak point
for ASICs systems. This flexibility is essential when new
code and behavior updates are necessary to protect against
new attacks that require updated and more sophisticated
detection techniques.
SOHO
Home office
TZ400
Small
branch office
TZ600
Large
branch office
Internet
NSA or SuperMassive
Corporate
headquarters
Global Management System
18 port
X-series switch
Global management and reporting
For larger, distributed enterprise deployments, the optional
Dell SonicWALL Global Management System (GMS) provides
administrators a unified, secure and extensible platform to
manage Dell SonicWALL security appliances and X-Series
switches. It enables enterprises to easily consolidate the
management of security appliances, reduce administrative
and troubleshooting complexities and governs all operational
aspects of the security infrastructure including centralized
policy management and enforcement, real-time event
monitoring, analytics and reporting, and more. GMS also
meets the firewall change management requirements of
enterprises through a workflow automation feature. GMS
provides a better way to manage network security by
business processes and service levels that dramatically
simplify the lifecycle management of your overall security
environments rather than on a device-by-device basis.
Reassembly-Free Deep Packet Inspection
(RFDPI) engine
The RFDPI engine provides superior threat protection and
application control without compromising performance.
This patented engine inspects the traffic stream to detect
threats at Layers 3-7. The RFDPI engine takes network
streams through extensive and repeated normalization
and decryption in order to neutralize advanced evasion
techniques that seek to confuse detection engines and sneak
malicious code into the network. Once a packet undergoes
the necessary preprocessing, including SSL decryption, it is
analyzed against a single proprietary memory representation
of three signature databases: intrusion attacks, malware
and applications. The connection state is then advanced
to represent the position of the stream relative to these
databases until it encounters a state of attack, or another
“match” event, at which point a pre-set action is taken. As
malware is identified, the SonicWALL firewall terminates the
connection before any compromise can be achieved and
properly logs the event. However, the engine can also be
configured for inspection only or, in the case of application
detection, to provide Layer 7 bandwidth management
services for the remainder of the application stream as soon
as the application is identified.
Traffic in Traffic out
Packet reassembly-free process
Reassembly-free packet scanning without proxy or content size limitations Inspection time
Less More
Inspection capacity
Min Max
Dell SonicWALL architecture
Traffic in
Inspection time
Less More
Inspection capacity
Min Max
When proxy becomes full or content too large, files bypass scanning
Packet assembly-based process
Traffic out Proxy
Competitive architecture
Security and protection
The dedicated, in-house Dell
SonicWALL Threat Research Team
works on researching and developing
countermeasures to deploy to the
firewalls in the field for up-to-date
protection. The team leverages more
than one million sensors across the
globe for malware samples, and for
telemetry feedback on the latest
threat information, which in turn is fed
into the intrusion prevention,
anti-malware and application detection
capabilities. Dell SonicWALL firewall
customers with current subscriptions
are provided continuously updated
threat protection around the clock,
with new updates taking effect
immediately without reboots or
interruptions. The signatures on the
appliances protect against wide classes
of attacks, covering up to tens of
thousands of individual threats with
a single signature. In addition to the
countermeasures on the appliance,
all Dell SonicWALL firewalls also have
access to the Dell SonicWALL CloudAV
service, which extends the onboard
signature intelligence with more than
17 million signatures, and growing. This
CloudAV database is accessed via a
proprietary light-weight protocol by
the firewall to augment the inspection
done on the appliance. With
Geo-IP and botnet filtering capabilities,
Dell SonicWALL next-generation
firewalls are able to block traffic
from dangerous domains or entire
geographies in order to reduce the risk
profile of the network.
Application intelligence
and control
Application intelligence informs
administrators of application traffic
traversing the network, so they
can schedule application controls
based on business priority, throttle
unproductive applications and block
potentially dangerous applications.
Real-time visualization identifies traffic
anomalies as they happen, enabling
immediate countermeasures against
potential inbound or outbound
attacks or performance bottlenecks.
Dell SonicWALL application traffic
analytics provide granular insight
into application traffic, bandwidth
utilization and security threats, as
well as powerful troubleshooting and
forensics capabilities. Additionally,
secure single sign-on (SSO) capabilities
enhance the user experience, increase
productivity and reduce support
calls. Management of application
intelligence and control is simplified by
using an intuitive web-based interface.
Flexible and secure wireless
Available as an optional feature,
high-speed 802.11ac wireless* combines
with Dell SonicWALL next-generation
firewall technology to create a wireless
network security solution that delivers
comprehensive protection for wired
and wireless networks.
This enterprise-level wireless
performance enables WiFi-ready
devices to connect from greater
distances and use bandwidth-intensive
mobile apps, such as video and voice,
in higher density environments without
experiencing signal degradation.
Home office/small office LAN TZ product line
Internet
Sales network
18 port X-series switch Internet Printers Storage POE cameras Engineering network Finance network
Protected server network
Secure wireless zone 3G/analog failover
TZ product line NSA or SuperMassive
Corporate headquarters
Global Management System
Features
RFDPI engine
Feature Description
Reassembly-Free Deep Packet Inspection This high-performance, proprietary and patented inspection engine performs stream based bi-directional traffic analysis, without proxying or buffering, to uncover intrusion attempts, malware and identify application traffic regardless of port.
Bi-directional inspection Scans for threats in both inbound and outbound traffic simultaneously to ensure that the network is not used to distribute malware, and does not become a launch platform for attacks in case an infected machine is brought inside.
Single-pass inspection A single-pass DPI architecture simultaneously scans for malware, intrusions and application identification, drastically reducing DPI latency and ensuring that all threat information is correlated in a single architecture. Stream-based inspection Proxy-less and non-buffering inspection technology provides ultra-low latency performance for deep packet
inspection of simultaneous network streams without introducing file and stream size limitations, and can be applied on common protocols as well as raw TCP streams.
Intrusion prevention
Feature Description
Countermeasure-based protection Tightly integrated intrusion prevention system (IPS) leverages signatures and other countermeasures to scan packet payloads for vulnerabilities and exploits, covering a broad spectrum of attacks and vulnerabilities. Automatic signature updates The Dell SonicWALL Threat Research Team continuously researches and deploys updates to an extensive list
of IPS countermeasures that covers more than 50 attack categories. The new updates take immediate effect without any reboot or service interruption required.
Intra-zone IPS protection Bolsters internal security by segmenting the network into multiple security zones with intrusion prevention, preventing threats from propagating across the zone boundaries.
Botnet command and control (CnC) detection and blocking
Identifies and blocks command and control traffic originating from bots on the local network to IPs and domains that are identified as propagating malware or are known CnC points.
Protocol abuse/anomaly Identifies and blocks attacks that abuse protocols in an attempt to sneak past the IPS.
Zero-day protection Protects the network against zero-day attacks with constant updates against the latest exploit methods and techniques that cover thousands of individual exploits.
Anti-evasion technology Extensive stream normalization, decoding and other techniques ensure that threats do not enter the network undetected by utilizing evasion techniques in Layers 2-7.
Threat prevention
Feature Description
Gateway anti-malware The RFDPI engine scans all inbound, outbound and intra-zone traffic for viruses, Trojans, key loggers and other malware in files of unlimited length and size across all ports and TCP streams.
CloudAV malware protection A continuously updated database of over 17 million threat signatures resides in the Dell SonicWALL cloud servers and is referenced to augment the capabilities of the onboard signature database, providing RFDPI with extensive coverage of threats.
Around-the-clock security updates New threat updates are automatically pushed to firewalls in the field with active security services, and take effect immediately without reboots or interruptions.
SSL decryption and inspection Decrypts and inspects SSL traffic on the fly, without proxying, for malware, intrusions and data leakage, and applies application, URL and content control policies in order to protect against threats hidden in SSL encrypted traffic Included with security subscriptions for all models except SOHO. Sold as a separate license on SOHO. Bi-directional raw TCP inspection The RFDPI engine is capable of scanning raw TCP streams on any port bi-directionally preventing attacks that
they to sneak by outdated security systems that focus on securing a few well-known ports.
Extensive protocol support Identifies common protocols such as HTTP/S, FTP, SMTP, SMBv1/v2 and others, which do not send data in raw TCP, and decodes payloads for malware inspection, even if they do not run on standard, well-known ports.
Application intelligence and control
Feature Description
Application control Control applications, or individual application features, that are identified by the RFDPI engine against a continuously expanding database of over 3,500 application signatures, to increase network security and enhance network productivity.
Custom application identification Control custom applications by creating signatures based on specific parameters or patterns unique to an application in its network communications, in order to gain further control over the network.
Application bandwidth management Granularly allocate and regulate available bandwidth for critical applications or application categories while inhibiting nonessential application traffic.
Granular control Control applications, or specific components of an application, based on schedules, user groups, exclusion lists and a range of actions with full SSO user identification through LDAP/AD/Terminal Services/Citrix integration.
Content filtering
Feature Description
Inside/outside content filtering Enforce acceptable use policies and block access to websites containing information or images that are objectionable or unproductive with Content Filtering Service. Extend policy enforcement to block internet
Content filtering
Feature Description
Granular controls Block content using the predefined categories or any combination of categories. Filtering can be scheduled by time of day, such as during school or business hours, and applied to individual users or groups.
YouTube for Schools Enable teachers to choose from hundreds of thousands of free educational videos from YouTube EDU that are organized by subject and grade and align with common educational standards.
Web caching URL ratings are cached locally on the Dell SonicWALL firewall so that the response time for subsequent access to frequently visited sites is only a fraction of a second.
Enforced anti-virus and anti-spyware
Feature Description
Multi-layered protection Utilize the firewall capabilities as the first layer of defense at the perimeter, coupled with endpoint protection to block, viruses entering network through laptops, thumb drives and other unprotected systems.
Automated enforcement option Ensure every computer accessing the network has the most recent version of anti-virus and anti-spyware signatures installed and active, eliminating the costs commonly associated with desktop virus and anti-spyware management.
Automated deployment and installation option Machine-by-machine deployment and installation of anti-virus and anti-spyware clients is automatic across the network, minimizing administrative overhead.
Always on, automatic virus protection Frequent anti-virus and anti-spyware updates are delivered transparently to all desktops and file servers to improve end user productivity and decrease security management.
Spyware protection Powerful spyware protection scans and blocks the installation of a comprehensive array of spyware programs on desktops and laptops before they transmit confidential data, providing greater desktop security and performance.
Firewall and networking
Feature Description
Stateful packet inspection All network traffic is inspected, analyzed and brought into compliance with firewall access policies. DDoS/DoS attack protection SYN Flood protection provides a defense against DOS attacks using both Layer 3 SYN proxy and Layer 2 SYN
blacklisting technologies. Additionally, it provides the ability to protect against DOS/DDoS through UDP/ICMP flood protection and connection rate limiting.
Flexible deployment options The SonicWALL TZ Series can be deployed in traditional NAT, Layer 2 Bridge, Wire Mode and Network Tap modes. IPv6 support Internet Protocol version 6 (IPv6) is in its early stages to replace IPv4. With the latest SonicOS, the hardware will
support filtering implementations.
Dell X-Series switch integration Manage security settings of additional ports, including POE and POE+, under a single pane of glass using TZ series dashboard with Dell X series switch (not available with the SOHO model)
High availability SonicWALL TZ500 and SonicWALL TZ600 models support high availability with Active/Standby with state synchronization. SonicWALL TZ300 and SonicWALL TZ400 models support high availability without Active/Standby synchronization. There is no high availability on SonicWALL SOHO models.
Wireless Network Security IEEE 802.11ac wireless technology can deliver up to 1.3 Gbps of wireless throughput with greater range and reliability. Available on SonicWALL TZ600 through SonicWALL TZ300 models. Optional 802.11 a/b/g/n is available on SonicWALL SOHO models.
Management and reporting
Feature Description
Global Management System Dell SonicWALL GMS monitors, configures and reports on multiple Dell SonicWALL appliances and Dell X-Series switches through a single management console with an intuitive interface to reduce management costs and complexity.
Powerful, single device management An intuitive, web-based interface allows quick and convenient configuration. Also, a comprehensive command line interface and support for SNMPv2/3.
IPFIX/NetFlow application flow reporting Exports application traffic analytics and usage data through IPFIX or NetFlow protocols for real-time and historical monitoring and reporting with tools such as Dell SonicWALL Scrutinizer or other tools that support IPFIX and NetFlow with extensions.
Virtual Private Networking
Feature Description
IPSec VPN for site-to-site connectivity High-performance IPSec VPN allows the SonicWALL TZ Series to act as a VPN concentrator for thousands of other large sites, branch offices or home offices.
SSL VPN or IPSec client remote access Utilizes clientless SSL VPN technology or an easy-to-manage IPSec client for easy access to email, files, computers, intranet sites and applications from a variety of platforms.
Redundant VPN gateway When using multiple WANs, a primary and secondary VPN can be configured to allow seamless automatic failover and failback of all VPN sessions.
Route-based VPN The ability to perform dynamic routing over VPN links ensures continuous uptime in the event of a temporary VPN tunnel failure, by seamlessly re-routing traffic between endpoints through alternate routes.
Content/context awareness
Feature Description
User activity tracking User identification and activity are made available through seamless AD/LDAP/Citrix1/TerminalServices SSO integration combined with extensive information obtained through DPI.
GeoIP country traffic identification Identifies and controls network traffic going to or coming from specific countries to either protect against attacks from known or suspected origins of threat activity, or to investigate suspicious traffic originating from the network. Regular expression DPI filtering Prevents data leakage by identifying and controlling content crossing the network through regular
SonicOS feature summary
Firewall
• Reassembly-Free Deep Packet
Inspection
• Deep packet inspection for SSL
• Stateful packet inspection
• Stealth mode
• Common Access Card (CAC) support
• DOS attack protection
• UDP/ICMP/SYN flood protection
• SSL decryption
• IPv6 Security
Intrusion prevention
• Signature-based scanning
• Automatic signature updates
• Bidirectional inspection engine
• Granular IPS rule capability
• GeoIP and reputation-based filtering
• Regular expression matching
Anti-malware
• Stream-based malware scanning
• Gateway anti-virus
• Gateway anti-spyware
• Bi-directional inspection
• No file size limitation
• Cloud malware database
Application control
• Application control
• Application component blocking
• Application bandwidth management
• Custom application signature creation
• Data leakage prevention
• Application reporting over NetFlow/
IPFIX
• User activity tracking (SSO)
• Comprehensive application signature
database
Web content filtering
• URL filtering
• Anti-proxy technology
• Keyword blocking
• Bandwidth manage CFS rating
categories
• Unified policy model with app control
• 57 content filtering categories
• Content Filtering Service Client
VPN
• IPSec VPN for site-to-site connectivity
• SSL VPN and IPSec client remote
access
• Redundant VPN gateway
• Mobile Connect for iOS and Android™
• Route-based VPN (OSPF, RIP)
Networking
• PortShield
• Layer-2 network discovery
• IPv6
• Enhanced logging
• Port mirroring
• Layer-2 QoS
• Port Security
• Dynamic routing
• Policy-based routing
• Asymmetric routing
• DHCP server
• Bandwidth management
• Active/Standby high availability with
state sync*
• Inbound/outbound load balancing
• L2 bridge, NAT mode DDNS
• 3G/4G WAN failover
VoIP
• Granular QoS control
• Bandwidth management
• DPI for VoIP traffic
• H.323 gatekeeper and SIP proxy
support
Management and monitoring
• Web GUI
• Command line interface (CLI)
• SNMPv2/v3
• Off-box reporting (Scrutinizer)
• Centralized management and
reporting
• Logging
• Netflow/IPFix exporting
• App traffic visualization (not available
on SOHO model)
• Centralized policy management
• Single Sign-On (SSO)
• Terminal service/Citrix support
• Application and bandwidth
visualization
• IPv4 and IPv6 management
IPv6
• IPv6 filtering
• 6rd (rapid deployment)
• DHCP prefix delegation
• BGP
Wireless
• Dual-band (2.4 GHz and 5.0 GHz)
• 802.11 a/b/g/n/ac wireless** standards
• Wireless intrusion detection and
prevention
• Wireless guest services
• Lightweight hotspot messaging
• Virtual access point segmentation
• Captive portal
SonicWALL TZ series system specifications
Performance overview SOHO series TZ300 series TZ400 series TZ500 series TZ600 series
Operating system SonicOS 5.9x /
6.2.x SonicOS 6.2.x Security processor 2 x 400 MHz / 2 x 800 MHz 2 x 800 MHz 4 x 800 MHz 4 x 1 GHz 4 x 1.4 GHz Memory (RAM) 512 MB / 1GB 1 GB 1 GB 1 GB 1 GB Memory (flash) 32 MB / 64 MB 64 MB 64 MB 64 MB 64 MB
1 GbE copper interfaces 5 5 7 8 10
Expansion USB USB USB 2 USB Expansion Slot
(Rear)*, 2 USB Firewall inspection throughput1 300 Mbps 750 Mbps 1,300 Mbps 1,400 Mbps 1,500 Mbps
Full DPI throughput2 50 Mbps 100 Mbps 300 Mbps 400 Mbps 500 Mbps
Application inspection throughput2 - 300 Mbps 900 Mbps 1,000 Mbps 1,100 Mbps
IPS throughput2 100 Mbps 300 Mbps 900 Mbps 1,000 Mbps 1,100 Mbps
Anti-malware inspection throughput2 50 Mbps 100 Mbps 300 Mbps 400 Mbps 500 Mbps
IMIX throughput3 60 Mbps 200 Mbps 500 Mbps 700 Mbps 900 Mbps
SSL inspection and decryption throughput (DPI SSL)2
15 Mbps 45 Mbps 100 Mbps 150 Mbps 200 Mbps
IPSec VPN throughput3 100 Mbps 300 Mbps 900 Mbps 1,000 Mbps 1,100 Mbps
Connections per second 1,800 5,000 6,000 8,000 12,000
Maximum connections (SPI) 10,000 50,000 100,000 125,000 150,000
Maximum connections (DPI) 10,000 50,000 90,000 100,000 125,000
Single Sign-On (SSO) Users 250 500 500 500 500
VLAN interfaces 25 25 50 50 50
SonicPoints supported (maximum) 2 8 16 16 24
Dell X-Series switch models supported Not available X1008/P, X1018/P, X1026/P, X1052/P, X4012
VPN SOHO series TZ300 series TZ400 series TZ500 series TZ600 series
Site-to-site VPN tunnels 10 10 20 25 50
IPSec VPN clients (maximum) 1 (5) 1 (10) 2 (25) 2 (25) 2 (25)
SSL VPN licenses (maximum) 1 (10) 1 (50) 2 (100) 2 (150) 2 (200)
Virtual assist bundled (maximum) - 1 (30-day trial) 1 (30-day trial) 1 (30-day trial) 1 (30-day trial) Encryption/authentication DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14
Route-based VPN RIP, OSPF
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for Dell SonicWALL-to-Dell SonicWALL VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
Security services SOHO series TZ300 series TZ400 series TZ500 series TZ600 series
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Enforced Client Anti-Virus and Anti-Spyware McAfee®
Comprehensive Anti-Spam Service Supported
Application Visualization No Yes Yes Yes Yes
SonicWALL TZ series system specifications con't
Networking SOHO series TZ300 series TZ400 series TZ500 series TZ600 series
IP address assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols4 BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication XAUTH/RADIUS,
Active Directory, SSO, LDAP, Novell,
internal user database
XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
Local user database 150 250
VoIP Full H.323v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus
Certifications pending Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, UC APL
Common Access Card (CAC) Supported
High availability No Active/standby Active/standby Active/standby
with stateful synchronization
Active/standby with stateful synchronization
Hardware SOHO series TZ300 series TZ400 series TZ500 series TZ600 series
Form factor Desktop
Power supply (W) 24W external 24W external 24W external 36W external 60W external
Maximum power consumption (W) 6.4 / 11.3 6.9 / 12.0 9.2 / 13.8 13.4 / 17.7 16.1
Input power 100 to 240 VAC, 50-60 Hz, 1 A
Total heat dissipation 21.8 / 38.7 BTU 23.5 / 40.9 BTU 31.3 / 47.1 BTU 45.9 / 60.5 BTU 55.1 BTU
Dimensions 3.6x14.1x19cm 3.5x13.4x19cm 3.5x13.4x19cm 3.5x15x22.5cm 3.5x18x28cm Weight 0.34 kg / 0.75 lbs 0.48 kg / 1.06 lbs 0.73 kg / 1.61 lbs 0.84 kg / 1.85 lbs 0.73 kg / 1.61 lbs 0.84 kg / 1.85 lbs 0.92 kg / 2.03 lbs 1.05 kg / 2.31 lbs 1.47 kg / 3.24 lbs WEEE weight 0.80 kg / 1.76 lbs 0.94 kg / 2.07 lbs 1.15 kg / 2.53 lbs 1.26 kg / 2.78 lbs 1.15 kg / 2.53 lbs 1.26 kg / 2.78 lbs 1.34 kg / 2.95 lbs 1.48 kg / 3.26 lbs 1.89 kg /4.16 lbs Shipping weight 1.20 kg / 2.64 lbs 1.34 kg / 2.95 lbs 1.37 kg / 3.02 lbs 1.48 kg / 3.26 lbs 1.37 kg / 3.02 lbs 1.48 kg / 3.26 lbs 1.93 kg / 4.25 lbs 2.07 kg / 4.56 lbs 2.48 kg / 5.47 lbs MTBF (years) 30/15 28/14 27/13 20/12 18 Environment 40-105° F, 0-40° C Humidity 5-95% non-condensing
Regulatory SOHO series TZ300 series TZ400 series TZ500 series TZ600 series
Regulatory model (wired) APL31-0B9 APL28-0B4 APL28-0B4 APL29-0B6 APL30-0B8
Major regulatory compliance (wired models) FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick,
VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH,
KCC/MSIP
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick,
VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH,
KCC/MSIP
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick,
VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH,
KCC/MSIP
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick,
VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH,
BSMI, KCC/MSIP FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH,
KCC/MSIP
Regulatory model (wireless) APL41-0BA APL28-0B5 APL28-0B5 APL29-0B7
-Major regulatory compliance (wireless models) FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL,
WEEE , REACH FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL,
WEEE , REACH FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL,
WEEE , REACH FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL,
WEEE , REACH
-SonicWALL TZ series system specifications, con't
*Future use.
1 Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated
services.
2 Full DPI/GatewayAV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing
done with multiple flows through multiple port pairs.
3 VPN throughput measured using UDP traffic at 1280 byte packet size adhering to RFC 2544. All specifications, features and availability are subject to change. 4 TZ400, TZ500 and TZ600 only.
Integrated Wireless SOHO series TZ300, TZ400, TZ500 series TZ600 series
Standards 802.11 a/b/g/n 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS
-Frequency bands 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz;
802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.472 GHz, 5.180-5.825 GHz; 802.11ac:
2.412-2.472 GHz, 5.180-5.825 GHz
-Operating Channels 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4; 802.11b/g: US and Canada 1-11,
Europe 1-13, Japan 1-14 (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165,
Europe 36-48, Japan 36-48, Spain 36-48/52-64;
802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan 1-14 (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11,
Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64; 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan
36-48, Spain 36-48/52-64
-Transmit output power Based on the regulatory domain specified by the system administrator
Based on the regulatory domain specified by the system administrator
-Transmit power control Supported Supported
-Data rates supported 802.11a: 6, 9, 12, 18,24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90,
120, 135, 150 Mbps per channel;
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel; 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel -Modulation technology spectrum
802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division
Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency
Division Multiplexing (OFDM)
802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g:
Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal
Frequency Division Multiplexing (OFDM)
