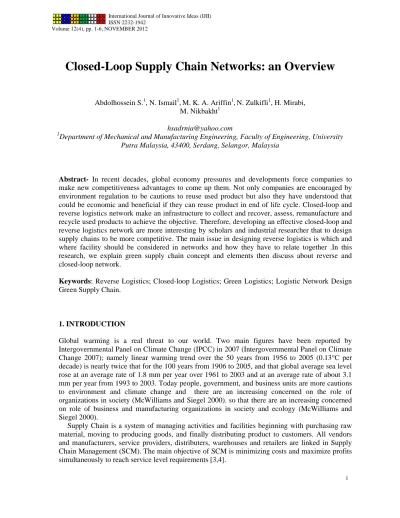

International Journal of Innovative Ideas (IJII)
ISSN 2232-1942
Volume 12(4), pp. 1-6, NOVEMBER 2012
1
Closed-Loop Supply Chain Networks: an Overview
Abdolhossein S.1, N. Ismail1,M. K. A. Ariffin1,N. Zulkifli1, H. Mirabi, M. Nikbakht1
1
Department of Mechanical and Manufacturing Engineering, Faculty of Engineering, University Putra Malaysia, 43400, Serdang, Selangor, Malaysia
Abstract- In recent decades, global economy pressures and developments force companies to
make new competitiveness advantages to come up them. Not only companies are encouraged by environment regulation to be cautions to reuse used product but also they have understood that could be economic and beneficial if they can reuse product in end of life cycle. Closed-loop and reverse logistics network make an infrastructure to collect and recover, assess, remanufacture and recycle used products to achieve the objective. Therefore, developing an effective closed-loop and reverse logistics network are more interesting by scholars and industrial researcher that to design supply chains to be more competitive. The main issue in designing reverse logistics is which and where facility should be considered in networks and how they have to relate together .In this research, we explain green supply chain concept and elements then discuss about reverse and closed-loop network.
Keywords: Reverse Logistics; Closed-loop Logistics; Green Logistics; Logistic Network Design
Green Supply Chain.
1. INTRODUCTION
Global warming is a real threat to our world. Two main figures have been reported by Intergovernmental Panel on Climate Change (IPCC) in 2007 (Intergovernmental Panel on Climate Change 2007); namely linear warming trend over the 50 years from 1956 to 2005 (0.13°C per decade) is nearly twice that for the 100 years from 1906 to 2005, and that global average sea level rose at an average rate of 1.8 mm per year over 1961 to 2003 and at an average rate of about 3.1 mm per year from 1993 to 2003. Today people, government, and business units are more cautions to environment and climate change and there are an increasing concerned on the role of organizations in society (McWilliams and Siegel 2000). so that there are an increasing concerned on role of business and manufacturing organizations in society and ecology (McWilliams and Siegel 2000).
Supply Chain is a system of managing activities and facilities beginning with purchasing raw material, moving to producing goods, and finally distributing product to customers. All vendors and manufacturers, service providers, distributers, warehouses and retailers are linked in Supply Chain Management (SCM). The main objective of SCM is minimizing costs and maximize profits simultaneously to reach service level requirements [3,4].
2
The supply chain concept has been changed by environmental concerns so that, not only is an efficient supply chain based on economic conditions, but also interest is growing in integrating environmental issues into the entire supply chain such that they are more “green” and produce zero waste and pollution. The concept is aimed at the reduction of several elements: energy, materials, the all kinds of pollution and emission, waste in production and logistics processes or promoting the usage of recyclable materials and renewable energy sources are introduced in various segments of supply chains [5]. It is often defined as integrating environmental thinking into supply chain management [6].
2. GREEN SUPPLY CHAIN
In business, some conflict derivers note that some theories encourage practitioners in supply chain management to “be green” and some not only do not encourage greening the supply chain, but also force and emphasis to run it throughout the supply chain . In other words, from one perspective, customers’ concern for the environment leads them to be satisfied with green products and the manufacturer uses this opportunity to be agile and produce environmentally friendly products. On the other hand, the increasing severity of environmental damage such as decreases and limits in raw material resources increases in air pollution and CO2 emission push practitioners to adopt a green supply chain. From this perspective, green supply chain can help companies reach a more competitive position, higher profitability, and better performance by satisfying their customers more effectively (Sarkis 2003).
To achieve green supply chain objectives and competitiveness, as well reducing costs and protecting the environment, manufacturers try to implement various initiatives throughout the entire in supply chain. Such activities include recycling, reusing, reworking, remanufacturing, refurbishing, reclaiming, reducing to designing reverse logistics (Srivastava 2007) or using closed-loop logistics. In this latter case, closed-closed-loop and reverse logistics networks are used for re-using recycled materials along with virgin materials and can protect the environment by collecting used products and re-using them. Many initiatives should be considered for greening supply chains. Eltayeb et al. reviewed literatures on green supply chain and categorized them into; eco-design, green purchasing, supplier environmental collaboration, customer environmental collaboration, and reverse logistics (Eltayeb, Zailani et al. 2010). Furthermore, Srivastava et al. classified green supply chain literature into three main branch based on problem context in supply chain design(Srivastava 2007) that is shown in Fig. 1.
3
Besides cost that should be optimized in supply chain, green supply chains deal with environment and ecology concerns, waste management and optimization, green and reverse logistics , recycling, remanufacturing and green design. These issues and related variables and limitations should be included concurrently while the model and network are being developed in green supply chain.
Regarding to the variety of variables and limitations, most of the green supply chain problems have been known to have characteristics of being combinatorial and NP-hard. As a result, all possible combinations of the decisions and variables must be explored to find the optimum solution. The time required to solve the problem becomes extremely long as the number of variables increase to more than hundreds.
3. CLOSED-LOOP AND REVERSE LOGISTICS
Traditionally, supply chains have been designed with unidirectional logistics, also called forward logistics with the need to decrease waste and reuse products at the end of the life cycle. However, the concept of reverse logistics has been considered in supply chains. Currently, reverse logistics as a greening tool has become increasingly interesting to a large number of companies based on environmental concerns and regulations. The term reverse logistics has been used and defined differently by many authors. For example, some have noted that reverse logistics is the opposite of forward logistics (Fortes 2009). Reverse logistics is a mechanism a manufacturer may use to collect products at the end of the life cycle from the point of the consumer for possible recycling and re-manufacturing. The main application of reverse logistics is to improve reclamation of products when they are at the end of the life cycle (Meade and Sarkis 2007). Wang and Bai (Wang and Bai, 2010) believed that the main task of RL could be considered collecting used products based on the balance of environment affects and cost. Products that are collected using reverse logistic can be used in four forms: direct reuse, repair, recycling, and remanufacturing (Srivastava 2007) and (Thierry, Salomon et al. 1995).
Reverse logistics can be accomplished through the original forward channel, through a reverse channel, or through a combination that uses both the forward and reverse channels. Fig. 2 illustrates a generic concept model of a reverse and forward network.
Fig.2. A generic forward and reverse logistic (Closed-loop network) Manufacturer
Recycling
Disposal center
Warehouse/ Distributor
Collection center and inspection
4
Collecting and transporting used products is the main task of reverse logistic. The mutual relationship between the reverse and forward channels led by managers and engineers to design them concurrently. Therefore, the concept of a closed-loop network or an integrated network refers to the mutual transactions between reverse logistic and forward logistic. This integration helps avoid sub-optimization results versus designing them separately. The first quantitative model for a closed-loop network in supply chain management was developed by Fleischmann, Beullens, Bloemhof-Ruwaard, and Van Wassenhove (2001), who tried to optimize forward distribution and recovery using product flow simultaneously.
4. PROBLEMS AND CASE STUDIES
In supply chain management, all facilities locations and logistics networks specifications such as: how many raw material suppliers and partners should be selected and which ones are best?, what kind of physical structure should be use for the supply chain?, how many manufacturers should be included in the supply chain and where should be they established?, and how many products should be produced by each factory? and when and where should those products be stored? should be considered to minimize cost entire the supply chain.
In addition to cost which should be optimized in the supply chain, logistics and transportation system in green supply chains deal with environment and ecology concerns, waste management, fossil fuel consumption, recycling and remanufacturing requirements. These issues, along with related variables and limitations, should be considered concurrently when networks elements are being developed for a green supply chain.
Regarding the variety of variables and limitations, most logistics networks in green supply chain problems have been known to have characteristics of being combinatorial and NP-hard (Krumwiede and Sheu 2002). As a result, all possible combinations of decisions and variables must be explored to find the optimum solution. Notably, the time required to solve the problem becomes extremely long as the number of variables increases to more than hundreds.
Due to the complexity of reverse logistics network, many researchers have studied reverse logistics network design for several different industries/products such as carpet recycling (Louwers, Kip et al. 1999; Realff, Ammons et al. 2004), sand recycling (Barros, Dekker et al. 1998; Listes and Dekker 2005) electronic equipments (Krikke, Van Harten et al. 1999; Shih 2001; Walther and Spengler 2005), , paper recycling (Pati, Vrat et al. 2008) and Automotive industry (Schultmann, Zumkeller et al. 2006; Cruz-Rivera and Ertel 2009; Kannan, Sasikumar et al. 2010; Cao and Zhang 2011) Some of case studies tabulated in table 1.
5. CONCLUSION AND FURTHER RESEARCH
In the paper, we discussed about green supply chain importance and concept. Then, we categorized main issues in the field and explained reverse and closed-loop logistics as one of most effective tool for greening supply chain. it has been argued that due to the complexity of reverse logistics network, many researchers have studied reverse logistics network design for several different cases not for general fields. The research can be explored by considering social problems such as jobless as one of dimension of sustainability in green supply chain. It is hoped that the study sparks further interest in green supply chain and reverse logistics.
5
Table 1.Case studies in reverse logistics
6. REFERENCES
[1]. Barros, A., R. Dekker, et al. (1998). "A two-level network for recycling sand: a case study." European journal of operational research 110(2): 199-214.
[2]. Biehl, M., E. Prater, et al. (2007). "Assessing performance and uncertainty in developing carpet reverse logistics systems." Computers & Operations Research 34(2): 443-463.
[3]. Cao, S. and K. Zhang (2011). Optimization of the flow distribution of e-waste reverse logistics network based on NSGA II and TOPSIS. E -Business and E -Government (ICEE), 2011 International Conference on.
[4]. Cruz-Rivera, R. and J. Ertel (2009). "Reverse logistics network design for the collection of End-of-Life Vehicles in Mexico." European journal of operational research 196(3): 930-939. [5]. De La Fuente, M., L. Ros, et al. (2008). "Integrating Forward and Reverse Supply Chains:
Application to a metal-mechanic company." International Journal of Production Economics 111(2): 782-792.
[6]. Eltayeb, T. K., S. Zailani, et al. (2010). "Green supply chain initiatives among certified companies in Malaysia and environmental sustainability: Investigating the outcomes." Resources, Conservation and Recycling 55(5): 495-506.
[7]. Fleischmann, M., P. Beullens, et al. (2001). "The impact of product recovery on logistics network design." Production and Operations Management 10(2): 156-173.
[8]. Fortes, J. (2009). "Green Supply Chain Management: A Literature."
[9]. Hamzah, H. S., S. M. Yusof, et al. (2012). Reverse Supply Chain Framework Proposal for Malaysian Automotive Industry Sustainable Manufacturing, Springer Berlin Heidelberg: 275-280.
[10]. Intergovernmental Panel on Climate Change, I. P. O. C. (2007). Climate Change 2007: Synthesis Report. Agenda. Geneva, Switzerland. . 6: pp 104.
[11]. Kannan, G., P. Sasikumar, et al. (2010). "A genetic algorithm approach for solving a closed loop supply chain model: A case of battery recycling." Applied Mathematical Modelling 34(3): 655-670.
Reference Case
(Krikke, Kooi et al. 1999; Schultmann, Zumkeller et al. 2006; Cruz-Rivera and Ertel 2009; Olugu and Wong 2011; Hamzah, Yusof et al. 2012) (Schultmann, Zumkeller et al. 2006; Cruz-Rivera and Ertel 2009; Kannan,
Sasikumar et al. 2010; Cao and Zhang 2011)
Automotive parts industry
(De La Fuente, Ros et al. 2008) Metal-mechanic
company (Barros, Dekker et al. 1998; Listes and Dekker 2005) Sand recycling (Louwers, Kip et al. 1999) (Realff, Ammons et al. 2004) (Nagurney and
Toyasaki 2005; Biehl, Prater et al. 2007) Carpet materials
(Krikke 2011) (Krikke, Van Harten et al. 1999) Copier machine and
Electronics part
(Tsai 2012) suitcase
(Listes and Dekker 2005) product recycling
(Sheu 2008) Nuclear power
generation
6
[12]. Krikke, H. (2011). "Impact of closed-loop network configurations on carbon footprints: A case study in copiers." Resources Conservation and Recycling 55(12): 1196-1205.
[13]. Krikke, H., E. Kooi, et al. (1999). "Network design in reverse logistics: a quantitative model." Lecture Notes in Economics and Mathematical Systems: 45-62.
[14]. Krikke, H., A. Van Harten, et al. (1999). "Business case Oce: reverse logistic network re-design for copiers." OR Spectrum 21(3): 381-409.
[15]. Krumwiede, D. W. and C. Sheu (2002). "A model for reverse logistics entry by third-party providers." Omega 30(5): 325-333.
[16]. Listes, O. and R. Dekker (2005). "A stochastic approach to a case study for product recovery network design." European journal of operational research 160(1): 268.
[17]. Louwers, D., B. J. Kip, et al. (1999). "A facility location allocation model for reusing carpet materials." Computers & Industrial Engineering 36(4): 855-869.
[18]. McWilliams, A. and D. Siegel (2000). "Corporate social responsibility and financial performance: correlation or misspecification?" Strategic Management Journal 21(5): 603-609.
[19]. Meade, L. and J. Sarkis (2007). "The theory and practice of reverse logistics." International Journal of Logistics ….
[20]. Nagurney, A. and F. Toyasaki (2005). "Reverse supply chain management and electronic waste recycling: a multitiered network equilibrium framework for e-cycling." Transportation Research Part E: Logistics and Transportation Review 41(1): 1-28.
[21]. Olugu, E. U. and K. Y. Wong (2011). "An expert fuzzy rule-based system for closed-loop supply chain performance assessment in the automotive industry." Expert Systems with Applications.
[22]. Pati, R. K., P. Vrat, et al. (2008). "A goal programming model for paper recycling system." Omega 36(3): 405-417.
[23]. Realff, M., J. Ammons, et al. (2004). "Robust reverse production system design for carpet recycling." IIE Transactions 36(8): 767-776.
[24]. Sarkis, J. (2003). "A strategic decision framework for green supply chain management." Journal of Cleaner Production 11(4): 397-409.
[25]. Schultmann, F., M. Zumkeller, et al. (2006). "Modeling reverse logistic tasks within closed-loop supply chains: An example from the automotive industry." European journal of operational research 171(3): 1033-1050.
[26]. Sheu, J. (2008). "Green supply chain management, reverse logistics and nuclear power generation." Transportation Research Part E: Logistics and ….
[27]. Shih, L. H. (2001). "Reverse logistics system planning for recycling electrical appliances and computers in Taiwan." Resources, Conservation and Recycling 32(1): 55-72.
[28]. Srivastava, S. K. (2007). "Green supply-chain management: A state-of-the-art literature review." International Journal of Management Reviews 9(1): 53-80.
[29]. Thierry, M., M. Salomon, et al. (1995). "Strategic issues in product recovery management." California management review 37(2): 115.
[30]. Tsai, C. F. (2012). A grey genetic algorithm for uncertainty reverse logistics. Proceedings of the 2012 IEEE 16th International Conference on Computer Supported Cooperative Work in Design, CSCWD 2012.
[31]. Walther, G. and T. Spengler (2005). "Impact of WEEE-directive on reverse logistics in Germany." International Journal of Physical Distribution & Logistics Management 35(5): 337-361.
[32]. Wang, Z. and H. Bai (2010). Reverse logistics network: A review. IEEM2010 - IEEE International Conference on Industrial Engineering and Engineering Management, Macao.
