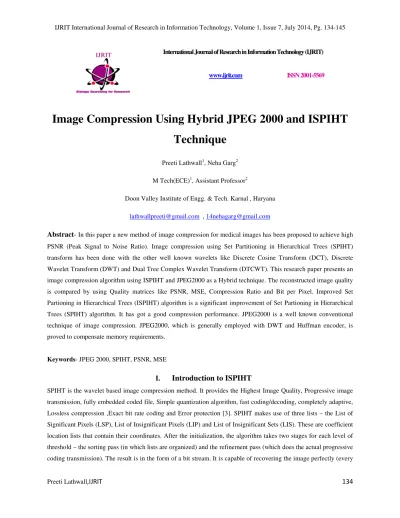

Image Compression Using Hybrid JPEG 2000 and ISPIHT Technique

Preeti Lathwall¹, Neha Garg²

M Tech(ECE)¹, Assistant Professor²

Doon Valley Institute of Engg. & Tech. Karnal , Haryana

[email protected] , [email protected]

Abstract- In this paper a new method of image compression for medical images has been proposed to achieve high PSNR (Peak Signal to Noise Ratio). Image compression using Set Partitioning in Hierarchical Trees (SPIHT) transform has been done with the other well known wavelets like Discrete Cosine Transform (DCT), Discrete Wavelet Transform (DWT) and Dual Tree Complex Wavelet Transform (DTCWT). This research paper presents an image compression algorithm using ISPIHT and JPEG2000 as a Hybrid technique. The reconstructed image quality is compared by using Quality matrices like PSNR, MSE, Compression Ratio and Bit per Pixel. Improved Set Partioning in Hierarchical Trees (ISPIHT) algorithm is a significant improvement of Set Partioning in Hierarchical Trees (SPIHT) algorithm. It has got a good compression performance. JPEG2000 is a well known conventional technique of image compression. JPEG2000, which is generally employed with DWT and Huffman encoder, is proved to compensate memory requirements.

Keywords- JPEG 2000, SPIHT, PSNR, MSE

I.

Introduction to ISPIHT

SPIHT is the wavelet based image compression method. It provides the Highest Image Quality, Progressive image transmission, fully embedded coded file, Simple quantization algorithm, fast coding/decoding, completely adaptive, Lossless compression ,Exact bit rate coding and Error protection [3]. SPIHT makes use of three lists – the List of Significant Pixels (LSP), List of Insignificant Pixels (LIP) and List of Insignificant Sets (LIS). These are coefficient location lists that contain their coordinates. After the initialization, the algorithm takes two stages for each level of threshold – the sorting pass (in which lists are organized) and the refinement pass (which does the actual progressive coding transmission). The result is in the form of a bit stream. It is capable of recovering the image perfectly (every

(2)

Preeti Lathwall

,IJRIT 135

single bit of it) by coding all bits of the transform. However, the wavelet transform yields perfect reconstruction only if its numbers are stored as infinite imprecision numbers.

Wavelet transform, due to its time frequency characteristics, has been a popular multi resolution analysis tool. Its discrete version, i.e. DWT has been widely used in various applications. The ISPIHT algorithm has been implemented to test a set of different natural gray scale medical images.

The ISPIHT algorithm is based on SPIHT with MFHWT. The SPIHT method is not a simple extension of traditional methods for image compression, and represents an important advance in the field. The method deserves special attention because it provides highest image quality. SPIHT is used with haar wavelet for the decomposition of an image. It is observed that SPIHT provides better results. It can be used to compress the image that is used in the web applications. MFHWT is very efficient method to decompose the image. It also reduces the calculation work.

II.

Objectives

This thesis work has been focused to achieve the following objectives:

a) To study various image compression algorithms

b) To develop a new algorithm for image compression using ISPIHT in Hybrid with a conventional Technique.

c) To evaluate the performance of the proposed algorithm through different quality matrices like PSNR, BPP, CR, MSE

III.

Blending algorithm

Blending of two images is done by using foreground and background concept.

Let I1 and I2 be two images and alpha(α) is the transparency constant than algorithm is α=0.5

fg=α*(I1) bg=(1-α)*(I2) blend img=fg+bg

IV.

Work Methodology

Image compression is an application of data compression on digital images. Image compression is minimizing the size in bytes of a graphics file without degrading the quality of the image to an unacceptable level. The reduction in file size allows more images to be stored in a given amount of disk or memory space. It also reduces the time required for images to be sent over the Internet or downloaded from Web pages. There are several different ways in which image files can be compressed. For Internet use, the two most common compressed graphic image formats are the JPEG 2000 format and ISPIHT format. Hybridization of both these techniques leads quite compressed image

(3)

Preeti Lathwall

,IJRIT 136

even without losing image quality. ISPIHT technique which is a modification of SPIHT technique by introducing MFHWT for transformation is very advantageous to use with JPEG 2000.

Step1: Read the grey image as a matrix.

Step2: Apply ISPIHT algorithm on entire matrix of the image.

Step3: Computes the approximation coefficients matrix and details coefficients matrices obtained by wavelet decomposition MFHWT of the input matrix. First average sub signal

(a. =a1, a2, an/2), at one level for a signal of length N i.e. f = (f1,f2, f3, f4.fn) and first detail sub signal (d.= d1, d2, d3..dn) and get the output bit stream after applying Sorting Pass and Refinement Pass.

Step4: After applying ISPIHT we get a compressed image matrix of input image.

Step5: For reconstruction process, applying the inverse.

Step6: Apply JPEG2000 algorithm on entire matrix of the image Step7: Get another JPEG2000 Compressed Image.

Step8: Apply Blending Algorithm on both the compressed Image.

Step9: Calculate Quality Metrics for reconstructed image

V. Purposed Flowchart For Hybridization Of JPEG 2000 & SPIHT

Fig 1: Purposed Flowchart for Hybridization

(4)

Preeti Lathwall

,IJRIT 137

VI.

Conclusion

In order to solve the memory space problem, a new algorithm using ISPIHT and JPEG2000 has been used in this research work. The size and execution time of this new algorithm is much less than that of the original one and the experimental results showed that the improved algorithm really improves the quality and size of images. Image compression using the Hybrid ISPIHT with JPEG 2000 seems to be very powerful for the medical images. Hybrid ISPIHT with JPEG 2000 technique not only compressed the image at extent but also maintain the image quality.

VII.

Results and Discussions

Getting started with the work, first of all a panel of required guide resources is made as shown in Fig 2. The Figure shows provided space for operating and operated Image. Image compression techniques to be followed by the test Image and results in the form of quality metrics. There is a Browse option to select the test Image.

Fig 2: Guide Window

Fig 3: Guide Window after selecting the Image

(5)

Preeti Lathwall

,IJRIT 138

Fig 3 shows the first step of the procedure. Required skull test image is selected using the browse option and ISPIHT compression Technique is applied on the same. Following results are provided after pressing COMPRESS button. Fig 4 shows the command window results.

Fig 4: After Compresion of the Image PSNR in Command Window

In the next step test image is compressed using ISPIHT technique and results in the form of qualty metrics are obtained. This is shown in Fig 5.BPP,CR PSNR,MSE provides the exact information of the image.

Fig 5: After Compresion of the Image PSNR in Guide Window

The same test image is than compressed by hybrid Technique(JPEG2000+ISPIHT) and quality metrics are than compared to that of the results of ISPIHT technique.

(6)

Preeti Lathwall

,IJRIT 139

Fig 6: Skull Original Image

Fig 6 shows a skull test image original in full HD resolution. Further Fig 7 and Fig 8 shows the compressed image by ISPIHT and Hybrid techniques.

Fig 7: ISPIHT Compressed Image

Fig 8: Hybrid ISPIHT & JPEG2000 Compressed Image

(7)

Preeti Lathwall

,IJRIT 140

Table 1: Results Skull Image

Table 1 shows the results of skull test image where it is clearly shown that by the hybrid compression technique have better quality parameters. Fig. 9 shows graphical comparison of the parameters obtained by two techniques.

Fig 9: Graphical results for Skull Image

The same test image is than compressed by Hybrid Technique(JPEG2000+ISPIHT) and quality metrics are than compared to that of the results of ISPIHT technique. Comparison of both the procedures followed.

Fig 10: Results for ISPIHT Compression

0 20 40 60 80 100

ISPIHT Hybrid

BPP CR PSNR MSE

(8)

Preeti Lathwall

,IJRIT 141

Fig 11: Results for Hybrid Compression

Second test image considered is full HD Hand original image, shown in Fig 12.

Fig 12: Hand Original Image

Test results for this image are depicted in following figures. Fig 13 shows ISPIHT compressed image and Fig 14 shows Hybrid compressed image. Comparison of the two images cannot determine picture with better quality but Hybrid compression paid its cost and is very beneficial.

Fig 13: ISPIHT Compressed Image Compression

(9)

Preeti Lathwall

,IJRIT 142

Fig 14: Hybrid ISPIHT & JPEG2000 Compressed Image

Results in the table 2 clearly shows that parameters like Bits Per Pixel, Compression Ratio, PSNR are increasing showing that image quality is upgraded in the new algorithm.

Table 2: Results Hand Image

Table 2 shows the results of hand test image. As it is already cleared that three parameters BPP, CR, PSNR should increase to increase the image quality and they are increasing providing better image quality to Hybrid Technique.

Also the parameter MSE is considered which should be decreased to affect the image quality in a positive manner and it is clearly seen in the bar graph Fig 15 representation that MSE is decreasing in Hybrid Technique.

(10)

Preeti Lathwall

,IJRIT 143

Fig 15: Graphical results for Hand Image

Fig 4.16 and Fig 4.17 shows guide view of both the technique performed on the image.

Fig 16: Results for ISPIHT Compression

Fig 17: Results for Hybrid Compression 0

10 20 30 40 50 60 70 80 90

ISPIHT Hybrid

BPP CR PSNR MSE

(11)

Preeti Lathwall

,IJRIT 144

VIII. Future Scope

Thinking far behind the scope of work field done before, this purposed work can also be implemented using some different technique of compression in hybridization of any two or more than two techniques. Wavelet Transforms like Curve let or contour let can be experimented with different compression techniques.

IX.

References

[1] M.Pradeep Raj,E.Dinesh(2014), ”Algorithmic -Technique for Compensating Memory Errors in JPEG2000 Standard”, International Journal of Innovative Research in Computer and Communication Engineering (An ISO 3297: 2007 Certified Organization) Vol.2, Special Issue 1, March 2014 Proceedings of International Conference On Global Innovations In Computing Technology.

[2] Thumma.Ramadevi ,Ms.s. Vaishali (2013),”Design and Implementation of SPIHT Algorithm for DWT (Image Compression)”, IOSR Journal of VLSI and Signal Processing (IOSR-JVSP) Volume 3, Issue 5 (Nov.

– Dec. 2013), pp no. 18-22 e-ISSN: 2319 – 4200, p-ISSN No. : 2319 – 4197 www.iosrjournals.org.

[3] Puja D Saraf, Deepti Sisodia ,Amit Sinhae and Shiv Sahu(2012),”Design and Implementation of Novel SPIHT Algorithm for Image Compression”, 2012 2nd IEEE International Conference on Parallel, Distributed and Grid Computing, pp 40-44.

[4] Manik Groach, Dr. Amit Garg(2012),”DCSPIHT: Image Compression Algorithm”, International Journal of Engineering Research and Applications(IJERA) ISSN: 2248-9622 www.ijera.com Vol. 2, Issue 2, Mar-Apr 2012, pp.560-567.

[5] Navjot Kaur, Preeti Singh, (2012),”A New Method of Image Compression Using Improved SPIHT and MFHWT”, International Journal of Latest Research in Science and Technology ISSN (Online):2278-5299 Vol.1,Issue 2 :Page No124-126 ,July August(2012) ,http://www.mnkjournals.com/ijlrst.htm, ISSN (Online):2278-5299.

[7] Jianjun Wang, Bo Liu(2009),”Modified SPIHT Based Image Compression Algorithm for Hardware”,Implementation2009 Second International Workshop on Computer Science and Engineering, pp572-576.
