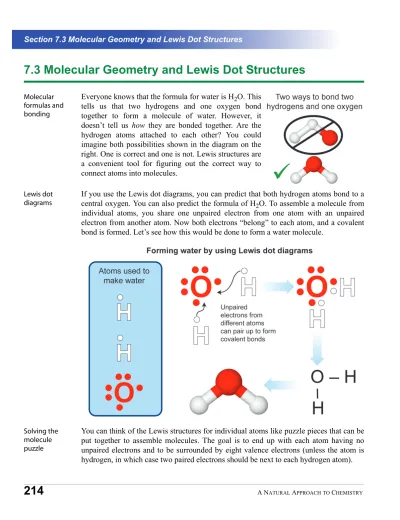

(1)Section 7.3 Molecular Geometry and Lewis Dot Structures. 7.3 Molecular Geometry and Lewis Dot Structures Molecular formulas and bonding. Everyone knows that the formula for water is H2O. This tells us that two hydrogens and one oxygen bond together to form a molecule of water. However, it doesn’t tell us how they are bonded together. Are the hydrogen atoms attached to each other? You could imagine both possibilities shown in the diagram on the right. One is correct and one is not. Lewis structures are a convenient tool for figuring out the correct way to connect atoms into molecules.. Lewis dot diagrams. If you use the Lewis dot diagrams, you can predict that both hydrogen atoms bond to a central oxygen. You can also predict the formula of H2O. To assemble a molecule from individual atoms, you share one unpaired electron from one atom with an unpaired electron from another atom. Now both electrons “belong” to each atom, and a covalent bond is formed. Let’s see how this would be done to form a water molecule.. Solving the molecule puzzle. You can think of the Lewis structures for individual atoms like puzzle pieces that can be put together to assemble molecules. The goal is to end up with each atom having no unpaired electrons and to be surrounded by eight valence electrons (unless the atom is hydrogen, in which case two paired electrons should be next to each hydrogen atom).. 214. A NATURAL APPROACH TO CHEMISTRY.

(2) Isomers Same molecular formula but different properties. Sometimes there are two or more different but correct ways to fit the atomic puzzle pieces together. This gives you different molecules with the same chemical formula. For example, C2H6O can form ethanol, the alcohol that is found in beer, wine, and liquor. The same C2H6O can also be dimethyl ether, often used in spray cans as a propellant. These two molecules have the same chemical formula but are very different substances with different properties. When you have multiple molecules that can be represented by the same chemical formula, the molecules are called isomers. Isomers are formed by bonding the same group of atoms together in different ways. The diagram shows two isomers of C2H6O.. Give three isomers for the formula C3H8O. Show the Lewis dot diagram and the structural formula for each molecule. Asked:. The Lewis dot diagrams and structural formulas for the three molecules represented by the formula C3H8O. Given:. Carbon has four unpaired electrons, hydrogen has one, and oxygen has two. Three carbons, eight hydrogens and one oxygen form each molecule. Relationships: The atoms will bond together such that all unpaired electrons will be paired up with electrons from other atoms. Solve:. isomer: a specific structure of a molecule, only used when a chemical formula could represent more than one molecule.. A NATURAL APPROACH TO CHEMISTRY. 215.

(3) Section 7.3 Molecular Geometry and Lewis Dot Structures. Double and triple bonds Double and triple bonds. Sharing a pair of electrons (one from each atom) is called a single bond. It is possible for atoms to share two or even three pairs of electrons. Sharing two pairs of electrons is a double bond and sharing three is a triple bond. Carbon, nitrogen, and oxygen commonly form double and triple bonds.. Order of bond formation. The process for writing Lewis dot structures for molecules with double and/or triple bonds is very similar to what you have done already. First you single bond all the atoms together. Once you do this you will find that there are still some unpaired electrons left over. If those unpaired electrons are on two atoms that are already sharing electrons, then you can bring those two unpaired electrons into the same region where the first pair of shared electrons is already drawn. This can only be done with unpaired electrons on two atoms that are already sharing electrons. If, after single bonding all of the atoms together your unpaired electrons are not on two atoms that are already bonded, then you need to change how you originally put the atoms together to form single bonds.. 216. A NATURAL APPROACH TO CHEMISTRY.

(4) Molecular geometry Lewis dot structures are 2D but real molecules are 3D. Lewis dot structures can all be drawn on a flat twodimensional piece of paper. However, molecules are three-dimensional (3D) objects. In fact, the precise 3D shape of a molecule is very important in determining its physical and chemical properties, such as boiling point and viscosity. For complex molecules like those typically found in biological systems, shape can make the difference between a drug that treats cancer effectively or one that does nothing at all.. VSEPR. Using Lewis dot structures, we can predict the shapes of simple molecules and gain insights into shapes of larger ones. Using the Valence Shell Electron Pair Repulsion (VSEPR) theory, you can make predictions about the angles that attached atoms will form. Since the first three letters of VSEPR stand for “Valence Shell Electron,” we are talking about the valence electrons, the ones represented by Lewis dots. The last two letters stand for “Pair Repulsion.” Paired electrons are not shared in chemical bonds, but they do affect the shape of a molecule. Paired electrons repel each other and also repel shared electrons that are involved in a chemical bond.. Bonds and electron density. Because similar charges repel each other, electrons that are being shared in bonds and unshared pairs of electrons will push away from each other. This repulsion is part of what causes a molecule to form a particular shape. Each bond or unshared pair of electrons represents a region of electron density around an atom. Depending on how many regions of electron density exist, different shapes will be formed.. VSEPR (Valence Shell Electron Pair Repulsion): a theory that states that the shapes of molecules are dictated, in part, by the repulsion of the shared electrons and the unshared pairs of electrons.. region of electron density: an area represented by shared or unshared electrons around an atom.. A NATURAL APPROACH TO CHEMISTRY. 217.

(5) Section 7.3 Molecular Geometry and Lewis Dot Structures. Two areas of electron density Linear bond shape: two points form a line. If you rub a balloon against your hair it will grab some electrons from you, making the balloon negatively charged. If you had two negatively charged balloons and brought them close together, they would repel each other because they are both have the same sign of charge. They push away from each other in opposite directions until they are as far away as possible from each other.. Repulsion and bond shape. The same thing happens when there are two regions of electron density around an atom. The electrons in both regions push away to be as far apart as possible. For example, consider acetylene (C2H2). Around each carbon there are only two areas where electrons are located—the ones being shared in the triple bond between the carbons and the ones being shared in the single bond between the carbon and hydrogen atoms. These electrons repel each other until they are as far away as possible from each other. This causes the molecule to be linear around each of the carbon atoms.. There are two isomers for the formula C3H4. Show the Lewis dot diagram for each molecule, and indicate which atoms are at the center of a linear part of the molecules. Asked:. The linear parts of each isomer of C3H4. Given:. There are two different isomers. Part of each molecule will be linear. The molecules are made from three carbons and four hydrogens. Relationships: Each atom that has two regions of electron density around it will form a linear part of the molecule. Solve:. 218. A NATURAL APPROACH TO CHEMISTRY.

(6) Three areas of electron density Three points form a plane. Now imagine that you have three negatively charged balloons. Again they will repel each other and move as far away from each other as they possibly can. In this case the balloons will point to the corners of a triangle, forming 120° angles between the balloons.. Trigonal planar. When there are three regions of electron density around an atom, the electrons in all three regions push away until they are as far apart as possible. A good example is ethene (C2H4). There are three areas of electron density around each carbon atom. One area is being shared in the double bond between carbons. The other two are shared in the single bonds between the carbon and each of two hydrogen atoms. When three regions of electron density repel each other, a trigonal planar shape is formed. Acetic acid when mixed with water is commonly known as vinegar and has the formula C2H4O2. The correct isomer has both oxygens bonded to the same carbon. Draw the Lewis dot structure for this isomer and indicate where the molecule will be trigonal planar. Asked: Given:. The trigonal planar parts of acetic acid The formula for acetic acid is C2H4O2 and both oxygens are bonded to the same carbon. Relationships: Each atom that has three regions of electron density around it will form a trigonal planar part of the molecule. Solve:. trigonal planar: a flat triangular geometry typical of molecules with three regions of electron density surrounding a central atom. The angle between the atoms is 120 degrees.. A NATURAL APPROACH TO CHEMISTRY. 219.

(7) Section 7.3 Molecular Geometry and Lewis Dot Structures. Four areas of electron density Tetrahedral geometry: 3D. You might think that the shape formed by four charged balloons would look something like an “×” or a “+” with all four balloons as far apart from each other as they can get in a plane. However, there is a way to orient the balloons so that they are even farther apart: Have the balloons point to the corners of a tetrahedron, a pyramid shape formed from four triangles. If the four balloons lie in a plane then the angle between each balloon is 90°, but pointing the balloons into the four corners of a tetrahedron increases the angle to 109.5°, moving them even farther apart.. Lone pairs. In all of the Lewis dot structures we have seen so far, all of the electrons have been shared between atoms in covalent bonds. When looking at the 3D version of the molecule, each bond represented one or more pairs of shared electrons. However, atoms such as nitrogen and oxygen have some electrons that are already paired, even before any bonding has occurred. These electrons, known as lone pairs, are “invisible” in the balland-stick view of a molecule, but their presence affects the geometry of the molecule just as much (if not more) than the electrons being shared in bonds.. lone pairs: electrons that are paired up in a Lewis dot diagram but are not shared between atoms in a covalent bond.. 220. A NATURAL APPROACH TO CHEMISTRY.

(8) Multiple shapes due to four regions of electron density Different geometric shapes. There are three shapes that are all based on having electron density in four places around an atom: tetrahedral, trigonal pyramidal, and bent. If there are four single bonds to a central atom, then the four bonded atoms mimic the balloons and form a tetrahedral shape. If there are three atoms bonded to a central atom that also has one unshared pair of electrons, then the unshared pair acts just like a shared pair, repelling the other electrons that are being shared in the three bonds. However, because one corner of the tetrahedron is “missing,” we call this trigonal pyramidal. If there are two atoms bonded to a central atom that has two pairs of unshared electrons, then they all repel as in previous examples, except that the three atoms form a bent shape.. What shapes are formed within the isomer of C4H5NO, which has a triple bond connecting nitrogen? Solve:. tetrahedral: a shape formed when a central atom is bonded to four other atoms that all point into the corners of a tetrahedron. trigonal pyramidal: a three-dimensional shape formed when a central atom has one unshared pair of electrons and is bonded to three other atoms whose central plane does not include the central atom. bent: a shape formed when a central atom has two unshared pairs of electrons and is bonded to two other atoms.. A NATURAL APPROACH TO CHEMISTRY. 221.
