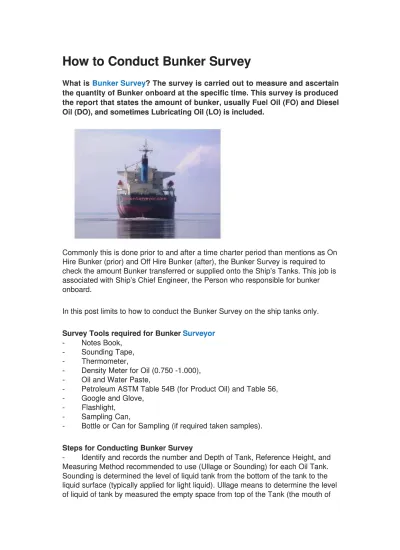

How to Conduct Bunker Survey

What is

What is Bunker SurveyBunker Survey? The survey is carried out to measure and ascertain? The survey is carried out to measure and ascertain

the quantity of Bunker onboard at the specific time. This survey is produced

the report that states the amount of bunker, usually Fuel Oil (FO) and Diesel

Oil (DO), and sometimes Lubricating Oil (LO) is included.

Commonly this is done prior to and after a time charter period than mentions as On

Hire Bunker (prior) and Off Hire Bunker (after), the Bunker Survey is required to

check the amount Bunker transferred or supplied onto the Ship’s Tanks. This job is

associated with Ship’s Chief Engineer, the Person who responsible for bunker

onboard.

In this post limits to how to conduct the Bunker Survey on the ship tanks only.

Survey Tools required for Bunker

Survey Tools required for BunkerSurveyorSurveyor

-

- Notes Notes Book,Book,

-

- Sounding Sounding Tape,Tape,

- Thermometer,

-

- Density Density Meter Meter for for Oil Oil (0.750 (0.750 -1.000),-1.000),

-

- Oil Oil and and Water Water Paste,Paste,

-

- Petroleum Petroleum ASTM ASTM Table Table 54B 54B (for (for Product Product Oil) Oil) and and Table Table 56,56,

-

- Google Google and and Glove,Glove,

- Flashlight,

-

- Sampling Sampling Can,Can,

-

- Bottle Bottle or or Can Can for for Sampling Sampling (if (if required required taken taken samples).samples).

Steps for Conducting Bunker Survey

-

- Identify Identify and and records records the the number number and and Depth Depth of of Tank, Tank, Reference Reference Height, Height, andand

Measuring Method recommended to use (Ullage or Sounding) for each Oil Tank.

Sounding is determined the level of liquid tank from the bottom of the tank to the

liquid surface (typically applied for light liquid). Ullage means to determine the level

of liquid of tank by measured the empty space from top of the Tank (the mouth of

(2)

Sounding Pipe) to the liquid surface (typically applied for heavy liquid). The

both methods will point to the same result.

-

- Record Record the the Last Last Bunker Bunker Report, Report, Time Time and and Place Place of of last last Bunker Bunker supplied,supplied,

includes the Oil density.

-

- Records Records the the quantity quantity of of bunker bunker onboard onboard when when the the ship ship arrives arrives at at Port Port (arrival(arrival

Condition) as per Engine Log Book.

-

- Checking Checking the the accuracy accuracy of of the the Sounding Sounding Tape, Tape, it it is is recommended recommended to to use use youryour

own Sounding Tape. In case we used Ship’s Sounding Tape, please checking the

tape.

-

- Sounding Sounding each each Oil Oil Tank Tank and and records records the the level level of of Oil Oil on on the the tank. tank. Attached Attached thethe

sounding Tape with Oil Paste to make easy and clear to show of oil level

(recommended for Light Oil).

-

- Check Check the the Ship’s Ship’s Draft Draft Marks Marks to to get get the the Ship Ship Trim Trim for for Trim Trim correction, correction, andand

check the ship Inclination or Listing for List Correction, that is required to calculate

the Tank Quantity Table.

-

- Taken Taken Oil Oil sample, sample, check check temperature temperature and and oil oil density, density, for for the the accessible accessible tanktank

only. The Service and Settling Tanks are not accessible due to the oil on that tanks

were in heating condition at the high temperature. We could records the tank

gauging for determining the quantity, the temperature at the thermometer available

on each tank, and the Oil Density from the Engine Log Book. If you could not taken

the oil sample for checking density, it is recommended to calculate the Density

Commingle, by means the Combine Density between two Oils (Old and New Oils)

that has mixed on one tanks which they have different in Density. Where it is

approaching the actual oil density, the pattern is {(Old Oil Quantity x Oil Density /

Total Oil on Tank) + (New Oil Quantity x Oil Density / Total Oil on Tank)}.

-

- Calculations, Calculations, this this stage stage will will involved involved the the Sounding Sounding level level of of each each tank, tank, Ship’sShip’s

Trim and List, Tank Quantity Table (provided by Ship’s Chief Engineer), Oil Density

and Temperature, ASTM Table 54B to ascertain the Volume Correction Factor

(VCF – to convert from Cubic Meter to Kiloliter) and ASTM Table 54B for Weight

Correction Factor (WCF – to convert from Kiloliter to Metric Ton).

-

- Example Example to to calculate calculate Density Density Commingle: Commingle: FO FO Tank Tank No. No. 1 1 C, C, total total oil oil on on tanktank

400 Cu.M, Old Oil 200 Cu.M with density 0.9870, and New Oil 200 Cu.M with

density 0.9720. Density Commingle = {(200 x 0.9870 / 400) + (200 x 0.9720 / 400)}

= 0.4935 + 0.4860 = 0.9795.

-

- Issued Issued the the Tank Tank Sounding Sounding and and Bunker Bunker Report.Report.

I think now you could conduct Bunker Survey, the Detail of

I think now you could conduct Bunker Survey, the Detail ofBunker SurveyBunker Survey

Calculation

Calculationwill be post shortly. Let me know if I miss something by your commentswill be post shortly. Let me know if I miss something by your comments

and feedbacks. and feedbacks. Regards, Regards, Surveyors Surveyors

(3)

Bunker Survey Calculation

In my last post How To Conduct Bunker Survey, I have explained the general step for Bunker Survey conducts. Now, the topic is about the way to calculate ship bunker that we have found on the ship tanks. It is suggested to read the last post to become familiar with calculation.

The bunker calculation is simple and needs the following:

- Tank Sounding data and Tank Capacity Table. The Corrected Sounding means below is the sounding after correcting with vessel’s trim and list.

- Temperature of Oil on Tanks, - Oil Density @15*C,

- Table ASTM 54B (VCF) and Table ASTM 56 (WCF).

Now we could go with sample of 1 tank to test the calculation. ** Question :

FO Tank No. 1 Center, Corrected Sounding = 3.27 Meter, Temperature = 34*C,and density @ 15*C = 0.9903 (given density).

Tank Volume at Sounding 3.20 M = 157.20 Cubic Meter, at Sounding 3.30 M = 163.60 Cubic Meter.

(4)

** Answer :

- The Quantity in Metric Ton = Oil Vol x VCF x WCF,

- Observe Volume = {(3.27 – 3.20) / (3.30 – 3.20) x (163.60 – 157.20)} + 157.20 = (0.07/0.10) x (6.40) + 157.20 = 4.48 + 157.20 = 161.68 Cu.M.

- T 54B (VCF) > Density @ 15*C 0.9903 = 0.9870 (see the above picture you need to interpolate if any different numbers on both columns).

ASTM Table 54B – T 56 (WCF) : Density @15*C 0.9903 = 0.9892 (Quick formula with reducing factor for WCF is Density @ 15*C – 0.0011 = 0.9903 – 0.0011 = 0.9892).

We don’t need to see the table anymore.

- So, The Quantity in MT is 161.68 x 0.9870 x 0.9892 = 157.85 MT. Sample calculation tanks sounding attached below.

(5)

Note : If you do calculation with Volume in Barrel, just usesASTM Table 6B for VCF , ASTM Table 11 for WCF in Long Ton and then ASTM Table 13 for WCF in Metric Ton .

For the above calculation, you could try the software 7s-BunkerCal (Password: 123456 _{). Download available at http://www.box.com/s/xec50bv5mzrln1q0cra1}

Just drop your comments around this topic. Regards,

Surveyors

1. _{plz send me astm table nd astm table 54b of copy soft copy in my mail} naresh.komara21@gmail.com thanking you naresh

2. _{naresh on December 21, 2011 at 1:19 pm said:}

dear sir, would u plzz send me the soft copy of astm table nd 54b table for just reference plz send me in my mail thank you naresh

3. _{Surveyors on November 30, 2011 at 12:00 pm said:} Dear Gaj,

(6)

Regards, Surveyors

4. _{gaj on November 29, 2011 at 6:06 pm said:}

Can you please clarify in worked example how you got the figure of 0.9903? Isn’t the given density at 15C is 0.9870?Thanks,

5. _{Surveyors on November 29, 2011 at 8:37 am said:} Dear Tore,

WCF is a factor for converting volumes to weight-in-air. See also the definition at http://www.sevensurveyor.com/petroleum-calculation-series-definition/

Regards, Surveyors

6. _{Tore103 on November 28, 2011 at 11:14 pm said:} What is the physical principle to use the WCF?

7. _{Surveyors on November 23, 2011 at 9:46 am said:} Dear Naresh,

I have just inserted 2 posts about petroleum survey. I will post more next time. Regards,

Surveyors

(7)

sir thank for ur tremodous information about bunker will plz give me some valuable information about petroleum products survey.thank u waiting for replay

9. _{Nabil on November 9, 2011 at 6:36 pm said:} dear all,

im looking for relation direct between density at 15 and density observed, by this way: Density 15=f (Dobs,T)

and tanks.

10. _{Surveyors on October 18, 2011 at 10:20 am said:} Dear Harendra,

The oil nature is the more temperture hit, the more volume reach.

If your tank capacity is 50m x 25m x 10m = 12,500 m3, you should find the the quantity in m3 at 1m ullage.

As per above tank, you 1m ullage is 50m x 25m x 9m = 11,250 m3.

The 11,250 m3 is the maximum volume in m3 that required for your tank.

Check the astm table for your cargo density and heating temperature. If use astm table 54b, when density 0.910 @ 20*c the factor is 0.9962.

Then 11,250 m3 x 0.9662 = 11,207.25 m3 @ 15*c.

If the heating applied, then temperature increased to 30*c and density at 0.910 the factor in astm table 54b is 0.9886, and your volume m3 will be increased to

11,207.25 m3 : 0.9886 = 11,336.49 m3. That means you have loaded excessive volume to the intended ullage.

To cope with this issue, you should calculate the final volume m3 after heating where:

11,250 m3 x 0.9886 = 11,121.75 m3 @ 15*c.

and 11,121.75 m3 : 0.9962 = 11,164.17 m3. Just find the ullage that point to 11,164.17 m3. Your cargo will be save at 1m ullage after heating.

Actually it has the simple formula;

loaded volume = volume m3 at intended ullage x VCF final (0.910 @ 30*c) : VCF initial (0.910 @ 20*c)

11,250 m3 x 0.9886 : 0.9962 = 11,164.17 m3. Regards,
