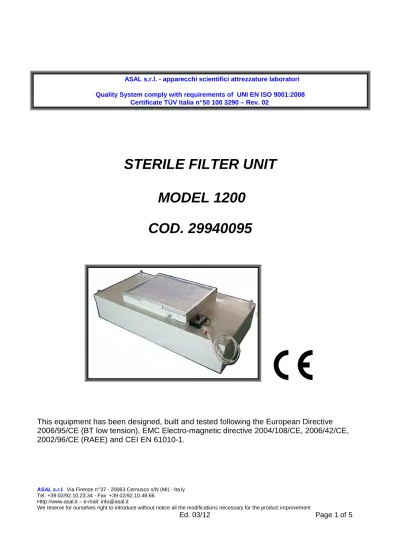

STERILE FILTER UNIT
MODEL 1200
COD. 29940095
This equipment has been designed, built and tested following the European Directive 2006/95/CE (BT low tension), EMC Electro-magnetic directive 2004/108/CE, 2006/42/CE, 2002/96/CE (RAEE) and CEI EN 61010-1.
DESCRIPTION
The sterile filter unit allow to have a sterile vertical laminar flow that invests the underlying area. They are used in sterile rooms, clean rooms, laboratories, or industries departments where is required high air cleaning.
They are made with an aluminum structure where are placed the hepa filter and the fan. The aspired air cross the prefilter, and then the hepa filter that purify it from particulate and spreads in the air below.
The filter is internal protected by a steel mesh coated with epoxy, which also allows more even distribution of air. The system is self contained and requires no connection to any centralized system.
TECHNICAL SPECIFICATIONS
♦ Overall dimension WxDxH: 1240 x 625 x 320 mm.
♦ Prefilter in synthetic material class G4 (90% efficiency) in accordance with EN 779
♦ Hepa absolute filter - tested M.P.P.S in accordance with C.E.N. 1822 global efficiency 99.995% class H14.
♦ Exit average air speed: 0.45 m/s ± 20% (at 150 mm from filter surface). Air volume: 900 m³/h
♦ Exit max air speed: 0.60 m/s ± 20% (at 150 mm from filter surface). Air volume: 1150 m³/h.
♦ Hepa filter variable pressure drop 150 – 240 Pa with air speed 0.45 m/s. ♦ Attack with hose union, for services (pressure switch, pressure check).
♦ Noise 65 db, measured at 760 mm from filter surface with air speed of 0.45 m/s ♦ Weight: 30 Kg.
ELECTRICAL SPECIFICATIONS
♦ Power supply: 230 V - 50 Hz.
♦ Electrical input: 310 W with max air speed 0.60 m/s ♦ Electrical input: 230 W with average air speed 0.45 m/s ♦ Overload fuse: 1x8 AF (5x20)
PARTS LIST
Anelli di fissaggio /
Blocking rings
Prefiltro / Prefilter
Attacco portagomma per servizi (pressostato, controllo pressione ecc.) / Attack with hose union, for
services (pressure switch, pressure check).
Scatoletta di comando interruttore-regolatore / Main switch-regulator
control box
Interruttore generale / Main switch
Regolatore velocità aria / Air
speed regulator
Ventilatore / Fan
Filtro hepa / Hepa filter Contenitore del filtro Hepa / Hepa filter box
DICHIARAZIONE DI CONFORMITA’
DECLARATION OF CONFORMITY
Il sottoscritto in qualità di fabbricante dichiara che l’apparecchio
The under written as manufacturer declares that the unit
Denominazione apparecchio / Description:
MODULO DOCCIA STERILE MODELLO 1200 / STERILE FILTER UNIT MODEL 1200
Numero di serie / Serial number:
Alimentazione / Power supply:
230V - 50 Hz
Fusibili di protezione / Overload fuses:
1 x 8 AF (5X20) mm.
Grado di protezione / Protection grade:
I°
Assorbimento / Electrical input:
310 W
Anno di fabbricazione / Manufacture year:
è conforme alle seguenti Direttive Europee / it is in conformity with the following European
Directives:
2006/95/CE, 2004/108/CE, 2006/42/CE, 2002/96/CE
alle seguenti Norme Europea / with the following european standards:
CEI EN 61010-1:2001
alle seguenti Leggi Nazionali / with the following National Laws:
D.Lgs. 81/08 del 09/04/2008
Responsabile della costituzione del fascicolo tecnico / technical file responsable:
sig. Alberto Tivelli presso ASAL s.r.l, via Firenze 37 20063 Cernusco S/N (MI), e-mail: info@asal.it
Cernusco sul Naviglio, / /
ASAL s.r.l Il Legale Rappresentante
The legal Rapresentative Elisa Tivelli
