b i o l i n e
The BioCompact ll 210/210 provides you with significantly better per formance than any other cabinets in this segment, on account of a refrigeration system that does away with cold walls that can damage the contents and a unique air distribution system for storing ordinar y biomaterial under consistent, stable conditions.
The design of the BioCompact ll 210/210 ensures you lots of ways to deal with individual storage needs, thanks to many dif ferent optional combinations of refrigeration ranges, the versatile interior layout and a comprehensive selection of fixtures and fittings. The small footprint of this design also makes it the per fect biostorage unit for use in confined spaces.
The BioCompact ll 210/210 uses environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants. Based on decades of specialist know-how, these biostorage units are exceptionally energy-ef ficient, and are the best per formers on the market in relation to Scandinavian standards.
Available in either white or stainless steel finish, with a one-piece
moulded ABS inner lining. Shelves and drawers are mounted in
U-shaped rails moulded into the plastic walls.
Access port
24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
Refrigeration systems
Every Combi cabinet is equipped with two independent refrigeration systems and control units, for maximum safety and performance.
Top panel with BioLine control unit The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free connector (NC/NO) for remote alarms. The display can be locked. An integrated Gram monitor, for providing documentation for the conditions within the cabinet, is available as an option.
E-sensor
Extra sensor for providing a temperature reference within the storage compartment.
Finned tube evaporator
Using a refrigeration system based on a finned tube evaporator is unique for biostorage products in this segment, and provides unparalleled benefits. The design results in a refrigerated storage space with no cold walls that can damage any delicate items stored in the cabinet. This also makes it possible to ensure even better temperature stability inside the cabinet.

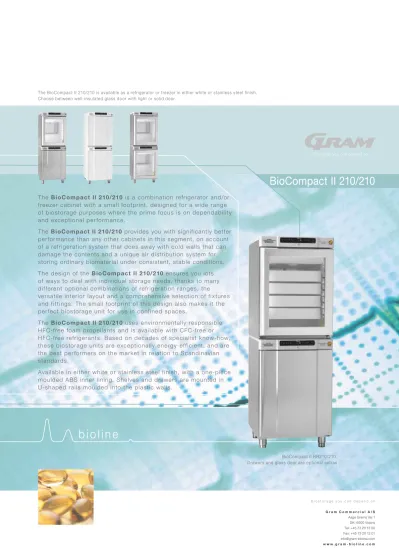

BioCompact II 210/210
Shelves and drawers A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Castors and legs - ABS inner lining Wheels, legs or plinth-mounting are available at no extra charge for cabinets in the BioLine product range.
Air distribution
The unique Gram air distribution system makes sure the
temperature inside the cabinet remains stable at all times.
With the finned tube evaporator placed in the top, there are no cold walls inside the cabinet.
* The cabinets can be delivered with castors or legs or prepared for mounting on a plinth as optional extras.
Tech. spec - BioCompact II RR210/RF210 RR210/RR210 RF210/RF210 Temperature range 2/15 ºC and -5/-25°C 2/15 ºC and 2/15°C -5/-25°C and -5/-25°C
Ambient temperature range 10/35 ºC 10/35 ºC 10/35 ºC
Control unit Gram BioLine MPC 4.6, voltage-free contact, E-Sensor, acoustic door and temperature alarms that can be programmed individually. Temperature alarm recording, and calibration function.
Material interior ABS lining
Material exterior Lacquered steel or stainless steel finish
Dimensions mm (W x D x H) 595 x 640 x 1700
Gross volume 125 litres/4.4 cubic feet and 125 litres/4.4 cubic feet Net volume 104 litres/3.7 cubic feet and 104 litres/3.7 cubic feet Modules for shelves and drawers Shelves 2 x 7, drawers 2 x 4, baskets 2 x 1
Insulation 50 mm (cyclopentane)
Refrigerant R600 / R134A
Base Legs*
Connection 230 V, 50 Hz
Energy consumption 1.7 kWh/24h 1.2 kWh/24h 2.2 kWh/24h
Noise level 40,9 dB(A) 39,1 dB(A) 42,1 dB(A)
Refrigeration capacity at -10 ºC R600a 154 Watt / R600a 154 Watt/ - R134a 150 Watt R134a 150 Watt
Refrigeration capacity at -25 ºC R600a 156 Watt - R600a 156 Watt /
R134a 149 Watt R134a 149 Watt
Air system Gram ventilated distribution system
Defrost system Smart defrost with automatic evaporation of defrost water
* The cabinets can be delivered with castors or legs or prepared for mounting on a plinth at no extra charge.
b i o l i n e
exceptional per formance.
The BioCompact II 410 provides you with significantly better per formance than any other cabinets in this segment, on account of a refrigeration system that does away with cold walls that can damage the contents and a unique air distribution system for storing ordinar y biomaterial under consistent, stable conditions.
The design of the BioCompact ll 410 ensures you lots of ways to deal with individual storage needs, thanks to the versatile interior layout and a comprehensive selection of fixtures and fittings. The small footprint of this design also makes it the per fect biostorage unit for use in confined spaces.
The BioCompact II 410 uses environmentally responsible HFC- free foam propellants and is available with CFC-free or HFC-free refrigerants. Based on decades of specialist know-how, these biostorage units are exceptionally energy-ef ficient, and are the best per formers on the market in relation to Scandinavian standards.
Available in either white or stainless steel finish, with a one-piece
moulded ABS inner lining. Shelves and drawers are mounted in
U-shaped rails moulded into the plastic walls.
Access port
24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
Top panel with BioLine control unit The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free connector (NC/NO) for remote alarms. The display can be locked. An integrated Gram monitor, for providing documentation for the conditions within the cabinet, is available as an option.
E-Sensor
Extra sensor for providing a temperature reference within the storage compartment.
Finned tube evaporator
Using a refrigeration system based on a finned tube evaporator is unique for biostorage products in this segment, and provides unparalleled benefits. The design results in a refrigerated storage space with no cold walls that can damage any delicate items stored in the cabinet. This also makes it possible to ensure even better temperature stability inside the cabinet.
BioCompact II 410
Technical specifications BioCompact II RR410 BioCompact II RF410
Temperature range 2/15 ºC -5/-25 ºC
Ambient temperature range Solid door10/35 ºC; glass door (RR) 10/32 ºC
Control Unit Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and temperature alarms that can be programmed individually, alarm recording, hi/low temperature, and calibration function.
Material interior ABS lining
Material exterior Lacquered steel or stainless steel finish
Dimensions mm (W x D x H) 595 x 640 x 1875
Gross volume 346 litres/12.3 cubic feet
Net volume 312 litres/11.1 cubic feet
Modules for shelves and drawers 25 shelves, 13 drawers and 5 wire baskets
Insulation 50 mm (cyclopentane)
Refrigerant R600a or R134a
Base Legs*
Connection 230 V, 50 Hz
Energy consumption 0.7 kWh/24h 1.6 kWh/24h
Noise level 35,1 dB(A) 38,6 dB(A)
Refrigeration capacity at -10 ºC R600a 207 Watt / R134a 226 Watt -
Refrigeration capacity at -25 ºC - R600a 175 Watt / R134a 195 Watt
Air system Gram ventilated distribution system
Defrost system Smart defrost with automatic evaporation of defrost water
Shelves and drawers A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Castors and legs - ABS inner lining Wheels, legs or plinth-mounting are available at no extra charge for cabinets in the BioLine product range.
Air distribution
The unique Gram air distribution system makes sure the
temperature inside the cabinet remains stable at all times.
With the finned tube evaporator placed in the top, there are no cold walls inside the cabinet.
* The cabinets can be delivered with castors or legs or prepared for mounting on a plinth at no extra charge.
b i o l i n e
The BioCompact ll 610 includes the major features from the top-of–the-range BioLine models, combined with a new refrigeration system. This provides performance that is significantly better than any comparable biomaterial storage cabinet in this price bracket.
The BioCompact II 610 uses environmentally responsible HFC- free foam propellants and is available with CFC-free or HFC- free refrigerants.
The BioCompact ll 610 provides the largest storage volume
within the BioCompact ll range. This, combined with its midlevel
price point, makes it the ideal choice for the reliable storage of
biomaterial under stable conditions – a requirement for which
standard commercial or domestic refrigeration cabinets cannot
be considered.
BioCompact ll 610
2
1 345 - +P
Access port
24.5 mm access port that makes it easy to insert objects, e.g. sensors for external temperature surveillance.
Top panel with BioLine control unit The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free connector (NC/NO) for remote alarms. The display can be locked. An integrated Gram monitor, for providing documentation for the conditions within the cabinet, is available as an option.
E-Sensor
Extra sensor for providing a temperature reference within the storage compartment.
Shelves and drawers
A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Ps. The standard BioLine configuration is without any shelves or drawers
Wheels and legs ABS inner lining
Wheels, legs or plinth-mounting are available as options for cabinets in the BioLine product range, at no extra charge.
The inside has a durable one-piece moulded grey ABS inner lining with rounded corners.
The wall rails are made of stainless steel.
Air distribution
The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times, while using only a minimum of energy.
* The cabinets can be delivered with wheels or prepared for mounting on a plinth at no extra charge.
Technical Specifications BioCompact ll RR610 BioCompact ll RF610
Temperature range +2/+15 ºC -5/-25 ºC
Ambient temperature range Solid door 10/43 ºC - Glass door 10/38 ºC
Control Unit Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and tempera- ture alarms that can be programmed individually, alarm recording, hi/low temperature
and calibration function.
Material interior Material exterior
ABS with wall rails in stainless steel Lacquered steel or stainless steel
Dimensions mm (W x D x H) 695 x 868 x 2010
Gross volume 583 litres/20,6 cubic feet
Net volume 419 litres/16,7 cubic feet
Modules for shelves and drawers*
Shelves 24 (recommended 5) - Drawers 12
Insulation 60 mm (cyclopentane)
Refrigerant R600a or R134a R290 or R404a
Base Legs*
Connection 230 V, 50 Hz
Noise level 48 dB(A) 50,4 dB(A)
Refrigeration capacity at -10 ºC R600a 354 Watt / R134a 314 Watt -
Refrigeration capacity at -25 ºC - R290 512 Watt / R404a 568 Watt
Air system Ventilated Gram distribution system
Defrost system Smart defrost (fan only) Smart defrost (electric defrost element)
