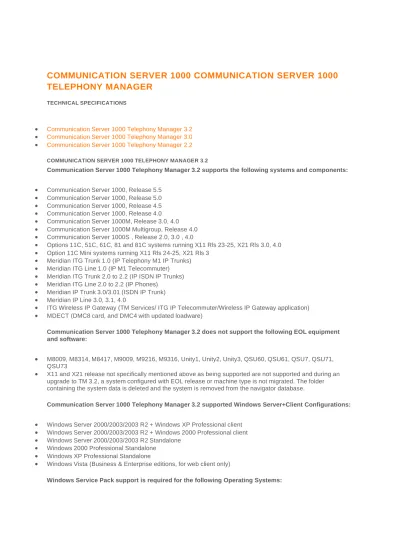

COMMUNICATION SERVER 1000 COMMUNICATION SERVER 1000 TELEPHONY MANAGER

(1)

COMMUNICATION SERVER 1000 COMMUNICATION SERVER 1000

TELEPHONY MANAGER

TECHNICAL SPECIFICATIONS



Communication Server 1000 Telephony Manager 3.2



Communication Server 1000 Telephony Manager 2.2 COMMUNICATION SERVER 1000 TELEPHONY MANAGER 3.2

Communication Server 1000 Telephony Manager 3.2 supports the following systems and components:



Communication Server 1000, Release 5.5



Communication Server 1000M, Release 3.0, 4.0



Communication Server 1000M Multigroup, Release 4.0



Communication Server 1000S , Release 2.0, 3.0 , 4.0



Options 11C, 51C, 61C, 81 and 81C systems running X11 Rls 23-25, X21 Rls 3.0, 4.0



Option 11C Mini systems running X11 Rls 24-25, X21 Rls 3



Meridian ITG Trunk 1.0 (IP Telephony M1 IP Trunks)



Meridian ITG Line 1.0 (IP M1 Telecommuter)



Meridian ITG Trunk 2.0 to 2.2 (IP ISDN IP Trunks)



Meridian ITG Line 2.0 to 2.2 (IP Phones)



Meridian IP Trunk 3.0/3.01 (ISDN IP Trunk)



Meridian IP Line 3.0, 3.1, 4.0



ITG Wireless IP Gateway (TM Services/ ITG IP Telecommuter/Wireless IP Gateway application)



MDECT (DMC8 card, and DMC4 with updated loadware)

Communication Server 1000 Telephony Manager 3.2 does not support the following EOL equipment and software:



M8009, M8314, M8417, M9009, M9216, M9316, Unity1, Unity2, Unity3, QSU60, QSU61, QSU7, QSU71, QSU73



X11 and X21 release not specifically mentioned above as being supported are not supported and during an upgrade to TM 3.2, a system configured with EOL release or machine type is not migrated. The folder containing the system data is deleted and the system is removed from the navigator database.

Communication Server 1000 Telephony Manager 3.2 supported Windows Server+Client Configurations:



Windows Server 2000/2003/2003 R2 + Windows XP Professional client



Windows Server 2000/2003/2003 R2 + Windows 2000 Professional client



Windows Server 2000/2003/2003 R2 Standalone



Windows 2000 Professional Standalone



Windows XP Professional Standalone



Windows Vista (Business & Enterprise editions, for web client only)

(2)

Operating System

Service Pack Required

Windows 2000 Professional Service Pack 4

Windows XP Professional

Service Pack 2

Windows Server 2000

Service Pack 4

Windows Server 2003

Service Pack 1 or Service Pack 2

Windows Server 2003 R2

Service Pack 1, 2 or 3

To access TM web applications, IIS is required to be running on the TM server. The versions of IIS supported on the OS platforms are:

Operating System

Web Server

Windows 2000 Professional IIS 5.0

Windows XP Professional

IIS 5.1

Windows Server 2000

IIS 5.0

Windows Server 2003

IIS 6.0

Windows Server 2003 R2

IIS 6.0

Recommended Server Configuration

Hardware:



Intel Pentium IV Processor 2 GHz or higher [for standalone configuration, Intel Pentium IV Processor 1 GHz]



2 GB HD space (1 GB plus customer data storage)



1 GB of RAM



SVGA Color Monitor and interface card (1024 X 768 or higher resolution for graphics)



3 1/2-inch 1.44 MB floppy disk drive



CD-ROM drive



One or two Ethernet Network Interface Card is required to support connection with the Meridian 1 via Ethernet. A second Ethernet Network Interface Card is optional depending on configuration.



Hayes compatible modem is optional for connection to remote sites, required for polling configurations (56K BPS recommended). Please note: "WinModems" are incompatible and therefore are not supported.



PC COM port with 16550 UART



USB port (required for dongle) or Parallel printer port



Two (2) button Windows compatible mouse or positioning device (Bus/PS2 mouse preferred to free up a PC serial port)

Software:



TCP/IP Protocol



Remote Access Service



Network Card Drivers



Windows 2000 Server requires Service Pack 4



Windows XP Professional requires Service Pack 2

(3)

Platform (Hardware plus Operating System):



Intel Pentium III Processor 600 MHz or higher



500 MB free space on hard drive (plus customer's data storage requirements).



512 MB of RAM



CD-ROM drive



Windows 2000 Professional with Service Pack 4, or Windows XP Professional with Service Pack 2



Ethernet Network Interface Card



USB port or Parallel printer port



Software:



TCP/IP Protocol



The Communication Server 1000 Telephony Manager Web Client can be launched from a browser on any OS supporting one of the browsers listed below and the Java plug in 1.5 runtime environment. Other software required:

Web browsers Supported in TM3.2:

Operating System

Web Browser

Windows 2000 Professional IE 6.0 + SP1

Windows XP Professional

IE 6.0 + SP2

IE 7.0

Windows Server 2000

IE 6.0 + SP1

Windows Server 2003

IE 6.0 + SP1

IE 7.0

Windows Server 2003 R2

IE 6.0 + SP2

IE 7.0



Internet Explorer 6.0 (PC platforms)



Java plug in 1.5 Runtime Environment plug-in available in the installation and at

http://java.sun.com/products/plugin

COMMUNICATION SERVER 1000 TELEPHONY MANAGER 3.0

Communication Server 1000 Telephony Manager 3.0 supports the following systems and components:



(4)



Communication Server 1000 Telephony Manager 3.0 does not support the following EOL equipment and software:



M2317, M2018, M2018S, 2112, M3000, M8009, M8314, M8417, M9009, M9216, M9316, Unity1, Unity2, Unity3, QSU60, QSU61, QSU7, QSU71, QSU73



Communication Server 1000 Telephony Manager 3.0 Configurations Supporting

Windows Clients (Client Server Configurations):

Server Installation on:

Client Installation

on:

Web Clients Supported:

Windows 2003 Server OS

(Standard and Enterprise)

Windows 2000 Server OS

(Standard)

Windows XP

Professional client

Windows 2000

Professional OS

IE 6.0 + SP2 on Windows XP

Professional

IE 6.0 + SP1 on Operating

System Windows 2000

Hardware:



2 GB (1 GB plus customer data storage)



1 GB of RAM



SVGA Color Monitor and interface card (800 X 600 Resolution for graphics)



CD-ROM drive



One Ethernet Network Interface Card is required to support connection with the Meridian 1 via Ethernet. A second Ethernet Network Interface Card is optional depending on configuration.



(5)



TCP/IP Protocol



Recommended Windows Client Configuration



512 MB of RAM



CD-ROM drive



Software:



TCP/IP Protocol



Web Browser Client:



http://java.sun.com/products/plugin*

Communication Server 1000 Telephony Manager 2.2 supports the following systems and components



Communication Server 1000S , Release 2.0, 3.0



Options 11C, 51C, 61C, 81 and 81C systems running X11 Rls 23-25, X21 Rls 3



Option 11C Compact systems running Compact Releases 1-2

(6)



Communication Server 1000 Telephony Manager 2.2 Configurations Supporting

Windows Clients (Client Server Configurations):

Server Installation on:

Client Installation on:

Web Clients Supported:

Windows 2000 Server

OS

Windows 98 OS*

Windows NT 4.0 Workstation

OS

Windows 2000 Professional

OS

Internet Explorer 5.5

Internet Explorer 6.0

Netscape Communicator 4.7

Configurations NOT Supporting Windows Clients (Standalone Configurations):

Server Installation on:

Client

Installation

on:

Web Clients Supported:

Windows XP

Professional OS,

Service Pack 2

Not Supported

Internet Explorer 6.0, Service Pack 1

Windows 2000

Professional OS,

Service Pack 4

Windows 2000 Server,

Service Pack 4

Not Supported

Internet Explorer 6.0, Service Pack 1

NOTE: It is not recommended to run more

than one web client from these two

Operating Systems.

Hardware:



Intel Pentium III Processor 600 MHz or higher[for standalone configuration, Intel Pentium III Processor 400 MHz or higher]



512 MB of RAM



CD-ROM drive



(7)



Software:



TCP/IP Protocol



Windows 2000 Server and Service Pack 2



Internet Explorer 6.0



256 MB of RAM



CD-ROM drive



Windows 98, Windows 2000 Professional with Service Pack 2, or Windows NT Workstation 4.0 with Service pack 6a (with Microsoft TCP/IP installed)



Software:



TCP/IP Protocol



Web Browser Client:

The Communication Server 1000 Telephony Manager Web Client can be launched from a browser on any OS supporting one of the browsers listed below and the Java plug in 1.3.1 runtime environment. Other software required:



TECHNICAL SPECIFICATIONS



(8)

Communication Server 1000 Telephony Manager 3.2 supports the following systems and components:



Communication Server 1000 Telephony Manager 3.2 does not support the following EOL equipment and software:



M8009, M8314, M8417, M9009, M9216, M9316, Unity1, Unity2, Unity3, QSU60, QSU61, QSU7, QSU71, QSU73



Communication Server 1000 Telephony Manager 3.2 supported Windows Server+Client Configurations:



Windows Server 2000/2003/2003 R2 + Windows XP Professional client



Windows Server 2000/2003/2003 R2 + Windows 2000 Professional client



Windows Server 2000/2003/2003 R2 Standalone



Windows 2000 Professional Standalone



Windows XP Professional Standalone



Windows Vista (Business & Enterprise editions, for web client only)

Windows Service Pack support is required for the following Operating Systems:

Operating System

Service Pack Required

Windows 2000 Professional Service Pack 4

Windows XP Professional

Service Pack 2

Windows Server 2000

Service Pack 4

(9)

To access TM web applications, IIS is required to be running on the TM server. The versions of IIS supported on the OS platforms are:

Operating System

Web Server

Windows 2000 Professional IIS 5.0

Windows XP Professional

IIS 5.1

Windows Server 2000

IIS 5.0

Windows Server 2003

IIS 6.0

Windows Server 2003 R2

IIS 6.0

Hardware:



2 GB HD space (1 GB plus customer data storage)



1 GB of RAM



CD-ROM drive



One or two Ethernet Network Interface Card is required to support connection with the Meridian 1 via Ethernet. A second Ethernet Network Interface Card is optional depending on configuration.



USB port (required for dongle) or Parallel printer port



Software:



TCP/IP Protocol



512 MB of RAM



(10)



Software:



TCP/IP Protocol



Web browsers Supported in TM3.2:

Operating System

Web Browser

Windows 2000 Professional IE 6.0 + SP1

Windows XP Professional

IE 6.0 + SP2

IE 7.0

Windows Server 2000

IE 6.0 + SP1

Windows Server 2003

IE 6.0 + SP1

IE 7.0

Windows Server 2003 R2

IE 6.0 + SP2

IE 7.0



http://java.sun.com/products/plugin

Communication Server 1000 Telephony Manager 3.0 supports the following systems and components:



(11)



Communication Server 1000 Telephony Manager 3.0 does not support the following EOL equipment and software:



M2317, M2018, M2018S, 2112, M3000, M8009, M8314, M8417, M9009, M9216, M9316, Unity1, Unity2, Unity3, QSU60, QSU61, QSU7, QSU71, QSU73



Communication Server 1000 Telephony Manager 3.0 Configurations Supporting

Windows Clients (Client Server Configurations):

Server Installation on:

Client Installation

on:

Web Clients Supported:

Windows 2003 Server OS

(Standard and Enterprise)

Windows 2000 Server OS

(Standard)

Windows XP

Professional client

Windows 2000

Professional OS

IE 6.0 + SP2 on Windows XP

Professional

IE 6.0 + SP1 on Operating

System Windows 2000

Hardware:



2 GB (1 GB plus customer data storage)



1 GB of RAM



CD-ROM drive



Software:



TCP/IP Protocol



(12)



512 MB of RAM



CD-ROM drive



Software:



TCP/IP Protocol



Web Browser Client:



http://java.sun.com/products/plugin*

Communication Server 1000 Telephony Manager 2.2 supports the following systems and components



Communication Server 1000S , Release 2.0, 3.0



Options 11C, 51C, 61C, 81 and 81C systems running X11 Rls 23-25, X21 Rls 3



Option 11C Compact systems running Compact Releases 1-2



(13)

Communication Server 1000 Telephony Manager 2.2 Configurations Supporting

Windows Clients (Client Server Configurations):

Server Installation on:

Client Installation on:

Web Clients Supported:

Windows 2000 Server

OS

Windows 98 OS*

Windows NT 4.0 Workstation

OS

Windows 2000 Professional

OS

Internet Explorer 5.5

Internet Explorer 6.0

Netscape Communicator 4.7

Configurations NOT Supporting Windows Clients (Standalone Configurations):

Server Installation on:

Client

Installation

on:

Web Clients Supported:

Windows XP

Professional OS,

Service Pack 2

Not Supported

Internet Explorer 6.0, Service Pack 1

Windows 2000

Professional OS,

Service Pack 4

Windows 2000 Server,

Service Pack 4

Not Supported

Internet Explorer 6.0, Service Pack 1

NOTE: It is not recommended to run more

than one web client from these two

Operating Systems.

Hardware:



Intel Pentium III Processor 600 MHz or higher[for standalone configuration, Intel Pentium III Processor 400 MHz or higher]



512 MB of RAM



CD-ROM drive



(14)



TCP/IP Protocol



Windows 2000 Server and Service Pack 2



Internet Explorer 6.0



256 MB of RAM



CD-ROM drive



Windows 98, Windows 2000 Professional with Service Pack 2, or Windows NT Workstation 4.0 with Service pack 6a (with Microsoft TCP/IP installed)



Software:



TCP/IP Protocol



Web Browser Client:

The Communication Server 1000 Telephony Manager Web Client can be launched from a browser on any OS supporting one of the browsers listed below and the Java plug in 1.3.1 runtime environment. Other software required:
