ELECTRICAL TROUBLESHOOTING MANUAL

(1)

l l l l l l l l l l l l l l l l l l l l

433_frontpage

PN 01 00 0 006 552

1998

BMW Z3 (E36/7)

Z3 Roadster

M Roadster

Electrical

Troubleshooting

Manual

Vehicles produced 9/97 thru 8/98

F

R9

D3

R12 T3

R14

R8

C2

R11

Rz

(2)

BMW NA

E

BMW NA, Woodcliff Lake, NJ

ZU-S, Printed in U.S.A.

ELECTRICAL TROUBLESHOOTING

MANUAL

SERIES 3 – E36/7 (Z3 Roadster and M Roadster )

SCHEMATICS MODEL YEAR 1998

ÁÁÁÁ

0100.0

ÁÁÁÁÁÁÁÁÁÁÁÁÁ

INDEX

ÁÁÁÁ ÁÁÁÁ

0110.0

ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ

INTRODUCTION

ÁÁÁÁ ÁÁÁÁ

0140.0

SYMBOLS

ÁÁÁÁ ÁÁÁÁ

0670.0

POWER DISTRIBUTION CHART

ÁÁÁÁ ÁÁÁÁ

0670.1

FUSE CHART

ÁÁÁÁ ÁÁÁÁ

0670.2

POWER DISTRIBUTION

ÁÁÁÁ ÁÁÁÁ

0670.3

FUSE DETAILS

ÁÁÁÁ

0670.4

GROUND DISTRIBUTION

ÁÁÁÁ ÁÁÁÁ

0670.5

DATA LINK

ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ

1210.17

ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ

ENGINE CONTROL SYSTEM

MS41.1 (6–CYLINDER M52/S52)

1210.20

(DME M5.2, 4–CYLINDER M44)

ÁÁÁÁ ÁÁÁÁ

1230.0

CHARGING SYSTEM

ÁÁÁÁ

1240.0

START

ÁÁÁÁ ÁÁÁÁ

1290.0

E–BOX FAN

2460.2

ELECTRONIC TRANSMISSION

CONTROL (EGS A4S 270R)

3234.0

SUPPLEMENTAL RESTRAINT

SYSTEM (AIR BAG)

ÁÁÁÁ ÁÁÁÁ

3450.0

SLIP CONTROL (ABS)

ÁÁÁÁ

3450.1

SLIP CONTROL (ABS/ASC)

ÁÁÁÁ ÁÁÁÁ

3614.0

TIRE INFLATION SYSTEM

ÁÁÁÁ ÁÁÁÁ

5116.0

POWER MIRRORS

ÁÁÁÁ ÁÁÁÁ

5126.0

ZKE CENTRAL LOCKING (ZV)

ÁÁÁÁ ÁÁÁÁ

5133.0

ZKE POWER WINDOWS (FH)

ÁÁÁÁ ÁÁÁÁ

5200.0

POWER SEATS

ÁÁÁÁ ÁÁÁÁ

5203.0

HEATED SEATS

ÁÁÁÁ ÁÁÁÁ

5430.2

ELECTRO–HYDRAULIC

CONVERTIBLE TOP

6100.0

CENTRAL BODY ELECTRONICS

(ZKE IV)

ÁÁÁÁ ÁÁÁÁ

6133.0

HORN

ÁÁÁÁ ÁÁÁÁ

6135.0

DRIVE–AWAY PROTECTION

(EWS II)

ÁÁÁÁ ÁÁÁÁ

6160.1

WIPER/WASHER MODULE (WWM)

ÁÁÁÁ ÁÁÁÁ

6167.1

HEADLIGHT WASHER (SRA)

6169.0

WINDSHIELD WASHER JET

HEATERS

ÁÁÁÁ ÁÁÁÁ

6211.0

INSTRUMENT CLUSTER

ÁÁÁÁ

6213.3

DIGITAL CLOCK

ÁÁÁÁ ÁÁÁÁ

6300.0

LIGHT SWITCH DETAILS

ÁÁÁÁ ÁÁÁÁ

6312.0

HEADLIGHTS/FOG LIGHTS

ÁÁÁÁ ÁÁÁÁ

6313.0

TURN/HAZARD LIGHTS

ÁÁÁÁ ÁÁÁÁ

6314.0

PARK/TAIL/UNDERHOOD LIGHTS

6320.0

LICENSE PLATE/LUGGAGE

COMPARTMENT LIGHTS

ÁÁÁÁ

6322.0

BACK UP LIGHTS

ÁÁÁÁ ÁÁÁÁ

6325.0

BRAKE LIGHTS

ÁÁÁÁ ÁÁÁÁ

6330.3

INTERIOR LIGHTS

ÁÁÁÁ ÁÁÁÁ

6332.0

INTERIOR ACCESSORIES

ÁÁÁÁ ÁÁÁÁ

6350.0

CRASH CONTROL MODULE

ÁÁÁÁ ÁÁÁÁ

6424.0

REAR WINDOW DEFOGGER

ÁÁÁÁ ÁÁÁÁ

6450.6

INTEGRATED HEATING– AND

CLIMATE CONTROL

ÁÁÁÁ ÁÁÁÁ

6510.1

RADIO/HIFI

6561.0

CELLULAR TELEPHONE

(PROVISIONS)

ÁÁÁÁ ÁÁÁÁ

6571.0

CRUISE CONTROL (TEMPOMAT)

ÁÁÁÁ ÁÁÁÁ

6575.2

ANTI–THEFT SYSTEM (ALPINE)

ÁÁÁÁ ÁÁÁÁ

6581.3

BOARD COMPUTER (BC – LOW)

ÁÁÁÁ

7000.0

COMPONENT LOCATION CHART

ÁÁÁÁ ÁÁÁÁ

7100.0

COMPONENT LOCATION VIEWS

ÁÁÁÁ ÁÁÁÁ

8000.0

SPLICE LOCATION VIEWS

ÁÁÁÁ ÁÁÁÁ

8500.0

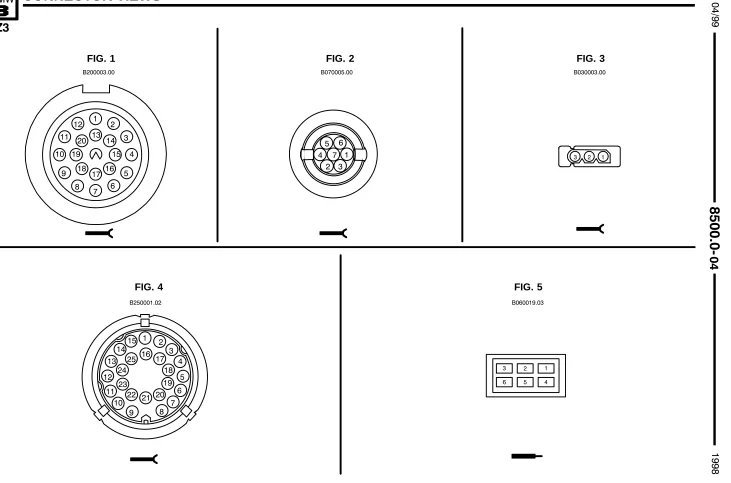

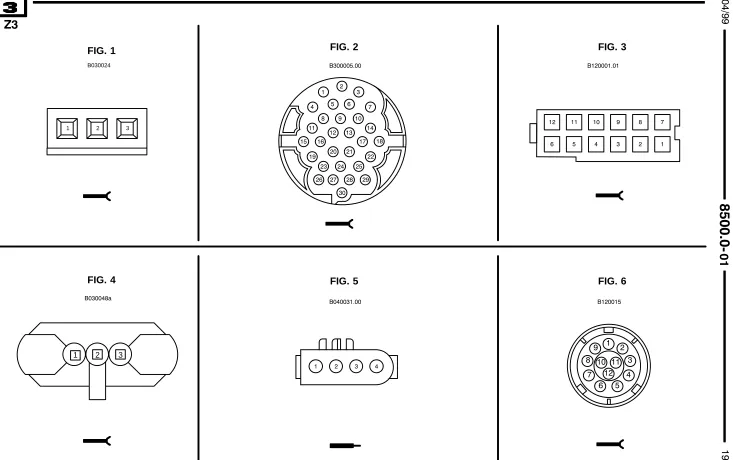

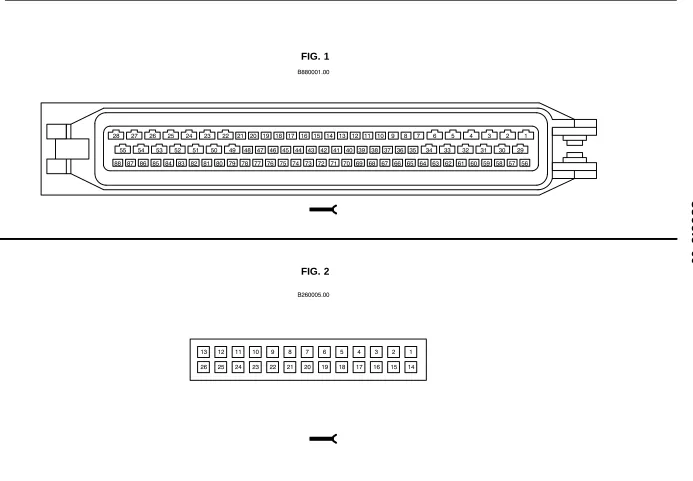

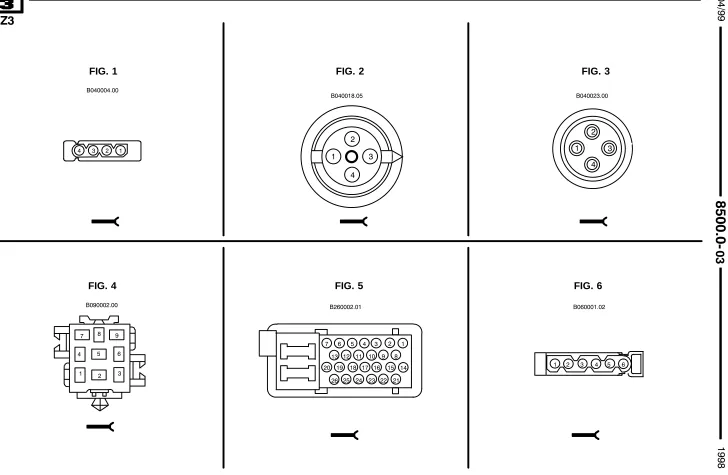

CONNECTOR VIEWS

(3)

0100.0 INDEX

0100.0Ć00

04/99

1998

BM

BMW

Z3

ABS HYDRAULIC UNIT, Y1

. . .

3450.0-01

ABS HYDRAULIC UNIT, Y1w

. . .

3450.1-01

ABS HYDRAULIC UNIT, Y1w

. . .

3450.1-11

ABS HYDRAULIC UNIT, Y1w

. . .

3450.1-05

ABS PUMP MOTOR RELAY, K75

. . .

3450.0-00

. . .

3450.1-00

. . .

3450.1-04

ABS RELAY, K10

. . .

3450.0-00

ABS RELAY, K10

. . .

3450.1-04

AIR BAG CUT–OFF SWITCH, PASSENGER’S, S559

. .

3234.0-01

AIR BAG GAS GENERATOR, DRIVER’S, G5

. . .

3234.0-00

AIR BAG GAS GENERATOR, LEFT SIDE, G14

. . .

3234.0-03

AIR BAG GAS GENERATOR, PASSENGER’S, G6

. . .

3234.0-01

AIR BAG GAS GENERATOR, RIGHT SIDE, G15

. . .

3234.0-03

AIR CONDITIONING COMPRESSOR, Y2

. . .

6450.6-02

AIR CONDITIONING COMPRESSOR, Y2

. . .

6450.6-07

AIR CONDITIONING RELAY, MOTRONIC, K33a

. . .

6450.6-05

AIR CONDITIONING/

RECIRCULATING SWITCH ASSEMBLY, S220

. . .

6450.6-01

AIR CONDITIONING/

RECIRCULATING SWITCH ASSEMBLY, S220

. . .

6450.6-06

AIR PUMP, Y6133

. . .

1210.20-09

AIR PUMP, Y6163

. . .

1210.17-05

ANALOG CLOCK, N5

. . .

6211.0-07

ANTENNA AMPLIFIER AM/FM, N8

. . .

6510.1-00

ANTI–THEFT CONTROL MODULE (ALPINE), N12w

. . .

6575.2

ANTI–THEFT HORN (ALPINE), H1w

. . .

6575.2-01

. . .

6575.2

(4)

INDEX

0100.0Ć01

04/99

1998

BM

BMW

Z3

BLOWER MOTOR, M30

. . .

6450.6-05

BLOWER RELAY, K4

. . .

6450.6-00

BLOWER RELAY, K4

. . .

6450.6-05

BLOWER RESISTORS, R11

. . .

6450.6-00

BLOWER RESISTORS, R11

. . .

6450.6-05

BLOWER SWITCH, S75

. . .

6450.6-00

BLOWER SWITCH, S75

. . .

6450.6-05

. . .

6581.3-00

BOARD COMPUTER (BC – LOW), A35y

. . .

6581.3-00

BODY ELECTRONICS CONTROL MODULE (ZKE IV),

A104

. . .

6100.0

BRAKE FLUID LEVEL SWITCH, B18

. . .

6211.0-00

BRAKE LIGHT SWITCH, S30

. . .

6325.0

BRAKE LIGHT, LEFT, H24

. . .

6325.0

BRAKE LIGHT, RIGHT, H31

. . .

6325.0

BRAKE LIGHTS

. . .

6325.0

BRAKE PAD SENSOR, LEFT FRONT, B16

. . .

6211.0-01

BRAKE PAD SENSOR, RIGHT REAR, B17

. . .

6211.0-01

CAMSHAFT POSITION SENSOR

(CYLINDER IDENTIFICATION), B6204

. . .

1210.17-06

CD CHANGER, N22

. . .

6510.1

CELLULAR TELEPHONE (PROVISIONS)

. . .

6561.0-00

CENTRAL BODY ELECTRONICS (ZKE IV)

. . .

6100.0

CHARCOAL FILTER SHUT–OFF VALVE, B6247

. . .

1210.17-04

CHARCOAL FILTER SHUT–OFF VALVE, B6247

. . .

1210.20-02

CHARGING SYSTEM

. . .

1230.0-00

CHIME MODULE, H10

. . .

6211.0-06

CIGAR LIGHTER CONNECTION, E28a

. . .

3614.0-00

CIGAR LIGHTER LIGHT, FRONT, E29

. . .

6300.0-01

CIGAR LIGHTER LIGHT, FRONT, E29

. . .

6332.0-00

CIGAR LIGHTER, FRONT, E28

. . .

6332.0-00

CLUTCH SWITCH, S32

. . .

6571.0-01

COMBINATION SWITCH, S7

. . .

6313.0-00

COMPONENT LOCATION CHART

. . .

7000.0

COMPONENT LOCATION VIEWS

. . .

7100.0

COMPRESSOR CONTROL RELAY, K19

. . .

6450.6-02

COMPRESSOR CONTROL RELAY, K19

. . .

6450.6-07

COMPRESSOR MAIN SWITCH, S232

. . .

3614.0-00

COMPRESSOR RELAY, K6394

. . .

3614.0-00

CONNECTOR VIEWS

. . .

8500.0

CONTACT RING, C101

. . .

3234.0-00

CONVERTIBLE TOP ACTUATING SWITCH, S143

. . .

5430.2-01

CONVERTIBLE TOP END–POSITION MICRO SWITCH,

(5)

INDEX

0100.0Ć02

04/99

1998

BM

BMW

Z3

DATA LINK CONNECTOR, D100

. . .

0670.5

DEFOGGER I, REAR, E9

. . .

6424.0

DIGITAL CLOCK

. . .

6213.3-00

DIGITAL CLOCK, A110

. . .

6213.3-00

DOOR JAMB SWITCH, DRIVER’S, S14

. . .

5126.0-01

DOOR JAMB SWITCH, PASSENGER’S, S13

. . .

5126.0-01

DOOR LOCK MOTOR, DRIVER’S, M12

. . .

5126.0-02

DOOR LOCK MOTOR, PASSENGER’S, M13

. . .

5126.0-02

DOOR LOCK SWITCH, DRIVER’S, S47

. . .

5126.0-00

DOOR LOCK SWITCH, PASSENGER’S, S49

. . .

5126.0-00

DOUBLE TEMPERATURE SWITCH, S36y

. . .

6450.6-04

DRIVE–AWAY PROTECTION (EWS II)

. . .

6135.0

DUAL TEMPERATURE SENSOR

(COOLANT TEMPERATURE), B6256

. . .

1210.17-02

E–BOX FAN

. . .

1290.0-00

E–BOX FAN, M6506

. . .

1290.0-00

ELECTRICAL COMPRESSOR, M805

. . .

3614.0-00

ELECTRO–HYDRAULIC CONVERTIBLE TOP

. . .

5430.2

ELECTRONIC IMMOBILIZER CONTROL MODULE

(EWS II), A836

. . .

6135.0

ELECTRONIC TRANSMISSION CONTROL

(EGS A4S 270R)

. . .

2460.2

ENGINE CONTROL MODULE (DME), A6000

. . .

1210.17

ENGINE CONTROL MODULE (DME), A6000

. . .

1210.20

ENGINE CONTROL MODULE RELAY, K6300

. . .

1210.17-00

ENGINE CONTROL MODULE RELAY, K6300

. . .

1210.20-00

ENGINE CONTROL RELAY (ABS/ASC),

K94

. . .

3450.1-10

(DME M5.2, 4–CYLINDER M44)

. . .

1210.20

ENGINE CONTROL SYSTEM MS41.1

(6)

INDEX

0100.0Ć03

04/99

1998

BM

BMW

Z3

FUEL INJECTION VALVE, CYL. 4, Y6104

. . .

1210.17-01

. . .

1210.20-01

. . .

1210.17-01

. . .

1210.17-01

FUEL PUMP RELAY, K6301w

. . .

1210.17-10

FUEL PUMP RELAY, K6301w

. . .

1210.17-11

FUEL PUMP RELAY, K6301w

. . .

1210.20-02

FUEL PUMP, M2

. . .

1210.17-10

FUEL PUMP, M2

. . .

1210.17-11

FUEL PUMP, M2

. . .

1210.20-02

FUEL SENSOR, B6y

. . .

6211.0-05

FUEL TANK PRESSURE SENSOR, B65

. . .

1210.17-04

FUEL TANK PRESSURE SENSOR, B65

. . .

1210.20-05

FUSE CHART

. . .

0670.1

FUSE DETAILS

. . .

0670.3

GEAR SHIFT LEVER INDICATOR, E96

. . .

6300.0-01

GENERATOR, G6509

. . .

1230.0

GROUND DISTRIBUTION

. . .

0670.4

HALL EFFECT CAMSHAFT SENSOR, B6209

. . .

1210.20-04

HARD TOP CONNECTOR 1, E99

. . .

6424.0

HAZARD FLASHER RELAY, K16

. . .

6313.0-00

HAZARD SWITCH, S18

. . .

6313.0-01

. . .

6167.1-00

HEADLIGHT, LEFT, E7

. . .

6312.0-01

HEADLIGHT, RIGHT, E8

. . .

6312.0-01

HEADLIGHT/FOG LIGHT WASHER PUMP, M7

. . .

6160.1-00

HEADLIGHT/FOG LIGHT WASHER PUMP, M7

. . .

6167.1-00

HEADLIGHTS/FOG LIGHTS

. . .

6312.0

(7)

INDEX

0100.0Ć04

04/99

1998

BM

BMW

Z3

IGNITION COIL, CYL. 3, T6153

. . .

1210.17-03

IGNITION COIL, CYL. 3, T6153

. . .

1210.20-03

. . .

1210.17-03

. . .

1210.20-03

. . .

1210.17-03

. . .

1210.17-03

IGNITION SWITCH, S2

. . .

0670.2-04

INDEX

. . .

0100.0

INSTRUMENT CLUSTER

. . .

6211.0

INSTRUMENT CLUSTER, A2w

. . .

6211.0

INTAKE AIR RESONANCE CHANGEOVER VALVE,

Y6131

. . .

1210.20-01

INTAKE AIR TEMPERATURE SENSOR, B6205

. . .

1210.17-02

INTAKE AIR TEMPERATURE SENSOR, B6205

. . .

1210.20-05

INTEGRATED HEATING– AND CLIMATE CONTROL

. . .

6450.6

. . .

6332.0-00

INTERIOR LIGHT SWITCH, S408

. . .

6330.3-00

INTERIOR LIGHT, FRONT LEFT, E800

. . .

6330.3-00

INTERIOR LIGHTS

. . .

6330.3-00

INTERMEDIATE PRESSURE SWITCH, B9

. . .

6450.6-03

. . .

6450.6-04

. . .

6450.6-08

INTRODUCTION

. . .

0110.0

JET HEATER THERMOSWITCH, S198

. . .

6169.0-00

JUMPER PLUG, B900

. . .

6571.0-01

KICK–DOWN SWITCH, S8507

. . .

2460.2-02

KICK–DOWN SWITCH, S8507

. . .

2460.2-06

KNOCK SENSOR, B6240

. . .

1210.17-06

(8)

INDEX

0100.0Ć05

04/99

1998

BM

BMW

Z3

OBD II CONNECTOR, D110

. . .

0670.5-05

OIL PRESSURE SWITCH, B6231

. . .

6211.0-02

OIL TEMPERATURE GAUGE, B59

. . .

6211.0-07

OIL TEMPERATURE SENSOR, B6238

. . .

6211.0-07

ON–BOARD COMPUTER TEMPERATURE SENSOR,

B21

. . .

6581.3-00

OXYGEN SENSOR

(BEHIND CATALYTIC CONVERTER), B62002

. . .

1210.20-04

OXYGEN SENSOR

(BEHIND CATALYTIC CONVERTER), B6220y

. . .

1210.17-10

OXYGEN SENSOR

(IN FRONT OF CATALYTIC CONVERTER), B62001

.

1210.20-04

OXYGEN SENSOR

(IN FRONT OF CATALYTIC CONVERTER), B6210y

.

1210.17-10

OXYGEN SENSOR I

. . .

1210.17-11

OXYGEN SENSOR I

.

1210.17-11

OXYGEN SENSOR II

. . .

1210.17-11

OXYGEN SENSOR II

.

1210.17-11

PARK BRAKE SWITCH, S31

. . .

6211.0-00

PARK LIGHT, LEFT, E15

. . .

6314.0-01

PARK LIGHT, RIGHT, E19

. . .

6314.0-01

. . .

6314.0

POWER DISTRIBUTION

. . .

0670.2

POWER DISTRIBUTION BOX, FRONT, P90

. . .

0670.2

. . .

0670.0

POWER MIRRORS

. . .

5116.0

POWER SEATS

. . .

5200.0

POWER WINDOW SWITCH, DRIVER’S, S126y

. . .

5133.0-01

POWER WINDOW SWITCH, PASSENGER’S, S127y

. . .

5133.0-01

PRESSURE SWITCH, B8y

. . .

6450.6-03

. . .

6450.6-04

. . .

6450.6-08

PRESSURE SWITCH, B9508

. . .

6450.6-03

. . .

6450.6-04

. . .

6450.6-08

PROGRAM SWITCH, S8503

. . .

2460.2-03

PROGRAM SWITCH, S8503

. . .

2460.2-07

PYROTECHNICAL BELT TENSIONER, DRIVER’S SIDE,

G12

. . .

3234.0-00

PYROTECHNICAL BELT TENSIONER,

(9)

INDEX

0100.0Ć06

04/99

1998

BM

BMW

Z3

SEAT HEATER, DRIVER’S, E57

. . .

5203.0

SEAT HEATER, PASSENGER’S, E58

. . .

5203.0

SEAT HEIGHT MOTOR, DRIVER’S, M52

. . .

5200.0-00

SEAT HEIGHT MOTOR, DRIVER’S, M52

. . .

5200.0-02

SEAT HEIGHT MOTOR, PASSENGER’S, M59

. . .

5200.0-01

SEAT HEIGHT MOTOR, PASSENGER’S, M59

. . .

5200.0-03

SEAT LENGTH ADJUST CUT–OFF RELAY, DRIVER’S,

K921

. . .

5200.0-02

SEAT LENGTH ADJUST CUT–OFF RELAY,

PASSENGER’S, K911

. . .

5200.0-03

SEAT LIMIT SWITCH, DRIVER’S, S910

. . .

5200.0-02

SEAT LIMIT SWITCH, PASSENGER’S, S911

. . .

5200.0-03

SEAT MAT, I1008

. . .

3234.0-01

SEAT MOVEMENT MOTOR, DRIVER’S, M51

. . .

5200.0-00

SEAT MOVEMENT MOTOR, DRIVER’S, M51

. . .

5200.0-02

SEAT MOVEMENT MOTOR, PASSENGER’S, M60

. . . .

5200.0-01

SEAT MOVEMENT MOTOR, PASSENGER’S, M60

. . . .

5200.0-03

SEAT OCCUPANCY DETECTOR, A113

. . .

3234.0-01

SEAT TILT ADJUST CUT–OFF RELAY, DRIVER’S, K920 5200.0-02

SEAT TILT ADJUST CUT–OFF RELAY, PASSENGER’S,

K910

. . .

5200.0-03

SEATBACK HEATER, DRIVER’S, E56

. . .

5203.0

SEATBACK HEATER, PASSENGER’S, E59

. . .

5203.0

SECONDARY AIR PUMP RELAY, K6304

. . .

1210.17-05

SECONDARY AIR PUMP RELAY, K6304

. . .

1210.20-09

SECONDARY AIR PUMP VALVE, Y6163

. . .

1210.17-05

SECONDARY AIR PUMP VALVE, Y6163

. . .

1210.20-09

SHIFT–LOCK,Y19

. . .

2460.2-02

(10)

INDEX

0100.0Ć07

04/99

1998

BM

BMW

Z3

SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG)

. . .

3234.0

SUPPLEMENTAL RESTRAINT SYSTEM CONTROL

MODULE, A12

. . .

3234.0

SYMBOLS

. . .

0140.0

TAIL LIGHT, LEFT, H25

. . .

6314.0-01

TAIL LIGHT, LEFT, H37

. . .

6314.0-01

TAIL LIGHT, RIGHT, H30

. . .

6314.0-01

TAIL LIGHT, RIGHT, H39

. . .

6314.0-01

TEMPERATURE SWITCH, S36

. . .

6450.6-03

TEMPERATURE SWITCH, S36

. . .

6450.6-08

TEMPERATURE WHEEL SWITCH, S531

. . .

6450.6-01

TEMPERATURE WHEEL SWITCH, S531

. . .

6450.6-06

THROTTLE POSITION SENSOR, R6252

. . .

1210.17-05

THROTTLE POSITION SENSOR, R6252

. . .

1210.20-05

TIRE INFLATION SYSTEM

. . .

3614.0-00

TRANSMISSION CONTROL MODULE (EGS), A8500

. . .

2460.2

TRANSMISSION POSITION INDICATOR LIGHT, E82

. .

6300.0-02

TRANSMISSION VALVE UNIT, Y8505y

. . .

2460.2-05

TRANSMISSION VALVE UNIT, Y8521

. . .

2460.2-01

TRANSMITTER MODULE (EWS II), A835

. . .

6135.0-00

TURN LIGHT, LEFT FRONT, H7

. . .

6313.0-02

TURN LIGHT, LEFT REAR, H6

. . .

6313.0-03

TURN LIGHT, RIGHT FRONT, H4

. . .

6313.0-02

TURN LIGHT, RIGHT REAR, H5

. . .

6313.0-03

TURN/HAZARD LIGHTS

. . .

6313.0

UNLOADER RELAY, TERMINAL 15, K6326

. . .

1210.17-02

UNLOADER RELAY, TERMINAL 15, K6326

. . .

1210.20-02

UNLOADER RELAY, TERMINAL 15, K9

. . .

5203.0-00

(11)

BM

BMW

Z3

2.5 VI/SW

0110.0 INTRODUCTION

04/99

01

10.0-1998

00

P90

FRONT POWER DISTRIBUTION BOX F1

15A

GROUND DISTRIBUTION 0670.4

6160.0-02 2.5 VI/SW 4

8

P91 REAR POWER DISTRIBUTION BOX F44

30A

X293 2

6 X293 FUSE DETAILS

0670.3

4 VI/SW 86

85

30

87

X452

CENTRAL BODY ELECTRONICS (ZKE) 6100.0 K11 WIPER RELAY FUSE DETAILS 0670.3

X493

Schematics

The schematics divide the entire vehicle electrical system into individual circuits. Interacting

electrical components are shown on one common schematic.

Switches and other components are represented in such a way that their general layout and

function are self–explicit. They are arranged on the sheet such that the current path can be

followed from positive (top) to negative (bottom).

Important: The components and wires are not drawn to scale. For instance, a lead with a length

of over 1m can be shown as a lead that is only a few cm long. To ensure clear arrangement , all

connectors, lines branches and connected components from the fuses to the component and

from the component to ground connection are not shown within the individual cells. If required,

reference can be made to cells 0670.3 Fuse Details and 0670.4 Ground Distribution where all

lines are illustrated with all plug connections, line branches and connected components.

All circuit symbols used are listed and explained in cell 0140.0 Symbols.

In cell 7000.0 Component Location Chart all important connectors, ground points and

components are listed in tabular form. It provides a precise description of the component

locations in the vehicle.

In cell 7100.0 Component Location Views the location of connectors and components which

are difficult to locate are shown in line arts or illustrations. In cell 8000.0 Splice Location Views

all splices are listed in numerical order and illustrations are provided to assist in locating splices

on larger harnesses. In cell 8500.0 Connector Views diagrams of connectors with more than 2

pins are illustrated.

Example

(12)

BM

BMW

Z3

04/99

INTRODUCTION

01

10.0-1998

01

General Conventions

1. Switches and relays are always shown in rest position (e.g. K11).

2. A component shown in a dashed frame signifies that the component is

illustrated only in part (e.g. P90 and P91).

3. A component shown in a completely drawn frame signifies that the

component is illustrated in full (e.g. K11).

4. The dashed line between pin 8 and pin 6 of connector X293 indicates

that both pins belong to connector X293.

5. The dashed line from fuse F1 to pin 8 of connector X293 shows the

positive supply of relay K11. If required, refer to cell 0670.3 Fuse Details at

fuse F1 for the complete line progressing with plug connections, line

branches, wire colors and cross sections.

6. The dashed line with an arrow at splice X452 indicates that several wires

lead to splice X452. All lines leading to the connection are illustrated in

cell 6100.0 Central Body Electronics (ZKE). An interrupted line with an

arrow indicates that only this one wire leads to another circuit.

7. The dashed line from pin 4 of connector X293 to ground X493 shows the

ground supply for relay K11. If required, refer to cell 0670.4 Ground

Distribution at ground X493 for the complete line progression with all plug

connections, line branches, wire colors, and cross sections.

8. The interrupted line from splice X452 with an A in the open arrow is

continued on page 6160.0–02.

(13)

BM

BMW

Z3

04/99

0140.0Ć

1998

00

CIRCUIT BREAKER

VARIABLE RESISTANCE SENSOR VARIABLE CON-TACT IS MOVED BY AN EXTERNAL FORCE

VARIABLE RESISTOR RESISTANCE IS CHANGED BY TEMPERATURE OR PRESSURE

DIODE CURRENT CAN FLOW ONLY IN DIRECTION OF ARROW

ZENER DIODE TO REGULATE VOLTAGE

LIGHT EMITTING DIODE PERMANENT MAGNET

MOTOR ONE SPEED

PERMANENT MAGNET MOTOR TWO SPEEDS SOLENOID

SOLENOID CONTROLLED VALVE OR CLUTCH SOLENOID

TRANSISTORIZED SWITCH HEATING ELEMENT

OXYGEN SENSOR

CONTROL/POWER ELECTRONICS

RADIO LOUDSPEAKER OR

HORN

LIGHT BATTERY

FUSIBLE LINK FUSE DETAILS

INDUCTIVE SENSOR

KNOCK SENSOR

31

N

S

VEHICLE SPEED SENSOR

N

S

THERMO SWITCH

HALL EFFECT SENSOR ANTENNA

(14)

BM

BMW

Z3

04/99

0140.0Ć

1998

01

A WAVY LINE MEANS WIRE IS CONTINUED ENTIRE COMPONENT

SHOWN

COMPONENT WITH SCREW TERMINALS

CONNECTOR ATTACHED TO COMPONENT PART OF COMPONENT SHOWN

.75 BR .5 BR

X270 4 .5 BR

.5 BR 3 .5 BR

.5 BR X270 4 .5 BR .75 GN/WS CONNECTOR

ATTACHED TO COMPONENT LEAD (PIGTAIL)

COMPONENT CASE ATTACHED DIRECTLY TO METAL PART OF CAR (GROUNDED)

WIRE INSULATION IS ONE COLOR PIN NUMBER

WIRE INSULATION IS ONE COLOR WITH ANOTHER COLOR STRIPE (GREEN WITH WHITE)

WIRE ATTACHED TO METAL PART OF CAR (GROUNDED) GROUND NUMBERED FOR REFERENCE ON COMPONENT LOCATION CHART

WIRE SIZE IN MM SQUARED BL BLUE

WIRE COLOR

BR BROWN GE YELLOW GN GREEN GR GRAY OR ORANGE RS PINK RT RED SW BLACK VI VIOLET WS WHITE

ONE POLE, TWO POSITION SWITCH

SWITCHES THAT MOVE TOGETHER DASHED LINE SHOWS A MECHANICAL CONNECTION BETWEEN SWITCHES

TR TRANSPARENT

CONNECTOR REFERENCE NUMBER FOR COMPONENT LOCATION CHART

TWO CONNECTIONS (PINS) IN THE SAME CONNECTOR DASHED LINE INDICATES TERMINALS OF THE SAME CONNECTOR 1 2

X165 1 2 1 2

(15)

BM

BMW

Z3

04/99

0140.0Ć

1998

02

4 RT

15 4 GN

1 3 .5 GN/WS

5

2.5 SW/GE 2.5 VI 4 2

DETAILS ABOUT COMPONENT OR OPERATION ”R” IS ENERGIZED

IN ACCY, RUN, OR START

7 6 8 2 X33 CONTACT RELAY RELAY WITH

RESISTOR ACROSS WINDING

TERMINAL NUMBER THREE POLE, FOUR POSITION SWITCH

COMPONENT NUMBER

S2

IGNITION SWITCH 0) OFF 1) ACCESSORY 2) RUN 3) START

TERMINAL NUMBER

DESCRIPTION 50 VOLTAGE: IGNITION

SWITCH IN START VOLTAGE: SUPPLIED AT ALL TIMES VOLTAGE: IGNITION SWITCH IN RUN OR START

30 15

15I 50 R 30

INDICATES THAT FUSE 9 IS SUPPLIED WITH POWER AT ALL TIMES CONTACT RELAY WITH

TWO OUTPUTS

CHANGEOVER RELAY WITH TWO OUTPUTS

TERMINAL NUMBER

DESCRIPTION 30 RELAY INPUT

RELAY OUTPUT (WINDING) RELAY INPUT (WINDING) RELAY OUTPUT (ENERGIZED) RELAY OUTPUT (AT REST) 85

86 87 87a 30 86

87 87 85

30 86

87 85 87a

TERMINAL NUMBER

DESCRIPTION VOLTAGE: IGNITION SWITCH IN RUN VOLTAGE: IGNITION SWITCH IN ACCESSORY, RUN OR START 15I

R

GROUND 31

POWER STATUS DESCRIPTION VOLTAGE: SUPPLIED AT ALL TIMES VOLTAGE: IGNITION SWITCH IN RUN OR START

VOLTAGE: IGNITION SWITCH IN ACCESSORY, RUN OR START 30 86

87 85

30 86

87 85

NAME OF COMPONENT

F9 15A

2 1 0 3

(16)

BM

BMW

Z3

SYMBOLS

04/99

0140.0Ć

1998

03

1.5 BR DATA LINK

0670.5 .5 WS/GE

0670.0-03

0670.0-02

1.5 BR

N9 RADIO

THE COMPLETE WIRE PROGRESSION AND FURTHER CIRCUITS CONNECTED TO GROUND X497 ARE SHOWN IN CELL ”0670.4 GROUND DISTRIBUTION” AT GROUND X497 THE COMPLETE WIRE

PROGRESSION AND FURTHER CIRCUITS CONNECTED TO FUSE 18 ARE SHOWN IN CELL ”0670.3 FUSE DETAILS” AT FUSE 18

CURRENT PATH IS CONTINUED AS LABELED P90

FRONT POWER DISTRIBUTION BOX F18

15A

GROUND DISTRIBUTION 0670.4 N1

ANTI–THEFT CONTROL MODULE (DWA)

FUSE DETAILS 0670.3

A1

GENERAL MODULE

X252 17

X332 2

CIRCUIT REFERENCE–A WIRE WHICH CONNECTS TO ANOTHER CIRCUIT A2

INSTRUMENT CLUSTER X16 11

RXD

ARROW SHOWS DIRECTION OF CURRENT FLOW AND IS REPEATED WHERE CURRENT PATH CONTINUES X497

X18126 15

(17)

* K33a *

AIR CONDITIONING RELAY, MOTRONIC

BM

BMW

Z3

K48

LOW BEAM LIGHT RELAY

X45 11 12 13

4 5 6 7 8 9

38 37 35 34 33 32 31 42 41 40 39 43 44

FRONT POWER DISTRIBUTION BOX

0670.0 POWER DISTRIBUTION CHART

04/99

0670.0Ć

1998

00

K2 HORN RELAY

K47

FRONT FOG LIGHT RELAY

K16

HAZARD FLASHER RELAY

K4

BLOWER RELAY

K10 ABS RELAY

K75

ABS PUMP MOTOR RELAY

K22 HIGH SPEED RELAY

K19 COMPRESSOR CONTROL RELAY

K21

NORMAL SPEED RELAY

X56 X44 X64 X58

X63 X54 X1161

X53 X51 X52 46

45

36

1 2 3 10

14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30

FUSES FUSES

X0

K9

UNLOADER RELAY, TERMINAL 15

K6304 SECONDARY AIR PUMP RELAY

X6304

4–CYLINDER

X50

K94 *

ENGINE CONTROL RELAY (ABS/ASC)

X18766 K95 * VALVE RELAY (ABS/ASC)

X18767

(18)

BM

BMW

Z3

IN E–BOX

04/99

0670.0Ć

1998

01

K6326

UNLOADER RELAY, TERMINAL 15

K6300

ENGINE CONTROL MODULE RELAY K6304

SECONDARY AIR PUMP RELAY

X6326

X6300 X6304

K6326

K6300

ENGINE CONTROL MODULE RELAY

X6326

X6300

(19)

BM

BMW

Z3

POWER DISTRIBUTION CHART

RELAY PANEL UNDER LH SIDE OF DASHBOARD

04/99

0670.0Ć

1998

02

N17

CRASH CONTROL MODULE

X65 K6301w

FUEL PUMP RELAY X6301

K46

HIGH BEAM LIGHT RELAY

X10262

*K46z

DAY LIGHT RELAY MODULE

X10262

(20)

BM

BMW

Z3

0670.1 FUSE CHART

0670.1Ć

FUSES 1 TO 29

04/99

1998

00

FUSE NUMBER

1

2

3

4

5

6

7

8

9

10

11 12 13 14 15 16 17 18 19

20

21 22 23 24 25 26 27 28 29

1210.20

1240.0

2460.2

3234.0

30A 15A 30A 15A 30A 20A 5A 15A 20A 30A 7.5A 7.5A 5A 15A 30A 5A 5A 5A 5A 10A 5A 5A 7.5A

ENGINE CONTROL SYSTEM (DME M5.2, 4–CYLINDER M44)

START

ELECTRONIC TRANSMISSION CONTROL (EGS A4S 270R)

5A 30A 15A 30A 10A

5116.0

POWER MIRRORS

5133.0

5200.0

ZKE POWER WINDOWS (FH)

POWER SEATS

5203.0

6133.0

6160.1

6169.0

HEATED SEATS

HORN

WINDSHIELD WASHER JET HEATERS

5126.0

3450.1

SLIP CONTROL (ABS/ASC)

1230.0

CHARGING SYSTEM

6135.0

DRIVE–AWAY PROTECTION (EWS II)

D

1210.17 ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER M52/S52)

D

6100.0

CENTRAL BODY ELECTRONICS (ZKE IV)

D

6167.1

D

5430.2

D

1290.0

E–BOX FAN

3450.0

SLIP CONTROL (ABS)

D

(21)

6312.0

BM

BMW

Z3

FUSE CHART

0670.1Ć

FUSES 1 TO 29

04/99

1998

01

FUSE NUMBER

1

2

3

4

5

6

7

8

9

10

11 12 13 14 15 16 17 18 19

20

21 22 23 24 25 26 27 28 29

6313.0

6314.0

6320.0

6322.0

30A 15A 30A 15A 30A 20A 5A 15A 20A 30A 7.5A 7.5A 5A 15A 30A 5A 5A 5A 5A 10A 5A 5A 7.5A

TURN/HAZARD LIGHTS

BACK UP LIGHTS

LICENSE PLATE/LUGGAGE COMPARTMENT LIGHTS

5A 30A 15A 10A

30A

6332.0

6424.0

REAR WINDOW DEFOGGER

6450.6

6561.0

6571.0

6575.2

INTEGRATED HEATING– AND CLIMATE CONTROL

6350.0

6330.3

INTERIOR LIGHTS

6325.0

BRAKE LIGHTS

6581.3

6510.1

RADIO/HIFI

D D

D

D D

D

D D

D

6300.0

D

6211.0

INSTRUMENT CLUSTER

D

6213.3

DIGITAL CLOCK

D

(22)

BM

BMW

Z3

FUSE CHART

0670.1Ć

FUSES 30 TO 49

04/99

1998

02

FUSE NUMBER

1210.20

1240.0

2460.2

3234.0

ENGINE CONTROL SYSTEM (DME M5.2, 4–CYLINDER M44)

START

ELECTRONIC TRANSMISSION CONTROL (EGS A4S 270R)

5116.0

POWER MIRRORS

5133.0

5200.0

ZKE POWER WINDOWS (FH)

POWER SEATS

5203.0

6133.0

6160.1

6169.0

HEATED SEATS

HORN

WINDSHIELD WASHER JET HEATERS

5126.0

3450.1

SLIP CONTROL (ABS/ASC)

1230.0

CHARGING SYSTEM

6135.0

DRIVE–AWAY PROTECTION (EWS II)

1210.17 ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER M52/S52)

6100.0

CENTRAL BODY ELECTRONICS (ZKE IV)

6167.1

HEADLIGHT WASHER (SRA)

5430.2

D

D D

D

39

7.5A 5A 30A 10A 15A 25A 30A 10A 30A 7.5A 30A 15A 15A 7.5A 15A

30

31

32

33 34

35

36

37

38

40

41 42 43 44 45 46

5A 5A

47

40A

48

D

50A

49

1290.0

E–BOX FAN

3450.0

SLIP CONTROL (ABS)

D

(23)

BM

BMW

Z3

FUSE CHART

0670.1Ć

FUSES 30 TO 49

04/99

1998

03

FUSE NUMBER

39

7.5A 5A 30A 10A 15A 25A 30A 10A 30A 7.5A 30A 15A 15A 7.5A 15A

30

31

32

33 34

35

36

37

38

40

41 42 43 44 45 46

5A 5A

47

6313.0

6314.0

6320.0

6322.0

TURN/HAZARD LIGHTS

BACK UP LIGHTS

LICENSE PLATE/LUGGAGE COMPARTMENT LIGHTS

6332.0

6424.0

REAR WINDOW DEFOGGER

6450.6

6561.0

6571.0

6575.2

INTEGRATED HEATING– AND CLIMATE CONTROL

6350.0

6330.3

INTERIOR LIGHTS

6325.0

BRAKE LIGHTS

6312.0

6581.3

6510.1

RADIO/HIFI

D

D D

D

40A

48

6300.0

D

50A

49

6211.0

INSTRUMENT CLUSTER

D

6213.3

DIGITAL CLOCK

(24)

BM

BMW

Z3

X0

0670.2 POWER DISTRIBUTION

04/99

0670.2Ć

1998

G1 BATTERY

0670.2-02 P90 FRONT POWER DISTRIBUTION BOX

00

30 B+ X6512 X6509

M6510 STARTER

G6509 GENERATOR

X2

10 RT

1240.0 1230.0 10 RT

25 RT

G6430 B+ JUMP START JUNCTION POINT

X6433 X6430

X6437 X6431

26 X8500 A8500 TRANSMISSION CONTROL MODULE (EGS)

8 X6300 K6300

ENGINE CONTROL MODULE RELAY 86 30

2460.2 1210.20

6

14 X6002 D100 DATA LINK CONNECTOR 2.5 RT 1 RT

4 RT 1 RT

26 X6000 A6000

ENGINE CONTROL MODULE (DME) 1210.20

4 RT

6 X6326 K6326

UNLOADER RELAY, TERMINAL 15 1210.20

6 RT

50 RT 6 RT

6 RT

2.5 RT

X6410

4–CYLINDER

2 X6304 K6304 SECONDARY AIR PUMP RELAY 1210.20

4 RT F97

80A

2 X6300

1 RT/WS 87

X6821 4 RT/WS

14 X20 .5 RT/WS

5 X10016 P90 FRONT POWER DISTRIBUTION BOX F13

5A 6 X10016 .5 RT/WS/GE

FUSE DETAILS 0670.3 ENGINE CONTROL

(25)

X6821

POWER DISTRIBUTION

8

BM

BMW

Z3

0670.2Ć

1998

01

04/99

X0

G1 BATTERY

0670.2-02 P90 FRONT POWER DISTRIBUTION BOX

30 B+ X6512 X6509 M6510

STARTER

G6509 GENERATOR

X2

16 RT

1240.0 1230.0 10 RT

25 RT

G6430 B+ JUMP START JUNCTION POINT

X6433 X6430

X6432 X6431

2.5 RT

1 RT .5 RT F97

80A

2 X6304 K6304 SECONDARY AIR PUMP RELAY 1210.17

6 RT

50 RT 6 RT

6 RT

X6411

X6437

26 X8500 A8500 TRANSMISSION CONTROL MODULE (EGS)

2460.2

26 X6000 A6000

ENGINE CONTROL MODULE (DME) 1210.17

6 X6326 K6326

6

K6300

ENGINE CONTROL MODULE RELAY 1210.17

X6300 X6412

14 X6002

D100 DATA LINK CONNECTOR X6415

4 RT

X6414 4 RT

4 RT 4 RT 10 RT

4 RT 2.5 RT

6–CYLINDER

2 X6300

1 RT/WS X6822 4 RT/WS

14 X20 .5 RT/WS

5 X10016 F13 5A 6 X10016 .5 RT/WS/GE

FUSE DETAILS 0670.3 2.5 RT/WS

ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER M52/S52) 1210.17

X6413 2.5 RT

P90 FRONT POWER DISTRIBUTION BOX Z3 ROADSTER

(26)

2.5 RT/BR LATE PRODUCTION 12 2.5 RT 11 2.5 RT/ BL 2.5 RT/ WS 1 RT/ WS/GE 2.5 RT/ SW/WS

BM

BMW

Z3

2.5 RT/ GN/GE 1.5 RT/VI .75 RT/ GR

0670.2Ć

1998

02

POWER DISTRIBUTION

X1015 P90 FRONT POWER DISTRIBUTION BOX FUSE DETAILS 0670.3 0670.2-03 0670.2-04 X10018 20 17 X10015 8 7 X10015 F40 30A F4 15A 2.5 RT 16 RT P90 FRONT POWER DISTRIBUTION BOX X1186 6 RT 4 RT 4 RT 0670.2-00 X2 30 19 X10018 18 F39 7.5A .75 RT/ GN 1 X10030 14 F7 5A 16 F8 15A 18 F9 20A 20 F10 30A 2.5 RT/ GN 2.5 RT/ GN 16 1 X10034 F38 30A 2 F31 5A 4 F32 30A 6 1 RT/ WS F33 10A 1.5 RT/ WS/GE F34 15A F35 25A 12 2.5 RT/ BL/GE F36 30A 14 1.5 RT/ BL F37 10A 4 RT

2.5 RT 1.5 RT

10 8 .5 RT/GE X10015 6 RT

04/99

30 30 30 30 30 30 30 30 30 30 30 30 30 30 0670.2-01 20 F20 30A 30 X10016 19 X10016 2.5 RT 4 RT/GN P97 AUXILIARY FUSE BOX X1588 2 1 X1588 F48 40A 4 RT 30 4–CYLINDER Z3 ROADSTER 6–CYLINDER 30 4 RT/ GE 2 16 F18 15A 2.5 RT 30 15 2.5 RT 1 X10015 F1 30A 4 RT/GN ELECTRICAL CONVERTIBLE TOP 4 RT 4 RT/ WS P95 AUXILIARY FUSE BOX X19023 2 1 X19023 F49 50A 30

M ROADSTER WITH ASC 4 RT

(27)

BM

BMW

Z3

X10016 X10015

1 WS/GN

0670.2Ć

1998

03

POWER DISTRIBUTION

18 1 X10036

P90 FRONT POWER DISTRIBUTION BOX F29

7.5A

FUSE DETAILS 0670.3 2.5 RT/WS

X10017 20

F30 7.5A

2 1 X10035

4

F11 7.5A F2

15A K46

HIGH BEAM LIGHT RELAY

X10262 2

6 X10262

87

3 9 X10015

F15 15A

F5 30A X45

6 X45 K48

LOW BEAM LIGHT RELAY 2

2 6 X44

K47

FRONT FOG LIGHT RELAY

9 X10015

4 F12 7.5A

18 X10182 A104 BODY ELECTRONICS CONTROL MODULE (ZKE IV)

1 WS/BL 1.5 RT/GR 1 GE/BR 1 GE/GN 1 GE/BL 2.5 GE

1 RT/GE 2.5 RT 1.5 RT

2.5 RT

.75 RT

18 17

F19 30A

2.5 RT/ GE 2.5 RT 1.5 RT

10

30 56a 56a 30 NSW 56b 56b

87 87

1.5 RT

0670.2-02

2.5 RT X1073

X64119 6 RT 4 RT

X64109

X10016 8 7 X10016

F14 30A 30

2.5 RT/BL 2.5 RT

04/99

10 X10015

X10016

30 X44

X10016 5

F3 30A 6 30

2.5 RT/BR/GE

X64129 6 RT

6100.0 6330.3 2.5 RT

2.5 RT/SW Z3 ROADSTER

K46z

(28)

BM

BMW

Z3

8 2.5 SW/GE 7

30

28

04/99

0670.2Ć

1998

04

POWER DISTRIBUTION

P90 FRONT POWER DISTRIBUTION BOX

FUSE DETAILS 0670.3 26

27

F43 5A

F44 15A

.75 VI/WS 1.5 VI/SW 1.5 VI X888

8 X56 .5 VI

X10018 32 30

F45 7.5A

F46 15A

1.5 VI/WS 1.5 VI/GE 0670.2-05

K2 HORN RELAY

R

2 X33 50

6 .5 GN/WS

15I

2.5 GN 15

NOT USED

5 X209 4 RT

X33 1 0670.2-02

4 RT

2.5 GN/SW

S2

IGNITION SWITCH 0) OFF 1) ACCESSORY 2) RUN 3) START X209

2 4

3 1

2.5 GN

2.5 VI

R R R R 6133.0

24 23

F42 15A

.5 VI/GN .5 VI

R 3 X1659

A836 ELECTRONIC IMMOBILIZER CONTROL MODULE (EWS II) 1240.0

31 X10018 29

25 .75 VI

22 21

F41 5A

.5 VI/BL .5 VI

R

1.5 VI X223

1.5 VI 1.5 VI

2 1 0 3

(29)

1.5 GN

LATE PRODUCTION

8 1.5 GN/GE

7

F4 15A

BM

BMW

Z3

A2w INSTRUMENT CLUSTER

K4

BLOWER RELAY

X10015

2.5 GN

X10016 12 .5 GN/BL/GE

0670.2Ć

1998

05

POWER DISTRIBUTION

2

P90 FRONT POWER DISTRIBUTION BOX F21

5A

FUSE DETAILS 0670.3 6

F23 5A

8 1 X10026

12 F24

10A

F26 10A

14 16 X10017

15 X10017 11 X10016

F27 5A

F28 5A

F16 5A

.5 GN/BL .75 GN/SW 1.5 GN/WS .5 GN/VI .5 GN/GR .5 GN/BL

2.5 GN .5 GN .5 GN

2.5 GN

X203

4 .5 GN/GE

F22 5A

10 .5 GN/RT

F25 5A 2.5 GN

0670.2-04

15

15 15

8 X58 X1100

.5 GN 5 X17

.5 GN

2.5 RT/BR 12

F6 20A

1.5 GN

11 X10015 15

04/99

ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER M52/S52) 1210.17

1230.0 6211.0

6450.6 ENGINE CONTROL

(30)

BM

BMW

Z3

FUSES 1, 2, 3, 4, 5, AND 6

0670.3Ć

1998

00

0670.3 FUSE DETAILS

4 10

K9

UNLOADER RELAY, TERMINAL 15 6 X63

8

1.5 RT/VI

5203.0

S56 PASSENGER’S SEAT, SEAT CONTROL SWITCH 2.5 RT/SW

5200.0 2 X279 2 RT/SW

5 X898

12

S76 REAR WINDOW DEFOGGER SWITCH

2.5 RT/BR

6424.0

04/99

F2 15A

F4 15A

F5 30A

F6 20A

1.5 RT/GR

2 X10065 ACCESSORY CONNECTOR

P90 FRONT POWER DISTRIBUTION BOX

A51

WIPER/WASHER MODULE 14 X285

6

2.5 RT/BR/GE

6160.1 F3 30A

6167.1

X10015 2

K18363

CONVERTIBLE TOP RELAY I (CLOSE) 2.5 RT/GE

5430.2 1

F1 30A

2 X18363

K18364

CONVERTIBLE TOP RELAY II (OPEN) 5430.2

2 X18364 6 X13146 4 RT/GE

X10014

2.5 RT/GE

2.5 RT/GE 2.5 RT/GE

6 X63 K9

EARLY PRODUCTION LATE PRODUCTION EARLY PRODUCTION LATE PRODUCTION

EARLY PRODUCTION LATE PRODUCTION

S53

DRIVER’S SEAT, SEAT HEATER SWITCH 2

5203.0 3 X651 .5 GN/GE .5 GN/GE

S54 PASSENGER’S SEAT, SEAT HEATER SWITCH 2

5203.0 3 X658 .5 GN/GE .5 GN/GE

(31)

BM

BMW

Z3

FUSES 7, 8, AND 9

0670.3Ć

1998

01

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

K2 HORN RELAY 6 X56

16 1 RT/WS/GE

6133.0

18

30

N9 RADIO 9 X18126 2.5 RT/WS

6510.1

A18 HIFI AMPLIFIER 1 X605

6510.1 X19513

2.5 RT/WS

N22 CD CHANGER 2 X18180

.5 RT/WS

X10015

4 X322 2.5 RT/WS

6510.1

1.5 RT/WS

04/99

F8 15A

F9 20A 14

X1234

S47

DRIVER’S DOOR LOCK SWITCH .5 RT/GN

M12

DRIVER’S DOOR LOCK MOTOR 6 X660

.5 RT/GN

M13 PASSENGER’S DOOR LOCK MOTOR 6 X641 .5 RT/GN

S49 PASSENGER’S DOOR LOCK SWITCH 2 X742 .35 RT/GN

M17 LUGGAGE COMPARTMENT LOCK MOTOR X311

2 X747

11 12 X257 12 .35 RT/GN .35 RT/GN .35 RT/GN

.75 RT/GN

5126.0

11 X256 .5 RT/GN

5126.0 5126.0

.35 RT/GN 3

5126.0

5126.0 F7

5A

N5

ANALOG CLOCK 2 X1155

.5 RT/GN

6211.0 2 X19245 .5 RT/GN

(32)

BM

BMW

Z3

FUSES 10, 11, AND 12

0670.3Ć

1998

02

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

A52 SLIP CONTROL MODULE (ABS/ASC) 51 X1171

3450.1 X10055

K10 ABS RELAY 2 X54

2.5 RT/BL

20 X10015

K75

8 X1161

3450.1 2.5 RT/BL

2

E14

RIGHT LOW BEAM LIGHT 4

E13

LEFT LOW BEAM LIGHT

X10016

2 X135

2 X130

6312.0 6350.0

E8

RIGHT HEADLIGHT

E7

LEFT HEADLIGHT 1 GE/GN 1 GE/BL

2.5 RT/BL

3450.1

04/99

F10 30A

F11 7.5A

F12 7.5A 56b 56b

Z3 ROADSTER 6–CYLINDER

2.5 RT/BL

K10 ABS RELAY 2 X54

3450.0 2.5 RT/BL

A52 SLIP CONTROL MODULE (ABS/ASC) 51 X1175

3450.1 2.5 RT/BL 4–CYLINDER

M ROADSTER WITH ABS

(33)

BM

BMW

Z3

8

FUSES 13, 14, AND 15

0670.3Ć

1998

03

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

A104 BODY ELECTRONICS CONTROL MODULE (ZKE IV) 1 GE/BR

E26

LEFT FOG LIGHT

A2w INSTRUMENT CLUSTER 8 X17

.75 GE/BR

6312.0 1 GE/BR

E27

RIGHT FOG LIGHT NSW

10 X10016

1 GE/BR

X1152

2 X768 2 X769

6312.0 6312.0

8 X13252 2.5 RT/BL

04/99

5133.0 F14 30A

F15 15A

6100.0 6

K6301w FUEL PUMP RELAY 8 X6301

.5 RT/WS/GE

1210.17 F13 5A

1210.20

B6247

CHARCOAL FILTER SHUT–OFF VALVE 2 X6247

1210.17 1210.20 X2233

.5 RT/WS/GE .5 RT/WS/GE

S6 ASC SWITCH 1 X2227

3450.1 .5 RT/WS/GE

A52 SLIP CONTROL MODULE (ABS/ASC) 1 X1175 1.5 RT/WS/GE

3450.1 M ROADSTER

(34)

BM

BMW

Z3

FUSES 16, 18, 19, AND 20

0670.3Ć

1998

04

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

K6301w FUEL PUMP RELAY

16 20

6 X58 K4

BLOWER RELAY 2.5 RT/GN

K21

NORMAL SPEED RELAY 4 X52 12

.5 GN/BL

6450.6

K22 HIGH SPEED RELAY 8 X53 .5 GN/BL

6450.6 K19

COMPRESSOR CONTROL RELAY 4 X51

.5 GN/BL

X470

6 X6301 2.5 RT .5 GN/BL

6450.6 1210.20

30 X10016 18

2 X275 2.5 RT/GE

1210.17

04/99

S51

DRIVER’S SEAT, SEAT CONTROL SWITCH 5200.0

2 RT/GE 1210.17

F16 5A

F18 15A

F19 30A

F20 30A

6450.6

(35)

BM

BMW

Z3

FUSES 21 AND 22

04/99

0670.3Ć

1998

05

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

S8

LIGHT SWITCH 2 X503

4 .5 GN/GE

6300.0 2

.5 GN/BL/GE

6312.0 S6

ASC SWITCH

35

3450.1 .5 GN/BL/

GE

K10 ABS RELAY 4 X54

3450.1 .5 GN/BL/

GE

A52 SLIP CONTROL MODULE (ABS/ASC) 3450.1

.5 GN/BL/GE

S6 ASC SWITCH 5 X521

3450.1 .5 GN/BL/GE

.5 GN/BL/GE .5 GN/BL/GE

X1163

5 X521 .5 GN/BL/GE

X10017 F21

5A

F22 5A

A52 SLIP CONTROL MODULE (ABS/ASC) X1171 Z3 ROADSTER

6–CYLINDER 4–CYLINDER

3450.1

4 X1170

K10 ABS RELAY

3450.0 .5 GN/BL/GE

A7

SLIP CONTROL MODULE (ABS) 8 X11

3450.0 .5 GN/BL/GE

X1163

4 X54

19

(36)

3 LATE PRODUCTION

BM

BMW

Z3

FUSES 23, 24, AND 25

0670.3Ć

1998

06

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX F25

5A

X625 4

S17

MIRROR CONTROL SWITCH 5116.0

X10262 5

X257 18 X10020

.75 GN/SW

X11264

K46

HIGH BEAM LIGHT RELAY .75 GN/SW

.75 GN/SW

8 10 X10017

.5 GN/RT

X1148 1

S198 JET HEATER THERMOSWITCH

6169.0 .75 GN/SW

X503 4

S8

LIGHT SWITCH .5 GN/RT

.5 GN/RT

04/99

6312.0

6300.0 6312.0 6350.0 F24

10A

X19565 1

S559

PASSENGER’S AIR BAG CUT–OFF SWITCH 3234.0

.5 GN/SW 6

F23 5A

X1076

S7 COMBINATION SWITCH

X17 4

A2w INSTRUMENT CLUSTER

X18333 1

6300.0

6312.0 6313.0 .5 GN/GE

.5 GN/BL .5 GN/BL .5 GN/BL

6211.0

.5 GN/BL

X32 9

X10065 1

X63 8

K9

UNLOADER RELAY, TERMINAL 15 1.5 GN/BL

5203.0

X1098 1 .5 GN/BL .5 GN/BL

ACCESSORY CONNECTOR

.5 GN/BL

S76 REAR WINDOW DEFOGGER SWITCH 5 X898

6424.0

EARLY PRODUCTION LATE

PRODUCTION

S8

LIGHT SWITCH

K46z

(37)

BM

BMW

Z3

2460.2

6312.0 X6835

S8503

PROGRAM SWITCH

16

FUSES 26, 27, 28, 29, AND 30

04/99

0670.3Ć

1998

07

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

X10017

X20 22

X8511 S8511

REVERSING LIGHT SWITCH 2

D100 DATA LINK CONNECTOR

X8503 5

X16 A2w INSTRUMENT CLUSTER 23

X511 S3 AUTOMATIC TRANSMISSION RANGE SWITCH 5

6571.0

E11

LEFT HIGH BEAM LIGHT

E12

RIGHT HIGH BEAM LIGHT

X131 2

X134 2 2460.2 2460.2

6322.0

X6002

20 18

16 14

12

1.5 GN/WS .5 GN/VI .5 GN/GR 1 WS/GN 1 WS/BL

6312.0 .75 GN/WS

1.5 GN/WS

1 GN/WS 1.5 GN/WS

1.5 GN/WS X1168

E7

LEFT HEADLIGHT E8

RIGHT HEADLIGHT 6322.0

3450.1 6211.0

6135.0 1240.0 X511

2 1 GN/WS

WITHOUT EGS S3

AUTOMATIC TRANSMISSION RANGE SWITCH

F26 10A

F27 5A

F28 5A

F29 7.5A

F30 7.5A 56a 56a

1230.0 X6524 1 1.5 GN/WS

G6509 GENERATOR

3234.0 Z3 ROADSTER

6–CYLINDER

(38)

BM

BMW

Z3

FUSE 31

0670.3Ć

1998

08

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

X1067

X10263 6

A110 DIGITAL CLOCK .5 RT/GE

X16 22

A2w INSTRUMENT CLUSTER 6211.0

X522 3

H10

CHIME MODULE

6211.0

N12w ANTI–THEFT CONTROL MODULE (ALPINE) 6575.2

.5 RT/GE .5 RT/GE 1 RT/GE .5 RT/GE X10018

2

X1659 5

A836 ELECTRONIC IMMOBILIZER CONTROL MODULE (EWS II) .5 RT/GE

1240.0 X10245

5

A35y BOARD COMPUTER (BC – LOW) 6581.3

.5 RT/GE

X19527 16 .5 RT/GE

04/99

6213.3

6135.0 D110

OBD II CONNECTOR

F31 5A

1 X13025

(39)

BM

BMW

Z3

1.5 RT/WS/GE

FUSES 32, 33, 34, AND 35

0670.3Ć

1998

09

FUSE DETAILS

X64 6

K16

HAZARD FLASHER RELAY 6313.0 8

X65 6

N17

CRASH CONTROL MODULE 6313.0

10

6350.0

1.5 RT/WS/GE 2.5 RT/GN/GE

1.5 RT/WS/GE X1069

X10018

X13252 10

A104 BODY ELECTRONICS CONTROL MODULE (ZKE IV) X1079

X531 E28 FRONT CIGAR LIGHTER 6332.0

2.5 RT/SW/WS

X503 7

S8

LIGHT SWITCH 6300.0

6 4

1 RT/WS

6561.0 X400 1

X712 1 .75 RT/WS

X11105 .5 RT/WS

S408 INTERIOR LIGHT SWITCH

.75 RT/WS

E32 LUGGAGE COMPARTMENT LIGHT X336

1

.5 BR

1

04/99

TELEPHONE CONNECTOR

6320.0

5126.0 1

F32 30A

F33 10A

F34 15A

F35 25A

6330.3

X13252 12

A104 BODY ELECTRONICS CONTROL MODULE (ZKE IV) 6100.0 .75 RT/WS

6330.3

(40)

BM

BMW

Z3

6332.0

FUSES 36, 37, 38, AND 39

04/99

0670.3Ć

1998

10

FUSE DETAILS

12

X503 5

S8

LIGHT SWITCH

X51 K19 COMPRESSOR CONTROL RELAY

6450.6 X1161

8

K75

3450.0

14 16 18 X10018

6300.0 6314.0

2.5 RT/GN .75 RT/GR

X285 6

A51

WIPER/WASHER MODULE A64

WIPER/WASHER MODULE (LOW II) 6160.1

2.5 RT/BL/GE 1.5 RT/BL

2.5 RT/GN F36

30A

F37 10A

F38 30A

F39 7.5A

6167.1

6160.1 6320.0

M ROADSTER WITH ABS, Z3 ROADSTER 6–CYLINDER

1210.17 X1652

4

A52 SLIP CONTROL MODULE (ABS/ASC) 3450.1

2.5 RT/GN 4–CYLINDER

X18767 2

K95 VALVE RELAY (ABS/ASC) 3450.1

2.5 RT/GN M ROADSTER WITH ASC

6

(41)

LATE PRODUCTION

X8103 .5 VI/GN

6–CYLINDER .5 VI/GN

BM

BMW

Z3

X74 5

A12

SUPPLEMENTAL RESTRAINT SYSTEM CONTROL MODULE

FUSES 40, 41, AND 42

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

X53 6

K22 HIGH SPEED RELAY 2.5 RT/GN

20 22

X10218 1

A113

SEAT OCCUPANCY DETECTOR 24 X10018

.5 VI/BL .5 VI/GN

0670.3Ć

1998

11

X1263

.5 VI/GN

04/99

6450.6 3234.0 3234.0 F40

30A

F41 15A

F42 5A

X6002 4 D100 DATA LINK CONNECTOR

X6031 8 .5 VI/GN

X778 4

S58 DRIVER’S SEAT BELT SWITCH

X1264

.5 VI/BL

3234.0

X1885 2

B78 DRIVER’S SIDE IMPACT SENSOR .5 VI/BL

3234.0

.5 SW/VI/GE 6–CYLINDER

.5 VI/BL

X18518 4

S59 PASSENGER’S SEAT BELT SWITCH .5 VI/BL

3234.0

.5 VI/BL

X1886 2

(42)

BM

BMW

Z3

FUSES 43, 44, AND 45

04/99

0670.3Ć

1998

12

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX 26

N12w ANTI–THEFT CONTROL MODULE (ALPINE) .75 VI/WS

X1235

A104 BODY ELECTRONICS CONTROL MODULE (ZKE IV) 4 X10182 .75 VI/WS

30 X10018

5 X10263 A110 DIGITAL CLOCK 1.5 VI/WS

N9 RADIO 5 X18126

6510.1 .75 VI/WS

28

A51

WIPER/WASHER MODULE A64

WIPER/WASHER MODULE (LOW II) 8 X285

1.5 VI/SW

X10022

M4

WASHER PUMP 1 X107

.75 VI/SW

5 X400 .5 VI/WS

2 X322 1.5 VI/SW

1.5 VI/WS

X1066

S235 STARTER IMMOBILIZATION SWITCH 3 X18994 .5 VI/WS .35 VI/WS

5126.0

6575.2

TELEPHONE CONNECTOR 6561.0

6160.1

6213.3

1240.0 .5 VI/SW

F43 5A

F44 15A

F45 7.5A

2 X13025

2 X10260 A835 TRANSMITTER MODULE (EWS II) .5 VI/WS

6135.0

6100.0 6330.3

6167.1

(43)

X1182

BM

BMW

Z3

S28

CRUISE CONTROL SWITCH

6571.0 .5 VI/GE

X72 1 X17

16

A2w INSTRUMENT CLUSTER 6211.0

.5 VI/GE

FUSE 46

04/99

0670.3Ć

1998

13

FUSE DETAILS

P90 FRONT POWER DISTRIBUTION BOX

X22 26

A8

CRUISE CONTROL MODULE (TEMPOMAT) 6571.0

1.5 VI/GE

S30 BRAKE LIGHT SWITCH

6325.0

1.5 VI/GE .5 VI/GE

X78 1

X10018 32

6571.0

.5 VI/GE

3450.1

F46 15A

2460.2

X10059 3

B59

OIL TEMPERATURE GAUGE 6211.0

X10245 10

A35y BOARD COMPUTER (BC – LOW) 6581.3

3450.0 5430.2

Z3 ROADSTER M ROADSTER

.5 VI/GE X19245 5 .5 VI/GE X91186

X9770 3 .5 VI/GE

(44)

BM

BMW

Z3

2

FUSES 48 AND 49

0670.3Ć

1998

14

FUSE DETAILS

P97

AUXILIARY FUSE BOX

K94

ENGINE CONTROL RELAY (ABS/ASC) X19023

8 X18766 4 RT/WS

04/99

3450.1 F49 50A 2

K22 HIGH SPEED RELAY 6 X53 4 RT/GN

6450.6 F48

40A

6 X52 X18061

P95

AUXILIARY FUSE BOX

X1588

4 RT/GN

6450.6 K21

NORMAL SPEED RELAY 4 RT/GN

M ROADSTER WITH ASC

K22 HIGH SPEED RELAY 6 X53

6450.6 4 RT/GN

(45)

Z3 ROAD-STER 3 4–CYLINDER S36y DOUBLE TEMPERATURE SWITCH X11379 1

BM

BMW

Z3

1998

0670.4 GROUND DISTRIBUTION

GROUNDS X4 AND X165

00

X137 1 E52 RIGHT WASHER JET HEATER E51

LEFT WASHER JET HEATER

.75 BR .75 BR

04/99

0670.4Ć

.75 BR X105 1 .5 BR H4 RIGHT FRONT TURN LIGHT .5 BR X767 2 E22 RIGHT FRONT MARKER LIGHT 1 BR X10088 2 X133 1 H3 RIGHT HORN X127 2 B9508 PRESSURE SWITCH .5 BR X123 1 X135 1 E14

RIGHT LOW BEAM LIGHT X1091 X216 X1611 X576 X1610 X11337 2.5 BR 1.5 BR 4 BR 1.5 BR 1.5 BR

4 BR 6 BR .75 BR X106 1 .75 BR X165 .75 BR 1 E27

RIGHT FOG LIGHT X87 1 S36 TEMPERATURE SWITCH X134 1 E12

RIGHT HIGH BEAM LIGHT

1.5 BR

X769 2.5 SW/BR X285 15 A51 WIPER/WASHER MODULE M7 HEADLIGHT/FOG LIGHT WASHER PUMP X123 2 2.5 SW 4–CYLINDER WITH HEADLIGHT WASHER WITHOUT HEAD-LIGHT WASHER E19

RIGHT PARK LIGHT

(46)

M ROADSTER 4 BR

X1890 1 4–CYLINDER

X768 1

E26

LEFT FOG LIGHT

BM

BMW

Z3

1998

GROUND DISTRIBUTION

GROUND X166

01

X766 2 S21w ENGINE HOOD SWITCH

.5 BR .5 BR

04/99

0670.4Ć

X371 1

X19022 1

2.5 BR

M9

AUXILIARY FAN MOTOR

E21 LEFT FRONT MARKER LIGHT

1 BR X132 1

H2 LEFT HORN

.75 BR

X131 1

E11

LEFT HIGH BEAM LIGHT X130

1 E13

LEFT LOW BEAM LIGHT

X1614 X698

X699

X697

X11339

1.5 BR 1.5 BR

4 BR 1.5 BR 1.5 BR

4 BR

6 BR X166 X128

1

.75 BR X389

1 H9 LEFT FRONT AUXILIARY TURN LIGHT

.5 BR

H4 RIGHT FRONT TURN LIGHT E15

LEFT PARK LIGHT

H7

LEFT FRONT TURN LIGHT

E7

LEFT HEADLIGHT

X82 1

(47)

BM

BMW

Z3

GROUND DISTRIBUTION

GROUNDS X170 AND X494

04/99

0670.4Ć

1998

02

2.5 BR X31 4

Y1

ABS HYDRAULIC UNIT

X19526 X1161 9

K75

1.5 BR

4 BR 2.5 BR

X1176 20

Y1

ABS HYDRAULIC UNIT

X1161 9

K75

1.5 BR

X170 X54

5

K10 ABS RELAY

1 BR

X170 Z3 ROADSTER 6–CYLINDER

.5 BR X324 4

S127y PASSENGER’S POWER WINDOW SWITCH

X316 4

S126y DRIVER’S POWER WINDOW SWITCH

.5 BR

X494 2.5 BR

X1176 20

Y1

ABS HYDRAULIC UNIT

X1161 9

K75

1.5 BR

X170 X1542

2.5 BR

17 26 X11 A7

SLIP CONTROL MODULE (ABS) 5

.75 BR .75 BR .75 BR 41

.5 BR

X19525

1.5 BR

(48)

X1652

BM

BMW

Z3

GROUND DISTRIBUTION

GROUNDS X861, X1116, X1166, AND X1441

04/99

0670.4Ć

1998

03

1 19 X1171 A52 SLIP CONTROL MODULE (ABS/ASC)

2.5 BR 2.5 BR

3

2.5 BR

X1166 6–CYLINDER

X18363 5

K18363

CONVERTIBLE TOP RELAY I (CLOSE)

X18364 5

K18364 CONVERTIBLE TOP RELAY II (OPEN)

2.5 BR

X1116

2.5 BR

2 3 X1170 A52 SLIP CONTROL MODULE (ABS/ASC) 41 19

4–CYLINDER

.75 BR .5 BR .75 BR .75 BR

X1166

X74 6

A12

SUPPLEMENTAL RESTRAINT SYSTEM CONTROL MODULE

X1441 .5 BR/SW X6133

1

Y6133 AIR PUMP

X861 4 BR

4–CYLINDER

55 28 29 X1175

1.5 BR 1.5 BR 1.5 BR

(49)

BM

BMW

Z3

GROUND X6454

04/99

0670.4Ć

1998

04

GROUND DISTRIBUTION

A8500 TRANSMISSION CONTROL MODULE (EGS)

X8500 34 6

1.5 BR

W6165 SHIELD UP TO 10mm BEFORE IGNITION COIL CONNECTOR

X6462 X6492

6 BR

X6002 19

X6454

B6209

HALL EFFECT CAM-SHAFT SENSOR A6000

ENGINE CONTROL MODULE (DME) X6000

34 28

2.5 BR 6

2.5 BR 55

2.5 BR

X6463

4 BR

D100 DATA LINK CONNECTOR B6217

HOT FILM AIR MASS METER

1.5 BR 1.5 BR

1.5 BR

X6217 1

X6209 3

.5 BR

1.5 BR K6326

.5 BR X6326 4

A8500 TRANSMISSION CONTROL MODULE (EGS)

1 BR X8500 28 3

W6203 CRANKSHAFT POSITION/RPM SENSOR SHIELD

X6203

W6203 CRANKSHAFT POSITION/RPM SENSOR SHIELD X6460

1 X6091

X6091 30 .5 BR

4–CYLINDER

.5 BR

K6304 SECONDARY AIR PUMP RELAY X6304 5

(50)

BM

BMW

Z3

W6203 CRANKSHAFT POSITION/RPM SENSOR SHIELD

1.5 BR

GROUND DISTRIBUTION

GROUND X6454

04/99

0670.4Ć

1998

05

.5 BR

X6459

X6454

1.5 BR/OR 4 BR 4 BR/OR 19

X6002 D100 DATA LINK CONNECTOR A8500

TRANSMISSION CONTROL MODULE (EGS)

1.5 BR 1.5 BR/OR

X6458

2.5 BR 1.5 BR 1.5 BR/OR W6165

SHIELD UP TO 10mm BEFORE IGNITION COIL CONNECTOR

B6207 HOT FILM AIR MASS METER

X6492

.5 BR/OR X6000

4 34

32 28 1 X6207

A6000

ENGINE CONTROL MODULE (DME) K6326

UNLOADER RELAY, TERMINAL 15 X6326

4

.5 BR

34 28 X8500

6–CYLINDER

Z3 ROADSTER M6506

E–BOX FAN

X6506 1

(51)

BM

BMW

Z3

GROUND DISTRIBUTION

GROUND X6456

04/99

0670.4Ć

1998

06

1 BR
