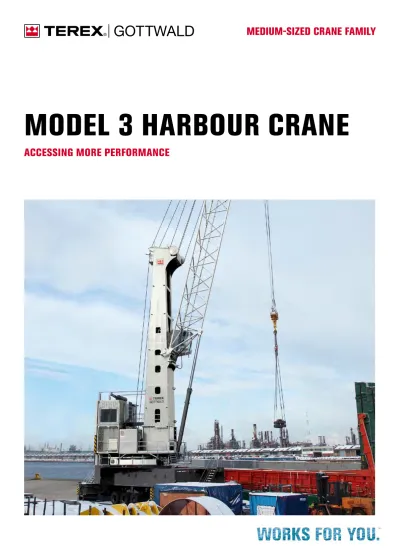

MODEL 3 HARBOUR CRANE

MODEL 3 HARBOUR CRANE

ACCESSING MORE PERFORMANCE

Barges / coasters Feeders Standard Panamax Post-Panamax Super Post-Panamax

80 – 500

≤ 6 300 – 1,200 ≤ 8 1,000 – 2,500 ≤ 10 3,000 – 4,500 ≤ 13 6,000 – 9,600 ≤ 17 10,000 – 11,000≤ 18

Barges / coasters Handysize Handymax Panamax Capesize Bulker

≤ 5,000 ≤ 30,000 ≤ 50,000 ≤ 80,000 ≤ 170,000

Terex® _{Gottwald Model 3 harbour cranes are compact,}

electrically driven 2-rope cranes for moderate to medium duty handling requirements. As entry equipment in the medium-sized crane family from Terex Port Solutions (TPS), they offer powerful lifting capacity curves with lifting capacities of up to 100 t, maximum radii of 46 m and lifting speeds of up to 120 m/min.

Model 3 harbour cranes are functional and designed for a broad range of applications. In terminals of all types and on vessels up to standard class, they help you handle:

A

A

A

A

Variants for different functions

With all the variants of Model 3, you profit from a high- performance 2-rope crane with good capabilities and a wide working radius, for efficient container handling. For handling bulk materials, Model 3 also has a 34-t motor grab curve.

Model 3 harbour cranes allow you to access a higher performance range and possess all the features you expect in a handling machine for productive and durable operation. Model 3 cranes are:

A

A

A

A

THE ENTRY MODEL

FOR HIGHER REQUIREMENTS

MODEL 3 HARBOUR CRANE

Crane families

and models Small Large

Vessel sizes

Model 2 Model 3 Model 4 Model 5 Model 6 Model 7 Model 8

Container Capacity [TEUs] No. of rows Bulk Capacity [DWT] Medium-sized

The Model 3 harbour crane is characterized by its compact construction, top-of-the-line functionality

and high performance – like all Terex® _Gottwald

harbour cranes, it combines low operating costs with high reliability

CUSTOMIZED SOLUTIONS

A

A Customized portal

A

A Customized barge

The mobile harbour crane technology available from TPS is not restricted to the mobile harbour crane. As the industry's pioneer, we have used the basis of this sophisticated technology to create a modular system of harbour crane types on quays, rivers and on the open sea.

QUAYSIDE CRANES FLOATING CRANES

G HSK portal harbour crane on a barge G HPK pedestal-mounted

harbour crane

A

A Stationary, customized pedestal

G HMK mobile harbour crane

A _{Classic chassis}

G HSK portal harbour crane

A

A Rail-mounted

A

A Customized portal

A

A Clearance height under portal and

clear width to customer's specifications

THE RIGHT CRANE FOR EVERY SITE

MODEL 3 TYPES – HARD TO BEAT

The types and variants of Model 3 harbour cranes

Crane

types Variants capacities [t]Max. lifting speeds [m/min]Max. hoisting radius [m]Max.

80 100 85 100 120 46

G HMK (G HSK) (G HPK)

3405 standard variant ✔ ✔ ✔

3405 general cargo variant ✔ ✔ ✔

A A Customized portal A A Customized barge Maximum wave height 2.5 m FLOATING CRANES

G HSK portal harbour crane on a barge

Available in different crane types and variants, Model 3 is a universally applicable machine which can quickly and efficiently handle cargo with a broad range of lifting gear.

FOR FAST, EFFICIENT

CARGO HANDLING

G HPK harbour pontoon crane

THE RIGHT CRANE FOR EVERY SITE

MODEL 3 TYPES – HARD TO BEAT

A

Optional driver cab on the chassis. Maintenance-free equalizer beams with vertical compensation of up to

+/- 250 mm means the axle load is always evenly distributed. Tight turning circle and crab steering ensure

excellent maneuverability.

ALL-ROUND EXCELLENT DESIGN

MODEL 3 HARBOUR CRANES AT A GLANCE

Safe cable control and minimum cable loading thanks to torque-regulated cable reel.

Well-lit working site thanks to powerful lamps.

Torsionally stiff boom is a lattice construction with permanently fixed flange connections.

Proven H-type stabilizers – automatic propping system – stabilizer pads chosen for the particular conditions of the quay. Excellent view of the work site due to

tower cab located high up on the tower. Even better view thanks to the forward-mounted cab (optional). Ergonomically designed cab affords the best possible comfort. High crane availability through enhanced diagnostics via the Visumatic® _{crane management system.}

Visumatic® _{crane management system is}

equipped with color graphic symbols clearly represented on a screen that act as an intuitive operator guidance system.

Ladders for safe ascent to the tower head. Extended platform for easy access to all rope pulleys for maintenance work.

ALL-ROUND EXCELLENT DESIGN

Slewing gear units

A

A

required for the crane variant and application

A

A

acceleration and deceleration of the slewing motion

CLEARLY ARRANGED AND EASILY ACCESSIBLE

A CLOSER LOOK AT OUR INNOVATIVE TECHNOLOGY

Hoist

A

A

A

A

CLEARLY ARRANGED AND EASILY ACCESSIBLE

A CLOSER LOOK AT OUR INNOVATIVE TECHNOLOGY

Hydraulics unit

A

A

stabilizers, steering and brake systems with hydraulic oil

Central lubrication system

A

A

A

Stairways

A

A

SERVICE-FRIENDLY AND COMPACT

WELL-ENGINEERED CONSTRUCTION

Practical design

A

A

A

SERVICE-FRIENDLY AND COMPACT

WELL-ENGINEERED CONSTRUCTION

Diesel generator

A

A

crane variants and application

A

crane functions to be performed simultaneously and independently of each other

Electrics room

A

A

and control system

A

A

The Model 3 harbour crane is powered by electricity. The crane draws its power from either:

A

A

or medium-voltage electricity. Generating electricity on-board

The diesel-powered generator features low fuel consumption thanks to its outstanding efficiency. Use of state-of-the-art dynamic brake resistors – standard on Terex® _Gottwald

cranes – can provide savings in primary energy of up to 15% depending on operating conditions and crane capacity.

Terex Gottwald mobile harbour cranes make use of energy-efficient diesel generators

EFFICIENT, ECO-FRIENDLY

AND DURABLE

ELECTRIC DRIVES

Our cranes make use of low or medium-voltage mains supplies. They are equipped with the necessary units ex works or can be upgraded at a later date.

HYBRID DRIVE

When generating power on-board, the crane is more efficient with the Terex® Gottwald hybrid drive – a combination of the diesel-powered generator and electrostatic short-term storage media. The energy recovered from lowering and braking motions is stored in ultracaps, and is then available to the crane's electric

circuits for the next work cycle. The result is a potential reduction in fuel consumption of up to 23% depending on operating conditions and crane capacity.

External power supply

If used with electricity from the harbour mains, your Terex® _{Gottwald crane offers these benefits:}

A

A

A

A

A

A

3-PHASE TECHNOLOGY

Model 3 – innovative electric-drive concept

With Model 3, Terex® _{Gottwald has expanded}

its electric drive concept and taken full advantage of technical progress and economic efficiency in 3-phase technology for drive motors.

The advantages of 3-phase power:

A

SMART, USER-FRIENDLY, SAFE

TEREX

 _{GOTTWALD HARBOUR CRANES}

Many optional features enable customers to adapt their Terex® _{Gottwald Model 3 crane to the exact}

conditions of use, these features include:

A

A

efficient support to crane drivers for repetitive load moves,

A

A

A

to record operating data and provide access to service data.

The Model 3 harbour crane is packed with smart technology. TPS design engineers always focus on safety and productivity for both the machine and the crane driver.

As standard: ergonomic, top-of-the-range equipment

Model 3 includes user-friendly functions as standard. These features include:

A

A

arranged graphic symbols for intuitive operator guidance,

A

of the work site via the monitor screen in the cab,

A

of 50° for comfortable, easy access to tower cab, machinery rooms and service points.

Intuitive operation through user-friendly human-machine interface

Two Terex Gottwald harbour cranes – Model 3 and Model 8 in tandem lift operation

A

to share the weight according to the maximum lifting capacity of each crane

A

make use of the full load capacity of both cranes (up to 250 t)

TPS develops high-performance harbour cranes – such as Model 3 – for all types of cargo. But that is not all: we also offer equipment for other points along the logistics chain – in this way, we create integrated handling solutions from a single source.

As an experienced port solutions provider, we meet the needs of the entire logistics chain and its interfaces – whether in container, general cargo or bulk handling.

The right choice – from the start

We also offer planning and advisory services on all aspects of new terminal investments and expansion projects. To help you, we employ state-of-the-art software solutions including simulation and emulation specifically for container handling.

PERFECTLY INTEGRATED HANDLING

HIGHLY EFFICIENT SOLUTIONS

PERFECTLY INTEGRATED HANDLING

HIGHLY EFFICIENT SOLUTIONS

Solution for terminals with rail infrastructure: Model 3 as portal harbour crane with customized portals in regards to height, span and rail loading.

With our Model 3 harbour cranes, we offer universal loading and unloading equipment for handling all types of cargo.

For containers, Model 3 cranes:

A

A

For general and project cargo, Model 3 cranes:

A

A

such as forklift trucks.

For bulk material, Model 3 cranes:

A

A

For all its port technology products, TPS offers reliable, worldwide, customer-oriented service. This means that your machines are maintained at a high level of availability while securing the value of your investments.

We have a dedicated, integrated, reliable service network that provides professional troubleshooting to support you efficiently. When you purchase a product bearing the Terex®

or Terex® _{Gottwald brand, we provide a contact responsible}

in your region. This helps overcome language barriers and time zones and provides help quickly whenever needed.

AROUND THE CLOCK,

AROUND THE WORLD,

AROUND YOUR BUSINESS

LIFE CYCLE SUPPORT

Upgrades and retrofits

Professional Crane Inspections (PCI) Spare parts supply

Crane transport Service packages

Installation and commissioning
