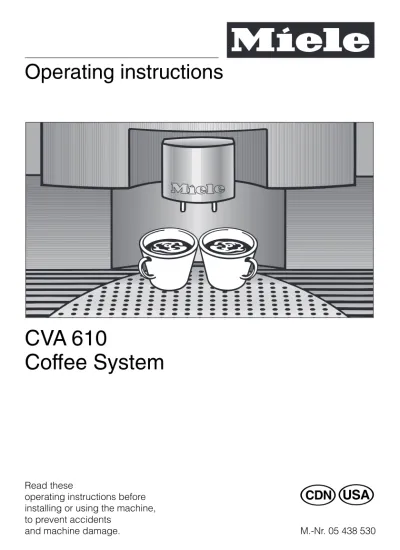

CVA 610 Coffee System. Operating instructions. Read these operating instructions before

(1)

CVA 610

Coffee System

Read these

operating instructions before

]ö

installing or using the machine, to prevent accidents

(2)

Contents

Description of the appliance. . . 4

Caring for the environment. . . 6

Warning and safety instructions. . . 7

Brief description. . . 10

Programming the appliance . . . 11

Choosing a language. . . 13

Rinse and pre-warm feature. . . 14

Setting the water hardness . . . 15

Selecting the temperature for drinks . . . 17

Turning the pre-brewing feature on or off. . . 18

Turning the pre-grinding feature on or off . . . 20

Turning the programmed quantity of hot water on or off . . . 21

Displaying the number of cups of coffee already dispensed (Total coffee) . . . 22

Setting a standby time . . . 22

System lock . . . 24

Filling the water and coffee bean containers . . . 25

Filling the water container . . . 25

Filling the coffee bean container . . . 26

Setting the serving sizes. . . 27

Coffee and espresso cups. . . 28

Tea cup . . . 29

Making coffee. . . 31

Warming the system and the cups . . . 31

Espresso, coffee, large (long) coffee . . . 33

To prepare two cups simultaneously. . . 35

Cappuccino . . . 36

Hot water . . . 38

(3)

Programming the coffee grinder. . . 40

Grinding the coffee . . . 40

Setting the quantity . . . 41

Cleaning and maintenance. . . 42

Rinse/pre-warm button. . . 42

The appliance front and interior . . . 43

Water container . . . 43

Waste unit. . . 43

Brew unit . . . 44

Using the Cleaning Tablets . . . 45

Cleaning the steel filters . . . 47

Lubricating the brew unit . . . 48

Drip catch . . . 49

Milk foamer. . . 50

Replacing the seals . . . 50

Descaling the machine . . . 51

Automatic descaling . . . 52

Descaling manually . . . 54

Messages in the display window . . . 56

Problem solving. . . 57

After sales service. . . 63

Electrical connection USA, CDN. . . 64

Installation . . . 65

Installation options . . . 65

Installation . . . 66

(4)

Description of the appliance

External view

b

_{Hot water spout}

c

_{Coffee dispensers, height-adjustable}

d

_{Handle to open appliance front}

e

_{Steam selector}

f

_{Steam spout with milk foamer}

g

_{Drip catch}

h

_{Program selector}

i

_{Display window}

j

_{Coffee serving buttons}

k

_Rinse/

pre-warm button

(5)

Interior view

m

_{Coffee bean container}

n

_{Slide control to select fineness of ground coffee}

o

_{Slide control to select quantity of ground coffee}

p

_{Water container}

q

_{Waste unit}

r

_{Brew unit}

Coffee glossary

For a better understanding of the language of coffee, please read the glossary of coffee terms at the end of this instruction booklet.

(6)

Caring for the environment

Disposal of packing

The transport and protective packing materials are environmentally friendly for disposal and may be recyclable, please recycle.

Disposal of an old appliance

Old appliances contain materials which can be recycled. Before discarding an appliance, please make it child resis-tant by removing the power cord and any doors.

(7)

Warning and safety instructions

This appliance complies with cur-rent safety requirements. Improper use of the appliance can cause per-sonal injury and material damage. Before installation and before using for the first time, read the operating instructions carefully. They contain important notes on safety and the operation and care of the ap-pliance. Please read these instruc-tions carefully to prevent accidents and machine damage.

Keep these instructions in a safe place and pass them on to any fu-ture user.

This appliance is intended for domestic use only for the preparation of es-presso, cappuccino, coffee and hot water for tea and similar drinks. Any other use is not recommended by the manufacturer and could be dan-gerous. The manufacturer cannot be held responsible for damage caused by improper use of the appliance.

Technical safety

Before connecting the appliance to the electrical supply, make sure that the rating on the data plate corre-sponds to the voltage and frequency of the household electrical supply. If in doubt, consult a qualified electri-cian.

The electrical safety of this ap-pliance can only be guaranteed when continuity exists between the ap-pliance and an effective grounding sys-tem which complies with local and na-tional regulations. It is imperative that this basic safety requirement is tested by a qualified electrician.

The manufacturer cannot be held re-sponsible for the consequences of an inadequate grounding system.

The appliance must be built into cabinetry before operation to en-sure that no electrical components are accessible. Ensure that electrical power is not supplied to the appliance while installation work, repairs or main-tenance is performed.

Do not use an extension cord to connect the appliance to elec-tricity. Extension cords do not guaran-tee the required safety of the appliance (danger of overheating).

(8)

This equipment has not been de-signed for maritime use or for use in mobile installations such as aircraft or recreational vehicles. However, under certain circumstances it may be possible for an installation in these applications. Please contact the near-est Miele Dealer or the Miele Technical Service Department with specific re-quirements.

Before the appliance is connected, the steam selector must be in the off position to prevent an uncontrolled escape of steam or hot water and possible burns.

Installation work and repairs should only be performed by a trained technician to ensure safety. Re-pairs and other work by unauthorized persons could be dangerous and the manufacturer will not be held respon-sible.

The appliance is only completely isolated from the electrical supply when:

– the fuse is withdrawn

– the circuit breaker has been “tripped” – or the unit is unplugged.

Do not pull on the power cord, only on the plug.

Never open the housing of the ap-pliance. If electrical or mechanical components or electrical connections are disturbed, an electric shock could be caused damaging the machine.

If the coffee system is to be in-stalled above another appliance, there must be a full-width, closed shelf

not necessary when installation is in combination with the Miele Built-in plate warmer).

Use

The Coffee System must be cleaned daily to prevent the growth of harmful bacteria and mold. Please read the “Cleaning and care” section of this booklet.

Warning: There is a danger of scald-ing. The spouts and the liquids dis-pensed are very hot.

Children should not use the ap-pliance unsupervised.

The water lines must be flushed out and the machine cleaned thor-oughly before the first coffee is pre-pared.

Only fill the water container with cold, fresh drinking water. Warm or hot water or other liquids could dam-age the appliance. The water must be changed daily to prevent bacteria or mold growth.

Never put anything other than es-presso/coffee beans in the coffee bean container. It must never be filled with ground coffee as this could dam-age the grinder.

Sugar can damage the machine. Only use pure coffee beans. Do not use coffee beans treated with ca-ramel, any kind of sugar or anything else. Do not use any other drinks con-taining sugar, or instant coffee.

(9)

The hot water and steam dis-pensed could cause scalding. These functions must be used carefully. Never direct the steam spout towards the body.

The machine must never be used to clean objects.

To prevent burns, turn the steam selector to the off position when not needed, to prevent an uncontrolled escape of steam.

Never use a steam cleaner to clean the appliance. Pressurized steam could damage electrical compo-nents and cause a short circuit.

Clean the appliance daily to pre-vent bacteria and mold growth. All parts should be cleaned by hand, except for the metal drip catch and the metal nozzle of the milk foamer which can be cleaned in a dishwasher.

The steam and hot water spouts become very hot during use. Al-ways grip the steam spout by the insu-lated collar.

The appliance should be descaled regularly, depending on the water hardness, with a solution of citric acid. The harder the water used, the more often the machine must be descaled. The manufacturer can not be held re-sponsible for damage from insufficient descaling.

Follow the instructions on the de-scaling agent carefully and use the exact amount recommended to prevent damaging the machine.

Depending on the fat content of the coffee used, the brew unit could become blocked. Clean it every 2 to 4 months.

In areas subject to infestation by cockroaches or other vermin, keep the appliance and its surroundings clean at all times. Any damage caused by pests will not be covered under war-ranty.

Used coffee grinds should be thrown out with the household trash.

Hanging items on the opened door of the appliance could cause dam-age.

Disposal of an old machine

Before discarding an old machine, turn it off and unplug it. Cut off the power cord and remove any doors to prevent it from becoming a hazard.

The manufacturer can not be held liable for damage caused by non-compliance with safety instructions.

(10)

Brief description

Unlike standard coffee machines, this appliance has a container for coffee beans so that they can be freshly ground for each cup for the best flavor. First the ground coffee is moistened with hot water (pre-brewing), to de-velop the aroma. Then hot water is forced at high pressure through the ground coffee. The pre-brewing pro-cess is optional.

The used coffee grinds are automati-cally emptied into the waste unit, so there is no need to remove the grinds after each cup.

The size of cup (max. 1 cup or 250 ml) can be programmed in so that the cor-rect amount of coffee is dispensed. If the cup being used has a smaller ca-pacity than the programmed cup size, dispensing can be stopped at any time by pressing one of the coffee serving buttons.

If two cups of coffee or espresso are needed at the same time, the appropri-ate coffee portion button must be pressed twice. The machine will fill the cups in two stages, a few seconds apart.

The machine can be programmed to grind from 6 to 9g of coffee. The pro-grammed quantity will be the same for all serving sizes (espresso, coffee, large coffee). Only the amount of water will change.

The fineness to which the coffee is ground can also be programmed in. The hot water from the hot water spout is at an ideal temperature for making

The light can be turned on inde-pendently of operation.

As a safety feature, power is turned off as soon as the front of the appliance is opened. There is also a system lock to prevent children from operating the machine.

The easy to use programming allows the coffee system’s features to be cus-tomized to each household.

To fully develop and maintain the flavor of espresso, the appliance has an addi-tional feature to prewarm the system. Hot water from the hot water spout can be used to pre-warm cups.

The appliance can be programmed to switch to standby mode so it is always ready for operation but does not con-sume unnecessary electricity. This can be programmed to happen between 15 minutes and 12 hours 45 minutes after coffee was last dispensed.

To save time when preparing coffee for a number of people, pre-grind can be selected, so there is always a portion of ground coffee ready for brewing.

(11)

Programming the appliance

The appliance can be programmed to suit your pref-erences. The following programming options are available:

Language German, Dutch, Portuguese, Spanish, English, Italian, French

Rinsing on, off

Water hardness hardness 1, hardness 2, hardness 3, hardness 4

Temperature long coffee minimum, low, medium, high, maximum

Temperature coffee minimum, low, medium, high, maximum

Temperature short (espresso) coffee minimum, low, medium, high, maximum Pre-brewing on, off, long

Pre-grinding off, on Program hot water off, on

Total coffee number of coffees served Descaling automatic descaling program Standby timer to put unit in, selectable in 15 minute periods

A more detailed explanation of the program options is given in the individual sections.

(12)

To program the appliance,

turn the program selector to “Program mode”.

The appliance is now in programming mode and will respond according to the symbols shown under the buttons.

By pressing the - or e button

– a programming option in the display window can be highlighted with an asterisk. Press ENTER to select the program.

– the settings of the various programming options can be adjusted.

– a time can be entered for the Standby timer op-tion.

By pressing ENTER

– a programming option highlighted with an aste-risk can be selected.

– a change to the programmed settings can be saved.

If a setting is accidentally changed, do not press ENTER. Turn the program selec-tor to position “0ff”. The changed setting will not be saved and the original setting will be re-tained.

(13)

Choosing a language

The language for the commands in the display win-dow can be selected before the machine is used for the first time.

Turn the program selector counterclockwise to “Program mode”.

The appliance can now be programmed and will respond according to the symbols shown under the buttons.

The following will appear in the display window: Programming option “Language” will be high-lighted with an asterisk.

Press ENTER to confirm this programming option.

The sub-menu is shown in the display window as follows:

Press the e button until the desired language ap-pears (deutsch, nederlands, portugues, espanol, english, italiano or francais)

Press ENTER to save this setting, or

turn the program selector to “0ff” to cancel if a mistake has been made.

This will bring you out of the sub-menu. All commands in the display window will now ap-pear in the selected language.

(14)

Rinse and pre-warm feature

It is extremely important to run a rinse cycle before the coffee machine is used for the first time. If the

Rinse/Pre-warm button is pressed, the program will start automatically if the machine is cold, and the pro-gram selector is in either of the “On” positions. Simul-taneously, the brew unit will be pre-warmed with the hot water.

Turn the program selector to “Program mode”

The appliance can now be programmed and will re-spond according to the symbols shown under the but-tons.

The display window will read:

Press the e button, to highlight programming option “Rinse and pre-warm” with an asterisk.

The sub-menu is shown in the display window as fol-lows:

Press button e, to turn the Rinse and pre-warm fea-ture On or Off.

turn the programming selector to “0” to cancel if a mistake has been made.

(15)

@UM_SEITE =

Setting the water hardness

For easy operation of the coffee machine, and to en-sure that the descaling indicator comes on at the ap-propriate time, it is important to program the water hardness. The water hardness indicates how much calcium is dissolved in the water. The higher the cal-cium content, the harder the water is.

The machine monitors the volume of water passing through it in conjunction with the hardness of the water. Descaling will have to be done more often for hard water.

The local water authority will be able to tell you the hardness of water in your area or you can measure the hardness yourself using the enclosed test strip: Dip the strip in your drinking water for one sec-ond, then shake off any excess water.

The result will be evident after a minute.

If the hardness level exceeds40 gr/gal (approx. 700 ppm), the water must be mixed with noncar-bonated mineral water in a proportion of 1:1, otherwise scale will develop too quickly. Never use distilled water.

(16)

Use programming option “Water hardness” to pro-gram the water hardness.

There are four programmable levels:

Level

(appliance)

Hardness

(tap water) gr/gal ppm _through-flowWater

in liters

Hardness 1 1 (soft) 0 - 3 0 - 1.3 approx. 500 Hardness 2 1 (soft) 4 - 7 1.3 - 2.5 approx. 300 Hardness 3 2 (medium) 7 - 14 2.5 - 3.8 approx. 150 Hardness 4 3 (hard)

4 (very hard)

14 - 21 over 21

over 3.8 approx. 80

Turn the program selector counterclockwise to the “Program mode”.

The following will appear in the display window:

Press the e button to highlight programming op-tion “Water hardness” with an asterisk.

Press the e button to set the water hardness level (hardness 1 - hardness 4)

(17)

This will bring you out of the sub-menu.

Selecting the temperature for drinks

The appliance can be set at different tem-peratures to suit varying coffee drinking preferences.

Five temperature levels are available for each drink option. Maximum is the highest temperature, mini-mum the lowest.

Not all types of coffee can withstand high tempera-tures. Some are too delicate and their foam will col-lapse under high heat.

Press the e button to highlight programming op-tion “Temp. long coffee”, “Temp. coffee” or “Temp. short coffee” with an asterisk.

A different temperature can be programmed in for each drink option.

Press ENTER to confirm the option.

Depending on the programming option selected, the sub-menu is shown in the display window as follows:

(18)

Press the e button to set the temperature to mini-mum, low, medium, high or maximum.

Turning the pre-brewing feature on or off

When the pre-brewing feature is turned on, the freshly ground coffee is first moistened with a little hot water. Then the remaining water is forced through the moistened coffee at high pressure. This pre-brewing process allows the aroma and foam of the coffee to fully develop.

When the pre-brewing feature is off, the hot water is forced through the coffee immediately.

(19)

Press the e button to highlight programming option “Pre-brewing” with an asterisk.

Press the e button to set the pre-brewing process on, off or to “long” (an extra long pre-brew).

When making coffee with the pre-brewing feature on, the word “Pre-brewing” will appear in the display window after the coffee has been ground.

(20)

Turning the pre-grinding feature on or off

When the pre-grinding feature is on, a new portion of beans will be ground immediately after each cof-fee is dispensed, so there is always a portion of ground coffee ready. This saves time and is particu-larly useful when making coffee for a number of guests. To prevent loss of aroma, the pre-grinding feature should be turned off when only preparing coffee occasionally.

Press the e button to highlight programming op-tion “Pre-grinding” with an asterisk.

Press the e button to turn the pre-grinding feature On or Off.

(21)

Turning the programmed quantity of hot

water on or off

When the feature “Programmed hot water” is turned on, the machine will dispense a precise, pre-pro-grammed quantity of hot water when the hot water button d is pressed. (See section below on pro-gramming in the quantity of hot water.) When the fea-ture is turned off, the machine will dispense hot water freely if the hot water button d is pressed, and con-tinue to do so until the button d is pressed again.

Press the e button to highlight programming op-tion “Prog. hot water” with an asterisk.

Press the e button to turn the feature On or Off.

(22)

Displaying the number of cups of coffee

already dispensed (Total coffee)

Select feature “Total coffee” and press ENTER to dis-play the number of cups of coffee (espresso, coffee, long coffee) that have been dispensed to date. Press ENTER again to bring you out of the sub-menu.

Setting the standby timer

To ensure that the coffee machine does not use un-necessary electricity but is always ready for oper-ation, it can be set to an energy-saving mode via programming option “Timer”. The lighting can also be set to energy-saving mode.

The length of time that elapses before the appliance switches to this mode can be programmed in, from 15 minutes to 12 hours 45 minutes. The time is measured from the last time coffee/water was dis-pensed.

If the time is set at 0:00, the machine will not switch to standby.

Whenever the program selector is turned to “0ff” or the appliance front is opened, the machine will restart the timer.

(23)

Press the e button to highlight programming option “Timer” with an asterisk.

Press the e or - button to select the required length of time (e counts down, - counts up). The time can be set in 15 minute periods.

(24)

System lock

The machine can be locked so that it can not be oper-ated by unsupervised children or those not familiar with the operating instructions.

Activating the system lock

Turn the program selector counterclockwise to the "Lock" position.

Press the - button until

the following appears in the display window:

The appliance is now locked and will not operate. The system will remain locked and the lighting will remain turned off even if the program selector is turned to other positions.

Deactivating the system lock

Turn the program selector counterclockwise to the "Lock" position.

Press the - button until

(25)

Filling the water and coffee bean containers

Please clean the machine thoroughly before fill-ing the water container and the coffee bean con-tainer, (see the Section on Cleaning and care).

Filling the water container

The quality of the water is important in the overall quality of the coffee. The water container must be emptied, cleaned and freshly filled every day.

Hot water and other liquids could damage the machine. Replace the water daily with cold, clean drinking water.

Open the front of the machine.

Lift the water container up and pull it forward to remove.

(26)

Open the lid and fill the container with cold, clean drinking water to within about 1” (2 cm) of the top. A valve in the base of the container will ensure that no water can escape.

Close the lid and place the container in the ma-chine, pushing it straight to the back.

The container should now be sitting flat on the floor of the machine.

Filling the coffee bean container

Only put espresso or coffee beans in the con-tainer. Anything else, including ground coffee, hot cocoa, or instant coffee could damage the grinder. Only use pure coffee beans. Do not use coffee beans treated with caramel, any kind of sugar or anything else. Do not remove the coffee bean con-tainer from the appliance unless it is completely empty, otherwise coffee beans will spill out. @KLOTZ = Carefully pull the container out as far as it will go, so that the lid is fully visible. Lift the lid.

Fill the container with coffee beans to within about 1” (2 cm) of the top.

Close the lid and push the container back into place.

(27)

Setting the serving sizes

The flavor of the coffee produced depends on the type of coffee, how finely the beans are ground and the quantity of water used. Espresso, coffee and tea cups vary in size. To ensure the machine uses exactly the amount of water to suit your taste and your cups, there is a choice of four different serving sizes(max. 8 oz. or 250 ml):

three serving sizes for espresso/coffee and one for tea.

The coffee serving buttons are designed for the fol-lowing types of coffee:

The espresso button a dispenses a standard size espresso to be served in a standard espresso cup. The coffee button b dispenses coffee for a stand-ard size coffee cup. It uses the same quantity of ground coffee as an espresso, but adds more water. The long coffee button c dispenses a long coffee, suitable for a large coffee cup or mug. Again, only the volume of water is increased, resulting in a milder flavor.

The volume of water dispensed by each button can be adjusted to your taste.

Have the correct size of cup available to carry out the following steps.

(28)

Coffee and espresso cups

Turn the program selector clockwise to the “On” position (with or without lighting).

If the machine is cold and the rinse program has been selected, the following message will be dis-played once the water is hot:

Once the water is hot, it will automatically be ex-pelled from the coffee dispensers.

Wait until the following message appears in the dis-play window:

Place one cup under the two coffee dispensers. Coffee is always dispensed simultaneously from both spouts.

Press the coffee serving button appropriate to the size of cup until the cup is full as desired. Re-lease the coffee serving button.

(29)

The procedure is the same for the other two cof-fee serving buttons.

The volumes of water programmed in will now be dispensed every time.

Tea cup

To program in the volume of water for a tea cup, feature “Prog. hot water” must be turned on. (See the section on “Turning the programmed hot water on or off”).

The following two messages will appear in suc-cession in the display window:

If the machine is cold and the rinse program has been selected, the following message will be dis-played once the water is hot:

Once the water is hot, it will automatically be ex-pelled from the coffee dispensers.

Wait until the following message appears in the display window:

(30)

Press the hot water button d. There will be a few seconds delay before water is dispensed. When the cup is as full release the hot water but-ton d.

The following will appear in the display window during this procedure:

The volume of hot water programmed in will now be dispensed every time.

If the feature “Prog. hot water” is off, the machine will continue to dispense hot water until the hot water button d is pressed again to stop it.

(31)

Making coffee

It is extremely important to run a rinse cycle be-fore the coffee system is used for the first time. This will occur automatically if the rinse feature is turned “on” in the Programming mode and the machine is still cold.

When warming up the appliance, the display win-dow will show:

Once hot, water will flush out of the coffee dispen-sers.

If the “Rinse” feature has been turned “off” in the Programming mode, use the Rinse/pre-warm button as outlined in the Cleaning section to rinse the ma-chine before its first use.

Warming the system and the cups

The pre-warm feature allows the system and the cups to be pre-warmed to allow the flavor to de-velop and be retained.

Turn the program selector to the On position (with or without lighting).

If the program selector is already in this position with the message “Standby. . .“ shown in the dis-play window, the machine is in the energy-saving mode. Press ENTER to switch it into operation. The following will appear in the display window:

Wait until the following message appears in the dis-play window:

(32)

Pre-warming cups

The smaller the volume of coffee/espresso, the more important it is to pre-warm the cup.

Place the cup under the hot water spout.

Press the hot water button d and half fill the cup.

Press the hot water button d again to stop. Leave the cup for a few seconds to warm, then pour the water away. In the meantime, pre-warm the system.

Pre-warming the system

Place a cup or container under the two coffee dis-pensers.

The water for pre-warming will be dispensed sim-ultaneously from both spouts.

Press the pre-warm button e.

(33)

Press ENTER to start the rinsing process.

Hot water will be dispensed from both spouts, warm-ing the system. The display window will read:

Place the empty, pre-warmed cup under the two coffee dispensers, and prepare the coffee.

Espresso, coffee, large (long) coffee

The serving dispensed by each of the coffee serv-ing buttons can be programmed accordserv-ing to indi-vidual taste (see the section on “Setting the serving sizes”).

The coffee dispensers are height-adjustable to suit different cup sizes:

Gently pull the dispensers down.

This ensures that espresso is dispensed directly into the cup, retaining the foam and giving it less chance to cool.

Espresso, coffee and large coffee are all dis-pensed in the same way:

Turn the program selector to either On position (with or without lighting).

If the program selector is already in this position with the message “Standby. . .“ shown in the dis-play window, the machine is in energy-saving mode. Press ENTER to activate use.

(34)

Wait until the following appears in the display win-dow:

Place a cup under the two coffee dispensers. The coffee is always dispensed simultaneously from both spouts.

Press the desired coffee serving button once.

The coffee will be prepared.

The following message will appear in the display window, depending on the button pressed:

If “Pre-brewing” is turned on, the following will ap-pear in the display window:

Cancelling preparation

To cancel the coffee making process, press one of the coffee serving buttons and preparation will stop immediately.

(35)

To prepare two cups simultaneously

Place a cup under each of the coffee dispensers.

Press the desired coffee serving button twice in quick succession to bring up two cups g in the display window.

The machine will fill the cups in two stages with a slight pause in between. Depending on the serving selected, the following will appear in the display win-dow:

If “Pre-brewing” is on, the following will appear in the display window after the grinding process:

Leave the cups under the spouts until the two cups have disappeared from the dis-play window. The process is now finished.

(36)

Cappuccino

To make cappuccino, a china or porcelain cup, a heat resistant pitcher, and milk are needed.

Cold, low-fat milk (1.5% fat) is best for cre-ating foam. Ideally it should be prepared in a cold, stainless steel pitcher that nar-rows towards the top.

Fill a third of the pitcher with cold milk and dis-pense a serving of espresso into a china cup. The volume of the milk in the pitcher will double or triple when foamed. If the pitcher is too full the milk could overflow when steaming and cause burns.

Direct the steam spout towards the drip tray and slowly turn the steam selector counterclockwise. Any condensed water in the spout will be ex-pelled.

As soon as steam appears from the spout, shut the steam off by turning the steam selector clock-wise, to the o position.

(37)

Position the steam spout just below the surface of the milk in the pitcher and slowly turn the steam selector counterclockwise.

Move the pitcher in circles until a thick foam ap-pears, then lower the spout deeper into the milk to heat the rest.

The milk must not be allowed to boil or the foam will collapse and a skin will form. With a little practice, you will soon achieve perfect results.

Turn the steam off by turning the steam selector clockwise to the o _position.

Pull the pitcher away from the steam spout. Care-fully pour the milk into the coffee and spoon some foam onto the surface.

As a finishing touch, sprinkle a little cocoa powder over the foam.

Always clean the steam spout immediate-ly after use, as it is harder to clean once milk has dried. (See section on “Cleaning and care”.)

(38)

Hot water

When turned on, the machine will dispense hot water at any time for tea or other drinks.

Turn the program selector clockwise to the On po-sition (with or without lighting).

If the program selector is already in this position with the message “Standby. . .” shown in the dis-play window, the machine is in energy-saving mode. Press ENTER to activate use.

Wait until the following appears in the display win-dow:

Place a suitable container (e.g. a tea cup) under the hot water spout.

Press the hot water button d.

Hot water will be dispensed . As soon as the con-tainer is full, press the hot water button d again.

The machine will stop automatically if a volume has been programmed in for hot water and feature “Prog. hot water” is acti-vated.

(39)

After use

Before turning the machine off for an ex-tended period, the coffee dispensers and the brew unit must be flushed cleaned with fresh water.

Press the Rinse/pre-warm button.

The display window will read:

Press ENTER and the display will change to:

Hot, fresh water will flow through the brew unit and out of the coffee dispensers, cleaning them in the process. The display will show:

(40)

Programming the coffee grinder

A good espresso with a thick, even foam depends not only on the quality, pressure and temperature of the water and the quality of the coffee beans, but also on the quantity of beans and how finely they are ground.

The foam should have an even color with dark stripes running through it.

Grinding the coffee

To prevent machine damage, the slide control for the coffee grinder setting should be moved care-fully and in small adjustments.

There are various ways to tell whether the coffee grinder is set correctly:

– If the espresso flows too quickly into the cup, the coffee has been ground too coarsely and the pressure is not sufficient. The grinder should be adjusted to a finer setting.

– If the espresso only trickles into the cup, the beans have been ground too fine and the coffee will be bitter. The grinder should be adjusted to a coarser setting.

– If the foam is evenly colored but pale, this is also a sign that the ground coffee is too coarse. – If the foam is very dark brown on one side,

grad-uating almost to white on the other, it suggests that the ground coffee is too fine.

(41)

To adjust the grinder setting

push the upper slide control to the left (for finer grinding) or to the right (for coarser grinding). You should be able to feel the notches clearly when moving the slide control.

If the slide control will not move,

close the machine and dispense a cup of coffee. Then try to move the slide control again.

Setting the quantity

Both the flavor and the foam on the coffee depend on the quantity of ground coffee used.

6 to 9 g of coffee beans are used per cup, depend-ing on the type of coffee. The greater the quantity, the stronger the flavor will be. The quality of the foam is also affected by the quantity:

– If the foam is evenly colored but pale not enough coffee is being used.

– If the foam is very dark brown on one side, grad-uating almost to white on the other, too much cof-fee is being used.

To adjust the amount of coffee to be ground, push the lower slide control to the left (to grind less coffee) or to the right (to grind more coffee).

(42)

Cleaning and care

Danger - always allow the machine to cool be-fore cleaning. Danger of scalding.

Do not clean the appliance with a steam cleaner. Steam could penetrate electrical components and cause a short circuit.

Never use a detergent containing sand, soda, acid or chlorine as these will damage the sur-face.

The machine must be cleaned daily to prevent haz-ardous bacteria or mold gowth on used coffee grinds.

Rinse/pre-warm button

Before turning the machine off for an extended period, the coffee dispensers and the brew unit must be flushed clean with fresh water.

Press the Rinse/pre-warm button m_. The display will read:

Press ENTER and the display will change.

Hot, fresh water will flow through the brew unit and out of the coffee dispensers, cleaning them in the process. The display will read:

(43)

The appliance front and interior

Clean the front and the interior of the machine with a mild solution of hot water and liquid dish soap. Dry with a cloth. Stainless steel exteriors can be polished with a stainless steel cleaner.

On the inside of the front there is a drip catch, and underneath this there is a small sponge to absorb drips. Rinse the sponge daily with clean water.

Water container

Empty the water container daily and fill with fresh, cold drinking water just before use.

Clean the water container by hand using a mild solution of hot water and liquid dish soap.

Waste unit

The waste unit should be cleaned daily to prevent bacteria and mold growth on coffee grinds. There will probably also be water in the waste unit from the rinsing process.

Grasp the waste unit and pull forward to remove.

Clean the waste unit by hand with hot, mild soapy water and dry with a cloth.

Push the unit back into the machine, positioning it over the notches.

Make sure that the container is seated cor-rectly.

It must stand firm and flat or the appliance will not work.

(44)

If the “Empty wasteunit” message appears in the display window after you have just cleaned out the unit you will need to reposition the waste unit and then press the ENTER button. Otherwise the machine will not operate.

This is a safety feature to prevent the waste unit from overflowing. The machine counts the num-ber of times coffee grinds are emptied into the waste unit and automatically prompts you to empty it after a certain count.

Brew unit

After the waste unit has been cleaned, the brew unit must also be cleaned.

The brew unit can only be removed after the waste unit has been taken out.

The brew unit must be cleaned by hand be-cause the moving parts are lubricated and the rubber seals could become brittle in a dish-washer.

Lubricate parts of the machine as necessary (ap-prox. every 500 servings) with the silicone lubri-cant supplied, to keep the machine working smoothly (see “Lubricating the brew unit”).

Grasp the brew unit by the handle and press the part marked PRESS with your thumb.

Carefully pull the brew unit out.

If the brew unit does not slide out easily, it is not correctly positioned, (see Problem solving guide).

(45)

Clean the brew unit thoroughly under hot running water without soap.

Wipe any remaining coffee off the steel filters. There is a filter inside the funnel and a second one to the left of it. The second can be removed for cleaning (see the section on “Cleaning the fil-ters”).

Dry the funnel area to prevent ground coffee from sticking to it.

Immediately after cleaning, press the part marked PRESS once.

When replacing the brew unit do not press the part marked PRESS as this will damage the rear edge of the unit.

Slide the brew unit back into the machine along the guiding runners, without pressing the part marked PRESS, until you hear it click into place.

Using the Cleaning Tablets

Warning: Please exercise caution when using the Coffee System cleaning tablets. These ta-blets can be harmful if not handled carefully.

Keep away from children and pets Do not swallow or inhale

Wash hands after handling

Depending on the fat content of the coffee used, the brew unit could become

blocked. Therefore, it should be cleaned after every 500 servings with a cleaning tablet.

(46)

Remove the brew unit and place a cleaning tablet in the funnel.

Replace the brew unit in the appliance and close the door.

Place a liter sized container under both coffee dis-pensers.

Press the m_button.

Make sure the machine is turned on and has had a chance to warm up. If it is not warm, pressing the button will have no effect. The display will show:

Press the button e again to move the asterisk to the “Rinsing cycle”.

Press ENTER

The display window will show:

A small amount of water will run out of the coffee dis-pensers, then stop. This process will ocur four more times until the cleaning cycle is complete. During the last step, approximately a pint of water will be ex-pelled. The total cleaning cycle will take about 5 minutes and a message telling you it has ended will appear in the display.

(47)

Cleaning the steel filters

Wipe any remaining coffee off the steel filter in the funnel of the brew unit to keep the machine working smoothly.

The steel filter to the left of the funnel can be removed for thorough cleaning. This filter should be checked regularly to see if it needs to be cleaned.

Remove the brew unit.

Fit the Allen wrench supplied to the connection point in the brew unit, turn counterclockwise while gripping the filter firmly.

Remove the filter with the screw.

Clean the filter with hot water and dry thoroughly. Replace the filter in the brew unit and secure it by carefully turning the Allen wrench clockwise, while gently pressing down on the filter to ensure that it is engaged.

(48)

Lubricating the brew unit Remove the brew unit carefully.

When lubricating the brew unit make sure it is properly positioned. For this the funnel must be set a little higher and the socket standing vertically (see the illustration, or the prob-lem solving guide).

Smear a little silicone lubricant on the joints

b

_,

the axle

c

_{, in the tracks}

d

_{and on the sealing}

ring

e

.

Clean the bolt

b

_{and then smear a little silicone}

lubricant on it and on the joints

c

_.

(49)

Drip catch

At the rear of the drip catch is a float that will pro-trude when the tray is full. Remove the tray and empty and clean it.

To avoid a build-up of odor the drip catch should be cleaned daily.

Remove the grills from the drip catch.

The metal grill can be washed in the dishwasher. The plastic should be washed by hand with a mild solution of hot water and liquid dish soap.

Open the appliance front.

Carefully remove the drip catch and wash it by hand with a mild solution of hot water and liquid dish soap.

Dry all the pieces and replace them in reverse order.

(50)

Milk foamer

The milk foamer should be washed after every use. Milk is more difficult to clean once dried.

Pull the steam spout cover downwards.

Clean the cover with a mild solution of hot water and liquid dish soap or in the dishwasher. Dry thoroughly.

Push the cover back into position on the steam spout.

Replacing the seals

The appliance has three ring seals, one in between the steam spout and the steam spout cover, and two more behind the brew unit on the outlet housing.

(51)

Descaling the machine

The machine should be descaled regularly

(depending on the hardness of the water) to ensure that it works properly. The message “Descaling” will appear in the display window when descaling becomes necessary.

To prevent damage, descaling must be done as soon as the “Descaling” message appears.

The machine can still be operated without de-scaling when this message appears, but if left damage could occur.

Only use a citric acid based descaling agent. Do not use anything else, including powder deter-gent, vinegar, or formic acid, as these could damage the machine and cause an unpleasant odor and taste.

Please follow the instructions on the descaling agent carefully and use the exact proportions recommended to avoid machine damage. Allow the machine to cool before descaling and remove the steam spout cover of the milk

foamer, as this could be damaged by the descal-ing agent.

Open the front of the machine.

Remove the water container and fill it half way with the correct solution of descaler and warm water as indicated on the descaling agent pack-age. The water temperature must not exceed 122 °F (50 °C).

Close the lid of the water container and place it in the appliance.

Close the front of the machine.

The descaling process can now be carried out using the “Descaling” program or manually.

(52)

Automatic descaling

Turn the program selector to the “Program mode” position.

Press the e to highlight programming option “Descaling” with an asterisk.

Press ENTER to confirm this option.

Place a large container (approximately 1.5 liter) under the hot water spout.

Place a large container (approximately 1 liter) under the steam spout and turn the steam control selector counterclockwise.

(53)

The descaling process will start automatically. The fol-lowing will appear in the display window:

The descaling process will automatically stop if the program selector is turned to “0ff” or if the front of the appliance is opened. It will restart when the front is closed or the program selector turned to another position.

If a smaller container is used, it will need to be emptied at intervals.

The pump will introduce a small quantity of descal-ing agent into the system, then stop briefly to let the solution take effect. The process will take 20 to 30 minutes, depending on the volume of water in the water container.

When the program is finished, the following will ap-pear in the display window:

Turn the steam selector clockwise to the o_position.

Press ENTER

The machine must now be rinsed out to remove any descaling agent residue.

Fill the water container three quarters of the way with fresh, cold water and place it in the machine. Place large empty containers under the hot water and steam spouts and turn the steam selector counterclockwise.

(54)

Allow all the water to empty out of the machine via the spouts.

The system is now rinsed, removing any descaling agent residue.

When the water container is empty, the following will appear in the display window:

Turn the steam selector clockwise back to the o position and press ENTER.

If the program selector is in the “Program mode” position, the following will appear in the display window:

Once the appliance has been descaled and rinsed clean of any descaling agent it is ready for use.

Descaling manually

The water container must be at least half filled with the correct solution of descaler and warm water.

Place a large container under the hot water spout.

(55)

Place a large container under the steam spout and turn the steam selector counterclockwise.

Press the hot water button d.

Dispense a small quantity of descaling agent from the hot water spout and the steam spout. Then turn the water off.

Leave the descaling agent for approximately two minutes to take effect. Repeat the process until the water container is empty.

The hot water spout, steam spout and the system are now descaled.

Fill the water container with fresh, cold water and place it in the machine.

Place the empty containers under the hot water and steam spouts. Press the hot water button d

and turn the steam selector counterclockwise. Dispense all the water through the spouts until the water container is empty.

Once the appliance has been descaled and rinsed clean of any descaling agent it is ready for use.

(56)

Messages in the display window

The appliance has an electronic safety system that reports any problems in the display window. Most faults are easily fixed.

Message Cause + Effect Solution

Fill coff. beans Ready for use

The coffee bean container is empty. The appliance is only dispensing hot water and steam.

Fill the container with coffee beans.

Brewunit block. The brew unit is dirty. The appliance is blocked.

Clean the brew unit. Brew unit miss. The brew unit is not seated correctly.

The appliance is only dispensing hot water and steam.

Remove the brew unit and reposition it.

Descaling The appliance needs to be descaled. Descale the appliance. Expel air Air has built up in the system. The

appliance is blocked.

– Make sure that the filled water container is in the appliance. – Turn the program selector to “On” with lighting and place a container under the hot water spout and another under the steam spout.

– Press the hot water button, turn the steam selector counterclockwise and dispense hot water until it flows in quiet, continuous streams. – Press the hot water button again. Turn the steam selector clockwise to o_, to turn off the water.

Waste unit miss. The waste unit is not correctly positioned or is missing. The appliance is blocked.

Reposition the waste unit correctly.

Empty wasteunit Press ENTER

The waste unit is full. Dispensing has stopped, to prevent coffee grinds from falling into the appliance.

Empty the waste unit and press ENTER.

Standby. . . Press ENTER

The appliance is in energy-saving mode. The lighting is off.

Press ENTER. Watersystem

fault

There is water in the base of the appliance.

Call the Miele Technical Service Department.

Fill water tank The water tank (container) is empty or missing.

The float switch in the water container is stuck.

Fill the container with cold, fresh drinking water and place it in the appliance.

Empty the water container, rinse out, refill, and place in the appliance.

(57)

Problem solving

Repairs should only be performed by a trained technician. Faulty repairs could be dangerous. Various messages will appear in the display window to warn of certain problems. The section “Display window messages” explains how to respond to these.

The following problems will not appear in the display window, but can be dealt with as follows:

What to do if . . .

. . . no message appears in the display window The machine is not plugged in.

Is the front of the machine closed properly? Check the circuit breaker. If it has tripped, call the Miele Technical Service Department.

. . . the lighting does not come on when the pro-gram selector is turned to “On with lighting” or “Lighting”.

Is the front of the machine open? Is the machine in standby timer mode? Is the machine locked?

If not, the fluorescent bulb is faulty and should be re-placed as follows:

First unplug the appliance or trip its circuit breaker. Open the front of the machine.

(58)

Insert a small screwdriver in the opening and carefully push up

b

.

At the same time pull the light cover down

c

_.

Rotate the bulb forward

b

and carefully pull it out

c

_{towards you.}

Replace with a 4 Watt fluorescent bulb.

Carefully push the bulb into position until it clicks into the holder

b

_{and turn it upwards}

c

_.

Close the light cover.

. . . no water comes out of the steam spout If the steam spout is blocked

Carefully push a short, thin skewer into the open-ing.

. . . the coffee grinder makes a louder noise than usual.

There could be stones among the coffee beans. Turn the machine off immediately.

(59)

. . . the coffee grinder makes less noise than usual.

The coffee bean container is empty. A message will soon appear in the display window.

Wait until the grinder makes no noise at all, then refill the bean container with coffee beans.

. . . the machine suddenly shuts itself off. Is the appliance door closed properly?

The water temperature could be too high. The machine will remain off until the water has cooled. There could be stones among the coffee beans, in which case the machine will turn off automati-cally within 20 seconds to prevent damage. – Call the Miele Technical Service Department.

. . . coffee was not dispensed even though the water tank is full and the coffee beans were ground?

Was the coffee grinder set to the finest grind se-lection or to the maximum quantity of coffee selec-tion?

The coffee grinding is a timed process that depends on the fineness of the grind and the quantity of beans being ground. Therefore, depending on the type of beans being used, setting the fineness at minimum and quantity at maximum may not allow enough time for the process to be completed. This would result in coffee not being brewed.

Set the grinder on a coarser setting or select a smaller quantity of coffee.

. . . the espresso is dispensed too quickly. The coffee is too coarsely ground.

(60)

. . . the espresso is dispensed too slowly. The coffee is ground too fine.

Set the grinder on a coarser setting.

. . . the espresso is not hot enough.

Have the cups and system been pre-warmed? The smaller the cup, the more important it is to pre-warm it.

Check the temperature setting of each drink op-tion.

Check the brew unit. Clean it if blocked.

. . . the descaling process was started by mistake. Turn the steam control selector back to the o posi-tion to turn off the water.

Press ENTER five times to cancel the program. If there is any descaling agent in the water con-tainer, run a full descaling program to ensure that no residue remains in the system and brew unit.

. . . the foam produced is not as it should be. Check that the grinder setting is not too coarse or too fine.

The coffee is stale.

The coffee blend is unsuitable. The dispensers are set too high.

Check the temperature setting of each drink op-tion.

If the temperature is too high, there will be dark pat-ches in the foam.

. . . the warm up time is getting longer, the amount of water dispensed is incorrect and the machine is not performing properly.

(61)

. . . no water comes out of the coffee dispensers. The steel filters are dirty.

Clean the steel filters.

. . . the slide control for the grinder setting will not move.

Close the front of the appliance and dispense a cup of espresso.

The slide control will now move.

. . . there is water in the waste unit.

This is not a fault. The water is left over from the cleaning process.

. . . the brew unit can not be removed.

The brew unit is not seated correctly. For this the fun-nel must be set a little higher and the socket stand-ing vertically.

If the brew unit still can not be removed, then it is not seated correctly.

Close the front of the appliance and turn the cof-fee machine on.

(62)

. . . the brew unit can not be pushed into place in the machine

The brew unit is not seated correctly. For this the fun-nel must be set a little higher and the socket stand-ing vertically.

To position the brew unit correctly:

With your finger, press on the snap lock

b

_and

push the funnel downwards

c

.

Push the socket over to the left as far as possible

d

_.

Press once on PRESS.

The brew unit will be correctly positioned as shown above, and can be pushed into place in the ma-chine.

(63)

After sales service

In there is a problem that you can not easily fix, please contact

– your Miele dealer or

– the nearest Miele Technical Service Department. See addresses on the back cover.

When contacting the Technical Service Department, please quote the model and serial number of your appliance given on the data plate inside the ap-pliance.

(64)

Electrical connection USA, CDN

All electrical work should be performed by an electri-cian, in accordance with national and local safety regulations.

The Coffee System comes equipped with a 3ft (0.9 m) power cord with a NEMA 5-15P molded plug for connection to a 208 - 240 V, 15A, 60Hz power supply.

The voltage, load and circuit rating are given on the data plate. Please check that these match the household electrical supply.

Do not connect the appliance to the power supply using an extension cord. Extension cords do not meet the safety requirements of this appliance.

WARNING: THIS APPLIANCE MUST BE GROUNDED

Ensure power is not restored to the appliance while installation or maintenance work is performed.

Connecting this appliance to any voltage other than that indicated on the data plate is dan-gerous and will void any product warranty.

(65)

Installation

Installation options

The coffee system is designed to be built into cabi-netry.

The coffee system can be installed above another appliance but, there must be a solid, closed shelf between the base of the coffee machine and the top of the appliance below (The shelf is not necessary when installation is in combination with the Miele Built-in plate warmer).

(66)

Installation

Make sure power is not supplied to the ap-pliance while installation or maintenance work is performed.

The coffee system must be installed into cabi-netry before being operated.

Plug the appliance into the electrical outlet. Push it all the way back into the cabinet, until there is a resistance.

Open the front of the machine and partially tighten the screws. Carefully turn the lower screws

b

to center the machine in the cabinet.

(67)

The machine door hinges are adjustable in order to align the door with the surrounding cabinets

To adjust the door in direction

b

, turn screw

b

. To adjust the height of the door (direction

c

_{), turn}

screw

c

_.

To adjust the door forwards or backwards, (direc-tion

d

_{), turn screw}

d

_.

(68)

Glossary

Arabica is a high quality coffee bean. It is long and flat with a groove running around it. The caffeine content is ap-proximately 0.8 - 1.3%. It is strong and aromatic, but less bitter than the Ro-busta bean.

Blending is the secret of the coffee roaster. The blend determines the fla-vor and quality of the coffee and varies according to how the coffee is to be used. The only way to decide on the blend to suit your taste is trial and error. Caffè is the Italian term for a standard espresso. Its full name is caffè es-presso.

Caffè americano is a thin espresso with water added.

Caffè corretto is espresso with a dash of something stronger such as grappa, brandy or a liqueur.

Caffè freddo is iced coffee. An ex-tended version of espresso, it is served in summer with ice.

Caffè latte is a double espresso in a large cup filled with hot milk, topped with little or no foam, for people who enjoy milk.

Caffè moca consists of one third es-presso, one third hot milk and one third cocoa. Often served in a tall glass. Caffè ristretto is the strongest, most concentrated espresso. The water is reduced to 2 tablespoons (30 ml) per serving.

Caffeine - the caffeine content of es-presso is only a third or half the caf-feine found in coffee. The stronger the

Cappuccino is espresso with foamed milk. It is one third espresso, one third hot milk and one third foam. To obtain a good foam, the milk should be cold and foamed in a cold container.

Cappuccino chiaro is a “light” cappuc-cino with less espresso and more hot milk.

Cappuccino scuro is a “dark” cappu-cino with more espresso and less milk. Cappuccino senza schiuma is a cap-pucino without the foam.

Crema is the sign of the perfect cup of espresso - a fine, nut or cinnamon brown foam on the surface of the es-presso, which is only created when the pressure is sufficiently high. The crema contains the foamed oils which are rich in flavor and aroma and helps to keep the espresso warm.

Espresso, see Caffè

Espresso corto is a “short”, strong es-presso.

Espresso doppio is a double portion of normal espresso.

Espresso lungo is the longer, less con-centrated version served in a standard coffee cup.

(69)

Espresso ristretto is a double strength, bitter tasting espresso. Grinding - the success of the es-presso depends on how coarse or fine the coffee beans are ground. If the grinds are too coarse, the water flows through too quickly and does not cre-ate sufficient pressure to release the aroma. If the grinds are too fine, it hin-ders the flow of water, so the prepara-tion time is too long and the espresso will taste bitter. In a humid atmosphere the beans swell more, so they should be ground more finely.

Macchiato is espresso with a dollop of hot, foamed milk giving a dappled (macchiato) appearance.

Pressure is important as it releases the suspended particles in the coffee which give it its aroma. If the pressure is too low, the aroma can not fully de-velop. If it is too high, it releases tannin creating a bitter flavor. Pressure is also important for creating the crema. Pre-warming the cups is recom-mended to prevent the espresso from cooling too quickly.

Quantity - the quantity of ground cof-fee used for each cup can be set be-tween 6 and 9g per cup, depending on taste. Generally 6 to 7g are used for a cup of espresso, but there are no abso-lute rules.

Robusta is a cheaper coffee bean. It is round and convex with an almost straight groove. The caffeine content is around 2 to 2.5%. It is more bitter than the Arabica bean.

Roasting is very important for the fla-vor and caffeine content of espresso. Roasting releases the ethereal oils which create aroma and flavor. As roasting concentrates the flavor it burns off the caffeine, so the darker the roast, the lower the caffeine content. Lightly roasted beans have an acidic flavor, dark roasted beans taste more bitter.

Storage - coffee is best kept in the re-frigerator to preserve the aroma. Water hardness can affect the flavor of the coffee. Water harder than

700 ppm (40 gr/gal), should be mixed with an equal amount of non carbo-nated mineral water.

(70)

(71)

(72)
