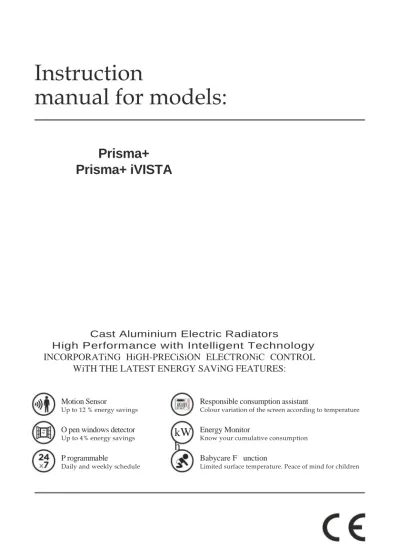

Instruction manual for models:

Instruction

manual for models:

Prisma+

Prisma+ iVISTA

Cast Aluminium Electric Radiators

High Performance with Intelligent Technology

INCORPORATiNG HiGH-PRECiSiON ELECTRONiC CONTROL

WiTH THE LATEST ENERGY SAViNG FEATURES:

Motion Sensor

Up to 12 % energy savings

O pen windows detector

Up to 4% energy savings

P rogrammable

Daily and weekly schedule

kW

h

Responsible consumption assistant

Colour variation of the screen according to temperature

Energy Monitor

Know your cumulative consumption

Babycare F unction

CONTENTS PAGE

Contents 3

Important Safety Notes 4

Installation & Assembly 6

Information on the Display & Control Panel 7

1.Setting The Time 8

2.Pairing your radiator with the iVISTA app 9

3. Modes of operation 10

4. Setting Your Own Programme 12

5. Setting The Temperature 13

6.Energy Saving Features 13

6.1. Motion Sensor 13

6.2. Window Open Detection 14

6.3. End User Behaviour Indicator 15

6.4. Energy Counter 16

7. Safety Features 18

7.1. Babycare Function 18

7.2. Keypad Lock 18

8. Temperature Offset 19

9. Restore Factory Settings 20

Questions and Answers 21

IMPORTANT SAFETY NOTES

The location of you radiator should be chosen properly and must follow any existing rules and regulations.

WARNING

•

ONCE THE APPLIANCE HAS BEEN INSTALLED, THE PLUG

MUST BE ACCESSIBLE.

•

KEEP CHILDREN YOUNGER THAN 3 YEARS OLD AWAY

FROM THE APPLIANCE UNLESS THEY ARE UNDER

CONSTANT SUPERVISION.

•

CHILDREN BETWEEN 3 AND 8 YEARS OLD MAY ONLY

SWITCH THE APPLIANCE ON AND OFF IF THEY ARE

SUPERVISED OR HAVE BEEN INSTRUCTED ON THE

SAFE USE OF THE APPLIANCE AND UNDERSTAND THE

CONSEQUENTIAL DANGERS, PROVIDED THAT THE

APPLIANCE IS PLACED OR INSTALLED IN ITS NORMAL

OPERATING POSITION.

•

CHILDREN BETWEEN 3 AND 8 YEARS OLD MAY NOT

PLUG IN THE APPLIANCE, OPERATE THE APPLIANCE,

CLEAN THE APPLIANCE AND/OR CARRY OUT USER

MAINTENANCE.

•

WARNING! TO AVOID OVERHEATING, THE RADIATOR

MUST NOT BE COVERED FOR SAFETY REASONS.

•

THE APPLIANCE MAY NOT BE INSTALLED DIRECTLY

UNDER A WALL SOCKET.

•

IN BATHROOMS OR SHOWER ROOMS, THE APPLIANCE

MUST BE INSTALLED SUCH THAT THE SWITCHES AND

OTHER OPERATING CONTROLS CANNOT BE TOUCHED

BY SOMEONE USING THE BATH OR SHOWER.

•

CAUTION - SOME PARTS OF THE RADIATOR MAY

BECOME VERY HOT AND CAUSE BURNS.

•

SPECIAL CAUTION MUST BE TAKEN IF CHILDREN AND

VULNERABLE PERSONS ARE NEAR THE RADIATOR.

IMPORTANT SAFETY NOTES

THIS DEVICE IS NOT INTENDED FOR USE B Y PERSONS

(INCLUDING CHILDREN) WITH PHYSICAL, SENSORY

OR MENTAL DISABILITY , OR LACK EXPERIENCE OR

KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN

SUPERVISION OR INSTRUCTIONS CONCERNING USE OF

THE APPLIANCE B Y A PERSON RESPONSIBLE FOR THEIR

SAFETY . CHILDREN SHOULD BE SUPERVISED TO ENSURE

THEY DO NOT PLAY WITH THE APPLIANCE. CLEANING

AND USER MAINTENANCE SHALL NOT BE MADE B Y

CHILDREN WITHOUT SUPERVISION.

THE APPLIANCE SHOULD NEVER BE COVERED BY

CLOTHES, COVERINGS OR ANY OTHER OBJECT, NOR

SHOULD IT BE PLACED BEHIND OR BELOW FURNITURE

OR ANY OTHER OBSTACLE FOR THE CIRCULATION OF

AIR.

DO NOT USE THE RADIATOR TO DRY CLOTHES.

IF THE POWER CORD IS DAMAGED, IT MAY ONLY BE

REPLACED BY ERS IN ORDER TO AVOID RISKS.

DO NOT PLACE NEAR DRAUGHTS OR IN DIRECT

SUNLIGHT.

RECOMMENDATION FOR ENVIRONMENTAL PROTECTION

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to takeback your old appliance for disposals at least free of charge.

Installation and Assembly

What’s in the box?

Radiator with moulded plug x 1, Wall Bracket x 1, Instruction Manual x 1, Screws & Fixings x 4

Wall Mounting

Where possible, always install the radiator on an outside/external (cold) wall, under a window. Don’t install in a ventilated area (draught) or in direct sunlight.

Follow the minimum safety distances for installation. Minimum distance from the ground or wall is 15cm.

1. Present the wall bracket on the floor in the position in which the radiator is to be fitted, mark the wall through the upper drill hole of the bracket on both sides (Fig 1) 2. Drill in the markings and insert the rawlplugs (Fig 2)

3. Move the bracket up and position with the bracket lower holes covering the rawlplugs, mark the upper holes again, drill and insert rawlplugs (Fig 3)

4. Screw the bracket into position (Fig 4) 5. Slide the radiator onto the bracket

PLEASE NOTE: The screws provided are for use on a solid wall only. For plasterboard walls, please use specialist plasterboard screws such as REDIDRIVER or similar.

Once the radiator is on the wall, you can fit the safety clips as below:

Information on Display and Control Panel

Display

Programming Comfort Programming Economy Hours of Programming Mobile connection (*)

Time & Temperature

Window Opening Detector Symbol

Motion Sensor Indicator

Comfort Mode Economy Mode

Control P anel

Indicator degrees Indicator of Power Consumed Days Of The Week For Programming

Babycare Function

Heating Activated Indicator

Anti-Frost Mode

(*) Only for models Curvo+ iVISTA and Prisma+iVISTA

+/-: To change the temperature, change the time, day of week.

OK/Mode: Press to confirm or terminate the actions, set the mode of operation (in programming mode) and change the operating mode: (Comfort/Eco/Anti-frost/Pro/Pro1/Pro2/Pro3)

ON/ OFF /PROG: Press to turn On or Off (Standby), and also to go into programming mode.

1. Setting The Time

When switched on the screen will flash. Press any button and the screen will stop flashing. Press the ON button to switch the radiator off so the screen looks like this -- : -- Press and hold the ON button for approx. 7 seconds until the screen changes to:

Press ON button once more and this screen will appear:

FLASHING

This is the clock setting screen

1-7 down the right hand side are the days of the week (1=Monday, 2 = Tuesday etc.) Use + and – buttons to select day of week. (1=Monday, 2=Tuesday etc.). Press OK Hour will now flash. Use + and – to correct hour. Please note it is a 24 hour clock. Press OK to set.

Minutes will now flash. Use + and – to correct minutes. Press OK to set. The 1-7 day markers will disappear.

The time is now set and appears on screen with the colon between the hours and minutes flashing.

2.

Pairing your radiator with the iVISTA app

NB: please notice that this is only available for the models CURVO+iVISTA and PRISMA+iVISTA

1) Install the heater and your MiniBox i-Vista. See each user manual of i-Vista MiniBox. 2) Set the thermostat in STOP/Standby mode by pressing On/Off button => The thermostat goes in STOP/Standby mode showing current time or --:-- if time is unknown.

3) Enter in setting configuration mode by pressing MODE button for 2 seconds

4) Start wireless pairing on thermostat by pressing “+” button. You can cancel paring with MODE or OFF button.

5) Add a new device on smartphone advanced

settings menu to automatically discover your mobile device. This process can take up to 8 minutes. Please do not cancel any of the process of the pairing will fail.

5) If the heater is well paired with the iVISTA app, the word “Yes” will appear on the LCD screen and you can now use your smart phone or tablet to control the thermostat. If the word “no” appears on the LCD screen, then check the status of the MiniBox and your internet connexion and start again pairing on step 2)

3. Modes Of Operation

OK - Now switch the radiator on using the ON button. The radiator will come on in whatever mode it was on before it was switched off.

Pressing OK MODE button will change the mode of operation between:

COMFORT ( ) - ECONOMY ( ) - ANTI-FROST ( ) - PRO (User Defined Programme) - PRO1 - PRO 2 - PRO 3

NOTE: PRO1/PRO2/PRO3 are pre-set and not configurable. Also, these only appear when the time has been set.

To configure the PRO mode, see page 12 section 4.

NOTE: please be aware that the described above is NOT VALID for the models

CURVO+iVISTA and PRISMA+iVISTA. These models do NOT have the PRO – PRO1- PRO2-PRO3 modes of operation.

The PRO default programme is:

Note : This program is retrievable by Resetting in factory preset described in Section 9

3. Modes Of Operation

These programs are not changeable and are defined as follows:

Anti-Frost Mode

If you want to set a frost setting for holidays etc.

When the radiator is switched on in any mode (Comfort/Economy/Pro/PRO1/PRO2/ PRO3), hold down the OK/Mode button until 7oC appears on the screen. It will stay in this mode until a short press of OK/Mode is made.

4. Setting Your Own Programme

(Please note: In programming mode if there is a delay you will be timed out and have to start again, however it does save what you have entered up to that point).

Write down when you require ECONOMY temperature (e.g. at night or when you are out at work) and also when you want COMFORT temperature (e.g. on a morning when you get up and on an evening when you get home from work). (We don’t recommend using frost in the programming).

ACTION SCREEN

a. Switch the radiator off by pressing the ON but-

ton. The time or --:-- will be displayed.

Screen --:-- or hour : minutes and, after long press :

Top: Comfort Bottom: Economy Nothing: Antifreeze

FLASHING

b. Press and HOLD down the ON button for approx. 7 seconds until the screen changes to what you see opposite.

The bottom sun Symbol may be a moon or a frost icon.

Programming always starts at midnight Sunday night coming into Monday morning.

c. Select the type of operation of the current selec-

ted hour and day by pressing the OK button.

CONFORT --> ECONOMY --> ANTIFREEZE

d. Select the hours without modification by pres-

sing + & - button (long press to go faster) Exceed 23:00 to switch to next day at 00:00

e. A utomatically copy / paste forward mode from current selected hour to next hours with + & - button pressed together.

Long press + & - buttons to copy / paste repetitively

f. To quit the setting programming mode, press ON button or exceed 23:00 at the last day.

Change the time if required or validate to return to the off position

OK - Now switch the radiator on using the ON button. The radiator will come on in whatever mode it was on before it was switched off.

Pressing OK MODE button will change the mode of operation between:

COMFORT - ECONOMY - PRO (User Defined Programme) - PRO1 - PRO 2 - PRO 3 NOTE - PRO1/PRO2/PRO3 are pre-set and not configurable. Also, these only appear when the time has been set.

Leave on PRO. The screen will flash between PRO and the current mode & temperature for the time as programmed. This is normal.

5. Setting The Temperature

Use the + and – buttons to select the desired temperature for comfort. Comfort temperature is generally regarded to be between 18 and 21 degrees for most people. Remember, the lower you have it, the lower your bills will be.

Each radiator in different rooms can be different temperatures. Your Living room could be 19 for instance, and the bedroom 16.

You don’t need to turn the temperature up when it’s colder outside. The radiator will heat up to the set temperature regardless.

Once the Comfort ( ) temperature is set, press the OK Mode button once to set the ECONOMY ( ) temperature.

We recommend the ECONOMY (☾ ) temperature to be 3.5 degrees lower than the comfort temperature.

This difference is set into the radiator. For example, if your comfort temperature is 19 degrees, you can only set the economy temperature to a maximum of 15.5. If you try to go above this, it will default back to 7 degrees.

The difference of 3.5 degrees is the optimum for achieving the best running cost.

6. Energy Saving Functions

6.1. Motion sensor

Note: This function is only available in COMFORT ( ) mode (not in programming modes PRO/PRO 1/PRO 2/PRO 3).

The radiator is equipped with a motion sensor that detects presence in the room. When this function is on, the radiator will reduce its temperature over a configurable time of absence.

You can set the time of absence from 10 minutes to 4 hours. When half this time has passed with no motion detected, the radiator will reduce the COMFORT ( ) temperature by 1.5 degrees. When all of the time has passed, the radiator changes to ECONOMY ( ) mode.

If at any time motion is detected, the radiator will return to COMFORT ( ) mode.

ACTION SCREEN

a. Ensure the thermostat is in the OFF/STANDBY position otherwise press the ON/OFF PROG but- ton to go to the OFF/STANDBY position

Screen --:-- or hour : minutes

Long press (3s) on the MODE button to go in the presence detector setting

Select the absence time by pressing the + and - button between 10min and 4 Hours.

The presence detector function can be disabled if Off is selected, under 10min of time.

6. Energy Saving Functions

The window open detection allows making energy savings in case you open the window to refresh the ambient air and forget to switch off the radiator.

The windows open sensor saves energy by switching to shut down when it detects a temperature drop of between 1.5 to 2 o C in less than 14 minutes. When the controller detects a “window open” the back light and the window icon blink. The controller automatically switches to OFF mode to make energy saving.

When the radiator detects that the room temperature begins to rise again, it will switch back on to its normal operating mode.

This function will work in any operating mode: Comfort/Economy/Programme and can be switched on or off.

ACTION SCREEN

a. Ensure the thermostat is in the OFF/ STANDBY position otherwise press the ON/ OFF PROG button to go to the OFF/STAN- DBY position

Screen --:-- or hour : minutes Program screen

b. Long press (3s) on the MODE button to go in the presence detector setting

c. Short press MODE button to go in window open setting menu.

d. Select OFF or ON by pressing the + & - buttons

e. Exit with OFF button or MODE button.

6. Energy Saving Functions

The end user behaviour indicator is a traffic light system to warn of high temperature (high consumption).

The display has a backlight that changes colour as the temperature set is increased or lowered.

The indicator colour helps to educate the end user when they set manually the Comfort temperature by visual information regarding the risk of energy consumption to maximise energy savings.

Colour of screen:

GREEN from 7 to 19oC , when it is considered that power consumption and performance

are suitable.

YELLOW/ORANGE from 19 degrees to 24 oC, as the screen colour changes towards red, this indicates an increased risk of higher power consumption.

RED 24oC and above indicates the risk of excessive consumption of electricity.

IMPORTANT NOTE: This colour is only indicative only and is assumed that the correct size radiator has been chosen for the room size. If the radiator feels hot all the time and the resistor symbol is displayed often, the radiator is too small for the area it is designed to heat. The screen could still be GREEN but the radiator is working too hard.

6. Energy Saving Functions

The radiator is equipped with an energy counter so the user can view the cumulative power consumption in K/wh.

Encourages end users to monitor their energy usage and make reductions in temperature making energy savings.

First set the radiator power:

ACTION SCREEN

a. Ensure the thermostat is in the OFF/Stan- dby position otherwise press the ON/ OFF PROG button to go to the OFF position

Screen --:-- or hour : minutes

b. Long press (2s) on the MINUS button to display heater power

c. Set the power value with PLUS & MINUS button

d. Quit with MODE or OFF button Screen --:-- or hour : minutes

Display the Energy C ounter:

ACTION SCREEN

a. Ensure the thermostat is in the STOP position otherwise press the STOP/WEEKLY PROGRAM button to go to the STOP position

Screen --:-- or hour : minutes

b. Long press (2s) on the PLUS button

Energy counter is displayed 8s :

Alternative Display of Energy counter and number of days since last reset of the counter

c. To quit, wait 8 seconds or press OFF

button Screen --:-- or hour : minutes

6. Energy Saving Functions

ACTION SCREEN

a. Ensure the thermostat is in the STOP position otherwise press the STOP/WEE- KLY PROGRAM button to go to the STOP position

Screen --:-- or hour : minutes

b. Long press (2s) on the PLUS button to display counter

Energy counter is displayed 8s :

c. Long press again the PLUS button to reset counter

Screen --:-- or hour : minutes

7. Safety Features

The Baby care function limits the maximum surface temperature below 60o_C.

IMPORTANT NOTE: Please read the safety standards on page 4 and 5. This is NOT a LST (L ow Surface T emperature) radiator as dened in NHS guidelines.

This feature decreases the maximum heating power in order to have a surface temperature below 60°C approximately. So the time to heat a room can be longer. When this function is enabled, the baby icon ( ) is displayed and blinks if the power is effectively reduced.

Important note: when baby care function is enabled, the reaction time of the radiator can take up to 1 minute when the desired temperature is changed by pressing PLUS or MINUS.

This function is not activated by default and can be enabled with long press on MINUS and MODE button in all modes except in OFF or setting functions.

LONG PRESS 2s to enable/disable Babycare function

7.2 Keypad L ock

The radiator is equipped with the option to lock the keypad. This option is useful to prevent unwanted change in settings (children, public buildings, offices, etc…) To lock: long press (>3s) simultaneously on the buttons + and -.

The screen displays for 2s all the horizontal bars when a button is pressed and the keyboard lock is enabled.

To unlock: long press (>3s) simultaneously on the buttons “+” and “-” again.

Note: the locking of the keypad is also possible with the remote control.

8. Temperature Offset

If the user wishes to set his value to be as close as possible to the room’s real

stabilized ambient temperature, measured using a suitable measuring device, and that

the measured temperature is not, for example, that of a cold draught passing over the temperature probe (badly fitting window), an «offset» value can be manually applied.

ACTION SCREEN

a. Go to STOP position Press the STOP _key Screen --:-- or hour : minutes b. Repeat action 7a, 7b,

8b, 9b to pass through previous setting menus,

1x Long Press MODE and 2x Short Press MODE c. Go to the offset set-

ting menu Short Press the MODE key

The previous offset value is displayed (0.0°C if not previously set: factory setting).

d. Calculate the new offset value

Measured temperature - Displayed set value = offset value to be entered

>Example:

22°C room temperature (measured using a thermometer) compared to the thermostat setting (displayed) of 20°C The offset value is 22 - 20 = +2°C

The user should enter +2°C in the offset menu

e. Modify

Press the + and - buttons; offset adjusted by steps of 0.1°C

f. Save Press (short _{press) the MODE} or OFF button

Screen --:-- or hour : minutes Please note, the manufacturer recommends that you keep at 0.0

9. Reset Factory Settings

This function erases all the setting of the thermostat for starting a new configuration.

ACTION SCREEN

a. Go to STOP/STANDBY position Screen --:-- or hour : minutes

b. Long press an release (mini 10s) on MODE and STOP

c. Long press again (mini 5s) on MODE and STOP button to reset the all the parameters note : you can press 0.5s on STOP button to cancel the reset.

After Reset, the programmer returns in COM- FORT mode

BACKLIGHT FLASHING
