POSDM

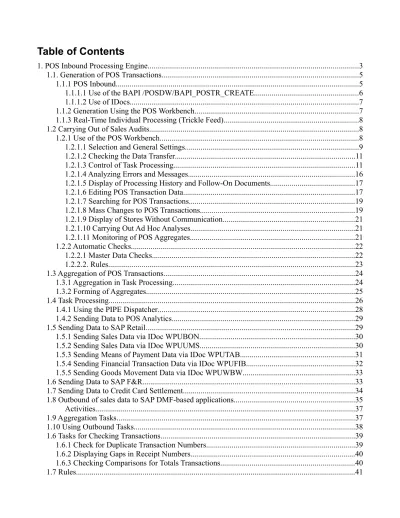

Table of Contents

1. POS Inbound Processing Engine...3

1.1. Generation of POS Transactions...5

1.1.1 POS Inbound...5

1.1.1.1 Use of the BAPI /POSDW/BAPI_POSTR_CREATE...6

1.1.1.2 Use of IDocs...7

1.1.2 Generation Using the POS Workbench...7

1.1.3 Real-Time Individual Processing (Trickle Feed)...8

1.2 Carrying Out of Sales Audits...8

1.2.1 Use of the POS Workbench...8

1.2.1.1 Selection and General Settings...9

1.2.1.2 Checking the Data Transfer...11

1.2.1.3 Control of Task Processing...11

1.2.1.4 Analyzing Errors and Messages...16

1.2.1.5 Display of Processing History and Follow-On Documents...17

1.2.1.6 Editing POS Transaction Data...17

1.2.1.7 Searching for POS Transactions...19

1.2.1.8 Mass Changes to POS Transactions...19

1.2.1.9 Display of Stores Without Communication...21

1.2.1.10 Carrying Out Ad Hoc Analyses...21

1.2.1.11 Monitoring of POS Aggregates...21

1.2.2 Automatic Checks...22

1.2.2.1 Master Data Checks...22

1.2.2.2. Rules...23

1.3 Aggregation of POS Transactions...24

1.3.1 Aggregation in Task Processing...24

1.3.2 Forming of Aggregates...25

1.4 Task Processing...26

1.4.1 Using the PIPE Dispatcher...28

1.4.2 Sending Data to POS Analytics...29

1.5 Sending Data to SAP Retail...29

1.5.1 Sending Sales Data via IDoc WPUBON...30

1.5.2 Sending Sales Data via IDoc WPUUMS...30

1.5.3 Sending Means of Payment Data via IDoc WPUTAB...31

1.5.4 Sending Financial Transaction Data via IDoc WPUFIB...32

1.5.5 Sending Goods Movement Data via IDoc WPUWBW...33

1.6 Sending Data to SAP F&R...33

1.7 Sending Data to Credit Card Settlement...34

1.8 Outbound of sales data to SAP DMF-based applications...35

Activities...37

1.9 Aggregation Tasks...37

1.10 Using Outbound Tasks...38

1.6 Tasks for Checking Transactions...39

1.6.1 Check for Duplicate Transaction Numbers...39

1.6.2 Displaying Gaps in Receipt Numbers...40

1.6.3 Checking Comparisons for Totals Transactions...40

1.7.1 Check for Balanced Transaction...43

1.7.2 Comparing Receipt Data and Cash Desk Totals...43

1.7.3 Check for Performance of Sales Audit...44

1.7.4 Credit Card Data Check...44

1.8 Outbound Processing of Aggregates...45

1.8.1 Performing Outbound Processing...45

1.9 Archiving Transaction Data...46

1.10 Providing POS Transactions for Online Stock Queries and Inventories During Opening Hours

...47

1.11 Encryption of Payment Cards...48

1.12 Roles...49

1.12.1 Sales Auditor/POS Monitoring...49

1. POS Inbound Processing Engine Purpose

Using the POS Inbound Processing Engine (PIPE), you can receive and process movement data from your stores. The PIPE can process the following data:

●Sales and returns including the related tax data and discount information ●Means of payment data

●Financial transactions ●Goods movements

●Totals records and cashier statistics

The PIPE updates the transaction data and makes it available for further processing. You have the following options:

●Checking and correction of the data from the transferred POS transactions

●Summarization of the data of POS transactions in order to reduce the data volume

●Supply of follow-on systems (for example, SAP BI, SAP Retail or SAP F&R) with the data from the POS transactions for further processing.

Integration

The transferred sales data is relevant for providing the following functions in SAP for Retail with POS data: ●Supply of POS data to Business Content for POS Analytics and Point of Sale in SAP BI

●Supply of the POS Interface Inbound in ERP and SAP R/3 with POS data ●Supply of SAP Forecasting and Replenishment in SAP SCM with POS data ●Supply of credit card settlement with POS data

Features

●Generation of POS transactions:

This includes both the manual creation of POS transactions and the conversion of data that is received in different formats such as IDocs of message types WPUBON, WPUUMS, WPUTAB, WPUWBW, WPUFIB and WPUKSR or also in BAPI format.

●Carrying out of the sales audit with the POS Workbench You have the following options:

○Manual check of the data transfer ○Error and message analysis

○Display of processing history and follow-on documents ○Search for POS transactions

○Changing POS transactions

●Carrying out checks for transaction data This includes the following:

○Carrying out of automatic master data checks ○Check for Duplicate Transaction Numbers ○Display of gaps in receipt numbers

○Check for balanced sales and tender totals of POS transactions ○Comparing receipt data and cash desk totals

●Summarization of transaction data using automatic aggregation when sending POS data to follow-on systems or by formation of aggregates

●Supply of follow-on systems with POS transaction data This includes the following:

○Send data to SAP BI

○Send sales data via IDoc WPUBON to SAP Retail ○Send sales data via IDoc WPUUMS to SAP Retail ○Send sales data via IDoc WPUTAB to SAP Retail

○Send financial transaction data via IDoc WPUFIB to SAP Retail ○Send goods movement data via IDoc WPUWBW to SAP Retail ○Send data to SAP F&R

○Send data to credit card settlement

1.1. Generation of POS Transactions

You wish to create POS transactions in the PIPE in order to check them in the PIPE and to be able to forward the related data to the linked follow-on systems.

There are three ways to generate POS transactions: ●POS Inbound via BAPI

●POS Inbound via IDoc

●Create Using the POS Workbench

1.1.1 POS Inbound Use

This function enables you to transfer transaction data from the POS system to the PIPE for further checking and processing.

Features

The system provides the following alternatives for supplying the PIPE with POS transaction data: ●Synchronous Transfer with the Standard BAPI Structure

1.1.1.1 Use of the BAPI /POSDW/BAPI_POSTR_CREATE Use

This function enables you to transfer POS transaction data synchronously from the POS store system to the PIPE. The use of the BAPI /POSDW/BAPI_POSTR_CREATE is the preferred method for sending POS transaction data from a store to the PIPE and, if appropriate, processing the data immediately (see also Immediate Individual Processing (Trickle Feed)).

Features

You have set up an RFC-capable program that transfers the POS transaction data from the store system to the BAPI and maps it to the required structures and fields.

Activities

The store system transfers the data of the POS transactions to the BAPI /POSDW/BAPI_POSTR_CREATE. The BAPI receives the data and posts it to the connected database. The POS transactions are generated

automatically.

Real-Time Individual Processing (Trickle Feed) Use

You can use this function to transfer POS transactions from the POS system to the PIPE in order to process them in real time and to supply the follow-on systems with the corresponding data. Real-time individual

processing therefore, comprises the complete processing of POS transaction data, and the POS inbound is only the first part of this.

Activities

You transfer the occurring transaction data regularly and in real time to the PIPE using one of the POS Inbound options. Prioritize the tasks to be carried out and assign them the task type Immediate Processing in order to carry out automatic checks and rules or to quickly supply follow-on systems with data. As soon as a POS transaction is posted in the PIPE, the system carries out all defined checks immediately and sends the transaction data to the follow-on systems if no errors have occurred. The processing there can now start.

Carrying out certain checks (for example, the check for missing receipt numbers) can prove to be difficult in some situations with real-time individual processing.

1.1.1.2 Use of IDocs Use

This function enables you to use IDocs to transfer POS transaction data from the POS store system to the PIPE and to make use of the advantages of asynchronous transfer.

Activities

You can use different IDoc types in order to transfer different data from the POS system to the PIPE. In addition to the standard POS IDoc types, an automatically generated IDoc type is also available:

●POS IDoc types:

You can use the following POS IDoc types for data transfer: ○WPUBON: Transfer Detailed Sales Data to PIPE

○WPUUMS: Transfer Sales Data Without Means of Payment Info to PIPE ○WPUTAB: Transfer Means of Payment Information to PIPE

○WPUFIB: Transfer Financial Transactions to PIPE ○WPUKSR

○WPUWBW: Transfer Goods Movements to PIPE ●Generated ALE Interface:

You can use the generated message type /POSDW/POSTR_CREATEMULTIPLE for data transfer to PIPE. This way you can transfer the same POS transaction data as with BAPI /POSDW/BAPI_POSTR_CREATE since the structure of the message type comprises all elements of the BAPI structure. The interface then matches. The only difference is that the transfer is asynchronous with use of the IDocs.

1.1.2 Generation Using the POS Workbench Purpose

In this process, you manually generate POS transactions in the PIPE in order to use them productively or for test purposes.

Process Flow

Start the POS Workbench and generate whatever POS transactions you wish as described under Processing the POS Transaction Data.

1.1.3 Real-Time Individual Processing (Trickle Feed) Use

You can use this function to transfer POS transactions from the POS system to the PIPE in order to process them in real time and to supply the follow-on systems with the corresponding data. Real-time individual

processing therefore, comprises the complete processing of POS transaction data, and the POS inbound is only the first part of this.

Activities

You transfer the occurring transaction data regularly and in real time to the PIPE using one of the POS Inbound options. Prioritize the tasks to be carried out and assign them the task type Immediate Processing in order to carry out automatic checks and rules or to quickly supply follow-on systems with data. As soon as a POS transaction is posted in the PIPE, the system carries out all defined checks immediately and sends the transaction data to the follow-on systems if no errors have occurred. The processing there can now start.

Carrying out certain checks (for example, the check for missing receipt numbers) can prove to be difficult in some situations with real-time individual processing.

1.2 Carrying Out of Sales Audits Purpose

You can use this process to view, analyze, and adjust data and processing status of POS transactions in the POS Inbound Processing Engine. This includes viewing of data transferred from the POS system, analysis and correction of errors, carrying out of checks, changing and recreation of transaction data, and also possible adjustments to the processing status of tasks.

Process Flow

You carry out sales audits in the PIPE in the POS Workbench and by way of automatic checks. 1.2.1 Use of the POS Workbench

In the POS Inbound Processing Engine (PIPE) the POS Workbench enables you to check the data and processing status of POS transactions and POS aggregates.

The POS Workbench contains the following functions: ●Selection and General Settings

●Checking the Data Transfer ●Controlling Task Processing ●Error and Message Analysis

●Display of Processing History and Follow-On Documents ●Creating, Changing, or Deleting POS Transaction Data ●Search for POS Transactions

●Mass Change of POS Transactions ●Display of Stores Without Communication ●Carrying Out Ad Hoc Analyses

●Displaying Processing Status of POS Aggregates

1.2.1.1 Selection and General Settings Use

When you enter the POS Workbench, you determine the criteria according to which the data is to be selected or displayed:

●Limit the selection area:

In the General Settings area you can restrict your selection with respect to store and distribution chain. You can select whether you wish to have POS transactions, POS aggregates, or both displayed. You flag or unflag the relevant checkbox in each case in the appropriate area of the POS Workbench initial screen. In addition, the following options are available to restrict the selection area for POS transactions: ○Entry of a posting date

○Consideration of the transaction status: You can select the following statuses: ■Tasks with errors exist

■Tasks with warnings exist ■Unprocessed tasks exist

■All tasks have been processed without errors ○Consideration of the business transaction:

You can include the following business transactions in the selection: ■Sales movements ■Goods movements ■Totals records ■Cancellation transactions ■Financial transactions ■Control transactions ■Undefined transactions

○Restrictions on header data of transactions:

In the POS Workbench, you can select POS transactions using the data of the transaction header. This way you can restrict the selection of transactions, for example, to specific POS numbers, transaction types, time intervals or cashiers.

For POS aggregates also, the following options are available to restrict the selection area: ○Entry of a posting date

You can select the following statuses: ■Aggregation started

■Aggregation completed ■Outbound processing started ■Outbound processing completed ■Completed

○Restrictions on aggregation level and aggregation task:

You may wish to consider only the aggregate data for specific aggregation levels or for specific aggregation tasks.

●Definition of the layout of the navigation area and the folder hierarchy:

Using the title elements Folder Hierarchy for POS transactions and POS aggregates and Folder with respect to POS transactions, you can adjust the appearance of the navigation area to suit your requirements.

You have the following options:

○You can define the main fields and additional fields of your folder hierarchy and their order, that is, their

hierarchy level. The possible selections for the main fields are posting date, store, and business transaction. The possible selections for the additional fields are time interval, cashier, POS number, and department for POS transactions. As the time interval, you can select from seven default settings between ten minutes and twelve hours.

In the case of POS aggregates, you can only define the order for the first three of the seven hierarchy levels. The values here are restricted to store, maximum posting date, and aggregation level.

○You can decide if, and for which hierarchy level, the system is to display a heading. For the main fields of the POS transactions, you can flag a checkbox to hide the corresponding tree level if it only appears once in the display.

●Other settings:

There are further optional settings. These include, for example, the general display of the descriptions and the date format, or also the system behavior on loading and refreshing the folder structure of the navigation area and the corresponding data.

1.2.1.2 Checking the Data Transfer Purpose

After you have transferred POS transactions from the POS system to the PIPE, you use this process to check if your data has arrived completely and correctly.

Process Flow

1.You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

2. In the navigation area, you navigate along the folder hierarchy to the level of the individual POS transactions and display them in the overview. Now you can see if the data you transferred is complete and error-free. If you double-click and select a specific POS transaction from the overview, this takes you to the editor display which enables a detailed view of the POS transaction. You have the facility to look at all segments of the transaction. If the master data of the transaction is incorrect, this is displayed by way of a corresponding error message and a red status indicator. You should correct any errors you find in the editor so that you can process relevant tasks for the POS transaction without errors.

For more information on master data checks, see Master Data Checks.

For more information on changing POS transactions, see Processing the POS Transaction Data. 1.2.1.3 Control of Task Processing

Purpose

You can use this process to check the status of task processing of POS transactions. You can start the processing of tasks for POS transactions manually. You can cancel task processing and then run it again. You can change the status of task processing manually.

Prerequisites

The task you have scheduled for processing is relevant for the POS transaction. For more information, see section 4 - Task Processing. The status of task processing for POS transactions can be seen independent of the relevance of the task.

Process Flow

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

In the navigation area, you navigate along the folder hierarchy to the level of the individual POS transactions and display them in the overview.

I.Check status of task processing

In addition to the actual POS transaction data in the overview, you can also find information on the task processing for each POS transaction that you can use when checking the task status:

○You can see if tasks are in status Ready. The system displays a gray status indicator.

○You can see if tasks have been processed without errors. The system displays a green status indicator.

○You can see if tasks have been processed with warnings. The system displays a yellow status indicator.

○You can see if tasks have not been processed due to errors. The system displays a red status indicator.

○The transaction status displays a summary of the task processing for the relevant POS transaction. It can be one of the following:

■All Tasks Processed Without Errors, if all relevant tasks have been processed and no warnings or errors have occurred.

■Unprocessed Tasks Exist, if at least one relevant task has not yet been processed and no warnings or errors have occurred for all tasks that have been processed.

■Tasks with Warnings Exist, if at least one task exists with a warning but no other task has been processed with errors.

■Tasks with Errors Exist, if at least one task has been completed with errors.

The status of the task processing is reflected also in the folder hierarchy in the navigation area for the relevant area.

To see detailed information on the status of each task of a POS transaction, you highlight the POS transaction and choose the pushbutton Task Status: Overview.

This brings an overview of the tasks assigned to the POS transaction. You can see if a task is relevant for the POS transaction and if it can be processed or not. In addition, the system shows whether processing of a task can be started manually. For more information, see Task Processing.

The status of each task is displayed. The following table provides an overview of the possible statuses of tasks. Meaning of Task Status

Task Status Meaning

Ready The task is ready to be executed. This is the

initial status for new POS transactions.

Completed with warning The task was executed successfully but warning messages were issued.

Completed The task was completed successfully.

Ready to be canceled The task is to be canceled.

Error during cancelation An error occurred when canceling the task. Canceled with warning The task was canceled successfully but

warning messages were issued.

Canceled The task was canceled successfully.

Rejected The task was not completed and will not be

processed further.

You can now change the task status manually by choosing the relevant pushbutton or you can decide to cancel or process a task based on its current status.

II. Carry out task processing manually

Within the POS Workbench, you have the facility to manually change the task processing for POS transactions. To do this, you select one or more POS transactions in the transaction overview and choose the pushbutton Process Tasks Online. A dialog box appears in which you can define the details for task processing. You can now process either one specific task or all tasks for the selected POS transaction(s). Only those tasks that have been assigned in Customizing are offered for selection. For more information, see Task Processing.

Since the assigned tasks result from Customizing at the time of generation of a transaction, you must, if you have changed the Customizing in the meantime, flag the checkbox Take Account of Customizing Changes, if you wish to take note of the changes.

As an additional option, you can choose whether to process tasks that have been completed with errors. You do not have to manually set the tasks to Ready first, you can carry out processing again immediately.

As soon as you have carried out the task processing, a further dialog box appears providing you with a processing protocol. The system shows whether the processing has been carried out, in some cases with warnings, or if it could not be completed due to errors. The system shows the error messages that have occurred in the processing protocol. The processed task then receives a status corresponding to the result.

III.Cancel task processing

You can cancel a task that has already been processed. This operation is useful if you wish to reset the processing of a task in order to carry it out again under different conditions.

To do this, you first set the status of the task to be canceled for the relevant POS transaction(s) to Ready to be Canceled. Then you can carry out processing of the task again as described in the previous section and the system carries out the cancelation. Manual conversion of the task status is described in the following section. After you have canceled the task, you must reset the status to Ready in order to be able to process it again. IV.Manual change of the task status and related status transitions

In the POS Workbench, you can manually change the status of tasks for POS transactions. You highlight a POS transaction for this and choose the pushbutton Task Status - Overview. In the following dialog box, you choose the pushbutton Task Status – Change for whatever tasks you wish. Depending on the current status of task

processing and the intended further processing, you can now select a new status.

Below, the different statuses and status transitions in task processing are clarified - from the beginning to the end of task processing of a new transaction.

Before they are processed, the tasks have status Ready. There are various ways of ending a process for a task:

○You can reject processing of the task immediately. The task receives the status Rejected. ○An error occurred during the first processing of the task. The task receives the status Error. You now have two options:

i. You reject processing of the task. The task receives the status Rejected. ii. You correct the error. You assign the task status Ready and restart processing.

○No errors occurred during the first processing of the task. If no warnings are issued during processing of the task, the task receives status Completed.

If, however, warnings are issued during processing of the task, the task receives status Completed with Warning. You now have two options:

i. You ignore the warning and set the status of the task to Completed.

ii. Due to the warning, you wish to cancel processing of the task. You flag the task for cancelation. The task receives the status Ready to be Canceled.

You can also cancel a task that has status Completed. You flag the task for cancelation. The task receives the status Ready to be Canceled.

○If an error occurs during cancelation of a task, the task receives the status Error During Cancelation. You now have two options:

i. You remove the cause of the error and reset the status to Ready to be Canceled. ii. You stop the cancelation and set the status to Completed.

If a warning is issued during cancelation of a task, the task receives the status Canceled with Warning. In this case, you have two options:

i. You ignore the warning and set the status to Canceled.

ii. You schedule the task for further processing and set the status to Ready.

If no warnings are issued during cancellation of a task, the task receives the status Canceled. You can flag tasks with status Canceled and Canceled with Warning for repeat processing.

The following graphic shows the relationships between the different task status values and the permitted status transitions:

The following table provides an overview of the meaning of the status transitions. Meaning of Status Transition

Status Transition Meaning

Process The task is processed in a processing run. It is either executed or canceled.

Reject The processing of the task is rejected. This can occur as a result of action taken by the user or as a result of the occurrence of specific conditions during the processing run.

Execute This transition is used when a task is no longer to be carried out, for example, in the case of duplicate POS transactions or with incorrect data.

Ignore warning The task is to be executed. The user triggers this change.

Cancel Warnings should be ignored. This is triggered

by the user. This means that the user can convert a status with warning to a status without warning thus removing the POS transaction from the worklist.

Stop cancel A task that has been executed is to be canceled. The user triggers this change.

1.2.1.4 Analyzing Errors and Messages Purpose

You want to check which warnings or errors have occurred during the processing of tasks for POS transactions so that you can fix them, and also to check which tasks could be performed successfully.

Prerequisites

You have already performed the processing of tasks. Process Flow

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

In the navigation area, you can see from the task status from the status indicator: ●Tasks with errors: red status indicator

●Tasks incomplete: grey status indicator

●POS transactions were processed correctly: green status indicator

In the navigation area, you navigate along the folder hierarchy to the level of the individual POS transactions and display them in the overview.

Highlight one or more POS transactions, whose warnings or errors you would like to analyze. Also select Warnings.

Instead of showing you the POS transaction overview, the system shows you a list of the notifications that have occurred regarding the POS transaction that was selected earlier. You see all the available details for individual messages; you can also view these in their own dialog box by clicking Details. You can sort the messages according to your own needs.

If errors occur during processing, then you must fix these, for example, in the POS Workbench editor. You can return to the POS transaction overview by choosing Overview.

1.2.1.5 Display of Processing History and Follow-On Documents Purpose

You can use this process to check what type of processing has been carried out for specific POS transactions. Process Flow

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

In the navigation area, you navigate along the folder hierarchy to the level of the individual POS transactions and display them in the overview.

Select one or more POS transactions whose processing history you wish to display, and choose the pushbutton Document Flow. Instead of the overview of the POS transactions, the system now displays the process flow of the processing that has occurred up to this point including the generated follow-up documents such as IDocs. You can see what kind of processing has taken place at what time for which transactions. You can display the task processing starting with the entry of the POS transaction into the PIPE right up until the output of

transaction data using IDocs or you can display it in the reverse order.

You can return to the POS transaction overview by choosing the pushbutton Overview.

1.2.1.6 Editing POS Transaction Data Purpose

In this process you use the POS Workbench to create new POS transactions. You copy existing transactions. You can change existing POS transactions in the POS Workbench editor.

Process Flow

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

In the navigation area, you navigate along the folder hierarchy to the level of the individual POS transactions and display them in the overview.

Here you can create new, change, or copy individual POS transactions. Section deleted 1. Create New POS Transaction

like to create a new POS transaction. In the context menu choose New POS Transaction. The system provides a dialog box to create POS transactions. You can add to or change the transaction data as necessary.

If you would like to create multiple POS transactions, choose New POS Transaction in the dialog box. The previous POS transaction data is copied into the corresponding list in the dialog box as the POS transaction that is to be created and you can enter transaction data of other POS transactions to the corresponding fields of the dialog box.

You can delete or copy POS transactions that are already in the dialog box list of POS transactions that are to be created.

As soon as you choose Save POS Transactions, the system creates all those POS transactions that are shown in the dialog box.

Note, that only the header information of the POS transaction is created and that you must enter additional details using the POS Workbench editor.

2. Copy Existing POS Transaction

To copy existing POS transactions, highlight one or more POS transactions in the POS Workbench overview and choose Copy POS Transaction. As a result, the system creates the new POS transactions only in the overview at first and displays these with the corresponding transaction status. You also have the opportunity to change the POS transactions using the POS Workbench editor before you create them in the system with Save. Use the editor just as described in the following section for existing transactions.

3. Change Existing POS Transaction

To change existing POS transactions, highlight one or more POS transactions in the POS Workbench overview and choose Editor. Alternatively, you can select the POS transaction directly with a double-click. In both cases, the POS Workbench editor starts.

In the navigation area the system shows you the segments of the selected POS transaction. Highlight a heading that belongs to one of more segments in the navigation area and the data of all the relevant segments is

displayed in the overview. If you choose a specific segment, the system shows you the data of this segment in the editor view. Alternatively, you can also highlight a POS transaction in the overview and then click Individual Segment.

In the change mode of the editor view you have the following options:

○By choosing Copy Entries, you can change the input-ready fields of the chosen segment and accept the changes that have been made.

○By choosing Reject Changes you can undo changes that have previously been made and revert to the last version. This is possible, so long as you have not activated the changes using Accept Changes.

○By clicking Save you can save in the system the changes that have already been accepted for the segment currently shown.

The system automatically performs master data checks after data has been entered. If you have entered incorrect data, this will be displayed in an error message. For more information, see Automatic Checks.

You can only edit POS transactions so long as you have not successfully performed any associated tasks with them. As long as this is the case, you cannot make any further changes to the transaction data to avoid

inconsistencies in the system and follow-on systems. If, however, you would still like to make changes to a POS transaction, then you must first cancel the processed tasks. Only then is it possible again to make changes to the transaction data.

After you have performed all the changes regarding your POS transaction segments, leave the editor using Back and you return to the transaction view of the POS Workbench.

1.2.1.7 Searching for POS Transactions Use

With this function you can search for pre-defined character strings within the fields of specific segments of a POS transaction.

Activities

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

You can search for POS transaction data in the following ways:

●You search in a number of POS transactions which the system displays to you after navigation in the navigation area in the folder hierarchy until the level of your choice in the overview.

Choose Search in the POS transactions overview.

●You search in either one specific or all folders in the navigation area.

When searching in a specific folder, you can also choose the folder of a store or posting date. Select the folder of your choice and choose Search in the navigation area. From the list displayed, choose whether you want to search in the selected folder or all folders in the navigation area.

In both cases, the system displays a dialog box for the search. You enter the character string that you want to search for and specify the maximum number of hits. You have the following options:

●You can perform the search on all segments and all fields of POS transactions.

●You can restrict the search to a specific segment and take all segment fields into account. ●You can perform the search in a specific field.

If you want to restrict the search to a specific field, you can reduce the fields offered by the system in the

dropdown list by restricting it to a specific POS transaction segment. This results in the choice of one single field. You can specify whether it is relevant to your search if it is case-sensitive or not. By selecting the relevant checkbox the system performs case-sensitive searches for specific character strings.

If you would like to take the 5 words Deleted intra-system format into account for the search then select the Internal Display checkbox.

Once you have set your settings, you can start the search by pressing return. The result is displayed in a dialog box. The system lists all the relevant transactions including unique transaction index and field where the

character string was found and sorts them into a tree structure according to store and posting date. If the search is unsuccessful, the system displays the corresponding message.

1.2.1.8 Mass Changes to POS Transactions Use

Use this to make mass changes to existing POS transactions. Activities

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

The mass change consists of a search and subsequent replacement of data. You have the following options for performing mass changes to POS transactions:

●You search for and replace data in a number of POS transactions which the system displays to you after navigation in the navigation area in the folder hierarchy until the level of your choice in the overview. Choose Mass Changes (POS Data) in the POS transactions overview.

●You search for and replace data in a number of POS transactions that are distributed across a specific folder, or all folders, in the navigation area.

You can choose a specific folder or the folder of a store or posting date for the mass change. Highlight the folder of your choice and choose Mass Changes (POS Data) in the navigation area. From the list displayed, choose whether you want to perform the mass changes on the highlighted folder or all folders in the navigation area. In both cases, the system displays a dialog box for the mass change. First specify the character string that you want to search for, then specify the character string with which you would like to replace the first. Enter the maximum number of hits or the maximum number of search results in the tree display.

You have the following options for the mass change:

●You perform the mass change on all segments and all fields of the POS transaction.

●You restrict the search to a specific POS transaction segment and take all fields into consideration. ●You only perform the mass change on a specific field.

If you want to restrict the mass change to a specific field, you can reduce the fields offered by the system in the dropdown list by restricting it to a specific POS transaction segment. This results in the choice of one single field. You can specify whether it is relevant if searches are case-sensitive or not. By selecting the relevant checkbox the system performs case-sensitive searches for specific character strings.

If you would like to take into account the intra-system format for the search and the corresponding syntax, then select the Internal Display checkbox.

Once you have set your settings, you can start the mass change search by pressing return. The result is displayed in a dialog box. The system lists all the relevant transactions including unique transaction index and field where the character string was found and sorts them into a tree structure according to store and posting date. If the search is unsuccessful, the system displays the corresponding message.

You can select or deselect the entries found by pressing the corresponding button. It is not possible to select single entries. Once you have selected the POS transactions, you can end the mass change by choosing Replace and Save.

1.2.1.9 Display of Stores Without Communication Use

This function enables you to display in the POS Workbench additional stores, or exclusively those stores, which do not have any POS transactions matching your defined selection criteria, and which therefore, do not have any communication between POS and PIPE.

Activities

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench. Switch to the view Folder and make the setting for stores without communication.

You have the following selection options: ●Do not Display Stores Without Communication ●Also Display Stores Without Communication ●Only Display Stores Without Communication

Run the selection. Depending on the setting, the system displays in the navigation area only stores without communication, only the data on stores with communication, or both.

1.2.1.10 Carrying Out Ad Hoc Analyses Use

This function enables you to analyze the data of the POS transactions that have been transferred from the POS system to the PIPE.

Activities

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS transactions in the workbench and then carry out the selection.

In the navigation area, the system displays the relevant folder structure for your selection. You can see for which stores, posting dates, and business transactions, POS transactions exist in the PIPE. For each folder, and therefore for each hierarchy level, the system displays the number of POS transactions and the corresponding total sales. If required, you can also have this data displayed in combinations by cashier, POS number, department, or 10 minute intervals.

1.2.1.11 Monitoring of POS Aggregates Purpose

In this process, you monitor the data and processing status of POS aggregates. Prerequisites

You have used aggregation tasks and generated aggregates for further processing in the system. For more information, see Aggregation Tasks.

Process Flow

You start the POS Workbench, define your settings, and restrict your selection area. Ensure that the view display is selected for POS aggregates in the workbench and then carry out the selection.

Navigate along the folder hierarchy to the appropriate level and have a look at the number of aggregates and their processing status in the overview. The system provides the following information:

●You can see how many POS aggregates are unprocessed or completed and how many were processed with warnings or could not be processed due to errors.

●You can see how many packages, into which aggregates are split for processing, are unprocessed or completed and how many were processed with errors or could not be processed due to errors.

The system displays the total status of all aggregates of a hierarchy level using an appropriately colored status indicator.

If you wish to process existing POS aggregates based on the given information, you start the outbound processing using the Outbound Dispatcher of the PIPE. For more information, see Outbound Processing.

1.2.2 Automatic Checks Use

This function enables you to carry out automatic checks for POS transaction data. You carry out part of these checks in order to guarantee the consistency and completeness of your POS transaction data.

The following two options are available:

●You check POS transaction data using Master Data Checks.

●You check POS transaction data and its processing status using Rules that you define and you can then react to the results.

The master data checks are also used for data enrichment in the processing of standard tasks. For this reason, you should always carry out automatic master data checks.

Prerequisites

You must make relevant Customizing settings for the PIPE so that the system processes the appropriate checks. Activities

The system automatically carries out the checks you have determined at the appropriate times.

1.2.2.1 Master Data Checks Use

You can use this function to check the master data of POS transactions.

Since the system partly uses the automatic checks to enhance the transaction data, SAP recommends that you generally activate and process master data checks when you are processing standard tasks for POS

transactions.

You can choose between two different models for performing master data checks; these do not differ in results, but in flexibility. You can either choose the classic master data check or the master data check that uses check profiles.

Prerequisites

You have customized the PIPE so checks are processed by the system.

enter the master data filter value and ensure that the Checks using Check Profile checkbox is not selected. If, however, you would like to perform checks using check profiles, ensure that the Checks using Check Profile checkbox is selected in the General Settings area.

The Master Data Filter is irrelevant. Since master data checks are processed for both the POS Workbench area as well as within the task processing, different check profiles can be set. For the POS Workbench, store the check profile in the Profile area specific to each customizing profile. For each future task that is to be processed, set the check profile in either the Tasks ® One-Step Processing ® Tasks area or the Tasks ® Two-Step

Processing ® Aggregation Tasks area.

If you do not want to use the SAP standard check profile, you can create one or more of your own in the check profile area of the PIPE customizing.

If you use check profiles and do not set a check profile for a customizing profile or a task process, then no check and, furthermore, no data enhancement will take place in this case. This can lead to errors with task processing, for example.

Features

The system automatically carries out the checks you have determined at the appropriate times. They are processed in the following situations:

●When the editor is started for a particular POS transaction within the POS Workbench ●When POS transactions are created

●When tasks are processed

The system checks for POS transaction data and automatically enhances them with further data. If there are not any POS transaction data in the system and the check is therefore unsuccessful, then a

corresponding error message is displayed. No further processing of the relevant POS transaction occurs within the task processing.

For an incorrect or missing material number you can set either an error material or standard material as default in the PIPE customizing in the Standard Values area.

If all checks and data enhancements are successful, then the system can continue the functions, under the guidelines of which the checks were performed, without restrictions.

1.2.2.2. Rules Use

Using this function, you can check transaction data when processing tasks using predefined rules and then carry out a specific activity depending on the result. You use rules in cases where you only wish to process tasks if certain conditions are fulfilled.

Prerequisites

Define the available rules in PIPE Customizing in the area Tasks ® Rules and assign to each task the rule that the system is to use for checking during task processing.

For more information, see Rules.

Features

In task processing, the system automatically carries out any rules you have defined for a task. For more information, see Rules.

1.3 Aggregation of POS Transactions Purpose

In this process, the data of POS transactions are summarized (aggregation). Then you can send this aggregated data to other systems.

This significantly reduces the data volume generated. At the same time, the transfer of aggregated information improves performance and saves time.

Process Flow

The system provides two options for aggregating POS transaction data. On the one hand, you can set up automatic aggregation for processing of tasks that are processed with the single-step procedure. On the other hand, you can form aggregates that are first stored in the database. These aggregates are then processed in a subsequent step.

1.3.1 Aggregation in Task Processing Use

You would like to group and aggregate POS transaction data during task processing. Prerequisites

Ensure that you have assigned the required aggregation methods in the PIPE Customizing to the tasks to be processed in the Tasks ® One-Step Processing ® Tasks area. You can check the settings for the aggregation methods under Tasks ® One-Step Processing ® Tasks in Customizing and if you wish you can configure your own aggregation method.

Activities

The system automatically performs the aggregation of POS transaction data within task processing. You can choose between the following aggregation methods:

●Grouping According to Posting Date:

The system does not perform any specific aggregation for task processing, but simply groups the transactions to be processed according to their posting date. In this way they are always unique thanks to their posting date. ●Aggregation According to Material:

The system aggregates sales item data of POS transactions for each material number, unit of measure and currency and creates packages within task processing.

The aggregation method is intended for use in connection with the task for creating and sending the IDoc WPUUMS.

●Aggregating Material with Conditions:

The system aggregates sales item data of POS transactions for each material number, unit of measure and currency. The corresponding taxes and discounts are also aggregated for the aggregation of the sales item data. The system creates the corresponding packages within the task processing.

The aggregation method is intended for use in connection with the task for creating and sending the IDoc WPUUMS.

●Aggregation according to F&R Type and Material:

The system aggregates sales item data of POS transactions for each material number, unit of measure and currency and creates packages within task processing.

The aggregation method is intended for use in connection with the task of sending data to SAP F&R and is generally to be used for this.

●Aggregation Means of Payment:

The system aggregates the means of payment of POS transactions for each posting date, means of payment type and means of payment currency and creates packages within task processing.

The aggregation method is intended for use in connection with the task for creating and sending the IDoc WPUTAB.

●Aggregation Means of Payment Enhanced:

The system aggregates the means of payment of POS transactions for each posting date, POS number and cashier and creates packages within task processing.

This aggregation method is intended for use in connection with the task for creating and sending the IDoc WPUTAB.

●Aggregate Sales Items According to ItemID and Qualifier:

The system aggregates sales item data of POS transactions for each itemID, qualifier, unit of measure, and currency, and creates packages within task processing.

The aggregation method is intended for use in connection with the task for creating and sending the IDoc WPUUMS.

●Aggregate Sales Items According to ItemID and Qualifier with Details:

The system aggregates sales item data of POS transactions for each itemID, qualifier, unit of measure and currency. The corresponding taxes and discounts are also aggregated for the aggregation of the sales item data. The system creates the corresponding packages within the task processing.

The aggregation method is intended for use in connection with the task for creating and sending the IDoc WPUUMS.

For each of the named aggregation methods you can set an additional time grouping criterion, the aggregation period. This enables you to use the system for even finer aggregation. Only POS transactions that are in the same aggregation period are aggregated together. You can choose from the following aggregation period options:

●10-minute schedule line for time stamp ●Posting Date

●Posting date/Transaction currency ●Hour of time stamp

●Day of time stamp ●Week of posting date ●Week of time stamp ●Month of posting date ●Month of time stamp

After aggregation the system sends the data aggregated within the task processing, for which the aggregation was performed, on to the corresponding follow-on system. For more information, see Task Processing.

1.3.2 Forming of Aggregates Use

You can use this function to summarize POS transaction data by updating it to aggregates in the database. Then, in a second step, you can process the summarized data further.

Ensure that you have made the necessary settings in the PIPE Customizing. For more information, see Aggregation Tasks.

Features

Summarization of POS transaction data by way of formation of aggregates is carried out using separate tasks (aggregation tasks) that can be set for POS transactions.

For more information, see Aggregation Tasks.

1.4 Task Processing Purpose

In this process, you process one or more of the tasks provided by the system for specific transaction data. Operations on POS transactions are called tasks. The system provides the following task types for processing POS transactions:

●Tasks for supplying follow-on systems with POS transaction data

●Tasks that are to be carried out manually, where completion is retained in the PIPE as a reminder ●Tasks for checking transaction data

●Aggregation tasks that serve to form aggregates by summarizing POS transaction data

The following table provides an overview of the tasks that are provided for processing in the standard system:

Task Code Task Description

0001 Supply BW Immediately, Non-Aggregated, with

Distribution

0002 Sales Audit Performed, Manual Task

0004 Supply BW with Distribution

0009 Generate WPUBON IDoc

(non-merchandise items)

0010 Generate WPUBON IDoc

0011 Generate WPUWBW IDoc

0012 Generate WPUFIB IDoc

0013 Generate WPUTAB IDoc

0014 Generate WPUUMS IDoc

0016 Confirmation of Credit Card Settlement

0020 Supply of F&R

0030 Check Balancing for Totals Transactions

1001 Check for Duplicate Transaction Numbers

1002 Check for Receipt Numbers Without Gaps

The specified aggregation tasks are listed under Aggregation Tasks Prerequisites

If you wish to carry out a certain task for a defined POS operation, and thus for a specific type of POS transaction, you ensure that the following settings are made in PIPE Customizing.

●Ensure that you have set the type of tasks to be carried out under Tasks ® One-Step Processing ® Tasks or Tasks ® Two-Step Processing ® Aggregation Tasks depending on the requirements to one of the values Immediate Processing, Collective Processing or Manual Processing.

●Under Tasks ® POS Transactions, check the task group that is assigned to the relevant POS transaction and assign a task group if required.

●Under Tasks ® Task Group, ensure that the task group that is assigned to the transaction type of your POS transaction actually exists.

●Ensure that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Check also, if necessary, if processing of a task for a defined POS transaction type makes sense. Process Flow

Depending on the setting in PIPE Customizing for the type of task to be processed, you have the following options for carrying out task processing:

●Automatic task processing:

In the case of tasks with type Immediate Processing, the system carries out the processing immediately the POS transaction is created. The creation of POS transactions in the POS Workbench is an exception to this. In this case, no immediate processing takes place and you must carry out processing as described in the following section.

●Task processing using POS Workbench or PIPE Dispatcher:

In the case of tasks with type Collective Processing, you must start processing of the task with an explicit call. To do this, you have the following two options:

○You carry out the task processing using the POS Workbench. For more information, see Control of Task Processing.

○You carry out task processing with the PIPE Dispatcher (transaction /POSDW/PDIS). For more information, see Using the PIPE Dispatcher.

●Manual task processing and conversion of task status

In the case of tasks with type Manual Processing, you must set the task to Completed by way of the user interface as soon as you have completed it. To do this, use the POS Workbench

For more information, see Control of Task Processing. 1.4.1 Using the PIPE Dispatcher

Use

You process one or more tasks for a quantity of POS transactions in the background. Procedure

1. In the PIPE menu, choose POS Processing POS Data ® Parallel Processingand start the PIPE Dispatcher (transaction /POSDW/PDIS).

2.Set the data selection criteria you require. Enter the tasks to be processed by entering the corresponding task codes in the selection screen. In addition, you can restrict the POS transactions to be considered by way of store, posting date, and business transaction. If you require further selection criteria, you can extend the data selection area by choosing the pushbutton Further Selections.

3.By selecting the appropriate checkbox in processing control you can: ○Carry out a processing test run:

The processing protocol displays the results of processing with your chosen selection criteria. The test run does not make any changes to the database.

○Process errors:

Tasks that have status Error or Error During Cancellation are taken into account in processing if you first choose the status Ready or Ready to be Canceled. Remove the errors so that the system can process the relevant tasks.

○Consider Customizing changes:

Tasks that have subsequently become active for POS transactions by way of Customizing changes are taken into account by the system.

○Switch off prioritization of task processing:

The system carries out processing of the tasks in the order in which they are entered on the selection screen. This way you can override the priorities assigned in task Customizing.

4.You can enable parallel processing using the PIPE Dispatcher. To do so, select the Parallel Processing checkbox and enter the appropriate parameters in the selection screen.

5.Then you can select the criteria for the processing protocol output. By selecting Protocols you can view the saved protocols of earlier processing. The system displays a specific selection screen for choosing the protocol. Here you can restrict the choice of the relevant protocol as well as set time restrictions, for example, for users or programs.

6.Perform the processing once you have made all the settings. The result is displayed in the processing protocol if you have activated this. If errors have occurred, the system displays a red status symbol with a corresponding error message. If a processing step was performed successfully, the system displays a green status symbol. 7.You can view the task status for individual POS transactions in the POS Workbench.

1.4.2 Sending Data to POS Analytics Purpose

In this process, you send the data from POS transactions to POS Analytics in order to create analyses and statistics such as sales analysis, error statistics, or loss prevention.

Prerequisites

You have made the following settings in PIPE Customizing.

●You have set the type of the task to be carried out under Tasks ® One-Step Processing ® Tasks depending on the requirements to either Immediate Processing or Collective Processing and you have checked the

correctness of the other task settings.

●Under Tasks ® POS Transactions, you have checked the task group that is assigned to the relevant POS transaction and you assign a task group if required.

●You have ensured that the task group, which is assigned to the transaction type of your POS transaction, exists under Tasks ® Task Group.

●You have ensured that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Process Flow

The following tasks are available in the standard system for sending data to POS Analytics: ●0001:Supply BW Immediately, Non-Aggregated, with Distribution

●0004: Supply BW with Distribution

Carry out processing of the task for the relevant POS transactions depending on the task type. For more information, see Task Processing.

If the task has been carried out successfully, the system sets the task status for all processed POS transactions to Completed.

1.5 Sending Data to SAP Retail

You can send the data from POS transactions to SAP Retail in order to generate follow-up documents there or to process the data in other ways.

The following options are available for sending POS transaction data to SAP Retail: ●Send Sales Data via IDoc WPUBON

●Send Sales Data via IDoc WPUUMS

●Send Means of Payment Data via IDoc WPUTAB ●Send Financial Transaction Data via IDoc WPUFIB ●Send Goods Movement Data via IDoc WPUWBW

Alternatively, you can also supply SAP Retail with data by generating aggregates and carrying out the corresponding outbound processing.

For more information, see Outbound Processing. 1.5.1 Sending Sales Data via IDoc WPUBON Purpose

In this process you send the sales data of POS transactions, both individually and summarized, to SAP Retail. You can use the IDoc WPUBON for this to transfer the following data:

●Header information of POS Transaction ●Data of sales items

●Discount information ●Tax information ●Tender data

Prerequisites

You have made the following settings in PIPE Customizing.

●You have set the type of the task to be carried out under Tasks ® One-Step Processing ® Tasks depending on the requirements to either Immediate Processing or Collective Processing and you have checked the

correctness of the other task settings.

●Under Tasks ® POS Transactions, you have checked the task group that is assigned to the relevant POS transaction and you assign a task group if required.

●You have ensured that the task group, which is assigned to the transaction type of your POS transaction, exists under Tasks ® Task Group.

●You have ensured that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Process Flow

Both of the following tasks are available for sending sales data to SAP Retail when using the IDoc WPUBON. ●0010 – Generate IDoc WPUBON

●0009 – Generate IDoc WPUBON (Non-Merchandise Items)

With the provision of a separate task for non-merchandise items, you can process this item data at an early stage independently of the merchandise item data and then send it to SAP Retail.

Carry out processing of the task for the relevant POS transactions depending on the task type.

If the task has been carried out successfully, the system sets the task status for all processed POS transactions to Completed.

1.5.2 Sending Sales Data via IDoc WPUUMS Purpose

In this process you can send the sales data of multiple POS transactions, summarized, to SAP Retail. You can use the IDoc WPUUMS for this to transfer the following POS transaction data:

○Store ○Posting date

○Transaction currency ●Data of sales items ●Discount information ●Tax information

Transfer of tender data via IDoc WPUUMS is not possible. If you wish to transfer this data also to SAP Retail, you send, in addition to IDoc WPUUMS also the IDoc WPUTAB to SAP Retail.

Prerequisites

You have made the following settings in PIPE Customizing.

●You have set the type of the task to be carried out under Tasks ® One-Step Processing ® Tasks depending on the requirements to either Immediate Processing or Collective Processing and you have checked the

correctness of the other task settings.

●Under Tasks ® POS Transactions, you have checked the task group that is assigned to the relevant POS transaction and you assign a task group if required.

●You have ensured that the task group, which is assigned to the transaction type of your POS transaction, exists under Tasks ® Task Group.

●You have ensured that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Process Flow

The task 0014 Generate IDoc WPUUMS is available for sending sales data to SAP Retail when using the IDoc WPUUMS.

If you wish to send the relevant data aggregated, you have to set an appropriate aggregation method for task processing in task Customizing. For more information, see Aggregation During the Processing of Tasks. Carry out processing of the task for the relevant POS transactions depending on the task type. For more information, see Task Processing.

If the task has been carried out successfully, the system sets the task status for all processed POS transactions to Completed.

1.5.3 Sending Means of Payment Data via IDoc WPUTAB Purpose

In this process you can send means of payment data of multiple POS transactions (summarized) to SAP Retail. You can use the IDoc WPUTAB for this to transfer the following POS transaction data:

●Header data: store, posting date, department, POS number, and cashier ●Means of payment data

Prerequisites

●You have set the type of the task to be carried out under Tasks ® One-Step Processing ® Tasks depending on the requirements to either Immediate Processing or Collective Processing and you have checked the

correctness of the other task settings.

●Under Tasks ® POS Transactions, you have checked the task group that is assigned to the relevant POS transaction and you assign a task group if required.

●You have ensured that the task group, which is assigned to the transaction type of your POS transaction, exists under Tasks ® Task Group.

●You have ensured that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Process Flow

The task 0013 Generate IDoc WPUTAB is available in the standard system for sending means of payment data to SAP Retail using the IDoc WPUTAB.

If you wish to send the relevant data aggregated, you have to set an appropriate aggregation method for task processing in task Customizing. For more information, see Aggregation During the Processing of Tasks. Carry out processing of the task for the relevant POS transactions depending on the task type. For more information, see Task Processing.

If the task has been carried out successfully, the system sets the task status for all processed POS transactions to Completed.

1.5.4 Sending Financial Transaction Data via IDoc WPUFIB Purpose

In this process you can send financial transaction data related to POS transactions to SAP Retail. You can use the IDoc WPUFIB for this to transfer the following POS transaction data:

●Header data: ○Store

○Posting date

○Transaction number ○Cashier

●Financial transaction data Prerequisites

You have made the following settings in PIPE Customizing.

●You have set the type of the task to be carried out under Tasks ® One-Step Processing ® Tasks depending on the requirements to either Immediate Processing or Collective Processing and you have checked the

correctness of the other task settings.

●Under Tasks ® POS Transactions, you have checked the task group that is assigned to the relevant POS transaction and you assign a task group if required.

●You have ensured that the task group, which is assigned to the transaction type of your POS transaction, exists under Tasks ® Task Group.

●You have ensured that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Process Flow

to SAP Retail using the IDoc WPUFIB.

You carry out processing of the task for the relevant POS transactions depending on the task type. For more information, see Task Processing.

If the task has been carried out successfully, the system sets the task status for all processed POS transactions to Completed.

1.5.5 Sending Goods Movement Data via IDoc WPUWBW Purpose

In this process you can send goods movement data from POS transactions to SAP Retail. You can use the IDoc WPUWBW for this to transfer the following POS transaction data:

●Header data ○Store ○Posting date ○Transaction number ○Cashier

●Goods movement data Prerequisites

You have made the following settings in PIPE Customizing.

●You have set the type of the task to be carried out under Tasks ® One-Step Processing ® Tasks depending on the requirements to either Immediate Processing or Collective Processing and you have checked the

correctness of the other task settings.

●Under Tasks ® POS Transactions, you have checked the task group that is assigned to the relevant POS transaction and you assign a task group if required.

●You have ensured that the task group, which is assigned to the transaction type of your POS transaction, exists under Tasks ® Task Group.

●You have ensured that the task to be carried out is assigned to the relevant task group under Tasks ® Tasks for Task Group.

Process Flow

The task 0011 IDoc WPUWBW is available in the standard system for sending goods movement data to SAP Retail using the IDoc WPUWBW.

Carry out processing of the task for the relevant POS transactions depending on the task type. For more information, see Task Processing.

If the task has been carried out successfully, the system sets the task status for all processed POS transactions to Completed.

1.6 Sending Data to SAP F&R Purpose

In this process you send the data of POS transactions to SAP Forecasting & Replenishment (SAP F&R). Prerequisites
