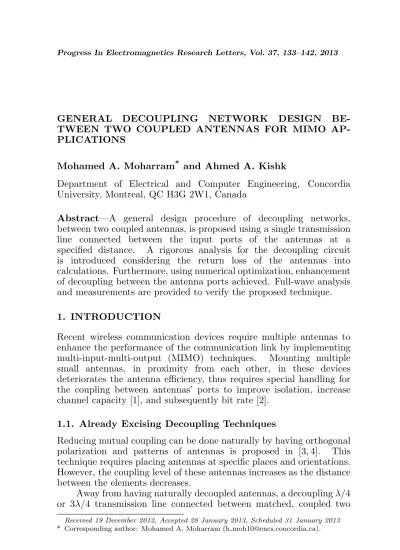

GENERAL DECOUPLING NETWORK DESIGN BE-TWEEN TWO COUPLED ANTENNAS FOR MIMO AP-PLICATIONS
Mohamed A. Moharram* and Ahmed A. Kishk
Department of Electrical and Computer Engineering, Concordia University, Montreal, QC H3G 2W1, Canada
Abstract—A general design procedure of decoupling networks, between two coupled antennas, is proposed using a single transmission line connected between the input ports of the antennas at a specified distance. A rigorous analysis for the decoupling circuit is introduced considering the return loss of the antennas into calculations. Furthermore, using numerical optimization, enhancement of decoupling between the antenna ports achieved. Full-wave analysis and measurements are provided to verify the proposed technique.
1. INTRODUCTION
Recent wireless communication devices require multiple antennas to enhance the performance of the communication link by implementing multi-input-multi-output (MIMO) techniques. Mounting multiple small antennas, in proximity from each other, in these devices deteriorates the antenna efficiency, thus requires special handling for the coupling between antennas’ ports to improve isolation, increase channel capacity [1], and subsequently bit rate [2].
1.1. Already Excising Decoupling Techniques
Reducing mutual coupling can be done naturally by having orthogonal polarization and patterns of antennas is proposed in [3, 4]. This technique requires placing antennas at specific places and orientations. However, the coupling level of these antennas increases as the distance between the elements decreases.
Away from having naturally decoupled antennas, a decouplingλ/4 or 3λ/4 transmission line connected between matched, coupled two
Received 19 December 2012, Accepted 28 January 2013, Scheduled 31 January 2013
antennas at specific distances from the antennas input ports, where the equivalent mutual impedance observed is pure imaginary, is a solution proposed in [5]. Additional matching sections are required for small antennas with fundamental mismatching [6] that increases the complexity and size of the antennas section as presented in [7]. Another analytical procedure in [8, 9] using factorization techniques to get the required scattering matrix of the decoupling network suggests using 180◦-Hybrid to isolate two coupled antennas. Moreover, lumped elements implementation of the decoupling network for matched two antennas is presented in [10–12]. However, the design concerns of this technique are the physical dimensions of the elements, internal losses, and limited bandwidth.
Connecting neutralization lines between the radiating elements, in some antenna systems, reduces mutual coupling between anten-nas [13, 14]. This can be done by allowing a signal path from the radiating antenna to the other to eliminate the induced currents on the undesired one; resulting lower coupling level between antenna ports.
Inserting slits into the ground plane between the antennas can reduce the mutual coupling between antenna ports by suppressing surface waves between them [15–17]. Also, external decoupling structures are also presented through literature to eliminate near-field coupling between antennas. Meta-surfaces consisting of multiple layers of periodic metallic pattern are presented in [18, 19] forming an electromagnetic band-gap (EBG) structure suppressing the surface waves between the two antennas, thus reducing the mutual coupling between them. Other reactively loaded parasitic scatterers can be used to insure acceptable level of coupling between antennas ports [20].
1.2. Proposed Decoupling Technique
Here, a general design procedure for a decoupling network between two coupled antennas is introduced using a transmission line connected between the two ports at a specific distance from the antennas’ ports. These antennas, in general, shouldn’t be necessarily symmetric and perfectly matched. The return loss of the antennas are considered in the design procedure providing more possible solutions other than what is presented in [5]. Furthermore, having asymmetric antennas can be accounted for through the calculation with the advantage of having a degree of freedom to engineer resulting patterns for the two radiation modes of the antennas system. Afterwards, matching networks are then to be designed to match the resulting decoupled network to the 50 Ω impedance ports.
presented and finally we conclude at Section 4.
2. DECOUPLING NETWORK DESIGN PROCEDURE
A schematic of the proposed decoupling network is shown in Fig. 1. A decoupling transmission line of impedanceZd and electrical length θd = βdld is connected between the feeding ports of the antennas at specific electrical lengths θ1 from the ports of the coupled antennas at ta. Matching networks are then added following the decoupling network to match the input impedance of the two antennas system.
Atta, the antennas measurements ports, the numerical evaluation of the 2-port S-parameters matrix can be expressed in terms of the return loss of port-1α1, return loss of port-2α2, and the insertion loss between ports 1 and 2,T12.
The decoupling transmission line of arbitrary electrical length θd and characteristic impedance Zd can be described by 4-port network S-parameters using even and odd modes analysis procedure explained in [21, 22]. The circuit can be completely described using only 4 S -parameters, namely: S11, S21, S31, and S41, due to symmetry and reciprocity of the circuit.
Connecting the 2-port network representing the antennas to the decoupling network through sections of electrical length θ1 is shown in Fig. 1. The resulting transmission and reflection coefficients of the overall decoupling network can be written in the form
T =S41+ S21(XS31−Y SXZ21) +−SY312(ZS21−Y S31),
S11T =S11+ S21(XS21−Y SXZ31) +−SY312(ZS31−Y S21),
S22T =S11+ S31(XS31−Y SXZ21) +−SY212(ZS21−Y S31),
(1)
Figure 2. Decoupled closely mounted planner monopole antennas.
where the termsX,Y, and Z are defined as
X = α1e−j2θ1
α1α2e−j4θ1−T122 e−j4θ1
−S11,
Y = −T12e−j2θ1 α1α2e−j4θ1−T122 e−j4θ1
−S41,
Z = α2e−j2θ1
α1α2e−j4θ1−T122 e−j4θ1
−S11.
(2)
The design goal is mainly to determine the values of θ1, θd, and Zd of the decoupling network to reach a specified decoupling criterion between the input ports. A simple manual optimization of the parameters of the mathematical model based can be invoked by choosing different characteristic impedances of the decoupling line and accordingly the electric length ranges from a simple plot of the above equations. A wide range of solutions can be obtained for decoupling networks featuring either deep decoupling situations, wide decoupling bandwidths, or in some cases acceptable decoupling situations with good matching within the operating bandwidth.
3. RESULTS AND DISCUSSIONS
Figure 3. Comparison of the decoupling and matching levels after the decoupling network between analytical and full-wave numerical analysis (without using matching networks).
Having the simulated values of the insertion and transmission losses of the antennas attaat the design frequency withα1 = 0.3676∠− 90.65◦, α
2 = 0.3857∠−98.65◦, and T12 = 0.51119∠−15.8271◦, the proposed technique is used to design the decoupling circuit, which was found to be θ1 = 41◦, Zd = 40 Ω, θd has a range [217.2◦, 327.2◦] for a decoupling level larger that 15 dB; here θ
d = 232.6◦ for best decoupling with physical length extended to compensate for the effects of discontinuities (i.e., T-junctions) [21, 22]. A comparison of the obtained decoupling and matching levels just after the decoupling transmission line between analytical and full-wave analysis is shown in Fig. 3. Note that, other possible solutions can be obtained for different Zd (i.e., solutions are not discrete).
The result of the proposed procedure, after using a double stub matching technique, is shown in Fig. 4 with a good matching with the full-wave simulation of the structure (small variations are due to imperfection in the fabrication process). A percentage bandwidth of 4% is obtained using this technique of both matching and decoupling which is better and simpler than what was presented in [7] for the same problem statement. The envelope correlation coefficient curve for the two antennas versus frequency is shown in Fig. 5 as defined in [23] comparing the values calculated fromS-parameters (for lossless cases) and embedded far-fields of the antennas. It is clear that the previous two curves are very close to each other because the ohmic losses in the antennas are small [24].
Figure 4. The Scattering param-eters of the decoupling/matching circuit shown in Fig. 2 from mea-surements and full-wave analysis.
Figure 5. The envelope cor-relation coefficient of the de-coupling/matching circuit shown in Fig. 2 calculated from S -parameters and embedded far-fields.
Figure 6. Another implementation of the proposed techniqe for 2 PIFA antennas each are matched when placed separately.
frequency 2.45 GHz. One way of miniaturization of the overall circuit is to design the antennas and decoupling transmission line for a high input impedance lines (60 Ω) which have small widths compared to the conventional 50 Ω lines. The final output ports are to be designed to give 50 Ω after the matching stage. The simulated antennas S -parameter values that are used to calculate the decoupling network parameters are α1 = 0.42∠−117◦, α2 = 0.33∠−105◦, and T12 = 0.448∠−155.9◦ with the 60 Ω reference impedance.
Figure 7. The measured and sim-ulatedS-parameters of the decou-pling/matching circuit shown in Fig. 6.
Figure 8. The envelope cor-relation coefficient of the de-coupling/matching circuit shown in Fig. 6 calculated from S -parameters and embedded far-fields.
measuredS-parameters of the proposed circuit is shown in Fig. 7 with good agreement. The achieved fractional bandwidth for this design is 12% (simulated) and 10% (measured). Also, the envelope correlation coefficient curve is shown in Fig. 8 with good agreement between the S-parameters and the embedded far-fields evaluations due to the small losses in the antennas.
It is worth mentioning that the first pair of antennas are already small with inherently mismatched ports when placed separately. Even by using matching networks, the maximum possible matching bandwidth is limited. This reflects the poor bandwidth achieved in the first example. On the other hand, the second pair of antennas are already designed to be matched with wide-band (minimum 24% at the same design frequency). The resulting bandwidth after decoupling and matching is better in this case (12%) than the previous one due to the antennas impedance variation nature.
4. CONCLUSION
bandwidth depends mainly on the antennas; wide-band antennas (with almost constant impedance) can lead to a wide band decoupling bandwidth and vice-versa.
ACKNOWLEDGMENT
The authors would like to thank Rogers Corporation (http://www.rog-erscorporation.com) for providing free laminate substrates.
