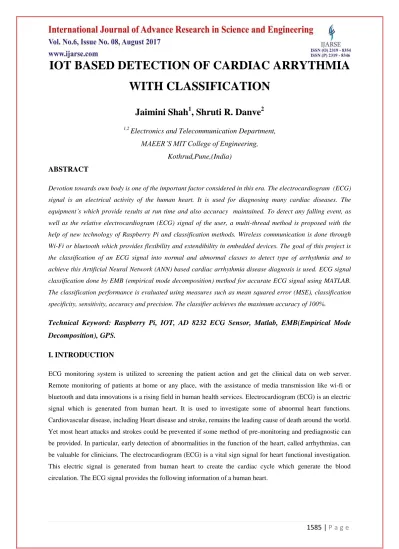

IOT BASED DETECTION OF CARDIAC ARRYTHMIA

WITH CLASSIFICATION

Jaimini Shah

, Shruti R. Danve

1,2

Electronics and Telecommunication Department,

MAEER’S MIT College of Engineering,

Kothrud,Pune,(India)

ABSTRACT

Devotion towards own body is one of the important factor considered in this era. The electrocardiogram (ECG)

signal is an electrical activity of the human heart. It is used for diagnosing many cardiac diseases. The

equipment’s which provide results at run time and also accuracy maintained. To detect any falling event, as

well as the relative electrocardiogram (ECG) signal of the user, a multi-thread method is proposed with the

help of new technology of Raspberry Pi and classification methods. Wireless communication is done through

Wi-Fi or bluetooth which provides flexibility and extendibility in embedded devices. The goal of this project is

the classification of an ECG signal into normal and abnormal classes to detect type of arrhythmia and to

achieve this Artificial Neural Network (ANN) based cardiac arrhythmia disease diagnosis is used. ECG signal

classification done by EMB (empirical mode decomposition) method for accurate ECG signal using MATLAB.

The classification performance is evaluated using measures such as mean squared error (MSE), classification

specificity, sensitivity, accuracy and precision. The classifier achieves the maximum accuracy of 100%.

Technical Keyword: Raspberry Pi, IOT, AD 8232 ECG Sensor, Matlab, EMB(Empirical Mode

Decomposition), GPS.

I. INTRODUCTION

ECG monitoring system is utilized to screening the patient action and get the clinical data on web server.

Remote monitoring of patients at home or any place, with the assistance of media transmission like wi-fi or

bluetooth and data innovations is a rising field in human health services. Electrocardiogram (ECG) is an electric

signal which is generated from human heart. It is used to investigate some of abnormal heart functions.

Cardiovascular disease, including Heart disease and stroke, remains the leading cause of death around the world.

Yet most heart attacks and strokes could be prevented if some method of pre-monitoring and prediagnostic can

be provided. In particular, early detection of abnormalities in the function of the heart, called arrhythmias, can be valuable for clinicians. The electrocardiogram (ECG) is a vital sign signal for heart functional investigation.

This electric signal is generated from human heart to create the cardiac cycle which generate the blood

1586 | P a g e

II. OBJECTIVES

The objective of the proposed system is given below:-

1. Accurate detection of the ECG signal using Empirical mode composition method in MATLAB.

2. To monitor heart activity with tracking the location and send it on another device to relatives or health

centers .

III. LITERATURE SURVEY

In literature, the problem and the previous techniques of Health monitoring system is described

Ram BilasPechora et.al [1] they have proposed novel ASR and SODP plots utilizing IMFs to separate two

classes outwardly. The recognizable proof of the diabetic subjects on the premise of the RR-interim signs can be

of reasonable significance.

Won-Jae Yi, OisheeSarkaret.al proposes the paper in which [2] Falls are a critical issue which prevalently

influences the life of the elderly population. The advantages of the system areto exhibit the feasibility of the

system i.e. Framework, they have actualized fall identification calculation on the W-iPCN with accelerometers

and gyrator sensor. The disadvantages of the system is this setup permits the WiPCNto focus on complex calculation preparing.[2]

James Y. Xu,Hua-I. Chang, Chieh Chien, William J. Kaiser,Gregory J. Pottie [2] study the Context-driven,

Remedy Based Personal Activity Classification: Methodology, architecture and End-to-End Implementation[2].

The framework is based on the remedy based setting driven activity arrangement methodology, To accomplish

the objective of empowering extensive scale monitoring[2].The step back of the paper is In the instance of a

vast populace sending, endeavors required to perform framework preparing should be diminished by presenting

default models that incorporate populace standards (along these lines, less singular preparing), and extra solid

setting information, for example, GPS can be introduced[2].

MoeenHassanalieraghet.al [4] in this paper, they reviewed the current state and projected future directions for integration of remote health monitoring technologies into the clinical practice of medicine. Wearable sensors,

especially those furnished with IoT knowledge, offer appealing choices for empowering perception and

recording of information in home and workplaces, over any longer spans than are right now done at office and

research center visits.

They propose to develop miniature telemetry systems that capture neural, EMG, and acceleration signals from a

soldier and transmit the data wirelessly to a remote station. The frameworks depend on a tweaked low-control

IC that will enhance, channel, and digitize fundamental four bio-potential signs utilizing low-commotion

circuits. The client's physiological state is checked utilizing an installed bio-speaker actualized utilizing an instrumentation enhancer with a flag molding circuit. The bio speaker could be utilized for electromyogram

(EMG) or electrocardiogram (ECG) observing. The yield of the flag molding circuit is associated with the

neighborhood handling unit; utilizing the AD converter on the small scale controller board and a higher

determination processer we test and process the flag to remote station through the handset. This setup gives

1587 | P a g e

paper gives a brief summary about the advancements so far in three fundamental variables of the gadget i.e.

sensors used, the system design and the algorithm implemented in the design. Cadrdiac Monitors are utilized as

a part of thispaperand the deficiencies are The reviews created as of recently uncover that there are heart

walking gadgets which record the ECG of the patients and arrange them. Be that as it may there is no way to

connect the patient‟ s exercises (in day to day life) with the issues happening in the ECG[6]

In this paper [7], they propose a framework to collect patients’ data in real time, continuously, perform proper

non meddlesome checking, and propose restorative as well as way of life engagements, at whatever point

required and proper. [7].Xiaoliang Wang, QiongGui, Bingwei Liu, ZhanpengJin,Yu Chen[8]In this review,

they propose another new hybrid mobile-cloud computational solution to enable more effective personalized

medical monitoring . In this Mobile-cloud-based ecg checking and examination is used accuracy [8]

IV. PROPOSED SYSTEM

Cardiovascular disease, including heart disease and stroke, remains the leading Cause of death around the world.

Yet most heart attacks and strokes could be prevented if some method of pre-monitoring and prediagnostic can

be provided. An electrocardiogram (ECG) describes the electrical activity of the heart recorded by electrodes placed on the body surface. It consists of three basic waves: P, QRS, and T. some types of arrhythmia are life

threatening

medical emergencies that can trigger cardiac arrest and sudden death. Therefore,automatic cardiac arrhythmia

detection and classification can play a vital role in the monitoring of patients.ECG signal analysis mainly

consists of three phases, ECG signal preprocessing,Feature Extraction and Classification.

The raspberry pi is used to store the ECG signal in electrical form the outcome display is the screen the ECG is

classified the signal in to various classes the EMD breaks down the nonlinear and non-stationary flag into IMFs

which are symmetric, band limited and oscillatory in nature. Keeping in mind the end goal to remove valuable

1588 | P a g e

V. SYSTEM ARCHITECTURE

A ECG system is beneficial for people because it enables them to take care of themselves on a daily basis,

because the occurrences of accidents .Thus, a ECG system is proposed to reduce medical costs and be

miniaturized as a watch or a portable device that can be carried easily.this device can constantly record the

position status and ECG signals of the patient. In the event of a fall or open transmission of an abnormal ECG

signal, the device can send an emergency notification to the hospital home centers or the relatives.in

emergencies the recorded ecg signal send to another device with real time location. `

The AD8232 Spark Fun Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical

activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an

analog reading. ECGs can be extremely noisy, theAD8232 Single Lead Heart Rate Monitor acts as an op amp to

help obtain a clear signal from the PR and QT Intervals easily. The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter

small biopotential signals in the presence of noisy conditions, such as those created by motion or remote

electrode placement. The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can

solder pins, wires, or other connectors to. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for

operating this monitor with an Arduino or other development board. Also, provided on this board are RA (Right

Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there

is an LED indicator light that will pulsate to the rhythm of a heartbeat. Biomedical Sensor Pads and Sensor

Cable are required to use the heart monitor.

The Raspberry Pi is a series of credit card-sized single-board computers. All models feature a Broadcom system

on a chip (SoC), which includes an ARM compatible central processing unit (CPU) and an on chip graphics

processing unit (GPU, a VideoCore IV). CPU speed ranges from 700 MHz to 1.2 GHz for the Pi 3 and on board

memory range from 256 MB to 1 GB RAM. Secure Digital (SD) cards are used to store the operating system ECG

sensor (AD8232)

Raspbe rry pi-3

ECG (Matlab classificati

on)

1589 | P a g e

slots, HDMI and composite output, and a 3.5 mm phone jack for audio. Lower level output is provided by a

number of GPIO pins which support common protocols like IC. The B-models have an 8P8C Ethernet port and

the Pi 3 has on board Wi-Fi 802.11n and Bluetooth. The Foundation provides Raspbian, a Debian-based Linux

distribution for download, as well as third party Ubuntu, Windows 10 IOT Core, RISC OS, and specialized

media centre Distributions.

VI. SOFTWARE CLASSIFICATION

Empirical mode decomposition-

ECG signal(input)

Pre-processing (Zero phase

low pass filter)

EMD(empirical mode

decomposition)

R-R Interval detection

Feature extraction of signal

1590 | P a g e

nonlinear and non-stationary in nature. Hence linear methods may not be able to capture the hidden information

present in the signal. A new nonlinear method based on empirical mode decomposition (EMD) is proposed to

discriminate between abnormal and normal RR-interval signals. The mean frequency parameter using Fourier

Bessel series expansion (MFFB) and the two bandwidth parameters namely, amplitude modulation bandwidth (BAM) and frequency modulation bandwidth (BFM) extracted from the intrinsic mode functions (IMFs)

obtained from the EMD of RR-interval signals are used to discriminate the two groups. Pre-processing steps

performed on the ECG signals to obtain the RR-interval signals . The unwanted noise is filtered by passing the

original ECG signals through a low pass filter (cut-off frequency = 15 Hz). Then, the signal is passed through

high pass filter (cut-off frequency = 0.3 Hz) to remove baseline wander (Warlar Eswaran, 1991). The notch

filter (cut-off frequency = 50 Hz) is employed to eliminate power-line interference noise. The median filter is

used to determine the baseline wander of the processed ECG signal and this baseline wander has been subtracted

from the processed ECG signal in order to obtain baseline wander free ECG signal. Then, the Pan-Tompkins algorithm (Pan Tompkins, 1985) is used to find the QRS complexes from the processed ECG signal. The

RR-intervals are calculated as the time between two consecutive QRS complexes. Empirical mode decomposition

(EMD) is an adaptive and data dependent method to decompose a nonlinear and non-stationary signal into a set

of Amplitude and Frequency Modulated (AM-FM) signal components, called intrinsic mode functions (IMFs) .

Each IMF satisfies following two conditions –

1- Number of extrema (maxima and minima) and number of zero-crossings in a signal should be either equal or

differ at most by one.

2-The mean value of two envelopes, one formed by connecting local maxima and other formed by local minima,

at any point should be zero.

IMFs can be derived from a signal x(t) using iterative process known as sifting process,which can be

summarized as follows (Huang et al., 1998):

1. Extract local maxima and local minima from signal x(t) in ecg signal.

2. Obtain the envelope Emax(t) by connecting all the maxima and similarly obtain the envelope Emin(t) by

connecting all the minima using cubic spline interpolation in EMD.

3. Determine the average of Emax(t) and Emin(t) as:

4. Extract k(t) from x(t)as:

k(t) = x(t)-m(t)

1591 | P a g e

VII. EXPERIMENTAL RESULT

Software result-

The ECG signal taken from mit-bih data set and classify into Matlab using EMD. ECG signal is loaded and

displayed in physical units ECG signal is taken from MITBIH arrhythmia database or live recording of ECG

signal.

ECG signal preprocessed using Zero phase low pass filter to remove baseline noise.This low pass filter set Ecg

1592 | P a g e

The RR-interval signals are nonlinear and non-stationary in nature. Hence linear methods may not be able to

capture the hidden information present in the signal. In this paper, a new nonlinear method based on empirical

mode De-composition (EMD) is proposed to discriminate between abnormal and normal RR-interval signal.

The mean frequency parameter using Fourier Bessel series expansion (MFFB) and the two bandwidth

parameters namely, amplitude modulation bandwidth (BAM) and frequency modulation bandwidth (BFM)

extracted from the intrinsic mode functions (IMFs) obtained from the EMD of RR-interval signals are used to

1593 | P a g e

is normal or abnormal. The accurate ECG data send to the IOT cloud then the measured data provide to the

hospitals or relatives or emergencies numbers in emergencies.

Hardware result-

AD8232 ECG Module is used to acquire live the signal from the patient. Electrodes has 3 different coloured

electrodes. yellow and green is used to acquire the signal i.e they are the positive and negative leads and red is

used as a

ground electrode.

VIII. CONCLUSION

This paper proposes the novel technique of detection of the ECG signal with accuracy on web server . The

Various type of signal processing is done on ECG signal to remove noises. Empirical mode decomposition

proves to be a better method as compared to Wavelet transform using Daubechies and IIR filter for PLI noise removal. The ECG signal is classified as normal and abnormal classes and it is collected from the MIT-BIH

arrhythmia database. PQRS features and QRS complex are extracted. This extraction is useful for the

classification of normal and abnormal beats. The system is also used with the wireless communication device

like a mobile phone so that telemonitoring can be made feasible and the data can be analyzed by cardiologist in

real time to reduce the trouble taken by patients to travel long distance.

IOT Based Detection of cardiac arrythmia device monitor heart rate data with location tracing using GPS. The

patient directly contact near by hospitals and home centers. ECG signal data taken from ECG sensor AD8232

1594 | P a g e

peak detection techniques witch make our system more efficient and reliable.

REFERRENCES

[1] Ram Bilas Pachori, Pakala Avinash , Kora Shashank , Rajeev Sharma , U. Rajendra Acharya , “Application

of empirical mode decomposition for analysis of normal and diabetic RR-interval signals ” , Expert Systems with

Applications 42 (2015) 4567–4581

[2] Won-Jae Yi, OisheeSarkar, Thomas Gonnot, EhsanMonsef and JafarSaniie “LoWPAN-enabled Fall

Detection and Health Monitoring System with Android Smartphone” 2013

[3] James Y. Xu, Student Member, IEEE, Hua-I. Chang, ChiehChien, William J. Kaiser, Senior Member,

IEEE,and Gregory J. Pottie, Fellow, IEEE,"Context-driven, Prescription-Based Personal Activity Classification:

Methodology, Architecture, and End-to-End Implementation", ieee transactions on biomedical engineering,

VOL.18, NO. 3, MAY 2014.

[4] Can Ye, Miguel Tavares Coimbra and B.V.K. Vijaya Kumar, ” Arrhythmia Detection and Classification

using Morphological and Dynamic Features of ECG Signal ”, 32nd Annual International Conference of the IEEE

EMBS Buenos Aires, Argentina, August 31 - September 4, 2010.

[5] P. Ghorbanian1, A. Ghaffari2, A. Jalali1, C. Nataraj , , “Heart Arrhythmia detection Using Continuous

Wavelet Transform and Principal Component Analysis with Neural

Network Classifier”, vol.5 ,2010.

[6] Ramesh D. Mali, Mahesh S. Khadtare, Dr. U.L Bombale ,” Removal of 50Hz PLI using Discrete Wavelet

Transform for Quality Diagnosis of Biomedical ECG Signal ” , International Journal of Computer Applications

(0975 8887) Volume 23 No.7, June 2011

[7] Shivajirao M. Jadhav, Sanjay L. Nalbalwar, Ashok A. Ghatol,” Artificial Neural Network Based Cardiac

Arrhythmia Disease Diagnosis”, 978-1-61284-764-1/11, 2011 IEEE.

[8] Moeen Hassanalieragh , Alex Page , Tolga Soyata, “ Health Monitoring and Management Using

Internet-of-Things (IoT) Sensing with Cloud-based Processing:IOT BASED DETECTION OF CARDIAC ARRYTHMIA

WITH CLASSIFICATION,” Opportunities and Challenges, 2015 IEEE International Conference on Services

Computing. and Technologies(2015).

[9] Liang-Hung Wang, Member, IEEE, Yi-Mao Hsiao, Member, IEEE, Xue-Qin Xie, and Shuenn-Yuh Lee,

Member, IEEE , “An Outdoor Intelligent Healthcare Monitoring Device for the Elderly ,” IEEE Transactions on
