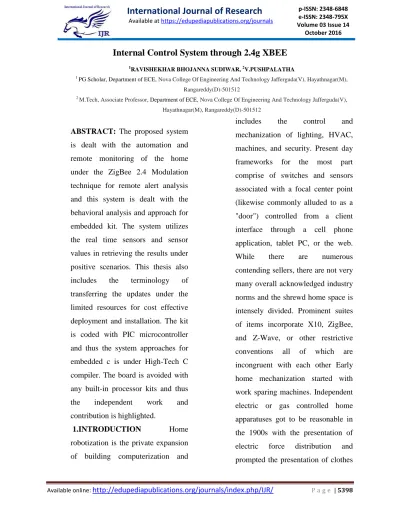

Internal Control System through 2.4g XBEE
1
RAVISHEKHAR BHOJANNA SUDIWAR, 2V.PUSHPALATHA 1
PG Scholar, Department of ECE,Nova College Of Engineering And Technology Jafferguda(V), Hayathnagar(M),
Rangareddy(D)-501512
2
M.Tech, Associate Professor, Department of ECE,Nova College Of Engineering And Technology Jafferguda(V),
Hayathnagar(M), Rangareddy(D)-501512
ABSTRACT: The proposed system
is dealt with the automation and
remote monitoring of the home
under the ZigBee 2.4 Modulation
technique for remote alert analysis
and this system is dealt with the
behavioral analysis and approach for
embedded kit. The system utilizes
the real time sensors and sensor
values in retrieving the results under
positive scenarios. This thesis also
includes the terminology of
transferring the updates under the
limited resources for cost effective
deployment and installation. The kit
is coded with PIC microcontroller
and thus the system approaches for
embedded c is under High-Tech C
compiler. The board is avoided with
any built-in processor kits and thus
the independent work and
contribution is highlighted.
1.INTRODUCTION Home
robotization is the private expansion
of building computerization and
includes the control and
mechanization of lighting, HVAC,
machines, and security. Present day
frameworks for the most part
comprise of switches and sensors
associated with a focal center point
(likewise commonly alluded to as a
"door") controlled from a client
interface through a cell phone
application, tablet PC, or the web.
While there are numerous
contending sellers, there are not very
many overall acknowledged industry
norms and the shrewd home space is
intensely divided. Prominent suites
of items incorporate X10, ZigBee,
and Z-Wave, or other restrictive
conventions all of which are
incongruent with each other Early
home mechanization started with
work sparing machines. Independent
electric or gas controlled home
apparatuses got to be reasonable in
the 1900s with the presentation of
electric force distribution and
washers and so on. The proposed
system is focused on deploying the
system for home automation and
thus improving the system benefit in
monitoring and remote observation.
The current system is more
dependable in low altering and
monitoring challenges and thus for
the high range of utilization, the
system is supported and calibrated
under the active approach of remote
monitoring.
2. LITERATURE SURVEY Web
observing is one of the basic
methodologies for remote checking.
Numerous scientists have worked in
field of Internet based remote
observing created home entryway
framework for interconnecting home
system comprising of IEEE 1394 AV
system and X10 power line home
mechanization system with Internet.
This gave remote access capacities
from Internet for advanced AV
apparatuses like Digital Video
Camera, Digital VCR associated
with IEEE 1394 system and home
machines like TV, work area light,
electric fan associated with X10
controller. utilized X10 controller
interfaced through serial port to PC
server for control of gadgets. The
Common Gateway Interface (CGI) is
utilized to interface between the
program and the X10 convention by
means of http association. The server
executes CGI programs with a
specific end goal to fulfill a specific
solicitation from the program, which
communicates its solicitation
utilizing the http. Created model of
web administrations based email
augmentation for remote checking of
installed frameworks which
incorporates web administrations
into messages. It utilizes a
universally useful email informing
system to interface gadgets and
controllers. This minimal effort
model fits for frameworks with low
association transfer speed, little
information transportation volume
and noncontinuous control, e.g.,
observing of home apparatuses and
remote meter-perusing. Planned and
actualized an Internet home
computerization framework. The
outline utilizes an implanted
controller taking into account
C8051F005 microcontroller which is
associated with a PC-based home
port. The home apparatuses are
associated with the information/yield
ports and the sensors are associated
with the simple/computerized
converter channels of the implanted
controller. The product of the
framework depends on the mix of
Keil C, Java Server Pages, and
JavaBeans, and element DNS
administration (DDNS) customer.
Secret word security is utilized to
obstruct the unapproved client from
getting to the server.
3.SYSTEM DESIGN In this paper,
it talks about and performs lab
analysis of distinguishing LQI
esteem from ZigBee remote sensor
system and from the variety of LQI
qualities to decide is there any
interruption. In shut and nobody
presence indoor zone it has an
unfaltering LQI esteem while it
changes when somebody barges in
into the zone. An interruption
identification framework is produced
by utilizing the variety as a part of
LQI qualities. After the framework is
approved we assist build up an in
house interruption screen framework
that when somebody interferes into
the house the framework will alert or
make an impression on the house
proprietor's mobile phone to caution
the house has been encroached in
order to accomplish the in house
security insurance impact.
The proposed system consist of a
embedded kit for designing a home
automation system and thus the same
is altered and refined under the
activation process of formulation.
The system design is formulated and
initialized with the real time sensors
which include temperature sensor for
fire monitoring, Gas sensor for odor
and smoke monitoring and finally
motion sensor for motion detection
and monitoring. The system is
programmed under the active
thresholding microcontroller of PIC
series. The Pic based
micro-controller is formulated and designed
which the parameters of alignment
are reformed with respect to 32 bit
instruction. The sensor signal
conditioning unit is built in and is
designed to convert the analog
values to digital with a standard
notification. The temperature sensor
is thus more accurate and is activated
on the detection of fire or excess
heat, in general the system is more
convenient to be programmed and
threshold greater than 60 degree
Celsius for altering.
Similarly the other two real time
sensors include the gas sensor and
the motion detection sensor.
Each sensor values is threshold to a
given breaking point. The motion
sensor is more active on the intrusion
detection and thus alerts for each
segment change under the minimal
delay aspect. The major objective of
this project is ZigBee 2.4 Modulation
unit for secure and reliable data
transferring under the active domain
of automation and thus the overall
system is more predominate on the
passing alerts from the PIC
controller to the alerting unit and
data transferring unit to a remote
4.CONCLUSION The proposed
system is designed and formulated
for the home automation and remote
monitoring. The overall system
objective is achieved and is analyzed
to retrieve and fetch the system
benefits under this model. The
project has successfully satisfied the
objective and thus the monitoring is
successfully achieved. The system
currently is working around three
real time sensor values and the same
shall be updated to the systems
remote user. In this thesis the ZigBee
2.4 modulation is extensively
utilized and approved for the
enhancement in overall system
communication. The proposed
system is an embedded simulation
protocol and hence the results are
achieved in comparatively low cost
and installation. According to the
development, the cost involved in
manitence and replacing is
drastically low to that of the
expensive systems The proposed
system can be enhanced in a more
complexes manner with sensor based
activation of video processing and
image scanning etc in the upcoming
versions of this protocol. Currently
the three sensors are used and hence
the successive approach, this can be
improved upto the demand oriented
of the consumers.
REFERENCES
[1] Kaltiokallio, Ossi, and Maurizio
Bocca. "Realtime intrusion detection
and tracking in indoor environment
through distributed RSSI
processing." Embedded and
Real-Time Computing Systems and
Applications (RTCSA), 2011 IEEE
17th International Conference
on.Vol. 1. IEEE, 2011.
[2] Zhang, Jun, et al. "An indoor
security system with a jumping robot
as the surveillance terminal."
Consumer Electronics, IEEE
Transactions on 57.4 (2011):
1774-1781.
[3] Oksar, Irfan. "A Bluetooth signal
strength based indoor localization
method."Systems, Signals and Image
Processing (IWSSIP), 2014
International Conference on. IEEE,
2014. [4] Benkic, Karl, et al. "Using
RSSI value for distance estimation in
wireless sensor networks based on
ZigBee." Systems, Signals and
2008. 15th International Conference
on. IEEE, 2008.
[5] H. Gjoreski and M. Gams,
“Activity/posture recognition using
wearable sensors placed on different
body locations,” in Proc. Int. Conf.
Artif. Intell. Soft Comput., 2011. [6]
J. Parkka, M. Ermes, P. Korpipaa, J.
Mantyjarvi, J. Peltola, and I.
Korhonen, “Activity classification
using realistic data from wearable
sensors,” IEEE Trans. Inf. Technol.
Biomed., vol. 10, no. 1, pp. 119–128,
Jan. 2006.
[7] Fleury, M. Vacher, and N.
Noury, “SVM-based multimodal
classification of activities of daily
living in health smart homes:
Sensors, algorithms, and first
experimental results,” IEEE Trans.
Inf. Technol. Biomed., vol. 14, no. 2,
pp. 274–283, Mar. 2010.
[8] Y. Ohtaki, H. Inooka, K. Sagawa,
A. Suzuki, X. Zhan, M. Okutsu, and
R. Nagatomi, “Recognition of daily
ambulatory movements utilizing
accelerometer and barometer,” in
Proc. 2nd IASTED Int. Conf.
Biomech., Hawaii, USA, Aug. 2004,
pp. 18–21.
[9] Y.-J. Hong, I.-J. Kim, S. C. Ahn,
and H. G. Kim, “Mobile health
monitoring system based on activity
recognition using accelerometer,”
Simul. Model. Practice Theory, vol.
