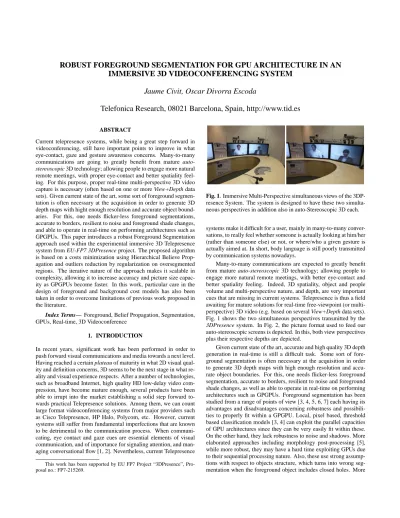

ROBUST FOREGROUND SEGMENTATION FOR GPU ARCHITECTURE IN AN
IMMERSIVE 3D VIDEOCONFERENCING SYSTEM
Jaume Civit, Oscar Divorra Escoda
Telefonica Research, 08021 Barcelona, Spain, http://www.tid.es
ABSTRACT
Current telepresence systems, while being a great step forward in videoconferencing, still have important points to improve in what eye-contact, gaze and gesture awareness concerns. Many-to-many communications are going to greatly benefit from mature auto-stereoscopic 3D technology; allowing people to engage more natural remote meetings, with proper eye-contact and better spatiality feel-ing. For this purpose, proper real-time multi-perspective 3D video capture is necessary (often based on one or more View+Depth data sets). Given current state of the art, some sort of foreground segmen-tation is often necessary at the acquisition in order to generate 3D depth maps with hight enough resolution and accurate object bound-aries. For this, one needs flicker-less foreground segmentations, accurate to borders, resilient to noise and foreground shade changes, and able to operate in real-time on performing architectures such as GPGPUs. This paper introduces a robust Foreground Segmentation approach used within the experimental immersive 3D Telepresence system from EU-FP7 3DPresence project. The proposed algorithm is based on a costs minimization using Hierarchical Believe Prop-agation and outliers reduction by regularization on oversegmented regions. The iterative nature of the approach makes it scalable in complexity, allowing it to increase accuracy and picture size capac-ity as GPGPUs become faster. In this work, particular care in the design of foreground and background cost models has also been taken in order to overcome limitations of previous work proposed in the literature.
Index Terms— Foreground, Belief Propagation, Segmentation,
GPUs, Real-time, 3D Videoconference
1. INTRODUCTION
In recent years, significant work has been performed in order to push forward visual communications and media towards a next level. Having reached a certain plateau of maturity in what 2D visual qual-ity and definition concerns, 3D seems to be the next stage in what re-ality and visual experience respects. After a number of technologies, such as broadband Internet, high quality HD low-delay video com-pression, have become mature enough, several products have been able to irrupt into the market establishing a solid step forward to-wards practical Telepresence solutions. Among them, we can count large format videoconferencing systems from major providers such as Cisco Telepresence, HP Halo, Polycom, etc. However, current systems still suffer from fundamental imperfections that are known to be detrimental to the communication process. When communi-cating, eye contact and gaze cues are essential elements of visual communication, and of importance for signaling attention, and man-aging conversational flow [1, 2]. Nevertheless, current Telepresence
This work has been supported by EU FP7 Project “3DPresence”, Pro-posal no.: FP7-215269.
Fig. 1. Immersive Multi-Perspective simultaneous views of the
3DP-resence System. The system is designed to have these two simulta-neous perspectives in addition also in auto-Stereoscopic 3D each.
systems make it difficult for a user, mainly in many-to-many conver-sations, to really feel whether someone is actually looking at him/her (rather than someone else) or not, or where/who a given gesture is actually aimed at. In short, body language is still poorly transmitted by communication systems nowadays.
Many-to-many communications are expected to greatly benefit from mature auto-stereoscopic 3D technology; allowing people to engage more natural remote meetings, with better eye-contact and better spatiality feeling. Indeed, 3D spatiality, object and people volume and multi-perspective nature, and depth, are very important cues that are missing in current systems. Telepresence is thus a field awaiting for mature solutions for real-time free-viewpoint (or multi-perspective) 3D video (e.g. based on several View+Depth data sets). Fig. 1 shows the two simultaneous perspectives transmitted by the 3DPresence system. In Fig. 2, the picture format used to feed our auto-stereoscopic screens is depicted. In this, both view perspectives plus their respective depths are depicted.
Given current state of the art, accurate and high quality 3D depth generation in real-time is still a difficult task. Some sort of fore-ground segmentation is often necessary at the acquisition in order to generate 3D depth maps with high enough resolution and accu-rate object boundaries. For this, one needs flicker-less foreground segmentation, accurate to borders, resilient to noise and foreground shade changes, as well as able to operate in real-time on performing architectures such as GPGPUs. Foreground segmentation has been studied from a range of points of view [3, 4, 5, 6, 7] each having its advantages and disadvantages concerning robustness and possibili-ties to properly fit within a GPGPU. Local, pixel based, threshold based classification models [3, 4] can exploit the parallel capacities of GPU architectures since they can be very easily fit within these. On the other hand, they lack robustness to noise and shadows. More elaborated approaches including morphology post-processing [5], while more robust, they may have a hard time exploiting GPUs due to their sequential processing nature. Also, these use strong assump-tions with respect to objects structure, which turns into wrong seg-mentation when the foreground object includes closed holes. More
Fig. 2. Formatted information for the Multi-Perspective 3D Screen
with 2 perspective texture views, plus their respective depth-maps. Depth-maps require foreground segmentation in order to best define contours of the salient silhouette/s with respect to plain backgrounds (as well as to lower computational load in depth computation).
global-based approaches can be a better fit such that [6]. However, the statistical framework proposed is too simple and leads to tem-poral instabilities of the segmented result. Finally, very elaborated segmentation models including temporal tracking [7] may be just too complex to fit into real-time systems.
This paper introduces a robust, real-time, Foreground Segmen-tation approach used within the experimental immersive 3D Telep-resence system from EU-FP7 3DPTelep-resence project [8, 1]. The pro-posed algorithm is based on a costs minimization of a set of prob-ability models (i.e. foreground, background and shadow) by means of Hierarchical Belief Propagation. The approach includes outlier reduction by regularization on over-segmented regions. This takes particular care of initializing the Belief Propagation step with low-noise segmentation class costs. The optimization stage is able to close holes and minimize remaining false positives and negatives. The use of a k-means over-segmentation framework enforcing tem-poral correlation for color centroids helps ensure temtem-poral stability between frames. In this work, particular care in the re-design of foreground and background cost models has also been taken into ac-count in order to overcome limitations of previous work proposed in the literature. The iterative nature of the approach makes it scalable in complexity, allowing it to increase accuracy and picture size ca-pacity as commercial GPGPUs become faster. The results are good and robust, fulfilling as well the robustness/complexity needs of our immersive 3D Telepresence system.
The remaining of the paper is structured as follows: first in Sec-tion 2, the problem formulaSec-tion as an energy funcSec-tion minimizaSec-tion is described. Section 3 explains in further detail the proposed imple-mentation, the different computation stages involved and particular aspects relative to GPU. Results are evaluated in Section 4. Finally, conclusions are drawn in Section 5.
2. GENERAL PROBLEM STATEMENT AND MODELS FORMULATION
2.1. Segmentation Problem Formulation
In this work, the segmentation process is posed as a cost minimiza-tion problem. For a given pixel, a set of costs are derived from its probabilities to belong to the foreground, background or shadow classes. Each pixel will be assigned the label that has the lowest
associated cost: P ixelLabel “ ~ C”= arg min α∈{BG,F G,SH} n Costα “ ~ C”o. (1)
In order to compute these costs, a number of steps are being taken such that they are as free of noise and outliers as possible. In this work, this is done by computing costs region-wise on color, tempo-rally consistent, homogeneous areas followed by a robust optimiza-tion procedure. In order to achieve a good discriminaoptimiza-tion capacity among background, foreground and shadow, special care has been taken redesigning them as explained in the following.
2.2. Foreground, Background and Shadow Models
In order to define the set of cost functions corresponding to the three segmentation classes, we build upon [6]. However, in our case, the definitions of Background and Shadow models are redefined in order to make them more accurate and reduce the temporal instability in the classification phase. For this, we revisit [4] and we derive equiva-lent background and shadow probability models based on chromatic distortion (3), color distance and brightness (2) measures. Unlike in [4] though, where models were fully defined to work on a threshold based classifier, we reformulate them here from a Bayesian point of view. This is performed such that additive costs can be derived after applying the logarithm to the probability expressions found. Thanks to this, models can then be used within the optimization framework chosen for this work.
As a reminder, brightness and color distortion (with respect to the trained background model) are defined as follows. First, bright-ness (BD) is such that
BD(C~) =Cr·Cr m+Cg·Cg m+Cb·Cbm
Cr2m+Cg2m+Cb2m
, (2)
whereC~ ={Cr, Cg, Cb}is a pixel or segment color with rgb com-ponents, andC~m={Cr m, Cg m, Cbm}is the corresponding trained mean for the pixel or segment color in the background. The chroma distortion can be simply expressed as :
CD(C~) = r “ (Cr−BD(C~)·Cr m)2+ (Cg−BD(C~)· . . . Cg m)2+ (Cb−BD(C~)·Cbm)2”. (3)
Based on these, we define the cost for Background as
CostBG(C~) =k ~ C−C~mk2 5·σ2 m·K1 + CD(C~) 2 5·σ2 CDm·K2 , (4)
whereσ2m represents the variance of that pixel or segment in the background, andσCD2 m is the one corresponding to the chromatic distortion. Akin to [6], the foreground cost can be just defined as
CostF G(C~) =
16.64·K3
5 . (5)
We finally design the cost related to shadow probability as
CostSH(C~) = CD(C~)2 5·σ2 CDm·K2 + 5·K4 BD(C~)2− · · ·log „ 1−√ 1 2·π·σ2 m·K1 « . (6)
K−Means Clustering with Temporal Constraint
Region Re−Projection for Sharp Contours Segm. Homogeneous
Regions Segmentation Region Statistics Estimation of Model Initialization FG/BG/SH Segmentation FG/BG/SH Transition Modelling Hierarchical BP
Optimization (pixel wise)
SegmentationMask(t) Frame(t) Z Frame(t) Clusters Frame(t−1) Clusters −1
Fig. 3. Segmentation Algorithmic Block Architecture
In (4), (5) and (6),K1,K2,K3andK4 are adjustable
proportion-ality constants corresponding to each of the distances in use in the costs above. These constants act like the different adjustable thresh-olds in [4]. In this work, thanks to the normalization factors in the expressions, once fixed allKxparameters, results remain quite inde-pendent from scene, not needing additional tuning based on content. Later in the paper, those values used in our case will be given along with results.
3. IMPLEMENTATION 3.1. Overall Algorithm Description
Section 2 models, while applicable pixel-wise in a straightforward way, would not provide satisfactory enough results if not used in a more structured computational framework. Robust segmentation re-quires, at least, to exploit the spatial structure of content in a more global manner in addition to the local modeling of foreground, back-ground and shadow classes. For this purpose, in this paper, we es-timate pixels’ costs as an average over temporally stable, homoge-neous color regions [9]. First of all, the image is over-segmented us-ing a homogeneous color criteria (see Fig. 4). This is done by means of a k-means approach. Furthermore, in order to ensure temporal stability and consistency of homogeneous segments, a temporal cor-relation is enforced on k-means color centroids. Then segmentation model costs are computed per color segment. After that, hierarchical Belief Propagation [10] is used to find the best possible global solu-tion by optimizing costs. Opsolu-tionally, and after Belief Propagasolu-tion, the final decision can be performed pixel or region-wise on final av-eraged costs computed over uniform color regions to further refine foreground boundaries. Fig. 3 depicts the block architecture of the algorithm.
3.2. Regularized Costs Estimation on Time-Consistent Over-segmented Regions
In order to use the image’s spatial structure in an computationally affordable way, several methods have been considered taking into account the available hardware in our system.
For this, while a large number of image segmentation techniques is available, we need to exploit the power parallel architecture of Graphics Processing Units (GPU) available on computers nowadays. Knowing that the initial segmentation is just going to be used as a support stage for further computation, a good approach is ak-means clustering based segmentation [11].
k-means clustering is a well known algorithm for cluster anal-ysis used in numerous applications. Given a group of samples
(x1, x2, . . . , xn), where each sample is a d-dimensional real vector, in this case(R, G, B, x, y), where R, G and B are pixel colors, and
x, y are its coordinates in the image space, it aims to partition then samples intoksetsS=S1, S2, . . . , Sksuch that:
arg min s k X i=1 X Xj∈Si ||Xj−µi||2, (7)
whereµiis the mean of points inSi.
Clustering is a hard time consuming process, mostly for large data sets. Hence, we introduce some constraints and slight modifi-cations to the main method, which help it to fit better to the problem and the particular GPU architecture (i.e. number of cores, threads per block, etc...) in use in our case.
The common k-means algorithm proceeds by alternating be-tween assignment and update steps:
• Assignment: Assign each sample to the cluster with the clos-est mean. Si(t)= n Xj:||Xj−µ( t) i || ≤ ||Xj−µ( t) i∗||, . . .∀i∗= 1, ....k} (8)
• Update: Calculate the new means to be the centroid of the cluster. µ(it+1)= 1 |Si(t)| X Xj∈S(it) Xj (9)
The algorithm converges when assignments no longer change. In our implementation, the initial Assignment set(µ(1)1 , , µ
(1)
k )is constrained to the parallel architecture of GPU by means of a num-ber of sets that also depend on the image size. The input is split into a grid ofn×nsquares, achieving (Mn×N2 ) clusters whereN
andM are the image dimensions. The initial Update step is com-puted from the pixels within these regions. With this, we help the algorithm to converge in a lower number of iterations. The second constraint introduced is in the Assignment step. Each pixel can only change cluster assignment to a strictly neighboringk-means cluster such that spatial continuity is ensured. The initial grid, and the max-imum number of iterations allowed, strongly influence the final size and shape of homogeneous segments. In these steps,nis related to the block size used in the execution of process kernels within the GPU.
The above constraint leads to: S(it)= n Xj:||Xj−µ( t) i || ≤ ||Xj−µ( t) i∗||,∀i ∗ ∈N(i)o (10)
WhereN(i)is the neighborhood of clusteri.
Finally, considering the strong temporal correlation from frame to frame in our video application, final resulting centroids after k-means segmentation of a frame are used to initialize the over-segmentation of the next one. This helps to further accelerate the converge of the initial segmentation while also improving the tem-poral consistency of the final result between consecutive frames.
There is no doubt that current approach produces local optima solutions. However, these are sufficient to cover our requirements before the remaining steps: region-wise average costs computation, global optimization by belief propagation, andk-means region-wise foreground/background decision. As shown in Fig. 4 the resulting
Fig. 4. Color based over-segmentation for robust foreground
seg-mentation initialization. Up: Full scene. Middle: Full scene over-segmented with our GPU-adapted k-Means stage. Down: Detail of the over-segmentation on the face of the person and surroundings. On large homogeneous regions, one can appreciate the shape of the initial grid that persists through iterations.
regions are small but big enough to account for the image’s spatial structure in the calculation.
In terms of implementation, the whole segmentation process is developed in CUDA (NVIDIA C extensions for their graphic cards). Each step, assignment and update, are built as CUDA kernels for parallel processing. Each of the GPU’s thread works only on the pix-els within a cluster. The resulting centroid data is stored as texture memory while avoiding memory misalignment. A CUDA kernel for the Assignment step stores in a register per pixel the decision. The Update CUDA kernel looks into the register previously stored in tex-ture memory and computes the new centroid for each cluster. Since real-time is a requirement for our system, the number of iterations is limited ton, wherenis the size of initialization grid.
3.3. Making Foreground Segmentation Robust with Hierarchi-cal Believe Propagation Optimization
After the initial geometric segmentation, the next step is the gen-eration of the region-wise averages for chromatic distortion (CD), Brightness (BD) and other statistics required in Section 2 models. Following to that, the next step is to find a global solution of the foreground segmentation problem. Once we have considered the image’s spatial structure through the regularization of the estimation costs via our customizedk-means clustering method, we need a global minimization algorithm which fits our real-time constraints. A well known algorithm is the one introduced in [10], which imple-ments an hierarchical belief propagation approach. Again, a CUDA implementation of this algorithm is in use in order to maximize parallel processing within every of its iterations. Specifically, in our implementation three levels are being considered in the hierarchy with 4, 2 an 1 iterations per level (from finer to coarser resolution levels). We assign less iterations for coarser layers of the pyramid, in order to balance speed of convergence with and resolution losses on the final result. A higher number of iterations in coarser levels makes the whole process converge faster but also compromises the
accuracy of the result on small details.
Finally, the result of the global optimization step is used for classification based on (1) either pixel-wise or region-wise with a re-projection into the segmentation space in order to improve the boundaries accuracy.
4. RESULTS
In the following, a series of results are presented to illustrate the per-formance of the presented segmentation algorithm, as well as some results where it is combined, as well as used as side information for the HRM-based [12] depth estimation used in the 3DPresence system. The algorithm is always used with the same parameters tun-ing. Furthermore, in our setting these have been configured once and do not require adjustments depending on the scene. According to the constants defined in Sec. 2, these are set such that:K1= 10,
K2 = 30,K3 = 1.0,K4 = 0.2. As discussed previously, the
hi-erarchical Belief Propagation uses 3 levels with 1, 2 and 4 iterations at each level from coarse to fine respectively. The homogeneous color segmentation is based on a 8 iterations k-means as described in Sec. 3. Finally, 200 frames have been used for the training process of the background model statistics.
In our particular application, only segments labeled as fore-ground are of interest. Hence, backfore-ground and shadow are merged in the end into one single background segment. Nevertheless, the class and cost defined for Shadow regions needs to be considered and used for computations. Otherwise, false negatives and positives background-foreground classifications would appear all around the picture.
Based on these settings, the foreground segmentation algorithm performance with one GPU from a GTX295 card appears to be as follows for 1376x384 and 688x192 picture resolutions. These imply that HD high quality segmentation in real-time is within reach by using 2 GTX295 cards if needed.
Resolution Comp. Time / frame 1376x384 140.6 ms
688x192 44.8 ms
Overall results within the scope of the application, have shown to be very robust and consistent in terms of segmentation quality. An important feature of the algorithm and its results is the temporal consistency of segments shape and geometry. The use of an initial step based on over-segmentation, temporal consistency of K-means centroids, plus the later step of Belief Propagation help maintaining consistent shape through time, avoiding region blinking, segmenta-tion outliers or other inconsistencies.
Fig. 5 and Fig. 6 depict 2 frames from two different sequences where one can appreciate the accurate foreground segmentation achieved by the algorithm. In them, the original scene, the seg-ment, and the masked scene with the segment can be observed. A particular detail, is that holes and small details such as fingers are well preserved in the segmentation. As discussed previously in the paper, some algorithms that assume objects to be closed regions for morphological post-processing are unable to keep such details.
We can see in Fig. 7 the set of multi-perspective information with both views, and respective depths, used for the 3DPresence multi-perspective 3D screens. These have been generated with the depth estimation module that combines the segmentation algorithm presented in this work together with the depth estimation HRM al-gorithm [12]. Both together are able to define very accurate person boundaries together with a well fulfilled depth information within
Fig. 5. Segmented result from sequence 1 at 1376x384.
Fig. 6. Segmented result from sequence 2 at 1376x384.
the segment, as can be seen in the extended arm detail in the picture.
Finally, Fig. 8 depicts the result in the situation where the fore-ground contains details with a color that is similar or equal to the background. In this particular case, despite the shirt of the person is striped with stripes of a color very close to that of the background, results are consistent and still good. The use of Belief Propagation over the low-noise initial segmentation result exploits the large scale structure of actual objects (compared to the background-like color regions) in order to help keeping segments closed and reducing holes and segmentation outliers. This can be further appreciated in the overall video used to generate these results. Despite a background-like color appears on the person shirt, the foreground segment keeps accurate, closed, and above all very stable through time. This video sequence can be downloaded by the interested from [13].
Fig. 7. Formatted information for the Multi-Perspective 3D Screen
with 2 perspective texture views, plus their respective segmented depth-maps. One can appreciate the difference in depth from the extended arm, as well as the sharp contours that correctly define the person boundary.
Fig. 8. Segmented result from sequence 2 at 1376x384. Despite the
shirt of the person is striped with stripes of a color very close to that of the background, results are consistent and still good.
5. CONCLUSIONS
This paper has presented a robust foreground segmentation for real-time operation on GPU architectures. This approach is suitable for combination with real-time depth estimation algorithms for stereo-matching acceleration, flat region outlier reduction and depth bound-ary enhancement between regions. The statistical models provided in this work, plus the use of over-segmented regions for statistics es-timation, have been able to make the foreground segmentation more stable in space and time, while usable in real-time on one of the 2 GPUs on a GTX295 (at 22fps) for a resolution around 700x200. In future work, we plan to introduce the use of ToF cameras within the framework presented in here in order to further improve the re-silience to excessively close (or excessively dark) shadows.
