Quality that can be measured Measuring just 180 x 190.5 x 101.5mm (W x D x H) {7.1 x 7.5 x 4.0"} and weighing only 1.6 kg (3.5 lbs), the TM-U295 is Epson’s smallest, most lightweight slip printer.
User-friendly features The TM-U295 is loaded with user-friendly features, like its easy-to-use touch panel and automatic paper ejection, that make operation simple. The TM-U295 also has an Auto Status Back (ASB) function that automatically displays printer status, maximizing operator efficiency and productivity.
Ready for today and tomorrow To save even more counter space, pair the TM-U295 with one of Epson’s IntelliTrans transaction terminals. This combination not only offers a much smaller footprint than standard POS systems, it also lets you choose from a much broader range of business applications. You can leverage your existing investment in the software you currently own. Either way, you’re assured that this printer will work for you today as well as tomorrow.
Epson quality and reliability When you choose Epson’s TM-U295, you can be sure you’ll get unsurpassed performance and dependability. Because, like all Epson point-of-sale products, the TM-U295 meets Epson’s world-renowned standards for quality and reliability.
• Ultra-small footprint saves counter space • Operator- friendly features
• Four print sizes, four printing directions
• “Page mode” feature allows printing anywhere on the document
• Compatible with Epson’s IntelliTrans™family of transaction terminals
• Conforms with Epson’s ESC/POS,®the industry’s command set of choice
• Built-in Epson quality and reliability
Epson
TM-U295
Slip Printer

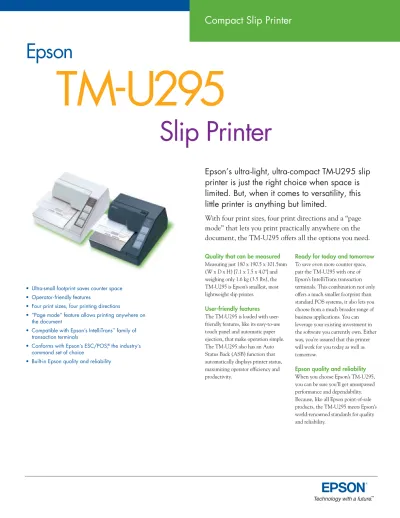

Epson’s ultra-light, ultra-compact TM-U295 slip
printer is just the right choice when space is
limited. But, when it comes to versatility, this
little printer is anything but limited.
With four print sizes, four print directions and a “page
mode” that lets you print practically anywhere on the
document, the TM-U295 offers all the options you need.
Compact Slip Printer
Epson
TM-U295
Slip Printer
Compact Slip Printer
Printer Specifications
General Print method 7 pin, shuttle impact dot matrix
Print font
Font 5 x 7/7 x 7
Column capacity 35/42 columns
Character size 1.6 x 2.9mm (W x H)/1.3 x 2.9mm (W x H); [0.063 x 0.114”/0.051 x 0.114”]
Character set 95 Alphanumeric, 32 International, 128 x 3 Graphic
Characters per inch 13.5 cpi/16.2 cpi
Printer Interface RS-232C, Bi-directional parallel
Data buffer 512 bytes or 35 bytes
Print speed 2.1 lps
Paper dimensions Slip: 80 to 182 x 69 to 257mm (W x L) {3.15 to 7.17 x 272 to 10.12”}
Paper thickness 0.09 to 0.35mm [0.0035 to 0.0137”]
Copy capability One original and two copies
Inked ribbon ERC-27 (purple)
Ribbon life 1,500,000 characters
Power 24 VDC ±10%
Power consumption Approx. 600mA (at 24 VDC)
D.K.D. function 2 drivers Reliability MTBF 180,000 hours MCBF 7,000,000 lines Overall dimensions 180 x 190.5 x 101.5mm (W x D x H) {7.1" x 7.5" x 4.0"} Mass Approx. 1.6 kg [3.5 lbs]
Control Board EMI standards VCCI class A, FCC class A, CE marking
Safety standards UL, CSA C22.2 No. 950
Epson America, Inc. • 3840 Kilroy Airport Way • Long Beach, CA 90806 • (562) 290-5304 • http://pos.epson.com © 2002 Epson America, Inc. Epson and ESC/POS are registered trademarks of Seiko Epson Corporation. IntelliTrans is a trademark of Epson America. All other trademarks are the property of their respective owners. Epson is a member of the OPOS committee. Specifications are subject to change without notice.
SD-DSU295A
Inch values are approximate.
cpi: characters per 25.4mm (characters per inch) lps: lines per second
Universal features
All three printer models in Epson’s TM-U220 series are optimized for high-speed throughput so customer receipts and kitchen orders print faster than ever. For maximum effi-ciency, the TM-U220A, TM-U220B and TM-U220D all offer drop-in paper loading and two-color, black and red printing to highlight special offers and print more impactful logos. They also have an adjustable paper width feature that allows you to use 58, 70 or 76mm paper rolls for more flexibility and greater cost savings.
A model for every need
With Epson’s TM-U220 series, you have the freedom to select the model that best fits your needs. The TM-U220A and TM-U220B come with an autocutter so you can choose between a full or partial cut, and an Auto Status Back function that automatically transmits changes in
the printer status. The TM-U220A includes a take-up journal device and the TM-U220B and the TM-U220D have a wall-mounting option that prints the receipt right side up for easy reading right out of the printer. And of course, all three printers feature the quality, reliability and advanced printing technology that Epson is famous for.
Smooth and easy transition
To make upgrading even easier, Epson’s TM-U220 series has been designed to be 100% compatible with existing systems that currently use a TM-U200 printer. Because the external dimensions of the TM-U200 and TM-U220 printer series are almost identical, transitioning to a new TM-U220 printer is as simple as removing the TM-U200 and dropping in the new TM-U220 and AC adapter.
Epson
TM-U220
Epson’s TM-U220 printers are the enhanced,
more powerful successors to Epson’s best-selling
TM-U200 family.
Available in three different models, Epson’s TM-U220
printers are compact, reliable and fast, and offer all the
easy-to-use features important to the retail, restaurant
and hospitality industries.
POS Impact Printers
Compact, Versatile Receipt Printers
• Three impact printer models • Easy to operate
• 30% faster than the TM-U200 series • Drop-in paper loading
• Two-color black and red receipt and order printing • Right-side-up printing for kitchen orders
• Flexible paper widths • Two-year warranty
General Print method 9-pin, serial impact dot matrix Print font Font 7 x 9/9 x 9 Column capacity 40/42 or 33/35 (columns) Character size 1.2(W) x 3.1(H)/1.6(W) x 3.1(H)mm Character set 95 Alphanumeric, 37 International, 128 x 12 Graphic
Traditional/Simplified Chinese, Thai, Japanese, Korean Characters per inch 17.8/16 cpi or 14.5/13.3
Printer Interfaces* RS-232C, IEEE 1284 parallel; RS-485; USB; 10/100Base-T/TX; wireless
Data buffer 4 KB or 40 bytes
Print speed 4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi) Paper dimensions 57.5±0.5mm, 69.5±0.5mm, 76±0.5mm (W) x dia. 83.0
Paper thickness 0.06 to 0.085
Copy capability One original and one copy
Inked ribbon ERC-38 (Black, Black/Red)
Ribbon life Black: 3 x 106 characters
B/R: 15 x 105 characters (Black), 75 x 104 characters (Red)
Power 24 VDC± 7%
D.K.D. function 2 drivers
Reliability
MTBF 18 x 104 hours
MCBF 18 x 106 lines
Overall dimensions (mm) Type A: 160 (W) x 286 (D) x 157.5 (H) Type B: 160 (W) x 248 (D) x 138.5 (H) Type D: 160 (W) x 248 (D) x 138.5 (H)
Mass (Approx.) Type A: 2.7 Kg
Type B: 2.5 Kg Type D: 2.3 Kg Environmental standards WEEE, RoHS compliant
Factory options Near-end sensor, power supply cover, wall-hanging bracket WH-10, Exclusive Adaptor C (included) Control Board EMI standards VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B
Safety standards UL, CSA, TÜV (EN60950)
Epson
TM-U220
POS Impact Printers
Printer Specifications TM-U220
Epson America, Inc. • 3840 Kilroy Airport Way • Long Beach, CA 90806 • (562) 290-5304 • http://pos.epson.com ©2008 Epson America, Inc. Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. All other trademarks are the property of their respective owners. Specifications are subject to change without notice.
SD-DSU220F
Inch values are approximate.
cpi: characters per 25.4mm (characters per inch) lps: lines per second
*To find out more about our line of Connect-It interfaces, talk to your Epson Sales Representative.
Compact, Versatile Receipt Printers
Optional power supply case secures cords under printer.
Power supply case fits under printer without increasing footprint size.
TM-T81
Impresora POS
Epson TM-T81
Alta confiabilidad, bajo costo con
la calidad de Epson.
Velocidad de impresión, facilidad de uso y alta tecnología de impresión combinan la perfecta impresora para su negocio. Impresora termica de recibos compacta, diseñada específicamente para entornos de minoristas, hospitales, supermercados y restaurantes.
Velocidad de impresión
Imprime recibos a una velocidad de hasta 130mm (5,12" /seg) por segundo, con una impresión térmica de cupones de gran velocidad, logrando una buena combinación costo x beneficio.
Diseñada pensando en la facilidad de uso y la comodidad
El diseño compacto de la TM-T81 la hace ideal para los entornos de farmacias y hotelería. También ofrece carga fácil de papel (Drop-in), un cortador automático, diseño de la cubierta para protegerla contra derrames e imprime diversos códigos de barras.
Confiabilidad con la que puedes contar
La TM-T81 cuenta con un MCBF (Promedio de ciclos antes de falla) de 52 millones de líneas, un MTBF (Promedio de tiempo antes de falla) de 360.000 horas y una duración del cortador automático de 1,5 millones de cortes, la TM-T81 ofrece una sobresaliente confiabilidad, vital en entornos de alto volumen.
• Impresión de hasta 130 mm/seg
• Impresión de recibos de logotipos y gráficos
• Funciones fáciles de usar incluyendo la carga de papel, el cortador automático duradero y los mensajes automáticos de estado
• Diseño de la cubierta para mayor resistencia a los derrames
• Interfaces serial RS-232 o USB 2.0
Impresión Térmica Año de Garantía
Gran Velocidad
Las especificaciones y términos están sujetos a cambio sin previo aviso. Epson es una marca registrada y Epson Exceed Your Vision es un logotipo de marca registrada y Exceed Your Vision es una marca comercial de Seiko Epson Corporation. Todas las otras marcas son propiedad de sus respectivas compañías. Epson niega cualquier derecho sobre esas marcas. © 2009 Epson America, Inc. CPD-LS100455R1 07/09
Especificaciones de la impresora TM-T81
General
Método de impresión
Impresión de línea térmica
Fuente de impresión
Fuente 12 x 24 / 9 x 17 Capacidad de las columnas 42/56 columnas
Tamaño de los caracteres Fuente: A 1,41 mm x 3,39 mm Fuente: B 0,99 mm x 2,40 mm
Conjunto de caracteres 95 Alfanumérico, 48 Internacional, 128 x 11 gráficos (incluyendo un espacio de página)
Código de barras UPC-A/E, CODE 39/93/128, EAN 8/13, ITF, CODABAR JAN8/13, 2D simbolos: PDF417, QR - CODE
Impresora Interfaz
TM-T81 serial o TM-T81 USB
Buffer de datos
Recepción 45 bytes ó 4KB (seleccionable) Definido por usuario 12KB
Macro 2KB Gráficos NV 256KB Usuario NV 1KB
Velocidad de impresión (máx.)
30.7 lps 130mm/seg
Dimensiones del papel
79,5 mm ± 0,5 mm (ancho) x 83 mm (3,3" ± 0,02" x 3,27" diámetro) Energía 24 VC ± 7% Función D.K.D. 2 Controladores Confiabilidad MTBF 360.000 horas MCBF 52.000.000 líneas Cortador automático 1,5 millones de cortes Dimensiones generales 144 mm x 189 mm x 145 mm (5,67" x 7,44" x 5,71") (A x P x Alt.) Peso 1,7 kg (3,74 lb) Color
ECW (Blanca), EDG (Negra)
Fuente de poder
Incluída, adaptador PS - 180
www.latin.epson.com En Latinoamérica llamar a la oficina local o a su distribuidor autorizado. Subsidiarias de Epson:
Epson Argentina, SRL (5411) 5167 0300
Epson Chile, S.A. (562) 484 3400
Epson Colombia Ltda. (571) 523 5000
Epson Costa Rica, S.A. (506) 2210 9555
Epson Guatemala (502) 23 69 16 86
Epson México, S.A. DE C.V. (5255) 1323 2000
Epson Perú, S.A. (511) 418 0200
Epson Venezuela, SRL. (58) 0212 240 11 11 RIF: J-00192669-0
Epson
The Best-selling Thermal Printer
Just Got Even Better
TM-T88V
POS Printer
The TM-T88V is the latest addition to Epson’s
industry-leading TM-T88 POS printer series.
Designed for use in food service and retail
environments, the TM-T88V offers more speed,
features and reliability than ever before.
High-speed, high-resolution text and graphics printing
Now you can speed customer throughput with the TM-T88V printer. It prints both receipts and graphics at the same high speed of up to 300mm per second—50% faster than the TM-T88IV. And it’s the first printer in the industry to offer 16 levels of grayscale to ensure clear, crisp graphics.
Reliability you can count on
With a MCBF of 70 million lines, 35% higher than the TM-T88IV, and an autocutter life of 2 million cuts, the TM-T88V delivers best-in-class reliability so critical in high volume environments.
Easy to use. Easy to maintain.
The TM-T88V is packed with easy-to-use features including drop-in paper loaddrop-ing, an autocutter, easy-to-read LEDs and an improved cover design to protect the printer from foreign objects.
More features, more flexibility
The TM-T88V also features auto speed adjustment for smoother printing, margin and line reduction functions to reduce paper usage and costs, and more barcode options including 2D. In addition, it comes with dual interfaces (USB and one additional interface) for flexibility in handling interface transitions.
ENERGY STAR qualified
The TM-T88V was the first POS printer to be ENERGY STAR qualified1 and uses up to 89% less power than competitive printers in its class.2
Industry-leading four-year limited warranty
The TM-T88V is backed by Epson’s industry-leading service and sup-port programs and comes with a four-year limited warranty. To learn more about the TM-T88V and its advanced printing performance, go to pos.epson.com.
• Fast and versatile printing up to 300mm/second • Same fast print speed for both text and graphics • Industry-first true grayscale printing of graphics • Best-in-class reliability with a MCBF of 70 million lines • Dual interfaces standard including built-in USB plus
one UIB interface
• Ease-of-use features including drop-in paper loading, autocutter and status LEDs
• OS support for Microsoft® Windows 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/ Intel Processor) and Linux
• Low power consumption, multiple configurations are ENERGY STAR qualified
• Handles 80 or 58mm paper roll sizes • Features print options to reduce paper usage • Improved cover design protects against foreign objects • Industry-leading four-year limited warranty
Printer Specifications TM-T88V
Epson
TM-T88V
POS Printer
Inch values are approximate. dpi: dots per 25.4mm (dots per inch)
cpi: characters per 25.4mm (characters per inch) lps: lines per second
*To find out more about our line of Connect-It interfaces, talk to your Epson Sales Representative.
The Best-selling Thermal Printer
Just Got Even Better
Optional power supply case secures cords under printer.
Optional mounting bracket available for hanging printer on wall.
General Print method Thermal line printing
Print fonts
Fonts Font A (default): 12 x 24; Font B: 9 x 17 (including 2-dot horizontal spacing)
Column capacity (A, B) 80mm: 42/56 columns; 58mm model: 30/40 columns
Character size Font A: 1.41 x 3.39; Font B: 0.99 x 2.40 (W x H mm)
Character set 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page)
Traditional/Simple Chinese, Thai, Japanese, Korean
Barcode UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417,
QR-CODE, MaxiCode, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated/Limited/Expanded
Printer Interfaces Built-in USB interface + another selection: serial RS-232C, parallel IEEE-1284, high-speed
USB, powered USB, Ethernet 10/100Base-T/TX, wireless, or a Connect-It* interface (Only one interface can be used at a time.)
Data buffer Receive: 45 bytes or 4KB, selectable; user-defined: 12KB; macro: 2KB;
NV graphics: 256KB; NV user: 1KB; page mode area: 106K
Print speed (max.) 11.8”/second (300mm) graphics and text; 2.4”/second for ladder and 2D barcodes
Paper dimensions 80mm: 3.13” ± 0.02” x 3.27” diameter (79.5 ± 0.5(W) x 83mm)
58mm: 2.26” ± 0.02” x 3.27” diameter (57.5 ± 0.5(W) x 83mm)
Paper thickness 55 – 80 µm
Power 24 VDC ± 7%
Power consumption Operating: approx. 1.8 A (mean)
D.K.D. function 2 drivers
Reliability
MTBF 360,000 hours
MCBF 70,000,000 lines
Autocutter 2 million cuts
Overall dimensions 5.71 x 7.68 x 5.83” (W x D x H) (145 x 195 x 148mm)
Weight 3.5 lb (1.6 kg)
Color ECW, EDG
Factory options Power supply cover, PS-180 AC adapter, wall-hanging bracket, affixing tape and
Connect-It interfaces*
Printer software Drivers and setup utility are available on CD or at pos.epson.com
Control Board EMI standards FCC/ICES-003 Class A
Safety standards UL1950/CSA C22.2 No. 950
1There are many configurations of the TM-T88V. To find out which TM-T88V configurations are ENERGY STAR qualified
go to pos.epson.com/products/TM-T88V.htm. 2For more information go to pos.epson.com/energytest.
Epson America, Inc. • 3840 Kilroy Airport Way • Long Beach, CA 90806 • (562) 290-5304 • http://pos.epson.com ©2010 Epson America, Inc. Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. Connect-It is a trademark of Epson America, Inc. All other trademarks are property of their respective owners. Specifications are subject to change without notice.
Fast two-color printing of text and graphics
Now you can speed customer trans-actions with the TM-T88IV printer. It prints receipts at speeds of up to 200mm (7.9 inches) per second— 25% faster than the TM-T88III and, unlike other printers, the TM-T88IV prints text and graphics at the same fast speed. In addition, its two-color red and black printing capabilities can be used to highlight order changes to minimize kitchen errors and create attention-getting color logos and impactful marketing messages.
Designed for ease-of-use and convenience
The TM-T88IV’s small footprint is ideally suited for both retail and food service environments. The printer can be placed either on the counter-top or wall using an optional wall-hanging bracket, whichever is most convenient. It also features easy, drop-in paper loading, an autocutter, an improved cover design to protect from spills and an optional annunci-ator to alert wait staff when kitchen orders are ready.
Reliability you can count on
The TM-T88IV boasts even more reliability than the TM-T88III. With a MCBF of 52 million lines, a MTBF of 360,000 hours and an autocutter life of 1.5 million cuts, the TM-T88IV printer delivers the outstanding reliability that is critical in high-volume environments.
Integration made easy
With Epson’s wide range of Connect-It™ interfaces, the
TM-T88IV is compatible with today’s best-of-breed and component-based systems. Interface options are avail-able for high-speed USB, serial, parallel, Ethernet and wireless. The TM-T88IV also has the same exter-nal dimensions as the TM-T88III for easy drop-in replacement.
Backed by the leader
The TM-T88IV features the quality and reliability that Epson is known for and is backed by Epson’s two-year warranty.
• High-speed printing of up to 7.9”/sec. — 25% faster than the TM-T88III
• Same fast print speed for both text and graphics • Two-color printing of receipts including logos and
all other graphics
• Ease-of-use features including drop-in paper loading, long-lasting autocutter and Auto Status Back messages • Improved cover design for increased spill resistance • Optional power supply case
• Two-year warranty
Epson
TM-T88IV
POS Printer
The TM-T88IV thermal printer is the latest addition
to Epson’s innovative, industry-leading TM-T88
POS printer series.
Designed specifically for high-volume retail and food service
environments, the TM-T88IV delivers more speed and
more reliability than ever before. It offers 25% faster printing
of text and graphics than the TM-T88III, two-color
capability and more ease-of-use features.
Compact Thermal Receipt Printer
with Two-Color Capability
Printer Specifications TM-T88IV
Epson
TM-T88IV
POS Printer
General Print method Thermal line printing Print font
Font 9 x 17/12 x 24 Column capacity 56/42 columns
Character size Font A: 1.41 x 3.39 Font B: 0.99 x 2.40 Kanji: 3.39 x 3.39 (W x H mm)
Character set 95 Alphanumeric, 37 International, 128 x 11 Graphic (including user-defined page) Traditional/Simple Chinese, Thai, Japanese, Korean
Barcode UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE
Printer Interface* RS-232C, IEEE 1284 parallel; RS-485; high-speed USB; 10/100Base-T/TX; wireless Data buffer Receive: 45 bytes or 4KB, selectable; user-defined: 12KB; macro: 2KB; NV graphics:
256KB; NV user: 1KB; page mode area: 106K
Print speed (max.) 7.9”/second (200mm) graphics and text; 3.9”/second in 2-color print mode Paper dimensions 3.13” ± 0.02” x 3.27” diameter (79.5 ± 0.5(W) x 83mm)
Paper thickness 55 – 80 µm
Power 24 VDC ± 7%
Power consumption Approx. 1.8 A (mean) D.K.D. function 2 drivers
Reliability
MTBF 360,000 hours MCBF 52,000,000 lines Autocutter 1.5 million cuts
Overall dimensions 5.71 x 7.68 x 5.83” (W x D x H) (145 x 195 x 148mm)
Mass 3.96 lb (1.8 kg)
Color ECW, EDG
Factory options Power supply cover, PS-180 AC adapter, wall-hanging bracket, affixing tape and Connect-It interfaces*
Control Board EMI standards FCC/ICES-003 Class A Safety standards UL1950/CSA C22.2 No. 950
Epson America, Inc. • 3840 Kilroy Airport Way • Long Beach, CA 90806 • (562) 290-5304 • http://pos.epson.com ©2008 Epson America, Inc. Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. Connect-It is a trademark of Epson America, Inc. All other trademarks are property of their respective owners. Specifications are subject to change without notice.
SD-DST884F
Inch values are approximate. dpi: dots per 25.4mm (dots per inch)
cpi: characters per 25.4mm (characters per inch) lps: lines per second
*To find out more about our line of Connect-It interfaces, talk to your Epson Sales Representative.
Compact Thermal Receipt Printer
with Two-Color Capability
Optional power supply case secures cords under printer.
Power supply case fits under printer without increasing footprint size.
