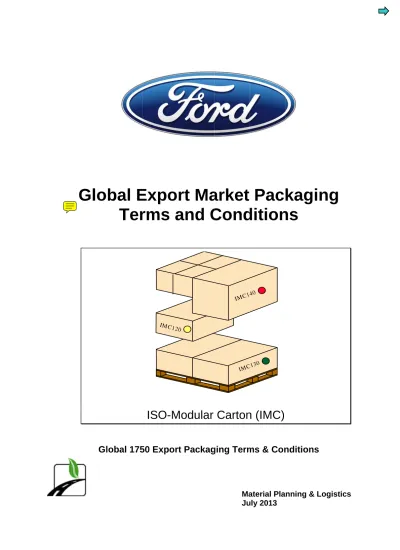

Ford Motor Company – Global Export Market Packaging Terms and Conditions

1. Introduction

This guide is to advise Ford suppliers of the packaging requirements for the shipment of components to EXPORT markets. If you are unsure as to which territories are deemed as export for your company; please contact your Ford buyer, Supply Chain Management contact or MP&L Export Packaging Engineering contact.

These guidelines do not apply where the suppliers provide the freight from the place of origin to an overseas regional supplier operated warehouse. This is when Ford purchasing has sourced material as 'Ex local warehouse' or 'FOB supplier's local distribution center'. In these cases suppliers must refer to regional local packaging terms and conditions, e.g. the MFG1750 or the EU1750 to define part packaging.

These guidelines aim to standardize packaging methods for all Ford export markets, to ensure quality is maintained, freight cube is maximized, and to be acceptable and adaptable to local market conditions. This Global Export packaging Terms & Conditions document supersedes all previous regional export packaging guidelines and is – from now on – the single document for all export market packaging of Ford Motor Company. In case that local conditions have to be considered this is specifically described within the document as a local deviation.

Use this specification for all parts that do not yet conform to the Ford IMC packaging standard. Existing approved IMC packaging must be in compliance with the latest guidelines. From these guidelines it is expected that the supplier will develop an export packaging specification and submit it to the contacts detailed below for provisional or final approval. If you supply components in packaging that does not conform to the specification you may be held liable for repackaging and incremental freight costs. Deviations are not allowed without prior written approval from Packaging Engineering. Packaging that proves unacceptable for whatever reason (quality, transport, production process, safety, etc.) must be changed upon request from Packaging Engineering.

Remember, the responsibility for ensuring component quality from your plant to the point of use remains with you - the supplier of the product.

When your proposal is ready, complete the Export Packaging Data-Set. Refer to the table below to determine the how to submit your packaging proposal.

Destination Market Form to be used Transition path to GPP

The Americas GPP Fully rolled out

Europe Eu1121E & GPP

In 2013 GPP is piloted for selected programs. Communication incl. timing

and detailed instructions to affected suppliers will be provided via e-mail.

Asia Pacific & Africa APA1121 & GPP

GPP roll out in 2013 for selected programs. Communication incl. timing

and detailed instructions to affected suppliers will be provided via e-mail.

(4)

Note: Ford Motor Company is transitioning starting 2013 to a new Packaging Data Management System for packaging approval. The Global Packaging Portal has already replaced the current Form 150, 150E processes for input to the Americas and will replace the EU1121, EU1121E, and APA 1121 procedures/forms in future. Detailed information is

provided through the GPP roll out project. Any supplier who is requested to provide the packaging proposal through GPP instead of e-mailing it to the packaging engineer will receive clear instructions through roll out mails.

Packaging data communication through GPP is web based. For the carry over packaging data communication, EU1121 EU1121E and APA1121, it is required that your proposal is completed via e-mail.

The GPP website location is: www.packaging.ford.com

To obtain an electronic version of this Guideline document or an electronic packaging specification Form go to Covisint https://portal.covisint.com,

CLICK THROUGH THE FOLLOWING LINKS: .. Partner Portals -- Ford Supplier Portal

.. Important Documents -- Global Terms & Conditions .. Production

.. GTC Web-Guides

Global Export Market Packaging Terms and Conditions Export Packaging Form EU1121e / APA1121

2. Background

The Ford ISO-Modular Carton (IMC) program is a corrugated box footprint strategy designed to "module" standard ISO-Sea Containers. Using modular footprints allows unit load cubing at Ford consolidation centers and direct material loading into ISO-Sea Containers. This strategy is required to maximize freight and quality while eliminating non-value added handling and crating. Packaging is based around a unit load footprint size of 980mm x 1140mm x 1100mm (39" x 45" x 43") and NOT the standard shipping pallet dimensions of 1200 x 1140 (48" x 45") or any other specification .

Due to the introduction of lean manufacturing techniques into all Ford plants, all packaging quantities and sizes are required to allow for manually handable cartons wherever possible – i.e. manually handable cartons should, ideally, weigh less than 15kg (33 lbs).

To assist suppliers in selecting the correct packaging size, Ford has developed IMC Export Packaging Selection Guidelines supporting the development of an ideal packaging solution for any export part.

(5)

3. How to use this Document

To ensure that all export packaging is in accordance with Ford requirements follow these steps:

Step 1: For each export which is shipped to export markets, select the ideal expendable corrugated IMC solution using the given requirements and Export Packaging Selection Guidelines (Chapter 6).

Step 2: Advise Packaging Engineering of your packaging proposal by completing the GPP input or a copy of the EU1121e or APA1121 forms.

Step 3: If internal dunnage is required or special part protection included in your Packaging Proposal Input.

Step 4: Packaging Engineering will review the proposal and then provide approval or rejection through the Global Packaging Portal or e-mail communication (EU1121e or APA1121).

Step 5: Suppliers must ensure that all export shipments are made in accordance to the Shipping & Consolidation Guidelines to achieve optimized cube utilization in transportation (Chapter 7).

Step 6: Complete final checklist to ensure that all steps have been covered (Chapter 11)

At any given point of time Packaging Engineering can approach the supplier to revise the packaging specification when needed (i.e. change in mode of transportation).

Packaging costs must be identified and integrated as part of your

piece price at the quotation stage, and can only be agreed by Purchase

(your commodity buyer). Confirmation of a packaging specification form advises that your packaging proposals are acceptable, and does not

infer or imply acceptance or agreement of any associated costs with

that packaging.

Before entering into Step 1 (Selecting the correct export carton) please consider the following guidelines:

(6)

4. Do's

 DO ensure that you use modular cartons and pallets to the exact specification - this is a fully integrated system that requires each element to meet its specification.

 DO ensure that you utilize the maximum cube of the carton - if utilization is less than 95% try another IMC size or part orientation.

 DO where rusting is a risk ,use corrosion inhibiting materials; i.e. VCI products, etc. For other components, where required, use the appropriate product quality enhancement material; i.e. bubble wrap, static-proof bags, etc. Although Packaging Engineering will advise, the responsibility for ensuring part protection remains with the supplier.

 DO select reliable suppliers to provide cartons, pallets, and stickers. Ford has approved

companies that currently stock IMC boxes if you do not have a company to provide the proper materials. Please contact Export Packaging Engineering to obtain contact information.

 DO monitor the effect of engineering changes on the packaging and submit a new

formal packaging proposal through GPP/EU1121E or APA1121 whenever the packaging changes

 DO inform Packaging Engineering using appropriate pack spec. form if your parts are

temperature sensitive. (Temperatures over 70 C can be reached during transport to some destinations).

 DO ensure your part labeling conforms to Ford Shipping Parts/Identification Label Standard BAO-1122-L. The BAO-1122-L document is available through the FSP (Ford Supplier Portal).

 DO follow all applicable Hazardous Materials / Dangerous Goods Transportation Regulations, including the OSHA and UN Hazard Communication Standards. Refer to the EU1750 Packaging Terms & Conditions or the N.A. Packaging Guidelines for more details. Adherence to transport regulations of hazardous material / dangerous goods is legally mandated. Regional and / or national requirements must be followed.

 DO use new part labels when shipping parts with new engineering level. Refer to the regional packaging terms & condition documents for label details.

 DO ensure quantities of handles/hand holes is suitable for the pack weight (See specification)

 DO ensure that weight identification discs are fitted next to the IMC Number printing and are clearly visible. Required disc size is approximately 50mm (2") in diameter. Discs may be stickers or similar markings i.e. stamp, marker etc.

(7)

 DO ensure that all cartons have the appropriate ISO-Modular Carton Number printed

approximately 50mm (2") high on two sides of the box. See Example:

IMC100

(ISO-Modular Carton Number) (Weight Identification Disc)

5. DO NOT

 Do not use a carton that is not specified in Table 1 for NA & Table 2 for EU & APA - no

exceptions are permitted without prior written approval from Packaging Engineering.

 Do not forget to include the required IMC Number printing on two sides of the box and do not ship on a Non-IMC pallet.

 Do not design an open top IMC proposal. No open top containers are allowed.

 Do not allow your product quality to be compromised due to inadequate packaging - zero defect is the norm. If weight is an issue, suppliers are required to increase the packaging strength requirements to ensure quality.

 Do not pack different parts within the same carton - only one part number per carton is allowed. Different part numbers, in separate IMC boxes, shipped on the same pallet must be accompanied by a master packing label.

 Do not use belly bands to strengthen IMC cartons. Excessively heavy unit loads require the use of increased board strength, dunnage, or corner posts to ensure quality.

 Do not use steel banding to secure loads - use plastic banding and/or stretch wrapping.

 Do not allow cartons to overhang pallets. Ensure they are correctly stacked and positioned. The appropriate use of banding and/or stretch wrap must be used as needed.

 Do not use staples for carton closure (top or bottom). Staples may damage both the parts and the operators during the unload operation.

 Do not ship pyramid loads whenever possible to prevent inbound transit damage.  Do not use packaging material that cannot be re-cycled, or could be environmentally

harmful after disposal.

 Do not cut down or modify modular boxes. Example: do not cut side seams to make a box smaller or insert an access panel unless approved by Ford Packaging Engineering.  Do not allow the maximum weight of a unit load including pallet base to exceed the

(8)

6. IMC Export Carton Selection Process

Identify the most suitable carton from the Ford IMC container ranges (refer Table 1 in section 6.2 or table 2 in section 6.4) based on the following selection criteria:

1. Determine an approximate pack quantity based on part nature, FPS right sizing principles, plant material handling requirement, line feed requirement data (if available) and optimum part density in carton.

2. Determine whether the part requires any special expendable/durable packaging. If required contact respective regional packaging engineer before finalizing your packaging proposals.

3. Apply color weight disc to outside of all cartons , remember to also select the appropriate quantity of hand holes based upon:

Carton Weight Weight Disc Handles

** Up to 12kg (26lbs) Red discs O No handles

Up to 30kg (66lbs) Yellow discs O 2 handles

Up to 60kg (132lbs) Green discs O 4 handles

Specials and above 60kg Blue discs O On Pallet Base

** Note: MH&PE engineer to contact supplier when a deviation is required.

4. All standard IMC shipments must be shipped on the specified IMC Export Block

Pallet 980mm x 1140mm (39" x 45") as shown in section 8. In case that the IMC

carton size exceeds the dimensions of the standard pallet then a special pallet with same foot print size of the carton used is required .This special pallet must follow the same construction principle as the standard pallet and must be suitable for the increased weight and handling requirements.

5. Finally, all IMC unit loads must be adequately secured to the pallet. Manually handable cartons (IMC010-IMC180) should be secured to the pallet base with a minimum of four bands and/or the appropriate amount of stretch wrap. If stretch wrap is used, be sure to make several rotations around the pallet base to prevent carton movement in transit. Stapling unit load sized cartons to the pallet base in certain cases is recommended to prevent movement in transit. If you want to staple the carton to base pallet then please contact the regional packaging engineer before doing so. 6. If your parts are to be shipped by air freight directly from your manufacturing location,

cartons must be placed in a wood or corrugate over pack. This requirement is to adequately protect it from air freight handling and in-transit forces.

It is mandatory to maintain a minimum of 12mm thick wood overpack if it is plywood and 15mm in case of Pine wood. However, wood used must comply with the phytosanitary requirements in section 9 of this document.

(9)

6.1 North & South America IMC Carton Sizes and

Performance Specifications

The following applies to import and exports from the Americas and supersede Section 6.3.

IMC Exterior Exterior Tare Minimum Carton Maximum Carton Number Dimensions (mm) Dimensions (in) Weight (est.) Burst Strength Flute Size Box Design Weight Per Box L W H L W H kg (lbs) (lbs) (Combo) (Type) @ Kg (lbs) IMC010 140 240 120 9.5 5.5 4.75 0.1(0.3) 275 # C RSC 15 (33) IMC020 140 240 240 9.5 5.5 9.5 0.2 (0.4) 275 # C RSC 15 (33) IMC030 280 240 120 11 9.5 4.75 0.2 (0.5) 275 # C RSC 15 (33) IMC040 280 240 240 11 9.5 9.5 0.3 (0.7) 275 # C RSC 15 (33) IMC050 280 480 120 19 11 4.75 0.4 (0.8) 275 # C RSC 15 (33) IMC060 280 480 240 19 11 9.5 0.7 (1.6) 275 # C RSC 15 (33) IMC070 560 240 120 22 9.5 4.75 0.3 (0.8) 275 # C RSC 15 (33) IMC080 560 240 240 22 9.5 9.5 0.8 (1.7) 275 # C RSC 15 (33) IMC090 560 480 120 22 19 4.75 1.3 (2.9) 275 # C RSC or FTD 15 (33) IMC100 560 480 240 22 19 9.5 2.1 (4.5) 400 # CA RSC 15 (33) IMC110 560 480 480 22 19 19 2.8 (6.1) 400 # CA RSC 15 (33) IMC120 560 960 120 38 22 4.75 2.3 (5.0) 275 # C RSC or FTD 15 (33) IMC130 560 960 240 38 22 9.5 3.9 (8.5) 500 # CA RSC 15 (33) IMC140 560 960 480 38 22 19 5.1 (11.2) 500 # CA RSC 15 (33) IMC150 1120 480 120 44 19 4.75 1.7 (3.7) 275 # C RSC or FTD 15 (33) IMC160 1120 480 240 44 19 9.5 3.7 (8.1) 500 # CA RSC 15 (33) IMC170 1120 480 480 44 19 19 4.9 (10.8) 500 # CA RSC 15 (33) IMC180 1120 960 240 44 38 9.5 8.2 (18.0) 500 # CA RSC

IMC190 1120 960 480 44 38 19 9.6 (21.2) 500 # CA RSC or HSC & LID IMC193 1120 960 480 44 38 19 12.7 (28.0) 1100 # CAA RSC or HSC & LID IMC197 1120 960 600 44 38 23.6 10.2 (22.5) 500 # CA RSC or HSC & LID IMC200 1120 960 960 44 38 38 12.3 (27.1) 450 # CA RSC or HSC & LID IMC203 1120 960 960 44 38 38 17.0 (37.4) 1100 # CAA RSC or HSC & LID IMC400 1300 1120 960 51 44 38 21.4 (47.2) 1100 # CAA HSC & LID IMC410 1300 1120 480 51 44 19 16.4 (36.2) 1100 # CAA HSC & LID IMC420 1450 1120 960 57 44 38 17.4 (38.4) 1100 # CAA HSC & LID IMC430 1450 1120 480 57 44 19 17.4 (38.4) 1100 # CAA HSC & LID IMC440 1680 1120 960 66 44 38 24.8 (54.6) 1100 # CAA HSC & LID IMC450 1680 1120 480 66 44 19 18.0 (41.8) 1100 # CAA HSC & LID IMC460 1960 1120 960 77 44 38 27.0 (59.6) 1100 # CAA HSC & LID IMC470 1960 1120 480 77 44 19 20.9 (46.0) 1100 # CAA HSC & LID IMC480 2260 960 960 89 38 38 25.9 (57.0) 1100 # CAA RSC or HSC & LID IMC490 2260 960 480 89 38 19 19.3 (42.6) 1100 # CAA RSC or HSC & LID Tolerance: Exterior dimensions must be maintained to +0.0 and -5.0mm (+0" and -0.2").

Notes:

1. All hardware parts are to be packaged in standard IMC030 or quarter keg (229mm x 229mm x 127mm) cartons.

2. RSC = Regular Slotted Carton, HSC = Half Slotted Carton, and FTD = Full Telescope Design StyleRolled ends may be used on FTD cartons.

3. All cartons from Asia Pacific countries must have US Kraft liners and be purchased from a Ford North American International Packaging Engineering approved packaging supplier. 4. Maximum weight of a unit load including the pallet base must not exceed 600kg (1,320lbs).

The carton weight capacity varies depending on the pack design. For the smaller hand held cartons the maximum weight is defined by the ergonomic weight limit (15kg)

(10)

6.2 ISO-MODULAR CARTON (IMC) SIZES – North &

South America

Mixed unit loads of different parts and carton sizes ARE acceptable, the modular carton design allowing all cartons to be inter-stacked. Do not add empty cartons to the pallet stack to achieve a flat layer. Homogeneous unit loads are shown simply to illustrate relative carton size and orientation on the ISO-Modular pallet.

IMC010

IMC020

IMC030

IMC040

IMC050

IMC060

IMC070

IMC080

IMC090

IMC100

IMC110

IMC120

IMC130

IMC140

IMC150

IMC160

(11)

IMC400

IMC410

IMC420

IMC430

IMC440

IMC450

IMC460

IMC470

IMC480

IMC490

Box Number

Carton Outside Dimensions millimeters (inches) Pallet Dimensions millimeters (inches) L W D L x W x D IMC400 1300 (51) 1120 (44) 960 (38) 1320 (52) x 1143 (45) x 127 (5) IMC410 1300 (51) 1120 (44) 480 (19) 1320 (52) x 1143 (45) x 127 (5) IMC420 1450 (57) 1120 (44) 960 (38) 1473 (58) x 1143 (45) x 127 (5) IMC430 1450 (57) 1120 (44) 480 (19) 1473 (58) x 1143 (45) x 127 (5) IMC440 1680 (66) 1120 (44) 960 (38) 1702 (67) x 1143 (45) x 127 (5) IMC450 1680 (66) 1120 (44) 480 (19) 1702 (67) x 1143 (45) x 127 (5) IMC460 1960 (77) 1120 (44) 960 (38) 1981 (78) x 1143 (45) x 127 (5) IMC470 1960 (77) 1120 (44) 480 (19) 1981 (78) x 1143 (45) x 127 (5) IMC480 2260 (89) 960 (38) 960 (38) 991 (39) x 2286 (90) x 127 (5) IMC490 2260 (89) 960 (38) 480 (19) 991 (39) x 2286 (90) x 127 (5)

(12)

6.3 European & Asia Pacific IMC Carton Sizes and

Performance Specifications

The following applies to European & Asia Pacific imports -if shipping region is the Americas see 6.1

IMC Exterior Dimensions Tare CARTON SPECIFICATION Maximum

Carton Number (mm) (in) Weight (est.) BCT. Burst Strength Puncture Resist. Weight Per Box L W H L W H Kg. (lbs) (Kg) (kPa) (J) Kg (lbs) IMC010# 140 240 120 9.5 5.5 4.75 0.1 (0.2) 208 1320 6 15 (33) IMC011* 140 240 120 9.5 5.5 4.75 0.3 (0.7) 208 1320 6 15 (33) IMC020# 140 240 240 9.5 5.5 9.5 0.2 (0.4) 208 1320 6 15 (33) IMC030# 280 240 120 11 9.5 4.75 0.2 (0.4) 243 1320 6 15 (33) IMC031* 280 240 120 11 9.5 4.75 0.4 (0.9) 243 1320 6 15 (33) IMC040# 280 240 240 11 9.5 9.5 0.3 (0.7) 243 1320 6 15 (33) IMC050# 280 480 120 19 11 4.75 0.4 (0.9) 294 1320 6 15 (33) IMC060# 280 480 240 19 11 9.5 0.8 (1.8) 294 1320 6 15 (33) IMC070# 560 240 120 22 9.5 4.75 0.4 (0.9) 301 1320 6 15 (33) IMC080# 560 240 240 22 9.5 9.5 0.5 (1.1) 301 1320 6 15 (33) IMC090 560 480 120 22 19 4.75 1.1 (2.4) 692 2180 12.8 15 (33) IMC100 560 480 240 22 19 9.5 1.3 (2.9) 692 2180 6 30 (66) IMC110 560 480 480 22 19 19 1.8 (4.0) 692 2180 6 60 (132) IMC120 560 960 120 38 22 4.75 1.9 (4.2) 737 2470 13.8 30 (66) IMC130 560 960 240 38 22 9.5 2.7 (5.9) 1179 2800 15.2 60 (132) IMC133 560 960 280 38 22 11 2.8 (6.2) 1179 2800 15.2 60 (132) IMC136 560 960 360 38 22 14.2 3(6.6) 1179 2800 15.2 60 (132) IMC140 560 960 480 38 22 19 3.3 (7.3) 1074 2500 14.2 60 (132) IMC142 560 960 600 38 22 24 3.4(7.5) 1074 2500 14.2 60 (132) IMC144 730 560 480 29 22 19 3.2(7) 1074 2500 14.2 60 (132) IMC147 800 980 320 32 39 13 3.4(7.5) 1074 2500 14.2 60 (132) IMC150 1120 480 120 44 19 4.75 1.7 (3.7) 952 2470 13.8 30 (66) IMC160 1120 480 240 44 19 9.5 2.4 (5.3) 1102 2500 14.2 60 (132) IMC170 1120 480 480 44 19 19 3.3 (7.3) 1102 2500 14.2 60 (132) IMC180 1120 960 240 44 38 9.5 7.8 (17.2) 1950 3524 20.2 60 (132) IMC186 1120 960 360 44 38 14.17 8.6 (19) 1950 3524 20.2 60 (132) IMC190 1120 960 480 44 38 19 9.4 (20.7) 1950 3524 20.2 210 (462) IMC193 1120 960 560 44 38 22. 9.9 (21.8) 1950 3524 20.2 250 (550) IMC197 1120 960 600 44 38 23.6 10.2 (22.5) 1950 3524 20.2 420 (924) IMC197HC 1120 960 730 44 38 29.2 11.0 (24.9) 1950 3524 20.2 420 (924) IMC200 1120 960 960 44 38 38 12.5 (27.6) 1950 3524 20.2 500 (1100) IMC210 1240 480 480 48.8 19 19 5.2 (11.5) 1990 3524 20.2 250 (550) IMC220 1460 1120 840 57.5 44 33 15.8 (34.8) 2430 3524 20.2 500 (1100) IMC230 1470 560 120 57.8 22 4.75 4.3 (9.5) 2160 3524 20.2 120 (265) IMC240 1470 560 240 57.8 22 9.5 5.1 (11.2) 2160 3524 20.2 250 (550) IMC250 1470 560 360 57.8 22 14.72 5.8 (12.8) 2160 3524 20.2 250 (550) IMC260 1470 1120 240 57.8 44 9.5 11.0 (24.3) 2430 3524 20.2 500 (1100) IMC270 1470 1120 480 57.8 44 19 13.0 (28.7) 2430 3524 20.2 500 (1100) IMC280 1660 800 300 65.3 31.5 11.8 8.5 (18.7) 2380 3524 20.2 500 (1100) IMC290 1740 1120 240 68.5 44 9.5 12.2 (26.9) 2560 3524 20.2 350 (770) IMC300 1740 1120 480 68.5 44 19 14.3 (31.5) 2560 3524 20.2 500 (1100) IMC310 2240 1120 480 89 44 19 16.8 (37) 2780 3524 20.2 500 (1100)

(13)

Ford Motor Company – Global Export Market Packaging Terms and Conditions IMC Exterior Dimensions Tare CARTON SPECIFICATION Maximum

Carton Number (mm) (in) Weight (est.) BCT. Burst Strength Puncture Resist. Weight Per Box L W H L W H Kg. (lbs) (Kg) (kPa) (J) Kg (lbs) IMC320 2240 560 480 89 22 19 9.1 (20) 2530 3524 20.2 350 (770)

Important note: To provide an almost complete overview on all currently used IMC cartons

a full listing is provided. Nevertheless suppliers are highly recommended to use the carton types highlighted with bold letters as the first choice. Other listed IMCs may only be used after written approval from the responsible packaging engineer. All IMC cartons must meet the carton material and dimensional specification regardless from where purchased.

'HC' (High Cube) IMC cartons are only to be used for high cube ISO containers.

Tolerance: Exterior dimensions must be maintained to +0.0 and -5.0mm (+0" and -0.2"). Note: * IMC011/031 are for Hardware and very small parts only, and consists of base + lid.

# Recommended maximum load = 30kg. (62lbs) Conversion Factors: 1" = 25.4mm 1kg = 2.2lbs

Maximum weight of a unit load including the pallet base must not exceed 500kg (1,100lbs). Asia Pacific Plants will also accept quarter keg boxes for hardware (229mm x 229mm x 127mm) cartons. Pallet dimensions should be 740mm x 740mm x 150mm.

6.4 ISO-MODULAR CARTON (IMC) SIZES – Europe &

Asia Pacific

Mixed unit loads of different parts and carton sizes ARE acceptable, the modular carton design allowing all cartons to be inter-stacked. Do not add empty cartons to the pallet stack to achieve a flat layer. Homogeneous unit loads are shown simply to illustrate relative carton size and orientation on the ISO-Modular pallet.

IMC010

/011

IMC020 IMC030

/031

IMC040

(14)

IMC090

IMC100

IMC110

IMC120

IMC130

IMC140

IMC150

IMC160

IMC170

IMC180

IMC190/193 IMC200/203

IMC220

IMC230

IMC240

(15)

IMC290

IMC300

IMC310

IMC320

Box Number

Carton Outside Dimensions millimeters (mm) Pallet Dimensions millimeters (mm ) L W D L x W x D IMC220 1460 1120 840 1470x1140x110 IMC230 1470 560 120 1470x1140x110 IMC240 1470 560 240 1470x1140x110 IMC250 1470 560 360 1470x1140x110 IMC260 1470 1120 240 1470x1140x110 IMC270 1470 1120 480 1470x1140x110 IMC290 1740 1120 240 1740x1140x110 IMC300 1740 1120 480 1740x1140x110 IMC310 2240 1120 480 2260x1140x110 IMC320 2240 560 480 2260x1140x110

# Not all IMC carton sizes are shown as sketches.

The IMC carton codes are also used to specify the packaging in Ford systems such as CMMS3 or ASNs etc. Please note that codes must be used as shown e.g. <IMCxxx> without any blanks or other characters in between.

(16)

7. Unit Load Consolidation and Shipping

Guidelines

Once the optimum export carton has been selected and is approved for your part - it is critical that you prepare and consolidate the cartons in the correct manner for shipment:

1. Unit loads must be constructed in accordance with the guidelines in section 6 2. Pallet bases must conform to the specification in section 8.

3. The following general shipping guidelines must also be adhered to:

 Each carton must at least be labeled with Ford standard Odette or AIAG part number labels on two adjacent sides. For IMC cartons where height is less than 120mm (4.75”) the chosen label data format must be used but the label must be reduced to fit onto the side of the carton.

 Maximum height of any unit load must not exceed 1100mm (43") unless approved by Packaging Engineering. Reference section 6 to determine the appropriate maximum quantity of IMC boxes allowed on a pallet.

 If you supply more than one part number to Export Markets, mixed loads of various cartons on a single pallet is permissible to achieve a complete unit load.

 Carton flaps must be completely sealed with tape or spot gluing. Kraft paper tape is preferred over plastic tape to assist in carton recyclability.

 All modular carton loads must be secured to the pallet with plastic banding and/or clear plastic stretch wrap. A minimum of, four bands are highly recommended to avoid carton shifting during transit. For safety reasons, under no circumstances should steel banding be used. If stretch wrap is used, several rotations around the base of the pallet are required to avoid carton shifting.

 If you supply more than one part number to Export Markets, mixed loads of various cartons on a single pallet are permissible to achieve a realistic unit load, provided they are for the same plant destination.

 When shipping mixed loads on a single pallet ensure that the heavy load cartons are positioned on the pallet first with the lighter load cartons on the top.

 All IMC Unit Loads must be designed for double stacking of the same weight for overseas shipments and triple stacking for warehousing purpose (Exception: IMC197/IMC197HC must be designed to stack three high in an ISO container). Any deviation requires approval from the Ford packaging engineer.

(17)

7.1 G

Bandi

Carto

Bandin handlin deform the top smaller strengt pallet b Note: F temper stretch corner unit loa

GUIDE

ing & Str

n alignm

g that pass ng operatio ation of th p edges. S r cartons o h to the p base. For import rature varia wrap unit posts, cel ad stiffness

E TO LO

retch Wra

ment:

ses comple ons and m e top carto tretch Wra or light loa ack and b ts into Asia ances, in p loads or to l partitions s. Ford M

OAD CA

apping:

etely unde must be s on. It is rec apping is a ds. The pl be capable a Pacific & particular d o put poly s, corner b Motor Compan

ARTON

er the pallet sufficiently commende an alternat lastic wrap of retainin & Africa Re due to con bag over t oards etc. ny – Global Ex

NS ONT

t can be da tight to c ed that a s ive to ban pping shou ng the car egion, due densation the U/L. A ) may be xport Market P

TO PAL

amaged by control the pacer or lo ding for un uld be app rtons in co e to varied issues, it dditional p required a Packaging Ter

LLET B

y Fork Lift stack wit oad spread nit loads, p lied to pro orrect align climatic c is required packaging e s well to s rms and Condi

BASE

Trucks du thout crea der is used particularly ovide suffic ment with conditions d to band elements ( strengthen itions ring ating d on y for cient the and and (e.g. the

(18)

EXPORT

MOST

Able to storage height Pyra on to Collap stack Insuffi durab T 1750-Globa

T COMMO

o safely stack e and transit as durable e amid loading op, therefore Pyramid psed icient bility al

ON ERRO

AC k in to same equivalent prevents oth reducing ex Stacking 1. Two way 2. Fiber pal Use full per base with u U

ORS TO A

ACCEPTAB Max he 100cm Full Pe require her loads bein xport cube uti

entry let rimeter nder UNACCEPT July 2013

AVOID:

ABLE eight of unit l m erimeter palle ed ng placed ilization. No bandin pallet TABLE load et Poor align loading on same resu discs) on t banding al transportat ng of Py do st Full perim reinforced runners to handling f ment preven n the cartons ult occurs with

op of light ca llows movem

tion.

yramid load oes not allow tacking GIS 1:26 meter pallet, d with under o withstand forces ts modular c increasing th h the placing artons (red di ment of the sta

w Banding pallet ba (restrict access) 6.06, C+12 cube and plac

he risk of cru g of heavy ca iscs). Insuffic acked carton g under ase ts fork ) ces uneven shing. The rtons (green cient ns during

(19)

8. IS

All expo pallet s dimens are not Pallet Ty Length Width Height Any pa order to Any pa pallet, m dimens

SO Mo

ort market specificatio sions othe t acceptabl Dimens ype IMC h [L] 1 [W] 9 [H] 1 llet length o withstand llet used in must replic sions.

odular

shipments on below, er than list e unless a sions of ava CK160 IM 140 1 980 1 123 that excee d handling n conjunctio cate the sa Ford M

r Pallet

s must con designed ted are NO pproved by ailable Stand MCK161 IM 1490 1140 123 eds 1800mm forces. on with car me design Motor Compan

t Spec

form to the specifical OT accept y Packagin dard Pallets MCK171 1740 1140 123 m in length rtons, with principles ny – Global Ex

cificati

e 980mm ( ly for ISO able. Corr ng Enginee s h must be o a larger fo of the ISO xport Market P

on

(39”) x 114 O containe ugated or a ering. of a stringe oot print siz O pallet exc Packaging Ter 40mm (45”) er shipmen alternate p er or runne ze than the

cept for foo

rms and Condi ) full perim nts. Altern pallet mater r design in standard I ot print itions eter nate rials n ISO

(20)

9. Phytosanitary and Packaging Material Selection

Phytosanitary is about the protection of plants in the world against insect infestation. For this purpose the United Nations have developed measures to protect plants and to prevent the distribution of non domestic pests over the globe. These measures are compiled in the ISPM15 regulation. The ISPM15 requires all wood packaging material exported from one country to another country to meet these requirements based on the International Plant Protection Convention.

Supplier's wooden packaging must comply with the ISPM 15 regulations when packing material for shipments to all export countries. Suppliers must investigate all Phytosanitary requirements and comply with any additional regulation that is specific to the country they are shipping to.

Key Points

 These regulations also affect emergency expendable shipments, so even if you are currently using durable, you also need to comply with your emergency shipments with Phytosanitary rules.

 ll treated wood packaging material must be marked with an official stamp identifying that the wood is debarked, the type of treatment used (DB-HT or DB-MB), the ISO country code where applied e.g. GB, DE etc. and the registration number of the body which applied it. (See sample mark). The wood packaging supplier is responsible for marking.

 Please note that the label should be outlined with border, as this is a mandatory requirement for certain regions (see above acceptable example).

 The requirements will not apply to wooden packaging material comprised wholly of processed wood such as plywood; fiberboard or similar products prepared using a high temperature, high-pressure process.

Ford may audit any shipments. Failure to send shipments in the correct packaging will result in demerit points issued against your supplier performance rating. Using non compliant packaging also may result in rejection of your material. Any cost associated with the rejection of material and / or repacking will be charged to you.

The following website links should answer any questions you may have:

http://www.fao.org/documents/show_cdr.asp?url_file=/DOCREP/006/Y4838E/Y4838E00.HTM

International Phytosanitary Portal (IPP) - https://www.ippc.int/IPP/En/default.jsp

Note: Heat treating pallets with steam is not an acceptable process for ISPM15 compliance.



- Acceptable



-

(21)

10. Corrosion Prevention Overview

Parts for export markets are more exposed to corrosion risks than domestic shipments. Corrosion can be caused by various circumstances, which may have no direct influence or obvious impact.

Due to long shipping and staging times and extreme variations in both temperatures and humidity, parts for export markets have a higher risk of corrosion than domestic shipments. Environmental conditions can play a critical role in the manifestation of corrosion by accelerating any caustic elements on the part surface. Thus, it is critical the appropriate measures be considered when developing a corrosion inhibiting system for export shipments. Corrosion can be caused by various circumstances, many of which are inherent to manufacturing, handling and shipping processes.

Corrosion inhibiting materials, such as VCI, must be used where rusting and corrosion is a risk. When developing a corrosion inhibiting system for your components, it is recommend the following measures be considered: component material properties (ferrous steel, etc.), part surface cleanliness and dryness (pack only dry and clean parts), part temperature (if possible, look to insure parts are ambient temperature before packaging), handling process (wear clean, lint free gloves when handling parts) and environmental conditions of the supply chain (temperature, humidity, volatility of climate conditions, storage conditions, transportation mode, etc.). Look to prevent part to wood, paper or corrugate contact to prevent acidic contamination that can cause corrosion.

Suppliers who are in need for support to establish the appropriate corrosion protection method may address a third party who specializes in corrosion management/protection products and services, or their Ford packaging engineer. Some regions can provide an awareness guide for corrosion protection, which can give you an introduction to this subject but you have to consider:

The selection of best suited corrosion prevention method for ensuring component quality till the point of use remains with you - the supplier of the product.

(22)

11. Final Export Packaging Checklist

To ensure that you have used these Packaging Guidelines correctly please use

the following checklist to tick off that all key steps have been undertaken:

Note: Compliance with this checklist does not relieve you from the other obligatory content of these packaging terms and conditions but shall give you an overview on key steps.

1. Have you obtained and read the latest Export Packaging Terms and Conditions document?

2. Have you selected a provisional export packaging specification using the guidelines, and the table of available IMC cartons?

3. Have you completed the GPP input or sent a Form EU1121/APA1121 proposal to Packaging Engineering for provisional approval?

4. Have you received 'provisional approval' for this proposal through the GPP or by e-mail for EU1121E/APA1121 communication process?

5. Have you used the appropriate printing, pallet base, stickers and handholes to be used when shipping this packaging?

6. Have you selected appropriate supplier(s) that can provide each of the above and can support your shipping volumes and dates?

7. Have you selected a packaging supplier that can provide the approved carton to the performance specification detailed in Table 1 or Table 2? 8. Has appropriate corrosion protection method been selected to ensure part

quality?

9. Has appropriate training for warehouse staff been considered to ensure that consolidation and shipping guidelines are complied with?

10. Have you documented internal processes to ensure that export shipments are always shipped to the approved specification?

(23)

ATTACHMENTS

PAGE

Attachment A: Export Market Packaging Frequently Asked Questions

1. IMC - General Requirements ... 24

2. Quality – Supplier Performance Demerits, QRR ... 25

3. Dunnage, Pallets, Box Strength, Quantities ... 25

4. IMC Printing, Weight Discs, Handholes ... 26

5. Packaging Data - GPP, EU1121,

APA1121 CMMS3 ... 27

6. Packaging Performance Testing ... 28

7. Trial Shipments ... 28

8. IMC Special Case Design ... 28

9. Special Packaging Design ... 29

10. Commercial Issues ... 29

Attachment B: Contacts

1. North America ... 30

2. South America ... 30

3. Europe ... 31

4. Asia Pacific ... 33

Attachment C: Recommended Packaging Suppliers

1. North America ... 34

(24)

Attachment "A": Frequently Asked Questions

1. IMC - General Requirements

Why are IMCs required for export shipments? The Ford IMC world wide export-packaging

standard is required for all shipments that cross the ocean on ISO-Sea Containers in order to standardize consolidation packaging methods, maintain quality, maximize freight cube utilization, and to ensure that packaging is acceptable and adaptable to local market conditions.

What are the key IMC requirements? Outside carton dimensions must conform to the Ford

specified IMC sizes, IMC number printed on two sides of carton, IMC block pallet, Colored weight discs and handholes are used in accordance to the guidelines.

Who is responsible for implementing IMC packaging? It is the supplier's responsibility to

work with their corrugated box and pallet sources to develop packaging, including interior dunnage, that will provide adequate strength, allow safe handling, and ensure product quality to the point of use.

Which export destinations require IMC packaging? All overseas shipments require IMC

packaging.

How do I obtain updated copies of the latest IMC documentation? Go to: Covisint

https://portal.covisint.com, Ford Supplier Portal, GTC Web-Guides IMC140

IM C130

IMC12₀

IMC specified block pallet design provides a "picture frame bottom" to evenly distribute weight of pallet along the perimeter of the cartons to fully utilize carton strength.

Outside carton dimensions (L x W x H) must conform to the Ford specified IMC Sizes to allow unit load cubing using boxes from any supplier.

Colored weight discs are applied to two sides of the carton to notify operators how much weight is in each box. Operators can then determine the number of people required to manually handle each carton.

(25)

Attachment "A": Frequently Asked Questions (Continued)

2. Quality – Supplier Performance Demerits, QRR

Why did I receive supplier delivery performance demerits for packaging? Ford

packaging engineers will issue Supplier Delivery Performance Demerits to export suppliers if your company's material does not comply with the IMC specifications. Common Non-Conformance material includes: Non-IMC sizes, No IMC printing, No IMC pallet, collapsed loads with too much weight that require additional strength, and open-top pallet box containers that do not allow stackability within the ISO-Sea container.

Can the Supplier Delivery Performance Demerits be rescinded? Once demerits have

been issue by Ford Supplier Performance they can not be removed without clear evidence that supplier is not responsible for the concern.

Why did our company receive a QRR (North American supplied parts only)? A QRR is

a quality concern report generated by the affiliates in the export country. QRR's are quality concerns raised against parts that were damaged during transit. Typically packaging related QRR's are a result of Non-IMC packaging, collapsed loads, inadequate dunnage, etc. Suppliers that receive packaging related QRR's are required to work with Ford Packaging Engineering and Ford IEO Quality to determine the root cause of the problem and revise their export packaging as needed. Remember, it is the supplier's responsibility to design export packaging to ensure quality to the end point of use.

What is an ISPR and how do I need to respond to that? An ISPR (Inappropriate Shipping

Practice Report) is issued by the receiving plant and followed up through the material handling & packaging engineer when material was inappropriately packed causing issues in transport logistics. Suppliers are required to adhere to the specified packaging to avoid concerns raised through an ISPR and to furthermore avoid de-merit procedures.

3. Dunnage, Pallets, Box Strength, Quantities

What dunnage (corner posts, cell dividers, bags, foam, VCI, etc) is required? It is the

suppliers' responsibility to determine the appropriate dunnage needed to ensure quality.

Can I use alternative pallet materials, designs, or sizes? No, all pallets must be made of

wood. Corrugated and plastic pallets are not allowed for export shipments. All standard IMC sizes must be shipped on the IMC 1140x980x127mm; 39" x 45" x 5" block pallet, and must meet the International Plant Protection Convention (IPPC) ISPM15 specification; Go to the web sites indicated in the document for details.

Are IMC pallets required if I'm only shipping a few boxes? Yes, all shipments made to

(26)

What if our parts are too heavy for the standard IMC boxes? Suppliers that exceed the

Ford Packaging Engineering recommended weight limits are required to add additional strength to the carton in terms of increased board grade, corrugated box design, dunnage, or corner posts, etc. Remember, the responsibility for ensuring component quality from your plant to the point of use remains with you – the supplier of the product. It is the suppliers' responsibility to work with their corrugators to determine the appropriate packaging strengths to apply to IMC boxes. If board grade is increased (i.e. from double wall to triple wall) remember that the outside dimensions must continue to meet the IMC specified dimensions. In other words, as board grade increases, the inside dimensions will decrease while the outside dimensions must stay the same. Please also ensure that the stackability requirements (as per section 7) are met.

How do I determine an appropriate standard carton quantity? Standard packaging

quantities need to be established based on the following principles: annual estimated volume for the program, line feed requirements, FPS right sizing principles, weight limit requirements, and optimum carton density rather than a specific quantity limit.

What if I can't achieve 95% cube utilization within the carton? Ford Packaging

Engineering understands that dictated carton sizes do not accommodate all parts. If you are having trouble selecting an IMC pack that optimizes density please contact Ford Packaging Engineering. Digital photos of your part, current packaging, and proposed packaging are often required for Ford to evaluate your situation.

What if my export releases have large fluctuations? Since there are often large

fluctuations in release quantities for export part-by-part programs, IMC standard pack quantities need to be defined to accommodate your average export release quantity.

Once a standard pack quantity is defined, what if I get an order for fewer pieces? Once

a standard pack is defined, all shipments must be made to accommodate a minimum of one carton. In case of any phase out or pre build shipment the release quantity may be less than the carton pack quantity and needs to be shipped as per release.

What if my unit load quantity exceeds the average weekly requirements? Your

packaging specification (EU1121, APA1121 or GPP) must be submitted based on a full unit load quantity. However, your release quantity will be in either carton, layer or unit load quantities.

4. IMC Printing, Weight Discs, Handholes

Why do I have to print the IMC number on the box? The IMC number is used by Ford

consolidation centers to sort IMC and Non-IMC material. The number is then used to determine the appropriate cubing method to apply when building up unit loads.

What happens if the IMC number is not printed on the box? Export consolidator will not

recognize your box as IMC compliant. The box will then be placed in a one-way expendable crate to ensure quality. The crating process may then trigger a supplier performance demerit.

(27)

Should the IMC number be on adjacent or opposite sides? Either is acceptable. Most

suppliers print on opposite sides of the box along the length panel of the box.

How large does the IMC printing have to be? The size of the printing depends on the IMC

box number used. Typically the printing is around 2"/50 mm high. However, smaller boxes such as the IMC010 use smaller printing. It is important that the printing is located in the center of the box to avoid being covered up by labeling and to make sure it is highly visible for the consolidation center operators.

What are the Weight Disc specifications? Weight Discs like the IMC printing are usually

around 2"/50 mm. Slightly smaller or larger discs (1"/25mm-3"/76 mm) are also acceptable.

Are Weight Discs and Handholes required for unit load sized boxes (IMC190 and above)? No. Weight Discs and Handholes are only required for IMC100 through IMC190

cartons

How do I determine the correct number of Handholes required? Follow the chart listed in

the IMC guidelines. The number of Handles correlates to the IMC Weight Disc color.

5. Packaging Data - GPP, EU1121, APA121 CMMS3

What is the purpose of submitting a GPP input or EU1121or APA1121? These forms are

used by Ford Packaging engineering to evaluate if your proposed dimensions and weights are in line with the IMC strategy. If these characteristics are in line with the guidelines "provisional or final approval" will be granted.

If Ford approved my packaging specification and it fails during implementation is it Ford's responsibility? No, approval means that Ford Packaging Engineering agrees that

your export packaging proposal meets Ford box dimensions and weight limit requirements. It is the suppliers' responsibility to ensure that the appropriate board grades, dunnage, corrosion protection, etc is implemented to ensure quality.

Do I need to input my packaging data into CMMS? All suppliers located in North and

South America are required to input their export packaging data (e.g. all type of IMC packaging codes) into the DAIA screen under the left hand side of the screen where it indicates "Returnable & Export Containers Dtls".

All suppliers located outside North or South America but shipping into North or South America are required to input their packaging data on the right hand side of the screen under "Expendable Packaging Unit".

For Ford of Europe and Ford Asia Pacific regions, the DAIA CMMS screen will be maintained by the Ford packaging engineer.

Who do I contact if I have questions regarding CMMS? Contact your Supply Chain

(28)

6. Packaging Performance Testing

Is IMC packaging testing required prior to implementation? Testing is only required as

needed. Unless otherwise directed by Ford it is up you, the supplier, to determine the amount and types of testing that will be needed to ensure quality shipments to export markets.

How do I conduct testing? As the supplier, you are the expert on your specific parts

sensitive features. It is up to the supplier to determine the appropriate testing methods and work with your preferred testing labs to adequately test export packaging for ocean shipments as needed.

7. Trial Shipments

How should I conduct a trial shipment? Ford Packaging Engineering highly recommends

that any trial shipment be shipped in accordance to your export releases. It is not recommended that you ship material to the export consolidator that does not satisfy a current release. If you conduct a trail shipment, be sure to contact Ford Packaging Engineering. Failure to contact the appropriate engineer will result in your package flowing through the transportation network without inspection.

8. IMC Special Case Design

What if all IMC sizes don’t accommodate my part, when is a Special Case IMC allowed? Special Case ISO-Modular Cartons are only allowed when none of the IMC sizes

will meet the unique needs of a specific part. Special Case ISO-Modular Cartons are required to follow the same requirements stated in the guidelines with the exception of the outside carton dimensions, corrugated printing and the appropriate pallet size.

How do I design an optimum Special Case IMC? Special case cartons are designed by

altering required ISO-Modular Carton dimensions to meet the needs of specific parts. Remember, the primary objective of the IMC program is to facilitate direct material loading into the ISO-Sea container. This means that you must select the appropriate packaging material and dimensions to ensure stackability within the ISO-Sea container. The 45" (or

90") width is the most critical dimension due to the fact that the width dimension of an

ISO-Sea Container is 90". This dimension must be held in order to load cartons side by side in an ISO-Sea Container. The 43"/1100mm maximum unit load height is second

critical dimension because of the ISO-Sea Container usable opening of 86". The length is

least critical dimension is of the carton. Try to design the length as close to 38, 51, 57, 66, 77, and 89 as possible. All Special Case IMC Sizes must be approved by Ford Export Packaging Engineering.

Are IMC-Special Case cartons only allowed as unit load sized cartons? Typically, Yes.

Most IMC-SC designs involve unit load scenarios. Deviating small carton dimensions, causes the entire "modular" theory of the IMC strategy to become void. The only way a small carton dimension such as the height could be approved, as a special case design would be if the release quantities were always in full layer quantities or full unit load quantities.

(29)

Can I simply label my current packaging as IMC-Special Case? Absolutely NOT!

Unless packaging engineering approves a special case design, it will not be acceptable. Inappropriately labeledcartons will be subject to Supplier Performance Demerits.

Are Weight Discs and Handholes required for unit load sized IMC-SC designs? No,

Weight Discs and Handholes are only required for manually handable cartons.

What are the IMC Special Case Printing requirements? IMC cartons need to be labeled

with the appropriate IMC number. Any Special Case cartons must substitute the required ISO-Modular Carton Number with the letters "SC" (Special Case). Example: IMC200 to IMC-SC

9. Special Packaging Design

What if my parts require packaging other than corrugated carton?: If your part requires

special packaging please contact your Ford Packaging Engineer to discuss and select another alternative (e.g. returnable container, expendable steel rack, wood crate, etc). If the alternative pack requires a different commercial agreement this must be approved by the Ford Buyer prior to packaging approval.

10. Commercial Issues

Is there a Ford preferred source to procure IMC boxes and pallets? There are

specialized packaging companies who can provide you with IMC standard cartons, IMC special case cartons, pallets and accessories for your packaging. Contacts for some of these packaging companies can be found in the attachment.

Is there a Ford preferred source to procure VCI for Rust sensitive parts? There are

specialized packaging companies who can provide you corrosion prevention materials and corrosion management expertise. Some company contacts can be found in the attachment

What if there are commercial issues regarding implementation of IMCs? All commercial

issues must be handled through your designated Ford buyer. The IMC program has the support of Ford Purchasing management worldwide.

How do I manage different Packaging for different locations? This is a supplier issue

that must be handled internally. Your company needs to recognize different packaging requirements based on the ship to location even if the Ford part number is the same. Suppliers are encouraged to contact their Ford packaging engineers to discuss solutions for common packaging if applicable.

Will Ford assign separate part numbers? No. Ford will not assign different part numbers

because of different packaging requirements for different locations. It is up to the supplier to handle this requirement internally.
