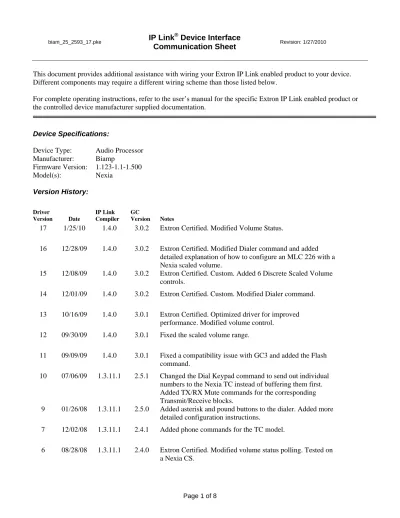

This document provides additional assistance with wiring your Extron IP Link enabled product to your device. Different components may require a different wiring scheme than those listed below.
For complete operating instructions, refer to the user’s manual for the specific Extron IP Link enabled product or the controlled device manufacturer supplied documentation.
Version History: Device Specifications:
Device Type: Audio Processor Manufacturer: Biamp Firmware Version: 1.123-1.1-1.500 Model(s): Nexia Driver Version Date IP Link Compiler GC Version Notes
17 1/25/10 1.4.0 3.0.2 Extron Certified. Modified Volume Status.
16 12/28/09 1.4.0 3.0.2 Extron Certified. Modified Dialer command and added detailed explanation of how to configure an MLC 226 with a Nexia scaled volume.
15 12/08/09 1.4.0 3.0.2 Extron Certified. Custom. Added 6 Discrete Scaled Volume controls.
14 12/01/09 1.4.0 3.0.2 Extron Certified. Custom. Modified Dialer command. 13 10/16/09 1.4.0 3.0.1 Extron Certified. Optimized driver for improved
performance. Modified volume control. 12 09/30/09 1.4.0 3.0.1 Fixed the scaled volume range.
11 09/09/09 1.4.0 3.0.1 Fixed a compatibility issue with GC3 and added the Flash command.
10 07/06/09 1.3.11.1 2.5.1 Changed the Dial Keypad command to send out individual numbers to the Nexia TC instead of buffering them first. Added TX/RX Mute commands for the corresponding Transmit/Receive blocks.
9 01/26/08 1.3.11.1 2.5.0 Added asterisk and pound buttons to the dialer. Added more detailed configuration instructions.
7 12/02/08 1.3.11.1 2.4.1 Added phone commands for the TC model.
Page 2 of 8
5 07/09/08 1.3.11.1 2.4.0 Extron Certified. Added Instance ID Tag Letters. Modified connection status monitoring. Added channel selection. Tested on a Nexia CS.
Page 3 of 8
Driver Notes:
An example GC and corresponding Nexia configuration for a single Scaled Volume command configured to an MLC 226 volume knob:
Page 4 of 8
2. When you’re done with the Nexia software, open up GC and configure Volume Instance ID Tag 1 along with Volume Channel 1 and Scaled Volume.
Page 5 of 8
This driver is not supported by the MLC62.
In order to use the MLC226/104 IP Plus/System 5 IP/TLP 700 volume knobs, configure the “Scaled Volume” command on the volume knob in Global Configurator.
Nexia uses an Instance ID number to specify the exact DSP block to be controlled. Custom names
(Instance ID Tags) may be assigned to DSP blocks, and used in lieu of Instance ID numbers within NTP (Nexia Text Protocol) command strings. Instance ID Tags may be up to 32 characters, but may not start with a number. If the
Instance ID Tag includes spaces, it must be double-quote delimited ("Instance ID Tag") when used in a command string. The Instance ID number (and Instance ID Tag) can be found by first making sure the “Properties” attribute of a control block is enabled by right-clicking the DSP block and selecting "Properties". Then hover over the
“Property Sheet” tab on the left and both identifiers are available in the DSP Attributes 1 tab.
To simplify instance ID tag naming within the driver, a capital letter and a number are used as the Instance ID Tag for a variety of control blocks.
The following Nexia configuration blocks correspond to the following driver commands: Command Name
Tag
Letter Tag Range
Corresponding Nexia Control Block
Auto Answer A 1 ~ 16 TC - Receive (Double Click)
Dial Keypad D 1 ~ 16 TC - Dialer (Double Click)
Logic State L 1 ~ 32 Logic State
Mute M 1 ~ 32 Mute
Phone Input Level And Receive Mute I 1 ~ 16 TC - Receive Phone Output Level and Transmit Mute O 1 ~ 16 TC - Transmit
Preset Recall N/A N/A Preset Button
Hook D 1 ~ 16 TC – Dialer (This logic resides in the
Dialer block, use this command to hang up.
Redial R 1 ~ 16 TC - Dialer Rdl Node
Scaled Volume V 1 ~ 16 Level
Speed Dial S 1 ~ 16 TC - Dialer Nodes 1 - 16
Page 6 of 8
Control Commands & States:
Auto Answer 0-5
Auto Answer Instance ID Tag
1-16
Dial Keypad 0-9 Dial Redial
* # Pause Flash Delete
Dial Keypad Instance ID Tag
1-16
Hook On Off
Logic State 0 1
Logic State Channel 1-16
Logic State Instance ID Tag 1-32
Mute On Off
Mute Channel 1-16
Mute Instance ID Tag 1-32
Phone Input Level Up Down
Phone Level Instance ID Tag
1-16
Phone Output Level Up Down
Preset Recall 1-32
Receive Mute On Off
Redial Instance ID Tag 1-16
Scaled Volume -88 to 12 at 1 dB
Speed Dial 1-16
Speed Dial Instance ID Tag 1-16
Transmit Mute On Off
Volume -100 ~ 12 at 0.5 dB
Page 7 of 8
Status Available:
Connection Status Connected Disconnected
Hook On Off
Logic State 0 1
Mute On Off
Receive Mute On Off
Transmit Mute On Off
Page 8 of 8
Cable and Adapter Requirements:
M/F RS-232 Straight Serial Cable (Extron Electronics P/N 26-433-XX)
Notes for the Device:
Pin Assignments Diagram:
Note: Captive screw connector may also be used as a serial connection.
General Notes:
Serial communication:
Port Type: RS232 Parity: None
Baud Rate: 38400 Stop Bits: 1
