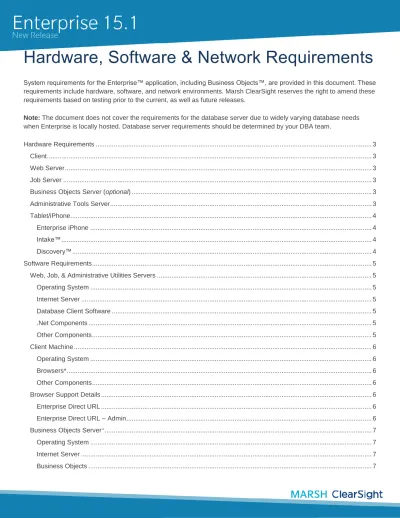

Hardware, Software & Network Requirements

(1)

Hardware, Software & Network Requirements

System requirements for the Enterprise™ application, including Business Objects™, are provided in this document. These requirements include hardware, software, and network environments. Marsh ClearSight reserves the right to amend these requirements based on testing prior to the current, as well as future releases.

Note: The document does not cover the requirements for the database server due to widely varying database needs when Enterprise is locally hosted. Database server requirements should be determined by your DBA team.

Hardware Requirements ... 3

Client ... 3

Web Server ... 3

Job Server ... 3

Business Objects Server (optional) ... 3

Administrative Tools Server ... 3

Tablet/iPhone... 4

Enterprise iPhone ... 4

Intake™ ... 4

Discovery™ ... 4

Software Requirements ... 5

Web, Job, & Administrative Utilities Servers ... 5

Operating System ... 5

Internet Server ... 5

Database Client Software ... 5

.Net Components ... 5 Other Components ... 5 Client Machine ... 6 Operating System ... 6 Browsers* ... 6 Other Components ... 6

Browser Support Details ... 6

Enterprise Direct URL ... 6

Enterprise Direct URL – Admin ... 6

Business Objects Server* ... 7

(2)

Database Client Software ... 7

Other Components ... 7

Tablet – Intake App ... 7

Enterprise Version ... 7

Tablet – Discovery ... 7

(3)

Hardware Requirements

Aside from the database system, there can be up to four types of hardware required for use of the Enterprise system:  Web Server

 Job Server

 Business Objects Server (optional)  Administrative Tools Workstation/Server

Most configurations will require four separate physical machines for production operation: a single dedicated Web Server, a single dedicated Job Server, a single dedicated Business Objects Server, and a single database server.

Client

 DSL/ISDN/Cable Internet Connection

 Monitor that can support a resolution of 1024 x 768  2GB RAM

Web Server

 Intel® Xeon® processor (Dual 2.93 GHz)  4 GB or more of RAM

 40 GB system drive + 20GB drive

Job Server

 Intel Xeon processor (Dual 2.93 GHz)  8 GB or more of RAM

 40 GB system drive + 20GB drive

Business Objects Server (optional)

 IntelXeon processors (Dual 2.93 GHz)

 16 GB or more of RAM

 40 GB drive + 45 GB drive (SAN storage supported for file store)

Administrative Tools Server

The Administrative tools can reside on the Web Server or Job Server but it can also reside on a separate server machine or on a workstation that has access to the database system.

 IntelXeon processor (Dual/2.93 GHz) (for server OS)

(4)

Tablet/iPhone

Enterprise iPhone

®

App

is compatible with SaaS Enterprise using the hardware listed below. Other versions of Enterprise, PE, and Audit are not compatible with the iPhone app.

 iPhone® 4 mobile device and above

Intake™

is compatible with SaaS Enterprise using the hardware listed below. Other versions of Enterprise, PE, and Audit are not compatible with Intake.

 Android™ tablets

 Android™ phones

 iPad® 2 mobile device and above (32 bit & 64 bit devices)  iPhone® 4 mobile device and above

Discovery™

is compatible with SaaS Enterprise using the hardware listed below. Other versions of Enterprise, PE, and Audit are not compatible with Discovery.

(5)

Software Requirements

Covered in this section are the software requirements for accessing Enterprise, as well as software requirements for Intake and Discovery.

 Client Machine – runs browser that enables user to access application interface  Web Server – houses the Enterprise web application and supporting components  Job Server – houses the job server components

 Business Objects Server (optional)

Web, Job, & Administrative Utilities Servers

Software Version

Operating System

Windows® 2008 R2 (64-bit) SP1

Internet Server

Microsoft Internet Information Service(IIS) for

Windows Server

7.5 Microsoft Internet Information Service (IIS) Manager 6.0

Database Client

Software

Oracle® Enterprise Edition 11g R2 Client (64-bit) 11.2.0.1.0

Oracle Enterprise Edition 11g R1 Client (32-bit) 11.1.0.6.0

Access® Database Engine 2010** 14.0.4763.1000

.Net Components

Microsoft .Net Framework 4.5.2 4.5.51209

Microsoft ADOMD.Net** 8.0

Microsoft ASP.Net MVC 2.0 2.0.50217.0

Microsoft ASP.Net MVC 4.0 4.0.20714.0

Microsoft ASP.Net MVC 5.0* 5.0***

SAP® Crystal Reports Runtime Engine for .Net Framework 4.0

13.0.3.612

Other

Components

SAP® Business Objects™ BI 4.1 Client Tools SP5 14.1.4.1501

SAP Business Objects BI 4.1 64-bit SDK SP5**** 14.1.4.1501

* IIS must be configured to work with ASP .NET applications ** Not required for locally-hosted environments

*** Microsoft ASP.NET MVC 5.0 is supported and separate installation is not required on Web Server, Job Server, Tool Server and SDIA server.

(6)

Client Machine

Software Version(s)

Operating System

Windows® Windows 7 (64-bit)

Windows 8 (64-bit)

Browsers*

Microsoft Internet Explorer®

9.0 (64-bit) 10.0 (32-bit)** 10.0 (64-bit) 11.0 (64-bit)

Mozilla® Firefox® Version 39 and above

Safari® Version 8.0.6 and above

Other Components

Adobe Reader® 9.0, 10.0, 11.0

JVM® (Java Client)

(latest version as of 2/3/2012) 1.7.0_51

Silverlight** 5.1.20125 (minimum)

Microsoft Office (Word/Excel) 2007, 2010, 2013

Microsoft .Net Framework***** 3.5 SP1, 4.0, 4.5.2

* Refer toBrowser Support Detailssection below.

** Note that 10.0 (32-bit) has not been tested; however, we do not anticipate any issues. *** Silverlight 5.1.40416.0 has been tested.

Browser Support Details

Enterprise Direct URL

The following browsers can be used when accessing Enterprise directly via url:  IE 9, IE 10, IE 11

 Firefox  Safari

Note: With the release of Enterprise 15.1, IE 8 is no longer a supported browser.

Enterprise Direct URL – Admin

(7)

Business Objects Server

*

Operating System

Windows Server 2008 R2 (64-bit) SP1

Internet Server

Apache Tomcat™ 6.0.35

Business Objects

BOXi 4.1 SP5 14.1.5.1501

Database Client

Software

Oracle Enterprise Edition 11g R2 Client 11.2.0.1.0

Other Components

Java 1.7

* Only required for Business Intelligence implementation.

Tablet – Intake App

Operating System

Apple iOS_Android™ 7.x, 8.x

platform 4.2.2 and above

Enterprise Version

Enterprise 15

Tablet – Discovery

Operating System

Apple iOS® 7.x, 8.x
