Etabs Sample3

(1)

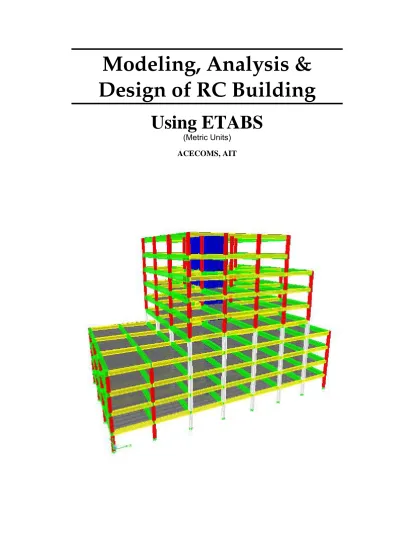

Modeling, Analysis &

Design of RC Building

Using ETABS

(Metric Units)

(2)

Objective 5 Problem 5

Step by Step 12

1. Start Model with Template 12

2. Define Material Properties 14

3. Define Member Sections 15

4. Draw the Members 20

5. Define Load Cases and Assign Loads 50

6. Define Mass Source 61

7. Define the Design Codes 62

8. Assign Rigid Diaphragm and Mesh the Frame 64

9. Add Load Combinations 66

10. Set Analysis Options 68

11. Run Analysis 69

12. Run Concrete Frame Design and View the Results 70

13. Run Shear Wall Design and View the Results 75

(3)

Modeling, Analysis & Design of RC Building 5/83

Objective

To demonstrate and practice step-by-step on the modeling, analysis and design of 10 story RC building by static lateral force procedure.

Problem

Carry out analysis, and design of 10 story RC building as shown in following details using UBC-97 static lateral force procedure.

(4)

Modeling, Analysis & Design of RC Building 6/83 BASE – STORY 4

(5)

Modeling, Analysis & Design of RC Building 7/83 STORY 9 – STORY 10

(6)

Modeling, Analysis & Design of RC Building 8/83 Elevation View of Elevator Shaft

(7)

Modeling, Analysis & Design of RC Building 9/83 Section Properties

Member Dimension

Beam – B1 (width x height) 30 x 60 cm

Beam – B2 (width x height) 40 x 80 cm

Column – C1 40 x 40 cm

Column – C2 50 x 50 cm

Slab Thickness = 15 cm

(8)

Modeling, Analysis & Design of RC Building 10/83 Story Height

Typical Story 3.00 m

Static Load Cases Load

Name Load Type Details Value

Self Weight of Structural Members Calculate automatically using Self

Weight Multiplier in ETABS

-

DEAD Dead Load

Uniform Load on Slabs:

(Finishing + Partition Load) 0.20 t/m2

LIVE Reducible

Live Load

Uniform Load on Slabs:

(Use Tributary Area: UBC97) 0.25 t/m2

Wind Load Cases (UBC97)

Load Case Parameter

WINDX WINDY

Wind Direction X Y

Wind Speed 70 mph

Exposure Type B (Suburban area)

(9)

Modeling, Analysis & Design of RC Building 11/83 Parameter Values Remark

Seismic Zone 2A

Seismic Zone Factor 0.15 Table 16-I (UBC-97)

Soil Profile Type SD

Overstrength Factor 6.5

Dual Systems Concrete Shear Walls

with Concrete IMRF Table 16-N (UBC-97)

Importance Factor 1 Table 16-K (UBC-97)

Ct 0.02

Section 1630.2.2 (UBC-97)

Eccentricity Ratio 0.05 Section 1630.6

(UBC-97)

Static Lateral Force Case

Load Case Name Direction and _Eccentricity % Eccentricity

EQX X Dir + Eccen. Y 0.05

EQNX X Dir - Eccen. Y 0.05

EQY Y Dir + Eccen. X 0.05

(10)

Step by Step

1. Start Model with Template

Step 1-1: Select Working Unit and Start New Model using Template

Start up screen of ETABS, select working unit to be “ton-m” at drop-down menu on the bottom-right of screen and click on New Model button to start new model using template

Note: Click the Default.edb button. This means that the definitions and

preferences will be initialized (get their initial values) from the Default.edb file that is in the same directory as your ETABS.exe file. If the Default.edb file does not exist in this directory then the definitions and preferences are initialized using ETABS built-in defaults.

You should create your Default.edb file such that you most commonly click this button.

In some cases you may want to click the Choose.edb button and specify a different file from which the definitions and preferences are to be initialized. For example, a certain client or project may require certain things in your model to be done in a certain way that is different from your typical office standards. You could have a specific .edb file set up for this client or project which could then be used to initialize all models for the client or project. This will allow setting of the repeatedly used preferences.

(11)

Modeling, Analysis & Design of RC Building 13/83 Step 1-2: Specify Grid and Story Dimension

Specify grid dimension and story dimension as shown in figure below. Select “Grid Only” option to add the structural objects later.

Step 1-3: Save the Model

The grid system has been created as parameters specified from previous steps. Go to File >> Save, and save the file.

(12)

2. Define Material Properties

Step 2-1: Change Working Unit

Change working unit to “kg-cm” and go to Define >> Material. Click “Add New Material” button to add the new concrete material.

Note: You may select “N-mm” or “Kip-in” or whatever unit to input material properties. Step 2-2: Specify the Material Properties

(13)

3. Define Member Sections

Step 3-1: Define Frame Section for Beam (30 cm x 60 cm)

Go to Define >> Frame Sections and select on “Add Rectangular” from second drop-down menu. Enter beam section properties for B1 as shown in figure below.

(14)

Modeling, Analysis & Design of RC Building 16/83 Step 3-2: Define Frame Section for Beam (40 cm x 80 cm)

Select on “Add Rectangular” from second drop-down menu. Enter beam section properties for B2 as shown in figure below.

(15)

Modeling, Analysis & Design of RC Building 17/83 Step 3-3: Define Frame Section for Column (40 cm x 40 cm)

Select on “Add Rectangular” from second drop-down menu. Enter column section properties for C1 as shown in figure below.

(16)

Modeling, Analysis & Design of RC Building 18/83 Step 3-4: Define Frame Section for Column (50 cm x 50 cm)

Select on “Add Rectangular” from second drop-down menu. Enter column section properties for C2 as shown in figure below.

(17)

Modeling, Analysis & Design of RC Building 19/83 Step 3-5: Define Area Section for Slab (15 cm thk.)

Go to Define >> Wall/Slab/Deck Sections and select on “Add New Slab” from drop-down menu. Enter slab section properties as shown in figure below.

Step 3-6: Define Area Section for Wall (20 cm thk.)

Select on “Add New Wall” from drop-down menu. Enter wall section properties as shown in figure below.

(18)

4. Draw the Members

Step 4-1: Change View to Plan View and Change Working Unit to “Ton-m”

Activate left window by clicking on left window area, click on Set Plan View button and select “STORY1”. Change working unit to “Ton-m”

Step 4-2: Draw Columns at Story 1

Click on button, select the property of column in “Properties of Object” dialogue. Window the grid intersections from Grid A4 to H1.

(19)

Click on button, select the property of beam in “Properties of Object” dialogue. Window the grid intersections from Grid A4 to H1.

(20)

Modeling, Analysis & Design of RC Building 22/83 Step 4-4: Draw Slabs at Story 1

Click on button, select the property of slab in “Properties of Object” dialogue. Window the grid intersections from Grid A4 to H1.

(21)

Modeling, Analysis & Design of RC Building 23/83 Step 4-5: Set Building View Options

(22)

Modeling, Analysis & Design of RC Building 24/83 Step 4-6: Assign the Beam Section (B2)

Select the beams along Y-direction. Go to Assign >> Frame/Line >> Frame

(23)

Modeling, Analysis & Design of RC Building 25/83 Step 4-7: Mesh the Slabs

Select all the slabs and go to Edit >> Mesh Areas. Enter the number of meshes as shown in the figure below.

(24)

Modeling, Analysis & Design of RC Building 26/83 Step 4-8: Draw the Wall

Click on Rubber Band Zoom button to zoom plan view at shear wall location. Go to Draw >> Draw Point Objects, enter “Plan Offset X” in “Properties of Object” dialogue and click 4 nodes as shown in figure below.

(25)

Click on button and select the property of wall in “Properties of Object” dialogue. Draw the wall segments from node to node as shown in figure below.

(26)

Go to Select >> by Area Object Type, and select wall to select the walls.

Go to Edit >> Replicate, and replicate mirror about the line as shown in the figure below.

(27)

Modeling, Analysis & Design of RC Building 29/83 Step 4-9: Delete the beams on the wall

(28)

Modeling, Analysis & Design of RC Building 30/83 Step 4-10: Draw the Beams Connecting to the Wall

Click on button and select “B40x80” in “Properties of Object” dialogue. draw the beams connecting the columns and the walls.

(29)

Modeling, Analysis & Design of RC Building 31/83 Step 4-11: Change the Stiffness Modifiers

Select the beams connecting to the wall. Go to Assign >> Frame/Line >> Frame

Property Modifiers, and change the torsional stiffness as shown in the figure

(30)

Modeling, Analysis & Design of RC Building 32/83 Step 4-12: Mesh the Floor between the Core Walls

Select the floor between the core walls. Go to Edit >> Mesh Areas, mesh the floor at the intersection with wall segments as shown in the figure below.

(31)

Modeling, Analysis & Design of RC Building 33/83 Step 4-13: Delete the Floor inside the Core Walls

(32)

Modeling, Analysis & Design of RC Building 34/83 Step 4-14: Draw Developed Elevation Definition

Go to Draw >> Draw Developed Elevation Definition, type “H1” in the Developed Elevation Name and click “Add New Name”. Click “OK” and draw the line as shown in the figure below.

(33)

Do the same step as above for other developed elevations of core walls as shown in the figure below.

H1 H2

(34)

Modeling, Analysis & Design of RC Building 36/83 Step 4-15: Make the Openings in Walls

Go to Select >> Select Area Object Type, and select “Wall”. Go to View >> Show

(35)

Click on and select “H1” and click “OK”.

Go to Select >> by Area Object Type, and select wall.

(36)

Click on Rubber Band Zoom button to zoom elevation view “H1”. Delete the wall segments for openings as shown in the figure below.

Do the same step as above for elevation “H2” and delete the wall segments for openings.

(37)

Modeling, Analysis & Design of RC Building 39/83 Step 4-16: Assign Pier Labels and Spandrel Labels

Click on and select “2” and click “OK”. Select the walls and go to Assign >>

Shell/Area >> Pier Label, select pier name “P1” and click “OK” as shown in the

(38)

Click on and select “H1” and click “OK”. Click on Rubber Band Zoom button to zoom elevation view at shear wall location. Select the walls at the left side and go to Assign >> Shell/Area >> Pier Label, type pier name “P2” in the Pier Name Box. Click “Add New Name” and then “OK” as shown in the figure below.

(39)

Select the walls above the opening and go to Assign >> Shell/Area >> Spandrel

(40)

Perform the same steps as above to assign the pier label and spandrel as shown in the following figure.

(41)

Modeling, Analysis & Design of RC Building 43/83 Step 4-17: Replicate the Floor

Click on button, select “STORY 1” and change to plan view as shown in the figure below. Go to View >> Show All.

(42)

Select the members by windowing and go to Edit >> Replicate. Select from STORY 2 to STORY 10 in “Story” tab and replicate as shown in the figure below.

(43)

Modeling, Analysis & Design of RC Building 45/83 Step 4-18: Delete the Members

Click on button, select “STORY 5”. Select and delete the members as shown in the figure below.

(44)

Click on button, select “STORY 9”. Select and delete the members as shown in the figure below.

(45)

Modeling, Analysis & Design of RC Building 47/83 Step 4-19: Assign the Columns

Click on and select “1” and click “OK”. Select the columns as shown in the figure below.

(46)

Go to Assign >> Frame Line >> Frame Section, and select C50x50 and click “OK”.

(47)

Modeling, Analysis & Design of RC Building 49/83 Step 4-20: Assign the Supports

Click on button, select “BASE” and change to plan view as shown in the figure below. Select the points by windowing as shown in the figure below.

Go to Assign >> Joint/Point >> Restraints (Supports), and restrained all DOFs as shown in the figure below.

(48)

5. Define Load Cases and Assign Loads

Step 5-1: Define Load Cases

Go to Define >> Static Load Cases, modify the “LIVE” Load as Reducible Live Load as shown in the figure below.

(49)

Add “WX” Load as Wind Load as shown in the figure below.

Modify the “WX” Load as shown in the figure below.

(50)

Add “WY” Load as Wind Load as shown in the figure below.

Modify the “WY” Load as shown in the figure below.

(51)

Add “EQX” Load as Quake Load as shown in the figure below.

Modify the “EQX” Load as shown in the figure below.

(52)

Add “EQNX” Load as Quake Load as shown in the figure below.

(53)

Add “EQY” Load as Quake Load as shown in the figure below.

(54)

Add “EQNY” Load as Quake Load as shown in the figure below.

(55)

Modeling, Analysis & Design of RC Building 57/83 Step 5-2: Define Special Seismic Load Effects

Go to Define >> Special Seismic Load Effects, and enter the parameters to consider in special seismic design as shown in the figure below.

E = ρ Eh + Ev (30-1)

Em = Ω0 Eh (30-2)

E = the earthquake load on an element of the structure resulting from the combination of the horizontal component, Eh, and the

vertical component Ev

Eh = the earthquake load due to the base shear, V, as set forth in

Section 1630.2 or the design lateral force, Fp, as set forth in

Section 1632

Ev = the load effect resulting from the vertical component of the

earthquake ground motion and is equal to an addition of 0.5 Ca

ID to the dead load effect, D, for Strength Design, and may be taken as zero for Allowable Stress Design

In this case Ca = 0.22, 0.5 Ca I = 0.5 x 0.22 x 1 = 0.11

Ω0 = the seismic force amplification factor that is required to account

(56)

ρ = 2 – 20 / (rmax x sqrt(AB)) (30-3)

= 2 – 6.1 / (rmax x sqrt(AB)) (For SI)

rmax = the maximum element-story shear ratio. For a given direction of

loading, the element-story shear ratio is the ratio of the design story shear in the most heavily loaded single element divided by the total design story shear. For any given Story Level i, the element story shear ratio is denoted as ri. The maximum

element-story shear ratio rmax is defined as the largest of the

element story shear ratios, ri, which occurs in any of the story

(57)

Modeling, Analysis & Design of RC Building 59/83 Step 5-3: Assign the Loads

Go to Select >> by Area Object Type, select “Floor” as shown in the figure below.

Go to Assign >> Shell/Area Loads >> Uniform, and assign Live Load of 0.25 t/m2 as shown in the figure below.

(58)

Click on to reselect the floor areas. Go to Assign >> Shell/Area Loads >>

(59)

6. Define Mass Source

Step 6-1: Define Mass Source

Go to Define >> Mass Source, and add the mass from loads as shown in the figure below.

(60)

7. Define the Design Codes

Step 7-1: Define Design Code for Concrete Frame Design

Go to Options >> Preferences >> Concrete Frame Design, change the Design Code

(61)

Modeling, Analysis & Design of RC Building 63/83 Step 7-2: Define Design Code for Shear Wall Design

(62)

8. Assign Rigid Diaphragm and Mesh the Frame

Step 8-1: Assign Rigid Diaphragm

Go to Select >> by Area Object Type, and select “Floor”.

(63)

Modeling, Analysis & Design of RC Building 65/83 Step 8-2: Mesh the Frame

Click on button and go to Assign >> Frame/Line >> Automatic Frame

(64)

9. Add Load Combinations

Step 9-1: Add Load Combinations

Go to Define >> Add Default Design Combos, and add the default combinations as shown in the figure below.

Click on button and go to Design >> Concrete Frame Design >> View/Revise

Overwrites, change Element Type to Sway Intermediate as shown in the figure

(65)

Go to Define >> Special Seismic Load Effects, and select no to include Special Seismic Design Data as shown in the figure below.

(66)

10. Set Analysis Options

Step 10-1: Set Analysis Options

Go to Analyze >> Set Analysis Options, and set the Dynamic Parameters as shown in the figure below.

(67)

11. Run Analysis

Step 11-1: Run Analysis

Go to Analyze >> Run Analysis or click on Run Analysis button to start analysis.

(68)

12. Run Concrete Frame Design and View the Results

Step 12-1: Run Concrete Frame Design

(69)

Modeling, Analysis & Design of RC Building 71/83 Step 12-2: View the Results

Click on button, and set up the building view options as shown in the following figure.

(70)

Activate the left window and Click on button, select “STORY 1”. Change the working unit to “kg-cm”. Go to Design >> Concrete Frame Design >> Display

(71)

(72)

Modeling, Analysis & Design of RC Building 74/83 2 3 Shear Reinforcement Bottom Reinforcement Top Reinforcement 2 3 Minor Shear Reinforcement Major Shear Reinforcement Longitudinal Reinforcement

(73)

13. Run Shear Wall Design and View the Results

Step 13-1: Run Shear Wall Design

(74)

Modeling, Analysis & Design of RC Building 76/83 Step 13-2: View the Results

Click on button, and set up the building view options as shown in the following figure.

(75)

Activate the left window, click on button and select “H1”. Click on Rubber Band

Zoom button to zoom elevation view at shear wall location. Right click on the

(76)

(77)

Go to Design >> Shear Wall Design >> Display Design Info, select design output as shown in the following figure.

(78)

(79)

(80)

14. Check Story Drift

P-∆ Effects

In general, P-∆ effects need not be considered when the stability coefficient (θ) defined as the ratio of secondary moments to primary moments, is less than or equal to 0.1. The stability coefficient (θ) for a given story can be computed from the following equation:

θ = Px ∆ / (Vx hsx)

Px = total unfactored gravity load at and above level x

∆ = seismic story drift

Vx = seismic shear force between levels x and x-1

hsx = story height below level x

From ETABS,

∆ / hsx is extracted from diaphragm drift of ETABS results.

Px is extracted by section cut.

V is extracted from story shear.

Compute θ and if θ < 1, P-∆ effects needs not be considered.

In Seismic Zones 3 and 4, P-∆ effects need not be considered when the story drift (∆) is less than or equal to 0.02hsx / R.

Story Drift Limitations

According to 1630.10, story drifts shall be computed using the maximum inelastic response displacement (∆M), which is an approximation of the displacement that

occurs when the structure is subjected to the design basis ground motion:

∆M = 0.7 R ∆S

∆S is the design level response displacements.

For structures with a fundamental period (T) less than 0.7 seconds, the calculated story drift using ∆M shall not be exceed 0.025 times the story height. For structures

(81)

times the story height.

From ETABS,
