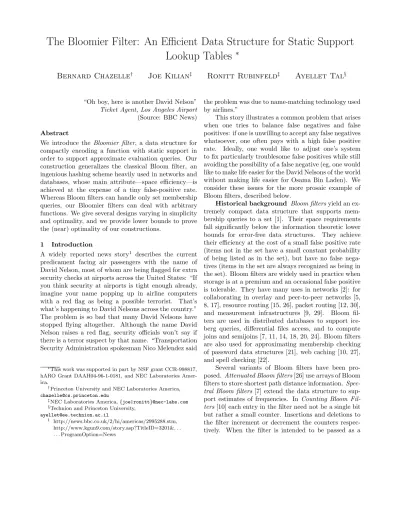

The Bloomier Filter: An Efficient Data Structure for Static Support Lookup Tables ^∗

Bernard Chazelle

^†

Joe Kilian

^‡

Ronitt Rubinfeld

^‡

Ayellet Tal

^§

“Oh boy, here is another David Nelson”

Ticket Agent, Los Angeles Airport (Source: BBC News) Abstract

We introduce the Bloomier filter, a data structure for compactly encoding a function with static support in order to support approximate evaluation queries. Our construction generalizes the classical Bloom filter, an ingenious hashing scheme heavily used in networks and databases, whose main attribute—space efficiency—is achieved at the expense of a tiny false-positive rate.

Whereas Bloom filters can handle only set membership queries, our Bloomier filters can deal with arbitrary functions. We give several designs varying in simplicity and optimality, and we provide lower bounds to prove the (near) optimality of our constructions.

1 Introduction

A widely reported news story¹ describes the current predicament facing air passengers with the name of David Nelson, most of whom are being flagged for extra security checks at airports across the United States: “If you think security at airports is tight enough already, imagine your name popping up in airline computers with a red flag as being a possible terrorist. That’s what’s happening to David Nelsons across the country.”

The problem is so bad that many David Nelsons have stopped flying altogether. Although the name David Nelson raises a red flag, security officials won’t say if there is a terror suspect by that name. “Transportation Security Administration spokesman Nico Melendez said

∗This work was supported in part by NSF grant CCR-998817, hARO Grant DAAH04-96-1-0181, and NEC Laboratories Amer- ica.

†Princeton University and NEC Laboratories America, [email protected]

‡NEC Laboratories America, {joe|ronitt}@nec-labs.com

§Technion and Princeton University, [email protected]

1 http://news.bbc.co.uk/2/hi/americas/2995288.stm, http://www.kgun9.com/story.asp?TitleID=3201&. . . . . . ProgramOption=News

the problem was due to name-matching technology used by airlines.”

This story illustrates a common problem that arises when one tries to balance false negatives and false positives: if one is unwilling to accept any false negatives whatsoever, one often pays with a high false positive rate. Ideally, one would like to adjust one’s system to fix particularly troublesome false positives while still avoiding the possibility of a false negative (eg, one would like to make life easier for the David Nelsons of the world without making life easier for Osama Bin Laden). We consider these issues for the more prosaic example of Bloom filters, described below.

Historical background Bloom filters yield an ex- tremely compact data structure that supports membership queries to a set [1]. Their space requirements fall significantly below the information theoretic lower bounds for error-free data structures. They achieve their efficiency at the cost of a small false positive rate (items not in the set have a small constant probability of being listed as in the set), but have no false negatives (items in the set are always recognized as being in the set). Bloom filters are widely used in practice when storage is at a premium and an occasional false positive is tolerable. They have many uses in networks [2]: for collaborating in overlay and peer-to-peer networks [5, 8, 17], resource routing [15, 26], packet routing [12, 30], and measurement infrastructures [9, 29]. Bloom filters are used in distributed databases to support iceberg queries, differential files access, and to compute joins and semijoins [7, 11, 14, 18, 20, 24]. Bloom filters are also used for approximating membership checking of password data structures [21], web caching [10, 27], and spell checking [22].

Several variants of Bloom filters have been pro- posed. Attenuated Bloom filters [26] use arrays of Bloom filters to store shortest path distance information. Spec- tral Bloom filters [7] extend the data structure to support estimates of frequencies. In Counting Bloom Fil- ters [10] each entry in the filter need not be a single bit but rather a small counter. Insertions and deletions to the filter increment or decrement the counters respectively. When the filter is intended to be passed as a

(2)

message, compressed Bloom filters [23] may be used in- stead, where parameters can be adjusted to the desired tradeoff between size and false-positive rate.

We note that a standard technique for eliminating a very small number of troublesome false positives is to just keep an exception list. However, this solution does not scale well, both in lookup time and storage, when the list grows large (say comparable to the number of actual positives).

This Work A Bloom filter is a lossy encoding scheme for a set, or equivalently, for the boolean char- acteristic function of the set. While Bloom filters allow membership queries on a set, we generalize the scheme to a data structure, the Bloomier filter, that can encode arbitrary functions. That is, Bloomier filters allow one to associate values with a subset of the domain elements. The method performs well in any situation where the function is defined only over a small portion of the domain, which is a common oc- currence. In our (fanciful) terrorist detection example, suspicious names would map to suspect and popular, non-suspicious names (eg, David Nelson) would map to sounds-suspicious-but-really-ok; meanwhile, all but a tiny fraction of the other names would map to ok. This third category is the only source of error. Bloomier filters generalize Bloom filters to functions while maintain- ing their economical use of storage. In addition, they allow for dynamic updates to the function, provided the support of the function remains unchanged.

Another application of Bloomier filters is to build- ing a meta-database, ie, a directory for the union of a small collection of databases. The Bloomier filter keeps track of which database contains information about each entry, thereby allowing the user to jump directly to the relevant databases and bypass those with no relation to the specified entry. Many such meta-databases already exist on the Web: for example, BibFinder, a Computer Science Bibliography Mediator which integrates both general and specific search engines; Debriefing, a meta search engine that uses results from other search engines, a meta-site for zip codes & postal codes of the world, etc. Bloomier filters can be used to maintain lo- cal copies of a directory in any situation in which data or code is maintained in multiple locations.

Our Results Let f be a function from D = {0, . . . , N − 1} to R = {⊥, 1, . . . , 2^r − 1}, such that f (x) =⊥ for all x outside some fixed (arbitrary) subset S ⊆ D of size n. (We use the symbol ⊥ either to denote 0, in which case the function has support S, or to indicate that f is not defined outside of S.) Bloomier filters allow one to query f at any point of S always correctly and at any point of D \ S almost always correctly; specifically, for a random x ∈ D \ S, the

output returns f (x) = ⊥ with probability arbitrarily close to 1. Bloomier filters shine especially when the size of D dwarfs that of S, ie, when N/n is very large.

The query time is constant and the space requirement is O(nr); this compares favorably with the naive bound of O(N r), the bound of O(nr log N ) (which is achieved by merely listing the values of all of the elements in the set) and, in the 0/1 case, the O(n log^N_n) bound achieved by the perfect hashing method of Brodnik and Munro [3]. (Of course, unlike ours, neither of these methods ever errs.) Bloomier filters are further generalized to handle dynamic updates. One can query and update function values in constant time while keeping the space requirement within O(nr), matching the trivial lower bound to within a constant factor.

Specifically, for x∈ S, we can change the value of f(x), though we cannot change S.

We also prove various lower bounds to show that our results are essentially optimal. First we show that randomization is essential: over large enough domains, linear space is not enough for deterministic Bloomier filters. We also prove that, even in the randomized case, the ability to perform dynamic updates on a changing support (ie, adding/removing x to/from S) requires a data structure with superlinear space.

Our Techniques Our first approach to imple- menting Bloomier filters is to compose an assortment of Bloom filters into a cascading pipeline. This yields a practical solution, which is also theoretically near- optimal. To optimize the data structure, we change tack and pursue, in the spirit of [4, 6, 19, 28], an alge- braic approach based on the expander-like properties of random hash functions.

As with bloom filters, we assume that we can use

“ideal” hash functions. We analyze our algorithms in this model; heuristically one can use “practical” hash functions.

2 A Warmup: the Bloom Filter Cascade We describe a simple, near-optimal design for Bloomier filtering based on a cascading pipeline of Bloom filters.

For illustrative purposes, we restrict ourselves to the case R = {⊥, 1, 2}. Let A (resp. B) be the subset of S mapping to 1 (resp. 2). Note that the “obvious”

solution which consists of running the search key x through two Bloom filters, one for A and one for B, does not work: What do we do if both outputs contradict each other? One possible fix is to run the key through a sequence of Bloom filter pairs: (F(Aⁱ),F(Bⁱ)), for i = 0, 1, . . . , α and some suitable parameter α. The first pair corresponds to the assignment A0= A and B0= B.

Ideally, no key will pass the test for membership in both A and B, as provided by F(A⁰) andF(B⁰), but

(3)

we cannot count on it. So, we need a second pair of Bloom filters, and then a third, a fourth, etc. (The idea of multiple Bloom filters appears in a different context in [7].) Generally, we define Ai to be the set of keys in A_i−1 that pass the test inF(Bi−1); by symmetry, Biis the set of keys in B_i−1that pass the test inF(Ai−1). In other words, Ai = A_i−1∩ Bi−1^∗ and Bi = B_i−1∩ A^∗i−1, where A^∗_i and B^∗_i are the set of false positives forF(Aⁱ) andF(Bⁱ), respectively.

Given an arbitrary key x∈ D, we run the test with respect toF(A⁰) and thenF(B⁰). If one test fails and the other succeeds, we output 1 or 2 accordingly. If both tests fail, we output⊥. If both tests succeed, however, we cannot conclude anything. Indeed, we may be faced with two false positives or with a single false positive from either A or B. To resolve these cases, we call the procedure recursively with respect toF(A¹) andF(B¹).

Note that A1 (resp. B1) now plays the role of A (resp.

B), while the new universe is A^∗∩B^∗. Thus, recursively computed outputs of the form ‘in A1’, in B1’, ‘not in A1∪ B¹’ are to be translated by simply removing the subscript 1.

For notational convenience, assume that |A| =

|B| = n. Let nⁱbe the random variable max{|Aⁱ|, |Bⁱ|}.

All filters use the same number of hash functions, which is a large enough constant k. The storage allocated for the filters, however, depends on their ranks in the sequence. We provide each of the Bloom filters F(Aⁱ) andF(Bⁱ) with an array of size 2^kⁱkni. The number α of Bloom filter pairs is the smallest i such that ni= 0. A key in Ai ends up in Ai+1 if it produces a false positive for F(Bⁱ). This happens with probability at most (k|Bⁱ|2^kⁱkni)^k = 2^−kⁱ⁺¹. This implies that a key in A belongs to Aiwith probability at most 2^−(kⁱ⁺¹^{−k)/(k−1)}; therefore,

Eni≤ n2^−(kⁱ⁺¹^{−k)/(k−1)}and Eα≤ 2 log log n/ log k.

The probability that a search key runs through the i-th filter is less than 2^−kⁱ, so the expected search time is constant. The expected storage used is equal to

E

α

X

i=0

2^kⁱkni = kn

α

X

i=0

2^−(kⁱ^{−k)/(k−1)}= O(km).

Note that, if N is polynomial in n, we can stop the recursion when ni is about n/ log n and then use perfect hashing [3, 13]. This requires constant time and O(n) bits of extra storage. To summarize, with high probability a random set of hash functions provides a Bloomier filter with the following characteristics: (i) the storage is O(kn) bits; (ii) at most a fraction O(2^−k) of D produces false positives; and (iii) the search time

is O(log log n) in the worst case and constant when averaged over all of D.

3 An Optimal Bloomier Filter

Given a domain D = {0, . . . , N − 1}, a range R = {⊥, 1, . . . , |R| − 1}, a subset S = {t¹, . . . , tn} of D, we consider the problem of encoding a function f : D7→ R, such that f (ti) = vi for 1 ≤ i ≤ n and f(x) = ⊥ for x ∈ D \ S. Note that the function is entirely specified by the assignment A = {(t¹, v1), . . . , (tn, vn)}. For the purpose of constructing our data structure, we assume that the function values in R are encoded as elements of the additive group Q ={0, 1}^q, with addition defined bitwise mod 2. As we shall see, the false-positive rate is proportional to 2^−q, so q must be chosen sufficiently large. Any x ∈ R is encoded by its q-bit binary expansion encode (x). Conversely, given y ∈ Q, we define decode (y) to be the corresponding number if it is less than |R| and ⊥ otherwise. We use the notation r =dlog |R|e.

Given an assignment A, we denote by A(t) the value A assigns to t, ie, A(ti) = vi. Let Π be a total ordering on S. We write a >Π b to mean that a comes after b in Π. We define Π(i) to be the ith element of S in Π;

if i > j, then obviously Π(i) >Π Π(j). For any triple (D, m, k), we assume the ability to select a random hash function hash : D → {1, . . . , m}^k. This allows us to access random locations in a Bloomier filter table of size m.

Definition 3.1. Given hash as above, let hash (t) = (h1, . . . , hk, ). We say that{h¹, . . . , hk} is the neighborhood of t, denoted N(t).

Bloomier filter tables store the assignment A, and are created by calling the procedure create (A) [m, k, q], where A denotes the assignment and (m, k, q) are the parameters chosen to optimize the implementation. For notational convenience, we will omit mention of these parameters when there is no ambiguity. Our ultimate goal is to create a one-sided error, linear space (measured in bits) data structure supporting constant-bit table lookups. Specifically, we need to implement the following operations:

• create (A): Given an assignment A ={(t¹, v1), . . . , (tn, vn)},

create (A) sets up a data structure Table. The subdomain {t¹, . . . , tn} specified by A is denoted by S.

• set value (t, v, Table): For t ∈ D and v ∈ R, set value (t, v, Table) associates the value v with

(4)

domain element t in Table. It is required that t be in S.

• lookup (t, Table): For t ∈ S, lookup (t, Table) returns the last value v associated with t. For all but a fraction ε of D\S, lookup (t, Table) returns

⊥ (ie, certifies that t is not in S). For the remaining elements of D\ S, lookup (t, Table) returns an arbitrary element of R.

A data structure that supports only create and lookup is referred to as an immutable data structure.

Note that although re-assignments to elements in S are made by set value , no changes to S are allowed. Our lower bounds show that, if we allow S to be modi- fied, then linear size (measured in bits) is impossible to achieve regardless of the query time. In other words, Bloomier filters provably rule out fully dynamic operations.

There are three parameters of interest in our constructions: the runtime of each operation, the space requirements, and the false-positive rate . The create operation runs in expected O(n log n) time (indeed, O(n) time, depending on the model) and uses O(n(r + log 1/ε)) space. The set value and lookup operations run in O(1) time.

3.1 An Overview We first describe the immutable data structure and later show how to use the same prin- ciples to construct a mutable version. The table consists of m q-bit elements, where m and q are implementation parameters. We denote by Table [i] ∈ {0, 1}^q the ith q-bit value in Table. To look up the value v associated with t, we use a hash function hash to compute k locations (h1, . . . , hk), where 1 ≤ hⁱ ≤ m, and a q-bit

“masking value” M (used for reducing false positives).

We then compute x = M ⊕Lk

i=1Table [hi], where ⊕ denotes the bit-wise exclusive-or operation.

There are two main issues to address. First, we must set the values of Table [i], for i = 1, . . . , m, so that the decode operations yield the correct values for all t∈ S. We need to show that with high probability a “random” solution works (for appropriate parameter settings), and furthermore we wish to compute the assignment efficiently, which we do by a simple greedy algorithm. Second, we must ensure that, for all but an

expected fraction of t∈ D \ S, the computed “image”

in Q decodes to⊥.

We set the table values using the following key technique. Given a suitable choice of m and k, we show that, with high probability, there is an ordering Π on S and an order respecting matching, defined as follows:

Definition 3.2. Let S be a set with a neighborhood N(t) defined for each t ∈ S. Let Π be a complete

ordering on the elements of S. We say that a matching

τ

respects (S, Π, N) if (i) for all t∈ S,

τ

_(t)∈ N(t), and (ii) if ti >Π tj, then

τ

_(t_i₎_{6∈ N(t}_j). When the function hash (and hence N ) is understood from the context, we say that

τ

respects Π on S.

Given Π and

τ

, we can, for t = Π(1), . . . , Π(n), set the value v associated with t by setting Table [

τ

_(t)].

By the order-respecting nature of

τ

, this assignment cannot affect any previously set values. We show the existence of good (Π,

τ

) using the notion of lossless expanders [6, 28]. Our analysis implies that, with high probability (over hash ), we can find (Π,

τ

) in nearly linear time using a greedy algorithm.

To limit the number of false positives, we use the random mask M produced by hash (t). Because M is distributed uniformly and independently of any of the values stored in Table, when we look up t 6∈

S, the resulting value is uniformly and independently distributed over {0, 1}^q. If the size of R is small compared with the size of {0, 1}^q, then with high probability this value will not encode a legal value of R, and we will detect that t6∈ S.

We make a mutable structure by using a two-table construction. We use the first table, Table1, to encode

τ

(t) for each t ∈ S. We note that since N(t) has only k values, which may be computed from hash (t),

τ

_(t)∈ N(t) can be compactly represented by a number in {1, . . . , k}. Now, it follows from the definitions that if t6= t⁰ for t, t⁰∈ S,

τ

_(t)₆₌

τ

_(t⁰). Thus, we can simply store the value associated with t in Table2[

τ

_{(t)]; the}

locations will never collide.

3.2 Finding a Good Ordering and Matching We give a greedy algorithm that, given S and hash , computes a pair (Π,

τ

) such that

τ

respects Π on S.

First, we consider how to compactly represent

τ

_{. Recall}

that hash (t) defines the k neighbors, h1, . . . , hk of t.

Therefore, given hash , we can represent

τ

_(t) _{∈ N(t)}

by an element of {1, . . . , k}. Thus, we define ι(t) such that

τ

_{(t) = h}_ι(t)_{. With S =}_{t₁, . . . , tn}, we also use the shorthand ιi= ι(ti), from which

τ

₌_{ι₁, . . . , ιn}. Our algorithm is based on the abundance of “easy matches.”

Definition 3.3. Let m, k, hash be fixed, defining N(t) for t ∈ D, and let S ⊆ D. We say that a location h ∈ {1, . . . , m} is a singleton for S if h ∈ N(t) for exactly one t∈ S. We define tweak (t, S, hash ) to be the smallest value j such that hj is a singleton for S, where N(t) = (h1, . . . , hk); tweak (t, S, hash ) = ⊥ if no such j exists.

If tweak (t, S, hash ) is defined, then it sets the value of ι(t) and t is easy to match. Note that this

(5)

choice will not interfere with the neighborhood for any different t⁰ ∈ S. Let E denote the subset of S with

“easy matches” of that sort, and let H = S\ E. We recursively find (Π⁰,

τ

⁰) on H and extend (Π⁰,

τ

⁰_{) to}

(Π,

τ

) as follows. First, we put the elements of E at the end of the ordering for the elements of H, so that if t ∈ E and t⁰ ∈ H, then t >^Π t⁰ (the ordering of the elements within E can be arbitrary). Then we define

τ

(t) to be the union of the matchings for H and E. It is immediate that

τ

respects Π on S. We give the algorithm in Figure 1. Note that it is not at all clear that our algorithm for find match will succeed.

We show that for m and k suitably large, and hash chosen at random, find match will succeed with high probability.

3.3 Creating a Mutable Bloomier Filter Given an ordering Π on S, and a matching

τ

that respects Π on S (given the neighborhoods defined by hash ), we store values associated with any t ∈ S as follows.

Given t∈ S,

τ

gives a location L∈ N(t) such that L is not in the neighborhood of any t⁰ that appears before t in Π. Furthermore, given hash (t), L has a compact description as an element ` ∈ {1, . . . , k}. Finally, no other t⁰∈ S (before or after t) has the same value of L.

We can construct an immutable table as follows:

For t = Π[1], . . . , Π[n], we compute the neighborhood N(t) ={h¹, . . . , hk} and mask M from hash (t). From

τ

(t) we obtain L ∈ N(t) with the above properties.

Finally, we set Table [L] so that M ⊕Lk

i=1Table [hi] encodes the value v associated with t. By the properties of L given above, altering Table [L] cannot affect any of the t⁰ whose associated values have already been put into the table. To retrieve the value associated with t, we simply compute

x = M⊕

k

M

i=1

Table [hi],

and see if x is a correct encoding of some value v∈ R. If it is not, we declare that t6∈ S. Because M is random, so is x if t 6∈ S; therefore, it is a valid encoding only with probability|R|/2^q.

In order to make a mutable table, we use the fact that each t∈ S has a distinct matching value L, with a succinct representation `∈ {1, . . . , k} (given hash (t)).

We use the above technique to make an immutable table that stores for each t the value ` that can be used to recover its distinct matching value L. We then store any value associated with t in the Lth location of a second table.

We give our final algorithms in Figures 2 and 3.

4 Analysis of the Algorithm

The most technically demanding aspect of our analysis is in showing that for a random hash , and sufficiently large k and m, the find match routine will with high probability find (Π,

τ

) such that

τ

respects Π on S. Once we have such an (Π,

τ

), the analysis of our algorithms is straightforward.

Lemma 4.1. Assuming that find match succeeded in create, then for t ∈ S, the value v returned by lookup(t, Table) will be the most recent v assigned to t by create or set value .

Proof. When the assignment for t is first stored in Table,

τ

(t) generates a location L ∈ N(t), with a concise representation ` ∈ {1, . . . , k}. By the construction, Table1[L] is set so that

M⊕ M

Z∈N^(t)

Table1[Z]

is a valid representation for `. We claim that the same value of ` (and hence L) is recovered by the lookup and set value commands on input t. These routines recover ` by the same formula; it remains to verify that none of the operations causes this value to change. We observe that the lookup and set value commands do not alter Table1. The only indices of Table1 subsequently altered by create are of the form

τ

_(t⁰_{), where t}⁰ _>_Πt (since the ts are processed according to Π). However, by the properties of

τ

, it follows that

τ

_(t⁰₎ 6∈ N(t), so these changes to Table¹ cannot affect the recovered value of `, and hence L.

Finally, we observe that all of the L are distinct:

Suppose that t1, t2 ∈ S and t¹ 6= t². Assume without loss of generality that t1 >Π t2. Then

τ

_(t₁₎ _{6∈ N(t}₂_),

but

τ

_(t₂₎ _{∈ N(t}₂_{), so}

τ

_(t₁₎ ₆₌

τ

_(t₂). It follows that Table2(L) is only altered when create and set value associate a value to t, as desired. ♦

Lemma 4.2. Suppose that Table is created using an assignment with support S. Then if t6∈ S,

Pr[lookup (t, Table) = ⊥]≥ 1 − k 2^q,

where the probability is taken over the coins of create , assuming that hash is a truly random hash function.

Proof. Since t6∈ S, the data structures were generated completely independent of the values of

(h1, . . . , hk, M ) = hash (t).

In particular, M is uniformly distributed over {0, 1}^q, independent of anything else. Hence, the value of

M⊕ M

Z∈N(t)

Table1[Z]

(6)

find match(hash , S)[m, k] Find (Π,

τ

) for S, hash 1. E =∅;Π = ∅

For ti∈ S

If tweak(ti, S, hash ) is defined ιi= tweak (ti, S, hash ) E = E + ti

If E =∅ Return (failure) 2. H = S\ E

Recursively compute (Π⁰,

τ

⁰) = find match (hash , H)[m, k].

If find match(hash ,H)[m,k]=failure Return (failure) 3. Π = Π⁰

For ti∈ E

Add ti to the end of Π (ie, make ti be the largest element in Π thus far) Return(Π,

τ

₌_{ι₁, . . . , ιn})

(where ιi is determined for ti ∈ E, in Step 1, and for tⁱ∈ H (via

τ

⁰) in Step 2.)

Figure 1: Given hash and S, find match finds an ordering Π on S and a matching

τ

on S that respects Π on S.

create(A ={(t¹, v1) . . . , (tn, vn)})[m, k, q] (create a mutable table) 1. Uniformly choose hash : D→ {1, . . . , m}^k× {0, 1}^q

S ={t¹, . . . , tn}

Create Table1to be an array of m elements of {0, 1}^q Create Table2to be an array of m elements of R.

(the initial values for both tables are arbitrary) Put (hash , m, k, q) into the “header” of Table1

(we assume that these values may be recovered from Table1) 2. (Π,

τ

) = find match (hash , S)[m, k]

If find match(hash , S)[m, k] = failure Goto Step 1 3. For t = Π[1], . . . , Π[n]

v = A(t) (ie, the value assigned by A to t) (h1, . . . , hk, M ) = hash (t)

L =

τ

(t); ` = ι(t) (ie, L = h`) Table1[L] = encode (`)⊕ M ⊕

k

M i= 1 i6= `

Table1[hi]

Table2[L] = v

4. Return(Table = (Table1, Table2))

Figure 2: Given an assignment A and parameters m, k, q, create creates a mutable data structure corresponding to A.

(7)

lookup(t, Table = (Table1, Table2)) 1. Get (hash , m, k, q) from Table1

(h1, . . . , hk, M ) = hash (t)

` = decode M⊕

k

M

i=1

Table1[hi]

!

2. If ` is defined L = h`

Return(Table2[L]) Else Return(⊥)

set value(t, v, Table = (Table1, Table2)) 1. Get (hash , m, k, q) from Table1

(h1, . . . , hk, M ) = hash (t)

` = decode M⊕

k

M

i=1

Table1[hi]

!

2. If ` is defined L = h`

Table2[L] = v Return(success) Else Return(failure)

Figure 3: lookup looks up t in Table = (Table1, Table2). set value sets the value associated with t∈ S to v in Table = (Table1, Table2). Note that for set value , t must be an element of S, as determined (by A) in the original create invocation.

will be uniformly distributed over {0, 1}^q. However, there are only k out of 2^q values encoding legitimate values of `∈ {1, . . . , k}. ♦

Thus, in the “ideal” setting, where hash is truly random, it suffices to set

q =

lg k

.

to achieve a false positive rate of . Of course, hash is generated heuristically, and is at best pseudorandom, so this analysis must be taken in context. We note that if hash is a cryptographically strong pseudorandom function, then the behavior of the data structure using hash will be computationally indistinguishable from that of using a truly random hash ; however, functions with provable pseudorandomness properties are likely to be too complicated to be used in practice.

4.1 Analyzing find match It remains to show for any S, with reasonable probability (constant probability suffices for our purposes), find match will indeed find a pair (Π,

τ

) such that

τ

respects Π on S. Recall that find match works by finding an “easy” set E, solving the problem recursively for H = S\ E, and then combining the solutions for E and H to get a solution for S. To show that find match terminates, it suffices to show that for any subset A of S, find match will find a nonempty “easy” set, EA, implying that find match always makes progress.

Let G be an n × m bipartite graph defined as follows: On the left side are n vertices, L1, . . . , Ln∈ L, corresponding to elements of S. On the right side are m vertices, R1, . . . , Rm∈ R, corresponding to {1, . . . , m}.

Recall that hash defines for each ti∈ S a set of k values

h1, . . . , hk∈ {1, . . . , m}; G contains an edge between Lⁱ and Rhj, for 1 ≤ j ≤ k. The following property is crucial to our analysis:

Definition 4.1. Let G be as above. We say that G has the singleton property if for all nonempty A ⊆ L, there exists a vertex Ri∈ R such that Rⁱ is adjacent to exactly one vertex in A.

We claim that if G has the singleton property, then find match will never get stuck. This is because whenever find match is being called on a subset A of S, the resulting easy set will contain Ri, and hence will be nonempty.

We next reduce the singleton property to a well- studied (lossless) expansion property. Let N(v) be the set of neighbors of a vertex v ∈ L, and for A ⊆ L, let N(A) be the set of neigbors (in R) of elements of A.

Definition 4.2. Let G be as above. We say that G has the lossless expansion property if for all nonempty A⊆ L, |N(A)| > k|A|/2.

Lemma 4.3. If G has the lossless expansion property, then it has the singleton property.

Proof. Assume to the contrary that each node in N(A) has degree at least 2. Then G graph has at least 2|N(A)|

edges. However, by the lossless expansion property, N(A) >|A|k/2, so G has greater than |A|k edges, which is a contradiction.

Now, choosing hash at random corresponds to choosing G according to the following distribution:

Each v∈ L selects (with replacement) k random vertices in r1, . . . , rk∈ R to be adjacent to. Such random graphs are well studied; Lemma 4.4 follows from a standard counting argument.

(8)

Lemma 4.4. Let G be chosen as above, with fixed k and m = ckn. For any constant c > 1 + 1/√n and n sufficiently large, G has the lossless expansion probability with probability at least 2/3.

Proof. (Sketch) The probability of a counterexample is at most

n

X

s=1

n s

m

bks/2c

bks/2c m

^ks

≈

n

X

s=1

en s

s 2ecn s

ks/2

s 2cn

ks

≈

n

X

s=1

e^k/2+1 2^k/2s

^ss cn

ks/2

≤ o(1) + X

s≥√ n

c^−s

= o(1).

♦

5 Lower Bounds

We consider the case R ={⊥, 1, 2}. The set S splits into the subsets A and B that map to 1 and 2, respectively.

It is natural to wonder whether a single set of hash functions might be sufficient for all pairs A, B. In other words, is deterministic Bloomier filtering possible with only O(n) bits of storage. We provide a negative answer to this question. Our lower bound also holds for nonuniform algorithms; in other words, we may use an arbitrary large amount of storage besides the Bloomier filter tables as long as the encoding depends only on n and N .

Theorem 5.1. Deterministic Bloomier filtering requires Ω(n + log log N ) bits of storage.

Proof. Let G be a graph with _2n^N _2n

n nodes, each one corresponding to a distinct vector{−1, 0, 1}^N with exactly n coordinates equal to 1 and n others equal to

−1. Two nodes of G are adjacent if there exists at least one coordinate position 1≤ i ≤ N such that their corresponding vectors (x1, . . . , xN) and (y1, . . . , yN) sat- isfy xiyi =−1. Intuitively, each node corresponds to a choice of A (the 1 coordinates) and B (the −1 coordinates). Two nodes are joined by an edge if the set A of one node intersects the set B of the other one. Since the table T is the only source of information about A, B, no two adjacent nodes should correspond to the same table assignment; therefore, the size m of the array is at least log χ(G), where χ(G) is the chromatic number of G.

Theorem 5.1 follows directly from the lemma below.

♦

Lemma 5.1. The chromatic number of G is between Ω(2ⁿlog N ) and O(4ⁿln N ).

Proof. Consider a minimum coloring of G. For any vector w ∈ {−1, 1}ⁿ and any sequence of n indices 1 ≤ i¹ < · · · < iⁿ ≤ N, there exists a color c such that w = (z_i^c₁, . . . , z_i^c_n). To see why, consider a choice of A, B that matches the coordinates of w at the positions i1, . . . , in. If we turn all the minus ones to zeroes, the resulting set of vectors z^c is (N, n)-universal (meaning that the restrictions of the vectors z^c to any given choice of n coordinate positions produce all possible 2ⁿ patterns). By Kleitman and Spencer [16], the number of such vectors is known to be Ω(2ⁿlog N ). For the upper bound, we use the existence of a (N, 2n)-universal set of vectors of size O(n2ⁿlog N )—also established in [16]—

and turn all zeroes into minus ones. (Alternatively, we can use Razborov’s bound on the size of separating sets [25].) Each node is colored by picking a vector from the universal set that matches the the ones and minus ones of the vector associated with that node. ♦

Going back to the randomized model of Bloomier filtering, we consider what happens if we attempt to modify the set S itself. Again we give a negative answer, but this time the universe size need be only polynomially larger than n for the scheme to break down. Intuitively, this shows that too much information is lost in a linear bit size encoding of the function f to allow for changes in the set S.

Theorem 5.2. If N = 2ⁿ^O(1) and the number m of storage bits satisfies n≤ m ≤ ⁿc log log(N/cn³) for some large enough constant c, then Bloomier filtering cannot support dynamic updates on the set S.

Proof. Again, we consider S to be the disjoint union of of an n-set A (resp. B) mapping to 1 (resp. 2).

Fix the original B, and consider the assignments of the table T corresponding to the various choices of A. With each assignment of T is associated a certain family of n-element sets A⊆ D. Let F be the largest such family:

obviously, |F| ≥ ^Nn2^−m. Given an integer k > 0, let Lk be the set of elements x∈ U that belong to at least k sets of |F|. It is easy to see that L^k cannot be too small. Indeed, let F^k denote the subfamily consisting of the sets of F that are subsets of L^k. Obviously,

|F \ F^k| ≤ (k − 1)N. The assumptions of the theorem imply that N > cn³; thus, the choice of k =b|F|/2Nc ensures that k > c and

|F^k| ≥ |F| − (k − 1)N > 1

2|F| ≥N n

2^−m−1. Because ^L_n^k ≥ |F^k|, it follows that

|L^k| ≥ 2⁻^m+1ⁿ N.

(5.1)

(9)

The expected number of sets in F that a random element from D intersects is _Nⁿ|F|. Given an n-element B ⊆ D, let F^B denote the subfamily of F whose sets intersect B. For a random B,

EXn |S| : S ∈ F^Bo

≤ n³ N |F|.

Let Fc^B = F \ F^B and L^B_k = S { S ∩ Lk| S ∈ Fc^B}.

Since each x∈ L^k intersects at least k sets ofF,

E|L^Bk| ≥ |L^k| − n³

kN |F| ≥ |L^k| − 3n³.

Once the new choice of B is revealed, the table gets updated. The only information about A is encoded in the previous table assignment. Thus the algorithm cannot distinguish between any two sets A in Fc^B. To summarize, given a random B, the algorithm must answer ‘in A’ for any search key in L^B_k; furthermore,

Probh

|L^Bk| ≥ |L^k| − 6n³i

≥ 1 2. (5.2)

Next, we partition the family of n-element sets B according to the assignment of T each one corresponds to. This gives us at most 2^m subfamilies {Gⁱ}, with P

i|{Gⁱ}| = ^Nn. If Mi denotes the union S{ S ∩ Lk| S ∈ Gⁱ}, then given any new choice of B in Gⁱ the algorithm must answer ‘in B’ for any search key in Mi. By our previous remark, therefore, it is imperative that Mi should be disjoint from L^B_k. We show that if m is too small, then for a random choice of B both sets intersect with high probability.

Fix a parameter λ =b|L^k|2^−c^m/nc. Let i(B) denote the index j such that B ∈ G^j and let τ =d|L^k|n/2Ne.

Given a random B, by Chernoff’s bound, the probability that |B ∩ L^k| < τ is o(1). On the other hand, the conditional probability that |M^i(B)| ≤ λ, given that

|B ∩ L^k| ≥ τ, is at most

maxs≥τ 2^mλ s

.|L^k| s

= 2^mλ τ

.|L^k| τ

≤ 2^m λ^τ

|L^k|^τ

= o(1).

Therefore, the probability that|M^i(B)| > λ is 1 − o(1).

Since λ > 6n³, it follows that, with probability at least 1/2−o(1), |M^i(B)| intersects L^Bk and the algorithm fails.

♦

References

[1] Bloom, B. Space/time tradeoffs in in hash coding with allowable errors, CACM 13 (1970), 422–426.

[2] Broder, A., Mitzenmacher, M. Network applications of Bloom filters: a survey, Allerton 2002.

[3] Brodnik, A., Munro, J.I., Membership in constant time and almost minimum space, SIAM J. Comput.

28 (1999), 1628–1640.

[4] Buhrman, H., Miltersen, P.B., Radhakrishnan, J., Venkatesh, S. Are bitvectors optimal? Proc. 32th STOC (2000), 449–458.

[5] Byers, J., Considine, J., Mitzenmacher, M. Informed content delivery over adaptive overlay networks, Proc.

ACM SIGCOMM 2002, Vol. 32:4, Computer Commu- nication Review (2002), 47–60.

[6] Capalbo, M., Reingold, O., Vadhan, S., Wigderson, A.

Randomness conductors and constant-degree expansion beyond the degree /2 barrier, Proc. 34th STOC (2002), 659–668.

[7] Cohen, S., Matias, Y. Spectral Bloom filters, SIGMOD 2003.

[8] Cuena-Acuna, F.M., Peery, C., Martin, R.P., Nguyen, T.D. PlanetP: Using gossiping to build content ad- dressable peer-to-peer information sharing communi- ties, Rutgers Technical Report DCS-TR-487, 2002.

[9] Estan, C., Varghese, G. New directions in traffic measurement and accounting, Proc. ACM SIGCOMM 2002, Vol 32:4, Computer Communication Review (2002), 323–336.

[10] Fan, L., Cao. P., Almeida, J., Broder, A. Summary cache: a scalable wide-area web cache sharing protocol, IEEE / ACM Transactions on Networking, 8 (2000), 281-293.

[11] Fang, M., Shivakumar, N., Garcia-Molina, H., Mot- wani, R., Ullman. J. Computing iceberg queries efficiently, Proc. 24th Int. Conf. on VLDB (1998), 299–

310.

[12] Feng, W.-C., Shin, K.G., Kandlur, D., Saha, D.

Stochastic fair blue: A queue management algorithm for enforcing fairness, INFOCOM ’01 (2001), 1520–

1529.

[13] Fredman, M.L., Komlos, J., Szemeredi, E. Storing a sparse table with O(1) worst case access time, J. ACM 31 (1984), 538–544.

[14] Gremillion, L.L. Designing a Bloom Filter for differential file access, Comm. ACM 25 (1982), 600–604.

[15] Hsiao, P. Geographical region summary service for geographical routing, Mobile Computing and Communi- cations Review 5 (2001), 25–39.

[16] Kleitman, D.J., Spencer, J. Families of k-independent sets, Discrete Math 6 (1973), 255–262.

[17] Ledlie, J., Taylor, J., Serban, L., Seltzer, M. Self- organization in peer-to-peer systems, Proc. 10th Eu- ropean SIGOPS Workshop, September 2002.

[18] Li, Z., Ross, K.A. PERF join: an alternative to two- way semijoin and bloomjoin CIKM ’95, Proc. 1995 In-

(10)

ternational Conference on Information and Knowledge Management, 137–144, November 1995.

[19] Luby, M. LT codes, Proc. 43rd Annu. IEEE Symp.

Foundat. Comput. Sci., 2002.

[20] Mackert, L., Lohman, G. R* optimizer validation and performance for distributed queries, Proc. Int’l. Conf.

on VLDB (1986), 149–159.

[21] Manber, U., Wu, S. An algorithm for approximate membership checking with application to password security, Information Processing Letters 50 (1994), 191–

197.

[22] McIlroy, M.D. Development of a spelling list, IEEE Trans. on Communications, COM-30 (1982), 91–99.

[23] Mitzenmacher, M. Compressed Bloom filters, IEEE Transactions on Networking 10 (2002).

[24] Mullin, J.K. Optimal semijoins for distributed database systems, IEEE Transactions on Software Engineering 16 (1990).

[25] Razborov, A.A. Applications of matrix methods to the theory of lower bounds in computational complexity, Combinatorica 10 (1990), 81–93.

[26] Rhea, S.C., Kubiatowicz, J. Probabilistic location and routing, Proceedings of INFOCOM 2002.

[27] Rousskov, A., Wessels, D. Cache digests, Computer Networks and ISDN Systems, 30(22-23), 2155-2168, 1998.

[28] Sipser, M., Spielman, D.A. Expander codes, IEEE Trans. Inform. Theory 42 (1996), 1710–1722.

[29] Snoeren, A.C., Partridge, C., Sanchez, L.A., Jones, C.E., Tchakountio, F., Kent, S.T., Strayer W.T. Hash- based IP traceback, Proc. ACM SIGCOMM 2001, Vol.

31:4, Computer Communication Review, 3–14, August 2001.

[30] Whitaker, A., Wetherall, D. Forwarding without loops in Icarus, Proc. 5th OPENARCH (2002), 63–75.

The Bloomier Filter: An Efficient Data Structure for Static Support Lookup Tables
